Origins and Monumental Scale

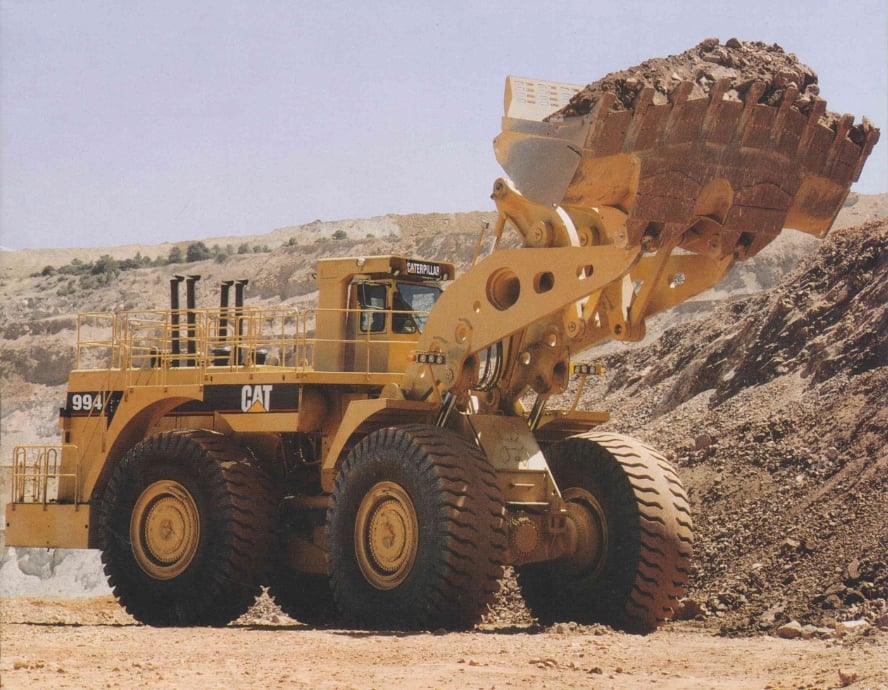

- Introduced in the early 1990s, the Caterpillar 994 quickly became the largest wheel loader ever built by the company .
- Weighing approximately 427,209 lb (about 194 t), it towered over its predecessor, the 992, and marked a leap forward in heavy-duty loading capacity .
- Its massive tires—measuring nearly 13 feet in diameter and weighing over 13,800 lb—spoke to the machine’s colossal footprint .
- A 23 yd³ bucket enabled it to haul up to 70,000 lb per load and fully load a 150-ton haul truck in just four passes .
- Manufactured: From 1992 through to the present .
- Operating Weight: Around 172 t (~379,000 lb) .
- Bucket Capacity: Standard ~10 m³; Max up to ~31 m³ .
- Size Profile:
- Length: ~16.65 m
- Width: ~5.21 m
- Height: ~6.53 m .
- Length: ~16.65 m
- Performance Metrics:
- Max discharge height: ~5.66 m
- Top travel speed: ~22.8 km/h
- Outside turning radius: ~11.44 m .
- Max discharge height: ~5.66 m
- Egypt-wide upgrades emerged over time, like the 994D with reinforced components and the introduction of joystick steering .
- The 994H weighed around 430,858 lb, utilizing a 1,577 hp engine and offering improved torque of 6,289 lb-ft at 1,000 rpm .

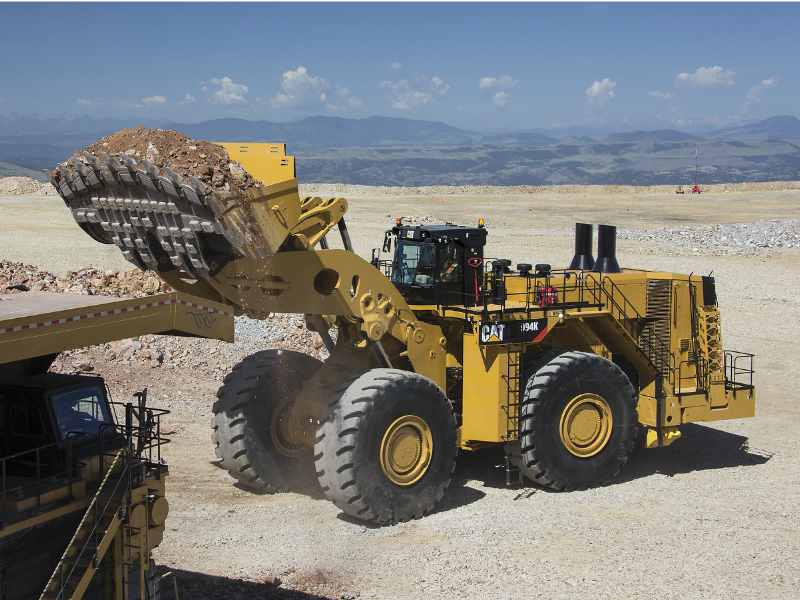

- The modern 994K, introduced mid‑2010s, takes payload and power to a new level:
- Equipped with a Cat 3516E engine producing up to 1,739 hp (net) / 1,870 hp (gross) .
- Operating weight climbs to 534,852 lb (~242 t) .
- Bucket capacities range from 22.3 to 57 yd³ (17.2 to 43.6 m³) .
- Efficient hydraulic cycles—rack-back in ~4.9 s, raise in ~12.6 s, dump in ~3.1 s—totaling ~23.5 seconds per cycle .
- Designed to load key Cat mining trucks in fewer passes (e.g., Cat 785 in 4, Cat 789 in 5, Cat 793 in 6) for optimized productivity .
- Equipped with a Cat 3516E engine producing up to 1,739 hp (net) / 1,870 hp (gross) .
- Operating Weight: Total mass used in planning haulage and site logistics.
- Bucket Capacity: Volume of material moved per load—critical for productivity.
- Torque Rise: Percentage increase in engine torque under load; higher values help performance.
- Dump Clearance/Reach: Determines which haul trucks the loader can service.
- Hydraulic Cycle Time: Efficiency metric—how long each load movement takes from fill to dump.
- At its launch, operators reportedly grappled with finding suitable tires—available ones were only barely adequate for the enormous 994—highlighting how technological advances often drive supply innovation .
- The 994 was frequently called upon to substitute for electric shovels when downtime struck, thanks to its sheer volume capacity and mobility .
- Its decades-long production run speaks volumes about its design success. From the original 994 through to the potent 994K, each model iteration served as a testament to Cat's engineering evolution.
The Caterpillar 994 series encapsulates an era of heavy machinery defined by scale, strength, and innovation. Its ongoing legacy—from towering dimensions to engine power and seamless hydraulics—reflects not only mining efficiency but also the creative solutions demanded by modern operations.
