Introduction to the CAT 246
The Caterpillar 246 is a compact track loader (CTL) known for its versatility and ability to perform a wide range of tasks in industries like construction, landscaping, and agriculture. With its powerful engine, robust hydraulic systems, and smooth track operation, the CAT 246 is a popular choice for operators seeking reliable performance in tight spaces. However, like any heavy equipment, it can encounter issues such as engine failure, which can be both costly and time-consuming to resolve.
One such issue is a "blown motor" or engine failure, which may leave operators wondering what went wrong and how to fix it. In this article, we'll explore common causes of engine failure in the CAT 246, troubleshooting steps, and solutions to get your machine back to work.
What Does a "Blown Motor" Mean?
A "blown motor" is a term commonly used to describe an engine that has suffered a catastrophic failure. The failure can occur due to various reasons, but most often, it involves the engine components being damaged beyond repair. In the case of the CAT 246, a blown motor can result from issues such as overheating, low oil pressure, coolant leaks, or a failure in the engine's internal components like the pistons, crankshaft, or valves.
Symptoms of a blown motor include:

• A sudden loss of power or performance

• Excessive smoke from the exhaust

• Strange knocking or banging noises from the engine

• A drastic decrease in fuel efficiency

• Warning lights or error codes on the dashboard


1. Overheating
   • Overheating is one of the most common reasons for engine failure. If the cooling system is not functioning properly, the engine can reach temperatures that exceed safe operating limits. This can cause the engine oil to break down, leading to poor lubrication and potential damage to the engine’s internal parts. A blown head gasket, cracked cylinder heads, or warped engine block are often the result of overheating.

   • Common causes of overheating include coolant leaks, a malfunctioning radiator, a blocked cooling system, or a failed thermostat.

2. Oil Starvation
   • Insufficient oil or low oil pressure can lead to metal-on-metal contact within the engine, causing wear and tear on vital components. Over time, this can lead to the failure of the motor. Low oil levels can be caused by leaks, poor maintenance, or an improper oil change schedule.

   • Without proper lubrication, critical engine parts like the bearings, pistons, and crankshaft can overheat and seize, leading to catastrophic engine failure.

3. Fuel Contamination
   • Contaminated fuel can cause significant damage to the engine, particularly if dirt, water, or debris enters the fuel system. This can result in incomplete combustion, leading to power loss, rough running, or severe engine damage.

   • Fuel system components such as the fuel injectors, fuel pump, and filters may become clogged or damaged as a result of poor-quality fuel.

4. Lack of Regular Maintenance
   • One of the leading causes of engine failure in the CAT 246 and other machinery is neglecting regular maintenance. Failing to perform necessary oil changes, air filter replacements, and coolant checks can cause premature wear on engine components, leading to a higher likelihood of failure.

   • Over time, carbon buildup can also accumulate within the engine, causing issues with valve function and overall performance.

5. Faulty Wiring or Electrical Issues
   • In some cases, the motor failure can stem from an electrical issue, such as a malfunctioning sensor, a shorted wire, or an issue with the alternator or starter motor. Electrical issues may not directly damage the motor, but they can cause the engine to misfire or fail to start, which may appear like a blown motor.


1. Check for Warning Codes
   • Modern machines like the CAT 246 are equipped with diagnostic systems that can give you a hint about the cause of the failure. Using an onboard diagnostic tool or CAT's proprietary diagnostic software, you can scan for any error codes or fault messages that can help pinpoint the issue.

   • Common error codes related to engine failure may involve low oil pressure, overheating, or electrical malfunctions.

2. Inspect the Cooling System
   • Inspect the radiator, coolant hoses, and water pump for signs of leaks or blockages. Ensure that the coolant levels are sufficient and that the cooling fan is operating correctly. If the system is compromised, address the leaks or replace faulty components to prevent further overheating.

3. Inspect the Oil
   • Check the oil level and condition. If the oil is low, top it up with the correct type of oil and check for any visible signs of contamination, such as metallic shavings. If the oil appears thick or gritty, this may indicate engine wear and a possible blown motor.

   • Check for oil leaks around the engine, which could result in oil starvation.

4. Check the Fuel System
   • Inspect the fuel filter for clogs or contamination. If you suspect that the fuel is contaminated, drain the fuel tank, replace the fuel filter, and refill with fresh, clean fuel. Also, check for any visible leaks in the fuel lines that could be affecting the motor’s performance.

5. Look for Mechanical Damage
   • If possible, perform a visual inspection of the engine’s internal components. Look for any signs of wear, cracks, or leaks in critical components such as the cylinder heads, pistons, and valves. This will help you assess whether the engine has sustained damage that is beyond repair.


1. Repairing or Replacing the Engine
   • If the engine is severely damaged and repairs are not cost-effective, replacing the motor may be the best option. You can choose to replace the engine with a brand-new one or look for a rebuilt engine, depending on your budget and needs.

   • Rebuilding the engine can be a good option if the damage is localized to certain components, such as the pistons or valves. However, this requires specialized knowledge and tools, and may be time-consuming.

2. Preventative Maintenance
   • To prevent future motor issues, follow a strict preventative maintenance schedule. Regularly change the engine oil, replace filters, monitor the coolant levels, and inspect the hydraulic and electrical systems for wear.

   • Consider using high-quality fuel and ensuring the fuel system is clean and free of contaminants.

3. Using High-Quality Parts
   • Whether you are replacing the engine, transmission, or other key components, always use genuine CAT parts or high-quality aftermarket alternatives to ensure compatibility and longevity of the machine.


Understanding the Center Joint Function
The center joint, also known as the swivel joint or rotary manifold, is a critical hydraulic component in excavators like the Hitachi EX60URG. It allows hydraulic fluid to pass between the upper structure and the undercarriage while enabling 360-degree rotation. This joint feeds pressure to travel motors, blade circuits, and auxiliary functions. When seals inside the joint fail, hydraulic fluid can leak into the swing bearing compartment or onto the undercarriage, causing grease displacement, pressure loss, and contamination.
The EX60URG, a zero-tail-swing variant of the EX60 series, shares its center joint design with earlier EX60-1 and EX60-2 models. Despite its compact frame, the internal layout remains similar, making seal kits and repair procedures largely interchangeable across these variants.
Terminology Notes

• Center Joint: A hydraulic rotary manifold that transfers fluid between rotating and stationary parts.

• O-Ring: A circular elastomer seal used to prevent fluid leakage between mating surfaces.

• Ball Bearings: Small spherical components that reduce friction and support rotational movement inside the joint.

• Zero Tail Swing: A design where the counterweight does not extend beyond the track width, improving maneuverability in tight spaces.


• Vent the hydraulic tank to prevent fluid spray during hose disconnection.

• Label all hoses on the top and bottom of the joint to ensure correct reassembly.

• Remove the joint carefully, noting its orientation and mounting position.

• Separate the joint over a container, as uncaged ball bearings may spill out.

• Replace all internal seals, including the large O-ring between the upper and lower cases.

• Inspect the housing for grooves, which may indicate wear from bearing rotation. Severely grooved housings may be unrepairable.


• Take reference photos before disassembly to aid reinstallation

• Use a clean workspace to prevent contamination of internal components

• Replace all seals, not just the failed one, to avoid repeat repairs

• Run the machine at low idle after reassembly to purge air from the system

• Monitor hydraulic fluid levels and inspect for leaks during initial operation


Introduction to the JCB 3CX
The JCB 3CX is one of the most iconic backhoe loaders ever produced, recognized worldwide for its versatility, durability, and powerful performance. Manufactured by JCB, a leading British heavy equipment manufacturer, the 3CX is known for being a reliable machine in construction, agriculture, and roadworks.
The JCB 3CX combines the functionality of a backhoe, a loader, and a tractor, allowing it to perform a variety of tasks such as digging, lifting, loading, and material handling. Since its introduction, it has become a staple on job sites due to its ability to operate in tight spaces while still offering robust power for heavy-duty work.
The Importance of Parts Manuals
A parts manual is an essential tool for any operator or mechanic who works on a machine like the JCB 3CX. It provides detailed diagrams, part numbers, and specifications that help users identify, order, and replace parts. For mechanics, a good parts manual can be the difference between a quick repair and a costly mistake. For operators, it helps in understanding the components of the machine and troubleshooting issues.
The JCB 3CX parts manual typically covers various components, including the engine, transmission, hydraulic system, steering, and electrical systems. These manuals are vital for maintaining the equipment's performance and longevity.
Key Sections of a JCB 3CX Parts Manual

1. Engine Components
   • The JCB 3CX typically features a turbocharged diesel engine, renowned for its power and fuel efficiency. The engine section of the parts manual will provide details on all engine-related components, such as pistons, crankshafts, cylinder heads, and fuel systems.

   • It will also cover maintenance parts like air filters, fuel filters, and oil filters, which are essential for keeping the engine running smoothly.

   • Key parts: Turbocharger, Alternator, Water Pump, Oil Pump, Radiator, Fuel Injector.

2. Hydraulic System
   • The hydraulic system is one of the most critical parts of the JCB 3CX, providing power to the loader, backhoe, and other functions. The parts manual will include schematics and part numbers for pumps, valves, cylinders, hoses, and filters.

   • Hydraulics require careful attention, and ensuring that the right parts are used is crucial to the smooth operation of the machine.

   • Key parts: Hydraulic Pumps, Control Valves, Hydraulic Cylinders, Filters, Hoses, Pressure Relief Valves.

3. Transmission and Drive Components
   • The 3CX is equipped with a four-wheel drive (4WD) system that can be locked in certain situations for increased traction. The transmission section of the parts manual provides the breakdown of gears, shafts, bearings, and other drivetrain components.

   • This section will also include parts for the braking system, such as brake pads, discs, calipers, and master cylinders.

   • Key parts: Transmission Gears, Clutch Assemblies, Axles, Differential, Brake Pads, Brake Lines.

4. Loader and Backhoe Attachments
   • The JCB 3CX’s most defining feature is its dual-functionality as both a loader and a backhoe. The parts manual will provide detailed diagrams of these attachments, including the bucket, arm, boom, and other lifting and digging components.

   • This section will also include wear parts, such as cutting edges, bucket teeth, and thumb attachments.

   • Key parts: Bucket, Boom, Arm, Lift Cylinders, Thumb, Bucket Teeth.

5. Electrical System
   • The electrical system of the JCB 3CX includes the starter motor, alternator, battery, wiring harnesses, and lights. A good understanding of the electrical schematic can help diagnose problems related to starting, charging, or lighting.

   • The parts manual will provide essential wiring diagrams and electrical specifications to help troubleshoot issues efficiently.

   • Key parts: Starter Motor, Alternator, Battery, Fuse Box, Wiring Harness, Lights.

6. Chassis and Structural Components
   • The structural integrity of the JCB 3CX is crucial for its performance and safety. This section covers the main chassis, axle components, and any structural parts such as the frame, stabilizers, and mounting points for the loader and backhoe arms.

   • Key parts: Frame, Stabilizers, Axles, Lift Arms, Boom Pivot Points.


1. Identify the Problem
   • When troubleshooting an issue with the JCB 3CX, the first step is to narrow down the problem area. Is it the engine? The hydraulics? The electrical system? Once you have a general idea of where the issue might lie, you can look up the relevant sections in the parts manual.

2. Locate the Parts by Diagram
   • Most parts manuals include detailed exploded views of each system, showing all the parts and their relationships to one another. These diagrams make it easy to locate the exact component you need to replace or repair.

3. Cross-Reference Part Numbers
   • Every part in the manual is assigned a unique part number, which is essential for ordering replacements. Cross-reference the part number with your supplier or dealer to ensure you get the correct part.

4. Consider Maintenance Schedules
   • The parts manual may also include maintenance schedules that outline how often certain components need to be inspected or replaced. Regular maintenance is key to keeping the JCB 3CX in optimal working condition, and the manual can help you stay on top of this.

5. Order Parts from Trusted Suppliers
   • When ordering replacement parts for the JCB 3CX, it’s important to use a trusted supplier who can provide genuine JCB parts. Genuine parts ensure the longevity and reliability of the equipment, and they are often covered under warranty.


1. Availability of Parts
   • In some regions, JCB parts may be harder to find. In such cases, operators may need to consider alternative parts or third-party suppliers. However, it’s always recommended to use genuine parts to avoid compromising the machine's performance.

2. Outdated Information
   • Some older models of the JCB 3CX may have parts manuals that are no longer in print, making it harder to find accurate information. In these cases, it’s best to reach out to JCB directly or consult with a professional mechanic who has experience with the machine.

3. Complexity in Repair
   • The JCB 3CX is a sophisticated machine with various interconnected systems. If you’re not familiar with backhoe loaders, repairs might seem complex. Consulting with a trained technician or service professional can help ensure repairs are performed correctly.


The 3406 Engine Family and Its Evolution
The Caterpillar 3406 engine series has long been a cornerstone of heavy-duty diesel power, used in trucks, industrial equipment, and marine applications. Introduced in the 1970s, the 3406 evolved through several configurations, including the PCTA (Pre-Cup Turbocharged Aftercooled) and DITA (Direct Injection Turbocharged Aftercooled) variants. The 92U serial prefix identifies a transitional generation of 3406 engines, some of which were offered in both PC and DI formats depending on application and build spec.
The pre-cup combustion system uses a swirl chamber to initiate combustion, while direct injection delivers fuel straight into the cylinder. DI systems offer better fuel economy and emissions control, but require tighter tolerances and more precise fuel delivery.
Terminology Notes

• PCTA: Pre-Cup Turbocharged Aftercooled, a combustion system using a pre-chamber to initiate fuel burn.

• DITA: Direct Injection Turbocharged Aftercooled, a system that injects fuel directly into the combustion chamber.

• Injection Pump: A mechanical or electronic device that pressurizes and meters fuel to the injectors.

• Timing Advance: A mechanism that adjusts injection timing based on engine speed and load.


• Cylinder head: DI heads have different injector angles and combustion chamber geometry.

• Pistons: DI pistons feature bowl designs optimized for direct spray patterns.

• Injectors: Higher pressure and different spray characteristics are required for DI.

• Pump timing: May require adjustment or replacement of timing advance unit.


• Inspect the head for cracks or wear before deciding on replacement

• Compare part numbers between PC and DI configurations using Caterpillar’s SIS or dealer databases

• Consult with pump specialists to determine if internal modifications are needed

• Consider sourcing a complete DI engine if conversion costs exceed replacement value

• Document all changes for future service and resale clarity


Introduction to the Problem
Experiencing oil being blown out of the dipstick tube in a hydraulic excavator like the Hitachi EX300 can be a perplexing and frustrating issue for operators. This problem is more than just a minor inconvenience; it can signal underlying mechanical issues that need immediate attention. The dipstick, used to measure the engine oil level, should not expel oil during normal operation. If this happens, it is crucial to diagnose the cause as soon as possible to prevent further damage to the engine or other components.
Possible Causes of Oil Blowout from the Dipstick Tube
There are several reasons why oil might be forced out of the dipstick tube. These causes can vary from relatively minor issues to more serious mechanical failures. Let’s explore the most common reasons for this problem.

1. Overfilled Oil Reservoir
   One of the simplest causes of oil blowing out of the dipstick tube is an overfilled oil reservoir. When too much oil is added, it can create excessive pressure within the engine, especially when the engine is running at high speeds or under heavy load. The excess pressure forces the oil out of the dipstick tube, resulting in a visible oil leak.
   Solution: Check the oil level using the dipstick to ensure it is within the recommended range. If the oil level is too high, drain the excess oil until it is at the proper level.

2. Blow-by Gas
   Blow-by is the term used to describe gases that escape past the piston rings and enter the crankcase. These gases increase the internal pressure in the engine, which can force oil out of the dipstick tube. Blow-by can happen when the engine's piston rings become worn or damaged, allowing combustion gases to bypass them.
   Solution: If blow-by is the issue, it may indicate that the piston rings or cylinder liners are worn and need replacement. A compression test or cylinder leak-down test can help confirm this issue. In some cases, the blow-by can be alleviated by using a crankcase ventilation system (PCV) to reroute the gases.

3. Clogged Crankcase Ventilation
   Modern engines, including those on the EX300, rely on a crankcase ventilation system to manage pressure in the crankcase. The system typically includes a PCV valve, hoses, and a filter to allow gases to escape and prevent excessive pressure buildup. If any part of this system becomes clogged with dirt or oil sludge, it can cause excessive crankcase pressure, leading to oil being expelled through the dipstick tube.
   Solution: Inspect the crankcase ventilation system for blockages, particularly the PCV valve, hoses, and filter. Replace any clogged or damaged components to restore proper ventilation and reduce pressure buildup.

4. Faulty Oil Pump or Pressure Relief Valve
   A malfunctioning oil pump or pressure relief valve can also cause excessive oil pressure. The oil pump is responsible for circulating oil throughout the engine, while the pressure relief valve regulates the oil pressure. If either component is faulty, the engine could experience dangerously high oil pressure, leading to oil being pushed out of the dipstick tube.
   Solution: If you suspect a faulty oil pump or pressure relief valve, it is important to have them inspected and replaced by a qualified technician. A thorough diagnostic test will help determine whether these components are functioning correctly.

5. Worn or Damaged Engine Components
   Over time, engine components such as the piston rings, cylinder head, and valves may become worn or damaged, leading to pressure imbalances within the engine. This can increase the likelihood of oil being forced out of the dipstick tube. Additionally, issues like a blown head gasket or damaged valve seals can allow oil to escape into areas it shouldn’t, leading to blowback through the dipstick.
   Solution: Regular maintenance, including oil changes and component inspections, is crucial to prevent wear and tear. If internal components are found to be worn or damaged, replacing them is necessary to restore normal engine function.


1. Check the Oil Level
   The first and simplest step is to ensure that the oil level is not overfilled. Overfilling is one of the most common causes of oil expulsion from the dipstick tube. If the oil is too high, simply drain it to the correct level as specified by the manufacturer.

2. Inspect the Crankcase Ventilation System
   The next step is to check the crankcase ventilation system. A blocked or malfunctioning system can create excessive pressure in the engine, causing oil to be pushed out. Inspect the PCV valve, hoses, and filters for blockages or damage. Clean or replace parts as necessary.

3. Conduct a Compression Test
   If blow-by is suspected, perform a compression test or a cylinder leak-down test. These tests will help determine if the piston rings or cylinder liners are worn and need replacing.

4. Examine the Oil Pump and Pressure Relief Valve
   Check the oil pump and pressure relief valve for proper function. If either of these components is malfunctioning and causing high oil pressure, replacement may be necessary.

5. Check for Worn Engine Components
   Inspect the engine for signs of internal wear or damage, particularly the piston rings, cylinder head, and valves. If any components are found to be damaged or excessively worn, they should be replaced to restore normal engine operation.


• Regular Oil Checks: Make it a habit to check the oil level regularly to ensure it is within the recommended range. Overfilled or underfilled oil levels can cause performance issues.

• Clean Crankcase Ventilation: Ensure that the crankcase ventilation system is clean and functioning properly. This will help maintain normal pressure levels inside the engine.

• Routine Inspections: Conduct regular engine inspections to identify potential issues such as worn piston rings, damaged components, or faulty valves before they escalate into larger problems.

• Use High-Quality Oil: Always use high-quality, manufacturer-recommended oil to ensure optimal engine performance and longevity.


The Legacy of Case and Its Reputation Challenges
Case Construction Equipment, founded in 1842 by Jerome Increase Case, has been a major player in the heavy equipment industry for over a century. Known for pioneering the mechanical thresher and later expanding into tractors, loaders, and backhoes, Case built a reputation for rugged, affordable machines. However, despite its long history and global footprint, the brand has faced persistent criticism—especially in North America.
Much of this skepticism stems from early design choices and market positioning. Case machines were often built with fewer operator comforts and minimal electronics, targeting utility companies and government fleets that prioritized cost over refinement. This led to a perception that Case equipment was “bare bones,” especially when compared to competitors like Caterpillar and John Deere, who invested heavily in cab ergonomics and dealer support.
Terminology Notes

• Wobble Sticks: Dual-lever control systems used in older backhoes, often criticized for being less intuitive than joystick setups.

• Rubber-Tired Backhoe: A backhoe loader mounted on wheels rather than tracks, used for roadwork and utility trenching.

• Skid Steer Cab: The operator enclosure on a skid steer loader, often evaluated for comfort, visibility, and control layout.


• One contractor recalled switching from Deere to Case after transmission issues, noting that his Case dozer never needed a teardown.

• Another operator admitted that Case machines lacked creature comforts but praised their reliability and simplicity.

• A third shared that his cousin’s Case backhoes survived years of neglect and still performed well, prompting him to reconsider the brand.


• Invest in operator comfort across all platforms, especially skid steers and dozers

• Strengthen dealer networks in underserved regions

• Promote OEM partnerships transparently, emphasizing engineering quality

• Offer retrofit kits for older machines to improve ergonomics

• Engage small contractors with tailored financing and support programs

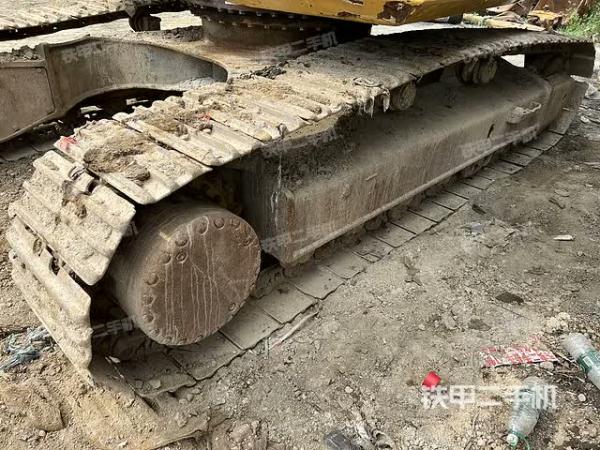

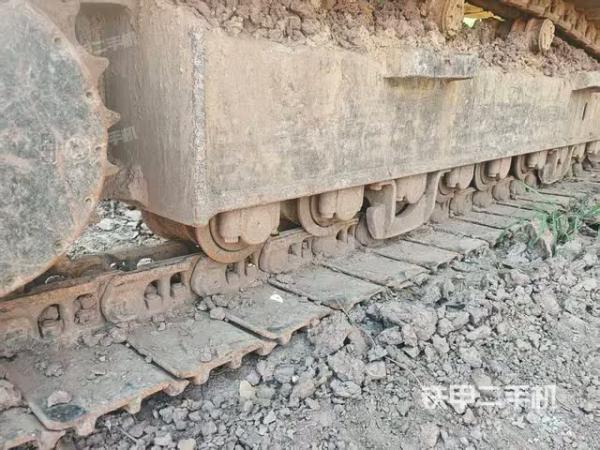

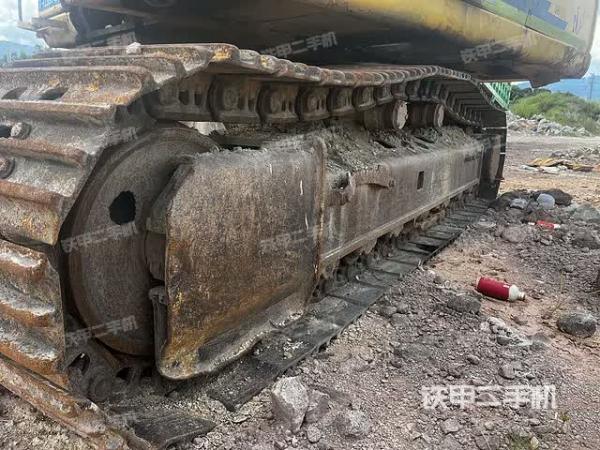

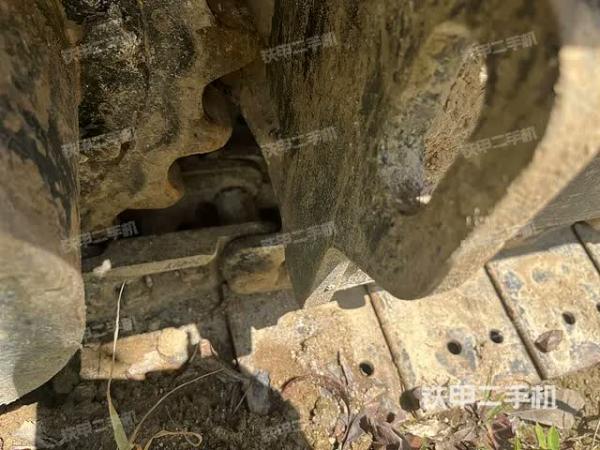

Introduction to Track Tensioners
Track tensioners play a crucial role in maintaining the proper tension of the tracks on a variety of heavy machinery, including excavators. For machines like the Komatsu EX120-2, track tensioners are responsible for keeping the tracks in place, ensuring that they run smoothly over the undercarriage and reduce the risk of wear. The track tensioner contains seals that prevent the hydraulic fluid inside from leaking, ensuring that the tension remains consistent under varying operating conditions.
However, over time, these seals can wear out due to continuous pressure, dirt ingress, and exposure to harsh working environments. If the seals are not functioning correctly, the hydraulic pressure can drop, resulting in improper track tension, uneven wear, and even track failure. Replacing the seals on the track tensioner is therefore a vital maintenance procedure that helps maintain the performance and longevity of the machinery.

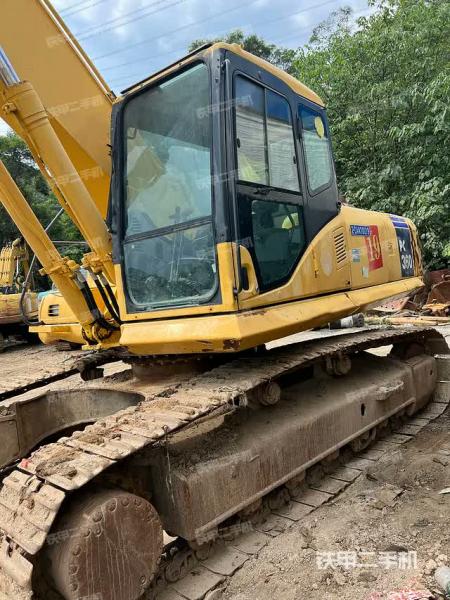

Understanding the Komatsu EX120-2 Excavator
The Komatsu EX120-2 is a well-regarded hydraulic excavator, known for its durability and efficiency in various applications, from construction to demolition. Its undercarriage system, which includes the track tensioner, is essential for keeping the tracks properly adjusted. The EX120-2 is often used in both urban and rural environments, where the terrain can be demanding. Its robust design allows it to operate efficiently even under tough conditions.
Given that track failure or improper tension can lead to significant downtime and costly repairs, regular maintenance of the track tensioner system, including seal replacement, is important.
Symptoms of Faulty Track Tensioner Seals
Before diving into the replacement procedure, it’s important to understand the signs that indicate a problem with the track tensioner seals:

• Track Slippage: If the tracks are slipping more than usual or you notice uneven wear on the tracks, this could be a sign that the tension is not properly maintained due to a seal failure.

• Hydraulic Fluid Leaks: One of the most obvious signs that the track tensioner seals need replacing is the appearance of hydraulic fluid leakage around the tensioner area.

• Track Slack: A significant amount of slack in the tracks, especially when the machine is under load, can indicate that the tensioner is not holding pressure effectively due to worn-out seals.

• Erratic Track Behavior: If the tracks seem to become too tight or too loose during operation, this may point to a malfunctioning tensioner system that requires seal replacement.


• Hydraulic Jack: To lift the machine and relieve pressure on the tracks.

• Track Wrench: Used for adjusting the track tension.

• Seal Puller: A tool designed to remove the old seals without damaging the housing or surrounding components.

• Torque Wrench: For ensuring bolts and components are properly tightened to the manufacturer’s specifications.

• Clean Rags and Solvent: For cleaning off any debris, oil, or old fluid before assembly.

• Replacement Seals: Ensure that the seals you are using are OEM parts or high-quality aftermarket seals that meet the manufacturer’s standards.

• Grease Gun: For lubricating the new seals during installation.


1. Lift the Machine and Remove Tracks
   • Before beginning, it’s essential to lift the excavator and secure it on stable ground. Use a hydraulic jack to raise the machine. Ensure that the tracks are not under any load.

   • Once the machine is elevated, you’ll need to remove the tracks by loosening the tension bolts using a track wrench. This step is critical because it relieves the pressure on the track tensioner, allowing you to work on the seals without risk of injury.

2. Drain the Hydraulic Fluid
   • If there is hydraulic fluid in the track tensioner system, it’s necessary to drain it to avoid spills and to ensure that the new seals are not contaminated by old fluid.

   • Use a drain pan to collect the fluid as it drains from the tensioner.

3. Remove the Old Seals
   • After draining the fluid, you can access the track tensioner assembly. Using a seal puller, remove the old seals from the tensioner. Be careful to avoid damaging the seal housing during this process.

   • Clean the tensioner housing thoroughly to remove any debris, dirt, or old fluid. This is crucial for preventing contamination when the new seals are installed.

4. Install New Seals
   • Lubricate the new seals with hydraulic oil before installing them. This ensures a smooth installation and prevents damage during assembly.

   • Carefully place the new seals into the housing, making sure they are seated properly. Use a seal installation tool if necessary to ensure the seals fit snugly and evenly.

5. Reassemble and Test
   • Once the new seals are in place, reassemble the track tensioner system. Tighten all bolts to the manufacturer’s recommended torque specifications.

   • Refill the hydraulic system with fresh hydraulic fluid, ensuring that the system is properly pressurized.

   • Reattach the tracks, adjusting the tension as needed. Operate the machine briefly to check for any leaks and to verify that the track tension is correct.

6. Final Check
   • After the replacement is complete, visually inspect the track tensioner for any signs of fluid leakage or improper operation.

   • It’s also advisable to test the excavator under working conditions to ensure the tracks remain properly tensioned during use. Pay attention to any irregularities such as slipping or excessive noise.


• Regular Inspections: Periodically inspect the track tensioner seals for wear or leaks. Catching small issues early can prevent costly repairs later.

• Clean Environment: Keep the undercarriage of the machine clean from mud, dirt, and debris, as these can accelerate wear on the seals and other components.

• Proper Lubrication: Ensure the tensioner is properly lubricated to avoid friction that could damage the seals. Use high-quality hydraulic fluid and replace it at the recommended intervals.


Introduction to JLG 450A and Common Issues
The JLG 450A is a popular articulated boom lift known for its versatility in various construction and maintenance tasks. Like many aerial work platforms, the JLG 450A is subject to wear and tear, with electrical and hydraulic systems often being the primary points of failure. One common issue operators face is when the lift refuses to restart after use. This can be a major inconvenience, especially on busy job sites where downtime needs to be minimized.
The JLG 450A is equipped with both diesel and electric power systems, which can introduce complexity into troubleshooting. Issues like a non-restarting machine could stem from multiple sources, from fuel supply problems to electrical malfunctions. Let’s delve into the most common causes of this issue and provide guidance on how to diagnose and resolve them.
Possible Causes for Non-Restarting JLG 450A

1. Electrical System Malfunctions
   The electrical system is one of the most likely culprits when a JLG 450A fails to restart. The machine uses a combination of 12V DC and 24V DC systems to control various components such as the ignition system, hydraulic controls, and lift operation functions. A blown fuse, faulty relay, or damaged wiring could prevent the machine from starting.
   • Fuses and Relays: Always start by checking the fuses and relays, as these are common points of failure. Refer to the machine's electrical schematic to locate the fuses and relays associated with the starter and ignition circuits.

   • Battery Voltage: Low battery voltage can prevent the machine from starting. Use a multimeter to check the voltage of both the main and auxiliary batteries. If the voltage is low, charge the batteries or replace them if necessary.

   • Ignition Switch: Sometimes the issue lies with the ignition switch itself. Over time, switches can become worn or fail, preventing proper contact to start the engine. Inspect the switch and wiring for any signs of damage or corrosion.

2. Fuel Supply Issues
   Another common reason for a non-restarting JLG 450A is an issue with the fuel system. The machine relies on a diesel engine to power the hydraulic pump and perform lifting functions. If there is a disruption in the fuel supply, the engine may not start, even though electrical systems appear functional.
   • Fuel Tank and Lines: Ensure that the fuel tank is full and the fuel lines are clear of any blockages. Sediment and debris can sometimes clog the fuel filter, reducing fuel flow to the engine. If the fuel filter appears dirty, replace it.

   • Fuel Pump: A malfunctioning fuel pump may fail to deliver the required pressure to the injectors. If you hear unusual noises coming from the fuel pump or notice a lack of fuel pressure, it could indicate a need for replacement.

   • Air in the Fuel Lines: Air in the fuel lines can prevent the engine from starting. Bleeding the air out of the system may be necessary to restore normal operation. Follow the manufacturer's procedure for purging air from the fuel system.

3. Hydraulic System Overload or Failure
   The JLG 450A uses a hydraulic system to operate the boom and lifting functions. If there is an issue within the hydraulic system, such as low fluid levels, a stuck valve, or a hydraulic leak, the machine may not restart because the hydraulic pump is unable to engage.
   • Hydraulic Fluid: Check the hydraulic fluid level and condition. Low fluid levels can result in inadequate pump performance, preventing the machine from lifting or even starting. Top up or replace the fluid as needed.

   • Relief Valve: The hydraulic relief valve is designed to protect the system from pressure overload. If it is stuck or malfunctioning, it can create a pressure buildup that prevents the machine from restarting. Ensure the relief valve is functioning properly.

   • Hydraulic Filter: A clogged hydraulic filter can impede fluid flow, affecting the hydraulic pump's operation. Replace the filter if it's dirty or clogged.

4. Engine Issues
   The engine itself can sometimes be the source of the problem. A variety of issues such as low compression, faulty sensors, or a damaged starter motor can prevent the JLG 450A from restarting.
   • Starter Motor: If the starter motor is faulty, the engine may fail to turn over. Inspect the starter motor and its connections. If necessary, replace the motor or check for wiring issues.

   • Engine Sensors: Modern diesel engines are equipped with sensors such as the crankshaft position sensor, camshaft sensor, and fuel temperature sensor. If any of these sensors fail, they can send incorrect signals to the engine control unit (ECU), preventing the engine from starting. Perform a diagnostic scan to check for sensor issues.

5. Safety Interlock System
   The JLG 450A is equipped with safety interlocks that prevent the machine from starting under unsafe conditions. These systems are designed to ensure that the boom is in a safe position before the engine starts.
   • Boom Position: Ensure that the boom is fully lowered and that all safety interlocks are properly engaged. If the boom is raised or extended beyond the safe range, the interlock system may prevent the engine from starting.

   • Operator Presence Switch: The machine may also have an operator presence switch that prevents starting unless the operator is seated in the cab. Check to ensure the switch is functioning correctly.


1. Start with the Basics: Check the battery voltage, fuel levels, and the condition of the ignition system. These are the most common causes of starting issues and can often be resolved quickly.

2. Check for Error Codes: Modern JLG machines are equipped with onboard diagnostic systems. If available, connect a diagnostic tool to the machine to check for error codes. These codes can provide valuable insights into the root cause of the issue.

3. Inspect the Hydraulic System: Ensure that the hydraulic system is functioning correctly by checking fluid levels, pumps, and valves.

4. Consult the Manual: Always refer to the JLG 450A operator’s manual for specific troubleshooting steps and procedures. The manual will provide detailed information on electrical schematics, hydraulic systems, and more.

5. Call for Professional Help: If the issue persists after performing the above checks, it may be time to call in a certified technician. They can perform more advanced diagnostics and repairs that require specialized knowledge or tools.


The Rise of Compact Mulching Attachments
In the early 2000s, land clearing saw a shift from bulldozers and chainsaws to compact track loaders equipped with high-flow hydraulic mulching heads. Among the most discussed options were the Loftness Timber Ax and various carbide cutter heads, including those from Fecon, Gyro-Trac, and Bradco. These attachments transformed skid steers and CTLs into versatile forestry tools, capable of clearing underbrush, small trees, and invasive species with precision and speed.
Timber Ax vs. Carbide Cutter
The Timber Ax uses sharpened blades that slice vegetation into fine mulch. It excels in producing a clean finish, making it ideal for applications like trail building, fence line clearing, and aesthetic land management. However, it requires frequent blade sharpening—often once or twice per day during heavy use—and is more vulnerable to damage from rocks and hard stumps.
Carbide cutters, by contrast, use fixed or swinging tungsten carbide teeth that pulverize material through impact. They are more durable in rocky or abrasive environments and require less maintenance, but they leave behind coarser mulch and consume more horsepower.
Terminology Notes

• High-Flow Hydraulics: A hydraulic system capable of delivering higher gallons per minute (GPM), necessary for powering heavy-duty attachments.

• Mulching Head: A front-mounted attachment that grinds vegetation into mulch using rotating blades or teeth.

• Carbide Tooth: A cutting element made of tungsten carbide, known for its hardness and resistance to wear.

• Dedicated Forestry Machine: A purpose-built carrier designed specifically for mulching, often with reinforced cooling, guarding, and hydraulic systems.


• One operator in Texas used a Timber Ax on a Gehl CTL80 to cut senderos through mesquite and locust. He sharpened blades at lunch and cleaned radiators daily to prevent overheating.

• Another in New Hampshire retired his Gyro-Trac after 700 hours due to balance and shaft issues, switching to a Fecon head with better durability but higher tooth costs.

• A dealer in Alabama reported success with a Bradco Magnum on a Deere CT332, noting that external oil coolers were essential for long-term reliability.


• Match the head to the terrain: Use Timber Ax for clean, soft brush and carbide heads for rocky or mixed environments.

• Invest in cooling upgrades: Overheating is the number one failure point on non-dedicated machines.

• Demo before buying: Try the head on your machine to assess performance and compatibility.

• Track operating costs: Include teeth, fuel, downtime, and maintenance in your hourly rate.

• Consider resale and support: Brands like Fecon and Loftness have strong dealer networks and parts availability.


Snow removal is an essential task during the winter months, especially in regions where heavy snowfall is a common occurrence. For owners of tractors like the TC54H, having the right snowblower attachment can significantly improve the efficiency of clearing driveways, paths, and larger areas. The right snowblower can make winter work not only easier but also more productive, reducing the time and effort required to maintain clear areas. This article discusses the various considerations for selecting a snowblower attachment for the TC54H, a popular compact tractor known for its versatility and power.
The TC54H Tractor Overview
The TC54H is part of a series of compact tractors designed by New Holland, a company renowned for its high-performance agricultural machinery. The TC54H, like other models in the TC series, is favored for its durability, ease of use, and ability to perform a wide range of tasks. With a compact size and strong engine, the TC54H is well-suited for both residential and light commercial tasks. It offers enough power for various attachments, including front loaders, mowers, and snowblowers.
The versatility of the TC54H makes it an ideal choice for those looking for a machine that can handle winter snow removal efficiently, provided the right attachments are selected.
Factors to Consider When Selecting a Snowblower
Selecting the right snowblower attachment involves understanding the tractor's capabilities and matching them with the snowblower's specifications. Key factors to consider include:
1. Size of the Snowblower
Snowblowers come in various sizes, typically determined by the width of the clearing path and the type of machine they are designed for. For the TC54H, it is essential to choose a snowblower that is neither too small nor too large for the tractor’s capabilities.

• Width of the Snowblower: The width of the snowblower should align with the tractor's capacity. For the TC54H, a snowblower with a width ranging from 48 to 60 inches is usually ideal. A wider snowblower may provide a faster snow-clearing process but could require more power and strain the tractor's engine if it's too large.

• Height and Discharge Distance: The height of the chute and the distance the snow can be thrown are crucial when selecting a snowblower. A snowblower with an adjustable chute and sufficient discharge range will ensure that the snow is thrown away from driveways and pathways without creating further obstacles.


• PTO-driven Snowblowers: These snowblowers are powered by the tractor's power take-off (PTO) shaft, which uses the engine’s power to drive the snowblower's auger and fan. This type of snowblower is often preferred for larger, more powerful tractors. However, many compact tractors, like the TC54H, are also compatible with PTO-driven snowblowers for efficient snow removal. PTO-driven snowblowers are generally more durable and can handle heavier snowfalls.

• Hydraulic-driven Snowblowers: These are powered by the tractor’s hydraulic system, offering smoother control and often better performance in smaller applications. If you’re looking for more precise operation, hydraulic snowblowers can be a good choice. They can be advantageous in situations where the snowblower will be used frequently, such as for residential use or smaller areas.


• Auger Design: The auger is responsible for gathering the snow and feeding it into the blower. A good-quality auger made from hardened steel or a similar strong material will ensure that the snowblower lasts for many winters. Some models feature multi-blade augers designed to handle varying snow conditions effectively.

• Chute Construction: The chute should be robust, with reinforced areas that are resistant to the wear caused by ice and snow. A poly chute can also be a good choice for preventing snow from sticking, while metal chutes may offer greater durability in extremely cold conditions.


• Power Chute Rotation: A snowblower with power chute rotation allows the operator to control the direction of the snow discharge without needing to leave the seat. This feature is especially useful for quick adjustments when clearing large areas.

• Hydraulic Lift: Some snowblowers are equipped with a hydraulic lift feature, which makes it easier to raise and lower the snowblower from the tractor's seat. This adds convenience, especially when navigating uneven terrain.

• Easy Adjustment: Being able to adjust the height of the auger or the chute on the go can help in quickly adapting to changing snow conditions.


• New Holland 72” Front Mount Snowblower: This snowblower is designed to work seamlessly with New Holland tractors like the TC54H. It is powered by the tractor’s PTO system and is known for its durability and efficient snow clearing. It offers adjustable discharge control and a sturdy construction that can handle even heavy snowfalls.

• Meyer 60” Hydraulic Snowblower: This model is well-suited for smaller to medium snow clearing tasks. It’s lightweight but still provides excellent performance, making it a good option for residential properties or light commercial use.

• Ariens 60” Professional Series Snowblower: A popular choice for compact tractors, this snowblower offers heavy-duty construction, adjustable chute, and a powerful auger system that can cut through dense snow. It’s well-suited for cold regions with heavy snow.


• Greasing the Auger: The auger and other moving parts should be regularly greased to prevent rust and ensure smooth operation.

• Clearing the Chute: After each use, clear any snow or ice buildup in the chute to avoid blockages.

• Inspecting for Wear: Regularly check for wear on the auger, blades, and other components to catch issues early.
