Overview of Product Support Role
Product support in the earthmoving equipment industry involves assisting customers with operational, maintenance, and regulatory guidance. Representatives often serve as a bridge between manufacturers and end-users, ensuring machines are used safely and efficiently. In Australia, as in other countries, product support specialists must be knowledgeable about local safety regulations, equipment manuals, and best practices for heavy machinery operation.

Seat Belts and Safety Regulations
Seat belts are a critical safety feature in excavators, dozers, and loaders. Regulations generally require that all operators use seat belts whenever the machine is in motion. While there may not be a universal “change-out” schedule, manufacturers often recommend inspecting seat belts for wear, fraying, or damage at least once per year. Any damaged seat belt must be replaced immediately to comply with occupational health and safety laws. Additionally, operators should be trained to adjust seat belts properly to maximize effectiveness.

Documentation Requirements
Every machine must carry an operation and maintenance manual. This manual provides instructions on daily checks, service intervals, and troubleshooting procedures. Beyond the manual, certain jurisdictions require additional documentation:

• Safety decals and warning labels on equipment

• Inspection logs, including pre-start checklists

• Maintenance records for hydraulic systems, brakes, and engines

• Compliance certificates for emission or noise regulations


• Fire extinguisher checks, ensuring pressure gauges are in the green

• Fire extinguisher logbooks documenting inspection dates

• Emergency response procedures visible in the cab or control area

• Routine drills to familiarize operators with fire protocols


• Seat belt integrity and usage

• Functionality of safety alarms and lights

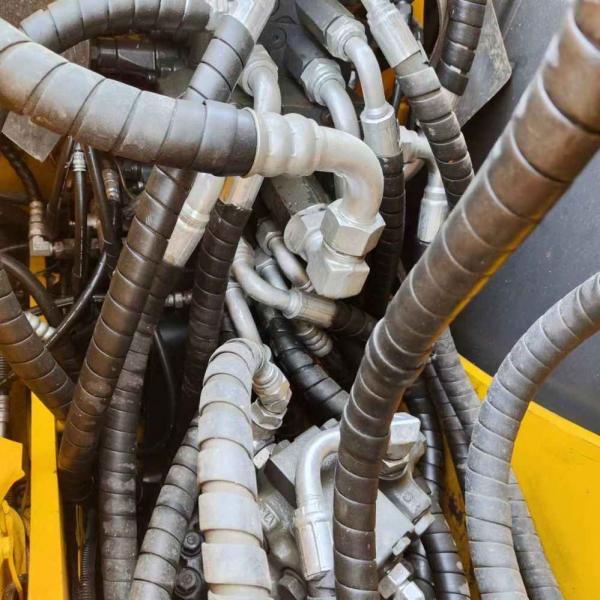

• Hydraulic hose condition and leak prevention

• Brake systems and parking brake effectiveness

• Tire or track wear affecting stability


• Conduct pre-shift safety checks including fluids, brakes, and hydraulic hoses

• Maintain accurate logs for maintenance and safety inspections

• Replace any worn or damaged safety equipment immediately

• Ensure all operators are trained on emergency procedures and equipment use

• Keep all manuals, certifications, and logs readily available for regulatory compliance


The Mack RD690S and Its Unique Transmission Setup
The Mack RD690S is a heavy-duty vocational truck built for rugged applications like dump hauling, lowboy towing, and site work. Powered by the E7 ETECH engine, often rated at 400 horsepower, this model is known for its durability and torque-rich performance. Mack Trucks, founded in 1900, has long emphasized integrated powertrains, meaning their engines, transmissions, and axles are designed to work together. This philosophy led to the development of proprietary transmissions like the Maxitorque series, including the 2070 7-speed.
Unlike Eaton’s 13-speed or Fuller’s 18-speed gearboxes, the 7-speed Maxitorque is a single-range transmission with wide gear spacing. It was designed for simplicity and reliability, especially in fleets where driver training and maintenance needed to be streamlined. However, its gear ratios can feel limiting to those accustomed to multi-range setups.
Driving Characteristics and RPM Behavior
Operators transitioning from 13-speed transmissions often find the 7-speed challenging. The key issue is the large gap between gears, which requires precise RPM management. Shifting smoothly demands letting the engine drop to around 800 RPM before engaging the next gear. However, Mack engines are not designed to pull effectively below 1,200 RPM. Their torque curve typically peaks between 1,200 and 1,900 RPM, and dropping below that range can cause lugging and poor acceleration.
This mismatch between shift timing and engine torque delivery leads to a learning curve. Drivers report that on uphill grades, the RPM falls too quickly during gear changes, making it difficult to catch the next gear before losing road speed. The result is often being forced into a lower gear than necessary, slowing the climb and increasing fuel consumption.
Comparing to Multi-Speed Transmissions
A 13-speed transmission allows for tighter gear spacing and split gears, enabling smoother transitions and better control under load. For example, a Ford LTL9000 with a 400 Big Cam Cummins and a 13-speed can pull a 160-class excavator with ease, maintaining momentum on hills and offering more flexibility in gear selection.
In contrast, the 7-speed Mack may struggle to match that performance, especially when towing heavy equipment. The lack of split gears means the driver must anticipate terrain changes and select the correct gear early, as mid-climb shifts are often impractical.
Solutions and Adaptations
To improve drivability:

• Use engine braking to help reduce RPM quickly during upshifts

• Avoid shifting on grades, and instead select the appropriate gear before the climb

• Consider reprogramming the ECM if the truck is equipped with electronic controls, allowing for better RPM matching

• Practice throttle modulation, as Mack engines respond differently than Cummins or CAT powerplants


Overview of the Case 580B Backhoe
The Case 580B is an iconic loader-backhoe released in the 1970s, equipped with a diesel engine commonly paired with a mechanical Bosch-style VE injection pump. Case has produced thousands of 580-series machines; the 580B remains one of the most common classic backhoes in use today. Its injection system is purely mechanical, so proper alignment between the engine (crank / flywheel) and the injection pump is critical for reliable performance.

Symptoms of Mistimed Injection
Owners who find their 580B running poorly after a pump rebuild often report:

• Excessive black or blue smoke (running “rich”)

• Hard starting, especially when cold

• Rough idle or sluggish acceleration

• Engine feels “off,” like the injection timing isn’t aligned


• Top Dead Center (TDC): The piston position where cylinder #1 is at its highest point in the compression stroke.

• Timing Window / Timing Plate: A small access window on the injection pump housing that reveals timing lines or marks. These marks must align with reference lines when timing is correct.

• Cage or Weight Cage: The rotating assembly inside the pump; it holds weights that advance fuel injection timing under load. Its alignment is critical.

• Scribe Mark: A small line or mark etched onto the cage that indicates its proper orientation relative to the pump housing once correctly timed.


1. Incorrect Scribe Alignment
   • If the scribe on the cage (rotating weight assembly) was transferred improperly during pump rebuild, the timing will be off.

   • The master rebuilder (“thepumpguysc”) in the discussion emphasizes that the scribe must be correctly referenced and often re-scribed using a degree wheel, not just eyeballed.

2. 180-Degree (Half‑Turn) Misalignment
   • This misalignment happens when the pump is installed “upside down” relative to the engine’s firing order: the marks might align but correspond to the wrong stroke.

   • One forum expert noted that unless #1 cylinder is on its correct compression stroke (with both valves closed), you might be 180° out. Another had seen this scenario in a 580C model.

   • Confirming compression stroke before final pump alignment is essential; several users recommended using the valve cover removed and watching rocker arms / pushrods to verify.

3. Drive Shaft or Keyway Issues
   • On some pumps, there is a dot or key inside the pump drive shaft, and a matching dot on the engine drive shaft: aligning these “dot-to-dot” is critical to timing.

   • If the drive shaft or internal key is misaligned, even correct external marks may be useless.


• One user adjusted the valve lash on his 580B (intake and exhaust) after many years and noted that while the engine became quieter, its starting behavior worsened, and it began producing a “rich blue haze.”

• Loose or incorrectly adjusted tappets (valve clearances) can affect how the engine draws in air, which changes combustion and may make the timing feel “off” when in fact the injection timing is fine.


1. Set Engine to TDC (Compression Stroke on #1)
   • Remove a plug on the bell housing or use the timing inspection window.

   • Rotate the flywheel until the TDC mark aligns with the pointer while ensuring cylinder #1 is on the compression stroke (both valves closed).

2. Align the Injection Pump Marks
   • Remove the timing‑window cover on the pump to see the internal marks.

   • Adjust the pump body so that the internal lines or scribe mark align correctly with the housing reference.

3. Verify Scribe on the Weight Cage
   • For accurate timing, the scribe mark on the cage must be correct. If not, the cage may need to be removed, aligned on a degree wheel, and re-scribed. According to an expert rebuilder, this alignment is not reliable without removing the cage and using proper tools.

   • Incorrect scribing can lead to incorrect injection timing even if external marks align “correctly.”

4. Lock and Test
   • Tighten the pump mounting bolts once alignment is confirmed.

   • Bleed the fuel system (especially if lines were loosened).

   • Start the engine and monitor for smoke, roughness, and idle quality. Fine-tune if necessary.


• If the timing is too advanced: severe “pinging” or knocking can damage engine components and rings.

• If too retarded: poor power, excessive smoke, and inefficient fuel usage.

• Misalignment by 180° (“turning the pump too far”) can prevent the engine from running correctly, though some machines may run poorly in that condition.


• In one account, after realigning the pump properly, the operator regained a smoother, quieter running engine, and the blue haze diminished significantly.

• Another user pointed out that, during rebuilds, failing to mark and re-scribe the weight cage is a common mistake — and a rebuilt pump without proper scribe alignment may perform worse than the original.

• Veteran mechanics advised that when doing timing work, always record your original alignment, double-check marks with the engine on correct stroke, and if in doubt, send components (like the cage) to a specialist to re-scribe correctly.


The CAT 953C and Its Market Legacy
The Caterpillar 953C track loader was introduced in the late 1990s as an upgrade to the 953B, offering improved hydrostatic drive, enhanced operator comfort, and better fuel efficiency. With an operating weight of approximately 33,000 pounds and a net power rating of 134 horsepower, the 953C became a popular choice for contractors and municipalities alike. Its versatility made it suitable for landfill operations, site clearing, and material loading. Caterpillar, founded in 1925, has consistently dominated the track loader market, and the 953C was one of its best-selling mid-size models during its production run.
Identifying Waste Handler Configurations
Some 953C units were configured as waste handlers, designed specifically for landfill environments. These machines typically feature:

• A 4-in-1 bucket with reinforced guarding

• Track pads with mud-ejection holes to prevent buildup

• Cleaner bars near the final drives to reduce debris accumulation

• Additional belly pan protection and guarding against corrosive materials


• Final drives and hydrostatic motors for leaks or noise

• Undercarriage wear, including sprockets, rollers, and track tension

• Equalizer bar ends and center pivot pins

• Bucket pins and lower frame welds

• Idler guards and track adjusters


Importance of Build Dates
In heavy equipment management, the build date of a machine is crucial for maintenance planning, warranty verification, and parts compatibility. The build date indicates the exact day a machine was manufactured and assembled at the factory. This date is often used alongside the serial number to trace production batches, recall notifications, and service schedules.

Locating the Build Date

• Serial Number Decoding
  • Many manufacturers embed the build date within the serial number.

  • For example, Caterpillar C15 engines often use a combination of letters and numbers indicating the year, month, and sequence of production.

• Manufacturer Data Plates
  • A metal data plate or sticker is typically affixed to the engine block or main frame.

  • Plates may display the month, day, and year of production.

• Electronic Logs
  • Modern machines may store production information in electronic control modules (ECM).

  • Diagnostic software can extract build dates for service planning.


• Maintenance Scheduling
  • Knowing the build date helps align preventive maintenance with actual equipment age rather than purchase date.

  • For example, a C15 engine built in October 2002 may require different maintenance intervals compared to a similar engine built in 2005.

• Parts and Warranty
  • Replacement parts often depend on the exact build configuration.

  • Warranties and recalls are tracked by build date, ensuring correct coverage.

• Operational Planning
  • Fleet managers can prioritize older machines for replacement or inspection.

  • Build dates also help in evaluating depreciation and resale value.


• A Caterpillar C15 engine with serial number 6NZ86858 was traced to a build date of October 9, 2002.

• Fleet managers should maintain an equipment log with serial numbers and build dates to simplify maintenance tracking.

• Cross-reference build dates with service bulletins to stay ahead of known issues.


Overview of the Dozer
The Komatsu D65PX-15E0 is a medium-duty crawler dozer widely used in construction, forestry, and earthmoving. Developed in the 2000s, the PX variant features a wider track for better flotation on soft ground. Komatsu, a Japanese heavy equipment manufacturer founded in 1921, has sold thousands of D65 models globally, with a reputation for reliability and durable undercarriages. This model incorporates electronic engine control modules (ECM) to optimize fuel delivery, emissions, and operational efficiency.

Symptoms of the Problem
Operators have reported that the engine starts normally but stalls within seconds, repeating the cycle without sustaining operation. The following observations are common:

• Engine starts immediately then cuts out within 5 seconds.

• Fuel filters recently replaced; electric lift pump operates normally.

• Error codes observed include CA428 for the water separator and a pitch/level sensor warning.

• Low fuel rail pressure at idle is sometimes indicated.


• Air in Fuel System
  • Even minor air bubbles can prevent proper fuel injection.

  • Historical neglect of the fuel system increases susceptibility to air pockets and contamination.

• Fuel Shutoff Solenoid Issues
  • A faulty or intermittently powered solenoid can cut fuel supply immediately after engine start.

• Electronic Engine Control
  • ECM wiring or sensors such as the pitch angle (level) sensor can falsely signal a stop condition.

  • Emergency stop buttons, if triggered or faulty, may prevent engine operation.

• Low Fuel Rail Pressure
  • A pressure drop at idle may cause the ECM to shut down fuel delivery to protect the system.


• Inspect fuel lines and bleed the system to eliminate trapped air.

• Check electrical supply to the fuel shutoff solenoid during engine cranking.

• Verify ECM connections and sensor inputs, including the water separator and pitch sensor.

• Monitor fuel rail pressure using diagnostic tools if the dash allows.

• Examine emergency stop buttons for proper reset and operation.


• Replace fuel filters on schedule and ensure water separators are drained.

• Periodically check ECM and sensor wiring for corrosion or loosened connectors.

• Regularly clean and inspect the fuel system, especially if the machine has a history of neglect.

• Maintain records of error codes to identify intermittent issues before they lead to operational downtime.


The CAT TH460B and Its Role in Material Handling
The Caterpillar TH460B telehandler was introduced as part of CAT’s B-series lineup in the early 2000s, designed for high-capacity lifting and extended reach in construction, agriculture, and industrial settings. With a rated load capacity of 9,000 pounds and a maximum lift height of over 45 feet, the TH460B combines the maneuverability of a forklift with the reach of a crane. Its hydraulic system powers the boom, forks, stabilizers, and steering, all coordinated through electronic control modules and pilot-operated valves.
Symptoms of Hydraulic Failure
A common issue reported with the TH460B involves the sudden loss of hydraulic functions. In one case, the machine operated normally until the boom, forks, and stabilizers ceased responding. The engine ran smoothly, forward and reverse drive worked, and steering remained functional—indicating that the issue was isolated to the implement hydraulic system.
This pattern suggests that the problem lies not in the main hydraulic pump or engine but in the pilot control circuit or electronic signal path.
Understanding Pilot Pressure and Control Logic
The TH460B uses a pilot-operated hydraulic system, where low-pressure pilot oil actuates high-pressure valves. The pilot pressure is typically generated by a dedicated pump or tapped from the main circuit and regulated to around 300 psi. This pressure is used to move spools in the control valves, enabling boom lift, fork tilt, and stabilizer deployment.
In the reported case, the technician measured:

• Main hydraulic pressure: 3,800 psi (within normal range)

• Pilot pressure: 3,280 psi (also normal)


• Electronic control failure: The joystick or switch panel may not be sending signals to the solenoids.

• Solenoid valve malfunction: If the solenoids controlling the pilot valves are stuck or not energized, the valves won’t shift.

• Wiring or connector issues: Corroded or loose connectors can interrupt signal flow.

• Hydraulic contamination: Debris in the valve body can block spool movement.

• Safety interlock activation: Some telehandlers disable hydraulic functions if certain conditions aren’t met (e.g., seat switch, boom angle sensor).


• Check for fault codes using a diagnostic tool or onboard display

• Inspect all electrical connectors at the joystick, solenoids, and control modules

• Test voltage at the solenoid terminals while activating controls

• Manually energize solenoids to verify valve response

• Remove and inspect solenoids and valve spools for contamination or wear

• Confirm that all safety interlocks are disengaged and sensors are functioning


• Perform regular electrical system inspections, especially in high-humidity environments

• Replace pilot filters and check for water contamination in hydraulic fluid

• Use dielectric grease on connectors to prevent corrosion

• Train operators to recognize early signs of control lag or intermittent response


Overview of Dozer Use in Wildfires
Bulldozers have long been a critical tool in wildfire management. They are used to create firebreaks, clear vegetation, and assist firefighters in controlling large-scale blazes. In both the United States and Canada, dozers are deployed by government agencies and contracted companies during peak wildfire seasons. Tracking the number of machines in the field is important for logistical planning, safety, and resource allocation.

Challenges in Determining Numbers
Obtaining an exact count of deployed dozers is complicated due to several factors:

• Multiple Agencies Involved
  • In Canada, wildfire response is managed provincially. Agencies like Sustainable Resources coordinate deployment.

  • In the U.S., state forestry services, the U.S. Forest Service, and local fire authorities each manage their own fleets.

• Dynamic Deployment
  • Dozer locations change frequently based on fire behavior, weather, and tactical priorities.

  • Some machines are reassigned to different fire sites within hours or days.

• Private Contractors
  • Many dozers come from private contractors rather than government fleets, complicating centralized tracking.

  • Contractors often deploy excavators, loaders, and other equipment in addition to dozers, adding to reporting complexity.


• Official Reports
  • California, for example, provides public reports listing the number of dozers at each active fire.

  • Aggregating totals across multiple fires or states may require consulting several regional reports.

• Direct Agency Contact
  • Contacting fire management agencies or provincial/state dispatch centers is often necessary for real-time data.

  • Agencies may provide summaries, though detailed lists might be restricted for safety or operational reasons.

• Secondary Observations
  • News reports, firefighting blogs, and social media sometimes provide deployment snapshots.

  • These sources can be used for approximate counts but are less reliable than official reporting.


• Define the scope: Are you tracking federal, state, or private equipment?

• Understand that counts are fluid: a machine counted at one fire may move to another within hours.

• Cross-reference multiple sources for validation: official reports, agency contacts, and verified media coverage.


The CAT 289 and Its Track System Evolution
The Caterpillar 289 compact track loader is part of CAT’s 200 series, designed for high-performance grading, material handling, and land clearing. With a rated operating capacity of over 3,800 pounds and a powerful turbocharged diesel engine, the 289 has been widely adopted in construction and forestry sectors. One of the most critical components of any track loader is its undercarriage—specifically the idler and roller configuration that supports the track and distributes weight.
Originally, the CAT 289 was equipped with a double idler system, which offered decent track stability and tension control. However, operators working in stump-heavy environments or uneven terrain began reporting issues with track derailment and premature wear. These complaints prompted Caterpillar to explore a triple idler configuration to enhance ground contact and reduce stress on the track system.
Why Triple Idlers Matter
An idler is a wheel that guides and supports the track without driving it. Increasing the number of idlers improves:

• Track tension consistency across varying terrain

• Weight distribution, reducing pressure points and wear

• Stability when climbing over obstacles, such as stumps or rocks

• Resistance to track derailment, especially during aggressive turns or side loads


• Removing the existing idler assemblies

• Installing new mounting brackets and idler wheels

• Adjusting track tension to accommodate the extended frame geometry

• Verifying alignment and performing a test run under load


Background on Case 580SE
The Case 580SE is part of Case’s popular 580-series loader/backhoes. Case, with a long history in construction equipment, produced many 580 variants; the SE model features a modular transmission and a hydraulic‑actuated wet‑disc braking system. Over decades in service, many SEs have developed brake-related problems due to wear, contamination, or assembly issues.

Common Brake Problems on the 580SE
Operators of the 580SE frequently report several recurring brake‑system faults:

• Brakes sticking on (even after release)

• Uneven pedal travel, where one pedal sits lower than the other

• Brake slave cylinders seizing or failing to retract

• Misassembled or improperly stacked brake discs and steel plates

• Broken return springs in the slave (actuator) cylinders


• Slave Cylinder: The hydraulic piston that pushes on the brake stack (discs) to apply the brakes.

• Disc & Steel Plate Stack: The braking surface inside the brake housing — typically two friction discs and one steel plate.

• Return Spring: A spring inside the slave cylinder that returns the piston when hydraulic pressure is released. If it fails, the brakes may stay applied.

• Snap Ring / Circlip: Retains the piston and spring inside the slave cylinder, preventing it from coming out.

• Pedal Free‑Play: The distance the brake pedal travels before it begins to apply the brake — too little free-play can cause dragging.


1. Stuck Slave Cylinder
   • One common problem is that the slave (actuator) cylinders may become stuck due to corrosion or worn/dirty internal parts.

   • The return spring within the cylinder may break or weaken, failing to push the piston back when pressure is released.

   • To access the spring/piston, a circlip must be removed; once removed, the piston can be pressed out using a vice or press to relieve spring tension.

2. Incorrect Disc / Plate Assembly
   • Proper stacking is essential: there should be exactly two friction discs and one steel plate on the outside of the actuator. If this is wrong, braking behavior may be erratic.

   • Misassembly can lead to constant drag or locking.

3. Pedal Adjustment Problems
   • If brake pedal travel is too short, it may cause constant or partial brake engagement.

   • One user advises maintaining about 3 inches (≈ 75 mm) of pedal travel before the brakes apply.

   • Over-tightening the adjustment nut can lead to dragging or locked brakes.

4. Fluid Path and Cylinder Seizure
   • Stuck slave cylinders may also be due to old or contaminated hydraulic fluid.

   • In some cases, freeing up a stuck cylinder and flushing or replacing brake hoses and seals resolves the issue.


• Remove the brake cover / housing on each wheel to inspect brake stacks.

• Disassemble the slave cylinder carefully:
  • Remove the circlip/snap ring.

  • Control the spring tension to avoid sudden release.

  • Press the piston out using a vice or a workshop press.

• Clean or polish the piston, coil spring, and internal cylinder surface. Use fine sandpaper or a brass/steel brush if corrosion is present.

• Reassemble with correct stack order: two friction discs, one steel plate.

• Lubricate parts lightly (anti-seize is often recommended for the balls or moving parts like in similar Case systems).

• Reinstall the slave, ensuring correct alignment.

• Adjust the brake pedal:
  • Back off any overly tight adjustment.

  • Set to allow ~3 in (75 mm) of free pedal travel before engagement.

• Bleed the brake hydraulic system to remove air, which can cause spongy or delayed brake release.


• Removing the slave housing is not trivial: in some cases, the transaxle must be lowered to physically extract the housing.

• Working with the return spring requires caution — it’s under tension, so proper tools and support prevent injury or damage.

• Old or poor‑quality brake hose assemblies may contribute to sticking; replacing hoses when servicing the slave cylinders is often worthwhile.

• Incorrect parts ordering (e.g., aftermarket discs or springs that are not spec) can lead to rework or failure.


• One user disassembled their slave cylinders and found one piston’s return spring was broken. After replacing the spring and cleaning the cylinder, the brake released freely and function returned.

• Another operator, after correcting disc/plate stacking and adjusting pedal travel, achieved much firmer and more reliable braking.

• In a case of brake sticking, a regular maintenance schedule (inspecting slave cylinders every 1,000–2,000 hours) helped prevent recurrence.


• Inspect and service the brakes proactively during major maintenance, even if they appear to work.

• Keep rebuild kits for slave cylinders (spring, seals, snap rings) on hand — these are relatively inexpensive safety-critical parts.

• Document adjustments: note pedal travel, stack order, and how the brakes behave after reassembly.

• Consider replacing hydraulic hose sections during slave rebuilds to minimize internal restriction or deteriorated components.

• Use quality cleaning materials and lubricants: anti-seize for steel parts, and avoid harsh abrasives that could score pistons.
