The Takeuchi TB 135 is a compact and versatile mini excavator widely used for construction, landscaping, and other earth-moving applications. Known for its robust performance, the TB 135 combines advanced hydraulic systems with superior maneuverability, making it a favorite in tight spaces and difficult terrains. However, like any piece of heavy equipment, wear and tear over time can result in damage to various components, including the cab side window. Replacing a damaged or cracked cab side window is a critical repair to maintain visibility, safety, and the overall integrity of the machine.
In this article, we will explore the process of replacing the cab side window on the Takeuchi TB 135, common challenges faced during the replacement, and important considerations to keep in mind.
Importance of the Cab Side Window in the Takeuchi TB 135
The cab side window in the Takeuchi TB 135 plays a crucial role in the operator's safety and comfort. It provides visibility, shielding the operator from debris and environmental factors while offering an unobstructed view of the job site. The window also contributes to the structural integrity of the cab, helping to protect the operator from external hazards.
If the window becomes cracked or damaged, it can pose a safety risk, potentially leading to reduced visibility and exposure to elements like dust, rain, or flying debris. Moreover, a broken window can compromise the cab's safety, making it essential to address any damage as soon as possible.
Common Reasons for Cab Side Window Damage
Several factors can lead to the need for cab side window replacement on a Takeuchi TB 135. Common causes of damage include:

1. Accidental Impact: The most common reason for a damaged cab window is an accidental impact. This can occur when heavy equipment or materials are loaded or unloaded near the machine, or when operating in environments with tight spaces where the machine's body may make contact with obstacles.

2. Flying Debris: While working on construction sites or in rugged terrains, debris like rocks, branches, or gravel can be kicked up by the machine’s tracks, hitting the windows and causing cracks or chips.

3. Environmental Factors: Over time, exposure to extreme temperatures or weather conditions can weaken the integrity of the glass, leading to cracks or shattering. Prolonged exposure to sunlight can also affect the adhesive materials around the window, causing them to degrade.

4. Vibration and Wear: Continuous vibration during operation can sometimes cause structural stresses on the window, particularly if the window wasn’t installed or sealed properly. This can lead to cracks or loosening of the glass.

5. Poor Maintenance: Lack of proper maintenance and care can contribute to window damage. Scratches from rough cleaning or neglecting to inspect for small cracks can worsen over time, eventually requiring replacement.


1. Safety First: Before beginning any repair, ensure that the machine is parked on level ground, turned off, and the key is removed. Wear proper safety gear, including gloves and safety glasses, to protect yourself from shards of broken glass and other debris.

2. Remove the Broken Glass:
   • If the window is broken or shattered, carefully remove any loose glass pieces. It's important to wear gloves and use tools like a flathead screwdriver or pliers to gently pull away shards of glass.

   • Take care not to scratch or damage the frame around the window during removal. Use a vacuum to clear out any small shards from the interior of the cab.

3. Inspect the Frame: Once the broken glass is removed, inspect the window frame for any damage. Look for signs of bending or corrosion, as this could affect the new window’s fit and seal. If the frame is damaged, it may require repair or reinforcement before installing the new window.

4. Clean the Surface: Thoroughly clean the window frame, removing any dirt, debris, or old adhesive residue. This ensures a proper seal for the new window and prevents contaminants from interfering with the installation.

5. Install the New Window:
   • Ensure that the new cab side window is the correct part for your Takeuchi TB 135. It’s essential to use an OEM (Original Equipment Manufacturer) part to ensure a proper fit.

   • Carefully position the new window in the frame, ensuring it aligns correctly with the mounting points.

   • Use a suitable adhesive or sealant to secure the window in place. Make sure that the adhesive used is specifically designed for automotive or heavy equipment windows, as this will provide the necessary strength and weather resistance.

6. Secure the Window: Depending on the design of the machine, you may need to secure the window with screws or clips. Ensure that all fasteners are tightened properly, and the window is securely fixed in place.

7. Check for Leaks: After installation, inspect the window for any gaps between the glass and the frame. If necessary, apply additional sealant to ensure that the window is fully sealed against water and dust ingress.

8. Final Inspection: Once the window is installed, give it a thorough check for alignment, tightness, and sealing. Test the window’s operation if it’s part of a sliding mechanism. Make sure that the glass is clear, the frame is solid, and the window operates smoothly.


1. Accessing the Window Frame: Depending on the layout of the TB 135, the window may be difficult to access, particularly if the cab is equipped with other structures or components that block the window. In such cases, it may be necessary to remove or reposition parts of the cab to gain better access.

2. Proper Adhesive Application: Applying adhesive correctly is crucial for ensuring that the new window is securely held in place. Inadequate adhesive application can result in poor sealing, leading to leaks or glass displacement over time.

3. Aligning the Window: Aligning the window perfectly in the frame can be tricky, especially if the frame is slightly bent. If the window is not properly aligned, it may not seal properly, leading to water or dust intrusion.

4. Window Fitment: If using aftermarket parts, there could be issues with the fitment of the replacement window. Using OEM parts is highly recommended to ensure that the new glass fits correctly and maintains the original design specifications.


1. Careful Operation: Operate the Takeuchi TB 135 carefully, particularly in environments where debris or objects may be kicked up by the machine’s movement. Be cautious when working in tight spaces to avoid impact with surrounding structures.

2. Routine Inspections: Regularly inspect the windows for any cracks, chips, or signs of wear. Catching small issues early can prevent larger, more costly repairs down the line.

3. Protection Film: Consider applying a protective film or coating to the windows to reduce the risk of damage from debris or environmental factors. This can also reduce glare and protect the glass from UV damage.

4. Proper Maintenance: Regularly clean the windows with appropriate materials to avoid scratching or damaging the glass. Avoid using abrasive cleaners that could cause harm to the surface.


The JD400 and Its Hydraulic Diagnostic Challenges

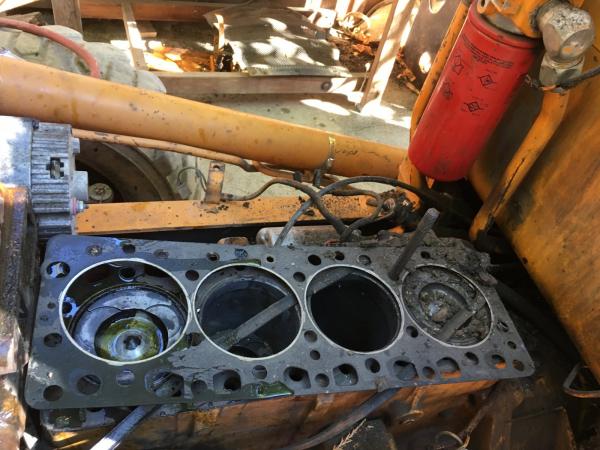

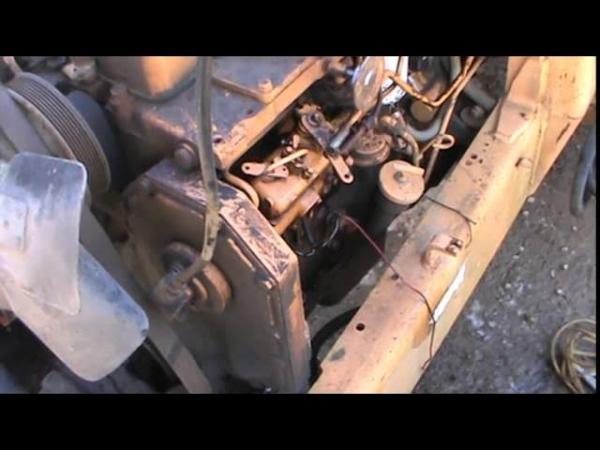

The John Deere JD400 industrial tractor-loader was introduced in the late 1960s as a rugged, multipurpose machine for construction, municipal, and agricultural use. Built on a modified agricultural chassis, it featured a robust hydraulic system powering the loader, backhoe, and steering functions. With thousands of units sold across North America, the JD400 remains in service today, especially in small fleets and restoration circles.

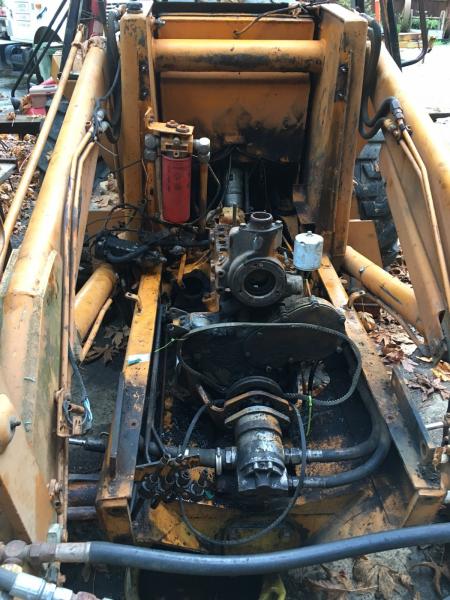

One of the persistent challenges in maintaining the JD400 is accessing and interpreting hydraulic pressure data. Unlike modern machines with standardized diagnostic ports and digital readouts, the JD400 relies on threaded test ports that vary by location and function. Identifying the correct thread type and sourcing compatible adaptors is essential for accurate pressure testing and system troubleshooting.
Terminology Note

• Test Port: A threaded access point on a hydraulic component used to measure pressure or flow.

• Adaptor Fitting: A connector that allows a pressure gauge or hose to interface with a specific thread type.

• JIC (Joint Industry Council): A common hydraulic fitting standard using 37° flare threads.

• ORB (O-Ring Boss): A straight-thread fitting sealed with an O-ring, often used in high-pressure systems.


• SAE 7/16-20 UNF: Found on steering and loader control valves, often requiring JIC adaptors.

• NPT 1/8" or 1/4": Tapered threads used on older cylinders and pump housings.

• ORB 9/16-18: Straight threads with O-ring seals, typically found on later hydraulic manifolds.

• Metric M14x1.5: Occasionally used on imported replacement parts or aftermarket valves.


• Determine the thread type using a pitch gauge or reference chart

• Select an adaptor with matching male threads and a female port for the gauge

• Use a glycerin-filled pressure gauge rated for 3,000 psi or higher

• Install the adaptor with thread sealant or O-ring as required

• Start the machine and observe pressure under load conditions


• JIC-to-NPT reducers for older valves

• ORB-to-JIC adaptors for pump testing

• Metric-to-SAE converters for aftermarket components


• Use thread pitch gauges and visual charts to identify port types

• Keep a labeled adaptor kit with JIC, ORB, NPT, and metric fittings

• Avoid forcing tapered threads into straight-thread ports

• Use glycerin-filled gauges for vibration damping and readability

• Document pressure readings and adaptor types for future reference


The Caterpillar D7F, a powerful and reliable dozer, is one of the more well-known machines in the heavy equipment industry. Manufactured by Caterpillar, the D7F has served various industries including construction, mining, and forestry. Like any complex piece of machinery, it requires proper maintenance to ensure it continues to operate smoothly. One of the critical components in maintaining the Caterpillar D7F's performance is the track adjuster system, which relies on seals to keep the hydraulic fluid and pressure intact. However, track adjuster seals can become a common point of failure, leading to problems with track tension, leaking, and ultimately performance degradation.
In this article, we will explore the function of the track adjuster seals on the D7F, the common issues that arise, how to diagnose problems, and steps for effective maintenance and repair.
Understanding the Track Adjuster System in the D7F
The track adjuster in a dozer like the Caterpillar D7F is a critical part of the undercarriage system. Its primary function is to maintain proper tension in the tracks to ensure that they grip the ground efficiently and allow for smooth movement. Proper track tension is vital for the machine's traction, wear resistance, and overall performance.
The track adjuster system works through hydraulic pressure, which is maintained by seals that prevent leaks and ensure fluid retention. The pressure from the hydraulic system allows for adjustments to the track tension, which compensates for wear or environmental factors like temperature changes or load variations.
Track Adjuster Seals and Their Role
The track adjuster seals are responsible for maintaining the integrity of the hydraulic system by preventing fluid leaks. These seals are located at various points along the adjuster mechanism, most notably at the ends of the track adjuster cylinder, where they seal the hydraulic pressure in the system.
When functioning properly, these seals help regulate the hydraulic fluid that adjusts the tension in the tracks, ensuring smooth operation and preventing the track from loosening or becoming too tight. If the seals fail, they can lead to a loss of hydraulic pressure, which in turn can cause improper track tension, making it difficult to keep the tracks in optimal condition.
Common Issues with Track Adjuster Seals
Over time, the track adjuster seals can wear out or become damaged due to the harsh operating conditions that the Caterpillar D7F endures. Common issues that may arise due to faulty seals include:

1. Hydraulic Fluid Leaks: The most common sign of a failing track adjuster seal is the appearance of hydraulic fluid around the track adjuster assembly. This can be particularly evident near the seals themselves, where pressure loss results in fluid leakage.

2. Improper Track Tension: A significant issue that arises from damaged or worn seals is the inability to maintain the correct track tension. If the seal fails and hydraulic fluid escapes, the track adjuster cannot apply the necessary pressure to maintain proper track tension. This can result in either overly tight or overly loose tracks, which can lead to inefficient operation, excessive wear, and potential damage to the undercarriage.

3. Irregular Track Wear: When the track adjuster cannot maintain the proper tension, it can result in uneven wear on the tracks. This can significantly reduce the lifespan of the tracks, requiring more frequent replacement and increasing maintenance costs.

4. Increased Maintenance Costs: Leaks caused by faulty seals can lead to more severe mechanical issues down the line, potentially affecting other components of the undercarriage or hydraulic systems. This can increase the frequency of maintenance and repair, driving up operational costs.

5. Overheating and Pressure Loss: When the seals are compromised, not only does the fluid leak out, but it can also lead to overheating of the hydraulic system. Loss of fluid reduces the efficiency of the hydraulic components, which can lead to further breakdowns.


1. Visual Inspection: Regular visual checks of the track adjuster are essential. Look for visible signs of hydraulic fluid leakage around the seals. If you notice fluid buildup or puddles around the track adjuster, it's a sign that the seals may have failed.

2. Check Track Tension: Pay attention to any changes in track tension. If the track tension becomes uneven or too tight/loose, the seals may be to blame. A change in tension can be felt during operation or noticed during a routine inspection.

3. Monitor Hydraulic Fluid Levels: If you notice a drop in hydraulic fluid levels, especially without an apparent cause, the track adjuster seals could be leaking fluid. It's important to monitor fluid levels regularly to ensure the system is functioning properly.

4. Check for Uneven Wear on Tracks: Inspect the tracks for signs of uneven wear, as this can indicate that the track adjuster system is not functioning correctly. Irregular wear patterns are often a result of incorrect track tension caused by seal failure.


1. Replacing the Seals: Replacing the seals is the most direct solution when they are damaged or worn out. Begin by safely raising the track adjuster and draining any hydraulic fluid. Once the system is depressurized, remove the track adjuster assembly and disassemble it. Replace the old seals with new, OEM-approved seals. Reassemble the components and refill the system with the appropriate hydraulic fluid.

2. Cleaning the Components: Before reassembling the track adjuster, clean the cylinder and other components thoroughly. Any debris or contaminants could damage the new seals, causing premature failure.

3. Check the Cylinder for Damage: Inspect the track adjuster cylinder for any signs of scoring, corrosion, or other damage. Even small scratches or imperfections on the cylinder can cause the new seals to wear prematurely. If the cylinder is damaged, it may need to be replaced.

4. Refill and Test: After the seals are replaced, refill the system with hydraulic fluid and test the track adjuster for proper function. Monitor the system for any signs of leaks, and check track tension to ensure it is within the correct range.

5. Routine Maintenance: To prevent issues in the future, perform regular maintenance checks on the track adjuster system. Periodically inspect the seals, fluid levels, and track tension, and address any signs of wear or leakage promptly.


1. Use Quality Hydraulic Fluid: Ensure that you use the correct type of hydraulic fluid as recommended by Caterpillar for the D7F. Low-quality or incorrect fluids can cause seals to wear out more quickly.

2. Regular Fluid Changes: Change the hydraulic fluid at the manufacturer-recommended intervals. Dirty fluid can lead to debris buildup that can damage seals and other hydraulic components.

3. Routine Inspections: Regularly inspect the track adjuster and seals for wear and tear. Catching issues early can prevent major repairs down the line.

4. Monitor Operating Conditions: Be mindful of the operating environment. Working in extreme conditions, such as heavy mud, dust, or extreme temperatures, can accelerate seal wear. Adjusting operational practices where possible can extend the lifespan of your track adjuster seals.


The Function and Vulnerability of Hydraulic Seals
Hydraulic seals are critical components in heavy equipment, designed to contain pressurized fluid within cylinders, pumps, valves, and motors. These seals maintain system integrity, prevent contamination, and ensure consistent force transmission. Most seals are made from nitrile rubber, polyurethane, or PTFE, and are engineered to withstand high pressure, temperature fluctuations, and abrasive conditions.
Despite their resilience, hydraulic seals are among the most failure-prone parts in excavators, loaders, and dozers. A single blown seal can lead to fluid loss, pressure drops, and component seizure—often triggering a cascade of failures across the system.
Terminology Note

• Rod Seal: Prevents fluid from leaking out of the cylinder along the piston rod.

• Wiper Seal: Keeps dirt and debris from entering the cylinder during rod retraction.

• Piston Seal: Maintains pressure between the piston and cylinder wall.

• Blowout: A sudden rupture or extrusion of the seal due to overpressure or mechanical damage.


• Overpressure Events: Relief valve malfunction or sudden load spikes can exceed seal ratings.

• Contaminated Fluid: Dirt, water, or metal particles degrade seal material and cause abrasion.

• Improper Installation: Misaligned seals or damaged grooves lead to uneven wear and extrusion.

• Thermal Cycling: Repeated heating and cooling causes hardening, cracking, or shrinkage.

• Rod Scoring: Scratches or dents on the piston rod tear the seal during movement.


• Sudden fluid spray or puddling near the cylinder

• Loss of lifting or pushing force

• Jerky or uneven movement

• Hissing or squealing sounds during operation

• Visible damage to the rod or seal housing


• Clean the area and observe for fresh leaks under pressure

• Use a UV dye and black light to trace fluid paths

• Inspect the rod for scoring, pitting, or corrosion

• Remove the gland and check for seal extrusion or fragmentation


• Depressurizing the system and draining fluid

• Removing the cylinder from the machine

• Disassembling the gland and piston assembly

• Inspecting all components for wear or damage

• Installing new seals using proper tools and lubrication


• Use OEM or high-quality aftermarket seal kits

• Replace wiper and rod seals together to maintain balance

• Polish the rod with emery cloth or replace if scored

• Clean all grooves and ports before reassembly

• Torque gland bolts to spec and test under load


• Change hydraulic fluid and filters every 500 hours

• Use fluid analysis to detect contamination or additive breakdown

• Warm up the system before full-load operation in cold weather

• Inspect rods and glands during routine maintenance

• Monitor pressure spikes with in-line gauges or telematics


• PTFE-based seals for high-temperature applications

• U-cup and buffer seal combinations for dynamic loads

• Spring-energized seals for extreme pressure retention


• Keep seal kits and rod polishing tools in inventory

• Document seal replacements and cylinder rebuilds

• Train staff on proper installation techniques and torque specs

• Use protective boots or guards in abrasive environments

• Schedule cylinder inspections during seasonal maintenance


The Mack MS200, a heavy-duty truck model produced by Mack Trucks, is known for its durability and power, often used for long-haul freight, construction, and other heavy-duty applications. In 1998, the Renault engine in the MS200 gained recognition for providing a reliable power source, but like all engines, it isn’t immune to performance issues, especially when it comes to overheating. Overheating in heavy-duty vehicles like the Mack MS200 can stem from various causes and, if not properly addressed, can lead to serious engine damage, reduced efficiency, and costly repairs.
In this article, we will delve into the common causes of overheating in the Mack MS200 with a Renault engine, explore diagnostic steps, and discuss preventive measures to avoid similar issues in the future.
Understanding the Mack MS200 and Renault Engine
Mack Trucks, established in 1900, has built a reputation for manufacturing some of the most rugged and durable trucks in the heavy-duty market. The MS200, introduced in the late '90s, was part of the company’s product line aimed at the freight and construction industries. It is a versatile truck equipped with powerful engines designed to handle tough terrains and heavy payloads.
The Renault engine, used in certain models of the Mack MS200, is known for its solid performance and efficiency. Renault, a major player in the automotive industry, has long been recognized for its engine technology, which was integrated into some Mack models to provide enhanced power and fuel economy. However, like any engine, the Renault engine is subject to wear and tear, and its cooling system is a critical aspect of its long-term reliability.
Common Causes of Overheating in the Mack MS200 with Renault Engine
When a truck like the Mack MS200 begins to overheat, it’s essential to quickly diagnose the root cause. Overheating in a Renault engine can stem from a variety of issues, ranging from simple maintenance neglect to more complex mechanical failures. Below are some of the most common causes of overheating:

1. Coolant System Issues: One of the most frequent causes of overheating is a malfunction in the coolant system. This can involve:
   • Low Coolant Levels: If the coolant reservoir is not filled to the proper level, it cannot efficiently absorb and dissipate heat from the engine.

   • Leaking Hoses or Radiator: Leaks in the cooling system can prevent the proper circulation of coolant, causing the engine to overheat.

   • Faulty Thermostat: The thermostat regulates coolant flow through the engine. A malfunctioning thermostat may stick in a closed position, preventing coolant from circulating properly.

2. Clogged Radiator: A buildup of dirt, debris, or mineral deposits in the radiator can reduce the efficiency of heat dissipation. If the radiator is blocked, it cannot release heat from the coolant, leading to overheating.

3. Water Pump Failure: The water pump is responsible for circulating coolant throughout the engine. If the pump fails or its components wear out, coolant may not flow efficiently, causing engine temperatures to rise.

4. Engine Oil Problems: Low or dirty engine oil can contribute to overheating by increasing friction between engine parts. Insufficient lubrication causes the engine to work harder, generating more heat. Over time, this additional heat can lead to engine damage.

5. Radiator Fan Issues: A malfunctioning radiator fan can lead to poor cooling, especially in high-temperature environments or during slow-moving conditions. The fan is essential for drawing air through the radiator to cool the coolant.

6. Exhaust System Blockages: A blocked exhaust system can cause the engine to overheat by restricting the flow of exhaust gases. This forces the engine to work harder, increasing the load and producing excessive heat.


1. Rising Temperature Gauge: The most immediate indication of overheating is the temperature gauge on the dashboard rising into the "red" zone. If this occurs, it’s a clear sign that the engine is getting too hot.

2. Steam or Smoke: Steam or smoke coming from under the hood can be an indication that coolant is boiling over or there is a serious leak in the cooling system.

3. Loss of Power: When the engine overheats, it may not perform as efficiently. Operators may notice a loss of power, especially when driving under load.

4. Unusual Engine Sounds: Overheating can cause abnormal engine sounds, such as knocking or tapping, which may indicate that the engine is running at higher temperatures than it should be.

5. Coolant Leaks: If coolant starts leaking from the radiator or hoses, it can quickly lead to overheating. Leaks may also be accompanied by puddles of coolant under the truck.


1. Check Coolant Levels: Begin by checking the coolant level in the reservoir. Low levels could be a sign of leaks or evaporation. Top up the coolant with the recommended mixture of antifreeze and water.

2. Inspect for Leaks: Check the radiator, hoses, and water pump for visible signs of leaks. A simple hose leak can lead to significant coolant loss, resulting in overheating.

3. Examine the Thermostat: A malfunctioning thermostat is a common cause of overheating. If the thermostat is stuck in the closed position, it can prevent coolant from circulating. Replacing a faulty thermostat is a relatively simple fix.

4. Test the Radiator Fan: Ensure that the radiator fan is working correctly. Check for electrical issues, faulty fan motors, or a broken fan belt.

5. Clean the Radiator: If the radiator is clogged with debris or mineral deposits, it can reduce cooling efficiency. A thorough cleaning or flushing of the radiator may resolve this issue.

6. Inspect the Water Pump: A worn-out water pump can significantly reduce the circulation of coolant, leading to overheating. If the pump appears damaged or isn’t working efficiently, it may need replacement.

7. Check Engine Oil: Ensure that the engine oil is at the correct level and is clean. If the oil appears dirty or has not been changed for an extended period, replacing the oil can improve engine performance and reduce overheating.


1. Regular Coolant Checks: Routinely inspect the coolant levels and replace the coolant mixture every few years to maintain optimal engine cooling.

2. Periodic Radiator Cleaning: Clean the radiator regularly to remove dirt and debris that could obstruct airflow. Flushing the radiator and replacing the coolant will help keep the cooling system running efficiently.

3. Oil Changes: Ensure that engine oil is changed at regular intervals. Dirty oil or insufficient lubrication can contribute to overheating.

4. Monitor Engine Temperatures: Pay attention to the temperature gauge and address any rising temperatures immediately. Addressing overheating symptoms early can prevent severe damage.

5. Fan and Water Pump Maintenance: Ensure the radiator fan is in good working condition, and check the water pump for wear. These components are essential for maintaining proper engine cooling.

6. Pre-Operation Inspections: Before operating the Mack MS200, always conduct a thorough pre-operation inspection. Look for signs of leaks, worn hoses, or damaged components that could contribute to overheating.


The LS2700C2 and Its Turbocharged Powertrain
The LS2700C2 excavator is a mid-sized hydraulic machine designed for general excavation, trenching, and light demolition. Manufactured by a regional OEM and powered by a turbocharged diesel engine—often a variant of the Isuzu 4BG1 or similar—it relies on forced induction to deliver torque and maintain fuel efficiency under load. Turbochargers in these machines are critical for maintaining performance, especially during high-demand operations such as bucket breakout or uphill travel.
Turbocharging allows smaller displacement engines to produce higher power by compressing intake air, increasing oxygen density, and improving combustion. However, when the turbo fails or underperforms, symptoms can be subtle and easily mistaken for fuel or hydraulic issues.
Terminology Note

• Turbocharger: A turbine-driven forced induction device that increases engine power by compressing intake air.

• Wastegate: A valve that regulates turbo boost pressure by diverting exhaust flow.

• Boost Pressure: The amount of pressure above atmospheric level generated by the turbo.

• Charge Air Cooler: A heat exchanger that cools compressed air before it enters the engine.


• Sluggish acceleration or poor throttle response

• Black smoke under load due to incomplete combustion

• Whistling or grinding noises from the turbo housing

• Excessive oil consumption or visible oil leaks near the compressor

• Reduced fuel economy and higher exhaust temperatures


• Listen for turbo spool-up: A healthy turbo emits a faint whine or whistle as RPM increases.

• Inspect the intake hose: Disconnect the hose from the turbo outlet and check for airflow during throttle application.

• Check exhaust smoke: Blue smoke may indicate oil leakage into the intake; black smoke suggests poor air-fuel mixing.

• Feel the charge pipe: During operation, the pipe should become firm and warm, indicating pressurized airflow.

• Monitor engine response: A turbo-equipped engine should show noticeable power gain above 1,500 RPM.


• Remove the intake pipe and inspect the compressor wheel for damage or play

• Spin the wheel manually—resistance or grinding indicates bearing failure

• Check for oil residue inside the intake and exhaust housings

• Inspect the wastegate actuator for movement and linkage integrity

• Verify boost pressure using a mechanical gauge tapped into the intake manifold


• Change engine oil and filters every 250 hours

• Use high-quality diesel with proper cetane rating

• Allow the engine to idle for 2–3 minutes before shutdown to cool the turbo

• Inspect air filters and intake hoses for debris or leaks

• Monitor oil pressure and temperature during operation


• Keep a boost gauge in the diagnostic toolkit

• Document turbo replacements and oil change intervals

• Train operators to recognize early signs of turbo failure

• Use OEM or high-quality aftermarket turbos with warranty support

• Replace oil feed and return lines during turbo swaps to prevent recurrence


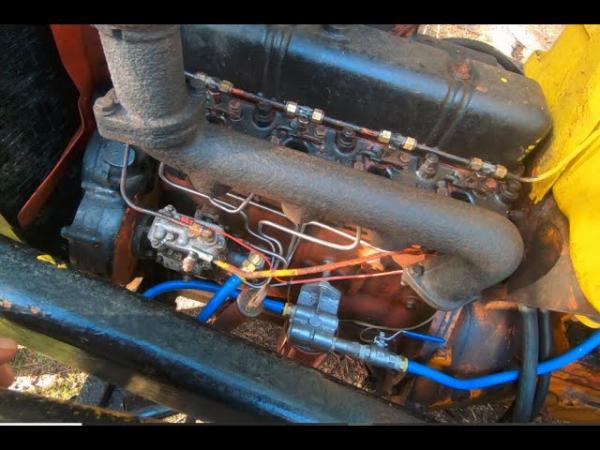

The Case 580K is a widely used backhoe loader, renowned for its durability, versatility, and solid performance in a wide range of construction, landscaping, and agricultural applications. However, like any piece of heavy machinery, it is susceptible to mechanical issues that can affect performance and efficiency. One of the more common, yet sometimes confusing, issues that operators encounter involves the transaxle suction screen. Understanding the purpose of the transaxle suction screen, recognizing the symptoms of problems, and knowing how to troubleshoot and fix them are crucial steps in maintaining optimal machine performance.
In this article, we will dive deep into the transaxle suction screen issue in the Case 580K, exploring its function, the potential causes of malfunction, and the necessary steps for troubleshooting and maintenance.
Understanding the Transaxle Suction Screen
The transaxle suction screen in a backhoe loader like the Case 580K plays a vital role in protecting the hydraulic system and ensuring that the transaxle operates efficiently. The transaxle itself is a combination of the transmission and axle, which is responsible for driving the wheels or tracks of the machine.
The suction screen serves as a filter that removes debris and contaminants from the hydraulic fluid or oil before it enters the transaxle. Its main function is to protect the delicate components inside the transaxle from damage caused by particles like dirt, metal shavings, or other impurities. A clogged or damaged suction screen can significantly reduce the efficiency of the hydraulic system, lead to overheating, or even cause premature failure of key components such as pumps and valves.
Symptoms of a Clogged or Malfunctioning Suction Screen
When the transaxle suction screen becomes clogged or damaged, it can lead to a range of performance issues. Some of the common symptoms that operators might notice include:

1. Poor Hydraulic Response: The first sign of a problem often manifests in the hydraulic system. If the suction screen is blocked, hydraulic fluid flow will be restricted, causing slow or erratic movements of the backhoe’s boom, bucket, or other attachments.

2. Overheating: Restricted fluid flow caused by a clogged suction screen can lead to overheating in the transaxle. This can cause the machine to run inefficiently and potentially lead to a breakdown if the issue is not addressed.

3. Strange Noises: A malfunctioning suction screen can cause unusual sounds in the transaxle or hydraulic system, such as grinding, whining, or other abnormal noises, due to the increased strain on the components.

4. Fluid Leaks: In some cases, a clogged suction screen can cause increased pressure in the hydraulic system, leading to leaks around seals, hoses, or gaskets. This can further exacerbate the problem and reduce the overall efficiency of the system.

5. Erratic Transmission Behavior: A malfunctioning suction screen can impact the performance of the transmission, causing hesitation, rough shifting, or failure to engage in the desired gear. This is a clear indication that something is wrong within the transaxle assembly.


1. Contaminated Hydraulic Fluid: Over time, dirt, debris, and other contaminants can accumulate in the hydraulic fluid. If the fluid becomes excessively contaminated, it can clog the suction screen and prevent it from filtering out additional particles, leading to a vicious cycle of contamination.

2. Old or Worn Hydraulic Filters: The suction screen itself can become worn out or damaged over time. If the screen is not replaced according to the recommended maintenance schedule, it can lose its ability to filter out contaminants effectively.

3. Improper Fluid Maintenance: If the hydraulic fluid is not changed regularly or is not of the proper viscosity, it can cause excessive buildup of debris, which can clog the suction screen. Ensuring that the correct fluid is used and replaced at regular intervals can prevent this issue.

4. Environmental Factors: The working conditions of the backhoe loader also play a role in the condition of the suction screen. Dusty environments, construction sites with a lot of debris, or environments with high levels of moisture can accelerate the buildup of contaminants in the hydraulic system, contributing to a clogged suction screen.

5. Faulty Installation or Poor Maintenance Practices: In some cases, the suction screen may become clogged due to improper installation or maintenance practices. For example, if the screen is not securely fitted or if the system is not properly cleaned during routine service, debris can accumulate more rapidly.


1. Check the Hydraulic Fluid: Start by inspecting the hydraulic fluid level and its condition. If the fluid is discolored or contains visible contaminants, it may be time to drain and replace it. Be sure to use the correct type of hydraulic fluid recommended by the manufacturer.

2. Inspect the Suction Screen: The suction screen itself should be removed and inspected for damage or clogging. A clogged screen can be cleaned using a suitable solvent, but if it is excessively worn or damaged, it should be replaced.

3. Clean or Replace Hydraulic Filters: Along with the suction screen, the hydraulic filters should be cleaned or replaced regularly. A clogged filter can further exacerbate the issue by restricting fluid flow and contributing to the buildup of contaminants in the system.

4. Inspect the Transaxle: If the suction screen appears to be clean, but the machine is still exhibiting symptoms of poor performance, it may be necessary to inspect the transaxle itself. Check for any signs of internal damage or wear, and verify that the gears and bearings are properly lubricated.

5. Check for Leaks: Look for any signs of hydraulic fluid leaks around the suction screen, hoses, seals, or gaskets. Leaks can result from excessive pressure buildup in the hydraulic system and should be repaired promptly to prevent further damage.


1. Regular Fluid Changes: Change the hydraulic fluid at the manufacturer-recommended intervals. Be sure to use high-quality fluid that meets the specifications outlined in the operator's manual.

2. Inspect and Clean the Suction Screen: Regularly inspect the suction screen for debris, dirt, or signs of damage. If cleaning is required, ensure that it is done carefully to avoid damaging the screen or other components.

3. Replace Filters Regularly: Change the hydraulic filters at the recommended intervals. Using the right filters will ensure that contaminants are effectively removed before they can clog the suction screen.

4. Monitor Operating Conditions: If operating in harsh environments (such as dusty or muddy conditions), consider increasing the frequency of inspections and maintenance. In such environments, the machine is more likely to encounter high levels of debris that can clog the suction screen.

5. Training and Best Practices: Ensure that operators are trained in proper machine operation and fluid maintenance. Educating operators on how to identify early warning signs of suction screen issues can help prevent more severe problems from developing.


The Role of TO-4 Fluids in Powertrain Protection
TO-4 transmission oils are engineered to meet the rigorous demands of off-highway machinery, including dozers, scrapers, loaders, and haul trucks. Originally developed to meet Caterpillar’s TO-4 specification, these fluids are now widely adopted across multiple OEMs such as Komatsu, John Deere, Volvo, and Allison. TO-4 oils are designed to serve in transmissions, final drives, wet brakes, and hydraulic systems, offering consistent friction control, thermal stability, and wear protection under extreme pressure and temperature.
Unlike engine oils, TO-4 fluids are non-friction-modified, ensuring precise clutch engagement and brake performance. They are backward-compatible with older TO-2 systems but optimized for modern powertrain designs that demand tighter tolerances and higher load capacities.
Terminology Note

• TO-4: Caterpillar’s Transmission Oil specification introduced to standardize fluid performance across powertrain components.

• Friction Control: The ability of a fluid to maintain consistent clutch engagement without slippage or chatter.

• Thermal Stability: Resistance to breakdown under high operating temperatures.

• Hydrostatic Transmission: A drive system using hydraulic fluid to transmit power through pumps and motors.


• 10W: Ideal for cold climates or shared hydraulic-transmission systems requiring fast circulation and smooth startup.

• 30W: The most common grade, suitable for moderate to high temperatures in transmissions, torque converters, and hydraulic circuits.

• 50W and 60W: Used in final drives and gearboxes operating under extreme loads and heat.


• Enhanced anti-wear additives to protect gear teeth and pump vanes

• Improved oxidation resistance for longer service intervals

• Superior brake chatter control in wet brake systems

• Stable viscosity across wide temperature ranges


• OEM-branded TO-4 oils (e.g., CAT, Mobil) often cost 20–30% more than private-label equivalents

• Bulk drums (55 gallons) offer savings of up to 40% compared to gallon jugs

• Online suppliers with regional distribution centers offer competitive pricing and direct-to-site delivery


• Match viscosity grade to operating temperature and system design

• Use TO-4 fluids in systems requiring non-friction-modified oils

• Avoid mixing TO-4 with engine oils or friction-modified hydraulic fluids

• Monitor oil condition with regular sampling and lab analysis

• Purchase in bulk when possible to reduce cost and ensure consistency


The Hitachi EX200LC-5 is a robust and versatile hydraulic excavator designed for use in heavy-duty construction, demolition, and mining projects. As part of the EX series, it represents the fifth generation of the EX200 model, built for enhanced durability, fuel efficiency, and operator comfort. While this model is known for its reliability, like all heavy machinery, proper maintenance is essential to ensure its long-term performance. In this article, we will explore key aspects of the EX200LC-5, focusing on service and maintenance recommendations, common issues, troubleshooting tips, and the overall advantages of having access to the service manual.
Understanding the Hitachi EX200LC-5
Hitachi Construction Machinery, a leader in heavy equipment manufacturing, has long been known for producing durable and efficient machines. The EX200LC-5 is part of a series of large hydraulic excavators designed to perform a variety of tasks, from digging and lifting to grading and demolition. This model is equipped with advanced hydraulic systems, a powerful engine, and a durable undercarriage. The LC in the name refers to the long crawler undercarriage, which is optimized for stability, especially when working on uneven terrain.
Key specifications of the EX200LC-5 include:

• Operating Weight: Approximately 21,000 kg (46,000 lbs)

• Engine Power: 121 kW (162 hp)

• Bucket Capacity: 0.8 - 1.0 m³ (1.0 - 1.3 yd³)

• Digging Depth: Up to 7.2 meters (23.6 feet)

• Maximum Reach: 10.5 meters (34.4 feet)

• Hydraulic System: Closed-center load sensing system

• Travel Speed: 5.4 km/h (3.4 mph)


1. Engine Maintenance: Regular engine maintenance ensures optimal fuel efficiency and extends the life of the engine. The EX200LC-5 features a powerful engine that should be serviced regularly to keep it running smoothly. This includes checking oil levels, replacing air filters, and inspecting the fuel system. Engine oil and hydraulic oil should be replaced at the manufacturer-recommended intervals to avoid wear and maintain performance.

2. Hydraulic System: The hydraulic system is the heart of any excavator, and the EX200LC-5 is no exception. Routine inspection and maintenance of the hydraulic components—such as hoses, cylinders, and filters—are crucial to ensuring that the system works efficiently. Hydraulic fluid should be checked regularly, and filters should be replaced according to the service schedule to prevent contamination.

3. Undercarriage and Tracks: The undercarriage and tracks of the EX200LC-5 are designed for heavy-duty use, but they require ongoing inspection. The tracks should be regularly inspected for signs of wear, cracking, or damage, and tension should be checked. Replacing worn-out components like sprockets, rollers, and idlers is essential to prevent further damage to the machine.

4. Cooling System: Overheating is a common issue in construction equipment, especially during long, hot working days. The EX200LC-5 is equipped with a cooling system that should be maintained regularly to avoid engine overheating. Inspecting the radiator, cleaning debris, and checking coolant levels are essential steps in ensuring the system operates efficiently.


1. Starting Problems: If the EX200LC-5 fails to start or experiences intermittent starting, it could be due to a faulty battery, starter motor, or alternator. In some cases, the issue could be related to the ignition system or a wiring fault. A multimeter can help diagnose electrical issues, and the battery voltage should be checked to ensure it is holding a proper charge.

2. Hydraulic System Failures: Hydraulic issues, such as reduced lifting capacity or erratic movements, are common signs of system malfunctions. The first step in diagnosing hydraulic problems is to check the hydraulic fluid level and the condition of the filters. Leaks in the hydraulic system should also be inspected, as they can lead to pressure drops and decreased performance.

3. Engine Overheating: The engine in the EX200LC-5 may overheat if the cooling system is not functioning correctly. Common causes of overheating include a clogged radiator, low coolant levels, or a malfunctioning thermostat. To troubleshoot, the radiator should be checked for dirt or debris, and coolant levels should be inspected. If necessary, the radiator fan and coolant pump should be tested.

4. Undercarriage Wear: Over time, the undercarriage can wear out, leading to decreased stability and performance. This issue can be identified by examining the tracks for wear and tear. Worn sprockets, rollers, and links can be replaced to prevent more significant damage to the machine.


• Maintenance Intervals: Clear instructions on when to change fluids, replace filters, and inspect critical components.

• Troubleshooting Guides: Flowcharts and checklists that help identify common issues and provide solutions.

• Specifications: Information on the specifications of various components, including the engine, hydraulic system, and electrical components.

• Torque Settings: Specific torque values for bolts and nuts, ensuring that components are tightened to the correct specifications.


1. Oil Changes: Regular oil changes are one of the most important steps in keeping the engine running smoothly. Make sure to use the recommended oil type and change it at the specified intervals.

2. Check for Leaks: Regularly inspect all hydraulic lines, fittings, and seals for leaks. Even small leaks can lead to significant issues over time.

3. Track Maintenance: Inspect the tracks regularly and adjust tension as needed. Replace any worn or damaged track components before they cause further damage to the undercarriage.

4. Cleaning: Clean the machine frequently to prevent dirt and debris from accumulating in sensitive areas, such as the cooling system, engine compartment, and hydraulic system.

5. Keep the Cab Clean: A clean cab is not only a more comfortable working environment, but it also allows for better visibility and operation. Regularly clean the windows, seat, and controls.


The 320CL and Its Role in Global Excavation
The Caterpillar 320CL hydraulic excavator was introduced in the early 2000s as part of CAT’s C-series lineup, designed to meet Tier II emissions standards while delivering improved fuel efficiency and hydraulic precision. With an operating weight of approximately 21 metric tons and powered by the CAT 3066 engine producing around 148 horsepower, the 320CL became a cornerstone in mid-size excavation across construction, mining, and infrastructure development.
Caterpillar, founded in 1925, has sold hundreds of thousands of 320-series excavators globally. The 320CL was particularly popular in Asia, the Middle East, and North America, where its balance of power, reach, and serviceability made it a favorite among contractors and fleet managers.
Terminology Note

• Hour Meter: A device that records the total operating time of a machine, used to schedule maintenance and assess wear.

• Hydraulic Cycle Time: The time it takes for the boom, stick, and bucket to complete a full movement sequence.

• Swing Bearing: A large bearing that allows the upper structure of the excavator to rotate on the undercarriage.

• Final Drive: The gear assembly that powers the tracks, converting hydraulic motor output into torque.


• Hydraulic responsiveness: Slower cycle times may indicate pump wear or valve leakage

• Engine compression: Cold starts and fuel efficiency can reveal ring or injector wear

• Swing bearing play: Excessive movement or noise during rotation suggests bearing fatigue

• Track tension and final drive noise: Worn sprockets or planetary gears may cause vibration


• Change engine oil every 250 hours and hydraulic filters every 500 hours

• Inspect swing bearing grease and torque bolts quarterly

• Replace track chains and rollers every 3,000–4,000 hours depending on terrain

• Monitor pump pressure and flow using diagnostic gauges

• Use fuel additives to prevent injector fouling and improve combustion


• Request service records and oil analysis before purchase

• Inspect hydraulic pump flow and relief valve settings

• Test swing bearing for axial and radial play

• Use infrared thermometers to detect overheating in final drives

• Budget for undercarriage replacement if original components remain
