Manitou is a globally recognized brand, particularly renowned for its telehandlers that are designed to tackle some of the most challenging tasks in agriculture, construction, and industrial settings. Known for their versatility, Manitou telehandlers are built to offer both power and maneuverability, making them ideal for handling heavy loads and working in tight or rugged spaces. However, like all heavy machinery, these machines are not without their challenges, particularly when operating in extreme conditions. This article explores the performance of Manitou telehandlers, their capabilities, and some of the challenges operators face, often illustrated by real-world examples of machines in action or becoming stuck.
Overview of Manitou Telehandlers
Manitou was founded in 1957 and quickly established itself as a pioneer in the design and production of telehandlers. The company has continued to innovate over the years, focusing on creating machines that meet the diverse needs of the agricultural, construction, and material handling industries. Manitou offers a wide range of telehandlers, each designed to cater to different lifting capacities, reach, and operational environments.
The Manitou telehandlers are known for their rugged construction and adaptability. Key features often include:

• Articulated Boom Design: The boom can be raised, extended, and retracted to handle different types of lifting tasks, from stacking materials in a warehouse to moving construction debris across a job site.

• Four-Wheel Drive and All-Terrain Capabilities: These machines can traverse rough, uneven terrain, making them ideal for construction sites, farms, and other outdoor environments.

• Hydraulic System: The hydraulic system is designed for precise lifting and attachment control, allowing operators to work with various attachments, such as buckets, forks, and winches.


• Stacking Materials: Telehandlers are often used to stack heavy materials in warehouses or on construction sites, where a crane or forklift might not fit or be feasible.

• Loading and Unloading: With the right attachments, telehandlers can be used for loading and unloading goods from trucks or containers, which is essential in both construction and agricultural operations.


• Use a Recovery Vehicle: Often, the quickest and safest way to get a telehandler out of the mud is by using a recovery vehicle like a tracked machine, which can pull the telehandler free.

• Traction Mats or Planks: If recovery is not immediately available, operators can place traction mats, wooden planks, or other materials under the stuck wheels to create grip.

• Adjusting the Load: Reducing the load on the telehandler can sometimes help shift its weight and relieve pressure on the stuck wheels, giving them a better chance to grip the surface.


• Understanding the Terrain: Operators should assess the ground conditions before operating a telehandler, avoiding areas that appear too soft or unstable. In some cases, using a machine like a tracked loader or excavator might be a better option in challenging conditions.

• Maintaining Proper Tire Pressure: The right tire pressure ensures optimal performance and can help prevent the machine from sinking into soft ground.

• Using the Right Attachments: Some telehandlers, including those from Manitou, are designed to work with a variety of attachments. Ensuring the correct attachment is used for the task at hand can help prevent unnecessary strain on the machine and avoid overloading.


ZF 4WG-160 Transmission and Its Role in Heavy Equipment
The ZF 4WG-160 is a four-speed powershift transmission widely used in mid-sized wheel loaders, including models like the Hyundai 740-7. Developed by ZF Friedrichshafen AG, a German manufacturer founded in 1915, this transmission is known for its robust design and smooth gear transitions under load. It features electronically controlled clutch packs, hydraulic modulation, and a torque converter for efficient power delivery. The 4WG-160 has been installed in thousands of machines globally, particularly in construction and quarry applications.
Terminology Notes

• Clutch Pack (K1–K4): A set of friction discs and steel plates that engage specific gears. K4 typically controls 4th gear.

• Solenoid Valve (Y1–Y6): An electrically actuated valve that directs hydraulic pressure to the clutch pack.

• Modulated Pressure: Controlled hydraulic pressure during gear shifts to prevent harsh engagement.

• B4 Fault Code: Diagnostic alert indicating slippage or failure in clutch K4 engagement.


• Changing transmission oil and filter (no contamination found)

• Measuring clutch pressures at diagnostic ports

• Comparing pressure readings between K3 and K4


• Port 58 (K3): 210 psi in gears 3 and 4

• Port 60 (K4): 0 psi in gear 3, only 68 psi in gear 4


• Swap Solenoids: Replace or interchange solenoid Y1 (K4) with another to test if the fault migrates. If it does, the solenoid is likely defective.

• Inspect Valve Block: Clean thoroughly before removing plugs. Use compressed air to prevent debris ingress.

• Check Electrical Signals: Verify voltage and continuity to solenoid Y1 using a multimeter.

• Review Manual Diagrams: Locate solenoid positions—Y1 controls K4, typically hidden under valve block covers.


• Monitor Gear Engagement: Use onboard diagnostics to track fault codes and gear transitions.

• Maintain Clean Fluid: Contaminated oil can clog valves and reduce pressure.

• Replace Solenoids in Pairs: If one fails, others may be near end-of-life.

• Use OEM Parts: Aftermarket solenoids may not match modulation profiles.

• Document Pressure Readings: Keep logs for future reference and trend analysis.


In the world of telehandlers, two models frequently come up in discussions for their advanced features and versatility: the Merlo Panoramic P38.13 and the Dieci Agri Pivot. Both brands have established themselves as leading players in the heavy equipment industry, providing machines that are capable of handling demanding agricultural, construction, and industrial tasks. This article compares the two telehandler models, examining their key specifications, performance capabilities, and the factors to consider when choosing between them.
Introduction to Merlo and Dieci
Merlo and Dieci are Italian manufacturers known for their innovative approach to producing telehandlers and other specialized machinery. Both companies have built strong reputations for providing durable, high-performance equipment that meets the needs of a wide range of industries.

• Merlo: Founded in 1964, Merlo is widely recognized for its pioneering efforts in the telehandler market. It was one of the first companies to develop and manufacture the articulated telescopic handler, an innovation that changed how industries approach material handling. The Merlo Panoramic series is especially notable for its compact design, enhanced visibility, and advanced technology features.

• Dieci: Dieci, established in 1962, has grown into a prominent manufacturer of telehandlers and other construction and agricultural equipment. The Dieci Agri Pivot line is designed with agricultural applications in mind, though it is also versatile enough for construction and other uses. Dieci's emphasis on reliability and strength in challenging environments has earned it a solid customer base worldwide.


1. Performance and Load Capacity
   • The Merlo P38.13 is powered by a 100-horsepower engine, providing enough power for demanding lifting tasks.

   • It offers a maximum lifting capacity of 3,800 kg (8,378 lbs) and can extend to a maximum height of 13 meters (42.7 feet), making it ideal for high-reaching jobs in construction and agriculture.

2. Compact Design
   • One of the standout features of the Merlo Panoramic series is its compact design. The P38.13 is designed to be highly maneuverable, with a narrow width (2.32 meters) and a relatively low turning radius. This makes it particularly useful in tight spaces, such as inside barns or construction sites where space is limited.

3. Visibility
   • Merlo’s Panoramic design provides excellent all-around visibility, with a unique front-mounted boom that improves sight lines, particularly in narrow or congested areas. This design reduces the need for excessive repositioning of the machine, which helps save time and improve productivity.

4. Hydrostatic Transmission
   • The P38.13 is equipped with a hydrostatic transmission, providing smooth acceleration and deceleration, as well as the ability to precisely control speed in varying terrains. The system also reduces wear and tear, making it ideal for long working hours.

5. Advanced Technology Features
   • Merlo has incorporated advanced technologies into the P38.13, including an electronic display that provides operators with real-time diagnostics and machine performance data. The telehandler is also equipped with a load-sensing hydraulic system, which adjusts the flow of oil to the cylinders depending on the load, optimizing fuel efficiency and hydraulic performance.


1. Performance and Load Capacity
   • The Dieci Agri Pivot features a powerful 75-horsepower engine, delivering impressive lifting capacity. The telehandler can lift up to 3,000 kg (6,613 lbs) and reach a height of 13 meters (42.7 feet), similar to the Merlo model.

2. Articulated Frame
   • The Agri Pivot’s articulated frame is a standout feature, offering improved maneuverability and the ability to handle rough terrain effectively. The pivoting axle provides greater stability when working on uneven ground, making it suitable for both agricultural and construction applications.

3. Maneuverability and Turning Radius
   • The Agri Pivot’s articulated design allows for tight turns and improved handling in narrow spaces. Its turning radius is small, making it easy to navigate in compact farmyards or confined construction sites.

4. Versatility
   • The Dieci Agri Pivot is compatible with a wide range of attachments, making it a highly versatile machine for various tasks, from loading hay bales to lifting construction materials. This adaptability is one of the primary reasons why it is a popular choice in the agricultural sector.

5. Hydraulic System
   • Like the Merlo P38.13, the Dieci Agri Pivot uses a hydraulic system that offers high flow rates, enabling it to operate heavy-duty attachments such as augers, forks, and lifting platforms.


1. Power and Performance
   • The Merlo P38.13 has a more powerful engine (100 hp compared to 75 hp in the Dieci Agri Pivot), which gives it a higher performance in demanding conditions. The higher horsepower allows for better lifting power, especially when working with heavier loads or operating in rough terrain.

2. Versatility and Attachments
   • Both telehandlers offer a wide range of attachments, but the Dieci Agri Pivot is particularly well-suited for agricultural use, with its articulated frame providing added stability in challenging environments. On the other hand, the Merlo’s compact design and advanced technology make it highly versatile, capable of handling both construction and agricultural tasks with ease.

3. Maneuverability
   • Both machines are known for their maneuverability, but the Merlo P38.13 has an edge in tight spaces, thanks to its narrow width and the Panoramic boom design, which allows for greater visibility and precise handling. The Dieci Agri Pivot, with its articulated frame, offers superior performance on uneven surfaces, making it ideal for rough terrain often found in agricultural environments.

4. Visibility
   • The Merlo Panoramic P38.13 offers better visibility thanks to its innovative front-mounted boom. This allows operators to see the load clearly, reducing the risk of accidents and improving efficiency on the job. The Dieci Agri Pivot’s design, while stable and durable, does not provide the same level of forward visibility as the Merlo.

5. Price and Value
   • The Merlo Panoramic P38.13 generally comes at a higher price point due to its advanced features, increased horsepower, and specialized design for handling various tasks in both construction and agriculture. The Dieci Agri Pivot, while still offering excellent performance, is typically priced more competitively, making it a good choice for those primarily focusing on agricultural operations.


Compact Power in a Small Frame
The JCB 8008 CTS is one of the smallest excavators in JCB’s lineup, designed for tight-access jobs where larger machines simply cannot operate. Introduced in the early 2000s, this micro excavator quickly gained popularity across Europe and Asia for its reliability, ease of transport, and surprising digging power. JCB, founded in 1945 in Staffordshire, UK, has sold millions of machines globally, and the 8008 CTS remains a favorite among landscapers, utility crews, and rental fleets.
With an operating weight of just over 1,000 kg and a maximum digging depth of 1.69 meters, the 8008 CTS is ideal for trenching, foundation prep, and small demolition tasks. Its compact footprint allows it to pass through standard doorways and gates, making it indispensable in urban and residential settings.
Terminology Notes

• CTS (Conventional Tail Swing): Refers to the machine’s rear overhang during rotation, which is more pronounced than zero-tail-swing models.

• Hydraulic Track Tensioning: A system that uses grease pressure to adjust track tightness, improving stability and reducing wear.

• ROPS (Roll Over Protective Structure): A safety frame designed to protect the operator in case of rollover.


• ROPS frame with optional canopy

• Emergency stop switch

• Lockable control levers to prevent accidental movement

• Automatic engine shutdown in case of overheating


• Engine Oil and Filter: Every 250 hours

• Hydraulic Fluid: Check daily, replace every 1,000 hours

• Air Filter: Inspect every 50 hours, replace as needed

• Fuel Filter: Replace every 500 hours

• Track Tension: Adjust weekly or after working in muddy terrain


• Track Derailment: Often caused by loose tension or debris buildup. Solution: release grease from the tensioner, realign the track, and reapply pressure.

• Hydraulic Lag: Usually due to clogged filters or air in the system. Bleed lines and replace filters.

• Starter Motor Failure: In cold climates, starter motors may struggle. Use a battery warmer or upgrade to a higher torque unit.


• Bucket teeth and pins

• Hydraulic hoses and seals

• Track rollers and sprockets

• Filters and belts


Brakes are one of the most critical components in any piece of heavy equipment. In industries such as construction, mining, and agriculture, the ability to control and stop machinery safely is paramount. Over time, brakes can wear down, malfunction, or fail, leading to potentially hazardous situations on the job site. This article provides a detailed overview of common brake issues, their causes, and troubleshooting and maintenance practices to keep heavy equipment running safely and efficiently.
Understanding Braking Systems in Heavy Equipment
Heavy equipment typically uses one of several types of braking systems, each suited to different operational needs. The most common systems include:

1. Hydraulic Brakes: These use hydraulic fluid to transmit force from the brake pedal to the braking components. They are widely used in various machines, such as skid steers, excavators, and wheel loaders. Hydraulic systems provide good stopping power and can be easily repaired or replaced when necessary.

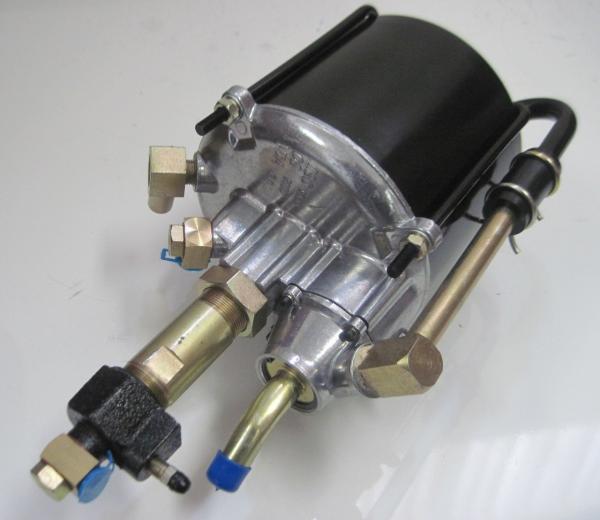

2. Air Brakes: Found in larger equipment, such as dump trucks, graders, and haul trucks, air brakes use compressed air to actuate the brake components. Air brakes are known for their effectiveness in heavy-duty applications, offering reliable performance even in extreme conditions.

3. Mechanical Brakes: Mechanical brakes, including drum and disc brakes, rely on physical friction to slow down or stop the vehicle. These are often found in smaller equipment, such as utility vehicles or smaller backhoes.


1. Reduced Stopping Power
   One of the most common signs of a brake problem is reduced stopping power. The equipment might take longer to stop, or it may not stop as quickly as expected. This could be caused by several issues:
   • Worn Brake Pads or Shoes: Brake pads and shoes wear down with use. As they thin, their ability to create friction decreases, resulting in reduced stopping power.

   • Low Brake Fluid: In hydraulic and air brake systems, low brake fluid can lead to poor brake response. This can be caused by leaks or insufficient fluid levels in the master cylinder or brake lines.

   • Contaminated Brake Fluid: Brake fluid can become contaminated with moisture or debris over time, compromising its effectiveness.

   • Damaged Brake Lines: Leaking or damaged brake lines can result in air or fluid loss, reducing brake performance.

2. Spongy or Soft Brake Pedal
   A spongy brake pedal occurs when there is air in the brake lines or hydraulic system. This can be caused by:
   • Air in the Hydraulic Lines: Air bubbles in the brake lines prevent the fluid from transmitting full pressure to the brake system, resulting in a soft, unresponsive pedal.

   • Low Fluid Levels: If the brake fluid levels are low, the system cannot generate the necessary pressure to function correctly, causing a soft pedal feel.

   • Worn or Faulty Master Cylinder: The master cylinder is responsible for distributing brake fluid to the brake lines. If it is damaged or worn, the brake pedal may feel soft or spongy.

3. Brake Noise
   Unusual noises such as squealing, grinding, or pulsating during braking can indicate issues with the braking system:
   • Worn Brake Pads: As brake pads wear down, they may produce a squealing noise. This is often an early warning that the pads need to be replaced.

   • Debris Between Brake Components: Small stones, dirt, or debris can get caught between the brake pads and the rotor or drum, causing grinding or squealing noises.

   • Warped Rotors or Drums: Warping of brake rotors or drums can cause a pulsating or thumping noise. This is typically due to overheating or prolonged wear.

   • Improper Lubrication: Lack of lubrication in the brake components, particularly in mechanical brake systems, can cause squeaking or grinding sounds.

4. Brake Fade
   Brake fade is the gradual loss of braking effectiveness, typically caused by overheating. This can happen during heavy or prolonged braking, such as on steep inclines or when hauling heavy loads. Overheated brakes lose their ability to generate friction, leading to a significant reduction in braking power. Common causes include:
   • Overuse of Brakes: Excessive or prolonged braking can lead to overheating. This is often seen in trucks and excavators working on hilly or uneven terrain.

   • Faulty Cooling Systems: In some heavy equipment, brakes are equipped with cooling systems to prevent overheating. If the cooling system is faulty or the brake fluid is contaminated, it can lead to overheating and fade.

5. Pulling to One Side
   If the equipment pulls to one side when braking, it could indicate an issue with the braking components:
   • Uneven Brake Pad Wear: If one side of the brake pads is more worn than the other, it can cause the vehicle to pull in the direction of the more worn side.

   • Sticking Brake Calipers: When brake calipers stick, they can cause uneven braking on one side, leading to pulling. This can also cause overheating and excessive wear.

   • Brake Line Blockages: Blockages or restrictions in the brake lines can cause uneven braking pressure, leading to pulling.


1. Check Brake Fluid Levels
   One of the simplest checks is to inspect the brake fluid level. For hydraulic and air brake systems, make sure the fluid is within the manufacturer-recommended range. If it’s low, check for leaks in the brake lines, master cylinder, or other components. Refill or replace the fluid as needed, ensuring that it is the correct type for the equipment.

2. Bleed the Brakes
   If the brake pedal feels soft or spongy, the system may have air trapped in the brake lines. Bleeding the brakes involves removing the air from the system by opening the bleeder valves on each brake assembly and allowing fluid to flow through until all air is removed.

3. Inspect Brake Pads, Shoes, and Rotors
   Check the brake pads or shoes for wear. If they are excessively worn, replace them immediately to restore proper braking performance. Also, inspect the brake rotors or drums for signs of warping, cracks, or scoring. If necessary, have them resurfaced or replaced.

4. Check for Brake Line Leaks
   Inspect all brake lines for signs of leaks or damage. A leaking brake line can cause a drop in fluid pressure, reducing braking effectiveness. If a leak is found, repair or replace the damaged line.

5. Inspect and Lubricate Brake Components
   Check the brake calipers, pads, and other components for wear and lubrication. Lack of lubrication can cause excessive friction, leading to noise or failure. Apply appropriate lubricant to the moving parts and ensure all components are in good working condition.

6. Inspect the Master Cylinder
   The master cylinder is a critical component in the hydraulic brake system. If the brake pedal feels soft, the master cylinder may be faulty. Check for leaks or internal damage and replace it if necessary.


1. Regular Inspections
   Conduct regular brake inspections to ensure that all components, including brake pads, calipers, and rotors, are in good working order. Early identification of wear or damage can prevent more severe issues.

2. Proper Fluid Maintenance
   Ensure that brake fluid is clean and at the proper level. Change brake fluid periodically as recommended by the manufacturer to prevent contamination and ensure smooth brake operation.

3. Avoid Overheating
   Avoid prolonged or excessive braking, especially on steep grades. Allow time for brakes to cool and reduce the risk of fade.

4. Keep Brake Components Clean
   Regularly clean brake components to remove dust, dirt, and debris that could cause premature wear or damage.


Thrown Tracks Are Inevitable
Mini excavators, especially models like the Kubota KX121, are indispensable on tight job sites. Their compact size and agility make them ideal for landscaping, trenching, and utility work. However, one common issue that every operator eventually faces is a thrown track. Whether caused by uneven terrain, sudden turns, or worn components, a dislodged track can halt operations and pose safety risks.
Kubota, founded in 1890 in Osaka, Japan, entered the compact equipment market in the 1970s. The KX121 series became one of its best-selling mini excavators globally, with tens of thousands of units deployed across North America and Europe. Its rubber track system, while efficient, is prone to derailment under stress.
Terminology Notes

• Track Tensioner: A hydraulic or spring-loaded mechanism that maintains proper track tightness.

• Idler Wheel: A non-powered wheel at the front of the track frame that guides the track.

• Sprocket: A toothed wheel at the rear that drives the track using engine power.

• Track Rollers: Support wheels under the track frame that distribute weight and guide movement.


• Low Tension: If the track is too loose, it can slip off the idler during turns or when climbing.

• Debris Build-Up: Mud, rocks, or roots lodged between the track and frame can force the track off.

• Worn Components: A worn idler, sprocket, or rollers can misalign the track path.

• Aggressive Maneuvering: Sharp turns or pivoting on uneven ground increases lateral stress on the track.


1. Safety First: Shut off the engine, engage the parking brake, and ensure the machine is stable.

2. Clear Debris: Remove any mud, rocks, or vegetation around the track and undercarriage.

3. Lift the Track Frame: Use the boom and blade to raise the affected side off the ground.

4. Release Tension: Locate the grease fitting on the track tensioner and loosen it to retract the idler.

5. Realign the Track: Use a pry bar or shovel to guide the track back over the idler and sprocket.

6. Reapply Tension: Pump grease into the fitting until the track achieves proper tightness—typically 1–2 inches of sag between the rollers.

7. Test Movement: Slowly move the machine forward and backward to ensure the track stays aligned.


• Inspect Track Tension Weekly: Adjust as needed based on terrain and usage.

• Clean Undercarriage Daily: Especially after working in clay or wet conditions.

• Replace Worn Components Promptly: Idlers and sprockets should be checked every 500 hours.

• Avoid Sharp Turns on Slopes: Use gradual arcs to reduce lateral stress.

• Install Track Guards: Especially useful in forestry or demolition environments.


The Caterpillar 246B skid steer loader is one of the most popular compact machines in the heavy equipment industry, designed to meet the demands of a wide range of industries such as construction, landscaping, agriculture, and demolition. With its compact size, impressive lifting capabilities, and versatility, the CAT 246B is a trusted workhorse for those requiring a high-performance machine in tight spaces. This article provides a detailed exploration of the CAT 246B, examining its features, performance, common maintenance issues, and troubleshooting tips.
The History of the CAT 246B Skid Steer
Caterpillar, a name synonymous with heavy machinery, first introduced the 246B skid steer loader in the early 2000s. Designed for mid-range lifting and compact worksite operations, the 246B quickly gained traction among operators who needed power in confined spaces. With its powerful hydraulic system, high lifting height, and durable build, it has continued to be a staple in the skid steer market. The 246B also benefits from Caterpillar's reputation for reliability and serviceability, making it a popular choice for fleet owners and contractors alike.
Over the years, the 246B has undergone various updates to improve its performance, efficiency, and safety features. However, it remains a core model in CAT’s compact loader lineup, known for its maneuverability, lifting power, and ease of maintenance. With a history that spans more than two decades, the CAT 246B’s continued success lies in its ability to tackle a wide range of tasks while maintaining its efficiency.
Key Features and Specifications of the CAT 246B
The CAT 246B skid steer is designed to deliver high performance while maintaining a compact and agile footprint. Below are some of its key features:

1. Engine Performance
   The CAT 246B is powered by a 66-horsepower (49 kW) turbocharged engine, providing a balance of power and fuel efficiency. The engine is paired with a hydrostatic drive system, which allows for smooth and responsive control, particularly in confined spaces where precision is crucial.

2. Hydraulic System
   One of the standout features of the 246B is its hydraulic system. The machine is equipped with a high-flow auxiliary hydraulic system, which is ideal for operating a wide range of attachments, such as augers, breakers, and buckets. With a maximum auxiliary hydraulic flow rate of 23.8 gallons per minute (90 L/min), the 246B provides ample power for demanding tasks.

3. Lifting Capacity
   The CAT 246B is capable of lifting up to 2,400 pounds (1,089 kg) to a height of 10.8 feet (3.3 meters) at the pivot point. This impressive lifting ability allows the 246B to handle a variety of tasks, from lifting heavy materials to operating high-reach attachments.

4. Operating Weight and Size
   With an operating weight of approximately 7,100 pounds (3,220 kg), the CAT 246B is built to handle both heavy loads and rough terrains. Despite its weight, the machine maintains a compact size, with a width of 5 feet (1.53 meters) and a height of 6.5 feet (2 meters), making it ideal for working in tight spaces.

5. Versatility and Attachments
   The 246B skid steer is compatible with a wide range of attachments, which enhances its versatility. Attachments available for the 246B include bucket attachments, forks, grapples, and even specialized tools like snowplows and tree spades. This adaptability makes it an essential machine for various industries.

6. Operator Comfort and Safety
   The CAT 246B features a spacious operator's cabin with good visibility, ergonomic controls, and adjustable seating. The cab is designed for ease of operation, ensuring operators can work for extended periods without undue strain. Additionally, safety features include a seatbelt, ROPS (Roll-Over Protective Structure), and FOPS (Falling Object Protective Structure) for protection in hazardous environments.


1. Hydraulic Issues
   If the 246B exhibits weak hydraulic performance or the loader arms are slow to raise, the issue could be due to low hydraulic fluid levels, air in the system, or a worn hydraulic pump. It’s essential to check the hydraulic fluid regularly and ensure that the fluid is at the correct level. If low fluid is not the issue, inspect the hydraulic hoses for leaks and the pump for wear. Replacing worn components and bleeding the hydraulic system may resolve these problems.

2. Engine Stalling or Rough Idling
   If the engine stalls or runs roughly, it could indicate a problem with the fuel system, such as clogged fuel filters, a malfunctioning fuel injector, or air in the fuel lines. Ensure that the fuel filters are clean and replace them if needed. It’s also a good idea to check the fuel lines for leaks or cracks. For more severe issues, inspect the fuel injectors and replace them if necessary.

3. Electrical System Failures
   Electrical issues in the 246B can manifest as failure to start, erratic behavior of the dashboard display, or malfunctioning lights. Check the battery voltage to ensure it’s within the normal operating range. A weak or dead battery can be a common cause of electrical failure. Also, inspect the wiring for any loose connections, fraying, or corrosion, especially around the alternator and starter motor.

4. Tire Wear or Damage
   Skid steers are highly reliant on their tires for traction and stability. Excessive wear or damage to the tires can lead to decreased performance, especially when working on rough terrain. Inspect the tires regularly for signs of wear, punctures, or cracks, and replace them as needed. Ensure that the tire pressure is at the manufacturer-recommended level to prevent uneven wear and enhance fuel efficiency.

5. Cooling System Problems
   Overheating can lead to engine failure or reduced performance in the CAT 246B. If the engine temperature is abnormally high, inspect the radiator and cooling fan for blockages. Clean the radiator fins and check the coolant levels regularly to avoid overheating.


1. Check Fluid Levels
   Regularly check the levels of hydraulic fluid, engine oil, coolant, and fuel to ensure that the machine is running optimally. Low fluid levels can lead to poor performance and potential damage to engine components.

2. Change Filters
   Change the fuel and air filters as part of routine maintenance to ensure the engine gets clean fuel and air. Clogged filters can affect engine performance and fuel efficiency.

3. Inspect Tires and Tracks
   Regularly inspect the tires for wear and replace them as necessary. Check the tracks for proper tension and ensure that they are free of damage. Well-maintained tires and tracks help improve the machine’s traction and performance on various surfaces.

4. Clean the Radiator
   To prevent overheating, keep the radiator and cooling fan clean and free of debris. This ensures that the engine stays at the right temperature, preventing damage and extending the lifespan of the machine.

5. Lubrication
   Ensure that all moving parts, such as the loader arms and hydraulic cylinders, are properly lubricated to reduce wear and tear. Follow the manufacturer’s recommended lubrication schedule to keep the machine operating smoothly.


The Case 580D and Its Mechanical Legacy
The Case 580D backhoe loader, introduced in the early 1980s by Case Corporation (now part of CNH Industrial), was a workhorse of its time. Built for durability and ease of service, the 580D featured a mechanical simplicity that made it popular among contractors and municipalities. With an operating weight of around 13,000 lbs and a 60 hp diesel engine, it was designed to handle trenching, loading, and light excavation. Tens of thousands of units were sold across North America, and many remain in use today due to their robust design and availability of aftermarket parts.
One of the defining features of the 580D was its power shuttle transmission—a hydraulic system that allowed smooth directional changes without clutching. This system, while efficient, requires precise fluid pressure and component integrity to function properly.
Terminology Notes

• Power Shuttle: A hydraulic transmission system that enables forward and reverse movement without manual clutch engagement.

• Torque Converter: A fluid coupling between the engine and transmission that multiplies torque and allows slippage during gear changes.

• Belleville Washer: A conical spring washer used to maintain preload in clutch packs.

• Cutout Solenoid: An electrically actuated valve that disables hydraulic flow under certain conditions, often for safety or idle control.


• No hydraulic pressure at the top test port

• Cutout solenoid appeared functional, but the plunger was extended

• Forward clutch plates and Belleville washer had previously failed

• Cooler was flushed and debris was minimal


• Pump Priming: If the pump was not properly primed during installation, cavitation may have damaged internal components.

• Solenoid Sticking: A stuck plunger can prevent fluid flow, even if the solenoid is electrically active.

• Valve Body Contamination: Residual debris from the previous failure may have lodged in the control valves.

• Pressure Relief Valve: If set too low or jammed open, it can bleed off pressure before reaching the clutch packs.


• Remove and bench-test the cutout solenoid for full plunger retraction under voltage.

• Install a pressure gauge at the top port and crank the engine while monitoring pressure rise.

• Check the pump inlet for signs of air leaks or collapsed hoses.

• Inspect the torque converter for fluid flow and verify that the charge circuit is active.

• Drop the transmission pan and inspect the suction screen for blockage.


• Always prime hydraulic pumps with clean fluid before installation.

• Use OEM or verified aftermarket components with matching part numbers.

• Flush the entire system—including cooler, lines, and reservoir—after any major failure.

• Replace all seals and gaskets during rebuilds to prevent internal leakage.

• Maintain fluid levels and monitor temperature during initial operation to catch early signs of failure.


The EX100-5 is a mid-sized excavator produced by Hitachi, renowned for its performance, reliability, and durability in demanding construction and excavation tasks. However, like any piece of heavy equipment, the EX100-5 can face operational challenges, and one of the more concerning issues is the engine stalling during operation. Engine stalling can be a frustrating issue that hinders productivity, especially when operating in remote or time-sensitive environments. In this article, we will explore the potential causes behind engine stalling in the EX100-5, discuss diagnostic techniques, and provide solutions to get the machine back in action.
Understanding the EX100-5’s Engine System
Before delving into troubleshooting, it is important to have a basic understanding of how the engine system in the EX100-5 operates. The engine powers the hydraulic system, which in turn drives the various attachments and movements of the excavator. This engine is typically powered by a diesel fuel system, making it crucial to monitor fuel flow, air intake, and ignition systems to ensure proper performance.
The EX100-5 engine system consists of the following primary components:

1. Fuel System: Includes the fuel tank, filters, lines, and injectors. Fuel is pumped from the tank to the engine where it is mixed with air and ignited.

2. Air Intake System: Comprising the air filters and intake manifold, this system delivers the necessary air for combustion.

3. Exhaust System: Removes exhaust gases produced during combustion, and in some cases, contains a particulate filter to reduce emissions.

4. Electrical System: Includes the starter motor, alternator, and battery, which provide the necessary electrical power for ignition and operation.

5. Hydraulic System: The hydraulic system uses the engine’s power to operate the boom, bucket, and tracks of the excavator.


1. Fuel Delivery Problems
   One of the most frequent causes of engine stalling is an issue with the fuel delivery system. If the fuel filters are clogged, the fuel pump is malfunctioning, or the fuel injectors are dirty or faulty, the engine may not receive the appropriate amount of fuel, causing it to stall. This problem can also occur if there is air in the fuel lines, disrupting the continuous fuel flow to the engine.

2. Low or Contaminated Fuel
   Diesel fuel can become contaminated with water or debris over time, particularly if the machine has been sitting idle for extended periods. Water or dirt in the fuel system can cause the engine to misfire or stall. Additionally, running the excavator on low-quality or expired fuel can lead to combustion problems.

3. Air Intake Issues
   A clogged or dirty air filter can restrict airflow into the engine, preventing it from getting the oxygen it needs for efficient combustion. If the engine is not getting enough air, it may stall or fail to start. In some cases, air intake hoses may become disconnected or cracked, leading to air leaks that also affect engine performance.

4. Battery and Electrical Issues
   The engine’s electrical system must be in good condition to ensure that the starter motor functions properly. A weak or dead battery, corroded battery terminals, or damaged wiring can result in low or inconsistent voltage, preventing the engine from turning over or leading to intermittent stalling.

5. Overheating Engine
   Overheating can cause the engine to shut down to prevent further damage. A malfunctioning thermostat, low coolant levels, or a clogged radiator can lead to overheating. When the engine temperature rises beyond a safe threshold, it will automatically stall as a safety precaution.

6. Faulty Sensors or ECU Malfunctions
   The EX100-5 is equipped with an electronic control unit (ECU) that monitors and controls various engine functions. If there is a problem with the ECU, such as faulty sensors (e.g., coolant temperature sensor, fuel pressure sensor, or airflow sensor), it may incorrectly interpret data and signal the engine to shut down. This can result in the engine stalling unexpectedly.


1. Check for Error Codes
   The ECU of the EX100-5 can store diagnostic trouble codes (DTCs) that provide clues about what’s causing the engine to stall. Using an OBD-II scanner or the machine’s onboard diagnostic system, check for any stored error codes. These codes can help identify problems with specific components such as sensors, fuel delivery, or the electrical system.

2. Inspect the Fuel System
   Begin by checking the fuel filter and fuel lines for clogs or leaks. If the fuel filter is clogged, replace it with a new one. Inspect the fuel tank for any contaminants such as water or dirt. If contamination is present, drain the fuel and replace it with clean fuel. Check the fuel injectors for proper function and ensure that fuel is being delivered consistently.

3. Examine the Air Intake System
   Inspect the air filter and intake hoses for any signs of blockage or damage. A clogged air filter can restrict airflow, so replace it if necessary. Ensure that the intake hoses are securely connected and free of cracks or holes that could cause air leaks.

4. Test the Battery and Electrical System
   Check the battery voltage using a multimeter. A healthy battery should read around 12.6 volts when the engine is off and around 14 volts when the engine is running. If the battery voltage is low, charge or replace the battery. Inspect the battery terminals for corrosion and ensure all wiring connections are secure.

5. Check the Cooling System
   Inspect the radiator, thermostat, and coolant levels to ensure the engine is properly cooled. If the coolant is low or the radiator is clogged, the engine can overheat and stall. Replace any faulty components and refill the coolant to the proper level.

6. Examine the ECU and Sensors
   Use a diagnostic tool to check the status of the ECU and sensors. If the ECU is reporting errors related to sensors such as the coolant temperature sensor, airflow sensor, or fuel pressure sensor, consider replacing the faulty sensors. Reset the ECU to clear any error codes and see if the problem persists.


1. Regular Fuel and Air Filter Changes
   Change the fuel and air filters regularly to prevent clogs and ensure proper fuel and air flow to the engine. This is particularly important if the machine is used in dusty or dirty environments.

2. Monitor Fuel Quality
   Always use high-quality diesel fuel and ensure that the fuel tank is clean. Periodically inspect the fuel system for water or debris and drain the tank if necessary.

3. Keep the Battery in Good Condition
   Regularly check the battery and ensure that it is charged and free of corrosion. Keep the terminals clean and tight to ensure reliable starting and prevent electrical issues.

4. Maintain the Cooling System
   Regularly inspect the radiator and coolant levels to prevent overheating. Flush the cooling system as recommended to prevent blockages and ensure efficient engine cooling.

5. Stay on Top of ECU Diagnostics
   Periodically scan the ECU for error codes, even when the machine is running fine. Catching small issues early can help prevent major breakdowns down the road.


The Rise of Gooseneck Trailers in Heavy Hauling
Gooseneck trailers have become a staple in the transportation of heavy equipment, agricultural machinery, and construction materials. Their design—featuring a hitch that connects over the rear axle of a pickup truck—offers superior stability and weight distribution compared to bumper-pull trailers. Manufacturers like Big Tex, PJ Trailers, and Load Trail have dominated the market, with annual sales of gooseneck units exceeding 100,000 in North America alone.
These trailers typically range from 20 to 40 feet in deck length, with dovetail extensions that facilitate loading low-clearance equipment. The dovetail, often 5 feet long, slopes downward and may include flip-over ramps or hydraulic lift systems.
Terminology Notes

• Dovetail: A sloped rear section of the trailer deck that eases the loading of wheeled equipment.

• Coupler-to-Tail Measurement: A misleading practice where sellers include the gooseneck and dovetail in the total length, inflating the trailer’s usable deck space.

• RSH (Rear Structural Hit): Damage caused by impact to the rear or side of the trailer, often compromising frame alignment.


• Axle tracking and tire wear

• Ramp deployment and dovetail integrity

• Brake line routing and electrical harnesses


• Measure the Deck: Ignore advertised length and measure from the front of the flat deck to the start of the dovetail.

• Inspect for Frame Damage: Look for bent flanges, cracked welds, and uneven tire wear.

• Verify VIN and Title: Ensure the trailer’s paperwork matches its physical condition and dimensions.

• Ask for Load Ratings: Confirm axle capacity, brake type (electric vs. hydraulic), and GVWR (Gross Vehicle Weight Rating).

• Negotiate Based on Condition: A wrecked trailer should be priced at scrap or parts value, not retail.
