Introduction to Heavy Equipment Asset Management Software
Efficient management of heavy equipment assets is essential for modern construction, mining, and manufacturing industries. Advanced asset management solutions like SprocketWare and comparable platforms have transformed how maintenance, inventory, and utilization are tracked and optimized, directly impacting operational cost, uptime, and regulatory compliance. This article provides an in-depth overview of heavy equipment software, key features, industry cases, technical terms, and practical recommendations that highlight its value in demanding environments.
Key Functionalities and Features of Asset Management Solutions
Asset management software such as SprocketWare delivers wide-ranging solutions, often surpassing traditional Computerized Maintenance Management Systems (CMMS). Here's what defines advanced platforms:

• Comprehensive Asset Tracking
  • Records asset location, condition, serial numbers, and maintenance history.

  • Incorporates asset lifecycle management, from acquisition through decommissioning.

• Automated Maintenance Scheduling
  • Predictive and preventive maintenance tasks generated automatically.

  • Integration of SOPs (Standard Operating Procedures), GMPs (Good Manufacturing Practices), and HACCP guidelines for quality assurance.

  • Work order automation frees technicians for hands-on work, cutting manual administration.

• Inventory Control and Parts Management
  • Tracks spare parts, consumables, and inventory levels in real time.

  • Sets low-stock alerts with automated reordering, preventing job delays.

  • Associates parts and documentation with individual assets, streamlining repair logistics.

• Reporting and Analytics
  • Customizable dashboards and scheduled reports for equipment performance, maintenance costs, and inventory movements.

  • Allows for trend analysis and data-driven optimization of fleet operations.

  • Inventory and maintenance records help identify recurring issues for targeted improvements.

• Mobile and Web Accessibility
  • Most solutions offer responsive mobile apps and browser interfaces for field technicians, enabling remote asset updates and digital inspections.

  • Real-time notifications keep teams aligned on equipment status and required actions.

• Integration Capability
  • Seamless integration with other enterprise systems, including ERP, accounting, and procurement platforms.

  • Connects with industrial sensors and automation devices for live asset monitoring.


• EAM (Enterprise Asset Management): Holistic software for asset lifecycle, maintenance, and performance management.

• CMMS: Software focused primarily on maintenance scheduling and work order management.

• Work Order: A task ticket issued for repair, inspection, or scheduled maintenance.

• Preventive/Predictive Maintenance: Routine tasks performed based on scheduled intervals or predictive analytics to minimize unplanned breakdowns.

• HACCP/SOP/GMP: Quality and regulatory standards for operational processes and documentation.

• Barcode/RFID Tracking: Technologies enabling automated identification and location of equipment or parts.

• API (Application Programming Interface): Set of protocols for seamless software integration.


• Lost/Missing Inventory: Automated alerts and real-time tracking reduce asset losses and improve accountability.

• Unplanned Downtime: Timely preventive maintenance and rapid response work orders, supported by digital records, limit expensive outages.

• Data Integrity: Continuous updates and validation during software implementation preserve reliable records, facilitating audits and compliance.

• User Adoption Challenges: Intuitive design and thorough onboarding speed up team alignment and maximize system utilization.


• Choose software with robust integration options, mobile-first design, and scalable modules to future-proof your investment.

• Prioritize solutions that offer customizable reports, automated workflows, and clear audit trails for compliance.

• Train your staff and solicit feedback frequently to refine usage and processes.

• Ensure regular inventory checks and maintenance task reviews to catch problems early.

• Set up routine system backups to safeguard operational data against loss or corruption.


What Kind of Machine the SK210LC Is
The SK210LC is a ~21-ton class long-carriage crawler excavator aimed at earthmoving, utility trenching, site prep, and light quarry work. Balanced chassis geometry, a long undercarriage for stability, and a quick, efficient hydraulic package make it a favorite in mixed fleets where fuel burn, smooth controls, and uptime matter more than raw breakout alone.
Core Specs at a Glance

• Operating weight: typically 20–22.5 t depending on configuration

• Net power: roughly 150–165 hp across generations

• Standard bucket: about 0.8–1.0 m³

• Max dig depth: about 6.0–6.7 m

• Hydraulic flow: twin variable-displacement pumps in the ~2×200–230 L/min band

• System relief: commonly in the 31–35 MPa range for implement circuits

• Travel speed: about 3–5.5 km/h with auto two-speed


• Closed-center, load-sensing control manages flow so the machine only delivers what the joystick demands, saving fuel and heat.

• Twin main pumps supply implements and travel; a smaller pilot pump feeds low-pressure pilot circuits for smooth proportional control.

• EP/ECU controller monitors pressure sensors, joystick signals, engine load, and temperature to modulate pump swash and engine rpm.

• Swing priority and boom regeneration logic helps keep cycle times crisp without wasting flow.


• Engine oil: heavy-duty diesel oil meeting current OEM spec; typical 10W-30 or 15W-40 based on climate

• Hydraulic oil: premium anti-wear hydraulic fluid with correct zinc content per OEM spec; consider higher viscosity index for wide temperature swings

• Coolant: long-life coolant with the right inhibitor package for wet-sleeve engines if equipped

• Final drive oil: 80W-90 or 85W-140 gear oil per ambient conditions

• Grease: lithium complex NLGI #2 for general points, high-moly for high-load pins

• Typical intervals: engine oil 250–500 h, hydraulic filters 500 h, hydraulic oil 2,000–4,000 h or by fluid analysis


• Keep return, case drain, and pilot filters on schedule; monitor differential-pressure indicators.

• Grease every shift when trenching or hammering; more often in mud or dust.

• Inspect radiator, oil cooler, and intercooler fins weekly; clean with low-pressure air and back-flushing water.

• Log hydraulic and fuel consumption; step changes often precede faults.


• Machine feels weak or “lazy” on the boom and stick
  • Possible causes: clogged return or pilot filter, worn main relief valve, drift in pump control pressure sensor, incorrect pump swash neutral setting, blocked tank breather.

  • Quick checks: confirm pilot pressure at spec; compare actual main relief to decal; inspect breather, change filters; run a simple stall-test and log pressures.

• One track slower than the other or stalls on slope
  • Possible causes: travel motor case drain high, stuck center bypass in the travel valve, contamination in proportional solenoid, low pilot pressure on one side.

  • Fix path: measure case drain flow/temperature side-to-side, clean and re-shim travel reliefs, swap left/right pilot hoses to see if the fault follows control or hardware.

• Swing slow, jerky, or coasts too long
  • Possible causes: swing brake release pressure low, sticky swing priority valve, worn swing motor center section, contaminated brake piston seals.

  • Remedies: verify brake release pressure, check swing relief and cushion valves, flush priority spool, inspect brake friction plates.

• Hydraulic oil runs hot
  • Possible causes: fan not moving enough air, cooler clogged, bypass valve stuck, over-relieved system, auxiliary flow deadheading to tank.

  • Actions: temperature-gun the cooler face, verify fan rotation and shroud seals, service cooler stack, check auxiliary quick couplers for internal collapse.

• Cab throws intermittent pump or sensor codes; power cycles “fix” it
  • Likely a marginal harness or ground, moisture in sealed connectors, or pilot supply drifting.

  • Triage: wiggle-test harness near the pump controller, clean grounds to shiny metal, dielectric-grease weather-packs, and log live-data to find a repeatable trigger.


• Pilot pressure: typically 3.5–4.5 MPa stable at warm idle

• Implement relief: commonly mid-30 MPa; both sides should match within a small tolerance

• Travel relief: a touch higher than implement to keep mobility under load

• Case drain temps: a hot outlier motor indicates internal leakage


• Warm the machine to operating temperature.

• Verify pilot pressure first; nothing is “right” if pilot is low.

• Check main reliefs with boom/stick stalls against spec.

• Compare left/right functions by swapping pilot or solenoid commands to isolate hydraulic iron from electrics.

• If pressures are right but speed is slow, measure pump flow (or use cylinder timing with a stopwatch) to spot volumetric losses.

• Use oil analysis to confirm if you’re chasing wear metal vs. varnish/oxidation.


• Pump angle sensor, main pressure sensor, and engine ECU load signal are the “big three” for feel and fuel.

• A corroded ground can masquerade as a bad pump—always voltage-drop the grounds.

• If joystick feels “laggy,” check pilot supply filter element and pilot accumulator pre-charge.


• Keep track tension set per manual—too tight eats idlers and fuel; too loose derails on side-cuts.

• Rotate pins and bushings only with a plan; sometimes it’s cheaper to run to 100% and replace as a set.

• Measure and log link height, bushing OD, and sprocket tooth profile every 250 h.


• For thumbs, tilting buckets, or hammers, verify auxiliary relief and flow match the attachment’s rating.

• Always install a proper case-drain for hammers and high-speed mulchers.

• Use return-to-tank plumbing for heat-sensitive tools; avoid dumping return through the main valve if the attachment allows.


• In winter, down-grade hydraulic viscosity within spec and let the machine warm through automatic warm-up.

• Cycle each function lightly for a minute to pre-heat the circuits before loading.

• In hot seasons, keep the cooler stack spotless and consider a reversible fan kit if you’re constantly in chaff.


• Cold start: look for quick light-off, clean idle, and minimal white smoke

• Hydraulics: stall-test boom and stick at temperature; verify reliefs and note cycle times

• Swing: check for abnormal end-play and listen for growling at constant speed

• Travel: track straight on high speed and climb a slope without hunting

• Undercarriage: measure wear systematically; price the machine based on remaining life, not just “looks”

• Electronics: scan for active and logged codes; confirm display functions and working work-modes

• Leaks: pay attention to pump shaft seal dusting, swivel joint weeping, and final drive seals


• Guarding for the belly and swivel if you work in stumps or demo

• High-capacity breathers and magnetic drain plugs for finals and hydraulic tank

• Reversing fan or periodic air-pulse wand for the cooler stack

• LED work lights and a camera kit for the counterweight corner


• Keep movements smooth and avoid deadheading cylinders at full stroke for long periods

• Use the right work-mode; heavy digging in a fuel-saver map heats oil and kills cycle time

• Park with the stick and boom retracted to reduce dust on chrome and protect hoses


• Main pump cavitation noise that persists after air side checks

• Case drain flows rising rapidly with temperature

• Recurrent ECU communication faults that survive harness re-pins and ground refresh

• Unexplained hydraulic heat despite clean coolers and correct reliefs


Introduction to Hydraulic Thumb Installations
Hydraulic thumb attachments significantly increase the versatility of excavators by enabling secure grasping, movement, and sorting of materials. Integrating a hydraulic thumb often involves adapting the auxiliary hydraulic circuits and controls, with specifics varying by brand and model. This guide examines common features, operational requirements, and troubleshooting steps for hydraulic thumb installations on JCB and Case excavators—including engineering explanations, real-world examples, and actionable solutions.
Understanding the Auxiliary Hydraulic Circuit
Hydraulic thumbs operate via the excavator's auxiliary hydraulic lines, sometimes configured for single or double-acting modes:

• Single-Acting Mode: Typically used for attachments like hydraulic hammers, enabling flow in one direction; the other direction is unpowered or free-return (gravity driven).

• Double-Acting Mode: Needed for thumbs, provides pressurized flow both ways for secure gripping and release.


• Lever or Switch Positioning: Some excavators have a dedicated lever or selector switch near the operator’s seat or at the valve block. This switch determines whether the auxiliary circuit is set up for hammer (single-acting) or thumb (double-acting) operation.

• Electro-Proportional Control: On modern models, thumb movement may be managed by electro-hydraulic controls or joystick thumb wheels, offering precise variable flow and direction.

• Auxiliary Flow Rates: Many JCB models provide selectable auxiliary flow rates, allowing optimum adjustment for different attachments; for example, you may choose lower flow for thumb operation or higher for a breaker.

• Thumb-Ready Dipper: Dipper arms are sometimes manufactured ‘thumb-ready’, with ports and mounts pre-installed for retrofit.


• Check Circuit Setup: Ensure the auxiliary circuit is actually set to double-acting. If the lever is in the “hammer” position, oil may flow one way and not return under pressure, resulting in thumb immobility despite hearing relief valve noise. Move the lever to the mid or designated “thumb” position for two-way oil flow.

• Test Both Directions: Activate the control in both directions and observe which circuit (extend/retract) receives pressure. Lack of movement in one direction may indicate valve misconfiguration or blockage.

• Inspect Lines and Connections: Verify that oil lines routing from the valve to the cylinder are intact, properly connected, and not kinked or blocked.

• Valve Type and Function: Some auxiliary valves have in-cab selector switches for single/double-acting modes. Refer to manufacturer diagrams or labels; missing or mislabelled switches can complicate troubleshooting.

• Check Relief Valve Setting: Occasional “relief valve noise” suggests the system is building pressure but not moving fluid to the desired actuator; this may mean a directional valve isn’t fully engaged, or a port is blocked.

• Assess Additional Switches: Investigate all additional switches or pedals associated with auxiliary functions to ensure proper configuration for two-way thumb actuation.


• Hydraulic Thumb: A secondary, pivoting actuator mounted to the boom or dipper used for grasping.

• Auxiliary Hydraulic Circuit: Extra hydraulic lines routed to the end of the dipper or boom, used to power attachments.

• Double-Acting Valve: Hydraulic valve supplying pressure alternately to both sides of a cylinder for bi-directional movement.

• Single-Acting Valve: Hydraulic valve supplying pressure to one side, with return via gravity or spring.

• Relief Valve: Safety valve that releases excess hydraulic pressure to prevent system damage.

• Electro-Proportional Control: Electronic control system allowing variable hydraulic flow and direction via joystick or switches.


• Consult Hydraulic Diagrams: Always review your machine’s hydraulic schematic to understand flow paths.

• Label Controls Clearly: After installation, clearly label auxiliary selector positions to prevent operational confusion.

• Match Attachment Requirements: When installing a thumb, ensure the auxiliary circuit and cylinder sizing are compatible for safe operation.

• Periodic Checkups: Monitor hose and fitting integrity and ensure operators understand correct control sequences.

• Professional Assistance: If troubleshooting proves complex, seek help from technicians experienced with the brand’s hydraulic systems.




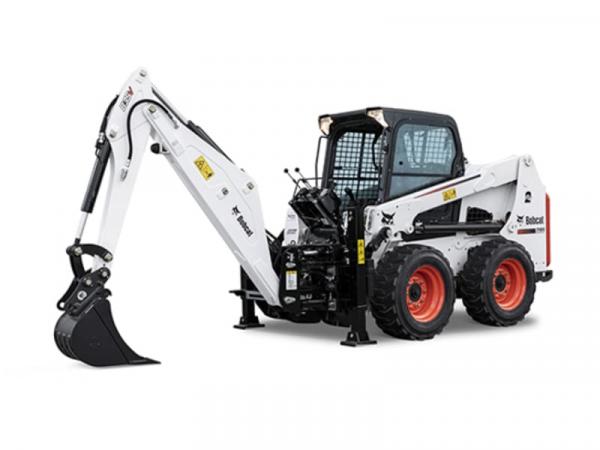

Introduction to the Concept
A multi-purpose track loader-hoe combines the agility of a compact track loader with the digging capability of a backhoe attachment. This fusion creates a machine capable of both nimble material handling and powerful excavation—perfect for job sites where few machines must do a lot of work.
Think of it as a Swiss Army knife on tracks: the loader offers strength and scoop, the backhoe gives you reach and dig—and the tracks ensure traction on soft, uneven ground without sinking in.

What Makes It So Functional?

• Dual roles in a single chassis: The front-end loader handles loading, grading, and pushing, while the rear-mounted backhoe arm digs trenches and moves earth.

• Tracked traction: Tracks distribute weight across more surface area, making the machine excel on mud, sand, snow, or rough terrain—far better than wheeled machines in tricky ground conditions .

• Single-operator productivity: The operator can transition from loading to digging with minimal fuss, reducing machine switching and downtime.

• Cost and fleet flexibility: One machine does what traditionally required two—backhoe and loader—saving both capital and storage space.


• Compact track loader: A skid-steer-like machine with tracks instead of wheels; excels on soft or uneven terrain due to lower ground pressure .

• Backhoe attachment/arm: A rear-mounted digging arm composed of boom, stick, and bucket, often with stabilizers for safe excavation .

• Multi-purpose loader-hoe: The integrated form—loader in front, backhoe in rear—on a tracked platform, delivering both excavation and handling in one machine.


• General construction: Trenching for utilities, backfilling, grading and loading—one machine handles all.

• Landscaping: Precise excavations alongside grading and material placement.

• Agriculture and rural work: Creating drainage ditches, moving soil, clearing debris—valuable for farm versatility.

• Municipal maintenance: Street repair, sidewalk prep, utility digs, and snow clearing.


• Excellent on soft or uneven terrain

• Reduces fleet size and rental costs

• Quick role switching for operator efficiency

• Lower ground impact than wheeled machines


• Tracks wear faster on paved surfaces

• Backhoe reach is shorter than full-size excavators

• Higher maintenance complexity than single-purpose machines


• Choose correct track type: Opt for rubber tracks with suitable tread patterns for your terrain; some tread designs last over 1,000 hours and reduce surface damage .

• Invest in a swivel operator seat: Facilitates quick switching between loader and backhoe controls—boosts productivity.

• Use stabilizers wisely: When digging, deploy them to enhance stability and digging accuracy.

• Adopt proper attachments: Consider buckets with thumbs, grading attachments, or augers—many companies offer modular kits .

• Maintenance plan: Regular undercarriage cleaning, track tensioning, and grease points extend service life.


• Operating weight: Typically between 1,000–3,000 kg for mini units—compact yet powerful enough for heavy digging movements .

• Engine power: Often in the 20–50 hp range; enough for loader and backhoe demands, without overkill.

• Loader bucket capacity: Around 0.15–0.3 m³ for mini versions—ideal for small batches of material .

• Tracks width options: Narrow to fit through gates or wide for stability on uneven ground.


Introduction to Hitachi DR-ZX Diagnostic Software
The Hitachi DR-ZX is a specialized diagnostic and fault detection tool purpose-built for Hitachi excavators and construction equipment equipped with advanced electronic engine controls. It enables technicians and operators to perform comprehensive system checks, troubleshoot faults, and manage sophisticated hydraulic, electronic, and engine parameters directly from a computer interface. Its adoption has significantly streamlined repairs and maintenance, reducing machine downtime and improving service accuracy in the field.

Core Features and System Components

• Functions Supported:
  • Real-time monitoring of engine speed, hydraulic pressure, pump displacement, temperature, and electronic signals.

  • System self-diagnostics, allowing quick scanning for stored or active fault codes.

  • Live data recording and playback for analyzing machine behavior over time or under load.

  • Specialized functions such as parameter adjustment (engine RPM, auto-lube intervals, pump settings), password changes, and recorded monitoring data replay.

  • Support for coding and adaptation—introducing new or replaced components (like injectors) to the machine via electronic handshake.

• Main Components:
  • DR-ZX Interface (physical adapter connecting machine ECUs to PC via USB or data cable).

  • Calibration and test cables (usually 4-pin and 6-pin, depending on model and controller type).

  • Diagnostic software (compatible with a variety of Hitachi models, running on Windows).


• Operation Mode
  Used for routine monitoring and diagnostics. Offers self-diagnostic checks, monitoring view/recording, and access to special functions like pump adjustments and sensor calibration. Operators must connect the interface to the equipment, power up the machine, and select the correct machine profile before launching Operation Mode.

• Service Mode
  Used for deeper system access, including parameter changes, password management, and activation/deactivation of specific electronic features. Service Mode requires activating the engine-learning switch and performing system checks when introducing or calibrating new parts.

• Stand-alone Mode
  Allows certain functions on simulated or test benches without direct machine connection—helpful for training or troubleshooting off-machine.


• Connect DR-ZX hardware and software, select “Special Function”, and enter pump adjustment routines.

• Install or calibrate angle sensors on the hydraulic pump; these sensors relay real-time position data to the ECU for precise regulation.

• Adjust sensor shafts and calibrate signal voltages (e.g., 1.60V for Pump-1 and 3.40V for Pump-2 in certain models).

• Apply grease to spring fasteners and ensure all mounting bolts are torqued to specification (e.g., 9.8Nm).

• Validate sensor feedback with displayed data in the software and confirm successful adjustment before exiting.


• ECU (Electronic Control Unit): The central computer managing engine, hydraulic, and electronic functions.

• Angle Sensor: A sensor mounted to hydraulic pumps that helps the ECU regulate displacement and flow.

• Pump Displacement: Volume of hydraulic fluid the pump moves per cycle, critical for controlling machine speed and power.

• Operation Mode: Standard diagnostic environment for monitoring and scanning without major changes.

• Service Mode: Advanced environment for parameter changes or adapting control modules after part replacements.

• Coding/Adaptation: Electronic procedure for introducing new components to the controller, essential after major repairs.


• Always select the precise model and serial number in DR-ZX before conducting tests; incorrect selection can block data recording and mislead diagnostics.

• Routinely clean and maintain cable connections to ensure data accuracy—dust or oxidation can disrupt electronic signals.

• When adjusting parameters such as hydraulic pressure or pump torque, follow factory specifications to prevent accidental overpressure or damage.

• Maintain up-to-date backups of monitoring and fault logs for service history analysis and warranty claims.


• Consider periodic firmware and software updates for DR-ZX to access new features and machine compatibility.

• Use DR-ZX in combination with manual diagnostic checks for holistic maintenance—external hydraulic leaks or mechanical faults may not trigger error codes.

• Train technicians in both operation and service modes to maximize DR-ZX effectiveness and minimize downtime.

• Consult official Hitachi service literature for step-by-step calibration and coding instructions.

• Participate in relevant service webinars or communities to share experience and learn troubleshooting nuances.


Understanding the Hydraulic Drive Chain
The hydraulic drive chain in a motor grader like the Fiat-Allis FG95 serves as the critical mechanical link between hydraulic motors and the wheels or drive sprockets. Unlike conventional chain mechanisms driven by shafts or gears, this system combines hydraulic power with chain transmission—a hybrid ensuring robust traction and smooth torque transfer. Each side typically includes a hydraulic motor connected to a sprocket, with dual chains transmitting power—this design harnesses the strengths of both systems.
Think of it as a sturdy marriage: hydraulic force generates rotational movement, while the chain delivers this power to the wheels or final-drive components—combining precise fluid control with resilient mechanical transfer.
Why It Matters

• High torque with low slip: The chain ensures that even under extreme load, power is transferred with minimal waste.

• Adjustable performance: By fine-tuning hydraulic flow, operators can adjust speed and torque on the go.

• Compact and modular: The hydraulic motor plus chain assembly is easier to access and service than fully hidden drive trains.


• Hydraulic motor: Converts pressurized fluid into rotational mechanical motion.

• Drive sprocket: Gear wheel with teeth that mesh with the chain.

• Roller chain (often the type used): Comprised of pins, bushings, rollers, and side links—some modern versions include built-in O-rings to retain lubrication and keep out dirt, reducing wear significantly.

• Chain size numbers: Chains are often marked with numbers like “140” or “160” on their side links—these denote pitch and overall dimensions, essential for maintenance and replacement.


• Sizing: Always match the chain number (e.g., 140, 160) to OEM specifications. A bearing or parts supplier can cross-reference these sizes.

• Lubrication:
  • Use grease or oil appropriate for heavy-duty environments.

  • Consider “dry” PTFE spray as an advanced alternative: it leaves a slick, particulate-repelling film ideal for dusty conditions.

• Inspection intervals:
  • Visual checks every 50 operational hours.

  • Measure chain elongation: Replace if stretch exceeds OEM tolerance.

• Replacement steps:
  • Relieve hydraulic pressure and secure the grader.

  • Loosen tensioner (if equipped) or adjust chain slack.

  • Remove old chain, install the correct new chain, retension, and then test under light load.


• Lubricant options for the FG series:
  • Hydraulic system: Dexron II HVI oils

  • Engine: SAE 15W-40 (E7 or E9 spec)

  • Transmission & final drives: 80W-90 GL-5 or equivalent

• Though not part of the chain per se, keeping overall fluid systems in proper working order ensures the hydraulic motors driving the chain get consistent performance.


• Chain skipping or noisy:
  • Loose or worn sprocket.

  • Dirty or under-lubricated chain.

  • Replace worn sprockets and clean the chain thoroughly.

• Excessive wear or elongation:
  • Improper tension or misaligned sprocket.

  • Replace chain; correct alignment and tension.

• Chain stiff or frozen:
  • Cold sludge or trapped moisture.

  • Clean, dry thoroughly, apply dry-PTFE lubricant.


Overview of the Challenge
Replacing the front windshield—or escape window—on a JCB 260 skid-steer involves more than just swapping out glass. The original window is firmly glued in place, requiring careful removal and precise preparation before installing a new pane. Balancing safety, durability, and convenience is key and opens up multiple options.
Replacement Methods and Materials
Here’s how professionals and experienced users typically approach the task:

• Removal and Reinstallation Process
  • First, cleanly remove all broken glass and carefully scrape off existing adhesive.

  • Use a high-quality automotive-grade adhesive—most commonly 3M Window Weld—to bond the replacement glass securely, following precise installation timing before the glue sets.


• Material Options
  • Tempered OEM Glass offers factory-standard strength and clarity. It fetches respectable pricing—for example, around $100 for the replacement pane.

  • Standard Safety Glass (similar to car windshields) is often preferred due to its tendency to crack rather than shatter; it’s also more affordable.

  • Polycarbonate (e.g., Lexan®/SUPERCOAT™): Highly durable, significantly lighter, and nearly unbreakable. Excellent for demanding jobs but more prone to scratches and clouding over time.



• Tempered OEM Glass
  • Pros: Clear, OEM appearance, known specifications

  • Cons: More expensive, heavier, risks shattering under impact

• Safety Glass (Auto-type)
  • Pros: Affordable, cracks safely, easier to source from local glass shops

  • Cons: Less rigid, not specialized for equipment environments

• Polycarbonate (Supercoat)
  • Pros: Lightweight, 250–260× stronger than glass, excellent impact resistance, reduced noise, better light transmission, thermal benefits

  • Cons: Higher cost, can scratch or cloud; may require anti-scratch coatings



• 332/X5157 Front Windshield (Tempered Glass)
  • Thickness: ~6 mm

  • Dimensions: ~800 mm (width) × 980 mm (height)

  • DOT-certified, green tinted tempered glass


• Polycarbonate Replacements
  • Available in ¼″, 3/8″, and ½″

  • Replaces OEM parts like 400/E8646, 332/X5157, 402/P5831

  • Coated with abrasion-resistant SUPERCOAT™, milled edges, retains OEM fit, and supports factory hardware



• Steps for DIY or Installer
  • Clear all glass residue and adhesive.

  • Clean, pre-fit, and secure the area.

  • Apply adhesive or use gasket, depending on material type.

  • Set the replacement pane carefully and secure until the adhesive cures. Have all materials and tools ready beforehand due to limited working time.



• Keep a spare windshield and adhesive kit in your parts inventory for emergency replacements.

• Use tempered OEM or safety glass if clarity and cost are priorities for light-duty work.

• Opt for polycarbonate when operating in high-impact environments like forestry or brush clearing.

• Clean replacements gently—use non-abrasive cleaners, and avoid aftermarket films that degrade coatings.

• Follow precise cure times and environmental conditions to ensure optimal bond strength.


• Removal: Strip old glass and adhesive completely.

• Adhesive: Use high-quality products like 3M Window Weld, and act within working time.

• Material Choices:
  • Tempered OEM glass: original fit, clear view, heavier, more costly

  • Safety glass: affordable, safe fracture behavior, easily sourced

  • Polycarbonate: lightweight, impact-resistant, but needs scratch care

• Dimensions Example: Standard tempered pane = 6 mm x ~800 mm × 980 mm

• Choose Based On: Operating conditions, budget, longevity needs

• Pro Tips: Always prep thoroughly, store spare parts, and clean carefully to preserve coatings and visibility quality.


Introduction to Mini Excavator Identification
Mini excavators are versatile, compact machines widely used in construction, landscaping, and utility work. Unlike full-sized excavators, minis are quieter, more maneuverable, and fit into tighter spaces, making them popular for intricate jobs. Identifying an unknown mini excavator can be a rewarding process, requiring careful inspection of physical features, engine and hydraulic components, and taking hints from paint, markings, and unique design cues.

Key Features and Clues for Identification
Your excavator exhibits several typical mini ex characteristics:

• Engine: 3-cylinder Isuzu 3LD1 PW-03 diesel, known for reliability and moderate power output.

• Hydraulics: Uchida Rexroth AP2D21LV1RS6 pump, a premium hydraulic component often used by Asian manufacturers.

• Tracks and Blade: Rubber tracked with a backfill blade, indicative of machines from the early 2000s focused on landscaping versatility.

• Swing/Pivot Arm: The boom is offsettable (often called a "swing boom" or "side-shift arm"), allowing digging close to walls. This is common in compact Asian and European designs.

• Cab Features: Heating, radio, all metric fasteners, hoses with DIN fittings.

• Language on Machine: All writing appears to be of East Asian origin, possibly Japanese, Korean, or Chinese.

• Paint: Yellow and grey scheme, both original and in respray, aligns with brands like IHI/Gehlmax, Yanmar, or some Komatsu mini excavators.


• Missing Data Tag: Older or resprayed machines may have lost or painted over their identification tags, complicating direct ID.

• Non-English Markings: Asian import machines frequently lack English branding on key parts.

• Component Sourcing: Hydraulic, engine, and electrical components are often shared among brands; subtle differences matter.


• Inspect Component Stamps: Serial numbers, part codes, and stamps on the arm mount or frame can reveal manufacturer and model by reference in equipment databases or industry forums.

• Use Engine Codes: Isuzu 3LD1 PW-03 is a common powerplant for multiple mini excavators, especially IHI, Yanmar, and certain older Komatsu models.

• Compare Hydraulics: The Uchida Rexroth pump is heavily favored by Japanese manufacturers, boosting the likelihood of the machine being an IHI or Japanese OEM.

• Assess Color Scheme: Yellow/grey is most closely linked with IHI and Yanmar from specific production years, versus the green/blue of other series.

• Manufacturer Details: DIN hydraulic fittings and metric fasteners point to a factory in Japan or Korea exporting to international markets meeting European standards.


• Swing Boom (Side-Shift Arm): Ability to pivot the digging arm side-to-side independently of the cab, enabling digging against walls.

• Backfill Blade: A bulldozer-like blade attached to the undercarriage for leveling and backfilling trenches.

• Metric Fasteners: Bolts and nuts measured in millimeters, typical for imported machinery.

• DIN Fittings: German industry standard for hydraulic hose fittings, often required for machines exported to Europe.

• Data Tag: The manufacturer’s ID plate that usually lists model, serial number, and machinery weight.

• Respray: The process of repainting the equipment, often to refresh its appearance or cover wear.


• Search for hidden data tags—consider looking under seats, underfloor panels, in the engine bay, and inside side-access panels.

• Photograph and log all part numbers, then cross-reference them in online equipment and parts databases.

• Compare your excavator’s features to visual guides from leading brands like IHI/Gehlmax, Yanmar, and Komatsu, focusing on arm arrangement and cab design.

• Post clear images and key details on industry forums and used machinery communities; crowdsourcing often yields identification success.

• Consult local equipment dealers, especially those who specialize in Asian imports.

• If restoration is planned, source parts through cross-reference with the known shared engine and hydraulic models, or OEM suppliers in Japan.


• Operating Weight: Typically ranges from 2,000-10,000lbs for mini excavators.

• Engine Power: 10-40 horsepower is standard.

• Max Dig Depth: 5-12 feet for compact imports.

• Width and Height: Varies but most fit within 5-6ft wide and stand below 9ft tall.


Overview of the Electrical Warning System Glitch
A certain DH4 Series II bulldozer unexpectedly behaves peculiarly after startup. With the ignition turned on, warning lights, buzzers, and display indicators all activate and persist even after the engine is running—and worse, they refuse to shut off when the key is turned off. This continuous alarm prevents normal shutdown unless the key is completely removed. Initial checks reveal that:

• All warning lights and buzzer remain active regardless of engine status.

• The alternator voltage jumps from approximately 12.1 V to 12.35 V at startup, but still operates within a 24-volt system, suggesting undercharging.


• Fuel pressure switch
  This sensor detects engine running status by responding to a preset fuel pressure range—closing at around 13 psi when pressure increases, and opening at around 10 psi when pressure decreases. If stuck or electrically compromised, it could trick the system into believing the engine is off.
  • Test method: With the engine stopped, the switch should read as an open circuit (infinite resistance); once running, it should show continuity (near 0 ohms).


• Alternator output
  A proper voltage of around 27–28 V is expected during high idle to ensure the system is adequately supplied. A reading below this threshold signals either belt slipping, faulty regulation, wiring issue, or a mismatched component.



• Check Alternator Voltage
  • Measure voltage at the alternator post during high idle.

  • Confirm it sustains a stable 27–28 V—anything lower suggests alternator or belt issues.

• Test the Fuel Pressure Switch
  • Locate the sensor near the fuel system (e.g., near filters or fuel lines).

  • Use a multimeter: engine off = open circuit; engine running = continuity.

• Examine Wiring & Grounds
  • Look for broken tabs, loose connectors, or corroded wiring, especially around sensor harnesses.

  • Clean or repair faulty grounds to prevent false signals or backfeeding to the dashboard.

• Temporarily Bypass as a Diagnostic
  • Bridging the sensor terminals may simulate 'engine running' condition—but use caution and only as a diagnostic step before replacing the switch or wiring.

• Observe Behavior Patterns
  • After fixing, does the warning system behave correctly—lights and buzzers off post-startup, and all indicators fully shut down with key off?


• Fuel pressure switch: A sensor that signals whether the engine is active, based on internal fuel pressure thresholds. Conversion from pressure to an electrical signal helps control instrument readouts and alarms.

• Backfeed: Occurs when unintended current paths allow electrical power to reach components even when the system should be off—typically due to wiring faults or improperly grounded circuits.


• Regularly inspect electrical harnesses and sensor connections—vibration can loosen plugs.

• Check alternator belts for proper tension; slippage leads to undercharging.

• If diagnosing on job sites, keep a multimeter and spare switch handy for quick testing or replacement.

• Always replace worn or doubtful sensors rather than rely on temporary bypasses.


• Symptoms: Persistent warning lights and buzzer, low alternator voltage.

• Diagnostic Targets:
  • Verify alternator output (27–28 V).

  • Test fuel pressure switch for proper open/closed behavior.

  • Inspect wiring and grounds for faults or corrosion.

• Temporary Diagnostic: Bypass sensor to confirm system behavior.

• Long-Term Fix: Replace faulty switch or wiring; clean grounds.

• Maintenance Advice: Regular checks, snug connectors, keep voltage within spec.


Performance and Design Differences

• CAT 272D3 XE
  • Delivers approximately 110 HP and a Rated Operating Capacity (ROC) of about 3,700 lb.

  • Equipped with high hydraulic flow (~40 gal/min), robust for powering larger attachments

  • Offers a longer wheelbase, translating into smoother ride characteristics


• John Deere 332G
  • Around 3,600 lb ROC with advanced hydraulic systems and operator comfort emphasized.

  • Cab ergonomics, compact design, and intuitive ISO controls are standout features.



• Some operators report that Deere’s electric-hydraulic (EH) controls feel cramped—“like sitting in a bathtub,” with elbows hitting nearby steel edges. In contrast, the CAT’s layout and control feel are cited as more comfortable in daily use.


• If mulching or pushing debris is part of the job, the CAT tends to outperform Deere, thanks to its higher hydraulic pressure and horsepower, despite a slightly lower dump height by about 6 inches.


• Buyers have noted pricing and finance differences—John Deere offered 0% for 36 months, while CAT offered 0% for 60 months but added hidden potential import/customs charges. Reports aired concerns over early cylinder-head failures in CAT’s 299D3 tracked variants at under 300 hours of use.



• John Deere 332G
  • Final Drive Failures: Catastrophic planetary gear damage arising from neglected gear oil changes, low oil levels, or leaking face seals. Prevention lies in regular lubrication checks, clean fluid, and prompt sealing repairs.


  • Fuel System and Priming Issues: Frequent complaints of fuel starvation after 20–30 minutes of operation, often due to vacuum build-up in the tank from blocked vents. The primer knob gets pulled in, indicating poor fuel flow.


• Control System & Hydraulics (General Skid Steer)
  • Skid steer machines in general may suffer from loose or leaking hydraulic fittings, leading to degraded performance and control lag. Seals, hoses, and high-pressure line connections merit regular inspection.

  • Joystick or control system glitches may stem from wiring faults, safety-switch issues, or joystick circuit board failures. Malfunctions here can severely reduce operator control or completely disable functions.



• ROC (Rated Operating Capacity) – The maximum weight a machine can lift safely without tipping.

• High Hydraulic Flow – A system capable of delivering more fluid per minute, essential for powering heavy attachments (e.g., mulchers, high-flow tools).

• Planetary Gear Final Drive – A core component in skid steer power transmission; failure leads to loss of drive.

• Primer Knob – A hand-operated pump to remove air from fuel lines; retracting indicates venting or fuel supply issues.

• EH Controls (Electric-Hydraulic) – Control system combining electrical signals and hydraulic actuation; valued for precision but sometimes criticized for ergonomics.


• Mulching Run Revelation: One contractor chose the CAT over the Deere when planning heavy mulching jobs. On testing, the CAT’s superior hydraulic output performed better under demanding loads. Deere’s higher dumping height was later deemed irrelevant to his workflow.


• Dealership the Double-Edged Negotiator: A buyer observed that a John Deere deal offered low interest but higher total price, while the CAT deal had longer payment terms but obscure fees. Combined with reports of early cylinder-head failures in other CAT models, he opted to negotiate extra warranty coverage before committing.



• Final Drive Care (John Deere)
  • Maintain proper gear-oil levels and change on schedule.

  • Watch for leaks or face seal wear; replace seals when detected quickly.

  • Use clean oil and filters; flush system after failures.


• Preventing Fuel Starvation (John Deere 332G)
  • Inspect and clean tank vents and air-inlet paths.

  • Re-check primer functionality; if sucked in, consider re-venting or a fuel cap replacement.


• Hydraulic and Control Integrity (Both Brands)
  • Pressure-test hydraulic lines under load to detect leaks.

  • Tighten loose fittings; replace worn seals.

  • Examine control wiring, connectors, and safety switches—ensure joystick responsiveness and safety interlocks function.


• General Buying Strategy
  • When considering CAT 272D3 XE, explore extended warranty options, especially for tracked variants with known early component failure reports.

  • With any high-capacity skid steer, arrange a live test under typical workload. Comfort, visibility, and control ergonomics can strongly influence long-term preference.
