Hearing a whining or high-pitched noise emanating from the hydraulic pump of a Caterpillar 305 series mini excavator, such as the 305CR or 305.5E, is a common concern among operators. This sound, often more pronounced under load, can be indicative of several underlying issues within the hydraulic system. Recognizing and diagnosing the root cause promptly is essential to maintain the machine's performance and prevent potential damage.

Common Causes of Hydraulic Pump Whining

1. Cavitation
   Cavitation occurs when the hydraulic pump's inlet pressure drops below the fluid's vapor pressure, leading to the formation of vapor bubbles. When these bubbles collapse, they can cause significant damage to the pump's internal components. Symptoms include:
   • High-pitched whining or squealing noises.

   • Intermittent or fluctuating hydraulic performance.

   • Visible pitting or erosion on pump surfaces.

   Common contributors to cavitation include:
   • Air Entrapment: Leaks in the suction line or pump shaft seal can introduce air into the system.

   • Low Fluid Levels: Insufficient hydraulic fluid can reduce the pump's ability to maintain proper inlet pressure.

   • Clogged Filters: Dirty or clogged filters can restrict fluid flow, leading to pressure drops.

   • Excessive Pump Speed: Operating the pump beyond its designed speed can increase the likelihood of cavitation.

2. Air in the Hydraulic Fluid
   Air contamination, or aeration, can result from:
   • Suction Line Leaks: Cracks or loose connections in the suction line can allow air to enter.

   • Faulty Shaft Seals: Worn or damaged seals can permit air ingress.

   • Improper Fluid Levels: Low fluid levels can cause the pump to draw in air.

   Symptoms of aeration include:
   • Whining or gurgling noises.

   • Erratic or sluggish hydraulic movements.

   • Foam or froth in the hydraulic reservoir.

3. Relief Valve Issues
   The relief valve regulates system pressure. If it malfunctions:
   • Sticking or Improper Setting: A relief valve that sticks or is set incorrectly can cause pressure fluctuations.

   • Chattering Noises: A relief valve that doesn't open and close smoothly can produce a chattering sound.

   These issues can lead to:
   • Increased system pressure.

   • Unstable hydraulic performance.

   • Potential damage to hydraulic components.

4. Pump Wear and Internal Damage
   Over time, the hydraulic pump's internal components can wear out due to:
   • Contaminated Fluid: Dirt and debris can cause abrasive wear.

   • Improper Maintenance: Lack of regular maintenance can lead to premature wear.

   • Overheating: Excessive temperatures can degrade pump materials.

   Signs of pump wear include:
   • Persistent whining noises.

   • Decreased hydraulic performance.

   • Increased operating temperatures.


1. Inspect for Air Leaks
   • Check all suction lines and connections for signs of leaks.

   • Ensure that the pump shaft seal is intact and functioning properly.

   • Verify that the hydraulic fluid level is within the recommended range.

2. Examine the Relief Valve
   • Test the relief valve for proper operation.

   • Ensure that the valve is set to the manufacturer's recommended pressure.

   • Look for signs of wear or damage on the relief valve components.

3. Assess Hydraulic Fluid Quality
   • Check the fluid for signs of contamination, such as discoloration or the presence of particles.

   • Replace the fluid if it appears degraded or contaminated.

   • Ensure that the fluid viscosity is appropriate for the operating conditions.

4. Evaluate Pump Condition
   • Listen for unusual noises when the pump is operating.

   • Monitor the pump's operating temperature and pressure.

   • If necessary, consult a professional technician to assess the pump's internal components.


• Regular Fluid Changes: Replace hydraulic fluid at intervals specified in the operator's manual to prevent contamination and maintain optimal performance.

• Filter Maintenance: Regularly inspect and replace hydraulic filters to ensure proper fluid flow and prevent debris from entering the system.

• Seal Inspections: Periodically check all seals and gaskets for signs of wear or damage and replace them as needed.

• System Monitoring: Use diagnostic tools to monitor system pressure, temperature, and flow rates to detect potential issues early.


The Caterpillar D6R, a medium-sized bulldozer, is renowned for its durability and versatility in various construction and mining applications. However, like all heavy machinery, its undercarriage components are subject to wear and tear, which can significantly impact performance and operational costs. This guide delves into the common causes of undercarriage wear, maintenance practices, and real-world experiences to help operators and fleet managers maximize the lifespan and efficiency of their D6R bulldozers.

Understanding the D6R Undercarriage
The undercarriage of the D6R consists of several key components:

• Track Chains: The continuous loop of links that form the track.

• Track Shoes: The metal plates that make contact with the ground.

• Rollers: Support the weight of the machine and help distribute the load.

• Idlers: Guide the track and maintain tension.

• Sprockets: Engage with the track links to propel the machine.

• Carrier Rollers: Support the track over the top of the undercarriage.


1. Improper Track Tension: Tracks that are too tight or too loose can lead to uneven wear on rollers, sprockets, and track chains. It's essential to adjust track tension according to the manufacturer's specifications and operating conditions.

2. Operating Conditions: Harsh terrains, such as rocky surfaces or abrasive materials, can cause excessive wear. Additionally, operating in wet or muddy conditions without proper maintenance can lead to the accumulation of debris, accelerating component degradation.

3. Misalignment: Improper alignment of the track frame can cause uneven wear patterns. For instance, if the track frame is too far in, the inner links may contact the outer face of the sprocket segments, leading to spalling and premature wear.

4. Overloading: Exceeding the machine's rated capacity can put undue stress on undercarriage components, leading to premature failure.

5. Lack of Maintenance: Neglecting regular inspections and maintenance can allow minor issues to escalate into major problems, resulting in costly repairs and downtime.


• Regular Inspections: Conduct thorough inspections at regular intervals to identify signs of wear or damage. Pay close attention to track tension, roller condition, and alignment.

• Proper Lubrication: Ensure that all moving parts are adequately lubricated to reduce friction and wear.

• Track Adjustments: Regularly check and adjust track tension to ensure optimal performance. Both tight and loose tracks can lead to accelerated wear.

• Debris Removal: After operating in muddy or wet conditions, clean the undercarriage to remove accumulated debris that can cause wear and corrosion.

• Component Replacement: Replace worn or damaged components promptly to prevent further damage to other parts.


• Push Rod Bending: In some cases, repeated bending of the push rod has been observed, often indicating excessive stress or misalignment. Inspecting and adjusting the push rods, along with checking for worn bushings or pins, can help mitigate this issue.

• Sprocket and Rail Wear: Uneven wear on sprockets and rails may indicate alignment issues. Ensuring proper alignment of the track frame can prevent such wear patterns.


Maintaining the transmission system of your JCB 1400B backhoe loader is crucial for ensuring its optimal performance and longevity. Regular oil changes and proper maintenance can prevent costly repairs and downtime. This guide provides a detailed, step-by-step approach to changing the transmission oil, including tips, common issues, and best practices.

Understanding the Transmission System
The JCB 1400B is equipped with a BorgWarner 72C transmission system. This system is known for its durability and reliability, but like all mechanical systems, it requires regular maintenance to function efficiently. The transmission oil lubricates the internal components, ensuring smooth operation and preventing wear.

Tools and Materials Needed
Before starting the oil change, gather the following tools and materials:

• Transmission Fluid: Approximately 5.5 gallons (20.8 liters) of Ford Type F ATF (Automatic Transmission Fluid) or JCB's recommended HyTrans fluid.

• Transmission Filter: Part number 02/100284 or 581/M8564.

• Drain Pan: To collect the old transmission oil.

• Wrenches and Socket Set: For removing bolts and the drain plug.

• Torque Wrench: To ensure bolts are tightened to the manufacturer's specifications.

• Safety Gear: Gloves and safety glasses.


1. Preparation:
   • Park the backhoe on a level surface and engage the parking brake.

   • Place wheel chocks behind the wheels to prevent movement.

   • Ensure the engine is off and has cooled down to avoid burns from hot components.

2. Draining the Old Oil:
   • Locate the transmission drain plug beneath the machine.

   • Position the drain pan under the plug.

   • Carefully remove the drain plug and allow the oil to completely drain out. This process may take several minutes to ensure all old fluid is removed.

3. Removing the Old Filter:
   • Identify the transmission filter, typically located on the side of the transmission housing.

   • Use the appropriate tool to unscrew and remove the old filter.

   • Be prepared for residual oil to spill out when removing the filter.

4. Installing the New Filter:
   • Before installing the new filter, apply a small amount of fresh transmission oil to the rubber O-ring on the filter.

   • Screw the new filter into place by hand, ensuring it is snug but not overtightened.

5. Refilling with New Oil:
   • Locate the transmission oil fill cap, usually found on top of the transmission housing.

   • Remove the fill cap and begin pouring in the new transmission fluid.

   • Periodically check the oil level using the dipstick to avoid overfilling. The dipstick should indicate the correct level when the oil is at operating temperature.

6. Checking for Leaks:
   • Start the engine and allow it to reach operating temperature.

   • With the engine running, check around the filter and drain plug for any signs of leaks.

   • If leaks are detected, tighten the respective components as needed.

7. Final Checks:
   • After ensuring there are no leaks, recheck the oil level using the dipstick.

   • Add more fluid if necessary to reach the correct level.

   • Replace the fill cap securely.


• Low Oil Level: If only a small amount of oil drains out during the change, it may indicate a blockage or an issue with the transmission pump. In such cases, further inspection is required to diagnose the problem.

• Oil Frothing: Some operators have reported frothing of the transmission oil, which can lead to erratic shifting. This issue may be caused by air entering the system, often due to a faulty check valve or air leaks in the suction line.

• Incorrect Fluid Type: Using the wrong type of transmission fluid can lead to poor performance and potential damage. Always use the fluid recommended by the manufacturer.


• Regular Oil Changes: Change the transmission oil at regular intervals as specified in the operator's manual to ensure optimal performance.

• Monitor Fluid Levels: Regularly check the transmission fluid level and top up as necessary to maintain proper lubrication.

• Inspect for Leaks: Periodically inspect the transmission system for any signs of leaks, especially around the filter and drain plug.

• Use Recommended Fluids: Always use the manufacturer-recommended transmission fluid to ensure compatibility and performance.

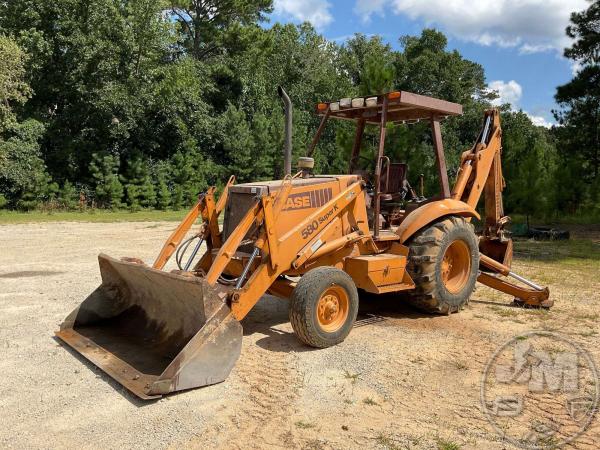

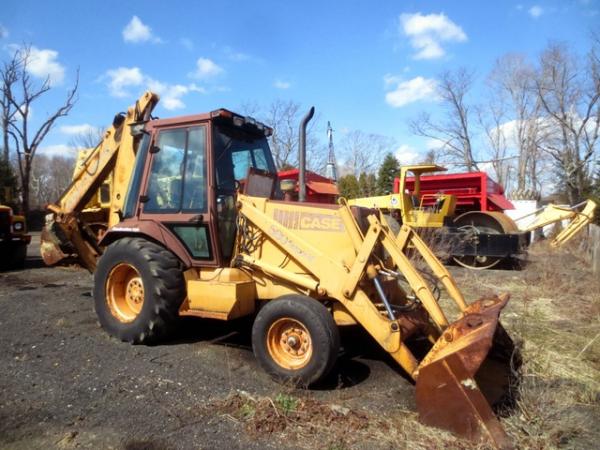

Introduction to Buying Backhoes at Auctions
Backhoes are versatile and essential machines in construction, landscaping, and utility projects. Their combination of a loader bucket in front and an excavator arm in the rear makes them invaluable for digging, material handling, and site preparation. Buying backhoes at auctions has become an increasingly popular way to acquire these machines at competitive prices, often significantly below retail. However, success in auction purchasing requires careful planning, thorough inspection, strategic bidding, and efficient post-auction logistics.
This comprehensive article explores the key aspects of backhoe auctions, from preparation and inspection to bidding strategies and maintenance considerations, enriched with terminology explanations, case stories, and practical tips.

Understanding Backhoe Auctions

• Auctions offer backhoes through various formats: live onsite auctions, online auctions, and hybrid events. Platforms like Ritchie Bros, IronPlanet, and other specialized auction houses frequently handle these sales.

• Auction machines can range from older models with varied hours and conditions to nearly new machines withdrawn from rentals or trade-ins.

• Auctions may include buyer’s premiums—typically 10-15% over the winning bid—that add to the total purchase cost and must be budgeted for.

• Payment terms, pickup schedules, and transportation arrangements vary by auction house, so reviewing terms in advance is vital.


• Research and Market Knowledge:
  • Understand current market values for different makes, models, and machine conditions. Tools such as MachineryTrader, EquipmentWatch, and auction result histories aid in benchmarking reasonable price ranges.

  • Set a realistic budget including purchase price, buyer’s premium, taxes, transportation, and any expected repair costs.

• Inspection Checklist:
  • Whenever possible, attend auction preview days to test and inspect machines.

  • Focus on key operational systems:
    • Engine start, idle, and responsiveness

    • Hydraulic system performance including loader and backhoe arm movement

    • Transmission and drive components

    • Undercarriage or tires condition

    • Visual check for leaks, structural damage, rust, or excessive wear

    • Hours of operation and maintenance history if available

  • When onsite inspection is impossible, consider hiring a professional mechanic or use third-party inspection services offered by some auction companies.


• Set a Firm Maximum Bid: Define the highest bid based on research and budget before the auction starts to avoid emotional overspending.

• Use Proxy or Online Bidding Tools: Many auctions allow proxy bids or automatic bidding up to your max limit, enabling disciplined participation.

• Watch Competitor Behavior: Observe bidding patterns to find opportunities when others hesitate or drop out.

• Avoid Early Overbidding: Let bidding calm before entering to better gauge true market prices.

• Consider Total Cost: Don’t forget to factor buyer’s premiums, taxes, and transport expenses into your bid decisions.


• Finalize Payment Promptly: Auction houses have strict deadlines for payment methods and timing—failure to pay can result in penalties or lost purchases.

• Arrange Transport Early: Coordinating equipment transport is critical. Heavy machinery shipping requires specialized carriers and planning for dimensions, weight, and route permits.

• Prepare for Inspection and Repairs: Upon delivery, conduct thorough inspections and prioritize maintenance to ensure machine reliability. This may involve fluid changes, filter replacements, and minor repairs.

• Documentation: Secure all legal paperwork like bill of sale, registration, or export/import documents for ownership and operational compliance.


• Machines bought at auction may vary widely in condition from “auction-grade” ready to run, to “project machines” needing significant investment.

• Expect some level of preventive maintenance including hydraulic fluid flushes, engine tune-ups, and wear part replacements.

• Check hydraulic cylinders and hoses for leaks or damages often overlooked in quick auction inspections.

• Monitor controls and electrical systems for responsiveness and safety features.

• Maintain a logbook of repairs and inspections to track machine health and support future resale or service needs.


• Buyer’s Premium: Additional fee charged by auction houses, usually a percentage of the hammer price, added to the final cost.

• Proxy Bidding: An automated bidding process where the system bids on behalf of the buyer up to a set maximum.

• Hydraulic System: The fluid power system that operates the loader and backhoe arms, crucial to machine efficiency.

• Undercarriage: The tracked or wheeled base of the machine that supports weight and provides mobility.

• Preview Day: Designated day before an auction when potential buyers can inspect and test machines.

• Third-Party Inspection: Professional evaluation service independent of buyer or seller to assess machine condition.


• A contractor reporting success with backhoe auctions highlighted the importance of mechanical inspection and testing during preview days. In one case, bypassing this led to purchasing a machine with severe hydraulic leaks resulting in costly repairs.

• Another operator used proxy bidding effectively during a busy auction, securing a low-hour used backhoe under budget while avoiding emotional overspending.

• Transport coordination stories emphasize the need to align with freight specialists for safe delivery; one buyer experienced delays and damage due to inadequate transport arrangements after purchase.


• Maintain a checklist for onsite or third-party inspections including operational tests, leak detection, and controls responsiveness.

• Always confirm auction terms beforehand concerning fees, payment schedules, and removal deadlines.

• Arrange transportation simultaneously with bidding success to avoid storage fees or delays.

• Budget for unexpected repairs or maintenance; purchasing warranties or service agreements when available can mitigate risk.

• Build relationships with auction houses and transport providers for smoother recurrent purchases.


The Cummins KT19 series represents a significant advancement in diesel engine technology, offering robust performance and versatility across various applications. This guide delves into the engine's specifications, common issues, maintenance practices, and real-world applications, providing a comprehensive understanding for operators and technicians.

Engine Specifications and Performance
The KT19 engine is a 19-liter, inline 6-cylinder, four-stroke diesel engine renowned for its durability and power output. Key specifications include:

• Displacement: 19 liters (1150 cubic inches)

• Bore x Stroke: 159 mm x 159 mm

• Compression Ratio: 13.8:1

• Aspiration: Turbocharged and Aftercooled

• Fuel System: Pressure Time (PT) Fuel System


• KTA19-M3: 447 kW (600 hp) at 1800 RPM

• KTA19-M4: 522 kW (700 hp) at 2100 RPM


1. Injector Preload Misadjustment: Improper injector preload can lead to poor fuel delivery and engine performance. It's crucial to adjust the injector preload correctly to ensure optimal engine operation.

2. Fuel System Contamination: Contaminants in the fuel system can cause starting difficulties and rough engine operation. Regular fuel system maintenance and the use of high-quality fuel are recommended to prevent such issues.

3. Cooling System Failures: Problems like blocked oil coolers or faulty water pumps can lead to overheating. Regular inspection and maintenance of the cooling system are essential to prevent engine damage.

4. Low Oil Pressure: Causes include dirty oil filters, blocked oil suction pipes, or failing oil pressure regulators. Addressing these issues promptly can prevent severe engine damage.


• Oil and Filter Changes: Cummins recommends changing the oil and filters every 250 hours or 6 months, whichever comes first. For generator applications, the interval can be extended to 12 months.

• Cooling System Maintenance: Regularly check the coolant levels and inspect the radiator and oil cooler for blockages or leaks.

• Fuel System Checks: Inspect fuel lines and filters for leaks or blockages, and ensure the fuel quality meets Cummins' standards.

• Air Intake System: Regularly clean or replace air filters to prevent debris from entering the engine.


• Marine: Powering vessels where reliability and power are paramount.

• Construction: Used in heavy equipment like excavators and bulldozers.

• Industrial: Providing power for generators and other industrial machinery.

• Agriculture: Driving equipment such as tractors and harvesters.


Introduction to Skid Steer Buckets
Skid steer buckets are among the most commonly used attachments in construction, landscaping, farming, and snow removal. Despite their seemingly simple appearance, these buckets come in a variety of types designed to meet specific jobsite demands and materials. Choosing the right bucket impacts productivity, efficiency, and safety of skid steer operations. This detailed guide explores common bucket types, specifications, operational uses, maintenance tips, terminology, and practical advice enriched with real-world experiences.

Common Skid Steer Bucket Types and Their Characteristics

• General Purpose Bucket
  • Designed for versatile use in light to medium-duty digging, loading, and material handling.

  • Typically built with durable steel and may feature bolt-on teeth or cutting edges for better penetration.

  • Common widths range from 60 to 86 inches, balancing maneuverability and capacity.

  • Suitable for moving dirt, gravel, sand, and other general materials.

• Light Material Bucket
  • Larger capacity buckets optimized for low-density materials like snow, mulch, or topsoil.

  • Often wider and shallower than general-purpose buckets to maximize volume without excessively weighing the machine down.

  • Frequently used for snow removal; their design prevents compaction of lighter materials.

  • Examples include 44-inch and 54-inch models for compact skid steers.

• Snow Bucket
  • Specifically designed for snow removal with features that aid in pushing, scooping, and clearing snow efficiently.

  • May include smooth bottoms and angled cutting edges to reduce snow buildup inside the bucket.

  • Some models have extended side panels or rubber edges to minimize damage to curbs and pavement while cleaning.

• Heavy-Duty or Severe-Duty Bucket
  • Constructed with thicker steel, reinforced edges, and stronger frames to handle abrasive, rocky, or hard-packed soils.

  • Often includes wear plates and replaceable tooth systems to extend service life under tough conditions.

  • Ideal for contractors working on demolition, mining, or quarry sites.

• Specialty Buckets
  • Includes trenching buckets, clean-up buckets, snow pusher attachments, grapple buckets, and others designed for specific tasks.

  • Usually narrower or shaped differently to accomplish specialized functions like digging narrow trenches or handling logs and debris.


• Bucket capacity typically ranges from about 0.3 to over 1.5 cubic yards depending on width and design.

• Bucket width should ideally be matched or slightly exceed the skid steer’s track or wheel base to ensure stable pushes and even material compaction.

• Typical capacity examples by width:
  • 66″ wide bucket: approx. 15 cubic feet (about 0.55 cubic yards)

  • 72″ wide bucket: approx. 16.5 cubic feet

  • 80″ wide bucket: approx. 18.5 cubic feet

  • 84″ wide bucket: approx. 19.2 cubic feet

• When removing snow or handling light materials, larger buckets with shallow depths increase volume without overloading machine lift capacity.


• Contractors often favor light material buckets for snow due to their high volume and wider profile, facilitating faster snow clearing.

• Snow buckets with smooth edges and protective side panels provide better surface protection when working near curbs and pavement edges.

• For curb line cleaning, using a bucket designed with side cutters, rubber edges, or low-profile shapes reduces damage risk while maintaining efficiency.

• Operator technique combined with proper bucket choice minimizes wear and extends attachment life in winter conditions.


• Inspect cutting edges, bolt-on teeth, and bucket bodies regularly for wear, cracks, or damage. Replace worn parts promptly to maintain digging efficiency.

• Clean buckets regularly to prevent the buildup of debris, salt, or corrosive materials, especially after snow removal.

• Ensure bolts and pins securing teeth and edges are tightened to recommended torque specifications to avoid loss during operation.

• For light material and snow buckets, avoid overloading beyond machine lift capacity to prevent hydraulic strain and tipping hazards.

• Use manufacturer-recommended lubricants on pivot points and linkage areas linked to the bucket.


• Bolt-On Edge: A replaceable hardened steel edge attached to the bucket front to improve wear resistance and digging ability.

• Cutting Edge: The front bottom edge of the bucket responsible for ground penetration and scraping.

• Teeth: Replaceable steel tips fitted to bucket edges to enhance digging in compacted soils or rocky conditions.

• Capacity: The volume of material a bucket can hold, usually measured in cubic yards or cubic feet.

• Light Material Bucket: A bucket with larger volume designed for low-density materials like snow or mulch.

• Snow Bucket: A bucket optimized for snow handling with features to improve snow movement and surface protection.


• When possible, test different bucket types on the intended jobsite material to ensure optimum fit and performance.

• Consider modular teeth and cutting edges that are easy to replace for cost-effective maintenance.

• For snowy and icy conditions, buckets with rubber edges or protective skid shoes help prevent surface damage and improve operator confidence.

• Keep backup cutting edges and wear parts on hand during peak seasons to reduce unexpected downtime.


Introduction
The Case 9050B Crawler Excavator, a mid-sized machine introduced in the mid-1990s, has been a reliable workhorse in various industries, including construction, mining, and demolition. However, as with any heavy equipment, sourcing replacement parts can become challenging over time. This guide provides insights into the machine's specifications, common issues, and reputable sources for parts and service.
Machine Specifications

• Engine: The 9050B is typically equipped with a 6-cylinder, turbocharged diesel engine, offering a balance between power and fuel efficiency.

• Hydraulic System: Features a closed-center, load-sensing hydraulic system, ensuring efficient power distribution and responsiveness.

• Undercarriage: Designed for durability, the undercarriage components are built to withstand the rigors of demanding terrains.


1. Hydraulic System Failures: Over time, components like pumps and valves may wear out. Regular maintenance and timely replacement can prevent significant downtime.

2. Undercarriage Wear: Continuous operation in harsh conditions can lead to wear in tracks and rollers. Monitoring and replacing these parts as needed ensures optimal performance.

3. Electrical System Glitches: Aging wiring and connectors can cause intermittent issues. Routine inspections and addressing minor faults promptly can prevent major electrical failures.


1. Southern Tractor: Specializes in dismantling Case 9050B machines, offering a wide range of used parts. Their inventory includes components like hydraulic cylinders, undercarriage parts, and more. For more details, visit their website or contact them directly at (877) 672-5824.

2. Brikers: Offers rebuilt, used, and new parts for the 9050B. Their inventory includes items like undercarriage components and arm cylinders. They provide nationwide shipping and can be reached at 855-912-0460.

3. FinalDriveParts.com: Specializes in final drive assemblies and travel motors for the 9050B. They offer aftermarket parts with a limited lifetime warranty, ensuring reliability and performance.

4. AMSparts.com: Provides a comprehensive catalog of new, used, and rebuilt parts for the 9050B. Their offerings include hydraulic pumps, final drives, and undercarriage components.


• Regular Inspections: Periodically check the hydraulic system, undercarriage, and electrical components for signs of wear or damage.

• Timely Replacements: Addressing minor issues promptly can prevent costly repairs down the line.

• Use Quality Parts: Opt for OEM or reputable aftermarket parts to ensure compatibility and longevity.


Introduction to the AC Compressor Power Problem
The air conditioning system in the 2020 Caterpillar 299D3 XE compact track loader is vital for operator comfort, especially in hot work environments. A common but complex issue is when the AC compressor receives no power, resulting in the compressor and related components (pressure switch, relay) being non-operational. Understanding electrical power flow, components involved, and diagnostic steps is essential to resolving this problem effectively.
This guide provides a detailed explanation of the AC compressor power supply system, troubleshooting approaches, practical repair advice, and relevant tips to help operators and technicians restore AC function reliably.

Understanding the AC Compressor Power Circuit

• Power Source and Fuse Box
  The AC compressor circuit receives power from the machine’s battery system via the fuse box. In the 299D3 XE, two 20-amp fuses protect this circuit. Confirming power at these fuses is the first diagnostic step — if power is present at the fuses but not at the compressor, the issue lies downstream.

• Relay and Pressure Switch
  The AC compressor clutch operation depends on a relay and a pressure switch. The pressure switch monitors system pressure and either allows or inhibits power flow to the compressor clutch coil to protect the system from abnormal pressures. If either the relay or pressure switch fails or is not energized, the compressor gets no power.

• Wiring and Connectors
  Electrical cables from the fuse box to the compressor, relay, and pressure switch must be intact. Any cable damage, stripped wires, loose connectors, or corrosion can interrupt power supply and control signals, leading to compressor inoperability.


• Blown or faulty fuses despite apparent power at fuse box terminals.

• Defective or unseated AC compressor relay preventing power flow.

• Faulty pressure switch failing to close the circuit due to wrong pressure or internal failure.

• Damaged, disconnected, or corroded wiring/cable assemblies between fuse box, relay, pressure switch, and compressor.

• Additional safety or control modules in the circuit that may disable compressor power due to sensed faults.

• Relay control signals missing due to ECU or thermostat issues.


1. Verify Power at Fuse Box
   Use a multimeter or test light to confirm constant 12V at both AC compressor fuses under machine ignition on and off.

2. Check Relay Function
   Locate the AC compressor relay in the relay panel. Test relay coil resistance and continuity of switching contacts. Swap with a similar relay if available to confirm relay function.

3. Inspect Pressure Switch
   Measure continuity across the pressure switch terminals. If pressure is within operating range and switch fails continuity test, replace the switch.

4. Trace Wiring Harness
   Visually inspect and use a wiring diagram to trace cables from fuse box to relay, pressure switch, and compressor. Repair any damage, exposed wires, or loose connections.

5. Test Compressor Clutch Coil
   If power and control signals reach the clutch coil connector but clutch does not engage, measure coil resistance and verify ground circuit. Replace clutch assembly if faulty.

6. Check for Additional Safety Controls
   Some models have pressure sensors or control modules that inhibit compressor operation during certain machine functions or fault conditions. Use diagnostic tools or OEM software to verify.


• When replacing wires or connectors, use OEM or high-quality approved components that can withstand harsh jobsite environments.

• Always confirm correct torque and secure mounting for relays and pressure switches to avoid signal issues.

• Periodically clean relay sockets and connectors to prevent corrosion-related faults.

• For persistent intermittent issues, consider using a wiring continuity tester or thermal imaging camera to detect hidden shorts or breaks.

• Inspect AC system refrigerant pressure regularly, as abnormally low or high pressures can disable the compressor via the pressure switch.

• Utilize official Caterpillar electrical schematics and service manuals to identify accurate wiring routes, connector pinouts, and component locations.


• AC Compressor Clutch: Electromagnetically controlled device that engages to drive the compressor pulley.

• Relay: Electrically operated switch controlling high current flow to the compressor clutch from a low current control signal.

• Pressure Switch: Safety device that opens or closes circuit based on refrigerant pressure to protect AC components.

• Fuse Box: Centralized set of fuses protecting electrical circuits from overload.

• Wiring Harness: Bundled electrical cables connecting components.

• Multimeter: Diagnostic tool used to measure voltage, current, and resistance.


• A Cat operator discovered that despite fuse box power, a burnt relay coil caused the AC compressor to remain inactive. Replacing the relay solved the power supply issue immediately.

• Another technician found a damaged pressure switch wiring connector corroded from moisture exposure, interrupting compressor power. Repairing the connector restored operation and prevented future failures.

• In a preventive maintenance plan, regular inspection and cleaning of AC system electrical connectors and relays reduced unexpected downtime, especially during hot weather seasons.

• Some retrofit cases upgraded to heavy-duty relays and sealed connectors to increase reliability on machines operating in dusty, wet conditions.


Introduction to the Drott 40 Excavator
The Drott 40 is a classic crawler excavator widely recognized for its robust construction and versatility in earthmoving operations. A key aspect of its effective performance is the selection, maintenance, and function of its bucket and bucket teeth, which directly affect digging efficiency, material handling, and wear life. Understanding bucket types, teeth configurations, and proper upkeep ensures productivity and longevity of the machine on job sites.
This detailed article discusses the Drott 40 bucket and teeth specifications, maintenance practices, troubleshooting tips, terminology explanations, and practical recommendations enriched with real-world examples to enhance operator knowledge and machine reliability.

Drott 40 Excavator Basic Specifications

• Operating Dimensions
  • Operating length: Approximately 29 ft 10 in (9.1 m), variable by configuration.

  • Operating width: About 8 ft 0 in (2.44 m), depending on attachments.

  • Operating height: Roughly 13 ft 0 in (3.96 m).

• Operating Weight: Around 34,720 to 35,620 lbs (15,749 to 16,155 kg) depending on model variant and attachments.

• Bucket Size Options:
  • Buckets typically range in width from 30 inches (762 mm) to 42 inches (1,067 mm).

  • Capacity ranges from approximately 0.58 cubic yards (0.44 m³) up to around 0.79 cubic yards (0.60 m³) for front loader bucket types.


• Bucket Types and Features
  • General purpose buckets with moderate tooth length for a wide range of digging and loading tasks.

  • Heavy-duty or severe-duty buckets constructed of abrasion-resistant steel designed for rocky or compacted materials.

  • Some buckets feature bolt-on or weld-on cutting edges and side cutters to enhance durability and wear resistance.

• Teeth Configuration
  • Bucket teeth on the Drott 40 are typically short, stout, and designed for durability in medium to heavy-duty digging.

  • Teeth assist in breaking ground, penetrating compacted soil, and scraping material into the bucket efficiently.

  • Replacement teeth are essential to maintain optimal bucket performance and avoid rapid wear of bucket bottoms.


• Inspect Teeth Regularly
  Frequent inspection for signs of wear, cracks, or chipping prevents sudden tooth failure. Replace worn teeth to maintain cutting efficiency and reduce stress on the bucket and boom.

• Bucket Structural Inspection
  Check for cracks, deformation, or worn cutting edges on buckets. Early repairs extend bucket life and maintain digging precision.

• Use Proper Teeth Types for Conditions
  Select heavy-duty teeth for abrasive or rock-filled soils, and general-purpose teeth for softer soils and utility tasks.

• Bolt Tightening
  Ensure bucket teeth are securely fastened with proper torque to prevent loosening and loss during operation.

• Lubrication and Cleaning
  Clean buckets regularly to remove embedded debris and lubricate pin joints on attachments to avoid premature wear.


• Avoid excessive bucket impact against hard surfaces to reduce the risk of teeth or bucket damage.

• Use appropriate bucket sizes aligned with the Drott 40’s hydraulic capacity to avoid strain and inefficiency.

• For digging in rocky or frozen ground, utilize specially hardened teeth or add side cutters to reduce wear.

• If bucket performance declines (e.g., poor penetration or excessive spillage), inspect teeth and replace or repair as needed.


• Bucket Teeth: Replaceable steel tips attached to the bucket edge to improve digging ability.

• Cutting Edge: The bottom edge of the bucket, which may be reinforced for longer wear life.

• Side Cutters: Wear-resistant guards fixed to bucket sides to protect edges from abrasion.

• Bolt-on Teeth: Teeth attached via bolts allowing for easier replacement compared to weld-on types.

• Severe-Duty Bucket: A bucket constructed with extra wear protection for tough digging conditions.


• Consider measuring bucket tooth wear using gauge templates regularly to track wear progression accurately.

• For projects involving mixed materials, rotating between different tooth types according to tasks can optimize productivity.

• Using protective coatings on buckets helps resist corrosion, extending service life in wet or chemical-exposed environments.

• Training operators on proper bucket use and avoiding misuse such as prying heavy objects reduces premature damage.




The Case 580 Super K backhoe loader, produced between 1992 and 1994, is renowned for its durability and versatility in construction and agricultural applications. However, like many heavy-duty machines, it is susceptible to specific mechanical issues. One such concern is the overheating of the power shuttle transmission, particularly when operating in higher gears under load. Understanding the causes and solutions to this problem is essential for maintaining optimal performance and longevity of the equipment.

Understanding the Power Shuttle Transmission
The power shuttle transmission in the Case 580 Super K is a hydraulic powershift system that allows for seamless shifting between forward and reverse without the need to clutch. This system is integral to the machine's versatility, especially in applications requiring frequent direction changes. However, its performance can be compromised if the transmission fluid overheats.

Symptoms of Overheating
Operators may notice the following signs indicating power shuttle overheating:

• High Fluid Temperature: The transmission oil temperature gauge reading in the red zone, especially during operation in 3rd and 4th gears.

• Loss of Power or Sluggish Response: Reduced responsiveness when shifting between gears or a noticeable decrease in operational power.

• Unusual Noises: Hissing or whining sounds emanating from the transmission area, suggesting internal friction or insufficient lubrication.


1. Low Fluid Levels: Insufficient transmission fluid can lead to inadequate lubrication and cooling, resulting in increased friction and heat generation.

2. Contaminated or Degraded Fluid: Old or contaminated fluid loses its effectiveness, reducing its ability to dissipate heat and lubricate components properly.

3. Faulty Torque Converter: A malfunctioning torque converter can cause excessive heat buildup due to inefficient power transmission.

4. Clogged Oil Cooler: Debris or sludge accumulation in the oil cooler can impede fluid flow, leading to higher operating temperatures.

5. Worn Clutch Packs: Deteriorated clutch packs can slip, generating excessive heat and contributing to overheating.


1. Check Fluid Levels: Ensure the transmission fluid is at the recommended levels. Low fluid can lead to overheating.

2. Inspect Fluid Condition: Examine the fluid for signs of contamination or degradation. Dark, burnt-smelling fluid indicates the need for replacement.

3. Test the Torque Converter: Assess the torque converter for signs of malfunction, such as unusual noises or erratic performance.

4. Examine the Oil Cooler: Inspect the oil cooler for blockages or damage that could restrict fluid flow.

5. Evaluate Clutch Packs: Check for signs of wear or damage in the clutch packs, which could cause slipping and overheating.


• Fluid Replacement: Drain the old fluid and replace it with fresh, manufacturer-recommended transmission fluid.

• Torque Converter Replacement: If the torque converter is found to be faulty, replace it to restore efficient power transmission.

• Oil Cooler Cleaning or Replacement: Clean the oil cooler to remove any blockages or replace it if damaged.

• Clutch Pack Overhaul: If clutch packs are worn, they should be replaced or rebuilt to ensure proper engagement and prevent slipping.


• Regular Fluid Checks: Periodically check transmission fluid levels and condition.

• Scheduled Fluid Changes: Follow the manufacturer's recommended intervals for fluid replacement to maintain optimal performance.

• Monitor Operating Temperatures: Keep an eye on the transmission oil temperature gauge during operation, especially under heavy loads.

• Routine Inspections: Regularly inspect the torque converter, oil cooler, and clutch packs for signs of wear or damage.
