The Case 1840 skid steer loader is known for its rugged build, reliable performance, and versatility in a variety of applications, from construction to landscaping. Like any piece of heavy machinery, the hydraulic system of the Case 1840 is critical to its operation, powering everything from the lift arms to the bucket and attachments. However, hydraulic issues can arise over time, affecting performance and leading to costly repairs if not addressed promptly. In this article, we will explore common hydraulic problems with the Case 1840, their causes, troubleshooting steps, and potential solutions.
Overview of the Case 1840 Hydraulic System
The hydraulic system in the Case 1840 loader powers various components, including the lift arms, auxiliary hydraulics for attachments, and steering. It is designed to provide smooth, powerful operation, allowing the loader to lift heavy loads and operate attachments with ease. The hydraulic system includes several key components:

1. Hydraulic Pump: Responsible for generating the hydraulic pressure needed to operate the system.

2. Hydraulic Reservoir: Holds the hydraulic fluid, which circulates through the system.

3. Hydraulic Cylinders: Convert hydraulic pressure into mechanical force to move the loader's lift arms and other components.

4. Hydraulic Hoses and Lines: Transport hydraulic fluid between the pump, cylinders, and other components.

5. Control Valves: Regulate the flow of hydraulic fluid to different parts of the system, ensuring proper movement of the loader's various functions.

6. Relief Valve: Protects the system from excess pressure by diverting fluid when necessary.


• Low Hydraulic Fluid Levels: Insufficient fluid can cause the pump to work inefficiently, leading to slower response times.

• Air in the Hydraulic System: Air trapped in the system can reduce hydraulic efficiency and cause delayed or jerky movement.

• Faulty Hydraulic Pump: If the pump is damaged or worn, it may not generate enough pressure to lift the load.

• Clogged Hydraulic Filter: A clogged filter can restrict the flow of hydraulic fluid, leading to poor performance.


• Check Fluid Levels: Ensure that the hydraulic fluid is at the proper level. Low fluid can cause poor lifting performance, and topping it up might resolve the issue.

• Bleed the System: If air is trapped, bleeding the hydraulic system to remove air bubbles can restore normal function.

• Inspect and Replace the Hydraulic Pump: If the pump is malfunctioning, it may need to be replaced.

• Replace the Hydraulic Filter: Regularly replacing the filter ensures that it does not become clogged and restrict the fluid flow.


• Worn or Damaged Hydraulic Hoses: Over time, hoses can crack or become damaged, leading to leaks.

• Faulty Seals or O-Rings: Worn seals and O-rings around cylinders, valves, or the pump can leak hydraulic fluid.

• Loose Fittings: Loose or improperly tightened fittings can allow hydraulic fluid to escape.


• Inspect Hoses and Fittings: Regularly inspect all hydraulic hoses and fittings for signs of wear, cracks, or damage. Replace any damaged hoses or fittings immediately.

• Check and Replace Seals: If seals or O-rings are leaking, they should be replaced to restore the integrity of the system.

• Tighten Fittings: Ensure that all fittings are properly tightened to prevent leaks.


• Contaminated Hydraulic Fluid: Contaminated fluid can increase friction and cause excessive heat buildup.

• Inadequate Cooling: The hydraulic cooler may be dirty or malfunctioning, preventing the fluid from cooling effectively.

• Excessive Workload: Operating the loader for extended periods under heavy loads can cause the fluid to overheat.


• Change the Hydraulic Fluid: Ensure that the hydraulic fluid is clean and at the correct viscosity. Contaminated or old fluid can increase friction and cause overheating.

• Clean the Hydraulic Cooler: Inspect the cooler for dirt, debris, or blockages that could affect its ability to dissipate heat. Clean the cooler regularly to ensure efficient operation.

• Reduce Load and Operating Time: Avoid overloading the machine and provide adequate breaks to let the hydraulic system cool down.


• Low Steering Fluid: The steering system relies on hydraulic fluid for operation. Low fluid levels can cause erratic steering behavior.

• Air in the Steering System: Air bubbles trapped in the system can cause jerky or delayed steering.

• Faulty Steering Cylinder: A malfunctioning steering cylinder can cause poor control or erratic movement.

• Clogged Hydraulic Lines: A blockage in the hydraulic lines can restrict fluid flow to the steering system, causing irregular movements.


• Check Fluid Levels: Ensure that the steering hydraulic fluid is at the recommended level. If the fluid is low, top it up and inspect for leaks.

• Bleed the Steering System: Remove any trapped air by bleeding the system to restore smooth steering operation.

• Inspect the Steering Cylinder: If the cylinder is leaking or malfunctioning, it may need to be replaced.

• Check Hydraulic Lines: Inspect the lines for any signs of blockage, leaks, or damage, and replace any faulty parts.


• Faulty Relief Valve: A malfunctioning relief valve can cause a drop in hydraulic pressure.

• Internal Leak in the Pump: A worn-out or damaged hydraulic pump can lead to a loss of pressure.

• Clogged Hydraulic Filter or Lines: A clogged filter or line can restrict fluid flow and reduce pressure.


• Inspect the Relief Valve: If the relief valve is stuck or faulty, it should be repaired or replaced.

• Check the Hydraulic Pump: If the pump is not generating enough pressure, it may need to be replaced.

• Replace the Hydraulic Filter: A clogged filter should be replaced to restore proper fluid flow and pressure.


1. Regular Fluid Checks: Check the hydraulic fluid levels regularly, ensuring they are at the correct levels. Low fluid can cause a variety of issues, including sluggish operation and potential damage to components.

2. Change the Hydraulic Fluid: Follow the manufacturer’s recommendations for fluid changes. Over time, hydraulic fluid can degrade, leading to inefficiency and potential system damage.

3. Inspect Hoses and Lines: Check all hydraulic hoses and lines for signs of wear, cracking, or leaks. Replace any hoses that are damaged or worn to prevent leaks and maintain proper fluid pressure.

4. Clean the System: Keep the hydraulic system clean by regularly inspecting and cleaning the components, such as the filter, cooler, and pump.

5. Operate Within Limits: Avoid overloading the machine or operating it under excessively heavy loads for extended periods. Overworking the hydraulic system can lead to overheating and premature wear.

6. Check for Leaks: Inspect the system for any hydraulic fluid leaks, which can cause system failure if not addressed.


Introduction: When a Fault Code Disrupts a Workhorse
The Caterpillar D6R dozer is a staple in earthmoving fleets, known for its durability and mechanical simplicity. But even the most reliable machines can throw a wrench into operations when fault codes appear unexpectedly. One such code—113.298.02—relates to the service brake pedal switch and can trigger intermittent or erratic behavior in the transmission control system. This article breaks down the meaning of the code, explains the underlying systems, and offers practical steps for diagnosis and repair.
Understanding the Fault Code Structure
Caterpillar fault codes follow a structured format:
- MID 113: Refers to the transmission control module
- CID 298: Identifies the brake pedal switch circuit
- FMI 02: Indicates an erratic, intermittent, or incorrect signal
In plain terms, fault code 113.298.02 means the transmission controller is receiving unreliable data from the brake pedal switch—often due to misalignment, wear, or electrical issues.
Terminology Clarification
- Service Brake Pedal Switch: A sensor that detects when the brake pedal is fully depressed. It signals the controller to engage the parking brake or interrupt transmission functions.
- PWM (Pulse Width Modulation): A method of controlling voltage by varying the duty cycle of a signal. Used in some brake systems for fine control.
- Component Data Display Mode: A diagnostic mode that shows live data from machine sensors and switches.
- CONN 19: A specific connector in the wiring harness associated with the brake pedal switch.
How the Brake Pedal Switch Works
On the D6R, the brake pedal switch plays a critical role in safety and control:

• When the pedal is pressed to the floor, the switch closes its contacts

• This sends a signal to the transmission controller to engage the parking brake

• It also disables forward/reverse travel to prevent unintended movement

• If the switch is misaligned or faulty, the controller may receive false signals, triggering fault codes or erratic behavior


• Loosen the mounting screws and reposition the switch to ensure it activates only at full pedal depression

• Use a feeler gauge to set consistent clearance between the pedal and switch actuator

• Confirm that the switch does not trigger prematurely, which can confuse the controller


• Always turn off the master switch before working on live circuits

• Use insulated tools when probing connectors

• Label wires before disconnecting to avoid miswiring

• Avoid testing PWM circuits with basic multimeters—use compatible diagnostic tools


• The brake pedal switch operates on 24 volts, unlike some PWM-controlled components that use 5 volts

• The hand-operated park button shares the same voltage circuit

• Mixing up these systems can lead to misdiagnosis or component damage


• Inspect the brake pedal switch quarterly for wear or misalignment

• Clean connectors with contact cleaner and apply dielectric grease

• Check pedal travel and linkage for binding or excessive play

• Log fault codes and resolution steps for future reference

• Train operators to report erratic brake behavior immediately

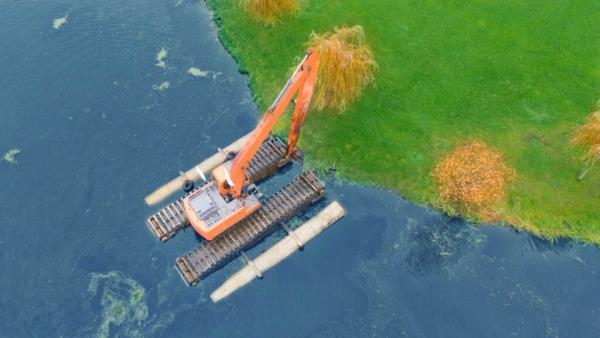

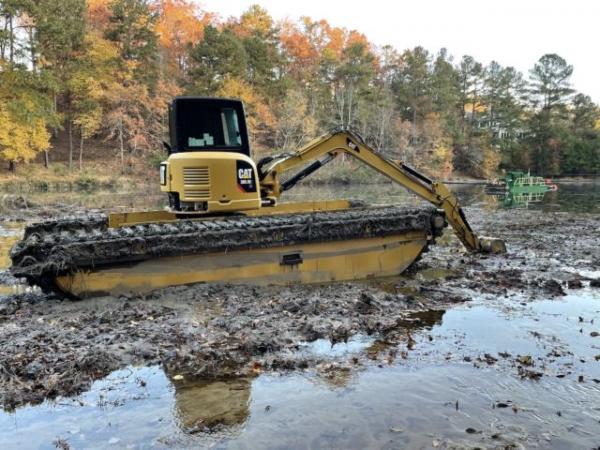

Pond maintenance is crucial for preserving aquatic ecosystems, ensuring water quality, and enhancing the aesthetic appeal of water bodies. One of the most challenging tasks in pond upkeep is the removal of accumulated sludge, which consists of organic matter, silt, and debris that settle at the bottom over time. This article explores various methods and equipment, particularly focusing on the use of backhoe and loader bucket extensions, to efficiently remove pond sludge.
Understanding Pond Sludge and Its Impact
Pond sludge forms due to the decomposition of organic materials like leaves, algae, and aquatic plants. Over time, this accumulation can lead to reduced water depth, poor water quality, and diminished oxygen levels, adversely affecting fish and plant life. Regular removal of this sludge is essential to maintain a healthy pond environment.
Challenges in Sludge Removal
Removing pond sludge presents several challenges:

• Depth and Accessibility: Ponds with significant depths or irregular bottoms can make it difficult to reach and remove sludge effectively.

• Sticky Consistency: Sludge often has a sticky consistency, making it prone to adhering to equipment, which can hinder efficient removal.

• Equipment Limitations: Standard excavation equipment may not be designed for aquatic environments, limiting their effectiveness in sludge removal.


• Extended Reach: Allows access to deeper sections of the pond.

• Increased Efficiency: Reduces the need for repositioning, saving time.


• Stability: Operating with an extended boom can affect the machine's stability; caution is required.

• Weight Distribution: Additional weight from the extension can impact the machine's balance.


• Increased Capacity: Allows handling of larger volumes of material.

• Versatility: Can be used for various tasks beyond sludge removal.


• Maneuverability: The added length can affect the loader's maneuverability in confined spaces.

• Attachment Compatibility: Ensure the extension is compatible with the loader's specifications.


• Muck Buckets: Designed with features to handle sticky and dense materials, making them ideal for sludge removal.

• Skimming Buckets: Useful for removing surface layers of sludge without disturbing the underlying sediment.

• Quick Spade Attachments: These attachments can be mounted on loaders or skid steers to dig and remove compacted sludge efficiently.


• Assess Pond Conditions: Evaluate the pond's depth, bottom composition, and accessibility before choosing equipment.

• Use Appropriate Attachments: Select attachments that match the consistency and volume of the sludge.

• Operate Safely: Always follow safety guidelines to prevent accidents and equipment damage.

• Regular Maintenance: Regularly remove sludge to prevent excessive buildup and maintain pond health.


Introduction: When Flat Tires Become a Daily Headache
Skid steers are built for rugged terrain, tight turns, and high torque—but their tires often bear the brunt of that abuse. For operators working on rocky, uneven ground, repeated tire failures can feel like sabotage. One Mustang 960 owner experienced four flats in two weeks, including a blowout on a brand-new tire. This article explores the root causes of frequent flats, offers practical solutions, and shares field-tested advice to keep your machine rolling.
Understanding Tire Vulnerability in Skid Steers
Skid steers exert intense lateral forces during tight turns, especially on abrasive surfaces like shot rock or broken concrete. Unlike wheeled loaders or excavators, they pivot on the spot, which can shred tread and sidewalls if the tires aren’t up to the task.
Common causes of tire failure include:

• Overinflation reducing flexibility and increasing puncture risk

• Low ply ratings unable to resist sharp debris

• Poor-quality rubber compounds that crack or tear under stress

• Lack of internal protection like tubes or sealants

• Aggressive driving habits on hostile terrain


• Light-duty work on soft ground: 30–35 psi

• Mixed terrain with moderate debris: 40–45 psi

• Heavy-duty work on rocky surfaces: 50–55 psi

• Avoid exceeding 60 psi unless specified by manufacturer


• Opt for 10–12 ply ratings for maximum toughness

• Look for bead protectors to shield the rim edge

• Avoid brands with a history of blowouts or premature wear

• Consider retreaded “caps” with reinforced casings for longevity

• Water-fill tires to add weight and help detect leaks early


• Small punctures: Use tire slime or plug kits

• Sidewall cuts: Usually non-repairable—replace the tire

• Tread tears: May be patched if not too deep

• Bead damage: Requires professional remounting or replacement

• Foam-filled tires: Cannot be patched—must be replaced entirely


• Avoid turning on a dime—use gradual arcs when possible

• Don’t drive over sharp debris unless necessary

• Slow down on rough terrain to reduce impact force

• Keep tires clean to spot damage early

• Train employees to recognize terrain hazards and adjust accordingly


• Inspect tires daily for cuts, bulges, or embedded debris

• Check pressure weekly and adjust based on terrain

• Rotate tires monthly to balance wear

• Clean rims and valve stems to prevent leaks

• Keep a log of tire replacements and repairs to spot patterns


In the realm of heavy hauling, the choice of trailer significantly impacts efficiency, safety, and operational costs. Among the various options, cross dump belly dump trailers have garnered attention for their unique design and functionality. This article delves into the advantages and considerations of using cross dump belly dump trailers, providing insights for operators and fleet managers.
Understanding Cross Dump Belly Dump Trailers
A cross dump belly dump trailer is a type of bottom dump trailer where the unloading gates are oriented perpendicular to the trailer's length, allowing for a wider and more controlled material spread. Unlike traditional belly dumps that release material in a straight line, cross dump trailers can spread material across a broader area, making them ideal for applications requiring uniform distribution.
Advantages of Cross Dump Belly Dump Trailers

1. Enhanced Material Distribution
   The primary benefit of cross dump trailers is their ability to spread materials evenly across a wider area. This is particularly advantageous in road construction and maintenance projects where uniform distribution of gravel or asphalt is crucial.

2. Increased Stability
   Cross dump trailers maintain a low center of gravity and do not require the bed to be raised for unloading. This design minimizes the risk of tipping, even on uneven or soft ground, enhancing safety during operation.

3. Improved Payload Efficiency
   By eliminating the need for hydraulic systems to raise the bed, cross dump trailers reduce the overall weight of the unit. This weight reduction allows for a higher payload capacity, enabling operators to transport more material per trip.

4. Versatility in Unloading
   The design of cross dump trailers allows for controlled unloading, facilitating windrowing—a process where material is deposited in a long, narrow line. This feature is beneficial for tasks such as laying down road base or creating berms.


1. Material Size Limitations
   The gates of cross dump trailers are designed to handle specific material sizes. Larger or oversized materials may become lodged in the gates, leading to blockages and potential damage. It's essential to ensure that the materials being transported are within the size specifications of the trailer.

2. Terrain Constraints
   While cross dump trailers offer stability, they require sufficient clearance beneath the trailer for proper unloading. Operating in areas with uneven terrain or obstacles can impede the unloading process and may cause operational delays.

3. Specialized Training Requirements
   Operating a cross dump belly dump trailer may require specialized training to ensure safe and efficient use. Operators should be familiar with the trailer's unique unloading mechanisms and the specific requirements of the materials being transported.


The ASV RC-30 is a compact, durable, and versatile skid steer loader that has earned a reputation for its ability to work efficiently in challenging conditions. It is powered by the CAT 3013 engine, which provides reliable performance and exceptional fuel efficiency. In this article, we’ll explore the features of the ASV RC-30 with the CAT 3013 engine, including its performance specifications, maintenance tips, common issues, and troubleshooting steps. We’ll also offer recommendations for keeping your machine in optimal working condition.
The ASV RC-30 Overview
The ASV RC-30 is known for its rugged design, compact size, and maneuverability, making it ideal for tasks in tight spaces, construction sites, and landscaping projects. With a low ground pressure, the RC-30 can work efficiently on soft and uneven terrain, making it suitable for a variety of applications, including forestry, agriculture, and utility work.
The machine's standout features include:

1. Compact Design: The RC-30 is designed to operate in tight spaces, offering excellent maneuverability in areas where larger machines may struggle.

2. High Lift Capacity: Despite its compact size, the RC-30 can lift substantial loads, enhancing its versatility on a wide range of tasks.

3. Low Ground Pressure: The machine’s unique undercarriage and design allow it to maintain low ground pressure, reducing damage to soft surfaces and ensuring better flotation.

4. Durability: Built to withstand tough conditions, the RC-30 has a durable frame and robust components that increase its longevity.


1. Engine Type: The CAT 3013 is a 3-cylinder, liquid-cooled, diesel engine.

2. Power Output: The engine produces approximately 30 horsepower (22 kW), which provides sufficient power for most standard skid steer tasks.

3. Fuel Efficiency: The engine is designed for optimal fuel efficiency, allowing the RC-30 to run longer hours without frequent refueling. This makes it a great option for projects where fuel consumption needs to be minimized.

4. Emission Standards: The engine meets the emission standards of its time, providing a balance between performance and environmental concerns.


1. Engine Not Starting:
   • Possible Causes:
     • Faulty starter motor or solenoid

     • Low or dead battery

     • Dirty or clogged fuel filter

     • Insufficient fuel or fuel quality issues

   • Solution: Start by checking the battery voltage and connections. If the battery is in good condition, check the fuel system for any blockages or contaminants. Clean or replace the fuel filter if needed.

2. Overheating Engine:
   • Possible Causes:
     • Clogged radiator or cooling system

     • Low coolant levels

     • Faulty thermostat

   • Solution: Check the coolant levels and inspect the radiator for debris or dirt buildup. If the radiator is clogged, clean it thoroughly. If overheating persists, inspect the thermostat and replace it if necessary.

3. Loss of Power:
   • Possible Causes:
     • Dirty or clogged air filter

     • Fuel delivery issues (e.g., clogged fuel lines)

     • Engine compression problems

   • Solution: Start by inspecting and replacing the air filter if it’s dirty or clogged. Then, check the fuel system for leaks or blockages. If these components are in good shape, consider checking the engine's compression to identify any internal issues.

4. Excessive Exhaust Smoke:
   • Possible Causes:
     • Poor fuel quality

     • Injector issues

     • Worn engine components

   • Solution: If the exhaust is emitting excessive smoke, check the fuel for any signs of contamination. Inspect the fuel injectors for proper function and replace them if needed. Additionally, ensure the engine is well-maintained, as worn components can contribute to increased smoke.

5. Hydraulic System Problems:
   • Possible Causes:
     • Low hydraulic fluid levels

     • Leaks in the hydraulic lines

     • Worn hydraulic pump or motor

   • Solution: Inspect the hydraulic fluid levels and add fluid if necessary. Check the hydraulic lines for any signs of leakage and repair or replace any damaged hoses. If the hydraulic system continues to experience problems, the hydraulic pump or motor may need to be serviced or replaced.


1. Engine Oil Change:
   • Regularly change the engine oil to ensure smooth operation and prevent premature wear of the engine components.

   • Recommended Oil Change Interval: Every 250-500 hours, depending on the operating conditions and manufacturer’s guidelines.

2. Air Filter Maintenance:
   • Inspect the air filter every 100 hours and replace it if it appears dirty or clogged. A clean air filter helps maintain engine efficiency and fuel economy.

3. Fuel System Maintenance:
   • Check and clean the fuel filter regularly to prevent contaminants from clogging the fuel system.

   • Drain the fuel tank if the machine is not going to be used for extended periods to prevent water or contaminants from affecting fuel quality.

4. Coolant and Radiator Maintenance:
   • Keep the coolant level at the recommended level and check for leaks in the radiator and cooling system.

   • Clean the radiator frequently, especially if working in dusty or dirty conditions.

5. Hydraulic System Check:
   • Inspect the hydraulic fluid levels regularly and top up as necessary. Also, check for leaks in the hydraulic system to prevent fluid loss and ensure smooth operation.

6. Battery Maintenance:
   • Ensure the battery terminals are clean and free of corrosion. Periodically check the battery voltage and charge it if necessary.


1. Weak Hydraulic Performance:
   • Check Fluid Levels: Ensure that the hydraulic fluid is at the correct level. Low fluid levels can cause the system to operate inefficiently.

   • Inspect for Leaks: Look for visible leaks in the hydraulic lines, pumps, and cylinders. A leak can reduce hydraulic pressure, causing poor performance.

   • Replace Worn Components: If the hydraulic pump or motor is worn out, it may need to be replaced to restore full hydraulic power.

2. Hydraulic Fluid Contamination:
   • Flush the System: If the hydraulic fluid is contaminated with dirt or water, flush the entire hydraulic system and replace the fluid with fresh oil.

   • Replace Filters: Ensure that the hydraulic filters are replaced regularly to prevent contaminants from circulating in the system.


Understanding the Volvo ECR38 Compact Excavator
The Volvo ECR38 is a popular compact excavator designed for tight working spaces and a variety of tasks in construction, landscaping, and utility work. Its compact radius design allows close-to-wall digging without damaging structures, while its advanced Volvo engine and hydraulic systems deliver reliable performance and operator comfort. Despite being well-regarded, owners and operators should be aware of some typical issues and maintenance considerations to maximize uptime and machine longevity.
Terminology Annotation:

• Compact Radius: Excavator design with reduced tail swing radius to improve maneuverability near obstacles.

• Hydraulic System: The network of pumps, valves, motors, and hoses that transfers fluid power to operate the boom, arm, bucket, and tracks.

• Engine Oil Condition: Vital for engine health, indicated by oil clarity and level.

• Hydraulic Leak: Escape of hydraulic fluid from seals, hoses, or fittings, often leading to performance loss or system damage.

• Fuel System Bleeding: Removing air from the fuel system to ensure smooth fuel flow and engine start.


• Hydraulic Leaks and Hose Wear: Hydraulic hoses and seals can degrade over time, especially in machines with extensive use. Leaks often manifest as visible fluid on components or in the ground and can cause loss of hydraulic power. Early detection during routine inspections is critical to prevent costly repairs.

• Engine Oil Maintenance and Indicator Checks: Operators should regularly check engine oil level and condition. Black or milky oil signals poor maintenance or possible engine head gasket leaks. Ensuring the oil filler cap is clean and free of blockage prevents overheating and lubricant starvation.

• Fuel System Complications: Air trapped in the fuel lines can cause stalling, rough running, or difficult starting. Bleeding the fuel system correctly after fuel filter changes or maintenance is necessary to avoid these issues.

• Control Joystick Sensitivity: Some operators mention joystick control warnings or reduced responsiveness, often due to electrical sensor calibration or wear in controls, which should be addressed in service intervals.

• Battery Condition and Electrical Checks: Corrosion at terminals or aged batteries can interfere with starting reliability and sensor function. Cleaning terminals and inspecting wiring harness integrity aids in preventing unexpected downtime.


• Daily Visual Checks: Look for hydraulic fluid leaks around hoses, fittings, and cylinders. Watch for oil drops or wet surfaces.

• Engine Oil Inspection: Check oil level and color before startup; replace oil at recommended intervals. Look for signs of contamination or low levels.

• Fuel System Bleeding: After fuel filter changes, properly bleed air using the manual or powered fuel pump until a steady flow without bubbles is achieved.

• Battery and Electrical System: Clean battery terminals and inspect wiring harness for corrosion or damage. Replace batteries older than recommended service life.

• Hydraulic Hose and Seal Maintenance: Replace worn hoses preemptively during regular service; inspect seals for swelling, cracks, or movement.

• Joystick and Control Checks: Test all controls for smooth, accurate response; recalibrate sensors when needed.


• Operating Weight: Approximately 8,200 kg

• Engine Type: Volvo D3.3 diesel engine, turbocharged

• Hydraulic Pressure: Approximately 250 bar operating pressure

• Fuel Tank Capacity: Approx. 72 liters

• Hydraulic Tank Capacity: Approx. 48 liters

• Track Width: Options typically include 300 - 400 mm tracks for variable terrain needs


• To avoid hydraulic leaks, use OEM quality replacement seals and hoses, and maintain proper track tension to reduce strain on cylinders.

• Maintain clear and clean oil filler caps to prevent moisture contamination and overheating.

• Follow precise fuel bleeding procedures after maintenance to ensure proper engine running.

• Replace electrical connectors showing corrosion and keep battery terminals clean for reliable startup under all weather conditions.

• Regularly update machine software and controller calibrations to enhance joystick responsiveness and fault detection.


• Hydraulic Hose and Seal Wear → Regular inspections, prompt OEM part replacement

• Engine Oil Condition Problems → Frequent oil checks; change per schedule; monitor filler cap status

• Fuel System Air Locks → Proper bleeding after filter change; follow manual procedure strictly

• Battery and Electrical System Corrosion → Clean terminals; replace aging batteries; inspect wiring

• Joystick Control Sensitivity → Regular calibration and inspection

• Operator Tips → Conduct pre-start checks; avoid harsh control inputs; report abnormalities early


Block heaters are essential components in many heavy-duty engines, especially in colder climates, as they help to prevent engine damage by keeping the engine block warm and ensuring smooth starting. However, understanding the current draw of a block heater is crucial for proper maintenance, troubleshooting, and ensuring that the engine starts reliably when needed. In this article, we'll dive into the importance of block heaters, their current draw, how to measure it, and how to troubleshoot any issues that may arise.
What Is a Block Heater and Why Is It Important?
A block heater is an electrical device that warms the engine block of a vehicle or machine before starting. The primary purpose of a block heater is to ensure that the engine oil and coolant remain at an optimal temperature, which reduces wear and tear during startup, particularly in cold weather conditions. Cold temperatures can cause oil to thicken, which makes it harder for the engine to turn over, potentially leading to increased engine wear, fuel inefficiency, and the risk of engine damage.
Block heaters are widely used in heavy equipment such as skid steers, excavators, and bulldozers, particularly in regions where temperatures regularly dip below freezing.
How Does a Block Heater Work?
Block heaters work by converting electrical energy into heat. They are typically installed in the engine block or in the coolant system. A heating element is used to warm the engine coolant or oil, raising the overall temperature of the engine block. The heater operates when plugged into a power source, typically an electrical outlet.
When the engine is started, the warm coolant and oil make it easier for the engine to turn over, which reduces the load on the starter motor and improves the efficiency of combustion. This process is particularly helpful in preventing engine damage from starting in extremely cold conditions.
Understanding Block Heater Current Draw
The current draw of a block heater refers to the amount of electrical current (measured in amps) that the heater uses while it is running. The current draw is influenced by several factors, including the size of the heater, the voltage supplied, and the design of the engine and its cooling system.
For example, typical block heaters in heavy equipment like the CAT 272D might draw between 5 and 10 amps at 120 volts. Some higher-powered block heaters designed for larger engines may draw up to 15 amps or more.
Key Factors Influencing Current Draw

1. Voltage Supply: The voltage supplied to the block heater plays a significant role in determining the current draw. In regions where 240V is more common, block heaters will generally draw less current than those powered by 120V, because they are designed to handle a higher voltage.

2. Heater Size: Larger block heaters, which are required for bigger engines or equipment, tend to draw more current. The wattage of the heater often corresponds directly to the amount of current it draws. A 1000-watt block heater will typically draw around 8.3 amps at 120V (calculated by dividing watts by voltage).

3. Environmental Temperature: The colder the environment, the longer the block heater needs to operate to achieve the desired engine block temperature. This may affect the total current draw over time, as the heater works harder to maintain a consistent temperature.

4. Heater Efficiency: Some block heaters are more energy-efficient than others, meaning they can provide the same amount of heat with a lower current draw. High-efficiency heaters are beneficial for reducing electricity consumption and extending the lifespan of the electrical components.


1. Use a Clamp Meter: A clamp meter is a non-invasive device that can measure the current flow through the power supply line to the block heater. Simply clamp the meter around one of the wires supplying power to the heater while it is in operation. The meter will display the current in amps.

2. Use a Multimeter: If a clamp meter is not available, you can use a multimeter to measure the current. However, this requires cutting the power to the heater and wiring the multimeter into the circuit, which can be more complicated and may require some electrical knowledge.

3. Check the Manufacturer’s Specifications: The manufacturer’s documentation will often list the typical current draw of the block heater. This is a good reference point to determine whether the heater is operating within its normal parameters.


1. Heater Not Drawing Enough Current (Low Heat Output):
   • Cause: This could be due to a faulty heater element, poor electrical connection, or a breaker tripping.

   • Solution: Check the heater element for continuity using a multimeter. If the element is open, it needs to be replaced. Inspect the power connections for corrosion or loose terminals and repair as necessary.

2. Heater Drawing Too Much Current (Risk of Overload):
   • Cause: An excessive current draw can indicate a short circuit within the heater or wiring issues.

   • Solution: Disconnect the power immediately to prevent damage. Inspect the wiring for shorts, fraying, or damage. Replace any damaged wires and test the system again with a clamp meter.

3. Intermittent Power Issues:
   • Cause: This could be caused by an issue with the circuit breaker or thermostat.

   • Solution: Check the thermostat settings to ensure that it is functioning correctly. If the breaker trips, it may be undersized for the block heater or malfunctioning, in which case, it should be replaced.

4. Inconsistent Engine Start Performance:
   • Cause: If the engine is still having trouble starting even after the block heater has been operating, it could indicate that the heater isn’t providing adequate warmth to the engine block.

   • Solution: Test the block heater’s output temperature. If it is not heating the engine effectively, you may need to replace the heater. In some cases, adding additional insulation around the engine block or improving the battery's health can help.


1. Inspect Regularly: Periodically check the block heater’s condition, especially during colder months. Look for signs of wear or corrosion around the heater element and power connections.

2. Clean the Heater Area: Keep the area around the block heater clean and free of debris. Dirt, dust, or grime can impact the heater’s performance.

3. Use Proper Extension Cords: If you use an extension cord, ensure it is rated for outdoor use and can handle the necessary current. A high-quality extension cord will prevent voltage drops that could affect the heater’s efficiency.

4. Avoid Overuse: While block heaters are valuable in preventing engine damage during cold weather, running them for too long can waste electricity. Only run the heater for as long as necessary to warm the engine block, typically 3 to 4 hours before use.

5. Upgrade to Efficient Models: If your block heater is old or inefficient, consider upgrading to a newer, more energy-efficient model that provides better performance with lower current draw.


Understanding the Hyundai 480LC-9A Excavator and Its Engine Control System
The Hyundai 480LC-9A is a high-powered hydraulic crawler excavator commonly used in heavy construction and earthmoving projects. It features an electronically controlled diesel engine integrated with advanced hydraulic and electronic control systems to deliver precise, powerful performance. The engine control relies heavily on sensors, Electronic Control Modules (ECM), and solenoid valves to manage fuel injection, engine speed, and hydraulic functions.
Terminology Annotation:

• ECM (Electronic Control Module): Central computer that manages engine and hydraulic system operations using sensor inputs.

• EPP (Electronic Pump Pressure) Valve: Controls hydraulic pump output by regulating the pump’s stroke for optimal performance.

• RPM Sensor (Variable Reluctance Sensor): Detects engine speed by sensing the flywheel or crankshaft rotation, critical for ECM to adjust fuel and hydraulic output.

• Hydraulic Pump De-stroke: Automatic reduction in pump displacement to protect the engine during high-load conditions or to prevent stalling.

• Wiring Harness: Set of electrical cables and connectors transmitting signals between ECM, sensors, and actuators.


1. Faulty or Misadjusted RPM Sensor:
   The RPM sensor monitors engine speed and informs the ECM. A sensor too close to the flywheel or damaged wiring can send incorrect signals or none at all, causing the ECM to fail starting commands or incorrectly de-stroke the pump, preventing engine firing.

2. Damaged Wiring or Connectors:
   Wires rubbing against hot or moving parts may break or short, resulting in intermittent or no signal to ECM components. Improvised repairs (such as electrical tape) may mask issues but can lead to unreliable operation.

3. Engine Overload or Head Gasket Problems:
   Engine mechanical failures, such as a blown head gasket or worn engine condition, can reduce power output so drastically that the pump load stalls the engine at startup attempts.

4. EPP Valve Malfunction or High Current Draw:
   The EPP valve regulates pump pressure; excessive current to this valve may indicate it is stuck or worn, forcing the pump to de-stroke involuntarily and causing the machine to fail starting or to stall under load.

5. Intermittent Problems in Hydraulic or Electrical Components:
   Loose connections, intermittent sensor failures, or sticking valves can cause sporadic engine firing failures, making the issue difficult to diagnose without detailed testing.


• A field mechanic found the engine repeatedly failing to start due to an RPM sensor set too close, causing it to rub on the flywheel and intermittently send faulty signals. Cleaning and adjusting the sensor’s position restored normal RPM reading and engine firing.

• Another unit with a previously replaced wiring harness had broken or poorly insulated wires near the engine block, causing intermittent no-start conditions that resolved only after replacing the damaged wiring sections and securing cables away from heat sources.

• An operator encountered sudden engine stalls and failure to maintain hydraulic pressure. After diagnostic testing, a worn head gasket and ECM alerts indicated severe engine wear, necessitating a complete engine overhaul.


• RPM Sensor Inspection and Adjustment:
  Detach, clean, and inspect the RPM sensor and its mounting. Adjust spacing per manufacturer specs (usually around a partial turn away from tight contact) to prevent rubbing. Replace if damaged.

• Wiring Harness and Connector Checks:
  Examine wiring near the flywheel, engine block, and hydraulic pump areas for fraying, chafing, or insulation degradation. Repair or replace compromised sections. Ensure tight, corrosion-free electrical connections.

• EPP Valve Electrical Testing:
  Measure current draw to the EPP valve; high or fluctuating current often signals valve sticking or electrical faults. Replace valve or check associated wiring as necessary.

• Engine Mechanical Condition Assessment:
  Investigate for signs of engine overheating, combustion leaks, or compression loss. Compression tests and coolant residue checks can hint at head gasket failure. Proceed with engine repairs accordingly.

• Hydraulic System and Sensor Diagnostic:
  Use diagnostic tools to read ECM error codes and measure pump pressures and hydraulic currents in different modes. Identify abnormal readings indicating sensor or pump faults.


• Maintain clean and secure wiring harness routing, avoiding contact with hot or moving engine parts. Use clamps and protective sleeves.

• Regularly clean and inspect sensors, maintaining correct gap settings and shielding from debris or fluid contamination.

• Follow scheduled hydraulic and engine maintenance intervals for fluid and filter replacement.

• Perform compression and coolant system checks during engine service to preempt critical failures.

• Train operators and technicians to report intermittent symptoms promptly to enable early intervention.


• RPM Sensor: Proper gap from flywheel, clean, and intact wiring.

• Wiring Harness: No frayed wires, protected from heat and abrasion.

• EPP Valve Current Draw: Within manufacturer specification; replace if excessive.

• Engine Mechanical Health: No cooling leaks, good compression, intact head gasket.

• ECM Diagnostics: Regularly scan for errors and follow troubleshooting guides.

• Hydraulic Pump Load: Monitor for de-stroking due to engine power loss or sensor faults.


Oil leaks in engines, especially from vital components like the vacuum pump gasket, are a common issue that can affect the performance and reliability of diesel engines such as the Cummins 5.9. These leaks can lead to a variety of operational problems, ranging from reduced engine efficiency to potential engine damage. In this article, we’ll discuss the potential causes of oil leaks from the vacuum pump gasket in a Cummins 5.9 engine, the troubleshooting steps you can take, and the solutions to resolve the issue effectively.
Understanding the Role of the Vacuum Pump in a Diesel Engine
The vacuum pump is an essential component in diesel engines, particularly those like the Cummins 5.9. It generates the necessary vacuum to power various systems, such as the brake booster, air conditioning, and other auxiliary components. These pumps are typically driven by the engine’s camshaft, ensuring that they operate in sync with the engine’s performance.
Over time, the vacuum pump gasket can deteriorate due to engine heat, wear, or improper installation, causing oil leaks that can lead to further engine damage or failure if left unresolved. Let’s explore the reasons why such leaks occur and the methods for fixing them.
Causes of Oil Leaks from the Vacuum Pump Gasket

1. Improper Installation of the Vacuum Pump Gasket: One of the most common causes of oil leaks from the vacuum pump gasket is improper installation. If the gasket is not seated correctly or aligned properly, it can fail to create a tight seal, leading to oil seepage around the edges.

2. Damaged or Worn Gasket: Gaskets can degrade over time, particularly in high-heat environments like the engine bay. Continuous exposure to oil, engine heat, and the pressure from engine operation can cause the gasket material to harden or crack, allowing oil to leak from the pump.

3. Incorrect Gasket Replacement: If the replacement gasket is of inferior quality or incorrect size, it may not seal properly. This can result in oil leaking out from the vacuum pump area even after the gasket has been replaced.

4. Excessive Engine Pressure: High engine pressure can sometimes force oil out of the vacuum pump area, especially if there is a blockage in the engine’s oil passages. This can put additional strain on the gasket, causing it to fail prematurely.

5. Contaminants in the Gasket Area: Dirt, debris, or old gasket material left behind during the installation process can prevent the new gasket from sealing effectively. It is crucial to thoroughly clean the surfaces before installing a new gasket.

6. Over-tightened Bolts: Tightening bolts excessively during installation can cause the gasket to compress too much, potentially leading to a cracked or deformed gasket. This can result in oil leaks from the vacuum pump.


1. Visible Oil Spots: The most obvious sign is the presence of oil around the vacuum pump area. This could be visible as fresh oil spots or stains on the engine block.

2. Low Oil Levels: If you notice that your engine oil levels are dropping faster than usual, it could indicate a slow leak from the vacuum pump gasket, which may not be immediately visible.

3. Burning Oil Smell: As the oil leaks onto hot engine parts, it can create a burning smell, which might be noticeable during or after engine operation.

4. Engine Performance Issues: While oil leaks from the vacuum pump gasket don’t usually affect the engine’s performance directly, significant leaks can lead to low oil pressure or even a loss of vacuum pressure, which can, in turn, affect auxiliary systems like the brake booster or air conditioning.


1. Inspect the Vacuum Pump Area: The first step is to thoroughly inspect the area around the vacuum pump for any visible signs of oil leaks. Clean the surrounding area with degreaser to remove dirt, grease, and old oil. This will make it easier to spot the exact location of the leak.

2. Check for Loose or Damaged Bolts: Inspect the bolts securing the vacuum pump to the engine. If any of the bolts are loose, it could cause the gasket to misalign, leading to a leak. Tighten the bolts to the manufacturer’s specified torque values to ensure a proper seal.

3. Inspect the Gasket for Damage: If the gasket is old or visibly damaged, it is likely the source of the leak. In some cases, you may be able to detect cracks or worn areas on the gasket that would prevent it from sealing properly.

4. Confirm Gasket Alignment: If the gasket was recently replaced, check to ensure that it was installed correctly. Ensure that the gasket is aligned properly and that the surfaces it mates with are clean and smooth.

5. Check for Engine Pressure Issues: If you suspect excessive engine pressure is contributing to the leak, check for blockages in the oil passages or problems with the engine’s ventilation system. A pressure test may be required to diagnose any issues with the engine’s internal pressure.


1. Replace the Gasket: If the gasket is damaged or worn, replace it with a high-quality gasket designed for the Cummins 5.9 engine. Ensure that the new gasket is the correct size and is made from durable material that can withstand engine heat and pressure.

2. Clean the Gasket Seating Area: Before installing the new gasket, thoroughly clean the mating surfaces of the vacuum pump and engine. Use a scraper or wire brush to remove any old gasket material, dirt, or oil residue that could affect the new gasket's ability to seal.

3. Properly Torque the Bolts: When installing the vacuum pump, tighten the bolts to the recommended torque specifications. Avoid over-tightening, as this can compress the gasket too much and cause it to fail prematurely. Use a torque wrench to ensure accuracy.

4. Check the Oil Pressure: After the gasket is replaced, check the oil pressure to ensure that there are no blockages or issues causing excessive pressure. This will help prevent the new gasket from failing due to high engine pressure.

5. Monitor the Engine: After completing the repair, monitor the engine for any signs of continued leakage or oil loss. Check the area around the vacuum pump for any new oil spots and ensure that the engine is operating normally.


1. Use Quality Parts: Always use OEM (Original Equipment Manufacturer) or high-quality aftermarket parts to ensure a proper fit and long-lasting performance. Poor-quality gaskets can lead to premature failure and recurring leaks.

2. Regular Maintenance: Perform regular inspections of your engine’s components, including the vacuum pump and gasket area. Regular maintenance can help catch issues before they become major problems.

3. Cleanliness During Installation: When replacing components like the vacuum pump gasket, ensure that the installation area is clean and free of debris. Contaminants can prevent the gasket from sealing properly and cause future leaks.

4. Use Proper Torque Specifications: Always refer to the manufacturer’s specifications for torque values when installing or replacing components. This ensures that the gasket is not over-compressed and remains effective over time.
