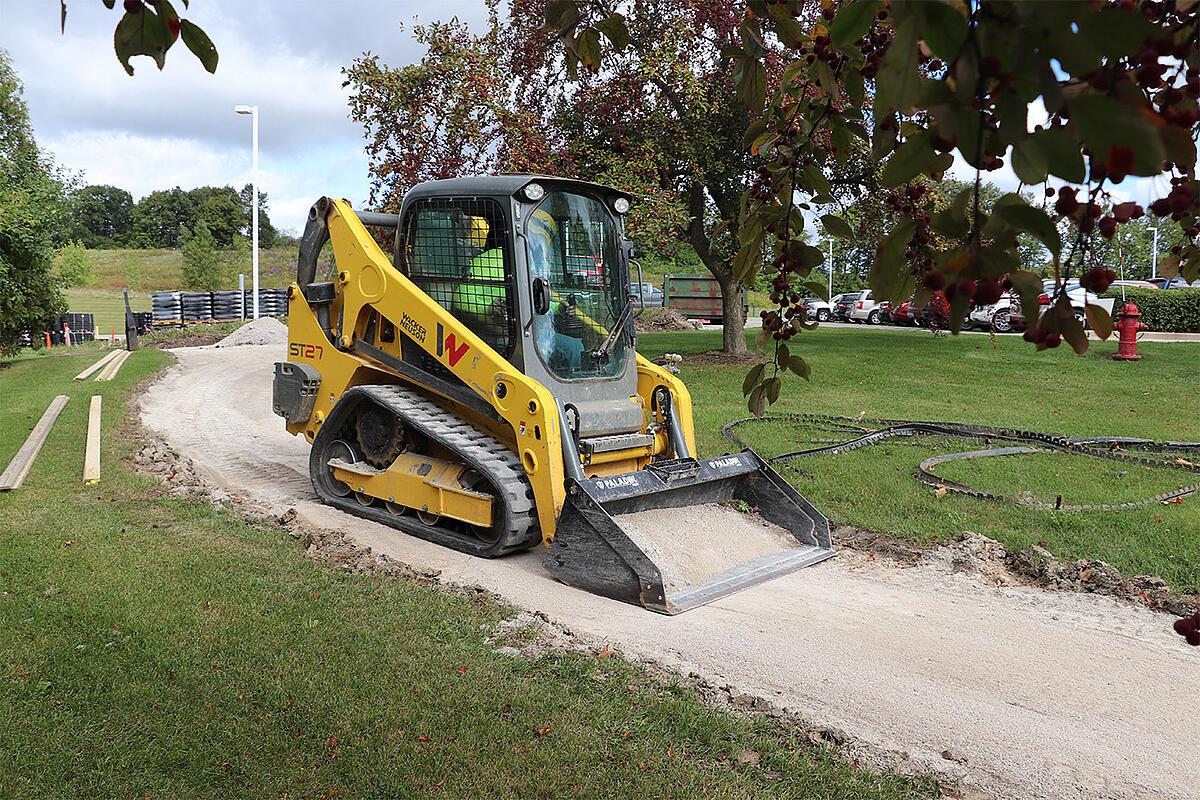

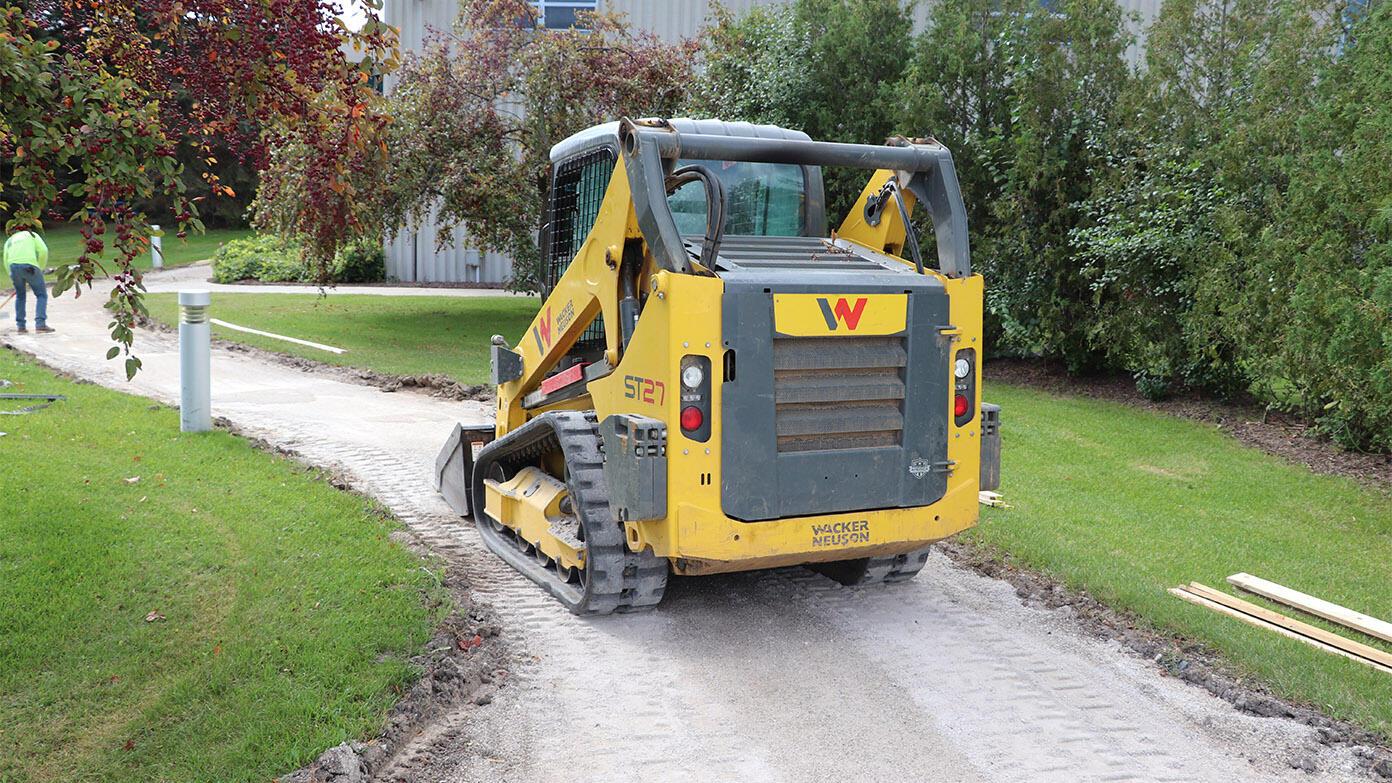

Overview of the ST27 Compact Track Loader
The ST27 represents Wacker Neuson’s entrance into the compact-medium CTL (compact track loader) market. Launched in 2023 and manufactured in the U.S., it challenges larger competitors while remaining easily towable at 7,350 lb operating weight with a rated operating capacity (ROC) of 1,890 lb at 35% tipping load . Powered by a 74-hp Kohler KDI 2504 turbocharged engine, the ST27 achieves an impressive power-to-weight ratio in its class .
Compact Dimensions & Visibility
Boasting just 60 in width and under 80 in in height, the ST27 excels in tight or low-clearance environments . A new unibody design allows the loader arms to hug close to the tracks, improving both side visibility and operator awareness. Rear linkage is aligned with cab rails for unobstructed rearline view .
Lift Geometry & Reach Capabilities
The vertical lift linkage enables:

• 119.9 in hinge pin height

• 94.3 in dump height

• 36.5 in reach at dump height – facilitating safer, more efficient dumping into trailers or boxes .


• Spacious layout with wide entry door and grab handles

• 5.7‑inch color display with programmable joystick sensitivity and travel response

• EH joystick is standard, offering selectable ISO or H‑pattern configuration via in-cab switch


• Operating Weight: 7,350 lb

• Rated Operating Capacity: 1,890 lb (35% tip)

• Engine: 74 hp Kohler turbo diesel

• Travel Speed: 6.4 mph (low), 9.1 mph (high)

• Lift Height: 119.9 in hinge pin

• Dump Height: 94.3 in

• Reach at Dump Height: 36.5 in

• Tracks: 12.6 in width

• Fuel Capacity: 27.2 gal


• Rated Operating Capacity (ROC): The safe load at 35% of tipping load.

• Hinge Pin Height: Vertical height of loader arm pivot at full lift.

• Vertical Lift: A linkage design prioritizing lift height and reach rather than arc motion.

• EH Joystick: Electro-hydraulic joystick system allowing electronic control versus mechanical foot-lever systems.

• Unibody Frame: Chassis design integrating undercarriage and loader structure for rigidity and visibility.


The Kubota KX057-4 is a popular mini excavator in the 5-6 ton class, designed for a variety of construction and landscaping tasks. Known for its compact size, powerful performance, and versatility, the KX057-4 has garnered attention from owners and operators alike. Whether used for digging, trenching, or lifting, the Kubota KX057-4 is often praised for its ease of use and efficient operation. This article provides a detailed review based on owner experiences, discussing its performance, features, and common issues that owners have encountered.
Overview of the Kubota KX057-4
The Kubota KX057-4 is a compact, hydraulic excavator with an operating weight of around 5,700 kg (12,570 lbs). It is equipped with a powerful engine, robust hydraulics, and a spacious operator’s cabin. The KX057-4 is designed to offer maximum productivity in tight spaces, making it an ideal machine for urban construction, landscaping, and other confined-area work.
Some of the key specifications include:

• Engine: Kubota V2403-M-DI-E4 (4-cylinder diesel)

• Engine Power: 47.6 hp (35.5 kW)

• Bucket Digging Force: 4,377 lbf (19.5 kN)

• Arm Digging Force: 2,968 lbf (13.2 kN)

• Maximum Reach: 21 ft 1 in (6.43 m)

• Maximum Digging Depth: 12 ft 3 in (3.74 m)


1. Powerful and Smooth Operation
   Owners have reported that the KX057-4 is particularly strong for its size, making it ideal for tasks like trenching, digging footings, and lifting heavy materials. The engine provides ample power to the hydraulic system, ensuring smooth operation even in demanding conditions.

2. Efficient Hydraulics
   The KX057-4’s hydraulics are often praised for their efficiency. The machine's hydraulic system allows for precise control when operating the bucket, arm, or other attachments. The excavator's auxiliary hydraulics provide strong flow for attachments like hydraulic breakers or augers.

3. Fuel Efficiency
   Kubota’s fuel-efficient engine provides a good balance of power and fuel economy. Operators have reported lower fuel consumption compared to other machines in the same class, making it a cost-effective option for those working long hours or on multiple projects.

4. Versatility and Attachments
   One of the standout features of the KX057-4 is its versatility. The excavator can be fitted with a variety of attachments, such as hydraulic hammers, augers, and tilt buckets. The quick coupler system allows operators to change attachments quickly, which is essential for contractors who need to switch between tasks without losing time.


1. Spacious and Comfortable Cabin
   The cabin of the KX057-4 is designed to be roomy, with ample legroom and adjustable seating for operators of all sizes. The ergonomic controls and easily accessible levers allow for comfortable long-hour operation without causing strain.

2. Excellent Visibility
   The KX057-4 is equipped with large windows and minimal blind spots, providing operators with a clear view of the work area. This is particularly beneficial when working around obstacles, reducing the risk of accidents or damage to the machine or surroundings.

3. User-Friendly Controls
   The KX057-4 is known for its user-friendly controls. The joystick controls are intuitive, allowing even novice operators to get the hang of them quickly. Additionally, the machine features a digital display that provides key information like fuel levels, maintenance alerts, and hydraulic pressure.

4. Air Conditioning and Heating
   For those working in extreme weather conditions, the KX057-4 comes equipped with air conditioning and heating options, providing comfort year-round. This feature enhances operator productivity, as it keeps the cabin comfortable regardless of external temperatures.


1. Strong Build
   The frame and undercarriage of the KX057-4 are designed to handle demanding tasks while maintaining stability. The tracks are made of durable material, offering better traction on rough terrain and extending the lifespan of the machine.

2. Minimal Maintenance
   The KX057-4 has been praised for its low maintenance requirements. Kubota’s engineering ensures that routine maintenance tasks, such as changing filters or oil, are simple and quick. Owners have noted that the machine requires fewer repairs than other competitors in the same category.

3. Resilience in Harsh Environments
   Owners who work in challenging environments, such as construction sites with rough terrain or extreme weather conditions, report that the KX057-4 is resilient and continues to perform well even under these conditions.


1. Hydraulic Leaks
   A few owners have reported occasional hydraulic leaks, particularly around the connections of hoses and quick couplers. It’s essential to regularly inspect hydraulic lines for signs of wear and replace any damaged hoses or seals promptly to avoid further complications.

2. Track Wear
   The tracks on the KX057-4 are generally durable, but heavy use on abrasive surfaces can lead to premature wear. It’s important to regularly inspect the tracks and replace them as needed to maintain optimal performance.

3. Electrical Issues
   Some owners have mentioned minor electrical issues, such as malfunctioning lights or faulty switches. These problems are often easy to resolve but should be addressed promptly to avoid compromising the machine’s functionality.


1. Bobcat E165
   The Bobcat E165 is known for its powerful hydraulics and robust lifting capacity, but it generally comes at a higher price point. While it offers similar performance to the KX057-4, it may not be as fuel-efficient.

2. Case CX57C
   The Case CX57C is another competitor with similar power output and hydraulics. However, many operators report that the Kubota KX057-4 offers better operator comfort and a smoother overall operation compared to the Case machine.

3. John Deere 60G
   The John Deere 60G is praised for its reliability and versatility. While it competes well with the KX057-4 in terms of hydraulics and lifting, Kubota's machine is often noted for having better fuel efficiency and overall ease of maintenance.


The Importance of Proper Tire Selection in Heavy Equipment Operations
In the realm of heavy equipment—loaders, graders, skid steers, haul trucks, and beyond—the right tire is not just a component; it is a critical factor influencing traction, machine stability, operating costs, and job site efficiency. Tires are subjected to extreme loads, puncture threats, varying terrain, and temperature fluctuations. Selecting the wrong tire can shorten machine life, increase fuel consumption, and even lead to catastrophic failure on-site.
Choosing the correct tire involves balancing multiple factors:

• Tread pattern suited to the terrain (rocky, muddy, paved, etc.)

• Ply rating or load index to match weight requirements

• Bias-ply vs. radial construction for flexibility or durability

• Brand availability and sourcing reliability

• Tire dimensions that match OEM specifications

• Pricing relative to operating budget and expected tire life


• Authorized Equipment Dealers
  • Often carry OEM-spec tires

  • Higher prices but guaranteed compatibility

  • May include installation and service

• Tire Specialty Distributors
  • Focused expertise in off-the-road (OTR) tires

  • Carry multiple brands and tread types

  • Can advise on upgrades or substitutions

• Online Retailers
  • Increasingly popular for price comparison and availability

  • May offer direct-to-yard shipping

  • Requires buyer knowledge of size codes and specs

• Surplus and Government Auctions
  • Inexpensive but unpredictable quality

  • May require retreading or reconditioning

• Farm Supply or Industrial Equipment Stores
  • Good for skid steer, backhoe, or mid-size tractor tires

  • Less likely to stock large OTR or haul truck sizes


• Tire Size: Typically listed as “26.5R25,” which represents width, construction type (R for radial), and rim diameter in inches.

• Ply Rating / Load Index: Indicates how much weight the tire can handle.

• Tread Design: Different patterns for rock (L5), mud (L3), and hardpack or pavement (L2).

• Tube vs. Tubeless: Most modern equipment uses tubeless; legacy machines may still use inner tubes.

• Radial vs. Bias Ply: Radials last longer and ride smoother but are more expensive. Bias-ply is cheaper and better for short hauls or low-speed work.

• Tire Compound: Heat-resistant compounds are essential in mining or asphalt environments. Cut-resistant compounds suit forestry and demolition work.


• BKT (India)

• Galaxy

• Titan

• Double Coin (China)

• Advance

• Firestone (subsidiary of Bridgestone)

• Camso (now part of Michelin)


• Manufacturer warranty

• Tread life expectation (in hours, not miles)

• Real-world user reviews from similar machines

• Access to local dealers for support and service


• Landfills

• Material yards

• Mines

• Port facilities


• High-quality casing

• Compatible tire construction

• Trustworthy retreading facilities


• Foam-Filled Pneumatics: Standard pneumatic tires filled with polyurethane foam to eliminate air and make them “flat-proof.”
  • Heavier than air-filled

  • Less ride comfort

  • Limited heat dissipation

  • Permanent once filled

• Solid Tires: Fully rubber or composite tires used in severe-duty applications like skid steers in scrap yards or forklifts in warehouses.
  • No maintenance

  • Excellent for high puncture risk

  • Reduced suspension effect—can be hard on the machine


• Always record tire life in machine hours, not calendar days—this provides a more accurate cost-per-hour calculation.

• Maintain correct air pressure—both over and under-inflation reduce lifespan and fuel efficiency.

• Rotate tires on multi-axle machines if possible.

• Replace worn tires in matched pairs to avoid uneven wear or drivetrain stress.

• Keep a spare or pre-mounted tire on-site for mission-critical machines.

• Build a relationship with a local tire specialist—they often offer emergency services, patching, or mobile install.


The CAT 299D2 is a powerful compact track loader (CTL) used in a variety of construction and landscaping applications. One of the key features of the 299D2 is its hydraulic system, which powers a range of attachments. To ensure smooth operation and quick attachment changes, the machine utilizes hydraulic quick-connect couplers. These couplers allow for fast and easy connection and disconnection of hydraulic lines, saving time and reducing the risk of leaks. However, over time, these couplers may wear out, requiring replacement. This article provides a comprehensive guide to understanding and replacing hydraulic quick-connect couplers on the CAT 299D2.
What Are Hydraulic Quick Connect Couplers?
Hydraulic quick-connect couplers are fittings used to connect and disconnect hydraulic lines without the need for tools. They are crucial components in systems where attachments frequently need to be swapped out, such as on skid steers and compact track loaders like the CAT 299D2.
These couplers consist of two main parts:

1. Male Coupler – The male coupler connects to the hydraulic lines on the attachment. It has a valve system that opens when connected to the female coupler.

2. Female Coupler – The female coupler is attached to the hydraulic system of the loader itself. It has a corresponding valve that allows hydraulic fluid to flow when the male coupler is securely attached.


1. Leaks – If you notice hydraulic fluid leaking around the coupler, it is a sign that the seals or valve inside the coupler may be damaged.

2. Difficulty Connecting or Disconnecting – If the couplers are difficult to connect or disconnect, it could indicate worn seals or internal components. This can lead to inefficient performance or, in some cases, even complete failure of the coupler.

3. Weak or Slow Hydraulic Response – If the hydraulic attachments seem to be working slower than usual or lack full power, it might be due to an issue with the hydraulic couplers, which could be restricting fluid flow.

4. Damaged or Corroded Components – Physical damage to the coupler, such as cracks, dents, or corrosion, can also signal the need for replacement.


1. Prepare the Machine
   • Turn Off the Engine: Before working on any hydraulic system, ensure the engine is off, and the machine is parked on a level surface.

   • Relieve Hydraulic Pressure: To prevent injury and damage to the system, relieve the hydraulic pressure by moving the control levers to their neutral positions. You can also disconnect the battery to further eliminate any electrical power.

2. Locate the Hydraulic Couplers
   • The hydraulic quick-connect couplers on the CAT 299D2 are typically located near the front of the machine, where the hydraulic lines connect to the attachments.

3. Inspect the Existing Couplers
   • Before removing the couplers, inspect the male and female components for damage, wear, or leaks. Ensure you identify whether the problem lies with the male or female coupler so that you can replace the correct part.

4. Remove the Old Couplers
   • Use a wrench or socket to loosen and remove the old couplers. Take care not to damage the surrounding hydraulic lines when removing the old couplers. You may also want to place a catch pan underneath the coupler to catch any residual hydraulic fluid.

5. Install the New Couplers
   • Install the new male and female couplers in the same orientation as the old ones. Ensure that the couplers are aligned properly and tightened securely, but avoid over-tightening, as this can damage the seals.

   • If applicable, apply hydraulic thread sealant to the threads to prevent leaks.

6. Reconnect Hydraulic Lines
   • Once the new couplers are installed, reconnect any hydraulic lines that were disconnected during the process. Ensure that the lines are securely fastened and that there are no kinks or bends.

7. Test the System
   • After installation, start the machine and test the hydraulic system. Move the control levers to ensure that the attachments are working properly and that there are no leaks. If any issues persist, double-check the connections and ensure that all parts are securely tightened.


1. Manufacturer Specifications
   • Always refer to the manufacturer’s manual for the exact specifications of the couplers required for your model. Using incorrect or incompatible couplers can lead to system failure or damage.

2. Material Quality
   • High-quality couplers are typically made from durable materials like steel or brass, which can withstand the high-pressure demands of hydraulic systems. Ensure that the replacement couplers are built to last and able to handle the required operating pressure.

3. Seal and Valve Compatibility
   • Pay attention to the type of seals and valve system used in the couplers. Modern hydraulic systems often use advanced sealing technology to prevent leaks and ensure a tight connection. Make sure that the replacement couplers have the same type of seals as the original ones.

4. Pressure Rating
   • Hydraulic systems are designed to operate at specific pressure levels. Ensure that the replacement couplers are rated for the same or higher pressure than the original couplers to avoid premature failure.


1. Regular Cleaning
   • Dirt and debris can accumulate on the couplers, leading to wear and tear. Regularly clean the couplers using a cloth and mild cleaning solution to remove any buildup.

2. Check for Leaks
   • Periodically check the couplers for leaks, particularly after using the machine. If you notice any leaks, address them immediately by tightening the couplers or replacing damaged seals.

3. Lubrication
   • Apply lubricant to the couplers to reduce friction and prevent rust or corrosion. Ensure that the lubricant used is compatible with the hydraulic system.

4. Inspect and Replace Seals
   • Over time, the seals inside the couplers can wear out. Inspect the seals regularly and replace them when necessary to prevent leaks and maintain the efficiency of the system.

5. Proper Use
   • Always ensure that the couplers are properly connected before operating the machine. Avoid forcing the couplers into position or making improper connections, as this can damage the internal components.


Introduction to the Caterpillar 287 Hydraulic System
The Caterpillar 287 is a rubber-tracked compact track loader equipped with a sophisticated closed-center hydraulic system. Like most Caterpillar CTLs of its generation, it relies on a combination of engine-driven gear pumps and electro-hydraulic controls to power various functions including lift arms, tilt cylinders, auxiliary hydraulics, and steering. Despite the rugged nature of the machine, its hydraulic systems are vulnerable to failure when subjected to contamination, neglect, or misdiagnosis. A proper understanding of its operational layout and diagnostics is essential for any technician or operator trying to resolve performance issues.
Common Symptoms of Hydraulic Malfunction
Operators encountering hydraulic system problems on the CAT 287 often report the following symptoms:

• Lift and tilt functions are completely inoperative

• Hydraulic controls are unresponsive despite adequate engine power

• Machine starts fine but will not perform any loader functions

• No response from joystick inputs

• Audible pump noise but no hydraulic movement

• Temporary function that fails again after restarting


• Main Hydraulic Pump: A gear-type pump driven directly by the engine. Supplies pressurized fluid to all systems.

• Hydraulic Control Valve (Main Valve): Directs fluid to specific actuators like lift and tilt cylinders.

• Pilot Control Solenoids: Electrically operated valves that enable joystick inputs to control hydraulic movement.

• ECM (Electronic Control Module): Processes joystick signals and activates the correct solenoids.

• Hydraulic Lockout Solenoid: Prevents unintended movement when the safety bar is raised or the seat switch is disengaged.

• Auxiliary Hydraulic Circuit: Provides power for attachments like augers, hammers, or grapples.


• Seat Switch: Must detect operator presence for hydraulics to engage.

• Seat Bar Switch: Mechanical arm that must be in the down position.

• Park Brake Switch: Engaged parking brake disables hydraulics.

• Boom Lock Valve: Prevents arm movement during transport or servicing.

• Hydraulic Lockout Switch: Usually located on the left-hand console or joystick—this must be turned on.


1. Check engine RPM – Ensure engine is running at normal operating speed. Low idle may not supply adequate hydraulic pressure.

2. Verify hydraulic fluid level – Low oil can lead to cavitation and pump starvation.

3. Inspect hydraulic lockout switch – It must be physically pressed or flipped to activate flow.

4. Listen for hydraulic pump engagement – A quiet or silent pump may indicate mechanical failure.

5. Check for diagnostic codes on display – Modern CAT machines often store error codes related to switch failures or signal loss.

6. Confirm seat and seat bar switch function – Use a multimeter to test continuity or swap with known-good units.

7. Inspect fuse panel – A blown fuse for the hydraulic solenoids or ECM will shut down operation.

8. Test solenoid activation – Use a test light or scanner to confirm that the pilot solenoids receive voltage when joystick is moved.


• One specific function (e.g., lift) does not work, while others do

• Clicking noise when joystick is moved, but no hydraulic movement

• No current draw detected when testing solenoid wires


• Faulty seat switch intermittently lost signal

• Solenoid connector had green corrosion buildup

• One hydraulic line had collapsed internally, restricting flow

• The boom lock solenoid had failed closed, effectively locking the arms down even with correct joystick inputs


• Suction screen clogging: Restricts fluid to pump, causing cavitation and pressure loss.

• Main filter restriction: Can lead to pressure drop and poor actuator performance.

• Pump wear: Older machines with high hours may suffer internal gear wear, reducing flow.


• Change hydraulic fluid and filters at manufacturer-recommended intervals

• Inspect all harness connectors for moisture or pin damage

• Exercise solenoids during pre-use checks (listen for audible click)

• Clean and lubricate safety switches regularly

• Store equipment indoors to prevent moisture damage

• Avoid pressure washing near electrical components


• Understanding the full loop of cause and effect

• Treating safety switches as potential culprits

• Using multimeters and test tools confidently

• Avoiding assumptions—verify everything


The Bobcat T650 is a versatile compact track loader (CTL) designed for a variety of applications, from landscaping to construction. One of its key features is the Power Bobtach system, which allows for quick attachment changes without leaving the operator’s seat. However, like any hydraulic system, the Power Bobtach can sometimes malfunction, leaving operators frustrated and unable to switch or secure attachments. This article dives into the common issues and troubleshooting steps for resolving Power Bobtach problems on the Bobcat T650.
What is the Power Bobtach System?
The Power Bobtach system is a hydraulic quick coupler mechanism that allows operators to connect and disconnect attachments without the need for manual intervention. Using hydraulic pressure, the system securely locks attachments in place and releases them when needed. This system is particularly useful on machines like the Bobcat T650, where quick attachment changes are often required for various tasks, such as bucket changes, grapples, or pallet forks.
The Power Bobtach relies on the machine's hydraulic system to function correctly, making it essential that all components, from the hydraulics to the electrical connections, work smoothly.
Common Symptoms of Power Bobtach Failure
When the Power Bobtach system fails to function, there are a few noticeable symptoms that operators should watch for:

1. Inability to Release Attachments
   The most common sign of a malfunction is when the system fails to release attachments, even after activating the release mechanism. This can result in the attachment being stuck and the operator unable to remove it.

2. Attachment Not Locking Properly
   The system may fail to secure attachments properly, leaving them loosely attached and unstable. This can pose a safety risk, especially during operation.

3. Hydraulic Leaks or Low Pressure
   A failure in the hydraulic system that powers the Power Bobtach mechanism can lead to insufficient pressure, preventing the system from operating correctly. This can manifest as sluggish or unresponsive movement when attempting to lock or release attachments.

4. Warning Lights or Error Codes
   Some Bobcat T650 models are equipped with a diagnostic system that can display warning lights or error codes related to the Power Bobtach. These indicators can help pinpoint the issue but may require access to the machine's diagnostic tools for a more detailed analysis.


1. Check Hydraulic Fluid Levels
   Low hydraulic fluid levels are one of the primary causes of Power Bobtach failure. Insufficient fluid can lead to a loss of hydraulic pressure, rendering the system ineffective. Begin by checking the hydraulic fluid reservoir to ensure it's at the proper level. If it's low, refill with the recommended type of hydraulic fluid.

2. Inspect Hydraulic Hoses for Leaks
   Leaking hydraulic hoses or fittings can cause pressure loss, leading to an inability to operate the Power Bobtach system. Examine all hoses and connections, looking for signs of wear, cracks, or leaks. If any hoses are damaged, they will need to be replaced.

3. Examine the Bobtach Release Solenoid
   The Bobcat T650's Power Bobtach system uses a solenoid to control the release of attachments. If this solenoid fails, it can prevent the attachment from releasing. The solenoid can be tested with a multimeter for continuity. If it's faulty, it will need to be replaced.

4. Check the Electrical Connections
   A poor electrical connection can also cause issues with the Power Bobtach system. Inspect the wiring and connectors leading to the solenoid and the hydraulic valves. Look for corrosion or loose connections, which can cause intermittent or complete failure of the system.

5. Test the Hydraulic Pressure
   If the hydraulic fluid and hoses appear to be in good condition, the next step is to check the hydraulic pressure. Using a hydraulic pressure gauge, test the system's pressure to ensure it meets the specifications outlined in the T650's manual. If the pressure is low, there may be an issue with the pump or a pressure relief valve.

6. Inspect the Bobtach Arm and Locking Mechanism
   Over time, the Bobtach arms and locking pins may wear, especially if the machine has seen heavy use. Inspect the arms for any signs of bending or damage. The locking mechanism should also be checked for debris or rust that could prevent it from operating smoothly.


1. Hydraulic Fluid Contamination
   Contaminants in the hydraulic fluid, such as dirt, debris, or moisture, can cause the hydraulic system to malfunction. To prevent this, it's important to regularly change the hydraulic fluid and filter as part of routine maintenance.

2. Overloaded Attachments
   Using attachments that are too heavy for the machine or overloading the Power Bobtach system can lead to premature wear and system failure. Always follow the manufacturer's guidelines for load limits to avoid damage.

3. Improper Maintenance
   Neglecting regular maintenance tasks, such as checking fluid levels, inspecting hoses, or lubricating moving parts, can result in wear and tear that affects the performance of the Power Bobtach system.

4. Electrical System Issues
   Since the Power Bobtach system relies on the electrical solenoid to release attachments, any issues with the electrical system—such as a blown fuse, faulty wiring, or a bad connection—can cause the system to malfunction.

5. Aging or Worn Components
   Over time, the components of the Power Bobtach system, such as seals, hoses, and the solenoid, may wear out due to continuous use. Replacing worn parts during routine service intervals can help avoid costly repairs and downtime.


1. Regular Fluid Changes
   Change the hydraulic fluid and filters according to the manufacturer's recommended intervals. This will ensure the system remains free of contaminants and operates at optimal pressure.

2. Inspect Hydraulic Hoses
   Periodically check the hydraulic hoses for signs of wear, cracking, or leaks. Replace damaged hoses immediately to prevent pressure loss and system failure.

3. Electrical System Inspections
   Check the electrical connections and wiring regularly for signs of wear, corrosion, or loose connections. Tighten any loose connections and replace any corroded components to ensure the system remains responsive.

4. Lubricate Moving Parts
   Ensure that all moving parts, including the Bobtach arms and locking mechanisms, are properly lubricated to reduce friction and wear.

5. Follow Load Limits
   Avoid overloading the system with attachments that exceed the recommended weight limits. This will prevent unnecessary strain on the hydraulic system and reduce the risk of failure.


The Purpose of a Boom Transport Lock
The boom transport lock, sometimes referred to as a boom travel lock or boom safety latch, is a critical component in the safe transportation of hydraulic excavators, backhoes, and other boom-equipped machinery. Its primary function is to mechanically secure the boom in a fixed position, usually in its lowered or retracted state, to prevent movement during transport, maintenance, or shutdown.
Without a properly engaged boom lock, the boom could lower unexpectedly due to:

• Hydraulic pressure bleed-off

• Line rupture or valve failure

• Vibration-induced drift

• Operator error during loading or unloading


• Manual lock pin and collar: A physical pin inserted through a collar on the boom cylinder rod to prevent extension.

• Hydraulic lock valve: A solenoid or pilot-operated valve that blocks hydraulic flow to the boom cylinder.

• Latch arm and cradle: A mechanical latch that rests in a boom cradle or saddle welded to the machine frame.

• Cab-controlled lever lock: A safety lever in the operator’s station that isolates hydraulic flow to the boom circuit.


• Boom drop during transport: Vibration and gravity can cause the boom to slowly extend or lower while on a lowboy trailer.

• Striking overpasses or signage: A raised boom not secured can bounce or rise unexpectedly, leading to catastrophic results.

• Injury to service personnel: Technicians working under a boom without mechanical lockout are at risk if hydraulics fail or pressure bleeds.

• Legal violations: DOT regulations in many jurisdictions mandate that booms and arms be mechanically restrained during road transport.


• Hard to access due to machine design

• Covered in mud or debris

• Corroded or seized from lack of use

• Poorly marked or misunderstood


1. Lower the boom fully into the designated travel cradle or resting position.

2. Shut down the engine and relieve hydraulic pressure by moving joystick controls with the key off.

3. Engage the mechanical lock (insert pin or engage latch).

4. Visually inspect that the lock is engaged fully and that the pin or latch is not bent or worn.

5. Secure all other attachments (e.g., bucket, thumb, auxiliary tools) to prevent movement.

6. Use secondary chains or straps only as supplemental restraint—not as a substitute for the primary lock.


• Incorrect boom position or angle

• Excessive wear in the boom bushings

• Improper hydraulic drift or creep

• Bent cylinder rod

• Deformed lock pin


• Reposition the boom slightly using feathered controls.

• Bleed pressure if necessary.

• Lubricate the pin hole and inspect for debris.

• Replace worn or damaged pins with OEM-spec parts.


• Fractured latch welds

• Bent or sheared pins

• Seized hydraulic lock valves

• Electrical failure in the boom lock solenoid


• Fines and citations

• Impoundment of equipment

• Insurance claim denial

• Increased liability in worker injury cases


• Always use the lock as designed

• Inspect it regularly for wear or corrosion

• Replace missing or damaged parts promptly

• Train all operators on its proper use

• Never substitute makeshift devices for mechanical locks


Scrapers are an essential part of many heavy construction operations, particularly in the earthmoving and grading industries. These machines are designed to efficiently remove large amounts of material from one location and transport it to another, making them indispensable on projects like road construction, mining, and land leveling. In this article, we’ll dive into the mechanics of scrapers, their various types, and some insights into how they operate and are maintained.
What Are Scrapers and How Do They Work?
A scraper is a large earthmoving machine used primarily for grading, leveling, and transporting material from one area to another. They are designed to scrape loose material from the surface, collect it, and then transport it to a designated location for redistribution or disposal.
The key function of a scraper is its ability to scrape material from the ground with the help of a sharp blade or cutting edge at the front. Once the material is collected, it’s transported to another area, often by using the machine’s onboard unloading mechanism, which either ejects the material or uses a hydraulic system to raise the bowl and dump the load.
There are different types of scrapers, each suited for specific tasks:

1. Motor Scrapers – These are the most common type, used for a wide range of tasks, from grading to material transportation. Motor scrapers can cut, load, and dump material quickly and efficiently.

2. Wheel Scrapers – These scrapers are mounted on wheels, providing a high level of maneuverability. They are used for bulk material transport across long distances and in operations where speed is crucial.

3. Tracked Scrapers – These machines are mounted on tracks instead of wheels, which gives them better stability and the ability to operate on softer or uneven ground. They’re more suited for rough terrain and high-load capacity.


1. The Bowl (or Hopper) – This is the main component where material is collected. It is typically made of steel and designed to withstand the abrasion caused by moving heavy materials.

2. The Cutting Edge – Located at the front of the bowl, the cutting edge is used to slice through the material and collect it. It’s often replaceable, as wear and tear can dull the edge over time.

3. Hydraulic Systems – Scrapers rely heavily on hydraulic systems to lift the bowl, dump the material, and control various machine functions. Proper maintenance of hydraulic systems is crucial for smooth operations.

4. Towing or Pulling Mechanism – Scrapers are often pulled by a tractor or another heavy-duty vehicle. This system allows the scraper to travel from one location to another with heavy material in tow.


1. Road Construction – Scrapers are frequently used to level out the land, removing debris, and transporting material to create a smooth foundation for roads. Their ability to quickly remove large volumes of earth is crucial in highway and infrastructure projects.

2. Mining – Scrapers are also used in mining operations, where they help remove overburden (the layer of earth and rock that lies above a mineral deposit) and transport the material to a designated disposal or processing area.

3. Land Development – In large-scale land development, scrapers are used for bulk material removal, reshaping terrain, and transporting soil for residential, commercial, or agricultural projects.

4. Landfill Operations – Scrapers are invaluable in landfill operations for leveling and compacting waste materials, ensuring the proper management of waste in large-scale facilities.


1. Regularly Inspect the Cutting Edge – The cutting edge is exposed to high wear due to constant contact with material. Checking for dullness or damage and replacing the edge when necessary ensures the scraper can continue working efficiently.

2. Hydraulic System Checks – Since scrapers rely on hydraulic power to operate, maintaining the hydraulic system is critical. Regularly checking hydraulic fluid levels, inspecting hoses for leaks, and ensuring there are no blockages in the hydraulic lines can prevent sudden breakdowns.

3. Tire or Track Inspection – For wheeled scrapers, tire wear can be a significant issue, especially in rough terrain. Inspecting tires for punctures or signs of uneven wear and regularly rotating them ensures smoother operations. For tracked scrapers, checking the tracks for cracks or damage is essential for safety.

4. Engine Maintenance – Keeping the engine well-maintained is crucial for maximizing the scraper’s performance. Regular oil changes, air filter replacement, and engine checks will help prevent any mechanical failures.

5. Cleaning and Lubrication – Regular cleaning of the scraper’s moving parts and lubrication of critical areas like hinges, joints, and other points of friction will keep the machine running smoothly.


1. A Highway Construction Project
   During the construction of a major highway, contractors used motor scrapers to level large areas of land. The scrapers were able to cut through the dirt, load it into the machine’s hopper, and transport it over a long distance to areas that required fill. The ability to move large volumes of dirt quickly allowed the project to stay on schedule and reduce overall costs.

2. Mining Operations
   In a mining operation, scrapers were used to remove overburden and transport it to a nearby disposal site. The scrapers’ ability to efficiently handle large volumes of earth allowed the mine to operate at a high capacity, increasing productivity.


Overview of the 555E Fuel System
The Ford/New Holland 555E is a mid-sized backhoe loader known for its reliability and mechanical simplicity. It is powered by a 4-cylinder diesel engine with a mechanically driven rotary injection pump. Like most diesel engines of its era, the fuel system is sensitive to air ingress, restriction, and contamination. When the engine begins to stall, hesitate, or fail to restart after running, the issue often traces back to fuel delivery problems.
The fuel system generally includes the following components:

• Fuel tank

• Lift pump (mechanical)

• Fuel filter housing and filter

• Injection pump

• Return lines

• Steel and rubber fuel lines


• Engine starts, runs for a few seconds, then dies

• Long cranking before startup

• Runs only while using manual fuel prime pump

• Engine idles fine but dies under load

• Intermittent stalling on uneven ground


• Cracked or porous rubber fuel lines: Especially those between the tank and the lift pump, which operate under suction. Even a pinhole can allow air in without leaking fuel out.

• Loose hose clamps or fittings: On older machines, clamps can loosen from vibration. Air can be drawn in through the connections.

• Plugged fuel filter: A neglected filter can restrict flow, especially under high load.

• Stuck or leaking check valves: Some systems use a one-way check valve to maintain fuel prime. If it fails, fuel drains back to the tank when the engine is off.

• Failed mechanical lift pump: If the diaphragm ruptures, fuel delivery becomes inconsistent.

• Tank debris or algae: Contaminants in the fuel tank can plug suction screens or filters.


1. Fill the new fuel filter with clean diesel.

2. Use the manual hand primer on the lift pump to build pressure.

3. Open the bleed screw on the filter housing until fuel flows without bubbles.

4. Continue pumping until a solid stream exits.

5. Crack the fuel lines at the injection pump or injectors (if necessary) and crank the engine.

6. Tighten lines as fuel spurts clear.


• Weak or no manual priming resistance

• No fuel output at cranking speed

• Fuel leaks around the pump body

• Engine only runs while manually priming


• The return line fittings at each injector

• The return banjo bolt at the pump

• The final return fitting at the top of the fuel tank


• Engine dies when on hills

• No fuel flow at the filter inlet

• Sputtering under load

• Black or slimy filter elements


• Start at the tank and follow the fuel path forward.

• Replace old rubber lines with new rated hose.

• Always use new clamps on reinstalled lines.

• Bleed thoroughly and methodically.

• Verify flow at each stage using gravity, hand pump, or cranking tests.

• Don't overlook the obvious—many fuel issues are caused by simple air leaks or contamination.


• Maintain clean fuel

• Replace rubber lines every few years

• Bleed thoroughly after any service

• Monitor return line health

• Keep the lift pump in good condition


Starting a truck crane business can be a lucrative venture, but it requires careful planning and a solid understanding of the industry. Truck cranes are essential in a wide range of sectors, including construction, logistics, and infrastructure projects, where they are used to lift heavy loads, install large equipment, and transport materials. However, the challenge of entering this field is not just about acquiring the right equipment; it’s also about understanding the operational, financial, and regulatory aspects of the business.
This article provides a detailed guide for those looking to launch a truck crane business, covering essential advice, key considerations, and steps to help ensure long-term success.
Understanding the Truck Crane Industry
The truck crane industry is unique in that it requires both specialized equipment and skilled operators. A truck crane combines the features of a mobile crane with the functionality of a flatbed truck, allowing operators to transport materials and perform lifting operations in a variety of environments. This versatility makes truck cranes popular across many industries, including:

1. Construction – For lifting heavy materials, installing steel beams, or positioning concrete precast panels.

2. Energy – Particularly in the installation of wind turbines or electrical poles.

3. Logistics and Warehousing – For moving large items such as containers, steel pipes, or machinery.

4. Event Production – Setting up stages, tents, and heavy equipment at large venues.


1. Niche Focus
   Some truck crane operators specialize in certain industries, such as construction, while others might focus on logistics or renewable energy projects. Understanding your niche allows you to tailor your marketing efforts and equipment purchases to the needs of that specific market.

2. Service Offerings
   Common services offered by truck crane businesses include lifting and rigging, machinery installation, oversized load transportation, and even emergency response for equipment breakdowns. Diversifying your service offerings can help ensure a steady flow of business, as you’ll be able to serve multiple types of clients.

3. Geographic Focus
   A local or regional approach might be best for a new truck crane business, as large-scale national operations require significantly more infrastructure and investment. Starting locally allows you to build a customer base and reputation before expanding to other areas.


1. Size and Capacity
   Truck cranes come in various sizes, from small, compact cranes with a lifting capacity of 10 tons to large models capable of lifting 200 tons or more. For a startup, it’s advisable to choose a crane that balances cost with the lifting needs of your target market.

2. Brand and Model
   Well-known crane brands like Liebherr, Manitowoc, and Grove offer a range of mobile cranes, each with different features and support options. A good brand will provide reliability, a strong warranty, and access to a dealer network for parts and service.

3. Maintenance and Service
   Consider the maintenance needs of the equipment. Cranes require regular inspections, servicing, and repairs to remain operational. Choosing a machine with a good track record of durability and low maintenance costs will save you money in the long run.

4. Transport and Storage
   Truck cranes also require specialized storage and transport solutions. Ensure that you have adequate space to store the cranes and that you understand how to transport them safely between job sites.


1. Initial Capital Investment
   As mentioned earlier, purchasing equipment is a major cost. Additionally, you will need funds for business licenses, insurance, marketing, and office equipment.

2. Ongoing Operational Costs
   Your ongoing costs will include fuel, maintenance, labor, and insurance. Truck cranes use significant amounts of fuel, so fuel expenses will be one of your largest recurring costs.

3. Profit Margins
   Truck crane services generally command high rates due to the specialized nature of the work. However, the cost of running a crane is equally high. Understand your hourly rates, overhead costs, and what profit margins are acceptable based on your specific market.

4. Financing Options
   Some businesses secure financing through loans or leasing options to help with the large upfront investment. Leasing equipment can be a good way to get started without committing to a full purchase, though it may come with higher monthly payments.


1. Operator Certification
   In many regions, crane operators must be certified by a recognized body, such as the National Commission for the Certification of Crane Operators (NCCCO) in the U.S. Ensuring your operators are properly certified can help avoid fines, ensure safety, and improve the quality of service offered to clients.

2. Training Programs
   Consider offering additional training to your staff to ensure they are familiar with the latest crane technologies and safety protocols. This will help your team stay competitive and adapt to industry changes.

3. Experienced Leadership
   Hiring a knowledgeable operations manager or foreman who understands the crane business and logistics can make a significant difference in day-to-day operations.


1. Networking in the Industry
   Attend industry conferences, trade shows, and local business events to meet potential clients. Networking is crucial in the crane business, where word-of-mouth recommendations can lead to future contracts.

2. Establish an Online Presence
   A professional website showcasing your services, equipment, and past projects can help build credibility. Social media platforms can also be an effective way to market your services and engage with potential clients.

3. Referral Program
   Offering discounts or incentives to clients who refer others can be an effective way to grow your business.
