Why Remove the Main Hydraulic Pump?
Loss of lift and tilt, low pressure, strange noises, or visible leaks often point to issues with the main hydraulic (hydrostatic) pump. Users commonly report:

• Zero lift/tilt after pump work (e.g. rebuild)

• Groaning drive motors, low pressure at auxiliary port

• Fluid flowing but performance missing entirely
  These symptoms suggest pump failure or a disconnected drive shaft, requiring removal and inspection.


• Relieve system pressure and drain reservoir.

• Clean area thoroughly to prevent contamination entering hydraulic system.

• Remove hoses or tubelines from the port block/inlet.

• Raise the operator cab for access to pump and linkages.


1. Safer removal of hoses and lines connected to pump inlet and outlet.

2. Unbolt pump mounting bracket and four mounting nuts—torque specifications: approx. 40–70 ft‑lb depending on serial range.

3. Remove steering linkage and any sway braces obstructing the pump.

4. Carefully raise pump slightly and slide forward to clear mounting bracket.

5. Remove hydrostatic pump from housing.

6. To access the drive shaft seal, remove the splined coupler by taking out the bolt, applying puller on taper shaft until it disengages.

7. Remove snap ring and old shaft seal (drill hole, insert screw, pry gently) then install new seal, using snap ring as seating guide.


• Check if pump splines and shaft coupling are intact—slippage here means no fluid is generated even if pump looks sound. Loose or missing coupler bolt is a common cause.

• Confirm pump’s rotation: faulty coupling = pump turns idle but no pressure.

• Inspect seals, bearings, casings for wear or contamination.


• Ensure clean assembly environment to prevent system contamination.

• After reinstalling pump:
  • Start engine at low idle

  • Cycle lift and tilt controls slowly, holding over relief valves for ~5–10 seconds to purge air. Repeat until movement returns normal.

• Gradually increase engine speed while continuing to cycle controls.

• Once fluid flow normalizes, shut machine, check fluid level and top off.

• Remove jackstands and test machine under light operation.


• Hydrostatic Pump: Main pressure unit driven by engine to supply hydraulic force.

• Port Block: Valve assembly atop pump connecting multiple hydraulic circuits.

• Splined Coupler: Connects pump to drive shaft; key to hydraulic output.

• Snap Ring & Shaft Seal: Retains seal preventing leaks around pump drive shaft.

• Relief Valve: Regulates maximum operating pressure, helps in purging air.


• One owner rebuilt the lift pump, only to lose all lift and tilt: zero pressure at auxiliary port → revealed slipped coupler bolt. Fixing spline connection restored function instantly.

• Another user replaced seal and splined adapter bolt after discovering a six-foot-long dribble from the pump shaft. Proper seal seating and fresh seal solved the leak.

• A technician recommended performing pump pressure tests with inline gauge before removal to verify that removal was warranted.


• Keep all components and hoses spotless during reassembly to avoid contamination.

• Regularly inspect suction hoses, clamps, and filters—air leaks can mimic pump failure.

• Use correct torque settings on port block, mounting bolts, and coupler clamp bolts.

• After service, monitor reservoir oil for foaming or milky appearance—indicative of air or contamination.


• Clean workspace and relieve hydraulic pressure

• Drain reservoir and disconnect tubelines

• Remove steering linkage and hoses

• Unbolt pump mount and slide pump free

• Remove coupler bolt, extract coupler and seal

• Install new seal with snap ring seating guide

• Reattach pump, hoses, bracket, linkage

• Start low, cycle controls to purge air

• Check fluid level and for leaks

• Operate under light load to confirm full hydraulic function


Track-driven vehicles, such as UH7-7 models, are commonly used in construction, mining, and agriculture for their superior mobility on rough terrain. However, they can face a variety of operational challenges, especially when it comes to driving issues. Understanding the root causes of such problems and knowing how to troubleshoot them can significantly extend the lifespan of your equipment and improve its efficiency. In this article, we will explore the common driving issues that occur with the UH7-7 track system, delve into potential causes, and discuss maintenance and repair strategies.
Common Track Driving Issues in UH7-7 Models
Track-driven machines, including the UH7-7, are equipped with a complex system of components such as the track chains, rollers, drive sprockets, and hydraulic motors. When driving issues arise, they often involve one or more of these components. The most common problems experienced by UH7-7 machines typically include:
1. Track Slippage
Track slippage occurs when the track doesn’t engage with the ground properly, leading to inefficient power transfer from the drive sprockets to the ground. It’s an issue that can significantly affect the vehicle's ability to move, especially on steeper inclines or soft ground.
Possible Causes:

• Worn Drive Sprockets: Over time, the teeth on the drive sprockets wear down, leading to less effective engagement with the track.

• Low Track Tension: Insufficient track tension causes the track to slip off the drive sprocket, reducing traction.

• Excessive Track Wear: Track links that have been heavily worn or stretched can result in the loss of tension and subsequent slippage.


• Regularly check and replace the drive sprockets when teeth show signs of wear.

• Adjust the track tension according to the manufacturer’s specifications. Ensure that the track is neither too tight nor too loose.

• Inspect the track for signs of wear or elongation and replace the track if necessary.


• Misaligned Tracks: Misalignment of the track system can result from worn-out rollers or damaged undercarriage components.

• Improper Track Tension: If the track is too tight or too loose, it can cause uneven wear, especially on one side.

• Uneven Ground: Operating on uneven or rocky terrain can lead to certain areas of the track receiving more wear than others.


• Perform routine undercarriage inspections to check for misalignments or damaged rollers. Realign or replace components as needed.

• Adjust the track tension regularly to ensure even wear across the entire track.

• Operate the machine on stable ground whenever possible to reduce stress on the track system.


• Hydraulic Fluid Contamination: Contaminated hydraulic fluid can cause blockages or ineffective power delivery to the track drive system.

• Low Hydraulic Pressure: Insufficient pressure may prevent the hydraulic motors from delivering enough torque to drive the tracks.

• Worn Hydraulic Components: Components such as hydraulic pumps, motors, or valves can wear out over time, leading to reduced system efficiency.


• Regularly check and replace the hydraulic fluid to prevent contamination. Use the fluid recommended by the manufacturer.

• Check the hydraulic pressure levels and inspect the pump and valves to ensure they are operating within specifications.

• Replace worn or faulty hydraulic components as necessary to maintain system performance.


• Damaged Track Links: If the links are worn or broken, they may cause the track to skip on the sprockets.

• Misaligned Sprockets: Misalignment of the drive sprockets can prevent the teeth from engaging with the track links properly.

• Loose Track: An excessively loose track can cause jumping due to improper engagement between the sprockets and track links.


• Inspect the track links for damage and replace any that are broken or severely worn.

• Ensure that the drive sprockets are properly aligned. If misalignment is detected, realign the sprockets to restore proper engagement.

• Adjust the track tension to ensure the track is properly fitted to the sprockets.


• Worn Rollers or Idlers: Over time, the rollers or idlers that support the track can wear down and cause vibrations.

• Track Tension Issues: A track that is too tight or too loose can generate additional friction, resulting in noise and vibrations.

• Damage to the Track Links: Damage or severe wear to the track links can lead to noisy operation and inefficient movement.


• Inspect the rollers and idlers for wear and replace them when necessary.

• Adjust the track tension to reduce friction and eliminate unnecessary vibrations.

• Perform a thorough inspection of the track links for damage and replace any defective links.


• Track Tension Checks: Regularly monitor and adjust the track tension. Improper tension can cause both excessive wear and driving issues.

• Roller and Sprocket Inspections: Inspect the rollers, sprockets, and undercarriage regularly for signs of wear or damage. Replace any worn or damaged parts immediately.

• Hydraulic Fluid and Filter Changes: Keep the hydraulic system in good condition by checking and replacing fluid and filters at regular intervals.

• Track Lubrication: Proper lubrication of the track system is crucial for minimizing wear and ensuring smooth movement.

• Cleaning and Debris Removal: After working in mud, snow, or other harsh environments, ensure that the track system is thoroughly cleaned. Build-up of debris can lead to operational problems and damage.


Overview of the Control System in JLG N40E Electric Boom Lifts
On JLG N40E (also branded as 40E electric) boom lifts, two separate control stations exist—ground controls and basket (platform) controls. While they issue similar commands, each interface uses distinct wiring harnesses, switches, safety interlocks, and connectors. Differences in error codes or malfunction behavior between these two stations are not unusual and often traceable to wiring, switches, or joysticks specific to one control station.

Why Error Codes May Differ Between Ground and Basket Controls

• Each control station has unique wiring and circuitry leading to the main motor controller and interface board.

• A faulty joystick module, switch, or connector in the basket leads to error or code from that station only, while ground controls remain functional. The opposite is equally possible.

• Interlock logic—for example seat presence, lockdown switch, or footswitch continuity—may block certain commands from basket control, even while still working from ground controls.


• Boom lift and steering operate from ground controls, but not from basket controls.

• Flash codes differ when switching to basket—indicating module-specific faults.

• A “6-flash” code often indicates a faulty hand control input (joystick or its wiring).


• First, test all functions via ground controls to confirm machine hydraulics and drive systems are functional.

• Switch to basket control and observe fault codes or failure behavior changes.

• Inspect the basket control switch box, including joystick module, wiring plugs, signal ground, interlock switches, and footswitch.

• Check for loose, corroded, or damaged wiring, especially at the connection between the basket harness and main interface board.

• Use a multimeter to test continuity between basket lever switches and control connectors.


• Flash codes originate from the motor controller or interface board, not the joystick assembly.

• A "6‑flash" fault code usually denotes a hand control (joystick) fault, such as short, open, or erratic signal.

• Codes may repeat after repeated foot switch activation but not function select.

• Single‑flash codes often indicate an internal controller fault or loss of power to that function block.


• Inspect basket panel wiring thoroughly—look for brittle insulation, pin corrosion, broken wires, loose connectors.

• Swap joystick modules with ground panel (if compatible) to isolate whether the joystick itself is faulty.

• Test continuity from basket joystick switches to interface board and from interface board to motor controller.

• Check fuses on the interface board, especially those powering basket circuits.

• Clean or replace terminal strip diodes if signs of erratic pulsing or voltage loss occur on basket path.

• If error codes persist across basket and ground, suspect the interface board or main controller may require replacement.


• ✅ Confirm hydraulic function works via ground controls.

• ✅ Note which functions fail when operating from basket.

• ✅ Record flash codes at each station and their differences.

• ✅ Examine basket wiring harness and joystick connectors.

• ✅ Test interlock switches (e.g., footswitch, emergency stop, platform lock).

• ✅ Replace or clean faulty joystick module if code “6‑flash” persists.

• ✅ If wired inputs test good, suspect interface board or motor controller.


• Hand Control / Joystick: The operator input device in basket or ground console.

• DTC / Flash Code: Diagnostic trouble code emitted by controller to indicate faults.

• Tach Interface Board / Motor Controller: Electronics managing drive motor behavior.

• Creep Switch: A slow-speed mode limiter used for safe unloading from trailers.

• Interlock Switch: A safety switch ensuring operators engage foot pedal or safety bar before operation.


The Caterpillar 3306 genset (generator set) has been a reliable power solution for various industries for decades. Known for its durability and performance, it remains a popular choice in heavy-duty applications such as construction sites, industrial plants, and remote power stations. This article delves into the characteristics, maintenance practices, and common issues of the 3306 genset, providing you with everything you need to understand this powerhouse.
Overview of the Caterpillar 3306 Genset
The Caterpillar 3306 is a 6-cylinder, inline diesel engine that powers many gensets used across diverse industries. It’s a reliable workhorse known for its simplicity, ruggedness, and ability to function in challenging conditions. The genset configuration consists of the engine paired with a generator, delivering electrical power for both emergency backup and primary usage.
Key Specifications and Features

• Engine Type: Inline 6-cylinder, turbocharged and aftercooled.

• Displacement: Approximately 10.5 liters (640 cubic inches).

• Power Output: Varies depending on configuration, typically in the range of 150 to 250 kVA.

• Fuel Type: Diesel, providing high efficiency and reliability for industrial applications.

• Cooling: Water-cooled, ensuring optimal performance under varying operational conditions.


• Example: Operators who run the 3306 genset regularly report 10,000+ hours of operation before significant rebuilds are needed, making it an excellent long-term investment.


• Fuel Consumption: At optimal conditions, the 3306 genset provides efficient fuel consumption, which is essential for long-running operations.


• Maintenance Tips: Regular oil changes, air filter replacements, and fuel system cleaning help maintain the engine’s efficiency and reliability.


• Battery issues: Ensure the battery is charged and in good condition. Replace old or faulty batteries.

• Fuel system issues: Blocked fuel filters or air in the fuel line can cause starting issues. Ensure the fuel system is properly bled and filters are replaced regularly.

• Glow plugs: If the engine struggles to start in cold weather, check the glow plugs. Faulty glow plugs can make starting difficult in low temperatures.


• Low coolant levels: Ensure the cooling system is topped up with the recommended coolant fluid.

• Clogged radiator: Check the radiator for debris or dirt that may block airflow. Clean the radiator fins regularly.

• Worn water pump: A malfunctioning water pump can prevent coolant circulation, causing the engine to overheat.


• Faulty alternator: Check the alternator for wear or electrical issues.

• Generator system problems: Inspect the wiring, voltage regulator, and other generator components for faults.

• Load issues: Ensure the load on the genset is within its operational capacity. Overloading the generator can cause a drop in power output.


• Fuel quality issues: Poor-quality fuel or contaminated fuel can cause black smoke. Always use clean, high-quality diesel fuel.

• Injector problems: Worn or malfunctioning injectors can lead to poor combustion, causing the engine to emit smoke. Regularly inspect and replace injectors as needed.




Introduction to the TD‑18 Ordnance Tractor

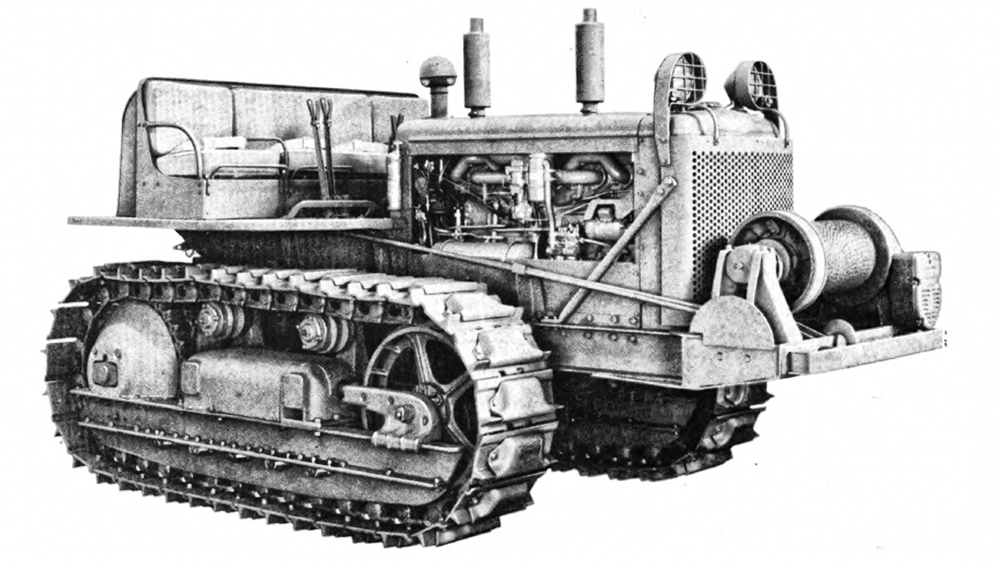

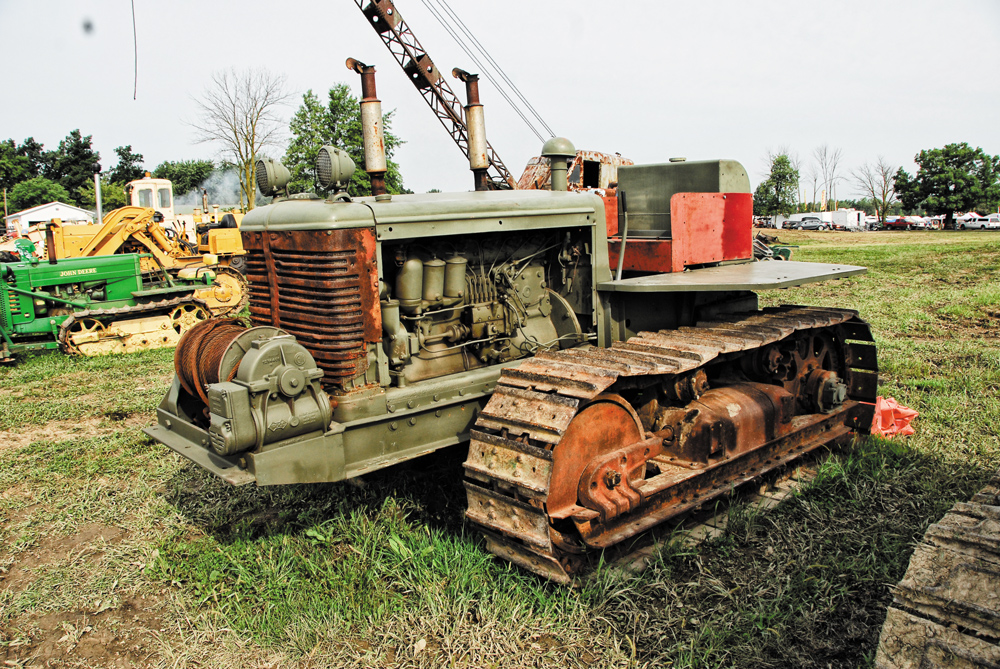

The International Harvester TD‑18 crawler—the military-designated Heavy Tractor M1—was a key behind-the-scenes player in World War II. These powerful diesel tractors served as artillery prime movers and general-purpose engineering machines across multiple theaters of war . Featuring a six-cylinder 691 ci diesel engine delivering roughly 84 belt horsepower and up to 103 hp at higher revs, this tractor could haul massive 155 mm Long Tom guns, dig trenches, and clear paths over rugged terrain .
TD‑18 in Practice: Army Equipment and Training

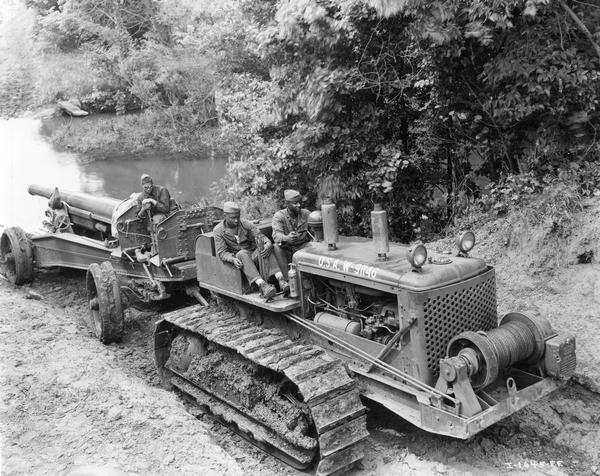

The TD‑18s used by U.S. forces—Army and Marine Corps artillery units—often operated in conjunction with field guns and heavy equipment. Common configurations omitted the bulldozer blade, focusing instead on towing field artillery and carrying crew & ammunition .
Training photos show Seabees at Camp Rousseau in California learning how to operate the TD‑18 with mounted blades for trenching, trail building, and fuel tank placements—core tasks in Pacific operations terrain . Drop-in historical photos capture African-American artillery soldiers crossing a creek aboard a TD‑18 towing a 155 mm gun—demonstrating its frontline reliability .
Technical Evolution and Variants
Over its 20-year production run, the TD‑18 underwent several upgrades:

• Lot 1 tractors resembled civilian models with simple front-mounted winches.

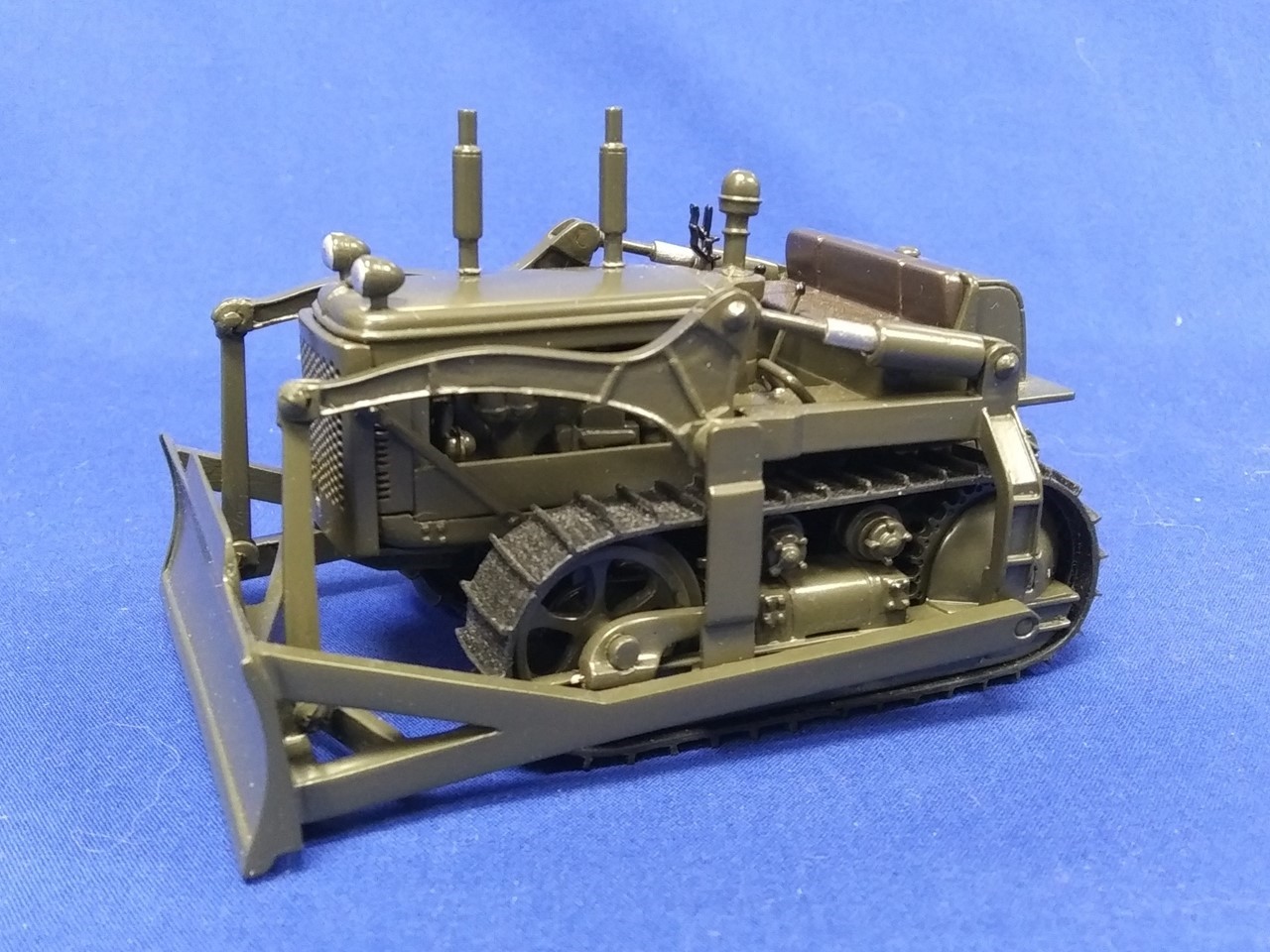

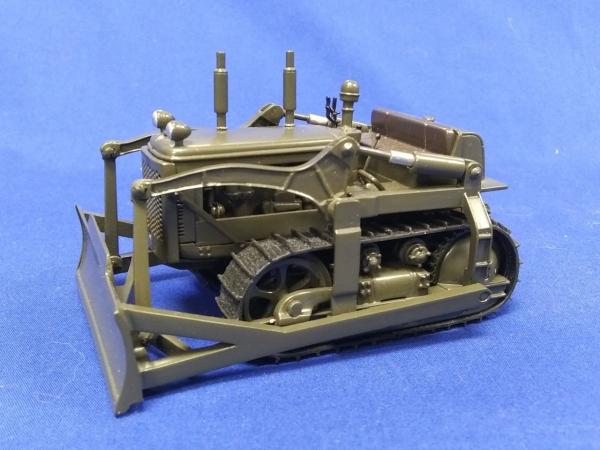

• Later Lots (2–4) included heavy-duty winches, multi-person benches, dual fuel tanks, and military-grade air-brake systems for pulling guns into position .


• Heavy Tractor M1 (TD‑18): The military unit designation for the artillery towing version of the TD‑18 crawler.

• Belt Horsepower: Engine power measured at the belt pulley, used as a historical performance benchmark.

• Winch Reel: Military models featured a front-mounted multi-speed winch used to pull heavy artillery into positions or recover equipment.

• Seabees: U.S. Navy Construction Battalions often tasked with building airfields, roads, and defensive works using crawlers like the TD‑18.

• Lot (Production Lot): Refers to a batch of production units with shared design or equipment changes.


• The large gasoline-start diesel engine needed frequent tuning and cooling upkeep.

• Field modifications like canopy frames, brush guards, or blade setups varied widely.

• Fuel logistics were complex—many models had dual tanks or diesel-gasoline dual systems, requiring careful management .


When purchasing or operating heavy machinery, a common debate arises between opting for machines with higher hours and regular maintenance or machines with low hours but poor maintenance. Both scenarios have their advantages and risks, and understanding the long-term implications of these factors is crucial for fleet managers, operators, and equipment owners. This article breaks down the pros and cons of each option, providing valuable insights into the impact of maintenance practices on the lifespan and performance of heavy equipment.
The Importance of Regular Maintenance in High-Hour Machines
One of the most critical aspects of any piece of heavy machinery is how well it has been maintained. Machines with higher hours that have been regularly maintained can offer several significant advantages over machines with low hours but inconsistent or poor maintenance.
1. Consistent Performance and Reliability
Regular maintenance ensures that equipment operates smoothly over time. A machine with high hours that has received consistent attention is likely to have a well-maintained engine, hydraulic system, and drivetrain. This increases the likelihood of the equipment being reliable and less prone to sudden breakdowns.

• Regular oil changes: Essential for engine health and longevity.

• Scheduled inspections: Checking for wear and tear, fluid levels, and other crucial parts reduces the likelihood of unexpected failures.

• Component replacement: Parts like belts, filters, and seals are replaced before they fail, which ensures consistent performance.


• Documentation: A solid service history showcasing regular oil changes, inspections, and part replacements reassures potential buyers.

• Brand trust: For many manufacturers, equipment that is maintained according to their specifications can last much longer than equipment that isn't.


• Example: A Caterpillar or Komatsu dozer with 10,000 hours, but regularly serviced, could last another 5,000–10,000 hours with minimal issues.


• Engine wear: If oil changes are not performed regularly, engine components can suffer from friction and heat, leading to premature wear.

• Hydraulic damage: A lack of regular inspections can result in dirty filters, clogged lines, or degraded seals, leading to a breakdown in the hydraulic system.


• Example: A dozer with 3,000 hours but neglected maintenance might need a new engine or hydraulic pump much sooner than one with 8,000 hours and a consistent service record.

• Catastrophic failures: Issues such as engine seizures or transmission failures can occur when routine maintenance is skipped, leading to costly downtime.


• Risk of buyer uncertainty: Without proof of regular maintenance, buyers may be reluctant to invest in machines that could have hidden problems.


• Example: A 5-year-old machine with 1,500 hours of use but no service history may have a much shorter lifespan than a 10-year-old machine with 10,000 hours of regular maintenance.


• High Hours & Regular Maintenance: Less likely to experience engine failure, often with better fuel efficiency.

• Low Hours & Poor Maintenance: High risk of overheating and potential engine damage due to neglected oil changes and lack of proper care.


• High Hours & Regular Maintenance: Hydraulic systems operate smoothly, with no leaks or major issues.

• Low Hours & Poor Maintenance: Contaminated fluid, degraded seals, and clogged filters can lead to costly repairs and downtime.


• High Hours & Regular Maintenance: Longer lifespan for tracks and undercarriage components.

• Low Hours & Poor Maintenance: Increased wear and premature failure of the undercarriage due to lack of proper maintenance.


• Purpose: If the machine will be used for heavy-duty tasks, it’s worth investing in a high-hour machine with proper maintenance. For light-duty work, a low-hour machine with less maintenance might suffice—if it is priced accordingly.

• Cost: While a low-hour machine may seem less expensive upfront, the cost of repairing neglected components could quickly outweigh the initial savings.

• Resale Value: Machines with regular service records are often more attractive to future buyers, retaining better value than machines with uncertain maintenance histories.


The Importance of Accurate Decal Replacement
Decals on heavy machinery—such as model, brand, safety, or instruction stickers—serve more than decorative purposes. They convey critical safety information, units branding, model identity, and technical specifications. Over time, factory-applied decals degrade, fade, or peel, making replacements essential for both compliance and aesthetics.
Decals are typically sold in kits specific to make, model, and serial number—ensuring proper size, design, and placement . High-quality providers offer OEM‑style kits printed on durable materials like 3M vinyl or polyester, with UV and solvent‑resistant lamination rated for 5–7 years of outdoor durability . For rare or vintage machines, custom digitization from original parts lists, photos, or rubbings enables accurate reproduction .
Materials and Types of Decals
Heavy equipment decals primarily come in three material types:

• Vinyl decals: Durable, breathable surfaces allow air escape, easy to install, and generally long-lasting. Ideal for modern restorations .

• Mylar decals: Transparent film sheets that mimic older water-transfer decals. Favored in vintage restorations for authenticity but sensitive to trapped air bubbles .

• Water-transfer decals: Used historically, these require soaking and are brittle with age—often unsuitable for reuse unless carefully restored .


• Applying Micro‑Scale Decal Film (or clear gloss coats) over suspect decals to bind them and prevent cracking during water exposure .

• Exposing decals to sunlight for bleaching yellowed film, though color areas must be monitored to avoid fading .

• Digitally recreating worn designs by scanning remnants or referencing manuals, then reprinting on decal paper using high-resolution printers and appropriate clear coats depending on ink type .


• A clean reference example of the same model.

• Original operator or service manuals, parts catalogs, or dealer literature.

• Historical photos or well‑documented restorations.

• Brand enthusiasts or collector communities for advice on decal changes over production runs .


• Clean and fully cure the paint surface before installation; any residues or moisture can prevent adhesion .

• Use a soapy‑water spray (e.g. dish soap in water) to allow decal repositioning before final adhesion .

• Gently squeegee out air bubbles; for water‑transfer or mylar decals, microscale setting fluids may be used to soften adhesion and conform to profiles .

• After the decal dries, consider applying a protective clear coat to seal edges and improve weather resistance.


• Brand names, model numbers, and skid marks

• Safety and warning symbols (rotational hazard, pinch point, hot surfaces, etc.)

• Instructional or regulatory labels (fuel change, tire pressure, operator weights)

• Fleet or ownership decals (company logos or identification)


• A restoration project of an antique tractor employed custom-printed mylar decals matching original logo proportions; once placed, the machine’s value increased significantly at a vintage equipment show .

• Model hobbyists have revived brittle decals using repeated applications of Microscale decal film and clear coat—restoring them to near-original life despite decades of aging .

• Enthusiast forums report shops tracing logos from manufacturer PDF manuals, converting to vector art, and producing custom heavy‑machinery decal sheets for rare equipment .


• Decal Kit: A set of decals specific to a machine's make, model, year, or configuration.

• Water‑Transfer Decal: A paper-backed decal activated with water for transfer; historically common but fragile with age.

• Mylar Decal: Transparent, repositionable plastic sheet decal resembling original styles.

• Vinyl Decal: Durable, adhesive-backed material printed and laminated for heavy-duty applications.

• Micro‑Scale Decal Film / Micro‑Sol / Mark Setter: Solutions or films used to restore and set decals by softening and adhering them.


• Identify and source decals by make/model/serial number for accuracy.

• Choose durable materials suited to your restoration goals (vinyl for durability; mylar for authenticity).

• Research placement using original examples and manuals.

• Prepare the painted surface and apply using soapy-water or setting solutions.

• Use clear coats or film-over wraps to preserve aging decals.

• Store sheets flat, at moderate temperature to reduce degradation over time.


The Caterpillar D6 dozer is a powerhouse of efficiency and durability, designed for tough construction and mining tasks. One critical aspect of maintaining the longevity and functionality of the D6 dozer is ensuring that key components, such as the undercarriage and undercarriage plates, are properly maintained. Underplates are a vital part of this system, protecting vital components and helping to ensure smooth operation. This article dives deep into the importance of underplates for the D6, their functions, types, and key maintenance practices.
What are Underplates and Why Are They Important?
Underplates are thick, protective plates mounted on the bottom of dozers, including the Caterpillar D6. They are part of the undercarriage system, which is a critical component of any tracked equipment. The primary purpose of the underplate is to shield the track frames, rollers, chains, and other undercarriage parts from the harsh conditions of the terrain, such as rocks, debris, and abrasive surfaces.
Key Functions of Underplates

• Protection: Underplates act as a barrier, protecting the more sensitive undercarriage components from wear and damage caused by contact with the ground.

• Durability: They help improve the longevity of the dozer by absorbing the impacts from rough, uneven terrain, reducing the wear and tear on the machinery.

• Traction: By ensuring that the undercarriage is protected, underplates can help maintain the traction and maneuverability of the dozer, enabling it to perform better in various conditions.

• Cost-Effectiveness: By protecting the undercarriage, underplates help extend the life of expensive components, reducing the need for costly repairs or replacements.


1. Track Frames: These form the main body of the undercarriage, holding the tracks in place.

2. Rollers: These support the tracks and help distribute the machine’s weight evenly across the ground.

3. Idlers: These guide the tracks as they move around the dozer.

4. Sprockets: These are the large toothed wheels that engage with the tracks to move the dozer.

5. Track Shoes: These are the large metal components that make contact with the ground and help the dozer gain traction.


• Material: Hardened steel for durability and wear resistance.

• Use Case: Everyday use, ideal for construction or grading projects.


• Material: High-strength abrasion-resistant steel.

• Use Case: Ideal for heavy-duty tasks like quarrying, mining, or working in rough and abrasive environments.


• Material: Steel with reinforced areas for impact resistance.

• Use Case: Suitable for demolition, waste management, or projects with high impact risk.


• Material: Varies based on project needs; often a mix of steel, tungsten carbide, or ceramic coatings for specialized performance.

• Use Case: Custom designs tailored to specific tasks and conditions.


• What to Check: Inspect the underplate’s mounting points and attachment fittings to ensure they remain secure and intact.


• Cleaning Tools: Use a pressure washer or air compressor to clean the undercarriage, being cautious not to damage sensitive components.


• Tension Checking: Follow the manufacturer’s instructions for checking and adjusting track tension.


• Lubrication Frequency: Lubricate every 100-150 hours of operation, or as recommended by the manufacturer.


Introduction and Widely Available Manuals
The Takeuchi TL8 track‑loader operator’s manual and workshop/service manual offer in‑depth guidance on safe operation, maintenance schedules, inspection procedures, and troubleshooting. They explain signal words—DANGER, WARNING, CAUTION, IMPORTANT—and emphasize safety protocols, especially around hydraulic pressure, moving parts, and electrical systems. Manuals are clearly stored onboard in a compartment using pull‑cover pouches for easy access .
Key Features and Intended Use
Designed for hauling, loading, and leveling tasks, the TL8 includes:

• Hydrostatic drive systems

• Tilt‑up ROPS/FOPS operator station

• Emergency engine stop provisions

• Electronic control over auxiliary hydraulic circuits
  The manufacturer recommends a 100‑hour break‑in period for new machines to optimize engine and hydraulic longevity .


• Engine: 74.3 hp Kubota V3307‑CRT turbocharged four‑cylinder, 3.3 L displacement, delivering 192 ft‑lb of torque at 1,500 rpm .

• Operating weight: ~8,455 lb (canopy), ~8,631 lb (cab) .

• Tipping load / Rated operating capacity: 6,020 lb tipping; 2,105 lb ISO @ 35% (~955 kg) ROC, and optional 2,323 lb ROC with counterweight .

• Breakout forces: ~6,856 lb for bucket and ~6,709 lb for lift arm; traction force ~9,127 lb .

• Undercarriage: Double‑reduction planetary drives, permanently sealed rollers, optional 15.7″ or 12.6″ tracks, ground pressure ~4.4 psi (canopy) or ~5.4 psi (12.6″ tracks) .


• Auxiliary hydraulics: Primary flow ~18.4 gpm; optional high‑flow ~33.0 gpm (~69 and 125 L/min) .

• System pressure: ~3,046 psi (21.0 MPa) .

• Travel: Two‑speed hydrostatic travel; ~4.6 mph low, ~6.8 mph high (7.4/11 kmh) .


• Tilt‑up operator station with optional sealed/tinted cab featuring air conditioning, heat, defrost, and rollover protection (FOPS Level 2 available).

• Multi-informational 5.7″ color display integrates backup camera and menu navigation.

• Pilot joystick hydraulic controls with pattern-change valve (ISO/H) and proportional auxiliary control (detent) .

• Deluxe suspension seat, pivoting seat bar, 2″ or optional 3‑point seat belt, optional AM/FM/MP3 radio, rear wiper .


• Fully welded heavy-duty frame with integrated cross-members and active power control to optimize engine load and fuel efficiency.

• Quiet-ride track with pads in place of bars to reduce vibration and noise; frame-mounted travel motors improve durability .


• A swing‑out rear door and tilt-up canopy give access to cooling packs, filters, pump group, and pilot filters—designed to simplify daily checks.

• Maintenance intervals are divided by machine hours: walk‑around checks every 10 hours, filter changes every 50 to 250+ hours, early maintenance for first 100 hours, additional disassembly guidance in service manual .

• Safety warnings include ambient temperature operating limits (–15 °C to +45 °C), prohibition of wet cleaning in electrical compartments, and cleaning footwear before cab access .


• Hydrostatic Drive: Uses fluid pressure rather than gears for drive transmission—allows variable speed and smooth operation.

• ROC (Rated Operating Capacity): Safe load capacity at 35 % tipping load.

• Breakout Force: Maximum force available to excavate or lift material.

• Pilot Controls: Joystick-based hydraulic control system using low-pressure pilot lines.

• Active Power Control: System that keeps engine in optimal load range to manage power and fuel efficiency.


• Engine: 74.3 hp Kubota V3307‑CR‑Turbo

• Operating Weight: ~8,500–8,600 lb

• ROC (35% tipping): ~2,100 lb

• Auxiliary Flow: 18.4 gpm standard, 33 gpm optional high‑flow

• Drive: Hydrostatic, 2‑speed

• Travel Speed: ~4.6 mh / 6.8 mph

• Ground Pressure: ~4.4–5.4 psi

• Breakout Force: 6,700–6,900 lb


A pulverizer is a powerful tool used in heavy construction and demolition work for processing and reducing materials such as concrete, asphalt, and rock into finer particles or dust. Pulverizers are typically mounted on the front of an excavator or skid steer, making them versatile and efficient for a wide range of applications. This article will dive deep into the world of pulverizers, exploring their types, applications, advantages, and key considerations when using them in construction or demolition projects.
What is a Pulverizer?
A pulverizer is a mechanical attachment designed to break down large materials into smaller, more manageable sizes. Typically used in demolition or construction projects, pulverizers are favored for their ability to crush, shear, and break materials such as concrete, asphalt, and other hard substances. The pulverizing process creates a finer material, which can either be recycled, reused, or disposed of more easily.
The design of a pulverizer generally includes hydraulic jaws that apply immense force to material, either by shearing or grinding it. This process can be compared to a combination of crushing and grinding, depending on the application.
Applications of Pulverizers
Pulverizers are used in a variety of industries and applications. Here are some of the primary uses for these powerful tools:
1. Concrete Recycling
One of the most common uses of pulverizers is concrete recycling. When demolishing buildings or structures, concrete rubble can be pulverized into smaller, more manageable pieces. The pulverized concrete can then be reused in new construction projects or as road base material.

• Benefits: Pulverizing concrete allows for cost-effective recycling and reduces the need to transport waste to landfills. It also makes concrete easier to handle, transport, and reuse.


• Benefits: Asphalt can be reclaimed, processed, and used for future paving, which helps lower material costs and supports sustainable practices in roadwork.


• Benefits: They allow for the precise demolition of concrete structures without damaging the underlying steel or other structural elements. This is especially useful when trying to separate recyclable materials.


• Benefits: Reducing the volume of waste material minimizes transportation costs and helps in efficient disposal or recycling.


• Applications: Used in primary and secondary demolition, crushing concrete slabs, and separating rebar from the concrete.

• Advantages: Concrete pulverizers offer increased productivity by allowing the operator to break down concrete quickly, even in difficult-to-reach places.


• Applications: Primarily used in heavy construction, excavators, and skid steers can be equipped with hydraulic pulverizers for tasks ranging from demolition to material handling.

• Advantages: The hydraulic mechanism allows for precise control and significant power, making them ideal for dealing with tough materials.


• Applications: Typically used in scrap metal processing, demolition, and excavation.

• Advantages: Their multiple jaw design enhances efficiency and flexibility, enabling operators to tackle a range of tasks without needing to change attachments.


• Fixed Pulverizers: These pulverizers do not rotate and are typically used when precise, directional force is needed. They are ideal for stationary jobs, such as breaking concrete in a fixed location.

• Rotating Pulverizers: These allow the jaws to rotate, offering enhanced versatility for working in tight spaces or at difficult angles. This type is particularly useful for demolition projects where flexibility is key.


• Regular Lubrication: Apply lubrication to the pivot points, pins, and jaws of the pulverizer to ensure smooth operation and reduce wear.

• Inspection: Perform regular inspections of the attachment, focusing on the jaws, hydraulic lines, and pins. Look for signs of wear and tear or damage.

• Clean the Attachment: After each use, clean the pulverizer to prevent material buildup, which can affect performance.

• Check Hydraulic Fluids: Ensure the hydraulic system is properly maintained by checking fluid levels and replacing filters when necessary.
