Converting a backhoe or loader to an excavator control pattern is a common modification in the heavy equipment world. Many operators find themselves more comfortable with one control pattern over another, especially when switching between different equipment types. The Case 580SL, which is a versatile backhoe loader, is an example of a machine where such a modification might be considered. This article will delve into the process, benefits, and challenges of swapping linkages to achieve the excavator control pattern on a Case 580SL.
Understanding Control Patterns in Excavators
Before diving into the modification process, it's crucial to understand what "excavator pattern" refers to in the context of control systems.
Loader Pattern vs. Excavator Pattern
Heavy equipment typically comes with two standard control patterns:

1. Loader Pattern: Commonly used on backhoe loaders and many skid-steer loaders. In this pattern, the right-hand control typically operates the boom (up and down), and the left-hand control operates the bucket (curl and extend).

2. Excavator Pattern: The excavator pattern, on the other hand, reverses the functions. The right-hand control operates the bucket (curl and extend), while the left-hand control operates the boom (up and down). This control scheme is often preferred by operators who frequently use excavators since it's more intuitive for digging and maneuvering.


• Consistency Across Equipment: If you operate both backhoes and excavators frequently, switching the control pattern to match excavators can provide consistency and reduce the learning curve when switching between different machines.

• Comfort: Some operators find the excavator control pattern more comfortable, especially for long hours of operation, since it mimics the natural movements of the arms (e.g., using one hand for the boom and the other for the bucket).

• Efficiency: With the excavator pattern, operators can more efficiently manipulate the boom and bucket in tight spaces or when performing precise tasks, such as trenching.


1. Access the Control Linkages
   The first step is to locate the control linkages on the backhoe loader. These linkages are typically found underneath the cab, connected to the hydraulic valves that control the boom and bucket.

2. Identify the Functions to Swap
   The next step is to identify which linkages are responsible for the boom and bucket functions. The loader pattern typically has the right-hand control operating the boom and the left-hand control operating the bucket. To convert this to the excavator pattern, the hydraulic valve connections for the boom and bucket need to be swapped.

3. Disconnect the Hydraulic Lines
   To modify the control pattern, you’ll need to carefully disconnect the hydraulic lines that control the boom and bucket. These lines should be handled with care to avoid any hydraulic leaks or damage. Use proper tools and equipment to prevent contamination or damage to the hydraulic system.

4. Swap the Linkages
   The next step involves swapping the hydraulic control linkages for the boom and bucket. This is where the real work begins. You’ll need to switch the hydraulic hoses that control the boom with those that control the bucket. This can involve moving valves, hoses, or even installing new connectors.

5. Test the System
   After swapping the linkages, it’s important to test the system. Engage the controls to ensure that the right-hand control now operates the bucket and the left-hand control operates the boom. You should also check for any leaks or hydraulic issues during this testing phase.

6. Calibrate and Fine-Tune
   Once the linkages have been swapped, and everything is functioning, you’ll need to calibrate the system. Fine-tuning involves ensuring that the hydraulic flow and pressure are properly adjusted to provide smooth control for the boom and bucket. Any excessive pressure or weak hydraulic force can cause erratic behavior or even damage the hydraulic components.

7. Recheck and Inspect
   After the modification is complete, perform a thorough inspection of all connections, hoses, and the hydraulic system to ensure that everything is secure and functioning properly. This includes checking the pressure, hoses, and valves for any signs of leakage or damage.


1. Hydraulic System Integrity
   Switching hydraulic lines can put stress on certain components of the hydraulic system. It's essential to ensure that the hydraulic system is capable of handling the new configuration without compromising performance or longevity.

2. Potential Warranty Issues
   Some modifications to a machine may void warranties or service agreements. It’s important to check with the manufacturer or dealer before making significant changes to the machine’s control systems.

3. Complexity of the Conversion
   Depending on the machine, this can be a complex and time-consuming job. For operators or maintenance teams without hydraulic expertise, hiring a professional to perform the modification may be the best option.

4. Operator Training
   Even after making the modification, operators will need to become accustomed to the new control layout. Transitioning from the loader pattern to the excavator pattern may take time, and training could be necessary.

5. Safety Considerations
   Any modification to a machine’s control system should be done with safety in mind. Improper installation or failure to recalibrate the system can lead to unpredictable machine behavior, potentially causing accidents or damage to the equipment.


1. Ergonomics and Comfort
   The excavator control pattern is considered more ergonomic by many operators. The movements of the arms and hands required to operate the boom and bucket feel more natural and are less straining over long periods.

2. Increased Efficiency
   With the excavator pattern, operators often report greater precision when working in tight spaces or handling delicate tasks such as trenching or grading. The ability to control the boom and bucket independently, using separate hands, allows for smoother and more fluid movements.

3. Uniformity Across Equipment
   If an operator is used to excavators, switching the control pattern on a backhoe loader makes it easier to operate multiple machines without needing to adapt to different controls.


Hydraulic failure in CAT excavators, or any heavy machinery for that matter, is a significant concern for operators and fleet managers. The hydraulic system is crucial for the functioning of various machine components like the boom, bucket, and swing mechanisms. A failure in the hydraulic system can lead to reduced performance, safety risks, and potentially costly repairs. Understanding the causes, recognizing symptoms early, and knowing the steps to take for diagnosis and repair can save time, reduce downtime, and extend the lifespan of the machinery.
Understanding Hydraulic Systems in Excavators
The hydraulic system in an excavator uses pressurized fluid to power key functions. These functions include the lifting and lowering of the boom, swinging of the machine, and operation of the bucket. The primary components of the hydraulic system are:

1. Hydraulic Pump: It generates pressure in the system, directing fluid to various parts of the machine.

2. Hydraulic Fluid: The fluid transmits power and lubricates components to prevent wear.

3. Control Valves: These valves regulate the flow of hydraulic fluid, directing it to specific parts of the machine depending on the operator’s commands.

4. Hydraulic Cylinders: These are the actuators responsible for performing the physical work, such as raising the boom or bucket.


1. Contaminated Hydraulic Fluid
   • Hydraulic fluid contamination is a leading cause of failure. Dirt, water, or other foreign materials can enter the system through various points, including seals, vents, or air filters. Contaminated fluid can cause internal wear on valves, pumps, and cylinders, leading to poor performance or complete failure.

   • Solution: Use high-quality filters, check for leaks, and ensure that the hydraulic fluid is properly sealed and replaced as per the manufacturer’s recommendations.

2. Worn Hydraulic Pump
   • Over time, the hydraulic pump can wear out due to prolonged use or poor fluid quality. A worn pump can cause low fluid pressure, leading to slow or unresponsive machine movements.

   • Solution: Regular inspections and fluid checks should be performed to ensure the pump is functioning correctly. In some cases, a replacement pump may be necessary.

3. Damaged or Leaking Hoses and Seals
   • Hydraulic hoses and seals are prone to damage due to wear and tear, UV exposure, or physical impact. Even small leaks can cause a drop in system pressure, leading to malfunction.

   • Solution: Inspect hoses and seals regularly for cracks, abrasions, or signs of leaks. Ensure that any worn-out or damaged parts are replaced promptly.

4. Blocked or Malfunctioning Control Valves
   • The control valves are responsible for directing fluid to the right components. If these valves become blocked or start malfunctioning, it can prevent the hydraulic fluid from reaching the necessary parts, leading to sluggish or erratic machine behavior.

   • Solution: Flush the system periodically and clean or replace faulty valves to ensure smooth operation.

5. Low Hydraulic Fluid Levels
   • Insufficient hydraulic fluid can cause cavitation (air bubbles in the fluid), leading to pump damage and poor system performance. This can occur due to leaks or improper fluid maintenance.

   • Solution: Ensure fluid levels are regularly checked and topped up. Always use the recommended type of hydraulic fluid for the machine.

6. Excessive Heat
   • High temperatures can degrade hydraulic fluid and cause seals and hoses to weaken. Overheating can lead to decreased fluid viscosity, resulting in reduced system pressure and efficiency.

   • Solution: Ensure the machine is operating within the recommended temperature range. If the system is consistently running hot, check for issues such as a failing radiator or clogged cooler.


1. Slow or Unresponsive Movements
   • If the machine's movements, such as the boom raising or lowering, become slow or unresponsive, it could be a sign of low pressure or contaminated fluid.

2. Erratic or Jerky Movements
   • Sudden, jerky motions or irregular movement can indicate an issue with the hydraulic fluid or control valves.

3. Excessive Noise
   • Unusual whining, grinding, or squealing noises coming from the hydraulic system can be a sign of cavitation, air in the system, or a failing pump.

4. Leaking Fluid
   • Visible leaks on hoses, valves, or around seals often indicate a problem in the hydraulic system that needs immediate attention.

5. Pressure Drop
   • A noticeable drop in the system’s working pressure can lead to a significant loss of machine performance, requiring immediate troubleshooting.


1. Check Fluid Levels and Condition
   • Start by checking the hydraulic fluid level and its condition. If the fluid is low, top it up and check for leaks. If the fluid looks contaminated (dirty or discolored), a complete fluid change may be necessary.

2. Inspect Hoses and Seals
   • Inspect all hydraulic hoses and seals for signs of wear, cuts, or leaks. If any hoses or seals are damaged, replace them and check the system again.

3. Test the Hydraulic Pump
   • Use a hydraulic pressure gauge to test the pressure output of the pump. If the pressure is low, the pump may need to be replaced or repaired.

4. Examine Control Valves
   • Inspect the control valves for any blockages or malfunctioning parts. A stuck valve could be preventing fluid from flowing correctly, causing erratic machine behavior.

5. Check for Overheating
   • Measure the temperature of the hydraulic system. Overheating could indicate a clogged filter, failing cooler, or malfunctioning parts.

6. Check for Air in the System
   • If you hear a lot of noise or experience cavitation, air may have entered the hydraulic fluid. This can often be fixed by bleeding the system to remove any trapped air.


1. Regular Fluid Changes
   • Follow the manufacturer’s recommendations for hydraulic fluid change intervals. Over time, fluid breaks down, and contaminants build up, making regular fluid replacement essential for maintaining system efficiency.

2. Filter Replacement
   • Replace hydraulic filters regularly to ensure that contaminants are kept out of the system. Using the wrong filter can lead to system failures.

3. Routine System Inspections
   • Perform regular inspections of the hydraulic hoses, seals, pumps, and valves to catch problems early before they become serious.

4. Maintain Proper Fluid Levels
   • Always keep an eye on hydraulic fluid levels. Running the system with insufficient fluid is one of the quickest ways to cause damage.

5. Monitor Temperature
   • Keep track of the system’s temperature and address overheating issues before they lead to bigger problems.


Understanding the Hydraulic Thumb System
The CAT 305CR mini excavator is a versatile machine often retrofitted with hydraulic thumbs to improve material handling, demolition, and site cleanup. A hydraulic thumb allows the operator to grip and manipulate objects using the bucket and thumb in tandem. However, integrating a thumb into an existing hydraulic system requires careful attention to pressure regulation, valve configuration, and flow control.
In many cases, thumbs are added aftermarket, and the hydraulic system must be modified to accommodate their pressure limits and operational behavior. Without proper tuning, thumbs may slam open, drift under load, or fail to hold position—leading to damage, inefficiency, and operator frustration.
Terminology Clarification
- Relief Valve: A hydraulic component that limits pressure in a circuit to prevent damage. It opens when pressure exceeds a set threshold.
- Shutoff Valve: A manual valve used to isolate or block flow in a hydraulic line.
- Flow Restrictor: A device that limits the rate of hydraulic fluid flow, often used to slow actuator movement.
- Thumb Cylinder: The hydraulic actuator that controls thumb movement.
Common Issues with Thumb Integration
When a thumb is added to the CAT 305CR, several issues may arise:

• Operating pressure exceeds thumb cylinder rating, causing mechanical stress.

• Thumb falls under its own weight when not actively pressurized.

• Thumb is easily pushed aside by bucket movement due to low holding pressure.

• Thumb slams open or closed due to unrestricted flow.


• Thumb cylinder pressure rating: Typically 1,800–2,000 psi (confirm with manufacturer)

• Relief valve setting: ~100 psi below cylinder max rating (e.g., 1,700 psi)

• Flow restrictor orifice: ~1/16" diameter for smooth actuation

• Pedal control: Should be spring-return to center for safety


• Install a flow restrictor on the push side of the cylinder to prevent slamming. This can be a set screw with a pinhole tapped into a 90° elbow fitting.

• Use a pilot-operated check valve to hold the thumb in position when the control is released. This prevents drift and improves grip stability.

• Adjust relief valve with a pressure gauge. Loosen the lock nut and turn the adjustment screw in ¼-turn increments while monitoring system pressure.

• Consider replacing the shutoff valve with a directional control valve that includes built-in relief and check functions.


• Hold position without constant pedal input

• Yield slightly under excessive bucket force to prevent damage

• Move smoothly without jerking or slamming

• Operate within safe pressure limits to protect seals and cylinder rods


• Install an adjustable flow control valve for fine-tuning speed

• Use a dual relief valve setup for both extend and retract circuits

• Add a pressure gauge permanently to monitor thumb circuit health

• Retrofit electronic proportional controls for smoother modulation


When it comes to setting prices for heavy equipment work, one of the most common and important questions contractors face is how much to charge per hour. The right rate ensures that the business remains profitable while being competitive enough to attract clients. Setting a fair and sustainable hourly rate involves many factors, including operational costs, overheads, market conditions, and the type of work being done.
In this article, we will break down the key elements involved in determining an hourly rate for heavy equipment work, explore how to adjust for various circumstances, and provide tips on finding a price that works for both the contractor and the client.
Factors Affecting Hourly Rates
Setting the right hourly rate for your heavy equipment services can be challenging, but it becomes much easier once you break down the core factors that influence the rate. These include:

1. Cost of Equipment
   • One of the biggest expenses when operating heavy machinery is the equipment itself. Whether the equipment is purchased outright or leased, you’ll need to factor in the depreciation and maintenance costs.

   • If you're renting equipment, the rental cost will be a significant consideration.

   • The type of equipment matters too; for instance, renting a bulldozer or a high-capacity excavator will cost more than using smaller machines like skid steers or backhoes.

2. Fuel and Operating Costs
   • Fuel costs for heavy equipment vary widely depending on the type of machinery, operating conditions, and fuel efficiency. For example, larger excavators and dozers tend to consume more fuel than smaller machines.

   • Maintenance costs should also be taken into account. Regular servicing, oil changes, tire replacements, and hydraulic system repairs can add up quickly.

   • Tires, filters, and other consumables such as hydraulic fluid or grease must also be factored into the cost of operating machinery.

3. Labor Costs
   • Operators’ wages should be included in the hourly rate. Skilled operators often demand a higher wage, so you’ll need to ensure that your rate reflects this.

   • Depending on the type of work, you may need additional labor such as ground workers or support staff, which also increases overall labor costs.

4. Insurance and Permits
   • Heavy equipment typically requires substantial insurance coverage, including liability insurance, workers' compensation, and coverage for the equipment itself.

   • Depending on the nature of the work, specific permits or environmental considerations (such as road closures or excavation permits) may add to the cost.

5. Overhead Costs
   • Your business will have general overhead expenses such as office space, utilities, marketing, and accounting services. These need to be factored into your hourly rate to ensure that they don’t eat into profits.

6. Market Conditions
   • Local market conditions will significantly impact how much you can charge. In some regions, demand for heavy equipment services is high, allowing contractors to charge a premium rate. In areas with lower demand, you may need to adjust your prices to remain competitive.

   • Research your competitors to understand the going rates for similar services in your area. You may want to charge slightly more or less depending on your equipment's capabilities and reputation.


1. Calculate Your Costs
   Start by adding up all your direct and indirect costs. These should include:
   • Equipment costs (purchase, lease, maintenance, and depreciation)

   • Labor (operator wages and other support staff)

   • Fuel

   • Insurance

   • Overhead (administrative costs, permits, etc.)

2. Add Profit Margin
   Once you’ve calculated your expenses, you’ll want to add a profit margin. This percentage will vary depending on your market, competition, and how much profit you aim to make. Typically, contractors aim for a profit margin between 10-30%.

3. Set a Competitive Rate
   Research competitors’ rates in your region to ensure that your pricing is competitive. You don’t want to price yourself out of the market, but at the same time, you don’t want to undersell your services.

4. Consider the Type of Work
   Different types of work can justify different pricing. For instance, if you're working on a project that involves particularly difficult or dangerous work (e.g., demolition, deep excavation, or work near hazardous areas), you might charge a higher rate for the added risk and skill required. Similarly, emergency or after-hours work usually warrants a higher hourly rate.

5. Adjust for Location and Duration
   Rates can vary by location. For example, you might charge more in urban areas with high demand compared to rural areas where heavy equipment work may be less frequent. Additionally, longer-term projects might allow you to offer discounted rates or package pricing for extended contracts.


• Establish Clear Terms
  When determining an hourly rate, be sure to clarify the scope of work with your clients beforehand. Make sure they understand what is included in the hourly rate (e.g., operator time, equipment time, and fuel) and what may incur additional charges.

• Include Equipment Mobilization Fees
  For projects that require transporting equipment over long distances, you may need to charge a mobilization fee. This fee covers the cost of transporting machinery to and from the job site.

• Consider Seasonal Fluctuations
  Depending on your location, heavy equipment work may be more seasonal in nature. If you live in an area with harsh winters, for example, you may want to adjust your rates to accommodate the demand for snow removal and construction work in warmer months.

• Offer Discounts for Long-Term Projects
  For clients who need heavy equipment for longer periods, offering a discount on the hourly rate can help secure steady work. For instance, a client requiring a piece of equipment for a week or more might be eligible for a lower rate compared to a single-day rental.

• Use Technology for Tracking Hours
  Keep track of machine hours and operator time accurately using software or apps that log job site activities. This will not only help you bill clients correctly but will also give you data on machine efficiency and cost control.


• Skid Steer: $80 – $150 per hour
  Skid steers are versatile machines used for smaller jobs, such as landscaping, snow removal, or light excavation.

• Excavator: $100 – $250 per hour
  The rate for excavators varies significantly based on size and complexity. A small mini-excavator may be on the lower end of this range, while large track-type machines may be at the higher end.

• Bulldozer: $150 – $300 per hour
  Bulldozers are often used for large earthmoving tasks, such as land clearing, road construction, or site preparation.

• Backhoe: $100 – $200 per hour
  Backhoes are commonly used for digging, lifting, and loading materials, and their rate depends on the size of the machine.

• Loader: $120 – $200 per hour
  Loaders are typically used for material handling, including loading dirt, gravel, or debris. The rate depends on the size of the loader and job complexity.


Introduction to the Fuller 15-Speed Transmission
The Fuller 15-speed manual transmission, commonly found in heavy-duty trucks like the Kenworth W900, is a robust and versatile gearbox designed for demanding hauling applications. It offers a wide range of gear ratios, including a deep reduction range for low-speed torque, making it ideal for off-road, logging, and steep-grade operations. Unlike the more common 13-speed, the 15-speed includes an additional deep reduction feature, which requires specific air routing and shifter configuration.
Terminology Clarification
- Deep Reduction: A gear range that provides extra torque at very low speeds, useful for heavy loads or steep inclines.
- Splitter Valve: A pneumatic valve that allows shifting between high and low ranges within a gear.
- Range Selector: A switch that changes the transmission between low and high range gears.
- Airline Kit: A set of color-coded pneumatic tubes that connect the shifter to the transmission’s control valves.
Airline Routing and Shifter Configuration
Installing a Fuller 15-speed transmission requires careful attention to the routing of air lines from the shifter handle to the transmission. The shifter typically includes ports labeled by color, corresponding to specific functions:

• Blue line: Range shift (low/high)

• Red line: Splitter shift (direct/overdrive)

• Green line: Deep reduction control

• Black line: Supply air


• Consult Eaton’s Roadranger service literature for model-specific diagrams

• Use DOT-approved nylon tubing with push-to-connect fittings

• Label each line during installation to prevent confusion

• Test each pneumatic function before road operation


• Flipping the deep reduction switch while in motion

• Forgetting to return to standard range before upshifting

• Misidentifying gear positions due to unfamiliar shift knob layout


• Practice shifting in a controlled environment before hauling loads

• Use RPM matching to reduce wear on synchronizers

• Avoid lugging the engine in deep reduction mode


• 13-speed: Balanced for highway and moderate grades

• 15-speed: Ideal for heavy loads and off-road conditions

• 9LL: Simplified layout with deep reduction, suited for dump trucks and mixers


• Inspect air lines quarterly for leaks or abrasion

• Replace worn shift knobs and switches to maintain tactile feedback

• Drain air tanks regularly to prevent moisture contamination

• Use synthetic transmission fluid for extended service intervals


• Hard shifting: Check for low air pressure or sticky valves

• Gear lockout: Inspect range selector and splitter solenoids

• Air hiss at shifter: Replace worn seals or cracked tubing


• Install a transmission temperature gauge to monitor fluid health

• Retrofit LED indicators for range and splitter status

• Use quick-disconnect fittings for easier service

• Add a training placard in the cab for gear layout reference


When working with excavators, a key aspect of operational efficiency is ensuring that attachments are compatible with the machine. Quick-Tach systems, such as the ones used by Deere-Hitachi excavators, play an important role in the speed and ease of changing attachments. The dimensions of these quick coupler systems must be exact to ensure a secure and functional connection between the machine and its attachments.
In this article, we will explore the details of the Deere-Hitachi Quick-Tach systems, focusing on common models such as the 35D, 27D, and others. We will delve into the dimensions of these systems, explain the importance of accuracy, and discuss common considerations when selecting and using these attachments for your excavator.
What is a Quick-Tach System?
A Quick-Tach (or quick coupler) system is an attachment mechanism that allows operators to quickly switch between different types of attachments—such as buckets, hydraulic breakers, and forks—without needing to manually remove bolts or pins. The Quick-Tach system is typically operated by hydraulic power and has a mechanical locking mechanism that ensures the attachment is securely in place during use.
For excavators like the Deere-Hitachi 35D, 27D, and others, the Quick-Tach system allows for seamless transitions between tasks, reducing downtime and improving productivity. However, for the system to function effectively, the dimensions and compatibility of the components must be accurate.
Common Models of Deere-Hitachi Quick-Tach Attachments
Deere-Hitachi excavators, especially the smaller models, like the 35D and 27D, often use a specific Quick-Tach system. Each model has its own attachment specifications, and it’s crucial to understand these dimensions before using attachments. Here are some of the most common models in the Deere-Hitachi line:

1. Deere 35D
   • Operating Weight: 7,500 lbs (approx.)

   • Quick-Tach Dimensions:
     • Pin diameter: 1.25 inches

     • Pin center distance: 5.5 inches

     • Overall width: 17.5 inches

     • Depth: 10.5 inches

     • Compatibility with attachments: Designed to be compatible with a variety of buckets and hydraulic tools

2. Deere 27D
   • Operating Weight: 6,000 lbs (approx.)

   • Quick-Tach Dimensions:
     • Pin diameter: 1.125 inches

     • Pin center distance: 4.5 inches

     • Overall width: 14 inches

     • Depth: 9 inches

     • Common attachments: Mini excavator buckets, compact forks, and augers

3. Deere 50D
   • Operating Weight: 11,500 lbs (approx.)

   • Quick-Tach Dimensions:
     • Pin diameter: 1.75 inches

     • Pin center distance: 6.25 inches

     • Overall width: 19 inches

     • Depth: 12 inches


1. Secure Attachment Locking: Accurate dimensions ensure that the locking mechanism of the Quick-Tach system properly engages with the attachment. If the coupler is too wide or too narrow, the attachment may not lock properly, which could result in unexpected detachment.

2. Maximized Efficiency: Quick-Tach systems are designed to improve efficiency by allowing operators to switch attachments swiftly. If the dimensions are wrong, it can lead to delays and increase the time spent on reinstallation or fixing attachment failures.

3. Preventing Equipment Damage: Misalignment or improperly sized Quick-Tach components can cause excessive wear on both the coupler and the attachment, leading to premature breakdowns and costly repairs. Ensuring the correct dimensions helps to maintain the longevity of the machine.

4. Safety: A loose or improperly installed attachment can be dangerous, causing potential harm to operators and those nearby. Ensuring the correct fit and locking mechanism helps minimize these risks.


1. Pin Diameter:
   • This refers to the size of the pin that holds the attachment in place. Measure across the center of the pin to get its diameter.

2. Pin Center Distance:
   • The distance between the centers of the two pins that hold the attachment. This measurement ensures that the attachment will fit into the coupler and lock securely.

3. Width:
   • The overall width of the Quick-Tach coupler. This ensures that the coupler can accommodate the attachment’s interface and lock it into place.

4. Depth:
   • The depth of the coupler's opening that holds the attachment. The depth should match the thickness of the attachment to ensure that the locking mechanism engages fully.

5. Attachment Compatibility:
   • Different attachments may have different pin center distances and pin sizes. Always verify the attachment’s specifications against the Quick-Tach system’s dimensions to ensure compatibility.


1. Misalignment: Over time, pins, couplers, or attachments can become misaligned due to wear and tear, which can prevent the system from functioning correctly. Periodic inspections and maintenance can help identify misalignment early.

2. Wear and Tear: Frequent attachment changes can lead to wear on the Quick-Tach system. If the coupler’s locking mechanism starts to wear down, it can lead to loose attachments or difficulty attaching the component.

3. Dirt and Debris: The Quick-Tach system can accumulate dirt, mud, and debris, especially when operating in muddy or wet conditions. This can cause the system to malfunction or make it difficult to attach or remove components.

4. Incompatibility: Using attachments that do not match the Quick-Tach system’s dimensions can cause operational issues or prevent proper attachment.


• Clean the system regularly, especially after working in dirty or muddy conditions, to prevent debris from interfering with the locking mechanism.

• Lubricate moving parts to reduce friction and prevent excessive wear on pins and couplers.

• Inspect for wear on pins, locking mechanisms, and couplers regularly. If any parts are worn down, they should be replaced to avoid attachment failure.

• Check attachment compatibility before changing attachments to ensure the system works properly with each component.




Introduction

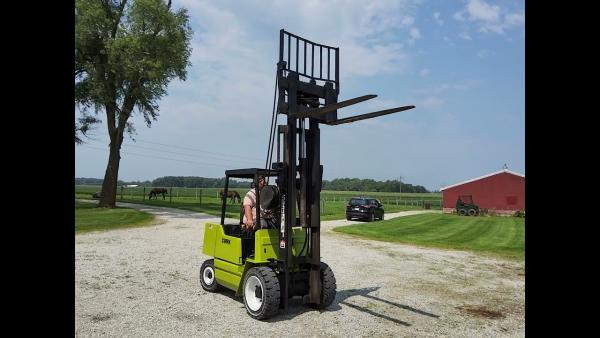

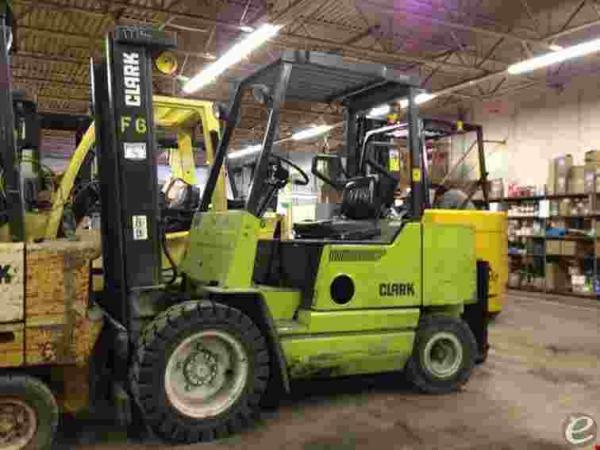

The Clark GPS30MB is a robust internal combustion forklift designed for heavy-duty applications. Manufactured by Clark Material Handling Company, a pioneer in forklift technology since the 1920s, the GPS30MB continues to serve industries worldwide with its reliability and performance.
Key Specifications

• Load Capacity: 6,000 lbs (2,722 kg)

• Fuel Type: LP Gas (Liquefied Petroleum Gas)

• Engine: 4-cylinder, approximately 60 HP

• Transmission: Automatic

• Tires: Pneumatic, 7.00-12 front and 6.00-9 rear

• Turning Radius: Approximately 84 inches (2,134 mm)

• Service Weight: Approximately 9,500 lbs (4,309 kg)

• Mast Type: Two-stage or three-stage options

• Fork Length: Varies based on configuration

• Production Years: 1988–1994


The Link-Belt 240 LX is a versatile and powerful piece of machinery that excels in various construction, excavation, and demolition tasks. However, like all heavy equipment, it can experience issues over time, especially if not maintained properly. Understanding the common problems associated with the 240 LX, the symptoms to watch for, and how to address them can ensure that the machine continues to operate at peak performance. In this article, we will dive into some of the more common issues owners and operators may face with this model and provide helpful tips on troubleshooting and maintenance.
Overview of the 2006 Link-Belt 240 LX
The Link-Belt 240 LX is a tracked excavator designed for a range of heavy-duty tasks, from digging to lifting and material handling. With a robust engine and efficient hydraulics system, the 240 LX offers a combination of power, precision, and versatility. Its main components include:

• Engine: Powered by a reliable diesel engine designed for maximum efficiency.

• Hydraulic System: Hydraulic systems are central to excavator performance, driving movement in the boom, arm, and bucket.

• Undercarriage: Tracks that offer stability and traction on various terrains.

• Cab: Operator-friendly design for ease of use and comfort during long hours of operation.


1. Hydraulic Issues
   • Symptom: Slow or erratic hydraulic functions, including issues with lifting or extending the boom, or a delayed bucket response.

   • Causes: Common causes of hydraulic issues include low fluid levels, contaminated hydraulic fluid, or a malfunctioning hydraulic pump. Leaks in hydraulic lines or seals can also lead to a loss of pressure, reducing performance.

   • Solution: Start by checking the hydraulic fluid levels. If fluid levels are low, replenish with the correct type of fluid as specified in the operator’s manual. Inspect hoses, valves, and seals for signs of wear or leaks. If the fluid appears contaminated, perform a fluid change and replace any filters.

2. Engine Overheating
   • Symptom: The engine temperature gauge rising into the red zone or the engine shutting down due to overheating.

   • Causes: Engine overheating can be caused by a blocked radiator, low coolant levels, or a malfunctioning thermostat. Clogged air filters can also restrict airflow, causing the engine to overheat.

   • Solution: Inspect the radiator and ensure that it is free from debris or blockages. Check the coolant level and top it up if necessary. If the thermostat is faulty, it should be replaced. Ensure that air filters are clean and not clogged.

3. Fuel System Problems
   • Symptom: Difficulty starting, rough idling, or loss of power during operation.

   • Causes: Fuel system issues are often caused by clogged fuel filters, a failing fuel pump, or contaminated fuel. In some cases, air in the fuel lines can also cause starting problems.

   • Solution: Start by replacing the fuel filter. If the issue persists, inspect the fuel pump and fuel injectors for any signs of wear or malfunction. If you suspect contaminated fuel, drain the fuel tank and replace it with fresh fuel.

4. Electrical Problems
   • Symptom: Electrical components, such as lights, gauges, or control systems, fail to operate correctly.

   • Causes: Electrical issues can be caused by a blown fuse, a loose or corroded connection, or a faulty alternator.

   • Solution: Inspect all fuses and replace any that are blown. Check the battery and alternator for signs of wear. Clean and tighten any loose connections. If electrical problems persist, inspect the wiring for damage or corrosion.

5. Undercarriage Wear
   • Symptom: Uneven track wear, excessive vibration, or difficulty moving across uneven terrain.

   • Causes: Track wear is often caused by improper tension or poor maintenance. Misalignment or lack of lubrication can cause excessive wear on the undercarriage components.

   • Solution: Regularly check the track tension to ensure it is within manufacturer specifications. Inspect the tracks for damage and replace any worn or damaged components. Lubricate the undercarriage as recommended by the manufacturer to reduce friction and wear.


1. Daily Inspections
   • Before starting the machine, conduct a daily inspection to check fluid levels (engine oil, hydraulic fluid, coolant), inspect for leaks, and ensure that the undercarriage is in good condition. Pay close attention to the condition of the tracks, boom, and bucket.

2. Regular Fluid Changes
   • The 240 LX requires periodic fluid changes for engine oil, hydraulic oil, and coolant. Follow the recommended intervals in the operator’s manual to ensure that the machine runs smoothly and efficiently. Always use the correct fluid type and grade specified by Link-Belt.

3. Track Maintenance
   • Properly maintain the tracks to prevent excessive wear and reduce the risk of costly repairs. Regularly check the track tension, inspect the sprockets and rollers for wear, and clean the tracks after working in muddy or dirty conditions.

4. Filter Replacements
   • Over time, air and fuel filters can become clogged with dirt and debris, affecting engine performance. Replace the filters at regular intervals to ensure optimal engine performance. It is also a good practice to clean or replace the hydraulic filters to prevent contamination of the hydraulic system.

5. Hydraulic System Care
   • Regularly check the hydraulic fluid levels and replace the fluid as needed. Hydraulic components are vital for the machine’s operation, and keeping them clean and well-maintained will prevent costly repairs. Inspect hydraulic hoses, seals, and cylinders for leaks and wear.


• Use Diagnostic Tools: Link-Belt excavators are equipped with diagnostic ports that allow you to connect diagnostic tools to read error codes. These codes can help pinpoint specific problems within the engine, hydraulic system, or electrical components.

• Check for Error Codes: If the machine’s computer system is displaying error codes, refer to the operator’s manual for a list of codes and their meanings. This can give you a head start in troubleshooting the issue.

• Consult the Operator’s Manual: The manual contains valuable information about maintenance schedules, part numbers, and troubleshooting steps for common issues. If you're unsure about how to proceed with a repair, the manual is an essential resource.


The Complexity Behind Excavator Weight Ratings
Excavator weight classification is more nuanced than it appears. While manufacturers often label machines by tonnage—such as “45-ton” or “30-ton” class—these figures are not always straightforward. They can refer to metric tons, long tons, or even rounded marketing categories. Additionally, the actual operating weight of an excavator can vary significantly depending on its configuration, attachments, and fuel load.
For example, a Caterpillar 345 may be marketed as a 45-ton machine, but its actual operating weight with a full tank, wide tracks, and a large bucket could exceed 50 U.S. tons. This discrepancy often leads to confusion when calculating transport permits, estimating ground pressure, or comparing models across brands.
Terminology Clarification
- Metric Ton (tonne): 1,000 kilograms or approximately 2,205 pounds.
- U.S. Ton (short ton): 2,000 pounds.
- Long Ton (Imperial ton): 2,240 pounds, used primarily in the UK.
- Operating Weight: The total weight of the machine including fuel, fluids, operator, and standard attachments.
- Base Machine Weight: The weight of the machine without attachments, fuel, or optional equipment.
Why Weight Classifications Vary
Several factors contribute to the variation in excavator weight classifications:

• Manufacturers often round numbers for marketing simplicity.

• Regional differences in ton definitions (metric vs. short vs. long).

• Optional equipment such as long arms, wide tracks, and heavy-duty buckets.

• “Book weight” often excludes fuel, mud, and real-world attachments.

• Permit calculations require precise weight, not nominal class.


• Always confirm whether the tonnage refers to metric, short, or long tons.

• Use certified scales or manufacturer documentation for transport planning.

• Add 8–12% to base weight for fuel, mud, and attachments when estimating.

• Include counterweights and auxiliary hydraulics in final weight calculations.


• Wide tracks increase ground contact and weight.

• Long sticks and booms add leverage and mass.

• Heavy-duty buckets can weigh 2,000–3,000 lbs alone.

• Hydraulic thumbs, couplers, and quick-attach systems add complexity.


• Maintain a log of actual machine weights with each configuration.

• Use load calculators when planning lifts or transport.

• Train operators to recognize how attachments affect stability and weight.

• Work with dealers to understand the full weight implications of optional features.


• Equip machines with onboard weight sensors for real-time data.

• Use modular counterweights to adjust balance and transport weight.

• Retrofit machines with digital load charts that reflect actual configuration.

• Implement fleet management software to track weight and configuration history.


Understanding the Safety Start System in the Case 580C
The Case 580C tractor-loader-backhoe (TLB), a staple of 1970s and early 1980s construction fleets, incorporates a safety start system designed to prevent engine cranking unless the transmission is in a neutral position. This system is centered around a neutral start switch, which acts as a gatekeeper between the ignition circuit and the starter solenoid. If the transmission is not in neutral, the switch interrupts the electrical path, preventing the engine from turning over.
This feature is critical not only for operator safety but also for preventing unintended machine movement during startup. Over time, however, the switch and its wiring can degrade, leading to frustrating no-start conditions even when the machine is properly positioned.
Terminology Clarification
- Neutral Start Switch: An electrical switch that allows starter engagement only when the transmission is in neutral.
- Starter Solenoid: A relay that engages the starter motor when energized.
- Power Shuttle: A hydraulic transmission system allowing smooth directional changes without clutching.
- Push Button Start: A manual switch used to energize the starter circuit.
Common Symptoms of Switch Failure
Operators encountering starter issues on the Case 580C often report that power reaches the push-button start switch but fails to energize the starter. This typically indicates a break in continuity caused by a faulty or misaligned neutral start switch.
Typical symptoms include:

• No crank when the start button is pressed

• Starter engages only intermittently

• Engine starts when bypassing the switch manually

• No voltage at the starter solenoid despite power at the ignition switch


• Trace the wiring from the ignition switch to the shuttle housing

• Look for a small cylindrical or rectangular switch with two wire terminals

• Check for corrosion, loose connectors, or physical damage


• Disconnect the wires from the switch

• Connect them directly using a jumper wire or terminal splice

• Ensure the transmission is in neutral before starting


• Inspect the neutral start switch annually for corrosion or wear

• Apply dielectric grease to connectors to prevent moisture intrusion

• Replace aging wiring with heat-resistant, vibration-rated cable

• Install a diagnostic LED inline to confirm switch continuity


• Retrofit a sealed switch with higher IP rating for moisture resistance

• Add a starter relay to reduce current load on the ignition circuit

• Use a keyed override system for added security and control


• In 2019, a construction worker in Pennsylvania was injured when a backhoe lurched forward during startup due to a bypassed safety switch.

• Manufacturers now include redundant interlocks to prevent such incidents, but older machines like the 580C rely on single-point safeguards.
