The Terex RT series, a powerful range of rough terrain cranes, is known for its ability to tackle difficult construction and industrial environments. However, working in harsh weather conditions often presents challenges that require additional solutions, such as maintaining a comfortable temperature in the operator's cab. A functional cab heater becomes a vital component in ensuring that operators can perform their duties effectively, even when faced with freezing temperatures or inclement weather. This article dives into the importance of a properly functioning cab heater for Terex RT cranes, discussing common issues, maintenance tips, and possible solutions.
Understanding the Terex RT Cab Heater
The cab heater in Terex RT cranes is designed to provide warmth and comfort for operators working in cold conditions. The system operates on the engine’s coolant, circulating warm air into the cab. This setup allows the operator to remain warm during winter operations, reducing the risk of cold stress or distraction, which can lead to accidents or reduced work efficiency.
How the System Works

• Coolant-based heating: The engine’s coolant is heated up as the engine runs, and a pump circulates the heated coolant through the cab heater’s core. The warm air is then blown into the cab via a fan system, providing comfort to the operator and ensuring they can maintain focus on their tasks.

• Thermostatic control: Most systems feature a thermostat that helps regulate the temperature inside the cab. The heater operates only when the engine reaches a certain temperature, ensuring that the operator gets warm air without draining engine power unnecessarily.

• Air circulation: The fan system inside the heater not only brings warm air but also ensures that the air in the cab circulates, preventing cold spots and helping to maintain an even temperature throughout the workspace.


• Low Coolant Levels: If the coolant level is low, the system may not generate enough heat. This can be caused by leaks in the radiator or the hoses connecting to the heater core.

• Clogged Heater Core: Over time, debris and rust particles can accumulate in the heater core, reducing its ability to transfer heat efficiently. This can result in less warmth being delivered to the cab.

• Faulty Thermostat: A malfunctioning thermostat may fail to regulate the temperature correctly, leading to inconsistent heating or no heat at all.


• Blown Fuse or Relay: Electrical issues such as a blown fuse or relay can interrupt the operation of the fan.

• Damaged Fan Motor: Over time, the fan motor can wear out, causing it to stop working altogether.


• Overheating Heater Core: An overheated heater core can emit a burning smell or smoke. This issue is usually caused by blocked coolant flow or insufficient coolant levels.

• Burnt Wiring: Damaged or burnt wiring inside the heater system can lead to smoke or unpleasant smells, indicating a need for repair or replacement.


• Ensure that the coolant level is topped up to the recommended level. Low coolant levels can result in inefficient heating and can cause the heater system to overheat or fail completely.


• Inspect the heater hoses and radiator for any signs of leaks or damage. Even small leaks can lead to coolant loss and cause the heater to perform poorly. If any leaks are found, repair or replace the affected parts promptly.


• Regularly check and clean the heater core to remove any accumulated debris or rust. This will help the heater core operate more efficiently and prevent blockages that can impede the flow of warm air.


• Periodically test the thermostat to ensure that it is functioning correctly. A faulty thermostat can result in inconsistent temperatures, either too hot or too cold, which can compromise operator comfort and safety.


• Check the fan motor and ensure that it is working properly. Clean the fan blades and make sure they are free from debris. If the fan motor is not working, inspect the electrical connections for blown fuses or relays that may need replacement.


• Over time, parts like fan belts, electrical wiring, or thermostats can wear out. Replace any worn or damaged parts as soon as possible to avoid system failure.


• Refill coolant to the proper level if it's low. Regularly monitor coolant levels, especially before the start of winter operations.

• Flush the heater core to clear any debris or buildup that may be blocking the flow of coolant.

• Replace the thermostat if it is faulty or not regulating the temperature correctly.


• Check the fuses and relays. Replace any blown fuses or malfunctioning relays to restore power to the fan system.

• Inspect the fan motor. If the motor is damaged, it may need to be replaced entirely to restore full functionality.


• Flush the coolant system to remove any blockages in the heater core.

• Check the wiring for any signs of burning or damage. If the wiring is compromised, it should be repaired or replaced as soon as possible.




The Case 580B backhoe loader, a staple in the construction and agricultural sectors, is renowned for its durability and versatility. However, like all machinery, it is susceptible to wear and tear, particularly in its steering system. This guide delves into common steering issues encountered with the 580B, diagnostic procedures, and step-by-step repair solutions.

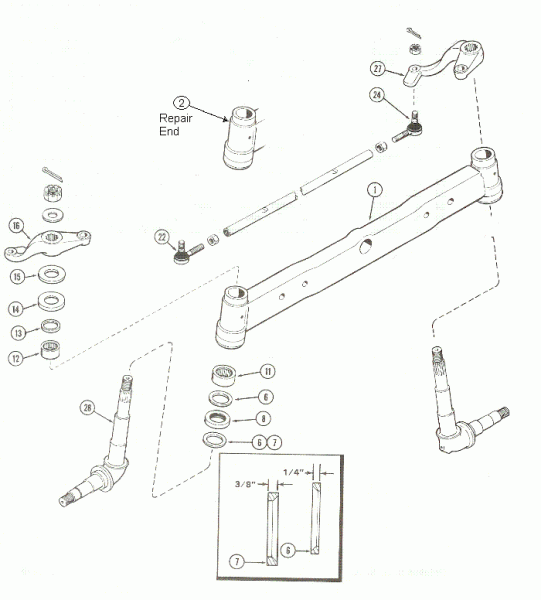

Understanding the Steering System
The Case 580B employs a hydraulic steering system, which is separate from the main hydraulic system. This design ensures that the steering mechanism operates independently, allowing for more precise control. The system comprises:

• Steering Pump: Located at the rear of the engine, this pump is responsible for supplying hydraulic fluid to the steering system.

• Steering Cylinders: Positioned at the front axle, these cylinders convert hydraulic pressure into mechanical force to turn the wheels.

• Steering Valve: This component directs the flow of hydraulic fluid to the appropriate side of the steering cylinders, facilitating left or right turns.


1. Steering Wheel Spins Freely Without Turning Wheels
   • Possible Causes:
     • Air trapped in the hydraulic system.

     • Low or contaminated hydraulic fluid.

     • Faulty steering pump.

     • Blocked or leaking hydraulic lines.

   • Diagnostic Steps:
     • Check the hydraulic fluid level and quality.

     • Inspect all hydraulic lines for signs of leaks or blockages.

     • Bleed the steering system to remove any trapped air.

     • Test the steering pump for proper operation.

2. Steering Jerks or Oscillates
   • Possible Causes:
     • Incorrect hose connections to the steering cylinders.

     • Malfunctioning steering valve.

     • Internal damage within the steering cylinders.

   • Diagnostic Steps:
     • Verify that all hoses are connected correctly, ensuring that the base of one cylinder is connected to the rod end of the opposite side.

     • Inspect the steering valve for signs of wear or damage.

     • Test the steering cylinders for internal leaks or damage.

3. Steering Operates Only When Front Wheels Are Off the Ground
   • Possible Causes:
     • Insufficient hydraulic pressure.

     • Worn or damaged steering components.

     • Air in the hydraulic system.

   • Diagnostic Steps:
     • Check the hydraulic fluid level and quality.

     • Inspect the steering pump for proper operation.

     • Bleed the steering system to remove any trapped air.

     • Inspect all steering components for signs of wear or damage.


1. Bleeding the Steering System
   • Steps:
     • Raise the front of the backhoe to lift the wheels off the ground.

     • Turn the steering wheel fully to the left, then to the right, and repeat several times.

     • Lower the front wheels and check the steering operation.

     • If the problem persists, repeat the bleeding process.

2. Replacing the Steering Pump
   • Steps:
     • Locate the steering pump at the rear of the engine.

     • Disconnect the hydraulic lines from the pump.

     • Remove the mounting bolts securing the pump.

     • Install the new pump and reconnect the hydraulic lines.

     • Test the steering operation.

3. Inspecting and Replacing Steering Cylinders
   • Steps:
     • Raise the front of the backhoe to lift the wheels off the ground.

     • Disconnect the hydraulic lines from the steering cylinders.

     • Remove the mounting bolts securing the cylinders.

     • Inspect the cylinders for signs of wear or damage.

     • Replace any faulty cylinders and reassemble the system.

     • Test the steering operation.


• Regularly check the hydraulic fluid level and quality.

• Inspect hydraulic lines for signs of wear or damage.

• Periodically bleed the steering system to remove any trapped air.

• Replace worn or damaged steering components promptly.


The Genie Z60/34 is a versatile and powerful articulating boom lift designed for use in construction, maintenance, and other heavy-duty applications where access to hard-to-reach areas is required. Known for its impressive reach and maneuverability, this model is part of Genie’s 60-foot class of boom lifts, offering operators the ability to elevate heavy equipment, tools, and personnel to significant heights with ease and precision.
Key Features and Specifications
The Genie Z60/34 is equipped with several features that make it one of the leading machines in its category. Below are its key specifications and capabilities:

1. Working Height: The Z60/34 provides a maximum working height of 66 feet (20.12 meters), allowing for safe and efficient access to elevated workspaces.

2. Horizontal Reach: With a horizontal reach of up to 34 feet (10.36 meters), the Z60/34 offers excellent coverage across expansive areas, which is particularly useful for large-scale construction or maintenance projects.

3. Lift Capacity: The lift has a maximum platform capacity of 500 pounds (227 kilograms), which is sufficient for a two-person crew and the necessary tools and materials.

4. Platform Rotation: The platform can rotate 160 degrees, which improves access to hard-to-reach locations and enhances the versatility of the machine.

5. Compact Design: Despite its impressive reach, the Genie Z60/34 has a compact design that allows it to maneuver easily in tight spaces, making it ideal for indoor or congested environments.

6. Tough Terrain Tires: Equipped with heavy-duty tires, the Z60/34 is designed to handle rough, uneven terrain, giving operators the confidence to use the lift in various outdoor conditions.

7. 4WD and Hydraulic Drive: This machine is powered by a 4-wheel-drive system, making it suitable for driving over rough ground. The hydraulic drive ensures smooth, efficient movement, particularly when navigating slopes or uneven ground.

8. High Ground Clearance: With a ground clearance of 12 inches (30.48 cm), the Z60/34 can easily pass over obstacles such as debris or construction materials.


1. Construction Sites: The lift is invaluable in construction projects for accessing elevated areas such as building facades, roofs, and high ceilings. Its versatility allows it to be used for framing, painting, roofing, and other construction tasks that require working at height.

2. Facility Maintenance: The Z60/34 is often used in facility maintenance, where workers need to access areas such as lights, HVAC units, windows, and other equipment located at significant heights.

3. Event Setup and Temporary Installations: For events such as festivals, concerts, or trade shows, the lift can be used to set up lighting, signage, and other equipment suspended at high points.

4. Industrial Applications: In warehouses and factories, the Z60/34 is useful for tasks that require workers to reach high storage areas, replace machinery parts, or perform maintenance on elevated infrastructure.

5. Landscaping and Tree Care: This lift is also ideal for tasks such as trimming tall trees, installing signage, and maintaining outdoor lighting.


1. Hydraulic System Issues: Hydraulic failures are one of the most common problems that boom lifts face. This can result in loss of lift or reach, and in extreme cases, cause the lift to become stuck in an elevated position. Regular inspection of hydraulic fluid levels and hoses is essential to ensure the system is functioning properly.

2. Electrical Issues: Electrical failures, such as issues with the battery or wiring, can cause the machine to stop operating. It is critical to ensure the battery is properly charged, the terminals are clean, and the wiring is free from wear or corrosion.

3. Tire Maintenance: The Genie Z60/34 is designed to handle tough terrain, but the tires can wear down quickly when the machine is used frequently on rough surfaces. Inspecting and maintaining the tires is important for ensuring safe operation, especially when operating in outdoor environments.

4. Platform Functionality: The platform’s rotation and extension mechanisms should be inspected regularly for smooth operation. Any unusual noises or jerky movements could indicate issues with the hydraulic or mechanical systems, which should be addressed promptly.

5. Weather Impact: The Genie Z60/34 is designed for use in various weather conditions, but extreme temperatures, especially freezing weather, can affect the functionality of the hydraulic system and battery life. Protecting the lift from extreme weather or storing it in a temperature-controlled environment when not in use can help extend its lifespan.


1. Proper Training: Ensure all operators are properly trained and certified in the use of boom lifts. Understanding the machine’s controls, capabilities, and limitations is essential for preventing accidents.

2. Pre-Operational Checks: Before each use, conduct a thorough pre-operation inspection. Check the hydraulic fluid, battery charge, tire pressure, and any other key components to ensure the lift is in good working condition.

3. Stabilizing the Lift: Always ensure the lift is on stable, level ground before raising it. If the terrain is uneven, use the machine’s stabilizers to prevent tipping or losing control.

4. Load Capacity Awareness: Do not exceed the weight limit of the platform. The Z60/34 can hold up to 500 pounds, but exceeding this weight can cause the lift to become unstable, resulting in accidents or machine failure.

5. Fall Protection: Always use personal protective equipment (PPE), including fall protection systems like harnesses when working at height. Although the Z60/34 provides a safe and stable platform, additional fall protection is critical for worker safety.

6. Avoid Overreaching: Ensure that the boom is not overextended, as this can lead to tipping or loss of control. Always stay within the recommended operational limits.


Maintaining the hydraulic system of your Caterpillar 650G dozer is crucial for ensuring optimal performance and longevity of the machine. This guide provides detailed instructions on locating and draining the hydraulic fluid, along with essential maintenance practices.
Locating the Hydraulic Fluid Drain Plug
The hydraulic fluid drain plug on the Caterpillar 650G dozer is typically located at the bottom of the hydraulic reservoir. To access it:

1. Position the Dozer: Ensure the machine is on level ground to facilitate proper drainage.

2. Lower Attachments: Lower all attachments to the ground to relieve pressure from the hydraulic system.

3. Shut Down the Engine: Turn off the engine and engage the parking brake to prevent any unintended movement.

4. Locate the Drain Plug: The drain plug is usually situated beneath the hydraulic reservoir. You may need to remove a protective cover or panel to access it.


1. Prepare for Fluid Collection: Place a suitable container beneath the drain plug to collect the old hydraulic fluid.

2. Remove the Drain Plug: Using the appropriate tools, carefully remove the drain plug and allow the fluid to drain completely.

3. Inspect the Fluid: Check the drained fluid for any signs of contamination or metal particles, which could indicate internal wear or damage.

4. Dispose of the Old Fluid: Properly dispose of the used hydraulic fluid in accordance with local environmental regulations.


1. Install the Drain Plug: Once the reservoir is empty, reinstall the drain plug securely.

2. Select the Appropriate Hydraulic Fluid: Refer to the Caterpillar 650G dozer's operation and maintenance manual for the recommended hydraulic fluid specifications. Using the correct fluid ensures optimal performance and longevity of the hydraulic components.

3. Fill the Reservoir: Add the new hydraulic fluid to the reservoir, monitoring the fluid level to avoid overfilling.

4. Check for Leaks: After filling, start the engine and operate the hydraulic system to check for any leaks around the reservoir and connections.


• Regular Fluid Checks: Periodically check the hydraulic fluid level and condition. Low or contaminated fluid can lead to reduced performance and potential damage.

• Filter Replacement: Replace hydraulic filters at the intervals specified in the operation and maintenance manual to prevent contamination and ensure efficient operation.

• System Flushing: If the hydraulic fluid appears contaminated, consider flushing the system to remove debris and prevent damage to components.

• Professional Inspection: For complex issues or if you're unsure about performing maintenance tasks, consult a certified Caterpillar technician for assistance.


Steel rims are a crucial component of construction vehicles, trucks, and heavy machinery, playing an essential role in ensuring that tires are securely mounted and capable of withstanding the weight and pressure of the equipment. Over time, however, steel rims can become damaged, which may lead to issues such as wheel misalignment, tire wear, or even unsafe driving conditions. Proper repair techniques are critical to restoring the functionality of these rims and ensuring the longevity of the tires and vehicle. In this article, we'll explore the common causes of damage to steel rims, the repair process, and some key tips for maintaining them.
Common Causes of Steel Rim Damage
Steel rims are durable, but they are not immune to damage. Several factors can lead to issues with the rims over time, often resulting from the challenging conditions that construction vehicles and heavy machinery operate in. Below are the most common causes of steel rim damage:

1. Impact Damage:
   • One of the most common causes of damage to steel rims is impact from external forces. This could be the result of hitting curbs, potholes, rocks, or other obstacles on construction sites or rough terrain. These impacts can cause bends, cracks, or even full breaks in the rim.

2. Corrosion:
   • Over time, steel rims can rust due to exposure to moisture, salt, or chemicals in the environment. Corrosion weakens the rim, potentially leading to structural failure if left untreated. This is especially common in areas where road salt is used during the winter months.

3. Overloading:
   • When a vehicle or equipment is overloaded beyond its recommended weight capacity, it places excessive stress on the rims. This can cause them to bend or warp over time. For construction vehicles, this is a critical issue, as overloading can occur frequently in high-demand tasks.

4. Improper Maintenance:
   • Failing to properly maintain the wheels, including tire pressure and alignment, can contribute to uneven stress on the rims. Under-inflated tires, for instance, can cause additional friction and strain on the rims, eventually leading to deformation.

5. Wheel Misalignment:
   • Misalignment in the wheel hub can cause the rim to experience uneven wear, leading to cracking or bending. This issue often occurs when the vehicle has been in an accident or has undergone rough handling during operation.


• Tip: Use a magnifying glass or a flashlight to closely inspect for hairline cracks or small punctures that may not be immediately visible.


• Tip: Clean the rim in a well-ventilated area and wear gloves to avoid skin irritation from chemicals.


• Note: If the rim is severely damaged (e.g., cracks larger than 1/2 inch), it may be better to replace the rim entirely rather than attempting a repair.


• Recommendation: Avoid welding over areas where the rim is severely corroded, as the weakened material may not provide a secure weld.


• Solution: When reinforcing the rim, ensure the added steel is properly aligned and welded to ensure even distribution of weight.


• Tip: Always balance the rim after it has been repaired to maintain the longevity of both the wheel and the tire.


• Recommendation: Ensure that the paint is applied evenly and covers all exposed metal surfaces.


1. Regular Inspections:
   • Regularly inspect the rims for signs of wear, cracks, or corrosion. Catching problems early will prevent more costly repairs down the road.

2. Proper Maintenance:
   • Keep the tires properly inflated and ensure that they are properly aligned. Overloading or under-inflated tires put unnecessary stress on the rims, leading to premature damage.

3. Use the Right Equipment:
   • For construction vehicles operating in rough terrain, make sure you’re using wheels that are designed to handle the specific conditions of your job site. Steel rims are a great option for many applications, but they may need to be swapped for stronger alloys in particularly harsh environments.

4. Timely Repairs:
   • Address any issues with the rims as soon as they arise. Small cracks or bends may seem minor, but they can quickly escalate into major problems if left untreated.


When it comes to heavy-duty machinery used in construction, few pieces of equipment are as crucial to earth-moving tasks as the bulldozer. Among the vast array of bulldozers on the market, the Terex TS-24 stands out for its design and versatility. This particular model, often used in applications ranging from general construction to more specific tasks like pond creation, is a powerful tool capable of managing challenging terrains and tasks that require precision and durability.
This article dives into the capabilities of the Terex TS-24, particularly its value and performance for a pond construction project. We'll explore its specifications, its strengths and weaknesses, and how to maximize its use in different types of construction environments.
Understanding the Terex TS-24 Bulldozer
The Terex TS-24 is part of the Terex line of bulldozers known for their impressive power, reliable performance, and longevity in heavy-duty construction. The TS-24, in particular, has earned recognition for its robust design that allows it to tackle tasks ranging from land clearing to pond excavation.
Key Specifications of the Terex TS-24

1. Engine Power:
   • The Terex TS-24 is equipped with a strong engine, often ranging in horsepower between 200-300, which provides the necessary power for earth-moving tasks. With this kind of horsepower, the TS-24 can easily handle tough soils, dense vegetation, and the demands of pond digging.

2. Blade Capacity:
   • The bulldozer is fitted with a large blade capable of pushing significant volumes of dirt and debris. For pond construction, a large blade is essential for creating the correct slopes and ensuring that earth is moved efficiently from one location to another.

3. Weight:
   • The TS-24 typically weighs between 35,000 to 45,000 pounds. This weight gives it the necessary stability to maintain traction even in challenging conditions. The added weight helps the machine push through tough terrains without losing control.

4. Track System:
   • It’s equipped with heavy-duty tracks that allow the machine to operate effectively in wet and soft conditions—ideal for pond construction projects where muddy or marshy land is common.

5. Hydraulic System:
   • The hydraulic system is one of the core features that sets the TS-24 apart from other bulldozers. Its hydraulics enable precise control over the blade, making it easier for the operator to perform detailed work such as leveling land or digging a pond to the desired depth.


• Solution: For effective excavation, ensure that the bulldozer has the proper angle and blade setting to ensure an even, well-graded basin. Using the machine for step-by-step excavation ensures you achieve the required shape and volume.


• Recommendation: If working in soft soil, consider reinforcing the embankments with additional materials, such as clay, to prevent erosion. Additionally, using the TS-24's precision hydraulic system will help shape the embankment with the correct slope.


• Solution: Use the bulldozer in conjunction with a root rake or winch to pull up stubborn vegetation or large rocks. Once the area is clear, use the bulldozer's blade to level the ground.


• Recommendation: If the ground is particularly soft, ensure that the bulldozer's tracks are maintained regularly to prevent any issues with traction. Additionally, using the bulldozer to move earth in a sequence will help to avoid creating deep ruts that could become problematic when the equipment is moving in and out of the pond area.


• Recommendation: When estimating project costs, account for the fuel efficiency and the estimated maintenance costs over the life of the equipment. Factor in the cost of any attachments that may be needed for specialized tasks, like land clearing or finishing work.


• Recommendation: If you plan on using the bulldozer for additional projects beyond pond construction, make sure to factor in the long-term maintenance and storage costs. Regular servicing and storage in a dry, safe environment will extend its service life.


Introduction
Trailer stake pockets are integral components in flatbed and utility trailers, serving as versatile anchor points for securing cargo. These pockets facilitate the attachment of various accessories, such as stakes, D-rings, winches, and rub rails, enhancing the trailer's functionality and load security. Understanding the design, installation, and optimal usage of stake pockets is essential for ensuring safe and efficient transportation of goods.
Design and Dimensions
Stake pockets are typically fabricated from durable materials like galvanized steel to withstand the rigors of hauling. The standard dimensions for stake pockets are as follows:

• Standard Stake Pockets: Approximately 3-1/2" wide x 1-1/2" high x 2-1/2" to 3" deep.

• Oversized Stake Pockets: Around 4" wide x 2" high x 2-1/2" to 3" deep.

• Mini Stake Pockets: About 2" wide x 1" high x 2" deep.


• Welding: Provides a permanent and robust attachment, suitable for trailers subjected to heavy-duty use.

• Bolting: Allows for flexibility and easier replacement of damaged pockets, ideal for lighter-duty applications.


• Tie-Down Applications: Place pockets closer together to provide multiple anchor points for securing cargo.

• Stake Wall Applications: Space pockets approximately 3 to 4 feet apart to support vertical stakes effectively.


• D-Ring Tie-Downs: Removable D-rings can be inserted into stake pockets to provide secure anchor points for straps or chains.

• Winch Mounts: Stake pockets can accommodate winch mounts, facilitating the loading of vehicles onto the trailer.

• Rub Rails: Installing rub rails along the trailer's sides provides additional tie-down points and protects the trailer's sides from damage.

• Spare Tire Mounts: Some stake pockets are designed to hold spare tire mounts, optimizing space utilization.


• Inspection: Regularly check for signs of wear, rust, or damage.

• Cleaning: Remove debris and corrosion to maintain optimal performance.

• Lubrication: Apply appropriate lubricants to moving parts to prevent seizing.


• Weight Distribution: Ensure even distribution of cargo to prevent overloading any single tie-down point.

• Secure Fastening: Always use appropriate hardware and techniques to secure accessories to stake pockets.

• Load Limits: Adhere to the trailer's specified load limits to prevent structural damage.


Introduction
The John Deere 750C Series II dozer is a robust machine renowned for its performance in various heavy-duty applications. However, like all complex machinery, it can encounter issues that require systematic troubleshooting. This guide provides an in-depth look into common problems faced by operators of the 750C Series II dozer, offering diagnostic steps, potential solutions, and preventive measures to ensure optimal performance.
Common Issues and Diagnostic Steps

1. Transmission Slipping Under Load
   Symptom: The dozer operates normally under light loads but experiences slipping when pushing heavy material.
   Diagnostic Steps:
   • Check Transmission Fluid: Ensure the fluid level is adequate and the fluid is clean.

   • Inspect for Leaks: Look for signs of fluid leaks around the transmission area.

   • Examine Filters: Clogged filters can restrict fluid flow, leading to slipping.

   • Inspect Belts and Pulleys: Worn or damaged belts and pulleys can affect power transfer.

   Potential Solutions:
   • Replace Filters: Install new filters to ensure proper fluid flow.

   • Repair Leaks: Address any identified leaks promptly.

   • Replace Worn Components: Install new belts and pulleys as needed.

2. Fault Code F657 – Transmission Speed Control Sensor
   Symptom: The dozer exhibits sluggish movement, especially after warming up, accompanied by fault code F657.
   Diagnostic Steps:
   • Check Sensor Connections: Ensure the sensor is properly connected and free from corrosion.

   • Inspect Sensor Alignment: Verify that the sensor is correctly aligned with the target.

   • Test Sensor Functionality: Use diagnostic tools to test the sensor's output.

   Potential Solutions:
   • Clean or Replace Sensor: If the sensor is faulty, clean or replace it.

   • Check Wiring Harness: Inspect the wiring harness for damage or wear.

3. Erratic Steering Behavior
   Symptom: The dozer occasionally steers to the right unexpectedly, even when the steering controls are centered.
   Diagnostic Steps:
   • Inspect Steering Components: Check for wear or damage in the steering linkage and hydraulic components.

   • Check Hydraulic Fluid: Ensure the hydraulic fluid is at the correct level and in good condition.

   • Test Steering Valve: Use diagnostic tools to test the steering valve's operation.

   Potential Solutions:
   • Replace Worn Components: Install new steering components as needed.

   • Flush Hydraulic System: Flush the hydraulic system to remove contaminants.

4. Inaccurate RPM Readings
   Symptom: The dozer's tachometer displays incorrect RPM readings.
   Diagnostic Steps:
   • Check Sensor Connections: Ensure the RPM sensor is properly connected and free from corrosion.

   • Inspect Sensor Alignment: Verify that the sensor is correctly aligned with the target.

   • Test Sensor Functionality: Use diagnostic tools to test the sensor's output.

   Potential Solutions:
   • Clean or Replace Sensor: If the sensor is faulty, clean or replace it.

   • Check Wiring Harness: Inspect the wiring harness for damage or wear.


• Regular Fluid Checks: Periodically check all fluid levels and top off as necessary.

• Scheduled Filter Replacements: Replace filters at intervals recommended by the manufacturer.

• Component Inspections: Regularly inspect belts, pulleys, and other components for signs of wear.

• Wiring Inspections: Check wiring harnesses for signs of wear or damage.

• Diagnostic Scans: Use diagnostic tools to regularly check for fault codes and address issues promptly.


Introduction
Viscous fan clutches are integral components in automotive cooling systems, particularly in older vehicles and heavy-duty trucks. They regulate the engine's cooling fan speed, engaging it when necessary to maintain optimal engine temperatures. Understanding the proper installation and removal procedures for threaded viscous fan clutches is essential for mechanics and DIY enthusiasts to ensure efficient engine cooling and prevent potential damage.
Understanding the Viscous Fan Clutch
A viscous fan clutch operates based on the principle of viscosity. It contains a silicone fluid that thickens when heated, causing the clutch to engage and drive the fan. This mechanism allows the fan to spin faster when the engine temperature rises, enhancing cooling efficiency. Conversely, when the engine is cool, the fluid's viscosity decreases, disengaging the fan to reduce engine load and improve fuel efficiency.
Installation Procedure

1. Preparation: Before beginning the installation, ensure the engine is off and has cooled down. Disconnect the battery to prevent any accidental starts.

2. Fan Blade Inspection: Examine the fan blades for any signs of damage, such as cracks or chips. Damaged blades can cause vibrations and should be replaced before proceeding.

3. Attaching the Clutch to the Fan: Most viscous fan clutches are secured to the fan blades using bolts. The typical torque specifications for these bolts are:
   • 5/16"-18 x 5/8" bolts: Torque to 15-18 ft-lb (20-24 Nm)

   • 10mm x 1.5 x 13mm bolts: Torque to 15-18 ft-lb (20-24 Nm)

   • 6mm x 1.0 x 13mm bolts: Torque to 10-12 ft-lb (13-16 Nm)

   It's crucial to avoid over-tightening these bolts, as it can strip the threads on the fan clutch.

4. Installing the Clutch Assembly: Once the fan is securely attached to the clutch, position the entire assembly onto the water pump shaft. Ensure that the clutch is properly aligned and seated.

5. Securing the Clutch: Thread the clutch onto the water pump shaft. Depending on the vehicle, the threads may be left-hand or right-hand. Typically:
   • Left-hand threads: Turn clockwise to tighten

   • Right-hand threads: Turn counterclockwise to tighten

   Use a specialized fan clutch tool to hold the pulley in place while tightening the clutch. This tool is designed to prevent the pulley from rotating during the installation process.

6. Final Tightening: Using a torque wrench, tighten the clutch to the manufacturer's specified torque settings. For example, Hayden Auto recommends the following torque specifications for various hex sizes:
   • 1.40" (36mm) hex: Torque to 65-75 ft-lb (85-100 Nm)

   • 1.57" (40mm) hex: Torque to 80-90 ft-lb (105-120 Nm)

   • 1.88" (47mm) hex: Torque to 83-113 ft-lb (113-153 Nm)

   • 1-1/4"-18 thread: Torque to 77-83 ft-lb (90-112 Nm)


1. Preparation: As with installation, ensure the engine is off and has cooled down. Disconnect the battery to prevent any accidental starts.

2. Accessing the Fan Assembly: Depending on the vehicle, you may need to remove the fan shroud or other components to gain access to the fan clutch assembly.

3. Loosening the Clutch: To remove the clutch, you need to loosen it from the water pump shaft. Depending on the thread direction:
   • Left-hand threads: Turn counterclockwise to loosen

   • Right-hand threads: Turn clockwise to loosen

   If the clutch is difficult to remove, applying penetrating oil to the threads can help loosen any corrosion or debris.

4. Using Specialized Tools: In some cases, a fan clutch removal tool may be necessary. This tool is designed to grip the clutch securely, allowing you to apply the necessary force to remove it without damaging surrounding components.

5. Removing the Clutch Assembly: Once the clutch is loosened, carefully remove it from the water pump shaft. Be cautious not to damage the radiator or other components during this process.


• Stubborn Clutch Removal: If the clutch is difficult to remove, applying penetrating oil to the threads can help loosen any corrosion or debris. Allow the oil to sit for several minutes before attempting to remove the clutch again.

• Thread Damage: If the threads on the water pump shaft or fan clutch are damaged, they may need to be repaired or replaced. Using a thread repair kit can help restore damaged threads.

• Incorrect Thread Direction: Always verify the thread direction before attempting to remove or install the fan clutch. Incorrect handling can lead to cross-threading or damage to the components.


The parking brake system of heavy equipment like the 1991 Morooka crawler is essential for safety and operational efficiency. A malfunctioning parking brake not only creates operational difficulties but also poses a significant risk to the safety of the machine and the operator. This article will explore the common issues with the parking brake in the 1991 Morooka, how to identify problems, and suggest ways to solve them.
The Importance of Parking Brakes in Crawler Equipment
Parking brakes in heavy machinery, especially in track-type vehicles like the Morooka, are designed to prevent the machine from rolling when parked, even on inclined surfaces. Unlike conventional trucks or cars, which use traditional wheel brakes, crawlers use different braking mechanisms that are integrated into the transmission or the final drive system. This system is crucial for ensuring that the machine remains stationary when not in operation, especially when working on uneven or sloped terrains.
Common Parking Brake Issues in the 1991 Morooka Crawler

1. Brake Slippage or Failure to Hold Position
   One of the most common issues reported with the parking brake system in the 1991 Morooka is brake slippage. In this case, the crawler may not stay stationary on an incline after the brake is engaged, leading to unintended movement. This problem could stem from various sources, including:
   • Worn brake pads or linings: Over time, the brake pads can wear out, reducing their ability to create the necessary friction.

   • Hydraulic system issues: In hydraulic parking brake systems, a loss of hydraulic pressure could cause the brake to fail.

   • Damaged parking brake cables or linkages: If the mechanical components that engage the brake system are worn, loose, or damaged, the parking brake may not engage fully.

2. Brake Drums or Discs Overheating
   If the parking brake is applied for too long or improperly adjusted, the brake drums or discs can overheat. This issue can lead to brake fade, where the braking performance diminishes, and in severe cases, complete brake failure. Signs of overheating may include:
   • Burning smells: If the brakes are too hot, they may emit a burnt odor.

   • Decreased braking performance: As the brake components overheat, the efficiency of the parking brake reduces, causing it to lose its holding ability.

3. Brake Fluid Leaks
   Hydraulic parking brake systems, such as the one on the Morooka crawler, rely on fluid to operate. If there are leaks in the brake lines or seals, the system may not generate the necessary pressure to engage the brake properly. This could lead to:
   • Inconsistent braking force: The brake may fail to engage fully, or it may engage inconsistently, leading to erratic behavior of the crawler when parked.

   • Low brake fluid levels: If fluid levels drop significantly, the parking brake will lose functionality entirely, making it unsafe to park the machine.

4. Contaminated Brake Fluid
   Brake fluid contamination is another common issue that can affect the performance of the parking brake. Contaminants, such as dirt, water, or metal particles, can enter the hydraulic system, degrading the fluid's effectiveness. Contaminated brake fluid can lead to:
   • Corrosion of brake components: Metal particles can cause wear on the seals, valves, and cylinders.

   • Reduced hydraulic pressure: Contaminated fluid may reduce the ability of the hydraulic system to generate sufficient pressure, affecting the brake's performance.


1. Inspect Brake Pads and Linings
   First, inspect the brake pads or friction linings for wear. If the linings appear worn down or damaged, replacing them is necessary. Make sure to check the manufacturer’s specifications for the correct type and size of pads to use.

2. Check Hydraulic System
   If the parking brake relies on hydraulic pressure, inspect the hydraulic lines for any leaks or damage. Check the hydraulic fluid levels, and top them up if necessary. Also, examine the brake cylinders and valves for signs of wear or corrosion.

3. Test the Brake Engagement
   With the machine off, manually engage the parking brake and check for smooth operation. If the brake does not engage fully, it could be an issue with the cables or linkages. Tighten any loose components and replace any worn-out parts.

4. Inspect the Brake Drums/Discs
   Examine the brake drums or discs for signs of overheating or damage. If they are excessively worn or warped, replacing them is essential. Additionally, clean the brake components thoroughly to remove any contaminants.

5. Examine Brake Fluid for Contamination
   If the parking brake is hydraulic, inspect the brake fluid for signs of contamination. If the fluid appears cloudy or contains debris, flush the entire system and replace the fluid.


1. Regular Brake Inspections: Inspect the brake pads, drums, and hydraulic lines at regular intervals. Catching wear early can prevent more severe damage down the line.

2. Fluid Changes: Change the hydraulic brake fluid at the intervals specified in the owner’s manual. This ensures that the fluid remains clean and effective.

3. Grease and Lubricate Components: Lubricate the parking brake mechanism to prevent wear on moving parts. This includes the cables, linkages, and hydraulic pistons.

4. Monitor Brake Performance: Regularly test the parking brake system to ensure it is functioning properly. If you notice any slippage or failure to hold, address the issue promptly.

5. Operate Correctly: Ensure that the parking brake is only engaged when the machine is completely stopped. Avoid keeping the parking brake engaged for extended periods, especially when the machine is in use.


1. Brake Pad or Lining Replacement: If the brake pads or friction linings are worn or damaged, replace them with OEM (Original Equipment Manufacturer) parts to ensure compatibility and performance.

2. Hydraulic System Repair: If there are leaks or pressure issues in the hydraulic system, replace the damaged hydraulic lines, seals, or valves. Refill the system with the correct hydraulic fluid to restore proper function.

3. Brake Drum/Disc Replacement: If the drums or discs are warped or excessively worn, replace them with new ones. Ensure they are correctly installed and aligned.

4. Fluid Flush and Replacement: If the brake fluid is contaminated, flush the system completely and refill it with fresh, high-quality brake fluid. This will prevent damage to the brake components and restore full braking efficiency.
