The Case 580CK Construction King backhoe was introduced in the mid‑1960s as part of Case’s early backhoe loader lineup. Case, founded over a century ago and a pioneer in agricultural and construction equipment, expanded into backhoe loaders in 1957 and went on to sell hundreds of thousands of units worldwide over subsequent decades. The 580CK, like its successors, combined a front loader and rear backhoe on a utility tractor chassis, making it a versatile machine on farms, construction sites, and road projects. These older machines often have simple, rugged mechanical shuttles and gearboxes, but decades of use can expose wear in critical drivetrain components.
The symptom discussed here — difficulty engaging forward with grinding noises and a tendency to pop out of gear while reverse works fine — is classic of drivetrain wear or linkage issues, particularly in the forward/reverse transmission path. Understanding what components are involved, how they wear, and how to inspect them can help owners and technicians diagnose and repair the problem without undue guesswork.
Symptoms and Initial Clues
Owners of vintage 580CKs have reported that:

• The machine makes an awful grinding sound when attempting to engage forward gear.

• It can take many tries (sometimes 10–20 attempts) before forward gear engages at all.

• Once engaged, forward sometimes pops out of gear under load or during clutch engagement.

• Reverse operates normally and reliably.


• Main gearbox gears — delivers torque to wheels.

• Shuttle box or reverser gear cluster — physically switches the direction of gear engagement between forward and backward.

• Shift forks and linkage — move gears into position and lock them.

• Synchronizers (if equipped) — though rare on very old machines like a ’67 580CK, some later transmissions used them; worn synchronizers can cause grinding when selecting gear.


• Fluid Service: Change gearbox and shuttle oil at regular intervals. Clean oil with metal particle inspection helps detect early wear.

• Linkage Check: Periodically tighten and inspect linkage fasteners to prevent free play.

• Operator Technique: Engage forward gently and ensure full clutch engagement before applying load; avoid forcing the shifter under heavy load, as this accelerates gear and fork wear.


• Shuttle Box: A mechanical unit that reverses the direction of power from the gearbox by selecting forward or reverse gear clusters.

• Shift Fork: A protruding metal arm that physically engages gears by sliding collars over gear splines.

• Roll Pin: A small metal pin that holds components like shift forks on shafts; integral to precise movement.

• Gear Teeth Profile: The shape and size of individual teeth on gears; wear changes the profile and prevents proper meshing.


The Komatsu PC210‑10 excavator represents a generation of electronically managed hydraulic systems where precision control of pump displacement is essential for fuel efficiency, responsiveness, and emissions compliance. At the center of this control system is the swash plate sensor, a component that monitors the angle of the hydraulic pump’s swash plate and provides real‑time feedback to the machine’s controller. When this sensor malfunctions, the excavator may lose power, behave unpredictably, or trigger diagnostic codes. This article explains the working principles of the swash plate sensor, outlines practical testing methods, and provides broader context on Komatsu’s hydraulic system evolution, supported by industry stories and technical insights.

Komatsu PC210‑10 and the Evolution of Pump Control
Komatsu introduced the Dash‑10 series as part of its effort to reduce fuel consumption while improving hydraulic precision. The PC210‑10 features:

• Electronically controlled, variable‑displacement axial piston pumps

• Closed‑loop feedback between pump angle sensors and the machine controller

• Optimized engine‑pump matching for lower fuel burn

• Advanced ECO modes and load‑sensing logic


• Swash Plate
  A tilted plate inside an axial piston pump that determines piston stroke length and therefore pump output flow.

• Linear Position Sensor
  A device that converts mechanical movement into an electrical signal. It may be based on potentiometer, Hall‑effect, inductive, or magnetostrictive technology.

• Signal Voltage
  The output voltage sent to the controller, typically ranging from 0.5 to 4.5 volts depending on stroke position.

• 5V Reference
  A stable voltage supplied by the controller to power sensors.


• Hall‑effect elements

• Non‑contact magnetic position tracking

• Internal electronics that require a 5V supply

• Signal conditioning circuits


• A stable 5V DC power supply

• A digital multimeter capable of reading low‑voltage signals


• Pin A: 5V supply

• Pin B: Ground

• Pin C: Signal output


• Supply 5V to pin A and ground to pin B

• Connect the multimeter between pin C (signal) and pin B (ground)

• Manually push the sensor’s actuator rod

• Observe the voltage change


• Smooth, linear voltage change

• No sudden jumps or dead spots

• A typical range of approximately 0.5–4.5V


• Internal wear of the sensing element

• Moisture intrusion

• Broken internal solder joints

• Magnetic element degradation

• Connector corrosion


• Sealed connectors with improved water resistance

• Vibration‑resistant mounting designs

• Redundant signal validation in the controller

• Diagnostic codes that detect abnormal voltage patterns


• Inspect wiring harnesses for abrasion

• Verify connector pins are clean and tight

• Ensure the 5V reference supply is stable

• Confirm no hydraulic oil contamination has reached the sensor


• Always test under voltage, not resistance

• Move the actuator slowly to detect dead spots

• Compare readings with the machine’s second pump sensor if available


• Use OEM parts to ensure correct voltage scaling

• Reset fault codes after installation

• Perform a pump calibration if the machine requires it


• Avoid pressure washing directly at the pump

• Inspect connectors during routine maintenance

• Replace brittle harness clips to prevent vibration damage


Removing a brake drum on a Galion motor grader or similar heavy equipment is a task that combines mechanical know‑how, patience, and safety awareness. Galion’s history as a manufacturer of road graders and industrial machinery stretches back over a century, with roots in early 20th century America when motorized earthmoving equipment began replacing horse‑drawn scrapers. Galion machines are known for solid construction, longevity, and field‑repairability, qualities that endear them to contractors who often keep units running for decades. A proper brake drum removal procedure not only facilitates maintenance of the braking system but also prevents costly damage to wheel bearings, hubs, and hydraulic components.
Brake Drum Function and Wear
The brake drum on heavy equipment is a large rotating component attached to a wheel hub that provides a friction surface for brake shoes or pads. On heavy graders, brake drums must absorb and dissipate enormous kinetic energy—often measured in tens of kilowatts—especially on downhill grades or during heavy load shifts. Over time, thermal cycling, brake shoe wear, heat distortion, and corrosion can make the drum difficult to remove. Dimensions vary by model, but a typical brake drum on a medium grader can weigh between 60 kg and 120 kg, with diameters from 400 mm to over 700 mm depending on tire size and axle rating. Regular inspection of drum thickness, run‑out (measured in millimeters), and surface condition is critical. Excessive wear often warrants machining or replacement.
Safety Preparation
Before beginning brake drum removal, secure the machine on a flat, level surface. Engage the parking brake, chock wheels opposite the work side, and shut down the engine. Heavy equipment brake systems can contain residual hydraulic pressure; always relieve system pressure according to manufacturer’s guidelines before disassembly. Personal protective equipment (PPE) such as safety glasses, gloves, steel‑toe footwear, and hearing protection is recommended. A heavy duty jack or support stand rated for the grader’s weight should be used to support the wheel assembly once the drum is loosened.
Tools and Equipment Needed
A variety of hand and power tools are typical for brake drum removal:

• Impact wrench with appropriate sockets (metric sizes common)

• Breaker bar for stubborn fasteners

• Drift punch or slide hammer for drum seating interference

• Torque wrench for reassembly to specification

• Penetrating oil for rusted or tight parts

• Wire brush and scraper for cleaning contact surfaces

• Safety stands and hydraulic jack rated to machine weight


1. Wheel and Lug Nut Removal: Loosen lug nuts while the wheel is on the ground; then lift the machine at a designated jacking point and remove the wheel to expose the brake drum and hub assembly. Always follow axle rating and jack capacity guidelines—exceeding these can lead to catastrophic failure.

2. Inspect Brake Components: Before pulling the drum, inspect the brake shoes, springs, linkage, and wheel bearings for obvious damage. Photograph or sketch linkage orientation for accurate reassembly.

3. Release Retaining Hardware: Brake drums may be held by retaining bolts, clips, or tabs on the hub flange. Use penetrating oil on these fasteners and allow dwell time to reduce the risk of breakage.

4. Drum Separation: With retaining hardware removed, the drum may still bind due to corrosion or heat expansion. Gentle tapping on the periphery with a soft mallet or using a slide hammer can help break the seal. Avoid prying on friction surfaces or bearing races. If a hub puller is necessary, select one sized for the drum diameter and center the pull force to avoid bending.

5. Inspect Bearings and Seals: Once the drum is off, inspect wheel bearings and seals for wear, pitting, or contamination. Bearings operating under heavy load show signs of brinelling or flaking; replacement in matched sets is often recommended to ensure longevity.

6. Clean and Prepare for Reassembly: Wire brush mating surfaces, remove rust, and verify that the replacement drum or the original line bore is within tolerance. Brake drums often have wear limits stamped or printed; do not reuse if below minimum thickness.


• Brake Drum: A rotating metal cylinder attached to the wheel hub that provides a surface for brake shoes to clamp against and slow rotation.

• Run‑out: The amount of axial wobble in a rotating drum, measured in millimeters or thousandths of an inch; excessive run‑out causes vibration and uneven wear.

• Penetrating Oil: A low‑viscosity fluid used to seep into tight spaces and loosen rusted or seized fasteners.

• Slide Hammer: A tool that applies impact force to pull components like drums or bearings without twisting.

• Bearing Race: The hardened steel surface on which bearing rollers or balls run; damage here requires precise replacement.


• Mark the orientation of parts with chalk or paint before disassembly to ensure correct reassembly.

• Torque lug nuts in a criss‑cross pattern upon wheel reinstallation to distribute load evenly.

• If drums are machined for resurfacing, ensure the machine shop respects the original balance to avoid vibration issues at operating speeds.

• Document measurements such as bearing preload and drum diameter before removal; this helps verify post‑service conditions.


Digital transformation has reshaped how equipment owners and technicians access parts information. While online catalogs promise convenience, updates to these systems often introduce unexpected obstacles. The transition of Case and New Holland parts lookup platforms to a new CNH interface created confusion for many users, revealing broader issues in digital usability, browser compatibility, and the growing complexity of manufacturer support systems. This article examines the challenges behind these lookup problems, explains the technical factors involved, and provides practical solutions and industry insights.

The Shift to a New CNH Parts Platform
When Case and New Holland consolidated their online parts catalogs into a redesigned CNH system, the intention was modernization. The new interface introduced updated graphics, reorganized navigation, and a unified structure across brands. However, many users quickly discovered that the new system behaved differently from the previous version.
Common early complaints included:

• Parts diagrams loading without corresponding part numbers

• Pop‑up windows failing to appear

• Navigation requiring more steps than before

• Difficulty locating familiar sections

• Increased reliance on browser‑specific features


• Some discovered the issue only after hours of troubleshooting.

• Others noted that the new CNH interface felt less intuitive than the previous version.

• A few reported that even dealership staff found the new system more cumbersome.


• Deeply nested categories

• Multiple clicks required to reach diagrams

• Heavy reliance on pop‑ups and dynamic content


• Centralization of brand platforms
  CNH manages Case, New Holland, Steyr, and other brands. A unified system reduces maintenance costs.

• Integration with dealer networks
  Modern catalogs link directly to dealer inventory and pricing systems.

• Compliance with cybersecurity standards
  Older websites often lack modern security features.

• Support for mobile devices
  Newer interfaces are designed to work on tablets used by field technicians.


• Allow pop‑ups for the CNH domain

• Disable strict tracking protection

• Add the site to the browser’s “trusted” list


• Internet Explorer (still used in many industrial environments)

• Microsoft Edge

• Google Chrome


• Old cached scripts may conflict with the new interface


• The CNH system is optimized for larger screens


• Many users prefer storing offline copies for reliability


• Providing a “classic mode” for long‑time users

• Reducing reliance on pop‑ups

• Offering downloadable offline catalogs

• Improving compatibility with modern browsers

• Adding clearer on‑screen warnings when pop‑ups are blocked


The John Deere 200D LC excavator is a modern, electronically controlled machine that relies heavily on integrated wiring systems, sensors, and diagnostic modules. When electrical issues arise, having the correct service manual—especially the wiring diagrams—is essential for accurate troubleshooting. This article explores the machine’s background, the structure of its electrical system, common wiring failures, and why the official service manual is indispensable for maintaining reliability.

Background of the John Deere 200D LC
The 200D LC was introduced as part of Deere’s D‑Series excavators in the late 2000s. Deere, founded in 1837, has grown into one of the world’s largest construction‑equipment manufacturers, with millions of machines sold globally. The D‑Series represented a major step forward in electronic integration, emissions compliance, and hydraulic refinement.
Key features of the 200D LC include:

• Operating weight around 45,000 lbs

• A Tier‑3 compliant diesel engine

• Electronic fuel‑injection control

• Advanced hydraulic flow‑sharing system

• CAN‑bus based electrical architecture

• Onboard diagnostics and monitoring


• Full machine schematics

• Harness routing diagrams

• Connector pinouts

• Sensor specifications

• Diagnostic flowcharts

• Voltage and resistance tables

• CAN‑bus communication maps


• ECU (Engine Control Unit)
  Manages fuel injection, timing, and emissions.

• HCU (Hydraulic Control Unit)
  Controls pump displacement, flow sharing, and hydraulic modes.

• Monitor Controller
  Displays warnings, codes, and machine status.

• Pump Solenoid Controllers
  Regulate hydraulic pump output.

• Swing and Travel Controllers
  Manage proportional control of motors.


• CAN‑bus
  A digital communication system allowing multiple modules to share data over two wires.

• Pinout
  A diagram showing which wire connects to which terminal in a connector.

• Reference Voltage
  A stable voltage (often 5V) supplied to sensors for accurate readings.


• Intermittent sensor faults

• Loss of hydraulic functions

• Random shutdowns

• CAN‑bus communication errors


• Boom‑to‑stick connectors

• Pump solenoid connectors

• Monitor harness plugs

• Battery box wiring


• Weak sensor readings

• Flickering monitor displays

• No‑start conditions

• False diagnostic codes


• Pump pressure sensors

• Engine speed sensors

• Hydraulic temperature sensors

• Travel motor speed sensors


• Fuel pump

• Starter circuit

• Solenoid power

• Monitor power


• Identifying which connector supplies power

• Checking continuity between modules

• Verifying CAN‑bus resistance

• Testing sensor reference voltage

• Locating hidden harness junctions


• Connector numbers

• Wire colors

• Circuit identifiers

• Diagnostic steps

• Expected voltage values


• Inspect harnesses annually

• Add abrasion guards to exposed wiring

• Clean connectors and apply dielectric grease

• Replace worn grommets and seals

• Keep the battery box dry and clean

• Avoid pressure‑washing electrical components


Introduction to Motor Graders
Motor graders are specialized earthmoving machines designed to create flat, fine finishes on soil, gravel, or asphalt surfaces. They are essential in road construction, maintenance of unpaved routes, airport runway grading, and site preparation for infrastructure projects. Among the heavy equipment brands, Caterpillar has been a leader since the 1920s, with its grader lineup widely adopted by contractors and governments globally. The Caterpillar 140H, introduced in the early 2000s, represents a mid‑size class motor grader that balances power, versatility, and economy. Globally, motor grader annual sales are in the tens of thousands, with mid‑size units accounting for a significant share due to their adaptability across diverse job sites.
Role of the Transmission Control Valve
The transmission control valve is a crucial hydraulic component in a motor grader like the 140H. In essence, it directs hydraulic fluid flow to actuate gears, clutches, and servos within the transmission system, enabling forward, reverse, and range changes. Unlike purely mechanical linkages, modern transmission control valves use hydraulic pressure to shift smoothly under load, reducing shock to drivetrain components and improving operator comfort. Because graders often operate over uneven terrain and under variable loads, the transmission control valve must deliver precise control even during heavy grading, frequent direction changes, and steep inclines.
Terminology notes:
• Hydraulic Control Valve – A device that regulates the direction and pressure of hydraulic fluid in a system, translating operator input into motion or force.
• Transmission – The subsystem that conveys power from the engine to the wheels, managing speed and torque through gear ratios.
• Servo – A hydraulic or electro‑hydraulic actuator that moves components based on control signals.
Transmission System Basics
In a grader, the transmission serves to convert engine output into usable motion at variable speeds. The 140H typically features a power shift transmission that allows gear changes without disengaging power, enabling continuous operation during shifts. The control valve orchestrates these shifts by modulating fluid to pressure regulators and clutch packs. When an operator selects a gear or direction change, hydraulic pressure is routed to actuate bands or pistons within the transmission, synchronizing gear engagement with minimal jolting.
Symptoms of Control Valve Issues
Failure or degradation of the transmission control valve manifests in distinct ways:
• Harsh or Delayed Shifts – Gear changes feel abrupt or delayed, causing inefficiency and increasing stress on components.
• Transmission Slippage – The grader may fail to hold gear under load, especially during uphill travel.
• Overheating – Incorrect fluid routing can cause excess heat in the transmission, leading to breakdowns and reduced lubricant life.
• Unintended Gear Lock‑Ups – The transmission may lock unexpectedly in a gear, posing safety risks during work near slopes or traffic.
Fleet service records indicate that transmission‑related complaints account for approximately 15–25 percent of engine and drivetrain service calls on mid‑size graders, with control valves and hydraulic circuits being significant contributors.
Common Causes of Control Valve Failures
Several factors contribute to control valve issues:
• Contaminated Hydraulic Fluid – Dirt, water, or degraded oil accelerates wear on spools and sleeves within the valve body.
• Wear and Scoring of Spools – Continuous sliding under pressure may score valve spools, causing internal leakage.
• Seal Degradation – Elastomer seals harden and crack over time, leading to loss of precise control.
• Pressure Imbalance – Incorrect relief settings or pump delivery can alter operational characteristics.
Real‑world examples include operators who reported rough transmission behavior, later traced to a single contaminated return line from the valve body. After flushing the system and replacing filters, symptoms diminished, underscoring preventive maintenance importance.
Diagnosis and Troubleshooting
Diagnosing transmission control valve problems requires a methodical approach:
• Fluid Quality Check – Inspect for discoloration, particles, or water contamination.
• Pressure Testing – Use gauges to measure hydraulic pressure at key points; deviations signal internal leakage or pump issues.
• Operational Testing – Observe shift timing and behavior under load, comparing with manufacturer specifications.
• Valve Inspection – Involving disassembly, spool measurement, and checking for wear or pitting.
Technicians often find that simple contamination—down to 5 microns of abrasive particles—can degrade valve function significantly, emphasizing the need for strict fluid cleanliness.
Maintenance and Preventive Measures
Preventive maintenance extends control valve life and overall transmission health:
• Regular Hydraulic Filter Changes – Replace filters on schedule; industry guidelines often recommend 500‑hour intervals for heavy‑duty use.
• Fluid Quality Monitoring – Periodic sampling for particulate counts and additive depletion can prevent unseen damage.
• Proper Warm‑Up and Cool‑Down Cycles – Gradual temperature changes reduce stress on seals and metering surfaces.
• Scheduled Inspections – Visual and functional tests catch early signs of wear.
Fleet data from construction contractors shows that machine groups applying disciplined fluid testing had up to 30 percent fewer transmission control valves replaced over five years compared to groups relying on reactive maintenance.
Replacement and Rebuild Options
When control valves fail, technicians face choices: replace with an OEM part, use a remanufactured valve, or rebuild in‑house. Considerations include:
• OEM Parts – Deliver exact fit and performance but at higher cost.
• Remanufactured Units – Offer balance between performance and price; ensure quality by selecting reputable rebuilders.
• Rebuild Kits – Allow shop technicians to renew seals and spools while retaining the original body.
Cost analyses indicate that rebuilding a control valve often saves 40–60 percent compared to full replacement, though labor hours must be factored in.
Operator Practices That Protect the System
Operator behavior influences transmission health:
• Avoid Riding Controls – Holding levers in constant motion increases internal wear.
• Smooth Direction Changes – Anticipate shifts instead of abrupt reversals under load.
• Monitor Temperature Gauges – High hydraulic temperatures correlate with increased wear.
Training programs that emphasize smooth operation and awareness have shown measurable reductions in transmission service incidents in heavy equipment fleets.
The Role of Cleanliness Standards
Hydraulic system contamination is often measured with ISO cleanliness codes (e.g., ISO 4406), which indicate particle counts at various micron levels. Keeping systems at or below specified codes—often 18/16/13 for heavy graders—significantly reduces internal wear. Investment in good filtration and strict practices pays dividends in transmission longevity.
Case Study and Lessons
In one municipal road maintenance fleet, repeated 140H transmission issues were traced to a chronically overloaded work schedule combined with infrequent filter changes. After restructuring maintenance intervals and implementing particle counting, control valve performance stabilized. The fleet manager reported a 20 percent drop in transmission‑related downtime the following season.
Conclusion
The transmission control valve in a Caterpillar 140H grader plays a pivotal role in translating hydraulic power into controlled motion. Its proper function ensures smooth gear changes, consistent performance under load, and long transmission life. Failures often stem from fluid contamination, internal wear, and operational stress, but disciplined maintenance and informed operator practices can mitigate these risks. With appropriate diagnostics, preventive measures, and rebuild strategies, fleets can maintain transmission health, reduce downtime, and control ownership costs in demanding grading applications.

The JCB 214 Series 3 backhoe loader is a widely used machine in construction, utilities, and municipal work. Known for its strong hydraulics and dependable drivetrain, it nevertheless suffers from recurring electrical issues as it ages. This article explores the most common electrical faults, explains why they occur, and provides practical solutions for owners and technicians.

Background of the JCB 214 Series 3
JCB introduced the 214 line in the 1990s as part of its global expansion into the North American backhoe market. By the time the Series 3 models were released, JCB had already sold hundreds of thousands of backhoes worldwide, becoming one of the largest manufacturers of loader‑backhoes.
Key features of the 214 Series 3 include:

• A Perkins or JCB Dieselmax engine

• A powershift transmission

• Pilot‑assisted hydraulic controls

• A 4‑in‑1 loader bucket option

• A robust electrical system with multiple relays and safety interlocks


• Aging wiring harnesses

• Moisture intrusion in connectors

• Corrosion in fuse boxes

• Poor grounding

• Relay failure due to heat and vibration

• Rodent damage in stored machines


• Machine won’t crank

• Dash lights flicker

• Random warning alarms

• Hydraulics refuse to activate


• Frame ground near the battery

• Ground strap between engine and chassis

• Ground points behind the dash


• Moisture

• Dust

• Temperature swings


• Green corrosion on terminals

• Melted relay sockets

• Loose fuse contacts


• No‑crank condition

• Starter relay not energizing

• Intermittent starting depending on lever position


• No power to dash

• Starter engages only sometimes

• Accessories work but engine won’t crank


• Seat switch

• Stabilizer position switch

• Boom lock switch

• Parking brake switch


• Disable hydraulics

• Prevent travel

• Trigger warning lights


• Battery drains overnight

• Low‑voltage warnings

• Slow cranking

• Dim lights


• Worn brushes

• Failed voltage regulator

• Broken excite wire

• Corroded battery cables


• Chewed insulation

• Shorted wires

• Broken sensor leads


• Random shutdowns

• False warning lights

• No‑start conditions


• Seal connectors with dielectric grease

• Keep fuse box dry and clean

• Replace aging relays every 2–3 years

• Protect wiring with loom and abrasion guards

• Store machine indoors when possible

• Perform annual electrical inspections


Introduction to Air Leaks and Pneumatic Systems
Air leaks are a ubiquitous challenge in heavy equipment that use compressed air systems. Pneumatics are employed in applications ranging from braking systems on commercial trucks and earthmoving machines to air‑powered tools, suspension systems, and pneumatic controls. Historically, manufacturers like Wabco, Bendix, and others standardized air systems in large commercial vehicles and heavy machinery starting in the mid‑20th century because compressed air offers reliable, moisture‑tolerant power transmission. Estimates from the U.S. Federal Motor Carrier Safety Administration indicate that air brake systems are present on over 90 percent of Class 8 trucks and trailers, illustrating the breadth of pneumatic use. When air leaks occur, system performance degrades, fuel consumption rises, and safety margins shrink. Understanding the sources, diagnosis, and remediation of air leaks is therefore essential for fleet operators and technicians alike.
Basic Pneumatic System Principles
A pneumatic system uses compressed air as its working medium. A compressor driven by the engine pressurizes atmospheric air into tanks. Valves, regulators, and actuators control that air to perform work such as applying brakes, shifting gears, or powering tools. Pneumatic efficiency depends on maintaining adequate pressure—typically in the range of 90 to 130 psi in heavy vehicle brake circuits—and minimizing losses. An air leak is any unintended escape of compressed air from the system. Even small leaks that seem trivial can lead to significant inefficiencies: industry data suggests that cumulative leakage equivalent to only 3–5 percent of compressor output can increase fuel costs by up to 2–3 percent over a year’s operation due to increased compressor load and cycling.
Terminology notes:
• Compressor Duty Cycle – The percentage of time a compressor runs under load; excessive leaks increase duty cycle and wear.
• Reservoir Tanks – Storage vessels that hold compressed air to smooth out supply and meet peak demands.
• Service Lines – Air plumbing that delivers compressed air to brakes, controls, or accessories.
• Actuator – A device that converts air pressure into mechanical motion, such as an air cylinder in brakes or valves.
Common Locations of Air Leaks
Air leaks can occur at multiple points in pneumatic systems:
• Hose Fittings and Unions – Vibration and temperature cycling can loosen fittings, allowing air to escape.
• Valve Seals and Diaphragms – Rubber or elastomeric seals degrade with age, ozone exposure, and heat.
• Reservoir Tank Valves – Drain valves and check valves can leak if contaminated or corroded.
• Compressor Discharge Lines – Cracks in hoses or mounting stress points often manifest near the compressor outlet.
• Brake Chambers and Actuators – In vehicle air brakes, diaphragms can develop pinhole leaks, reducing braking efficiency.
In one fleet case recorded by a regional hauling company, technicians found that nearly 65 percent of daily air loss originated from deteriorated hose clamps and poorly supported service lines that chafed against frame rails.
Symptoms of Air Leaks
Detecting air leaks early helps prevent equipment failure and increased operating costs. Common indicators include:
• Excessive Compressor Cycling – The compressor runs more often to maintain pressure.
• Pressure Drop When Equipment Is Idle – Gauges fall rapidly when the system should hold steady.
• Hissing Sounds – Audible leaks are often near hose joints or valve bodies.
• Weak Pneumatic Response – Brakes feel spongy, or air‑powered tools lose force.
• Moisture and Frost on Lines – Leaking air can cause condensation and frost marks at the source during cold operation.
One operator described hearing a persistent hiss from beneath his dump truck at night; tracing the sound with a mechanic’s stethoscope revealed a cracked quick‑disconnect fitting leaking over 20 psi per minute when parked.
Diagnostic Procedures
A systematic approach to diagnosing air leaks improves repair efficiency:
• Visual Inspection – Look for cracked hoses, loose fittings, or obvious damage.
• Soapy Water Test – Applying a soap solution to suspect joints reveals bubbles at leak sites.
• Pressure Decay Testing – Pressurize the system and monitor gauge drop with all consumers off.
• Ultrasonic Detection – Electronic leak detectors pick up high‑frequency emissions even where human ears cannot.
Technicians often start with the simplest checks—hose routing and clamp integrity—because these factors account for a large percentage of real‑world leaks.
Impact on Safety Systems
On heavy trucks and equipment, air systems often control critical safety functions such as brakes and suspension. For example, in air‑brake systems:
• Brake Chamber Diaphragm Leaks – Reduce effective brake force.
• Valve Port Leaks – Cause uneven brake application across wheels.
• Reservoir Loss – Limits available braking pressure, especially under long downhill braking.
U.S. Department of Transportation data indicates that brake system failures account for a significant share of commercial vehicle accidents. While not all of these are directly due to leaks, poor pneumatic maintenance increases risk.
Solutions and Repair Strategies
Fixing air leaks typically involves:
• Replacing Degraded Hoses – Choose hoses rated for appropriate pressure and temperature ranges.
• Upgrading Fittings – Use threaded fittings with proper torque and thread sealant where specified.
• Sealing Valve Bodies – Renew seals and diaphragms with OEM or high‑quality aftermarket parts.
• Proper Support and Clamping – Reduce chafing by securing lines away from vibration points.
• Tank Draining and Rust Prevention – Regularly drain moisture to reduce corrosion that leads to tank valve leaks.
One large intermodal trucking operation drastically reduced daily air loss by installing 90‑degree fittings at compressor outlets to reduce hose bend stress, resulting in a measurable drop in daily pressure decay.
Preventive Maintenance Practices
Routine preventive activities help avoid leaks:
• Daily Pre‑Trip Checks – Operators monitor air gauges and listen for unusual sounds.
• Scheduled Line Inspections – Every 250–500 operating hours, inspect hoses and fittings.
• Compressor Health Monitoring – Excessive duty cycle can indicate hidden leaks.
• Environmental Protection – Shield hoses from heat sources and chemical exposure.
• Record Keeping – Maintain logs of repairs and recurring leak locations.
Maintenance records from fleets that adopt disciplined inspection regimes show up to 50 percent fewer unscheduled downtime events related to air system failures.
Technological Advancements in Leak Prevention
Newer pneumatic systems benefit from materials science advances:
• High‑Temperature Synthetic Hoses – Better resistance to oil and heat degradation.
• O‑Ring and Seal Materials – Modern elastomers withstand ozone and pressure cycling.
• Integrated Monitoring – Telematics systems can alert maintenance crews to abnormal pressure trends before leaks become significant.
In heavy industrial settings, ultrasonic leak detection tools are now standard, cutting diagnostic time by as much as 70 percent compared with soap testing alone.
Economic Considerations
Air leaks impose both direct and indirect costs:
• Fuel Consumption Increases – Compressors working harder draw more engine power and fuel.
• Wear and Tear – Excess compressor cycling shortens service life.
• Safety Risks – Reduced braking effectiveness can lead to accidents and liability.
• Downtime – Equipment out of service for repairs impacts productivity.
Some fleet managers quantify the cost of persistent air leaks in tens of thousands of dollars annually when factoring fuel, labor, and downtime. Even small incremental improvements in air system integrity yield measurable financial benefits.
Regulatory and Compliance Context
Regulations governing commercial vehicle safety often mandate functional pneumatic systems. In the United States, Federal Motor Carrier Safety Regulations require daily inspection of air brake systems and specified minimum pressures. Non‑compliance can result in fines and out‑of‑service orders. For industrial equipment, adherence to manufacturer recommendations ensures warranty compliance and safe operation.
Conclusion
Air leaks are more than a nuisance—they affect safety, performance, and operating cost. Whether on commercial trucks, excavation machines, or pneumatic tool networks, maintaining the integrity of compressed air systems is essential. By understanding common leak points, applying systematic diagnostic methods, and following preventive maintenance protocols, technicians and operators can significantly reduce air loss, improve safety, and extend equipment life. With technological tools and disciplined practices, air system reliability can become a competitive advantage in heavy equipment operations.

Breaking oversized boulders is a routine but essential task in earthmoving, quarrying, and construction. While hydraulic hammers are the traditional tool for the job, operators have long developed creative, low‑cost techniques to fracture rock using only the machine’s weight, bucket geometry, and natural fracture lines. This article explores one such method—dropping and striking rocks with an excavator bucket—while expanding on the physics, safety considerations, and real‑world experiences behind it.

Background of Excavator‑Based Rock Breaking
Excavators became widespread in the 1970s and 1980s as hydraulic systems improved and machine sizes diversified. By the 2000s, mid‑sized excavators like the Daewoo 220, Caterpillar 320, and Komatsu PC200 had become some of the most common machines on construction sites worldwide, with hundreds of thousands sold.
These machines offer:

• High breakout force

• Strong boom and stick geometry

• Durable buckets with hardened teeth

• Excellent visibility from enclosed cabs

• Versatility for digging, lifting, and material handling


• Lifting a large boulder with the excavator

• Dropping it onto another rock or hard surface

• Using the bucket teeth to strike natural seams

• Repeating the process until the rock fractures into usable sizes


• Seam
  A natural fracture or bedding plane in rock that splits easily when struck.

• Shot Rock
  Rock blasted from a quarry face, often irregular and oversized.

• Armor Rock
  Large, durable rock used for shoreline protection or erosion control.


• Stress concentrates at seams

• Vibrations propagate through the rock

• Tensile failure occurs at the point of impact


• Some rocks split cleanly with one drop

• Others resist hammering but fracture easily when dropped

• Layered rock behaves predictably when struck at the right angle


• One quarry charged $33 per ton for shot rock

• Another region sold armor rock for $3.50 per ton

• Blown rock (loader‑handled) was $4.00 per ton


• Regional geology

• Transportation costs

• Quarry operating expenses

• Market demand


• Flying rock chips can crack windshields

• Shrapnel may strike the cab or nearby workers

• Unstable boulders can roll unpredictably

• Cab glass may not withstand high‑velocity fragments


• Keeping the cab closed

• Wearing hearing protection

• Striking rocks at angles that deflect debris away

• Using other rocks as “buffers” to absorb impact

• Avoiding direct downward strikes when possible


• Extremely loud, causing operator fatigue

• High fuel consumption

• Expensive to maintain

• Require skilled operation

• Can damage the excavator if misused


• Costs nothing

• Reduces noise

• Minimizes wear on the machine

• Works well on softer or layered rock


• Operating weight around 48,000 lbs

• Strong digging force

• Reliable Cummins or Daewoo engines

• Simple hydraulic systems

• Affordable parts and maintenance


• Some rocks are soft enough that a hammer only pokes holes

• Others split cleanly when dropped

• Layered rock breaks with minimal flying debris

• Harder rock requires more force or a hammer


• Look for natural seams before striking

• Drop rocks onto other rocks, not bare ground

• Use the bucket teeth to apply focused force

• Keep the cab angled away from the impact zone

• Avoid over‑handling—let gravity do the work

• Maintain bucket teeth for sharper impact points

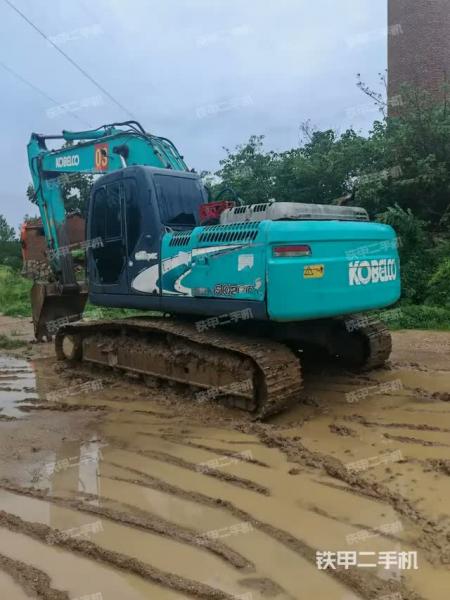

History and Manufacturer Background

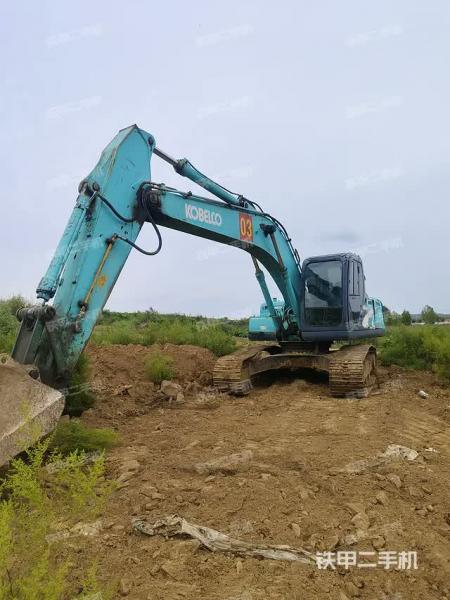

Kobelco Construction Machinery, part of the globally recognized Japanese conglomerate Kobe Steel, has a long heritage in hydraulic excavator design and manufacturing. Kobelco’s origins date back to the early 20th century when the company first produced steel products and industrial equipment. Over subsequent decades, Kobelco became synonymous with innovative hydraulic systems and durable undercarriage engineering in earthmoving machines. The SK60LC is a mid‑size excavator model that emerged as part of Kobelco’s strategy to offer reliable, efficient equipment for both commercial construction and rental markets. Mid‑size excavators such as the SK60LC represent a substantial segment of global sales—accounting for roughly 30‑40 percent of excavator units annually—because they balance productivity with transportability and operating economy. Across Asia, Europe, and North America, Kobelco has sold tens of thousands of excavators in the 5‑to‑7‑ton class over the past two decades, with the SK60LC contributing significantly to those figures.
General Design and Purpose

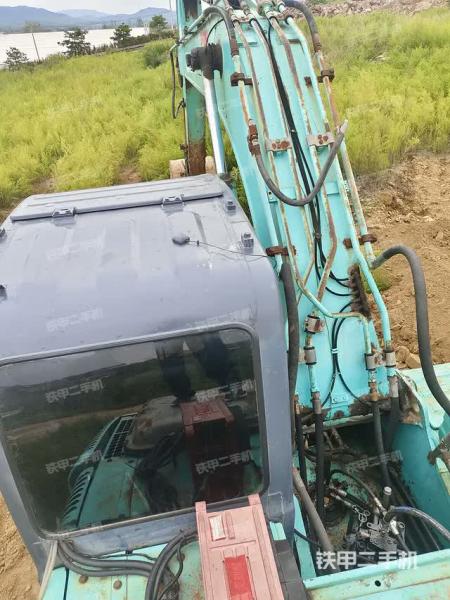

The Kobelco SK60LC is designed for a broad range of tasks: urban construction, utility trenching, landscaping, material handling, and light demolition. “LC” in its designation stands for “long carriage,” meaning the undercarriage is extended relative to the standard configuration to improve stability and flotation on uneven ground. The machine’s balance of size, digging power, and machine weight makes it a go‑to choice for contractors requiring a versatile excavator without the higher transport and operating costs associated with larger machines. Typical operating weight for the SK60LC is in the range of 13,000 to 14,000 kilograms (approximately 28,000–31,000 pounds), and engine power is usually in the 45–50 kilowatt range (equivalent to about 60–67 horsepower), providing a balance of torque and fuel efficiency tailored to mid‑duty applications.
Terminology notes:
• Operating Weight – The total weight of the machine in working condition, including fluids and standard attachments; influences stability and transport classification.
• Long Carriage (LC) – An extended undercarriage that enhances stability and weight distribution.
• Hydraulic Excavator – A machine that uses pressurized hydraulic fluid to power pistons and motors for boom, arm, and bucket movement.
Hydraulic System and Performance

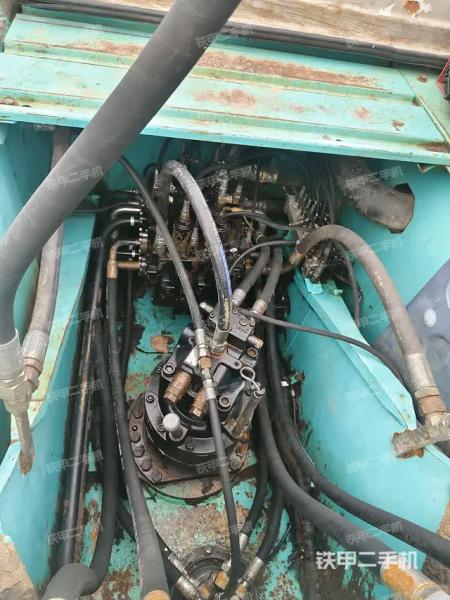

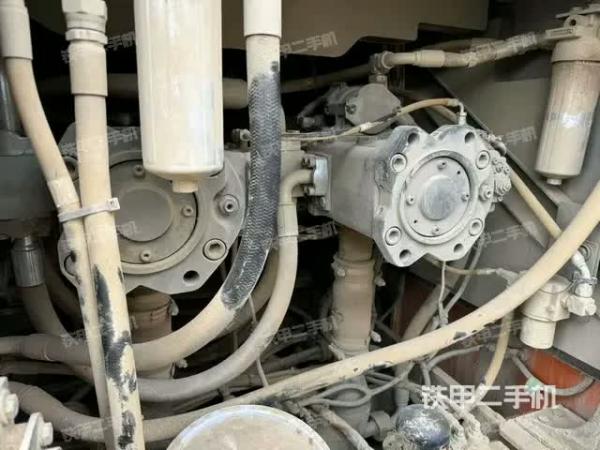

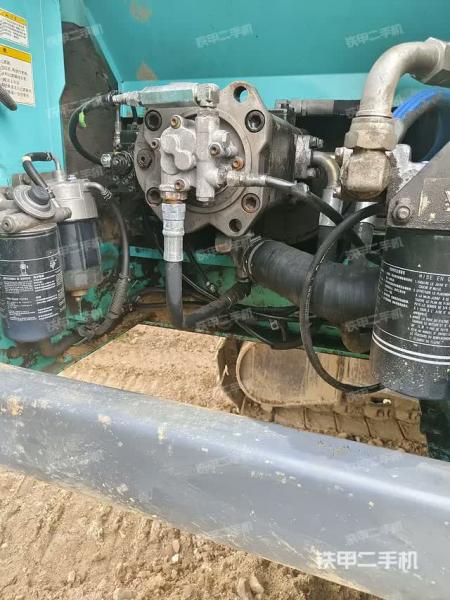

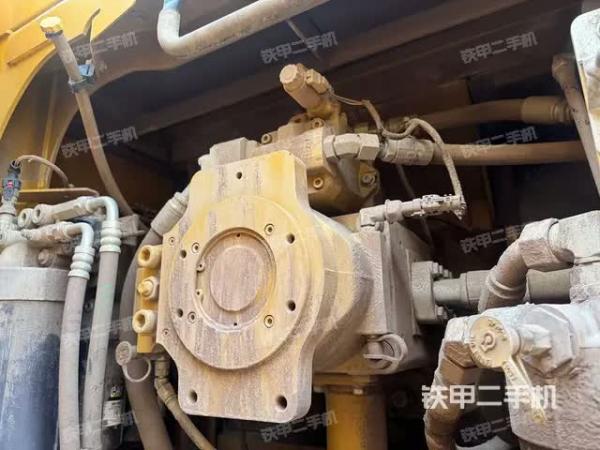

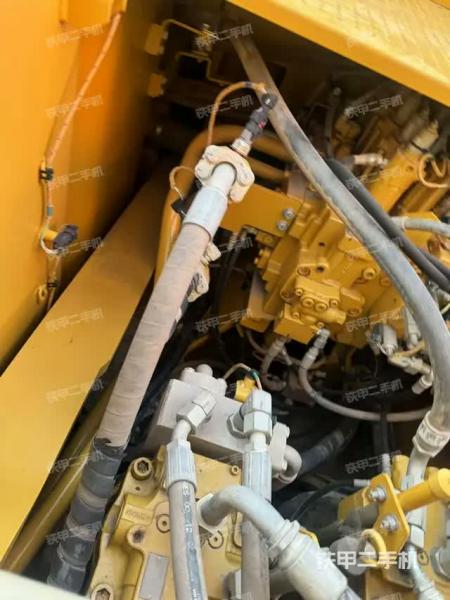

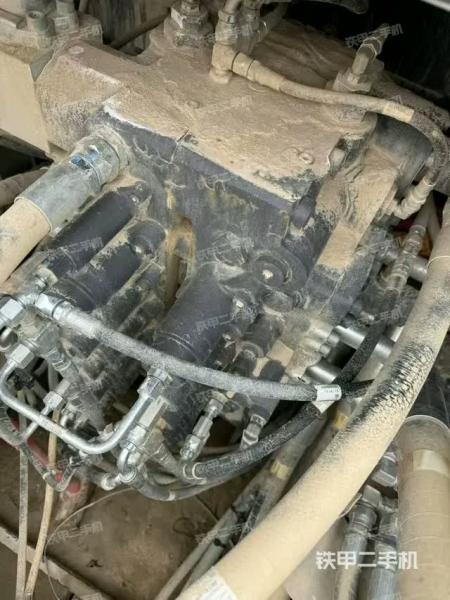

At the heart of the SK60LC’s capability is its hydraulic system. Hydraulic excavators use fluid power to transmit energy from the engine to actuators that move the boom, arm, and attachment. The SK60LC’s hydraulic pumps typically deliver flow rates optimized for smooth, proportional control under varying loads, with maximum system pressures often exceeding 3,000 psi (pounds per square inch). This hydraulic capacity allows operators to perform simultaneous movements—such as swinging while lifting—without significant power loss. Kobelco’s proprietary control valves and pilot systems help ensure precise operator response, reducing fatigue and enhancing productivity on long workdays. In field tests, mid‑size excavators with well‑tuned hydraulics like the SK60LC complete cycle times (dig, lift, swing, dump, return) roughly 10‑15 percent faster than older mechanical systems under comparable conditions.

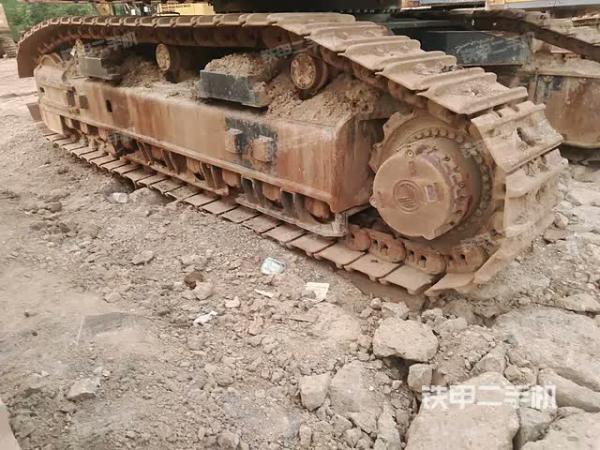

Undercarriage and Stability
The extended undercarriage of the SK60LC serves multiple functions. By increasing the track length and contact area with the ground, the machine reduces ground pressure—a key parameter in soft soil conditions. Lower ground pressure improves flotation and minimizes soil disturbance, essential for landscaping and utility trench work. The long carriage also increases machine stability when lifting loads at distance. Undercarriage components such as rollers, idlers, and track chains are engineered to withstand the abrasive forces typical on construction sites, and routine inspection of these parts can prevent premature wear. A commonly cited rule of thumb among fleet managers is that maintaining correct track tension contributes more to undercarriage life than replacing any single component, often extending the service life by 20–30 percent.
Operator Comfort and Controls
Operator ergonomics is another area where the SK60LC stands out. Mid‑size excavators, compared to smaller counterparts, typically offer more spacious cabs with adjustable seats, intuitive joystick controls, and good visibility to both the bucket and surrounding work area. Reduced noise and vibration levels inside the cab enhance comfort during extended shifts, improving operator focus and safety. Climate control options contribute to usability year‑round in diverse environments, from winter utility work to summer road repair projects. In practical terms, operators report that good visibility and comfort translate into fewer operator errors and improved precision, especially in confined jobsite conditions.
Attachments and Versatility
Like most hydraulic excavators, the SK60LC is designed to work with a wide range of attachments:
• Standard Digging Buckets – For general earthmoving and trenching.
• Tilt Buckets – For grading and contouring.
• Hydraulic Hammers – For breaking concrete, rock, and pavements.
• Thumbs and Grapples – For material handling and demolition debris sorting.
• Augers – For drilling holes in soil and frost‑affected ground.
Attachment versatility vastly increases a machine’s utility. In rental operations, machines that can swiftly switch from trenching to material handling often achieve utilization rates up to 25 percent higher than machines restricted to a single role.
Fuel Efficiency and Emissions

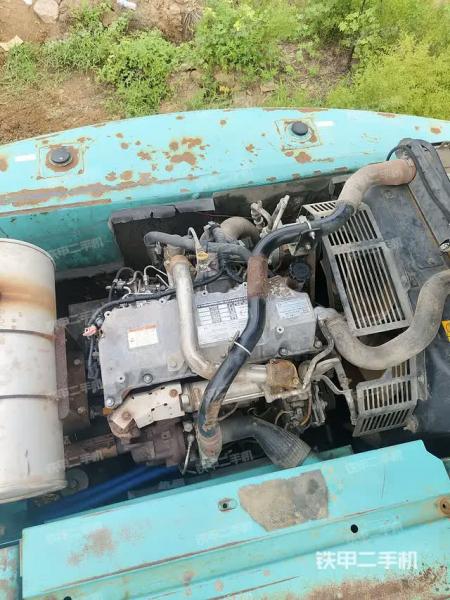

Fuel economy is a key consideration for equipment owners. Mid‑size excavators like the SK60LC often use electronically controlled diesel engines designed to meet regional emissions standards, including Tier 3 and Tier 4 interim levels in North America and Stage IIIA/IIIB standards in Europe. These engines optimize fuel injection timing and combustion for reduced particulate and nitrogen oxide emissions while maintaining torque output. Fleet data from construction companies indicates that modern engines with advanced fuel management systems can reduce specific fuel consumption by 10–15 percent compared to older models, resulting in significant annual savings given typical operating hours of 1,500 to 2,000 per year.
Maintenance and Serviceability
Routine maintenance contributes directly to machine availability and lifespan. Key tasks include:
• Engine Oil and Filter Changes – Typically every 250–500 hours, depending on operating conditions.
• Hydraulic Fluid and Filter Replacement – At intervals recommended by the manufacturer to prevent contamination and wear.

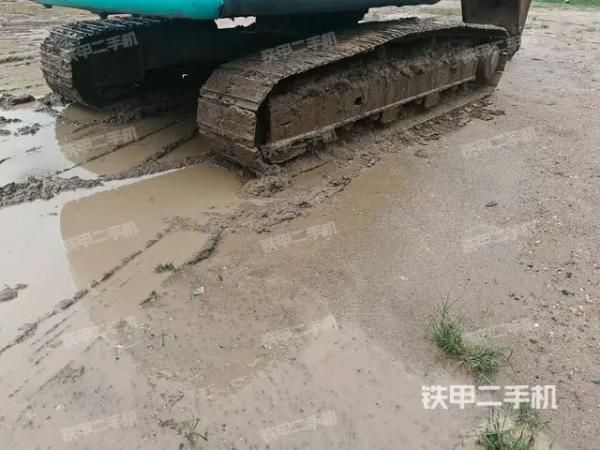

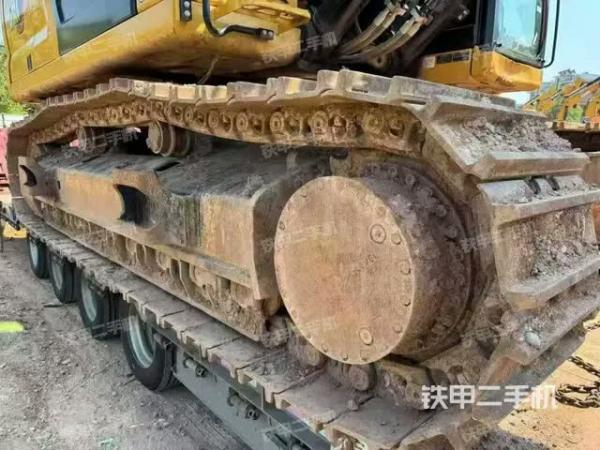

• Track and Undercarriage Inspection – Regular checks for wear, proper tension, and suspected damage.
• Cooling System Service – Keeping radiators and coolers free of debris to prevent overheating.
• Attachment Inspection – Checking pins, bushings, and hydraulic connections for wear.
Proactive maintenance can reduce unplanned downtime by up to 40 percent compared with reactive or break‑fix approaches, according to industry maintenance benchmarks.
Operational Tips for Long Life
Owners and operators share several best practices for maximizing SK60LC performance and life: monitor hydraulic temperatures and avoid sustained high‑temperature operation, use appropriate bucket sizes for soil conditions to avoid overload, and train operators in smooth control techniques that minimize stress on structural components. Adequate operator training has been shown to reduce fuel consumption and wear rates by measurable margins in fleet operations.
Safety Considerations
Working with heavy excavators carries inherent risks. Safe operation requires awareness of:
• Swing Radius – Ensuring no personnel are within the rotating house’s path.
• Stability Limits – Avoiding lifts beyond machine rating, especially on slopes.
• Ground Conditions – Assessing soil strength to prevent undercarriage bogging or tipping.
• Hydraulic Pressure – Respecting high‑pressure systems and avoiding direct contact with leaks.
Employers should implement standardized safety training and enforce use of personal protective equipment (PPE), including hearing protection due to noise levels common around construction machinery.
Real‑World Stories
Contractors in utilities and municipal work frequently choose mid‑size excavators like the SK60LC for projects involving waterline installation and resurfacing. One municipal public works department reported that replacing an aging tracked loader with an SK60LC reduced cycle times for trenching and backfill by approximately 12 percent, contributing to faster project turnover and lower overall cost. Another landscaping contractor noted that the machine’s hydraulic responsiveness allowed precise grading around delicate plantings, highlighting that machine selection influences not just productivity but final job quality.
Conclusion
The Kobelco SK60LC excavator exemplifies a well‑balanced, versatile mid‑size machine suited to a broad range of applications in construction, utilities, landscaping, and demolition. Its blend of stability, hydraulic performance, operator comfort, and attachment flexibility makes it a valuable asset for many fleets. With disciplined maintenance, attention to operator technique, and appropriate application, the SK60LC continues to deliver reliable performance, underscoring the enduring value of thoughtful engineering in hydraulic excavators.
