The Caterpillar D4D is a renowned track-type tractor, commonly used in construction, land clearing, and mining operations. Known for its ruggedness and durability, the D4D is a staple in the fleet of many heavy equipment operators. However, like all older equipment, the transmission of the D4D may begin to show signs of wear, necessitating upgrades to maintain efficiency and avoid downtime. Upgrading the transmission of a CAT D4D can significantly enhance its performance, providing smoother operation and greater reliability in demanding environments.
Overview of the CAT D4D Transmission System
The CAT D4D, part of the D4 series of track-type tractors, is equipped with a mechanical transmission system designed to provide a balance of power and efficiency. This system typically includes a torque converter, gear sets, and a series of hydraulic components that work together to transfer engine power to the tracks.
The standard transmission in the D4D provides operators with multiple forward and reverse gears, allowing the machine to adapt to varying terrain and tasks. Over time, however, the components in the transmission system can wear down, resulting in issues such as slipping gears, slow shifting, or complete transmission failure. These problems are often associated with older equipment, where the parts may be nearing the end of their useful life.
Common Transmission Issues in the D4D
Several issues commonly arise in the CAT D4D transmission that can impact its overall performance. These include:

1. Slipping Gears: This is one of the most common issues with older transmissions. Slipping gears can occur due to worn clutch packs, low hydraulic pressure, or a damaged torque converter. When gears slip, it becomes difficult to maintain consistent speed, which can affect productivity.

2. Slow Shifting: As a transmission ages, it may take longer for the machine to shift between gears. This issue is often related to low fluid levels, worn out components, or issues within the control valve system. Slow shifting can be frustrating for operators and may lead to inefficient operation.

3. Hydraulic Leaks: Hydraulic components in the transmission system, including pumps and valves, are prone to leaks over time. These leaks can cause a drop in hydraulic pressure, leading to poor transmission performance.

4. Overheating: The transmission of the D4D relies heavily on hydraulic fluid to maintain proper temperature and operation. If the fluid level is too low or the cooling system is malfunctioning, the transmission can overheat, causing potential damage to internal components.


1. Torque Converter Replacement: The torque converter is a vital component that transmits power from the engine to the transmission. A worn-out torque converter can cause poor shifting and reduced efficiency. Upgrading to a high-performance torque converter can provide better power transfer, smoother shifting, and improved fuel efficiency.

2. Transmission Rebuild or Replacement: For more severe issues, such as slipping gears or slow shifting, a full transmission rebuild may be necessary. This can involve replacing worn clutch packs, gears, seals, and bearings. In some cases, operators may choose to replace the entire transmission with a newer, more efficient model designed to fit the D4D.

3. Upgraded Hydraulics: Many D4D transmission issues are related to hydraulic components. Upgrading the hydraulic system by installing higher capacity pumps, new hydraulic filters, or advanced cooling systems can help prevent overheating and improve overall transmission performance.

4. Improved Cooling Systems: To prevent overheating, it’s crucial to upgrade the cooling system. Adding a larger, more efficient transmission cooler or upgrading the fan system can help maintain optimal operating temperatures, extending the life of the transmission.

5. Electronic Control Systems: While the D4D traditionally uses a mechanical transmission, upgrading to an electronic control system can provide greater precision and better diagnostics. Modern systems offer real-time monitoring of fluid levels, hydraulic pressures, and component wear, allowing operators to anticipate maintenance needs before they result in failure.


1. Diagnostic Check: Before any upgrades are made, it’s essential to conduct a thorough diagnostic check of the transmission system. This includes inspecting the fluid levels, checking for hydraulic leaks, and assessing the condition of the torque converter and gears. Any worn or damaged components should be identified for replacement.

2. Selecting Parts for the Upgrade: When upgrading the transmission, it’s important to use high-quality, compatible parts. Depending on the scope of the upgrade, you may need to source parts such as torque converters, gear sets, hydraulic pumps, and cooling systems. OEM (original equipment manufacturer) parts are recommended for the best fit and performance, but in some cases, high-quality aftermarket parts can also be considered.

3. Transmission Disassembly: Once the necessary parts are gathered, the next step is to disassemble the transmission system. This involves removing the old torque converter, clutch packs, and gears. It’s essential to follow the manufacturer’s service manual during this process to ensure the correct procedures are followed.

4. Installation of Upgraded Components: After disassembly, the upgraded components are installed. This may include replacing the torque converter, updating the hydraulic system, and installing new gears and seals. Once installed, the transmission system should be carefully reassembled and tested.

5. Fluid Change and Calibration: After the transmission is reassembled, the fluid should be replaced with fresh hydraulic fluid to ensure smooth operation. Additionally, the system may need to be calibrated to ensure proper fluid flow and pressure within the transmission.

6. Testing and Fine-Tuning: Finally, the upgraded transmission should be tested under real operating conditions. This allows the operator to assess the shifting behavior, hydraulic pressure, and overall performance. Any fine-tuning or adjustments to the system can be made during this phase to ensure optimal performance.


1. Improved Performance: Upgrading to a higher-performance torque converter or a more advanced hydraulic system can enhance the overall performance of the machine. This results in smoother shifting, better power transfer, and improved fuel efficiency.

2. Increased Reliability: By replacing worn components and upgrading critical parts, the machine’s transmission will operate more reliably, reducing the risk of breakdowns and minimizing costly repairs.

3. Enhanced Operator Comfort: Smoother shifting and better overall performance contribute to a more comfortable and productive operator experience. Upgrades can reduce the need for manual shifting and provide better control over the machine.

4. Extended Equipment Life: Regular maintenance and strategic upgrades can significantly extend the life of the CAT D4D. By addressing common transmission issues early on, operators can keep their machines running at optimal performance for longer periods, resulting in better return on investment.


CAT D6R Dozer Overview
The Caterpillar D6R is a mid-size track-type tractor introduced in the late 1990s, designed for grading, ripping, and land clearing. With an operating weight of approximately 20 tons and powered by a CAT 3306 or C9 engine depending on the series, the D6R delivers around 200 horsepower. Caterpillar, founded in 1925, has sold tens of thousands of D6-series dozers globally, and the D6R remains a staple in construction and agriculture due to its balance of power, visibility, and hydraulic control.
The D6R uses a differential steering system that requires uninterrupted hydraulic priority. Any modification to the hydraulic circuit—such as adding an auxiliary valve—must preserve this priority to avoid steering lag or failure.
Terminology Notes

• Auxiliary Control Valve: A hydraulic valve added to control external implements such as tile plows, winches, or rippers.

• Differential Steering: A system that uses hydraulic flow to vary track speeds independently, allowing smooth turning under load.

• Priority Flow: A hydraulic configuration that ensures critical systems receive fluid before secondary functions.

• Danfoss Valve: A modular hydraulic valve system often used for multi-section control of external implements.


• Identify Supply and Return Ports
  Use the hydraulic schematic to locate a pressure line that feeds auxiliary functions but does not interfere with steering. The return line should flow directly to the tank or through a low-pressure manifold.

• Install a Priority Flow Divider
  This device ensures that a fixed volume of hydraulic flow is reserved for steering, regardless of demand from the auxiliary valve.

• Use Load-Sensing Configuration
  If the Danfoss valve supports load-sensing, connect the LS line to the pump’s compensator to maintain pressure balance and avoid overloading.

• Add a Pressure Relief Valve
  Protect the auxiliary circuit from pressure spikes by installing a relief valve set below the system maximum.

• Mount the Valve Securely and Accessibly
  Position the valve near the operator station or implement control area, with clear labeling and protected routing.


• Consult the Hydraulic Schematic Before Modifying: Avoid guesswork and protect critical systems.

• Use Quality Components: Danfoss valves, Parker flow dividers, and CAT-approved fittings ensure reliability.

• Test Steering Under Load: After installation, verify that steering remains responsive during implement operation.

• Label All Controls Clearly: Prevent operator confusion and accidental activation.

• Document the Modification: Include flow rates, pressure settings, and routing for future service.


The John Deere 490D is a robust and reliable hydraulic excavator widely used in various construction, demolition, and excavation tasks. Over time, like all heavy machinery, the 490D requires regular maintenance, including part replacements, to keep it operating at peak performance. Understanding the parts and service options available for the John Deere 490D is crucial for minimizing downtime and maximizing productivity.
Overview of the John Deere 490D Excavator
Introduced as part of the 490 series, the John Deere 490D is known for its durability and efficient performance. This model is equipped with a powerful diesel engine, advanced hydraulic systems, and a strong undercarriage, designed to handle demanding tasks in challenging work environments. Whether used for digging, lifting, or demolition, the 490D remains a popular choice due to its ability to perform under a variety of conditions, from urban construction sites to rural landscapes.
The machine features a digging depth of up to 7.9 meters (25.9 feet), a maximum reach of 11.3 meters (37.1 feet), and a bucket capacity ranging from 0.2 to 1.3 cubic meters, depending on the specific attachment used. With an operating weight of around 18,000 kg (39,700 lbs), the 490D is a mid-range machine in terms of size and capability, offering excellent power and versatility.

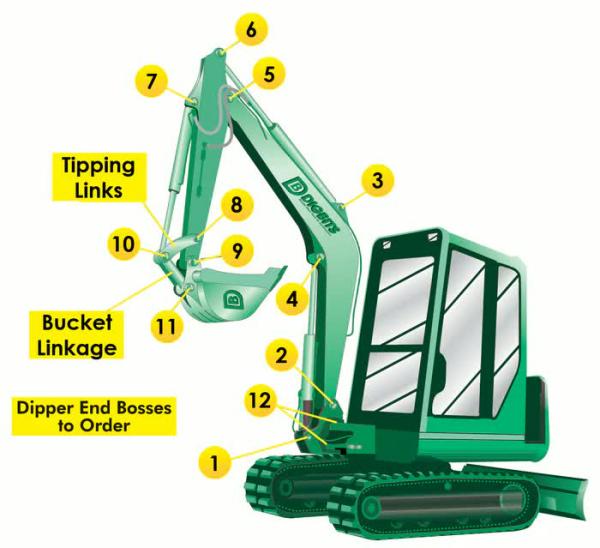

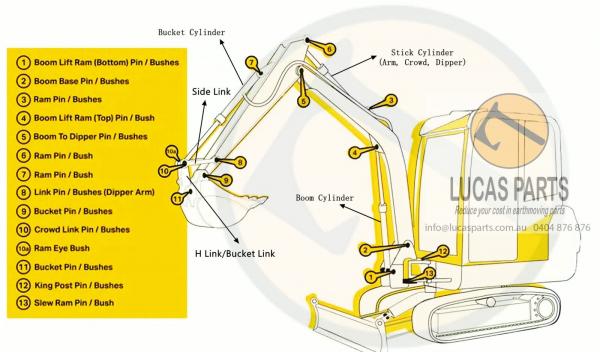

Common Parts and Components for the John Deere 490D
Maintaining the John Deere 490D involves keeping track of various parts and components that may need to be replaced or serviced over the machine's lifecycle. Here are some of the key areas where parts replacements are most common:

1. Hydraulic System Components
   • Hydraulic Pumps: The 490D’s hydraulic system is critical for its digging and lifting capabilities. Over time, hydraulic pumps can wear out, leading to reduced efficiency or failure. Replacing these pumps with genuine John Deere parts ensures optimal hydraulic performance.

   • Hydraulic Cylinders: The boom, arm, and bucket cylinders often experience wear due to the stresses placed on them during operation. Regular inspection and replacement of seals and hydraulic fluids can help maintain cylinder function.

   • Control Valves: The hydraulic control valves direct the flow of oil to various components. These can become clogged or damaged, affecting the excavator's response time. Ensuring the valves are free of debris and functioning properly is essential.

2. Engine and Transmission Parts
   • Fuel Injectors: The John Deere 490D uses a diesel engine that relies on fuel injectors to provide the correct amount of fuel for combustion. Clogged or worn injectors can lead to poor fuel efficiency and engine misfires.

   • Air and Fuel Filters: To keep the engine running smoothly, regular replacement of the air and fuel filters is necessary. Dirty filters can lead to engine overheating and reduced performance.

   • Belts and Pulleys: Over time, the belts and pulleys that power the engine's cooling and accessory systems can wear or break. Keeping spare parts on hand for these components is advisable, as they are vital for engine longevity.

3. Undercarriage Components
   • Tracks and Rollers: The undercarriage is subjected to significant wear, especially in rough terrain. Tracks, track rollers, and idlers should be regularly inspected for damage or excessive wear. Replacing these parts ensures optimal performance and reduces the risk of costly repairs later on.

   • Track Adjusters: Maintaining proper track tension is essential for preventing premature wear on the undercarriage. Track adjusters should be inspected regularly for leaks or mechanical failure.

   • Sprockets: The sprockets are responsible for driving the tracks. Over time, these parts can wear down, leading to issues with track movement and stability. Replacing sprockets periodically helps maintain the overall efficiency of the undercarriage.

4. Electrical Components
   • Alternators and Starters: The electrical system of the John Deere 490D includes alternators that charge the battery and starters that initiate engine operation. Issues with these components can lead to starting difficulties or battery drain.

   • Wiring Harnesses: Over time, wiring can become frayed or damaged due to exposure to the elements or mechanical strain. Regular inspections can help detect and replace damaged wires before they lead to more serious electrical issues.

5. Cab and Operator Controls
   • Seats and Cushions: Comfort is crucial for operators who spend long hours in the cab. Replacing worn-out seats and cushions can enhance productivity and prevent discomfort or injuries.

   • Joystick Controls: The John Deere 490D is equipped with joystick controls that allow operators to control the boom, arm, and bucket movements. Over time, these controls may become less responsive due to wear. Replacing or servicing the joystick components ensures smooth operation.


1. Using Authorized Dealers: John Deere’s extensive dealer network remains one of the most reliable sources for OEM (original equipment manufacturer) parts. Dealers can often locate hard-to-find parts and provide expert advice on suitable replacements.

2. Aftermarket Parts Suppliers: In some cases, aftermarket parts can be a more cost-effective alternative. These parts, though not made by John Deere, are often produced to meet similar quality standards. Many suppliers offer warranties and guarantees on aftermarket components, making them a viable option for some.

3. Salvage Yards and Used Parts: For non-critical components, purchasing used parts from salvage yards can be an economical choice. However, it is crucial to inspect these parts carefully before use to ensure they meet safety and performance standards.

4. Online Marketplaces: Websites and online marketplaces often have parts available for older equipment. It is essential to verify the reliability of the seller and the authenticity of the parts before making any purchases.


1. Check Hydraulic Fluids and Filters: Routine checks of hydraulic fluid levels and regular replacement of hydraulic filters can prevent costly repairs and ensure smooth operation.

2. Inspect the Undercarriage: Regularly check the tracks and rollers for signs of wear. Replacing undercarriage components in a timely manner can extend the overall life of the excavator.

3. Monitor Engine Health: Regularly inspect the engine, fuel system, and exhaust systems. Replace filters, check for leaks, and ensure proper fuel and air flow to prevent engine performance issues.

4. Keep the Cab Clean and Comfortable: Clean the cab regularly, lubricate the joystick controls, and ensure that the seat and dashboard are in good condition for operator comfort and safety.


Case 1830 Uniloader Overview
The Case 1830 Uniloader is a compact skid steer loader introduced in the 1970s, designed for light construction, landscaping, and agricultural tasks. Powered by a gasoline or diesel engine depending on configuration, it features chain-driven axles and a mechanical drivetrain. Case Construction Equipment, founded in 1842, produced the 1830 as part of its early skid steer lineup, with thousands sold across North America. Despite its age, many units remain in service due to their mechanical simplicity and ease of repair.
The drivetrain includes a pair of drive chains per side, routed around a front and rear axle sprocket, with a central cluster sprocket mounted between them. This cluster sprocket helps guide the chain and maintain tension, but when loose, it can cause chain misalignment, skipping, or binding.
Terminology Notes

• Cluster Sprocket: A mid-position sprocket between the front and rear axle sprockets that helps guide the drive chain.

• Lateral Movement: Side-to-side play along the shaft, which may indicate wear or missing spacers.

• Shaft Bearings: Bearings that support the sprocket shaft and allow rotation without excessive friction.

• Chain Tension: The tightness of the drive chain, critical for proper engagement with sprockets.


• Missing or Worn Spacer
  The cluster sprocket may rely on a spacer or bushing to maintain lateral alignment. If this part wears down or falls out during service, the sprocket can shift on the shaft.

• Snap Ring Failure
  Some models use snap rings to retain sprockets. If the ring breaks or dislodges, the sprocket may slide along the shaft.

• Shaft Wear or Undersizing
  Over time, the shaft itself may wear down, especially if the sprocket has been moving under load. This can create additional play even if bearings are intact.

• Chain Misalignment or Overload
  If the drive chain is too loose or has been overloaded, it may exert uneven force on the sprocket, causing it to shift or wobble.


• Remove the Sprocket and Inspect the Shaft: Look for wear, scoring, or missing retaining components.

• Replace or Fabricate Spacers: Use hardened steel or bronze bushings to restore alignment.

• Check for Snap Ring Grooves: If present, install new rings and verify fit.

• Adjust Chain Tension Properly: Prevent future overload and misalignment.

• Lubricate Bearings and Sprocket Shaft: Reduce wear and noise during operation.


Payhaulers, or "pay haulers," refer to a class of trucks and vehicles used primarily in the mining, construction, and industrial sectors for transporting large quantities of materials over long distances. These vehicles are distinct from typical haul trucks due to their robust construction, specialized design for heavy-duty transport, and the specific needs of the industries they serve. This article explores the history, evolution, and current applications of payhaulers, along with their impact on productivity and safety in heavy-duty transport.
The Rise of Payhaulers in Heavy Equipment
The concept of a payhauler emerged as the demand for more efficient transport in mining and large-scale construction projects grew. In the early 20th century, industries such as mining, logging, and large-scale infrastructure development required vehicles capable of carrying substantial loads of materials like coal, gravel, and ore. Standard trucks, though useful, lacked the necessary power and durability to handle the extreme weight and environmental challenges faced in these industries.
In response to this, manufacturers began producing specialized vehicles designed for these tough tasks. The term "payhauler" came into widespread use during this period to describe trucks with enhanced load-carrying capacity, reinforced suspensions, and heavy-duty engines capable of hauling bulk material efficiently over challenging terrains. These vehicles were a significant upgrade over the conventional trucks used at the time, capable of hauling heavier loads over longer distances.
Key Features of Payhaulers

1. Heavy-Duty Construction
   Payhaulers are built with heavy-duty frames and reinforced axles to support the massive loads they are designed to carry. These trucks feature high-strength steel frames that resist wear and tear, ensuring long operational life in harsh environments like quarries or mining sites.

2. Enhanced Load Capacity
   A defining feature of payhaulers is their large payload capacity. These trucks can haul several tons of material, making them essential for industries that require the transport of bulk materials. Payloads can range from 10 to 100 tons, depending on the model and the specific needs of the operation.

3. Specialized Tires and Suspension Systems
   Given the uneven and rugged terrain these trucks often operate on, payhaulers are equipped with large, durable tires and advanced suspension systems. These tires are designed to provide optimal traction and stability, even in muddy, rocky, or icy conditions. The suspension system helps to distribute the load evenly across the vehicle, preventing undue strain on any one component.

4. Powerful Engines
   The engines in payhaulers are typically much more powerful than those found in standard trucks. Most are equipped with high-torque diesel engines capable of delivering the necessary power to move heavy loads over long distances, often at slower speeds than typical trucks, but with high efficiency and reliability.

5. Durability and Longevity
   Payhaulers are built to endure the rigors of constant use in difficult environments. Their components are designed to resist high wear and stress, and regular maintenance is crucial for ensuring their continued operation. These trucks often require specialized technicians familiar with their heavy-duty components.


1. Mining
   In the mining industry, payhaulers play a crucial role in moving extracted materials from the mine site to processing facilities or storage areas. This includes materials such as coal, ores, minerals, and gravel. Their ability to carry massive payloads in challenging conditions like steep inclines and rough terrain makes them indispensable in large-scale mining operations.

2. Construction and Earthworks
   Payhaulers are also widely used in construction, particularly in projects involving the transportation of construction materials such as dirt, gravel, and sand. They are often seen in large civil engineering projects, such as road construction, dam building, or large infrastructure developments, where large quantities of material need to be moved over great distances.

3. Quarrying
   Quarry operations benefit significantly from payhaulers, as these vehicles are ideal for transporting heavy rocks and minerals extracted from quarries. Their robust build and high payload capacity allow them to operate efficiently in environments where other vehicles would struggle to maintain traction or withstand the load.

4. Landfill Operations
   Payhaulers are often used to transport waste materials in landfill operations, moving large amounts of trash or refuse across the site. Their large size allows them to make fewer trips, improving efficiency and reducing operating costs.


1. Maintenance and Repair
   The heavy-duty components of payhaulers require regular maintenance to ensure reliability. Parts like tires, engines, and suspensions experience wear and tear quickly, requiring frequent inspections and repairs. Operators and maintenance crews need to be trained specifically for these vehicles to avoid costly downtime and ensure optimal performance.

2. Fuel Efficiency and Environmental Impact
   Due to their large engines and heavy-duty operation, payhaulers consume significant amounts of fuel, which can make operations costly. As environmental regulations become stricter, manufacturers are exploring more fuel-efficient technologies, including electric powertrains and hybrid models. However, the transition to cleaner technologies may take time due to the large power demands of these trucks.

3. Safety Concerns
   The heavy loads and difficult terrains payhaulers navigate make safety a critical consideration. Operators must be trained to handle the equipment properly, especially when transporting unstable materials or navigating steep slopes. Additionally, proper safety gear, communication systems, and operational procedures must be in place to prevent accidents and injuries.


Mining Truck Configuration and Powertrain
In the rugged terrain of Alaska’s surface mines, the hauling fleet is built around Western Star trucks—a brand known for its durability and customization. These trucks are equipped with either Caterpillar 3406 engines paired with 18-speed manual transmissions or Detroit Diesel D-deck engines mated to Allison automatics. All units feature planetary drive axles, which distribute torque more evenly under extreme loads, reducing stress on driveline components.
The trucks are designed to haul 50-ton payloads across uneven ground, often in sub-zero conditions. The use of planetary drives and retarders ensures controlled descent on steep grades, while Jake brakes provide engine-assisted braking to reduce wear on service brakes.
Terminology Notes

• Planetary Drive: A gear system that multiplies torque and distributes load across multiple gears, ideal for heavy-duty applications.

• Jake Brake: A compression release engine brake that slows the vehicle by releasing compressed air from the cylinders.

• Retarder: A secondary braking system that uses hydraulic or electric resistance to slow the vehicle without friction.


• Lead concentrate: Dense and powdery, requiring careful containment.

• Zinc concentrate: Similar in texture but lighter in weight.

• Bulk concentrate: A mix of minerals with variable moisture content.


• Use UHMW Liners for Sticky Materials: Reduces unloading time and wear.

• Install Air-Powered Vibrators: Essential for winter operations and fine powders.

• Specify Planetary Drives for Heavy Loads: Improves torque distribution and longevity.

• Choose Hydraulic Lids and Gates: Enhances operator safety and efficiency.

• Monitor Brake Wear on 20-Inch Drums: Larger brakes require consistent inspection.


Detecting water main leaks is crucial for preventing water loss, reducing operational costs, and maintaining the integrity of the water distribution system. Over the years, advancements in technology have made it easier and more efficient to locate these leaks, ensuring quick repairs and minimizing disruptions. This article explores various techniques and technologies for detecting water main leaks, along with their benefits, challenges, and solutions.
Understanding the Importance of Leak Detection
Water main leaks, though often small at first, can lead to significant problems if not detected and repaired promptly. Leaking water waste not only costs utilities and municipalities a substantial amount of money but also leads to reduced water pressure, potential contamination, and infrastructure damage. Early detection allows for timely repairs, saving both money and resources.
Leaks in water mains can occur due to a variety of factors such as aging pipes, corrosion, external forces like excavation, or ground movement. As water mains age, the likelihood of leaks increases, making leak detection a critical part of maintenance.
Common Methods of Water Main Leak Detection
Several methods are used to detect water main leaks, each with its own advantages and limitations. The choice of method depends on factors such as the location of the leak, the type of pipes, the environment, and available resources.

1. Acoustic Leak Detection
   Acoustic leak detection is one of the most commonly used techniques for locating leaks in water mains. This method relies on detecting the sound produced by water escaping from a pressurized pipe. Specialized sensors are placed along the pipeline, and any unusual acoustic signatures are analyzed to pinpoint the location of the leak.
   • How it Works: Acoustic sensors detect sounds generated by the escaping water, such as hissing or bubbling. These sensors transmit data to a monitoring unit that analyzes the frequency and amplitude of the sounds to identify the leak's location.

   • Advantages: Acoustic methods are non-invasive and can be used on most types of pipes, including those buried deep underground. They are also effective in urban environments where access to the pipes might be limited.

   • Challenges: This method requires skilled personnel to interpret the data accurately. Background noise or interference from other water systems can sometimes make it difficult to isolate the leak's location.

2. Ground Penetrating Radar (GPR)
   Ground Penetrating Radar is a non-invasive technology that uses radar waves to detect anomalies in the ground beneath the surface, including leaks in water pipes. When radar waves encounter a change in material, such as escaping water, they bounce back to the sensor, providing information about the pipe's condition and the location of leaks.
   • How it Works: GPR sends high-frequency radar pulses into the ground. These pulses travel through the soil and reflect back when they hit a different material, such as water leaking from a pipe. The data is then processed to map the underground structures.

   • Advantages: GPR is precise and can detect leaks in both small and large pipes. It works well in various soil conditions, including rocky terrain and areas with high water tables.

   • Challenges: GPR can be expensive to deploy, and the effectiveness of the method can be reduced in environments with high levels of interference, such as densely packed areas with a lot of underground infrastructure.

3. Tracer Gas Detection
   Tracer gas detection involves injecting a gas into the water main system under pressure and then detecting the gas that escapes from leaks. The most commonly used tracer gases are hydrogen and helium, which are non-toxic and can be detected even in very small quantities.
   • How it Works: A tracer gas is introduced into the pressurized water system, and specialized sensors are used to detect the gas escaping from the pipe. These sensors are often placed along the pipeline or at manholes to locate the leak.

   • Advantages: This method is highly effective for locating small leaks and can detect leaks that might not be audible using acoustic methods. It is also useful in areas with a lot of background noise or interference.

   • Challenges: The process of introducing the tracer gas into the system requires specific equipment, and the method may not be effective in detecting leaks in non-pressurized systems.

4. Pressure Monitoring
   Pressure monitoring involves continuously monitoring the pressure within the water mains. Significant drops in pressure over time can indicate the presence of a leak. Pressure sensors are placed at various points along the pipeline to track any deviations from normal pressure levels.
   • How it Works: Pressure sensors collect data on the water pressure within the system. A sudden drop in pressure at specific locations can be an indicator of a leak. The sensors transmit this data in real-time, allowing operators to detect leaks as soon as they occur.

   • Advantages: This method provides real-time data and can help identify leaks quickly. It also helps to monitor the overall health of the water distribution system.

   • Challenges: Pressure drops can also occur for reasons other than leaks, such as high water demand or valve malfunctions. Thus, this method may require supplementary techniques for verification.

5. Thermal Imaging
   Thermal imaging uses infrared cameras to detect temperature differences on the surface of the ground, which can indicate the presence of water escaping from a pipe. Leaked water typically has a different temperature than the surrounding soil, making it visible in thermal images.
   • How it Works: Thermal cameras detect temperature variations along the surface of the ground. When a leak occurs, the water usually changes the temperature of the surrounding soil, creating a contrast that can be detected by the infrared sensor.

   • Advantages: Thermal imaging is a non-invasive and quick method to detect leaks. It is particularly effective when the ground above the leak is warmer than the surrounding area, such as during the colder months.

   • Challenges: The method may not work well in areas with thick layers of insulation or if the surface temperature does not show a significant difference. The resolution of thermal cameras can also limit the ability to precisely locate the leak.


1. Access and Location of Leaks
   Water mains can be buried deep underground, making it difficult to access and locate leaks. In urban areas, the presence of other infrastructure such as power lines, sewer systems, and communications cables can make it even more challenging.

2. Environmental Factors
   Weather conditions, soil types, and the presence of other utilities can interfere with the effectiveness of leak detection methods. For instance, extremely dry conditions or frozen ground can make it difficult for certain methods, such as thermal imaging or acoustic sensors, to work effectively.

3. Cost and Equipment
   Some leak detection methods, such as Ground Penetrating Radar and tracer gas detection, can be expensive to implement, particularly for small utilities or municipalities with limited budgets. The cost of the equipment and the need for specialized personnel can make these methods less accessible.

4. False Positives
   Detection systems can sometimes give false readings, especially in environments with a lot of noise or interference. For example, acoustic sensors may pick up background noise or mechanical vibrations that resemble the sounds of a leak, leading to incorrect conclusions.


Komatsu PC130-8 Excavator Overview
The Komatsu PC130-8 is a compact crawler excavator designed for urban construction, utility trenching, and forestry work. Introduced in the late 2000s, it features a fuel-efficient Komatsu SAA4D95LE-5 engine producing approximately 97 horsepower, paired with a closed-center hydraulic system. With an operating weight around 13 metric tons and a digging depth exceeding 18 feet, the PC130-8 balances reach, power, and transportability. Komatsu, founded in 1921 in Japan, has sold millions of excavators globally, and the PC130 series remains popular in mid-size fleets.
Terminology Notes

• Hydraulic Thumb: A pivoting attachment mounted on the stick that works with the bucket to grasp materials.

• Progressive Link Thumb: A thumb design with added linkage that increases rotation range and maintains grip force throughout the stroke.

• Bi-Directional Flow: Hydraulic flow that powers both extension and retraction of a cylinder.

• Spool Valve: A control valve that directs hydraulic fluid to specific circuits.


• Purpose and Application
  For demolition, land clearing, and tree handling, a progressive link thumb offers superior control and grip. For light material sorting or trench cleanup, a standard hydraulic thumb may suffice.

• Machine Compatibility
  The PC130-8 is often pre-plumbed for auxiliary hydraulics. Confirm that the existing spool supports bi-directional flow to avoid costly valve upgrades.

• Thumb Type


• Stiff Arm Thumb: Fixed position, manually adjusted. Low cost but limited versatility.

• Hydraulic Thumb: Powered by a cylinder, controlled from the cab. Offers full motion and precision.

• Progressive Link Thumb: Adds linkage to extend rotation up to 200°, maintaining grip force and alignment.


• Use HKX or Equivalent Plumbing Kits
  These kits include hoses, fittings, and control modules tailored to Komatsu machines. Specify bi-directional flow to ensure compatibility with existing spools and electronic controls.

• Avoid Import Delays
  Sourcing thumbs locally reduces customs delays and import duties. Brands like JRB, Paladin, and Solesbee’s offer regional availability and proven durability.

• Mounting and Fitment
  Some thumbs are designed for CAT linkage geometry. Modifications may be required to fit Komatsu sticks. Ensure that the cylinder base boss is correctly positioned to avoid over-center travel.


• Choose Progressive Link for Versatility: Ideal for forestry, demo, and uneven material handling.

• Confirm Spool and Flow Type: Bi-directional flow is essential for hydraulic thumbs.

• Source Locally When Possible: Avoid delays and ensure support.

• Inspect Cylinder Geometry Before Welding: Prevent over-travel and linkage misalignment.

• Use Quality Brands with Support: Solesbee’s, Paladin, and HKX offer proven performance and parts availability.


The Caterpillar 301.8 Mini Excavator is a compact yet powerful machine designed for a variety of construction and landscaping tasks. One of the key components of the CAT 301.8, like many other excavators, is its slew system, which allows the machine to rotate its upper structure. A malfunctioning slew brake can affect the performance of this critical system, potentially leading to costly downtime and repairs. This article explores the issues related to the slew brake, troubleshooting common problems, and provides practical solutions to keep the machine running smoothly.
Understanding the Slew Brake System
The slew system in an excavator allows the upper part of the machine, where the cab, boom, and arm are located, to rotate 360 degrees. This system is essential for maneuvering the excavator in tight spaces and performing tasks such as digging, lifting, and moving materials.
The slew brake, specifically, is a mechanism that holds the rotating upper structure in place when not in use. This is particularly useful on slopes or uneven ground, where the excavator needs to stay in a specific position. The brake prevents unintended rotation, ensuring that the machine stays steady while operating.
Common Issues with the CAT 301.8 Slew Brake
While the slew brake system in the CAT 301.8 is generally reliable, it can experience issues that reduce performance or cause malfunction. Common problems include:

1. Slew Brake Not Engaging or Holding
   The most common issue reported with the CAT 301.8 slew brake is when it fails to engage properly or doesn’t hold the upper structure in place. This can lead to unwanted rotation of the machine while working, which can be dangerous and lead to a lack of precision.
   • Cause: This issue is often caused by worn-out brake components, low hydraulic fluid levels, or a faulty brake release valve. The hydraulic pressure needed to engage the brake may not be sufficient, or the brake itself may be compromised by wear or contamination.

   • Solution: To address this, first check the hydraulic fluid levels and refill them if necessary. If the brake components are worn out, you may need to replace the brake discs or seals. In some cases, the release valve may need to be replaced or adjusted. A thorough inspection of the entire slew system is essential to diagnose and fix the issue.

2. Slew Brake Hydraulic Leaks
   Hydraulic leaks are a common issue in many excavators, and the CAT 301.8 is no exception. If there is a leak in the hydraulic lines or seals around the slew brake, the system may not be able to maintain enough pressure to engage the brake.
   • Cause: Over time, seals and hydraulic lines can wear out, leading to fluid leaks. Dirt and debris can also cause seals to degrade more quickly.

   • Solution: Inspect the hydraulic system for any visible leaks. Pay special attention to the seals and hoses near the slew brake. If a leak is found, replace the damaged seal or hose and refill the hydraulic fluid. Regular maintenance and cleaning of the hydraulic system can help prevent future leaks.

3. Slew Brake Too Tight or Loose
   Another common issue is when the slew brake is either too tight or too loose, preventing the machine from rotating smoothly or causing excessive resistance during rotation. This can affect the machine’s performance and increase wear on the slew components.
   • Cause: This problem can occur if the brake is improperly adjusted, either from wear or a lack of regular maintenance. The brake mechanism may need recalibration or fine-tuning to ensure it works correctly.

   • Solution: Adjust the brake tension according to the specifications in the operator’s manual. Over-tightening can cause excessive friction and wear, while loosening it too much can cause the machine to rotate uncontrollably. Consult the maintenance guide for your specific model to ensure the brake is properly set.

4. Slew Brake Making Unusual Noises
   Unusual sounds coming from the slew brake, such as grinding or squealing, are signs that something is wrong with the system. These noises typically indicate friction between the brake pads or other components, which could lead to further damage if not addressed.
   • Cause: These noises often occur when the brake pads are worn down or when there is contamination in the hydraulic fluid or brake system. Lack of lubrication or poor-quality fluid can exacerbate wear and cause these noises.

   • Solution: Inspect the brake pads and replace them if they show signs of excessive wear. Also, check the hydraulic fluid for contamination and change it if necessary. Ensure that the brake system is lubricated correctly to reduce friction and prevent further damage.


1. Hydraulic Fluid Checks
   Always check the hydraulic fluid levels regularly, especially before and after long periods of use. Low hydraulic fluid can cause poor performance or failure of the slew brake. Ensure the fluid is clean and free of contaminants, as dirty fluid can cause damage to the system’s components.

2. Clean and Replace Filters
   Hydraulic filters should be replaced at the recommended intervals to prevent dirt and debris from entering the hydraulic system. Dirty filters can clog lines and reduce the efficiency of the slew brake, as well as other hydraulic functions.

3. Inspect Brake Components
   Regularly inspect the brake discs, seals, and other components for wear. The brake pads should be checked for signs of damage or thinning, as worn-out pads will reduce braking efficiency and could cause slipping.

4. Check for Leaks
   Always inspect the hydraulic lines and seals for leaks, especially around the slew brake mechanism. Leaking fluid not only reduces hydraulic pressure but can also cause environmental contamination.

5. Proper Storage
   If the excavator will not be used for extended periods, ensure that it is stored in a dry, clean area where it is protected from the elements. Extreme temperatures and exposure to the elements can cause damage to the hydraulic system, including the slew brake.


1. Check Hydraulic Fluid: Begin by checking the hydraulic fluid levels and refill if necessary. Dirty or contaminated fluid can affect the system’s performance, so consider replacing the fluid if needed.

2. Inspect for Leaks: Look for any visible leaks around the slew brake area, including hoses and seals. Replace any worn or damaged components.

3. Examine the Brake Mechanism: If the brake isn’t holding properly, check for worn brake pads or damaged components. Adjust the brake tension according to the manufacturer’s specifications.

4. Test the System: After making repairs or adjustments, test the slew brake system by rotating the upper structure of the machine. Ensure it holds in place when the brake is engaged and releases smoothly when disengaged.


Bobcat T180 Loader Overview
The Bobcat T180 is a compact track loader introduced in the early 2000s, designed for grading, lifting, and material handling in confined spaces. With a rated operating capacity of 1,800 pounds and a turbocharged diesel engine producing around 66 horsepower, the T180 offers a balance of power and maneuverability. Bobcat, founded in 1947, has sold hundreds of thousands of loaders globally, and the T-series remains a staple in landscaping, construction, and agricultural fleets.
The T180 features a closed-center hydraulic system with multiple circuits powering lift arms, tilt cylinders, drive motors, and auxiliary attachments. Hydraulic fluid loss without obvious external leaks can be a frustrating issue, often requiring careful inspection and knowledge of internal components.
Terminology Notes

• Loader Control Valve: A multi-section hydraulic valve that directs fluid to lift and tilt cylinders.

• Belly Pan: The protective plate under the loader that catches fluid and debris.

• O-Ring Seal: A circular elastomer used to prevent fluid leakage at joints and fittings.

• Internal Leak: A condition where fluid bypasses seals or valves inside the system without exiting the machine.


• Loader Control Valve Seepage
  One of the most frequent culprits is the loader control valve, located beneath the cab. O-rings and seals inside the valve body can degrade over time, allowing fluid to escape slowly. Because the valve is shielded by the cab and frame, leaks may not be visible until fluid accumulates in the belly pan.

• Hose or Fitting Failure
  Hydraulic hoses routed under the cab or along the frame may develop pinhole leaks or loose fittings. These can spray fluid in fine mist patterns that evaporate or collect in hidden areas.

• Cylinder Seal Leakage
  Lift and tilt cylinders may leak internally, allowing fluid to bypass the piston and drain into the reservoir. This type of leak does not produce external wetness but can cause fluid levels to drop.

• Case Drain Line Issues
  If the case drain line from the drive motor or auxiliary circuit is cracked or disconnected, fluid may leak slowly into the belly pan without triggering alarms.


• Raise the Cab and Inspect with Light: Use a bright LED flashlight to check around the loader valve and hose connections.

• Clean the Belly Pan and Monitor: Remove debris and fluid, then observe for fresh drips after a few hours.

• Check Fluid Level Daily: Track changes to identify leak rate and urgency.

• Replace O-Rings and Seals Proactively: Especially on machines with over 2,000 hours.

• Use Dye Tracing if Needed: Add hydraulic dye and use UV light to pinpoint hidden leaks.
