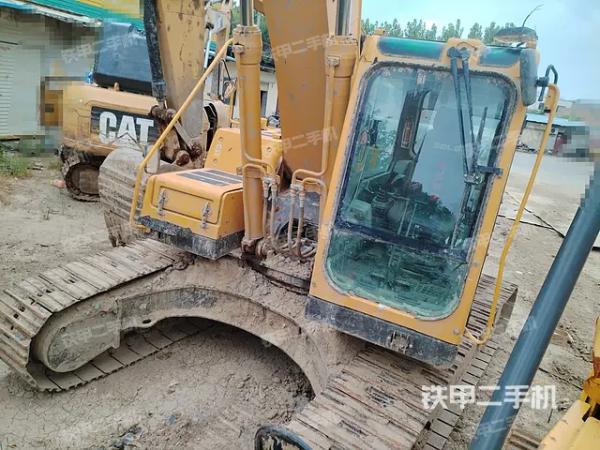

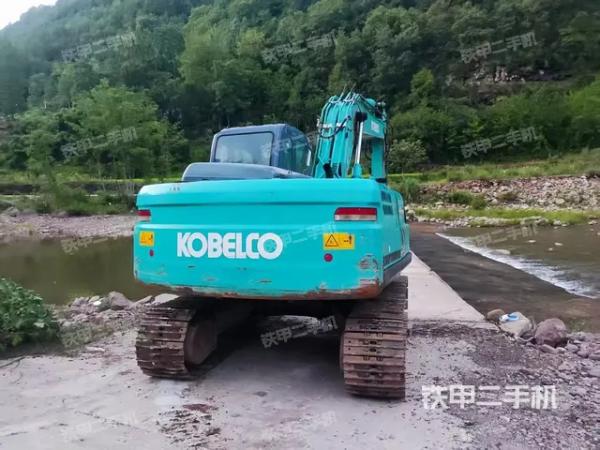

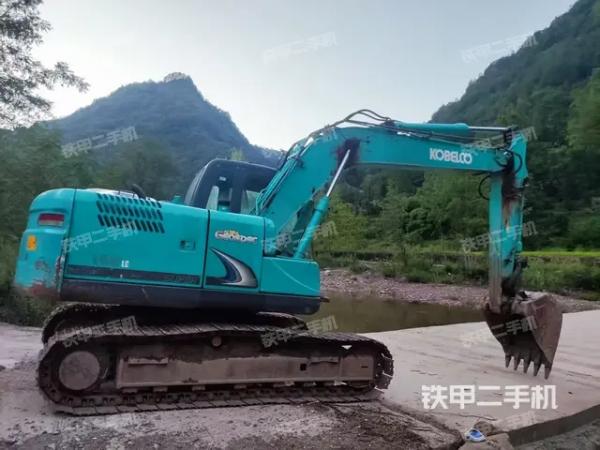

| Kobelco SK140LC-8 Excavator - Equipment Original Factory Parameters |
|
Posted by: MikePhua - 08-15-2025, 07:21 PM - Forum: Equipment Overview
- No Replies
|
 |

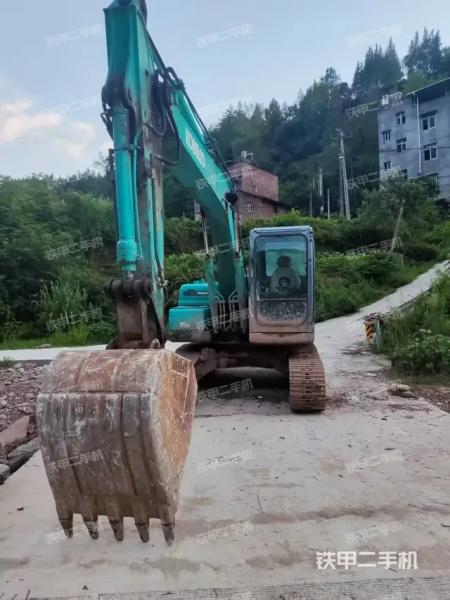

The Shin Caterpillar SK140LC-8 is a mid-sized hydraulic excavator, designed for versatility in a wide range of construction and demolition applications. Manufactured by Shin Caterpillar, a renowned name in the heavy machinery industry, this model strikes a balance between performance, power, and fuel efficiency. The SK140LC-8 has been a popular choice among contractors due to its robust design and operational capabilities. Let’s explore its key features and specifications in detail.
Key Specifications - Brand: Shin Caterpillar
- Model: SK140LC-8
- Manufacture Year: 2017
- Operating Hours: 10,500 hours
- Location: Chongqing, China
- Operating Weight: 13,200 kg
- Bucket Capacity: 0.57 m³ (Standard)
- Engine Model: Mitsubishi D04FR-KDP2TAAC
- Rated Power: 74 kW at 2000 rpm
- Displacement: 4.249 L
- Torque: 375 Nm at 1600 rpm
- Cylinders: 4
- Fuel Tank Capacity: 275 L
- Hydraulic Oil Tank Capacity: 101 L

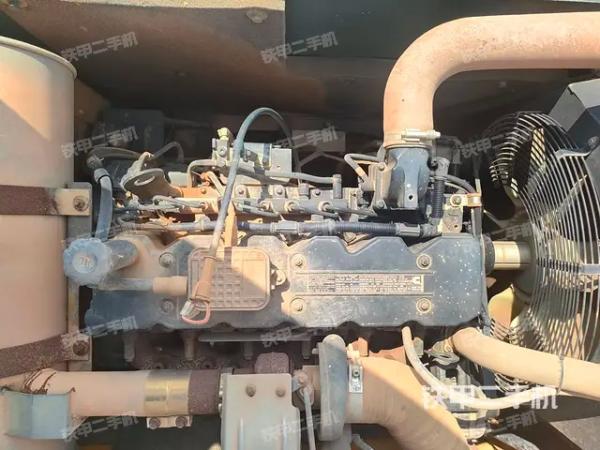

Engine and Powertrain

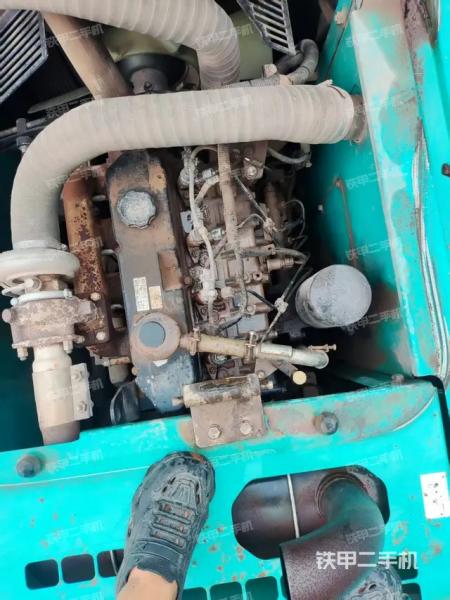

The Shin Caterpillar SK140LC-8 is powered by the Mitsubishi D04FR-KDP2TAAC engine, a highly efficient and reliable engine for demanding construction tasks. The engine is turbocharged, with direct fuel injection and a water-cooled, four-stroke system. This engine delivers a rated power of 74 kW at 2000 rpm, which ensures the machine can handle tough conditions while remaining fuel-efficient. The maximum torque of 375 Nm at 1600 rpm allows the excavator to handle heavy lifting and digging operations with ease.
Performance and Efficiency
This machine is designed to excel in performance across a range of tasks. Here are some of the performance specifications that make the SK140LC-8 stand out:- Ground Pressure: 45 kPa
- Swing Speed: 11 rpm
- Climbing Ability: 70%
- Bucket Digging Force: 90.1 kN
- Arm Digging Force: 64.4 kN
- Maximum Traction Force: 139 kN
- Travel Speed: 3.4 km/h (low) to 5.6 km/h (high)
These attributes, combined with the powerful hydraulic system, enable the SK140LC-8 to work on various terrains and effectively handle digging, lifting, and material handling tasks.
Hydraulic System

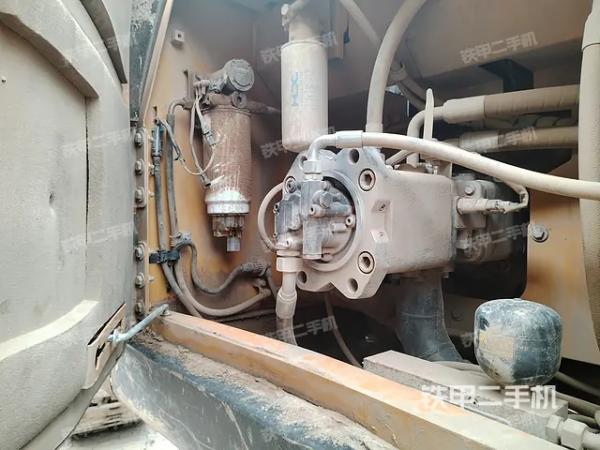

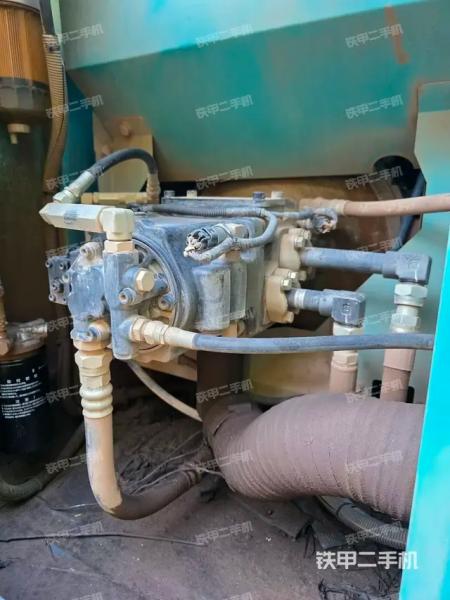

The hydraulic system of the SK140LC-8 is a high-performance system designed for efficient power delivery to the various components, ensuring consistent operation in tough environments.- Main Pump Maximum Flow: 2 x 130 L/min
- Walking Hydraulic Circuit: 34.3 MPa
- Swing Hydraulic Circuit: 28 MPa
- Control Hydraulic Circuit: 5 MPa
- Pilot Pump Flow: 20 L/min
- Boom Cylinder Dimensions: 2 x 125 mm x 1320 mm
- Bucket Cylinder Dimensions: 1 x 95 mm x 903 mm
These specifications ensure that the hydraulic system provides sufficient power for demanding tasks, while also maintaining fuel efficiency.
Dimensions and Design
The Shin Caterpillar SK140LC-8 is built with a sturdy frame that guarantees durability under challenging working conditions. It has the following dimensions:- Total Length: 7,790 mm
- Total Width: 2,490 mm
- Total Height: 2,870 mm
- Ground Clearance: 440 mm
- Front Work Device Minimum Swing Radius: 2,620 mm
- Rear Swing Radius: 2,190 mm
- Total Track Length: 3,750 mm
- Track Width: 500 mm
These measurements make the SK140LC-8 maneuverable in tight spaces while ensuring stability during operations. The track length provides a solid base for the machine to distribute its weight efficiently.
Operational Range
One of the standout features of the SK140LC-8 is its impressive working range. The excavator can dig up to:- Maximum Digging Radius: 8,340 mm
- Maximum Digging Depth: 5,520 mm
- Maximum Digging Height: 8,500 mm
- Maximum Unloading Height: 6,090 mm
- Maximum Vertical Digging Depth: 4,880 mm
With this extensive working range, the SK140LC-8 can reach areas that other machines might struggle to access, making it suitable for a variety of applications from excavation to material handling.
Fuel Efficiency and Operating Costs
With a fuel tank capacity of 275 L, the SK140LC-8 ensures long operational periods between refuels, minimizing downtime and operational costs. Combined with the efficient hydraulic system, this excavator delivers excellent fuel economy, which is crucial for contractors looking to reduce operating expenses.
Maintenance and Serviceability
Shin Caterpillar has designed the SK140LC-8 with serviceability in mind. The machine offers easy access to its key components, making it easier for technicians to perform maintenance and repairs. Regular maintenance helps ensure the longevity of the equipment, which is critical for machines with high operating hours such as this one, with over 10,500 hours of use.
Conclusion
The Shin Caterpillar SK140LC-8 is a reliable, efficient, and versatile excavator that is well-suited for a wide range of construction tasks. Its powerful engine, advanced hydraulic system, and impressive operational range make it an excellent choice for heavy-duty work. Additionally, its compact design, fuel efficiency, and serviceability further enhance its appeal. Whether you’re handling excavation, lifting, or demolition tasks, the SK140LC-8 offers the performance and durability you need for success in the field.
|
|
|

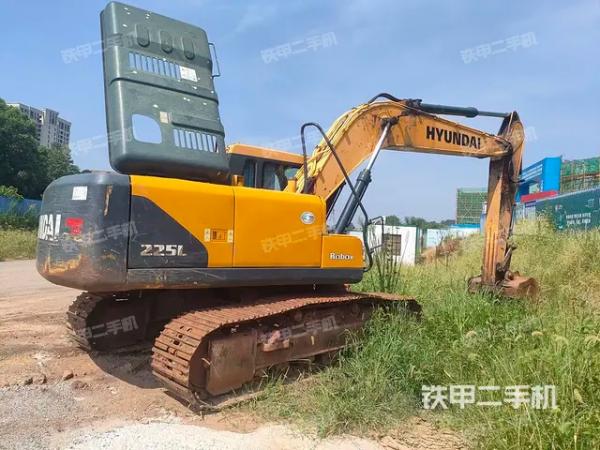

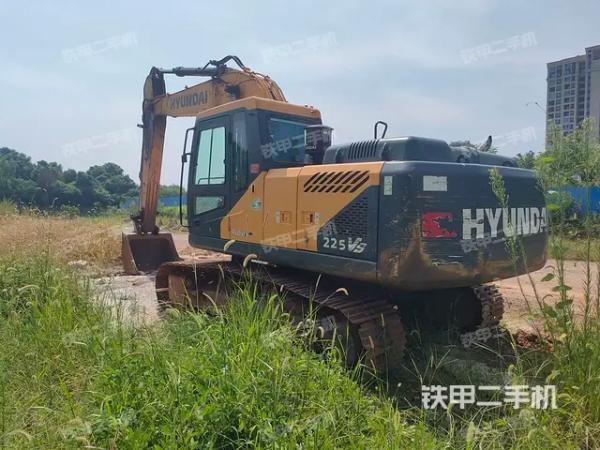

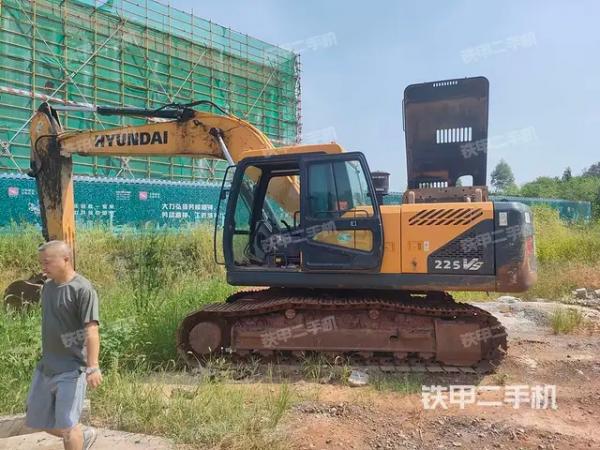

| Hyundai R215VS Excavator - Original Equipment Specifications |
|
Posted by: MikePhua - 08-15-2025, 07:16 PM - Forum: Equipment Overview
- No Replies
|
|

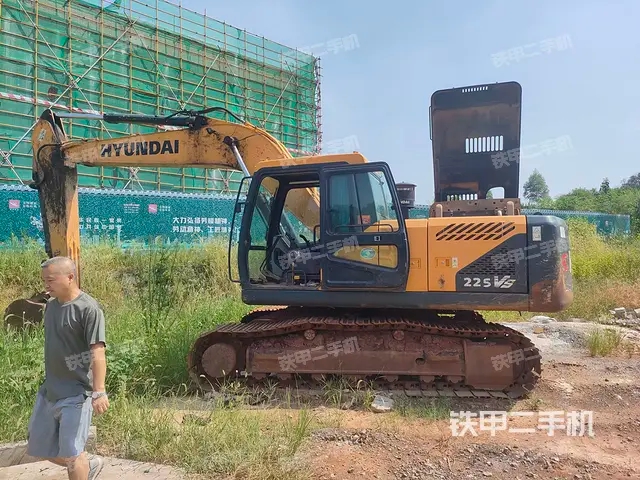

The Hyundai R215VS is a versatile and powerful excavator designed to handle heavy-duty tasks across various construction and excavation projects. Manufactured in 2019 and with 7,558 operating hours, this machine is engineered for efficient performance and durability. Located in Shaoyang, Hunan, this model showcases the technological advancements Hyundai has made in its line of hydraulic excavators, making it suitable for a wide range of applications.
Key Specifications and Parameters - Brand: Hyundai
- Model: R215VS
- Year of Manufacture: 2019
- Operating Hours: 7,558 hours
- Location: Shaoyang, Hunan
- Weight (kg): 20,900
- Bucket Capacity: 0.92 m³
- Arm Length: 5,650 mm
- Boom Length: 2,920 mm
- Engine Type: Cummins QSB7
- Fuel Tank Capacity: 340 L
- Hydraulic Oil Tank Capacity: 180 L
- Cooling Fluid Capacity: 35 L
- Main Pump Flow: 2×222 L/min
Engine Specifications
The R215VS is powered by a Cummins QSB7 engine, which is a 6-cylinder, turbocharged, and water-cooled system. Its notable features include:- Rated Power: 125 kW at 1,900 RPM
- Displacement: 6.7 L
- Cylinder Bore and Stroke: 107 x 124 mm
- Max Torque: 63 N·m at 1,500 RPM
- Configuration: Inline 6-cylinder, 4-stroke, direct-injection
This engine combines efficiency with power, ensuring optimal performance in a wide range of conditions. The turbocharging feature increases air intake efficiency, while the water-cooling system helps maintain a stable operating temperature.
Hydraulic System and Performance
The hydraulic system of the Hyundai R215VS is highly sophisticated, designed for heavy-duty applications. Some notable characteristics include:- Main Pump Flow: 2×222 L/min
- Walking Hydraulic Circuit Pressure: 350 MPa
- Swing Hydraulic Circuit Pressure: 250 MPa
- Working Hydraulic Circuit Pressure: 300 MPa
- Pilot Oil Circuit Pressure: 35 MPa
The hydraulic system is powered by two variable displacement pumps, providing smooth operation even in difficult environments. The axial piston motors offer precise control, and the automatic braking system ensures the safety of the operator during intense operation cycles.
Performance and Mobility
The Hyundai R215VS is engineered for high productivity with impressive performance parameters:- Swing Speed: 11.4 RPM
- Climbing Ability: 70% (35° incline)
- Travel Speed: 5.6 km/h (high speed), 3.7 km/h (low speed)
- Digging Force (Bucket): 149 kN
- Digging Force (Arm): 105 kN
These parameters make the R215VS suitable for a variety of tasks, from digging and lifting to high-precision work on uneven terrain.
Dimensions and Capacity
The Hyundai R215VS measures 9,510 mm in total length and 2,800 mm in width, with a height of 2,990 mm. Its transport dimensions make it manageable for various job sites and ensures that it can be easily moved from location to location.- Total Length: 9,510 mm
- Total Width: 2,800 mm
- Total Height: 2,990 mm
- Track Width: 2,990 mm

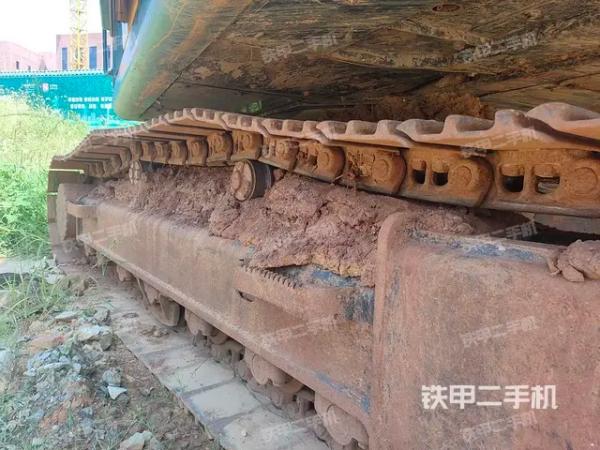

- Track Length: 4,440 mm
- Track Shoe Width: 600 mm
- Track Shoes per Side: 46
These dimensions allow for a stable working platform and provide ample ground contact to prevent tipping when working on uneven surfaces.
Working Range
The working range of the Hyundai R215VS is substantial, enabling it to complete large-scale projects with ease. Here are some of the key digging capabilities:- Maximum Digging Radius: 9,930 mm
- Maximum Digging Depth: 6,800 mm
- Maximum Digging Height: 9,730 mm
- Maximum Unloading Height: 6,910 mm
- Maximum Vertical Digging Depth: 6,060 mm
- Maximum Digging Radius on Ground: 9,760 mm
These specifications are important for contractors who need precise and efficient excavation capabilities, especially for projects requiring deep digging or high-reach activities.
Unique Features and Benefits
The Hyundai R215VS excels not just in performance but also in operator comfort and safety. The machine’s hydraulic system has been designed for quick and smooth operation, reducing downtime and increasing productivity on the job site.
The cabin provides excellent visibility and is designed with ergonomic controls for operator comfort, which reduces fatigue during long hours of operation. Additionally, the hydraulic components are engineered to minimize fuel consumption, contributing to cost savings over time.
Suggestions and Recommendations
For optimal performance and longevity, it's crucial to maintain the hydraulic system and engine on a regular basis. Regular oil changes and filter replacements will ensure that the Cummins QSB7 engine continues to operate efficiently. Hydraulic oil should be replaced periodically to prevent contaminants from damaging the hydraulic system, and attention to the cooling system is essential for maintaining the engine’s temperature during extended operations.
For those looking to purchase or lease this model, it is advisable to perform a thorough inspection of the machine's hydraulic system, engine performance, and working range. Given its comprehensive features, the Hyundai R215VS provides excellent value for contractors seeking a reliable, durable, and efficient excavator.
Conclusion
The Hyundai R215VS is a robust and versatile hydraulic excavator that offers top-notch performance for both small and large-scale projects. With its powerful engine, impressive digging capabilities, and advanced hydraulic system, it is well-suited for a wide variety of tasks in construction and mining. Whether you're excavating, lifting, or digging on difficult terrain, the R215VS is engineered to deliver efficiency and reliability.
|
|
|
|

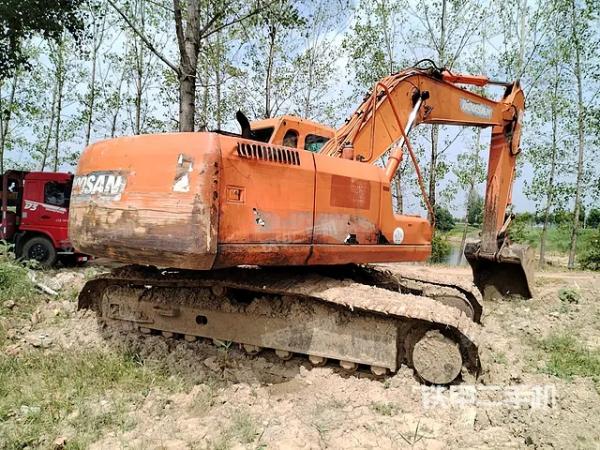

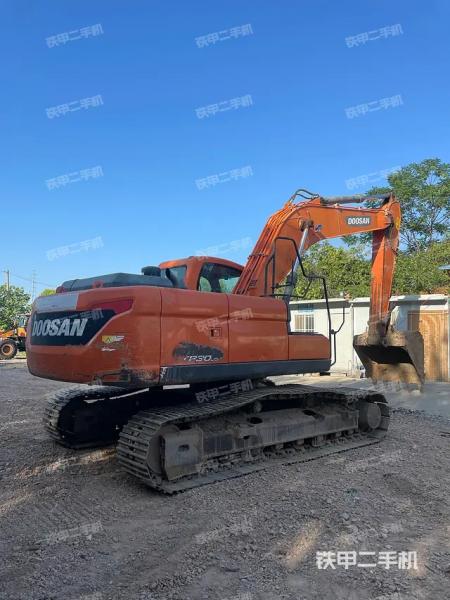

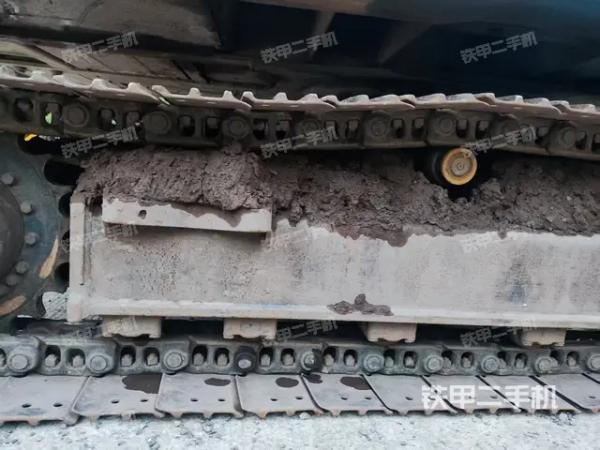

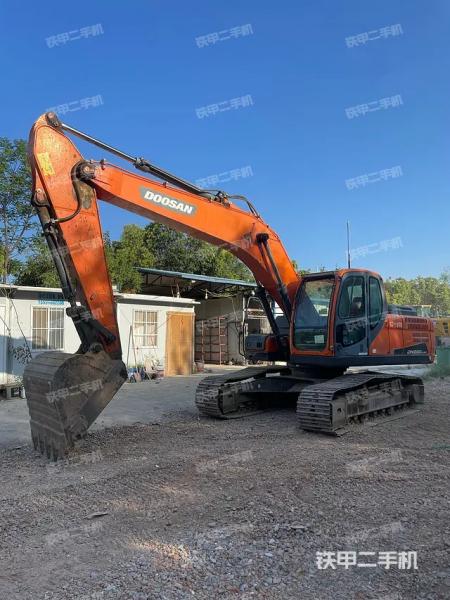

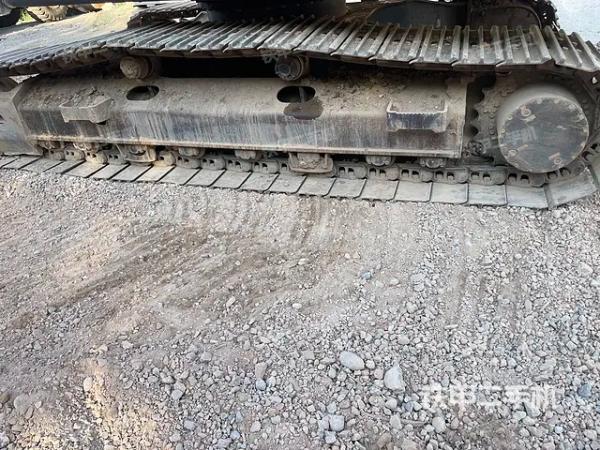

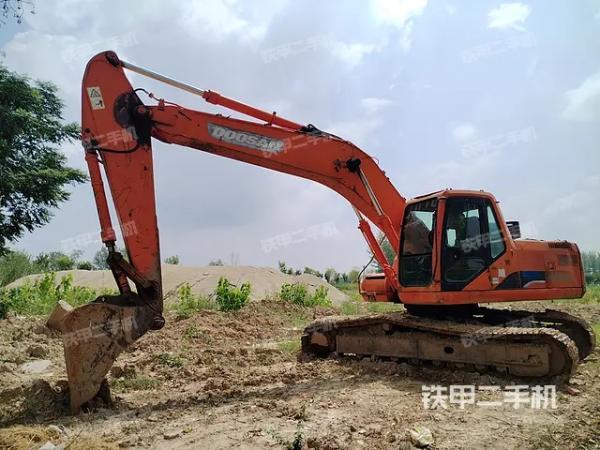

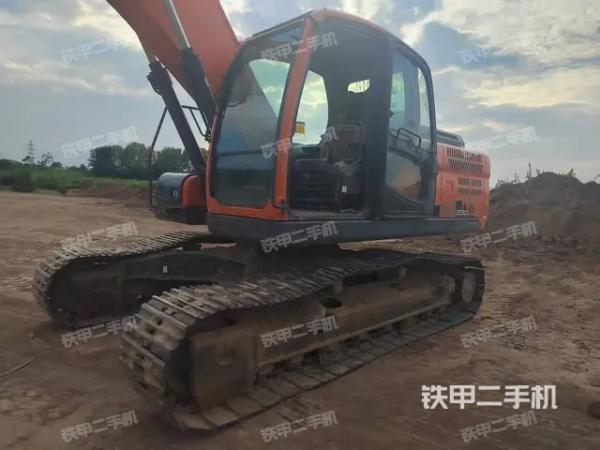

| Doosan DX220LC-9C Excavator - Equipment Original Specifications |
|
Posted by: MikePhua - 08-15-2025, 07:08 PM - Forum: Equipment Overview
- No Replies
|
|

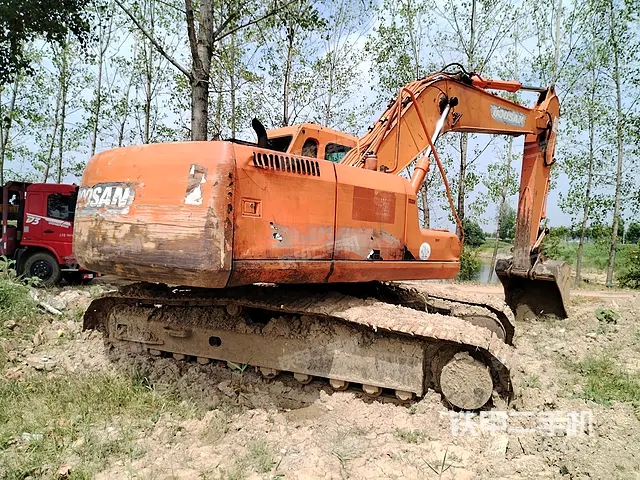

The Doosan DX220LC-9C is a powerful hydraulic crawler excavator designed for construction, mining, and heavy-duty earthmoving projects. Manufactured in 2018, this machine offers advanced features that make it a top choice for operators seeking reliability and performance. Below is an in-depth look at its specifications, performance, and capabilities.
Basic Equipment Information - Brand: Doosan
- Model: DX220LC-9C
- Year of Manufacture: 2018
- Operating Hours: 7,300 hours
- Location: Weinan, Shaanxi, China
- Last Updated: 08-14
Key Specifications- Operating Weight: 21,500 kg
- Bucket Capacity: 1.05 m³
- Engine Model: DL06
- Engine Power: 115 kW at 1,900 rpm
- Engine Configuration: Inline, Turbocharged
- Cylinders: 6
- Bore x Stroke: 100 mm x 125 mm
- Fuel Tank Capacity: 400 liters
- Hydraulic Oil Tank Capacity: 195 liters
- Engine Oil Change Capacity: 27 liters
Hydraulic System- Hydraulic Pump Type: Variable displacement piston pump
- Max Flow (Main Pump): 2 x 212 l/min
- Walking Hydraulic Circuit Pressure: 35 MPa
- Swing Hydraulic Circuit Pressure: 27 MPa
- Working Hydraulic Oil Circuit Pressure: 35 MPa
- Walking Hydraulic Motor: Axial piston motor
Dimensions and Operating Range- Total Transport Length: 9,506 mm
- Total Transport Width: 2,990 mm
- Total Transport Height: 2,891 mm
- Cab Height: 2,985 mm
- Ground Clearance: 1,096 mm
- Minimum Ground Clearance: 475 mm
- Rear Swing Radius: 2,794 mm
- Track Length: 4,440 mm
- Track Width: 600 mm
- Track Gauge: 2,990 mm
Performance- Ground Pressure: 43.5 kPa
- Swing Speed: 10.7 rpm
- Digging Force (Bucket): 149 kN
- Digging Force (Arm): 105 kN
- Travel Speed: 5.9 km/h (high), 3.2 km/h (low)
Operating Range- Maximum Digging Radius: 9,873 mm
- Maximum Digging Depth: 6,592 mm
- Maximum Digging Height: 9,616 mm
- Maximum Vertical Digging Depth: 3,929 mm
- Maximum Reach at Ground Level: 9,699 mm
- Maximum Effective Digging Depth: 6,411 mm

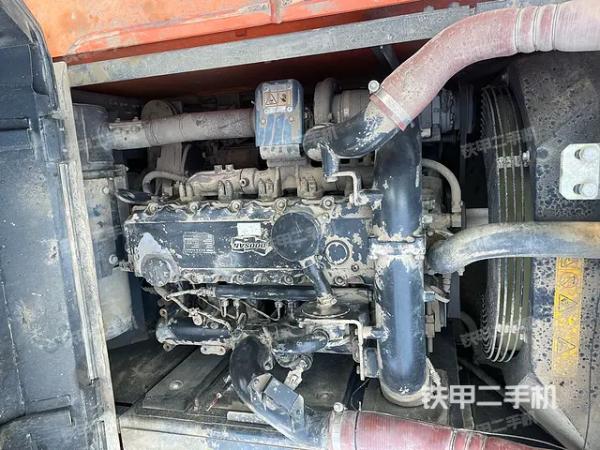

Engine and Powertrain
The DX220LC-9C is equipped with a Doosan DL06 engine, providing 115 kW of power at 1,900 rpm. This engine is designed for high efficiency, reliability, and durability, meeting rigorous industry standards. The 6-cylinder, turbocharged engine delivers ample torque for demanding tasks such as digging, lifting, and material handling. Its fuel efficiency ensures longer operational hours with fewer refueling stops, making it ideal for large-scale projects.

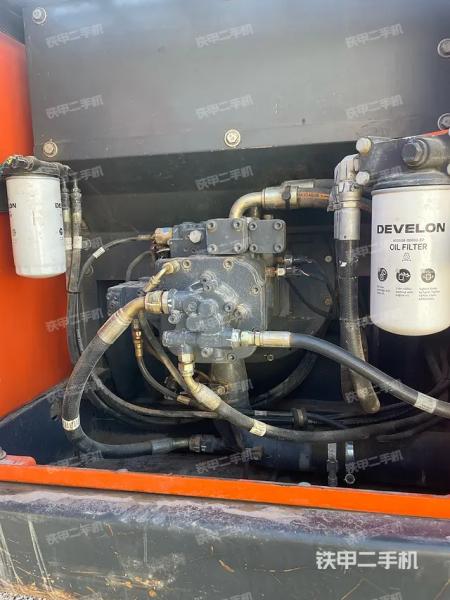

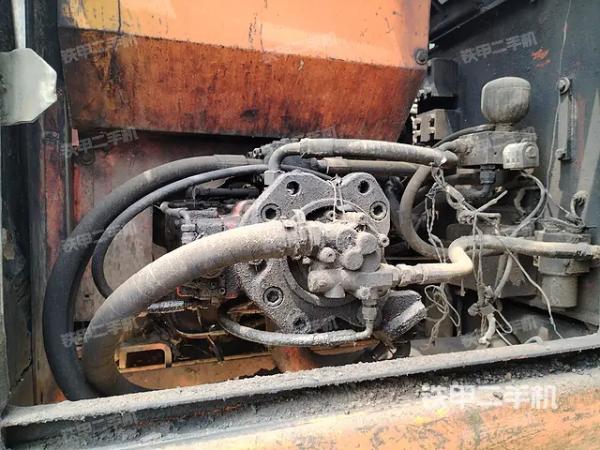

Hydraulic Performance
The hydraulic system of the DX220LC-9C is designed to maximize the machine's performance. With a total flow rate of 424 liters per minute from its dual main pumps, this system provides consistent power for demanding applications. The hydraulic system is engineered to handle tough working conditions, whether you're using a bucket, a breaker, or other attachments. The machine's high bucket digging force (149 kN) and arm force (105 kN) allow for efficient earthmoving, making it highly effective for both excavation and lifting tasks.
Operator Comfort

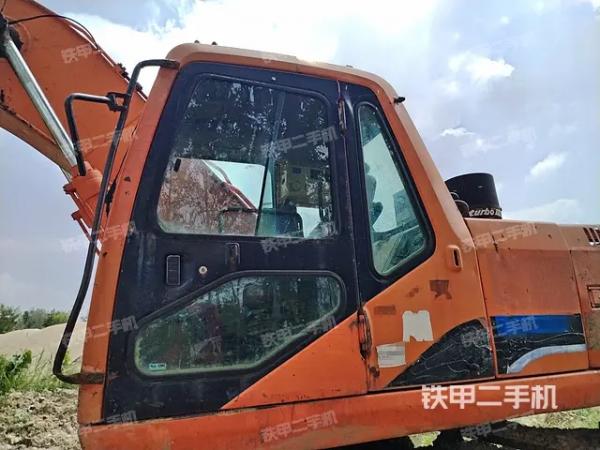

The cabin of the DX220LC-9C has been designed with the operator’s comfort and efficiency in mind. Featuring easy-to-use controls, excellent visibility, and adjustable seating, it reduces operator fatigue during long shifts. The spacious cab provides a high level of comfort, while the machine's low vibration and noise levels enhance the working environment. Additionally, the air-conditioned cabin ensures that operators can work in comfort in any weather.
Maintenance and Durability
Routine maintenance is key to ensuring the longevity and reliability of heavy equipment. The DX220LC-9C is designed for easy access to maintenance points, which reduces downtime and helps keep operating costs low. The machine is built to withstand tough conditions, and its robust construction ensures that it remains reliable throughout its service life. Regular servicing of the engine, hydraulics, and other vital components is essential for maximizing the lifespan of the machine.
Conclusion
The Doosan DX220LC-9C is a versatile and durable hydraulic crawler excavator that excels in demanding construction environments. With its powerful engine, efficient hydraulic system, and operator-friendly features, this machine is perfect for large-scale excavation, material handling, and earthmoving tasks. Whether you're working in construction, mining, or infrastructure projects, the DX220LC-9C provides the performance and reliability needed to get the job done.
This model is especially suited for contractors looking for a high-performance machine that can handle various attachments and challenging conditions. With its combination of power, efficiency, and operator comfort, the DX220LC-9C stands out as an excellent choice for heavy-duty applications.
|
|
|
|
| Shandong Lingong E6255F Excavator - Equipment Original Factory Parameters |
|
Posted by: MikePhua - 08-15-2025, 07:01 PM - Forum: Equipment Overview
- No Replies
|
|

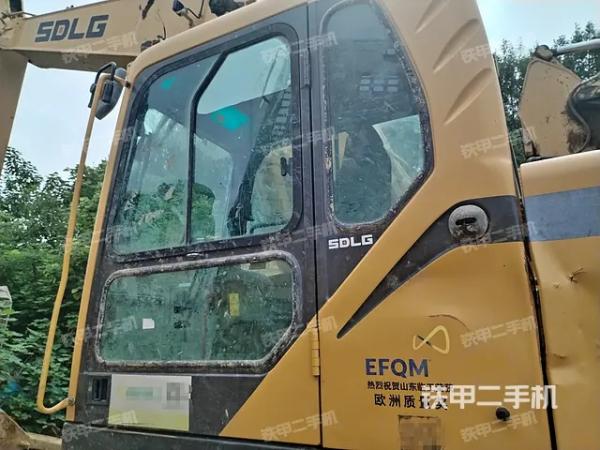

The Shandong Lingong E6255F is an impressive excavator designed for a variety of heavy-duty construction tasks. Built for rugged work environments, this machine delivers exceptional performance and reliability, making it a preferred choice for professionals in the construction, mining, and infrastructure sectors. Below, we’ll explore the essential details and specifications of this powerful piece of equipment.
Basic Information - Brand: Shandong Lingong
- Model: E6255F
- Year of Manufacture: 2021
- Operating Hours: 5,409 hours
- Location: Xuchang, Henan, China
- Last Updated: 08-14
Engine and Power System
At the heart of the E6255F lies a robust engine capable of handling the most demanding tasks.- Rated Power: 153 kW
- Engine Type: Traditional power system (Diesel engine)
- This engine ensures optimal fuel efficiency while providing sufficient power for tough operations, including lifting, digging, and transporting heavy materials.
Performance Capabilities
The E6255F excels in performance due to its high digging force and smooth operational characteristics. Key performance metrics include:- Rotary Speed: 11.3 rpm
- Bucket Digging Force: 176 kN
- Travel Speed: 3.3 km/h (low) / 5.5 km/h (high)
- Max Digging Depth: 6,980 mm
- Max Digging Radius: 10,260 mm
- Max Unloading Height: 6,800 mm
These values indicate that the E6255F is built for intensive tasks where deep digging and long reach are necessary. With its exceptional digging capacity, this machine ensures faster project completion while maintaining optimal safety standards.
Machine Dimensions
The physical dimensions of the E6255F make it a versatile machine, allowing it to work in a variety of environments.- Overall Length: 10,190 mm
- Overall Width: 3,190 mm
- Overall Height: 3,040 mm
- Weight: 25,500 kg
- Bucket Capacity: 1.5 m³
These dimensions offer stability and maneuverability in tight spaces, making it ideal for urban construction sites or areas with limited accessibility.

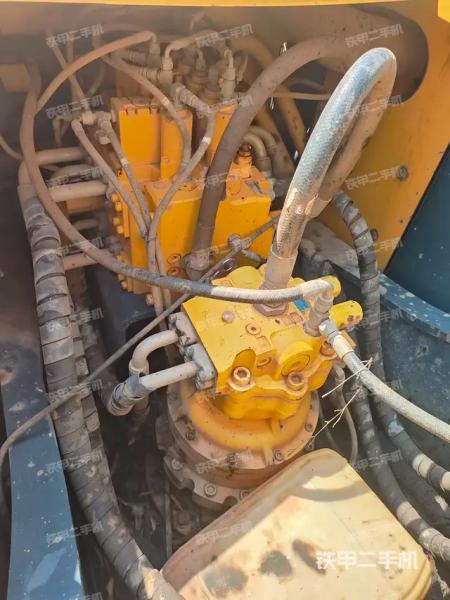

Hydraulic System and Efficiency

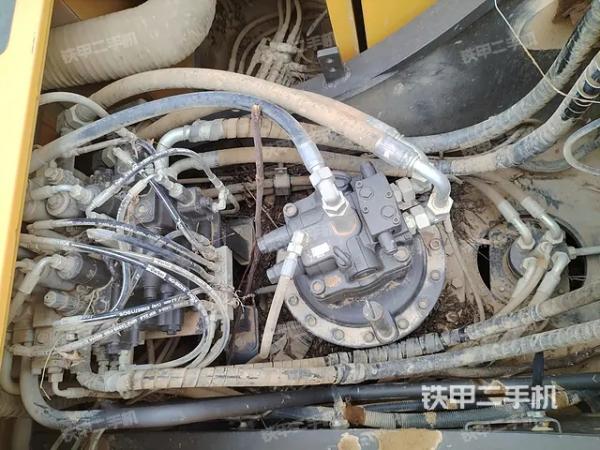

The E6255F’s hydraulic system is designed for high efficiency, providing the necessary power for various attachments. This system is capable of handling the high demands of digging, lifting, and other heavy operations.- Main Pump Flow: 429 l/min
- Hydraulic System Pressure: 34.3 MPa
- Travel Hydraulic Pressure: 34.3 MPa
- Swing Hydraulic Pressure: 27.5 MPa
These hydraulic specifications ensure the machine can perform heavy-duty tasks without compromising on speed or power. Its quick response time and adaptability to various work attachments allow for increased versatility in the field.
Practical Applications
Given its size and power, the E6255F is a popular choice in multiple industries:
- Construction: This machine is ideal for digging foundations, trenching, and moving large volumes of material.
- Mining: With its powerful engine and digging depth, it can be used in open-pit mining or quarry operations.
- Infrastructure Development: Urbanization and infrastructure development projects benefit from its efficiency in managing large-scale excavation work.
The E6255F has proven itself in various construction projects in China, particularly in highway construction and large-scale land development. Its large bucket capacity and superior digging depth make it perfect for digging deep foundations and handling bulk earthworks.
Maintenance and Durability
With over 5,000 hours of usage, the E6255F has shown that it can handle years of heavy use without significant performance loss, provided regular maintenance is performed. Routine inspections and fluid checks ensure the longevity of the engine and hydraulic components.
For maximum lifespan, it is essential to maintain the proper hydraulic fluid levels, monitor engine oil, and clean air filters regularly. Additionally, operators should be trained to ensure the equipment is used efficiently to avoid unnecessary wear and tear.
Suggestions and Solutions for Operators
To make the most of the Shandong Lingong E6255F, operators should:
- Regularly monitor the fuel and hydraulic systems to avoid downtime due to failures.
- Optimize the digging cycle by ensuring the right bucket size and proper angle.
- Incorporate the use of GPS systems for precise excavation and grading operations, improving overall accuracy and productivity.
In conclusion, the Shandong Lingong E6255F excavator is a formidable machine that combines power, efficiency, and durability. Its design caters to a wide range of industries, from construction to mining, and with proper maintenance, it promises reliable performance for many years. This excavator is an excellent investment for any construction or mining operation requiring a versatile, high-performance machine.
|
|
|
|
| Doosan DH220LC-7 Excavator - Equipment Original Specifications |
|
Posted by: MikePhua - 08-15-2025, 06:56 PM - Forum: Equipment Overview
- No Replies
|
|
The Doosan DH220LC-7 is a formidable excavator known for its robust performance and efficiency in various industries such as construction, mining, and infrastructure development. With its reliable engine, versatile hydraulics, and powerful digging capacity, the DH220LC-7 is a machine designed to handle tough tasks with ease.
Basic Information - Brand: Doosan
- Model: DH220LC-7
- Year of Manufacture: 2010
- Operating Hours: 8000 hours
- Location: Xuchang, Henan, China
Specifications and Key Features
The DH220LC-7 is a mid-sized hydraulic crawler excavator that offers a combination of power, efficiency, and stability. This model has a weight of approximately 21 tons, making it ideal for medium-to-heavy duty tasks. Below is a breakdown of its primary specifications:- Operating Weight: 21,400 kg
- Bucket Capacity: 0.5-1.18 m³
- Arm Length: 5,700 mm
- Boom Length: 2,900 mm
- Engine Model: Doosan DB58TI
- Rated Power: 108 kW at 2000 rpm
- Cooling System: Air-cooled
- Track Length: 4,440 mm
- Track Gauge: 2,390 mm
- Track Width: 600 mm
This excavator, manufactured in Shandong, operates on traditional power systems with a strong focus on hydraulic efficiency and overall durability.

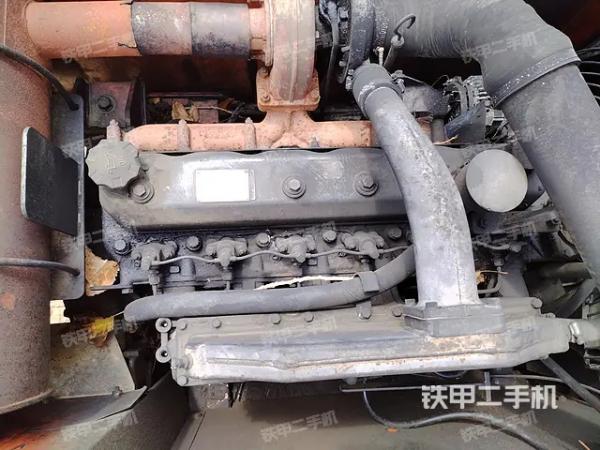

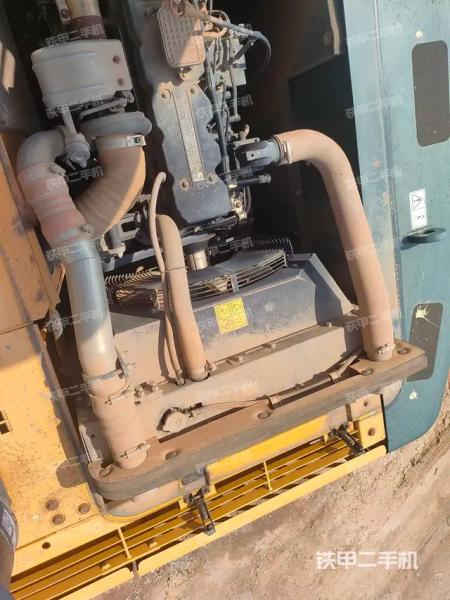

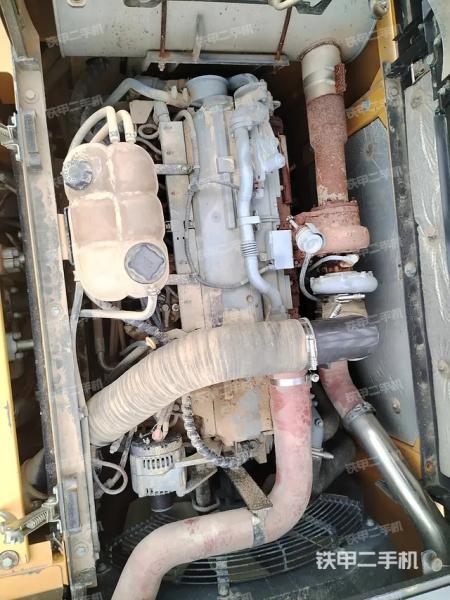

Engine Performance and Hydraulics
The Doosan DH220LC-7 is powered by the Doosan DB58TI engine, a reliable diesel engine designed for high performance in demanding conditions. It provides an output of 108 kW at 2,000 rpm, which is ideal for tasks that require consistent, steady power delivery.
Key hydraulic performance stats are as follows:- Swing Speed: 12.1 rpm
- Bucket Digging Force: 136.2–144.1 kN
- Arm Digging Force: 100–104.9 kN
- Travel Speed: 3.1–5.4 km/h
The high swing speed and strong digging forces make this model ideal for a variety of digging, lifting, and material handling operations.

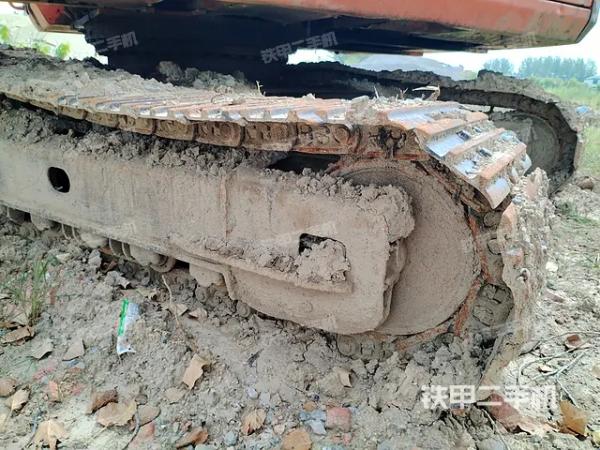

Dimensions and Operational Reach
The DH220LC-7 features dimensions that ensure stability and optimal reach for excavation tasks:- Transport Length: 9,550 mm
- Transport Width: 2,990 mm
- Transport Height: 3,030 mm
- Cab Height: 3,030 mm
- Undercarriage Ground Clearance: 480 mm
- Counterweight Ground Clearance: 1,115 mm
- Rear Swing Radius: 2,750 mm
The spacious undercarriage and high clearance ensure that the machine can operate in both soft and rough terrains without issue, offering both stability and maneuverability.
The machine’s digging reach is another of its standout features. Below are the maximum operational capabilities:- Maximum Digging Radius: 9,970 mm
- Maximum Digging Depth: 6,660 mm
- Maximum Digging Height: 9,660 mm
- Maximum Dump Height: 6,810 mm
- Maximum Vertical Digging Depth: 5,600 mm
These values illustrate the impressive depth and reach the DH220LC-7 can achieve, making it a versatile tool for projects that require both shallow and deep excavations.

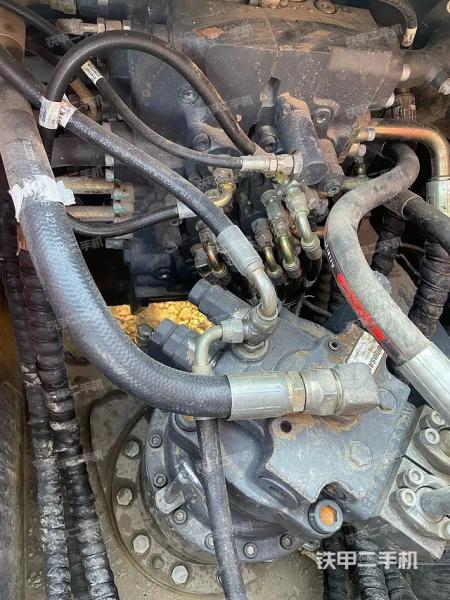

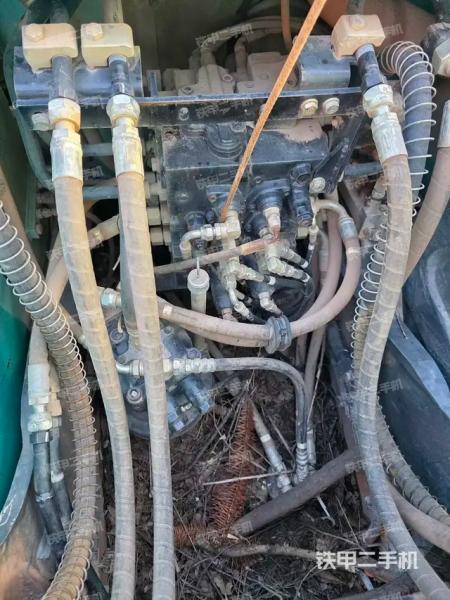

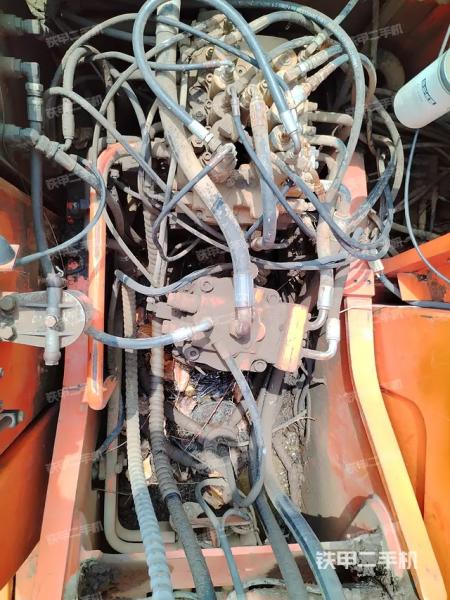

Hydraulic System and Performance
Hydraulics play a critical role in the performance of any excavator, and the DH220LC-7’s system is no exception. Equipped with a variable displacement axial piston pump, this model offers excellent power and control. The hydraulic system supports a high level of precision in handling complex tasks such as trenching and digging in tight spaces.
Key hydraulic system parameters include:- Main Pump Maximum Flow: 439 L/min
- Swing Hydraulic Circuit Pressure: 28.9 MPa
- Travel Hydraulic Circuit Pressure: 37.3 MPa
- Control Hydraulic Circuit Pressure: 3.2 MPa (Pilot Oil Circuit)
The high-pressure hydraulic system provides smooth operation and enhanced lifting capabilities, which is crucial when dealing with heavy loads or tough digging conditions.
Fuel Efficiency and Maintenance
Fuel efficiency is a major factor when operating large machinery. The DH220LC-7 is designed with this in mind, offering a fuel tank capacity of 400 liters and a hydraulic oil tank capacity of 135 liters. The engine oil replacement volume is 23.1 liters, ensuring long operational periods before maintenance is needed. With its large fuel tank, the DH220LC-7 can cover significant work areas without the need for frequent refueling, making it a reliable partner for long working shifts.
Additionally, the cooling liquid capacity is 20.4 liters, which ensures the engine remains at optimal temperatures during extended operations in high-demand environments.
Conclusion: A Reliable Workhorse for Challenging Tasks
The Doosan DH220LC-7 is a robust and efficient excavator that is well-suited for various construction, mining, and infrastructure tasks. With its strong engine, powerful hydraulic system, and impressive reach, this model is built to handle the most demanding jobs. Whether you're digging deep foundations, moving large amounts of material, or performing precise trenching operations, the DH220LC-7 provides the power and stability needed to get the job done right.
For companies looking to invest in reliable, high-performance machinery, the DH220LC-7 continues to prove itself as an excellent choice.
|
|
|
|
|
