The John Deere 310SE, a well-known backhoe loader, is recognized for its durability and versatility in construction and excavation projects. However, like all heavy machinery, it can experience various mechanical issues, one of the more common problems being the transmission kicking out or disengaging unexpectedly. This issue can disrupt operations and lead to costly downtime. Understanding the potential causes of this problem and how to troubleshoot it can help ensure the longevity and efficiency of the machine.
Understanding the John Deere 310SE Transmission System
The John Deere 310SE features a powershift transmission system, which is designed to provide smooth gear shifting under load. This system, commonly found in backhoe loaders, is built to handle the tough demands of construction work. However, issues can arise, especially when the system is subjected to wear and tear or improper maintenance.
The transmission is responsible for transferring power from the engine to the wheels and backhoe. When it "kicks out," it means the transmission unexpectedly disengages or loses power, causing the machine to stop moving or struggle to maintain momentum. This problem can occur while the machine is in motion or when shifting between gears.
Common Causes of Transmission Kicking Out

1. Low or Contaminated Transmission Fluid
   • Cause: Transmission fluid plays a crucial role in lubricating the internal components of the transmission. If the fluid is low or contaminated with dirt or metal shavings, it can cause the transmission to overheat or fail to engage properly. This can lead to the transmission kicking out during operation.

   • Solution: Check the transmission fluid levels and inspect for contamination. If the fluid is dirty or has a burnt smell, it may need to be replaced. Regular maintenance, including fluid changes, can prevent this issue from recurring.

2. Worn or Faulty Transmission Pump
   • Cause: The transmission pump is responsible for circulating fluid throughout the system. If the pump is worn or malfunctioning, it can cause insufficient fluid pressure, leading to erratic shifting or disengagement of the transmission.

   • Solution: Inspect the transmission pump for signs of wear or damage. If necessary, replace the pump to restore proper fluid circulation and pressure.

3. Damaged or Slipping Clutch Pack
   • Cause: The clutch pack in a powershift transmission is responsible for engaging and disengaging the transmission's gears. If the clutch pack is worn, damaged, or slipping, it can cause the machine to lose power and experience transmission kickouts.

   • Solution: Check the clutch pack for signs of wear, such as slipping or excessive heat. In some cases, the clutch pack may need to be adjusted or replaced.

4. Faulty Solenoid or Valve
   • Cause: A faulty solenoid or valve can interrupt the flow of hydraulic pressure, leading to improper engagement of the transmission. This can cause the machine to experience issues like the transmission kicking out or failing to shift properly.

   • Solution: Inspect the solenoids and valves for any signs of malfunction. Replacing damaged or faulty solenoids and valves can resolve shifting issues and prevent the transmission from kicking out.

5. Electrical Issues
   • Cause: The transmission control system relies on electrical signals to control shifting. Electrical issues, such as a faulty sensor or wiring problem, can disrupt the signal sent to the transmission, causing it to disengage unexpectedly.

   • Solution: Perform a diagnostic check of the electrical system, including sensors, wiring, and connections. Replace any damaged or faulty components to restore proper communication between the transmission and the control system.

6. Excessive Wear on Transmission Components
   • Cause: Over time, the internal components of the transmission, such as gears and bearings, can wear down, leading to slipping, loss of power, or engagement issues. This wear can result in the transmission kicking out during operation.

   • Solution: If the machine has high hours or has been subject to heavy use, it may require an internal inspection of the transmission. Worn components should be replaced to restore smooth operation.


1. Check Fluid Levels and Condition
   • Start by inspecting the transmission fluid levels. If the fluid is low, top it up with the recommended fluid type.

   • Inspect the condition of the fluid for signs of contamination, such as a burnt odor or the presence of debris. If the fluid is contaminated, perform a fluid change.

2. Inspect the Transmission Pump
   • Listen for unusual noises from the transmission pump, such as whining or grinding, which can indicate wear.

   • Check for leaks around the pump, which could lead to a drop in fluid pressure.

   • Replace the pump if it is showing signs of failure.

3. Examine the Clutch Pack
   • Check for slipping in the clutch pack by observing the machine's response to gear shifting. A slipping clutch pack can cause poor performance and loss of power.

   • Inspect for excessive heat around the clutch pack, which can indicate wear.

   • If the clutch pack is worn, it may need to be adjusted or replaced.

4. Test the Solenoids and Valves
   • Inspect the solenoids and valves for signs of malfunction, such as corrosion or electrical faults.

   • Test the solenoids for proper operation by checking their response to signals.

   • Replace any faulty solenoids or valves to restore proper hydraulic function.

5. Check the Electrical System
   • Inspect the wiring and connections for signs of wear or loose connections. A poor electrical connection can cause erratic shifting or power loss in the transmission.

   • Run a diagnostic scan to identify any error codes related to the transmission control system. Address any electrical issues that may be detected.

6. Assess the Transmission's Internal Components
   • If all other components appear to be in good condition, consider inspecting the internal components of the transmission.

   • Look for signs of worn gears or bearings that may be causing the system to fail. If internal components are severely worn, a rebuild or replacement may be necessary.


1. Regular Fluid Changes: One of the most important aspects of maintaining a transmission is ensuring the fluid is clean and at the proper levels. Follow the manufacturer's recommended maintenance schedule for fluid changes and check fluid levels regularly.

2. Monitor Temperature: Transmission overheating is a common cause of premature wear. Ensure that the transmission cooler is functioning correctly and that the system is not running too hot.

3. Proper Load Management: Avoid overloading the machine or operating it in extreme conditions that could put unnecessary strain on the transmission.

4. Routine Inspections: Regularly inspect the transmission system, including the clutch pack, solenoids, and electrical components, to catch any potential issues early.

5. Professional Servicing: If you are unsure about any transmission issues or are unable to diagnose the problem, consult a professional mechanic who is experienced with John Deere backhoes. They can perform more in-depth diagnostics and repairs.


Introduction
Identifying the exact model of a Gehl skid steer loader is crucial for maintenance, parts replacement, and ensuring compatibility with attachments. Gehl, a company with a rich history dating back to 1859, has produced a wide range of skid steer models over the years. Understanding how to determine your machine's model can save time and resources.
Locating the Serial Number
The serial number is the primary identifier for your Gehl skid steer. It provides information about the model, manufacturing year, and other specifications. The location of the serial number can vary depending on the model and year of manufacture.
Common Serial Number Locations:

• Right Front Frame: Near the right front wheel or close to the hydraulic tank.

• Overhead Guard: On the data plate mounted to the overhead guard.

• Rear Frame: On the crossbar above the engine on the right side, near where the boom/lift arm attaches to the main frame.

• Engine Block: For engine-specific information, the serial number may also be found on the engine block.


• Model Prefix: The first few characters often represent the model series.

• Year Code: A specific character or set of characters may indicate the manufacturing year.

• Production Number: The remaining digits usually represent the unique production number assigned to your machine.


• Official Website: Visit  for information on current models and specifications.

• Dealer Network: Gehl's authorized dealers can provide assistance in identifying your machine and sourcing parts.

• Service Manuals: Service manuals often include detailed information on serial number locations and decoding.


Electrical lubricants play a crucial role in the maintenance and operation of electrical systems, particularly in high-performance machinery and heavy equipment. They not only help ensure smooth operations but also prevent issues that could arise from the interaction of electrical components with moisture, dust, and heat. This article delves into the importance of electrical lubricants, their types, uses, and benefits, while also addressing some common concerns related to their application.
What Are Electrical Lubricants?
Electrical lubricants are specialized substances used to reduce friction and wear between electrical contacts and components, ensuring that electrical connections remain intact and functional. These lubricants are essential in preventing corrosion, moisture buildup, and other environmental factors that may degrade the performance of electrical components over time.
In machines where high current flows through contacts (e.g., circuit breakers, motors, and connectors), the lubricant serves several key functions:

• Reducing friction: Lubricants minimize the resistance between moving parts, which can improve the overall efficiency of electrical components.

• Preventing corrosion: Many lubricants contain properties that prevent oxidation or corrosion, helping to extend the life of electrical connectors and switches.

• Improving electrical conductivity: High-quality lubricants can ensure that the electrical current flows efficiently by reducing the resistance caused by contact wear or impurities.

• Reducing overheating: By keeping components running smoothly, lubricants help dissipate heat generated by electrical contact points.


1. Silicone-Based Lubricants
   • Use: Silicone-based electrical lubricants are often used in applications where high temperatures and harsh conditions are present. They are known for their stability and high-temperature resistance, making them ideal for use in electrical connectors and switchgear systems.

   • Benefits: They provide excellent moisture resistance and can operate effectively in a wide temperature range, typically from -40°F to 400°F (-40°C to 200°C).

2. Grease-Based Electrical Lubricants
   • Use: Grease-based lubricants are commonly used in high-load environments where metal contacts need to slide past each other with minimal wear. These lubricants also help to seal out contaminants such as water, dust, and dirt.

   • Benefits: They are particularly useful in ensuring long-lasting protection against mechanical wear while maintaining good electrical conductivity.

3. Contact Lubricants
   • Use: Specifically formulated for use in electrical contacts, these lubricants ensure low resistance and high conductivity. They are often used in connectors, switches, and other electrical devices that experience frequent physical contact.

   • Benefits: Contact lubricants reduce friction and electrical resistance, which enhances the longevity and reliability of the components.

4. Anti-Oxidation Lubricants
   • Use: These are used primarily to protect metal surfaces from oxidation, which can impair electrical connections. This type of lubricant is common in areas exposed to moisture or corrosive environments, such as outdoor electrical equipment.

   • Benefits: They protect metal parts from rust and corrosion, extending the lifespan of the electrical components.


1. Heavy Machinery and Equipment
   • Electrical lubricants are frequently used in construction equipment, such as excavators, loaders, and cranes, where electrical contacts and components are exposed to dirt, moisture, and vibrations. Lubricating these parts ensures that machinery remains operational for extended periods without costly downtime.

2. Motors and Generators
   • Electrical motors and generators are particularly susceptible to heat and friction. Proper lubrication helps maintain the efficiency of the bearings, brushes, and connectors, reducing the risk of motor failure and overheating.

3. Circuit Breakers and Switchgear
   • In electrical distribution systems, lubricants are applied to circuit breakers, switchgear, and other high-current systems. This ensures that contacts remain intact and that there is minimal resistance, allowing for a smoother flow of electricity.

4. Automotive and Aerospace Applications
   • Electrical lubricants are also essential in vehicles and aircraft, where they are used in connectors, switches, and control panels. They prevent contact degradation due to high vibrations and moisture, which is crucial for maintaining system reliability.

5. Household Appliances and Electronics
   • Electrical contacts in everyday electronics such as computers, televisions, and refrigerators benefit from lubricants that protect sensitive internal components from corrosion and ensure smooth operation over time.


1. Extended Component Lifespan
   • By reducing friction and preventing corrosion, electrical lubricants significantly extend the life of electrical components. This reduces the need for costly repairs and replacements, making them an excellent investment for both individuals and companies.

2. Improved Performance and Efficiency
   • Lubricants ensure that electrical connections operate at optimal efficiency. Less resistance and smoother operation result in fewer interruptions, which ultimately enhances the performance of electrical systems.

3. Prevention of Downtime
   • Regular application of electrical lubricants can prevent failures caused by overheating, corrosion, or poor conductivity. This leads to fewer system shutdowns, ensuring continuous operation, especially in industries where equipment failure can cause significant delays.

4. Cost Savings
   • The extended lifespan of electrical components due to proper lubrication translates into cost savings over time. Regular maintenance with lubricants can prevent breakdowns that might otherwise lead to expensive repairs or system replacements.


1. Incorrect Lubricant Selection
   • Problem: Using the wrong type of lubricant can negatively impact the performance of electrical components. For example, using a grease-based lubricant in high-temperature conditions can lead to breakdowns or overheating.

   • Solution: Always ensure that the lubricant used is compatible with the specific conditions of the equipment, including temperature range, pressure, and type of electrical contact.

2. Over-application of Lubricant
   • Problem: Over-lubricating electrical contacts can lead to excess buildup, which may attract dirt and other contaminants, compromising the efficiency of the system.

   • Solution: Apply lubricant in moderation and follow manufacturer guidelines on application methods and quantities.

3. Environmental Considerations
   • Problem: Electrical lubricants can be affected by extreme environmental conditions such as high moisture or exposure to chemicals.

   • Solution: Use lubricants specifically designed for the environmental conditions where the equipment operates, such as anti-corrosion lubricants for outdoor use or moisture-resistant options for humid environments.


Introduction

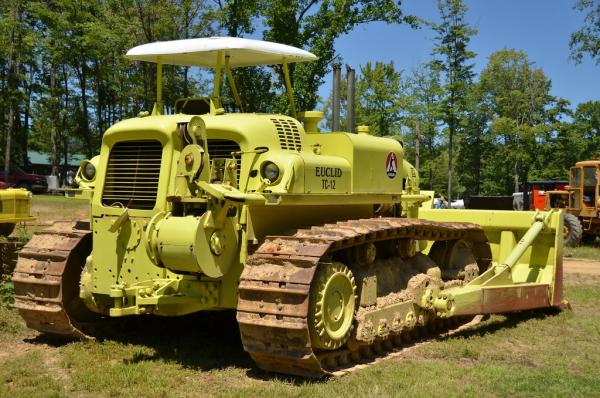

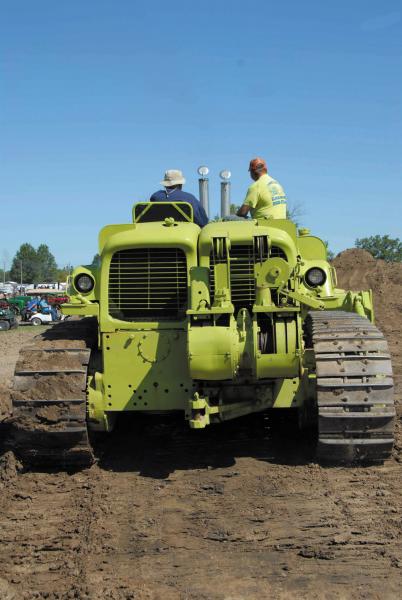

In the mid-20th century, the construction industry was on the brink of a technological revolution. Among the trailblazers was the Euclid TC-12 dozer, a machine that redefined expectations for power, maneuverability, and design in heavy equipment. Introduced in 1955, the TC-12 was the first commercially produced twin-engine crawler tractor, setting new standards in the industry.
Design and Engineering Innovations
The TC-12's most striking feature was its twin-engine configuration. It was powered by two Detroit Diesel 6-71 engines, each delivering 227 horsepower at 2,100 rpm. These engines were connected to separate Allison 3-speed powershift transmissions, allowing each track to be driven independently. This setup provided unparalleled maneuverability, enabling the dozer to pivot in place and execute tight turns with ease .
The machine's design included an oscillating frame, where the front and rear sections could move independently. This feature allowed the TC-12 to maintain continuous track contact with the ground, even on uneven surfaces, enhancing stability and traction .
Specifications

• Engine: Two Detroit Diesel 6-71 engines

• Horsepower: 227 hp per engine (454 hp total)

• Transmission: Two Allison 3-speed powershift transmissions

• Weight: Approximately 92,000 lbs

• Blade Width: 18 feet

• Top Speed: 6–7 mph

• Track Configuration: Seven-roller track frame with 44-section track chain


The Caterpillar D7G dozer stands as one of the most reliable and powerful machines in the Caterpillar lineup, known for its heavy-duty performance and versatility. Introduced as part of the D7 series, the D7G combines the ruggedness and functionality required for tough earthmoving tasks with the reliability that Caterpillar equipment has come to be known for. This article provides an in-depth look into the Caterpillar D7G dozer, its key features, common issues, and why it remains a valuable asset to many operators and fleet managers today.
Overview of the Caterpillar D7G
The Caterpillar D7G is a large crawler dozer that was designed to handle some of the toughest jobs in construction, mining, and forestry. It was produced during the late 1970s and 1980s as part of Caterpillar’s D7 series, a line known for its robust performance in both light and heavy operations. The D7G, in particular, was designed to be versatile enough to handle grading, clearing, and heavy pushing tasks, making it a favorite among operators who need a workhorse for a variety of applications.
Key specifications for the D7G include:

• Engine: Caterpillar 3306, 6-cylinder diesel engine.

• Horsepower: Approximately 190 hp.

• Operating Weight: Around 35,000 lbs to 40,000 lbs, depending on configuration.

• Blade Width: Up to 12 feet, designed for wide grading and heavy pushing.

• Transmission: Powershift transmission with 3 forward and 3 reverse gears.


1. Durability and Strength
   • The D7G is known for its ruggedness. The frame and components are built to handle high stress and heavy workloads. Whether it's working in a mine, clearing land, or performing large-scale earthmoving, the D7G can withstand harsh conditions without compromising performance.

2. Operator Comfort
   • Even though the D7G is a machine from an earlier generation, Caterpillar took care to ensure operator comfort. Its cab is relatively spacious for its time, with features such as easy-to-operate controls, good visibility, and basic climate control. This design reduces operator fatigue during long shifts, contributing to greater productivity.

3. Fuel Efficiency
   • The D7G’s diesel engine provides strong power output while maintaining a reasonable fuel consumption rate. This was particularly important in the 1980s when operational costs were a key concern for contractors. The engine is also easy to maintain and repair, making it a cost-effective choice for fleet owners.

4. Versatility
   • The D7G's ability to work in a variety of environments is another reason for its continued popularity. It can be equipped with different attachments, including rippers, winches, and other grading implements. This flexibility allows the D7G to excel in numerous tasks, from rough grading to more intricate, detail-oriented work.


1. Hydraulic System Leaks
   • Problem: Hydraulic system leaks are one of the most common issues faced by older D7G dozers. Leaks can occur in hoses, pumps, cylinders, or other hydraulic components.

   • Solution: Inspect all hydraulic lines and components regularly for signs of wear, corrosion, or cracks. If a leak is detected, replace the damaged parts promptly. Ensure that the hydraulic fluid is topped off to prevent damage to the system.

2. Transmission Slipping
   • Problem: Transmission slippage or difficulty in shifting gears can occur in older machines like the D7G, especially if the transmission fluid is low or dirty.

   • Solution: Check the transmission fluid level and ensure it is clean. If the fluid appears contaminated, replace it and perform a filter change. Also, inspect the transmission seals for any wear that could lead to fluid leaks.

3. Cooling System Failures
   • Problem: Overheating is a potential issue, especially if the cooling system is not maintained properly. The radiator and cooling hoses may become clogged or damaged, leading to reduced cooling efficiency.

   • Solution: Regularly clean the radiator and ensure there are no blockages in the cooling fins. Replace any cracked hoses and check the thermostat and water pump for proper operation.

4. Engine Power Loss
   • Problem: A reduction in engine power can be a result of clogged air filters, fuel system issues, or a failing fuel pump.

   • Solution: Inspect the air filters and replace them if they are dirty or clogged. Ensure that the fuel system, including the filters, fuel injectors, and fuel lines, are clean and free of blockages. If the fuel pump is not working properly, it may need to be repaired or replaced.

5. Electrical System Issues
   • Problem: Electrical problems in the D7G, such as malfunctioning lights, a dead battery, or issues with the starter, can disrupt operation.

   • Solution: Regularly check the battery terminals for corrosion and ensure a secure connection. Inspect the electrical wiring for any signs of damage or fraying. If necessary, replace the battery or alternator.





Introduction

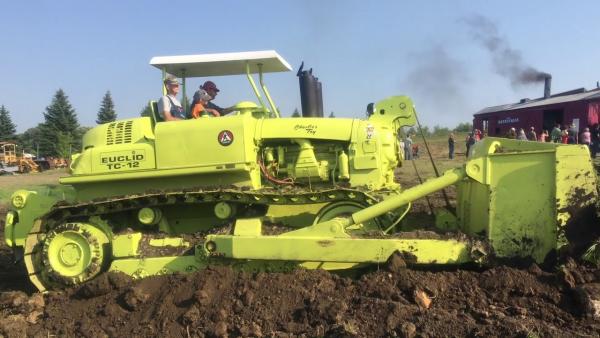

The Euclid TC-12 dozer, introduced in 1955, stands as a testament to innovative engineering in the heavy equipment industry. Designed to challenge the dominance of Caterpillar in the crawler tractor market, the TC-12 featured a groundbreaking twin-engine configuration that set it apart from its contemporaries. While it may not have dethroned Caterpillar, the TC-12's unique design and capabilities left an indelible mark on the industry.
Design and Engineering
The TC-12 was a pioneering machine, being the first commercially produced twin-engine crawler tractor. It was powered by two Detroit Diesel 6-71 engines, each driving one side of the tracks independently. This dual-engine setup provided several advantages:

• Enhanced Maneuverability: The independent power sources allowed for precise control, enabling the TC-12 to perform sharp turns and navigate challenging terrains with ease.

• Increased Power Output: With each engine producing approximately 212 horsepower, the combined output of 424 horsepower made the TC-12 one of the most powerful crawler tractors of its time.

• Redundancy: The twin-engine design offered operational flexibility; if one engine failed, the other could continue to operate, reducing downtime.


• Engine: Two Detroit Diesel 6-71 engines

• Horsepower: Approximately 424 hp combined

• Weight: Approximately 92,000 lbs

• Blade Width: 18 feet

• Transmission: Each engine was paired with its own Allison transmission, providing independent control over each track.


The John Deere 770CH motor grader is part of a long legacy of heavy equipment designed for precision grading and earth-moving tasks. Known for its durability, powerful performance, and ease of operation, this model is a go-to choice for construction, road maintenance, and infrastructure projects. However, like all machinery, it can face operational challenges over time. This article will explore the features, common issues, and troubleshooting methods for the John Deere 770CH motor grader, aiming to provide a comprehensive understanding for operators and fleet managers.
Overview of the John Deere 770CH Motor Grader
The 770CH motor grader, introduced as part of Deere’s 770 series, has been widely used in grading, trenching, and road repair projects. It is designed to handle tough work conditions with power, efficiency, and operator comfort. The 770CH is equipped with a robust 6-cylinder engine and a high-torque transmission, providing the necessary power to handle a wide range of tasks, from precision grading to bulk material moving.
Some key specifications for the 770CH include:

• Engine: John Deere 4045T, 6-cylinder diesel engine.

• Horsepower: Approximately 125 hp.

• Operating Weight: Around 16,000 lbs.

• Blade Length: 14 feet, providing a wide grading surface.


1. Hydraulic System Problems


• Weak or unresponsive blade lift: This may be caused by low hydraulic fluid levels, air in the system, or a damaged hydraulic pump.
  • Solution: First, check the fluid levels and top them off if necessary. If the fluid is dirty, it may need to be replaced, and the system should be purged of air. If the pump appears to be malfunctioning, further inspection is needed to assess if a pump replacement is required.

• Slow operation of hydraulic functions: This can happen if the hydraulic filters are clogged or if the hydraulic oil has deteriorated.
  • Solution: Replacing the filters and flushing the system can help restore the proper flow. Ensure that the hydraulic fluid is within the recommended temperature range to avoid performance loss.


1. Transmission and Gear Shifting Issues


• Solution: Inspect the transmission fluid and ensure it is clean and at the proper level. Low or dirty transmission fluid can lead to shifting problems. In some cases, the issue may require the replacement of the transmission fluid or an inspection of the gear linkage components.


1. Electrical System Failures


• Solution: Start by checking the fuse box and replacing any blown fuses. Inspect the wiring for any visible damage, such as fraying or corrosion, especially around connectors. If necessary, replace faulty relays or connectors to restore the system’s functionality.


1. Cooling System Overheating


• Solution: Begin by checking the coolant level and topping it off with the appropriate mixture of antifreeze and water. Inspect the radiator for debris or blockages that may be reducing airflow. If necessary, replace the radiator or flush the cooling system to ensure optimal performance.


1. Engine Performance Issues


• Solution: Check the air filter and clean or replace it if it appears clogged. Inspect the fuel system, including the fuel injectors and fuel filters, for any blockages or damage. Ensure the fuel is clean and of the proper grade for the engine. If the engine is still not performing correctly, a compression test can help identify internal issues that may require professional repair.


1. Brake System Issues


• Solution: Check the brake fluid levels and top them off with the recommended fluid type. Inspect the brake pads for wear and replace them if they are below the manufacturer’s recommended thickness. If the brake lines show signs of wear or leaks, they should be replaced to prevent failure.


1. Oil and Filter Changes: Changing the engine oil and filters at regular intervals is crucial for maintaining engine health. Ensure you use the correct oil grade and replace the filters regularly to prevent clogging and contaminants from affecting the engine.

2. Grease Points: Regularly grease the loader arms, moldboard, and other moving parts to prevent excessive wear and tear. Lubrication minimizes friction and reduces the likelihood of mechanical failure.

3. Hydraulic Fluid and Filter Changes: Replace hydraulic fluid and filters as recommended by the manufacturer. This is especially important if the grader is used in high-demand environments or for extended periods.

4. Tire Maintenance: The 770CH is equipped with large tires that bear significant weight during operation. Inspect the tires regularly for signs of wear, punctures, or low air pressure. Proper tire maintenance ensures safe operation and optimal performance.

5. Fluid Inspections: Beyond the engine oil, regularly inspect the transmission fluid, coolant, and hydraulic fluid. Ensuring these fluids are at optimal levels and are clean is essential to preventing mechanical failures.


Introduction
The Caterpillar 259D series compact track loaders, renowned for their versatility and performance, have undergone several updates over the years. One notable upgrade is the transition from the 259D to the 259D3 model. This evolution brought enhancements in various components, including the fuel system. The fuel transfer pump, a critical component in the fuel delivery system, saw significant changes in its design and integration. Understanding these modifications is essential for operators and technicians working with these machines.
Fuel Transfer Pump Evolution
In the earlier 259D models, the fuel transfer pump was a separate component, easily replaceable and serviceable. However, in the 259D3 model, Caterpillar integrated the fuel transfer pump into the fuel filter assembly. Specifically, the pump is now part of the 525-3457 fuel filter assembly. This integration means that the pump is no longer available as a standalone part, and replacing it requires the entire filter assembly.
This change has implications for maintenance and repair procedures. Technicians must now consider the entire fuel filter assembly when diagnosing fuel delivery issues. Additionally, the integration of the pump into the filter assembly may affect the ease of servicing and the cost of replacement parts.
Compatibility Considerations
For those operating non-D3 259D models, the question arises whether the upgraded D3 fuel transfer pump can be retrofitted to the earlier models. While the physical dimensions of the D3 filter assembly may allow for installation on a non-D3 machine, several factors must be considered:

• Fuel Line Connections: The inlet and outlet ports on the D3 filter assembly may differ in size or orientation compared to the non-D3 model. This discrepancy could necessitate custom fuel lines or adapters.

• Electrical Connections: The D3 fuel transfer pump may have different electrical connectors or voltage requirements, potentially requiring rewiring or additional components.

• Mounting Points: The mounting brackets and locations for the filter assembly may vary between models, possibly requiring modifications to the machine frame.


• Clogged Fuel Filters: Over time, fuel filters can become obstructed with debris, restricting fuel flow and leading to engine performance issues.

• Air Leaks in Fuel Lines: Air entering the fuel system can cause erratic engine behavior and starting difficulties.

• Faulty Fuel Transfer Pump: A malfunctioning pump may fail to deliver adequate fuel pressure, resulting in power loss or stalling.


• Replacing Fuel Filters: Follow the manufacturer's recommended intervals for filter replacement to ensure clean fuel delivery.

• Inspecting Fuel Lines: Check for signs of wear, cracks, or leaks in fuel lines and replace as necessary.

• Testing Fuel Pressure: Use a fuel pressure gauge to verify that the fuel transfer pump is delivering the correct pressure.


The Caterpillar 950G is part of the iconic 900 series wheel loaders, a series known for its durability, versatility, and ease of operation. Specifically, the 950G has become a staple in construction, mining, and material handling industries due to its powerful performance and user-friendly features. One area where the 950G truly excels is in its cab design. The operator's cab on the 950G is designed with comfort and efficiency in mind, ensuring that operators can maintain focus and productivity for long hours of operation.
Cab Design and Comfort
The cab of the Cat 950G wheel loader has been designed to improve visibility, comfort, and control, which are critical for operators working in demanding environments. Some of the standout features of the 950G cab include:

• Enhanced Visibility: The cab features wide windows and an ergonomic layout that allows operators to have an unobstructed view of the work area. This feature is vital for ensuring safety when moving large loads or working in busy environments. The high visibility extends to both front and rear views, which is crucial when handling materials or navigating tight spaces.

• Climate Control: Operators working in extreme temperatures can rely on the air conditioning and heating systems, which are integral to the cab design. These systems are designed to maintain a comfortable temperature inside the cab, regardless of the weather conditions outside. Whether in freezing cold or sweltering heat, the 950G cab ensures operators remain comfortable throughout their shifts.

• Soundproofing: The cab is designed to minimize noise from the engine and hydraulic systems, creating a quieter working environment for the operator. Reducing cab noise not only enhances comfort but also helps reduce fatigue, allowing operators to stay focused and productive for longer periods.

• Adjustable Seats: The seat in the 950G is ergonomically designed and fully adjustable, offering excellent lumbar support. The seat is not only comfortable but is adjustable to accommodate operators of different heights and body types, ensuring optimal positioning for maximum control and comfort.


• Joystick Controls: The 950G incorporates joystick controls that allow for precise operation of the loader. These controls are responsive and offer an ergonomic design to reduce hand and arm fatigue, particularly during extended use. The joystick controls the lifting and tilting of the boom, as well as the operation of auxiliary functions.

• Advanced Instrumentation: The 950G features a comprehensive instrument panel that gives operators all the necessary data at a glance. The panel displays important information such as fuel levels, engine performance, hydraulic pressures, and machine status indicators. This allows operators to monitor the health of the machine in real-time and address potential issues before they escalate.

• Multi-Function Display: The 950G is equipped with a multi-function display that provides more advanced diagnostics and performance metrics. This display can show various operational parameters, which are invaluable for ensuring optimal machine performance and preventing issues.


• Rollover Protection Structure (ROPS): The 950G is equipped with a ROPS system that helps protect the operator in the event of a rollover. The ROPS is a reinforced framework that offers added protection in case of an accident, significantly enhancing operator safety.

• Operator Presence Switch: The cab is equipped with an operator presence switch, which ensures that the machine cannot be operated unless the operator is seated and properly engaged with the controls. This is an essential safety feature to prevent accidental operation.

• Seatbelt: A mandatory safety feature, the seatbelt ensures that the operator remains securely in place during the operation, minimizing the risk of injury.

• Increased Visibility and Lighting: The 950G is designed with enhanced lighting to improve visibility during low-light conditions. Whether working at night or in poor weather, the operator has excellent sightlines, improving both safety and efficiency.


• Easy-to-Access Controls: The operator’s controls are positioned in such a way that they can be reached without excessive movement. This minimizes strain and allows the operator to remain comfortable during longer shifts.

• Service Access: The cab design facilitates easy access for service and maintenance. Routine checks such as oil levels, air filter changes, and hydraulic system inspections can be completed with minimal downtime. Easy-to-access panels and compartments make servicing the 950G quick and efficient.


• Air Conditioning System Failures: Over time, the air conditioning system may experience issues such as loss of refrigerant or blockages in the system. Regular maintenance and checking for leaks are essential to keeping the system in good working order. If the A/C fails to cool properly, the system should be inspected and recharged or repaired as needed.

• Seat Adjustment Problems: The adjustable seat mechanism can sometimes become jammed or worn. This can be caused by dirt or debris accumulating in the adjustment system. Regular cleaning and lubrication of the seat adjustment components can prevent such issues. If the seat is not adjustable, the mechanism may need to be replaced.

• Electrical System Failures: The electrical system that powers the instrument panel, lights, and controls may experience issues such as blown fuses or faulty wiring. A thorough inspection of the electrical system, along with replacing any damaged components, should resolve the issue.


Introduction
The Case 450B Crawler Loader, a compact yet powerful machine, has been a staple in construction, agriculture, and landscaping since its introduction in the 1970s. Manufactured by Case Corporation, which later became part of CNH Industrial, the 450B was designed for versatility and durability. Its hydraulic system, crucial for operations like lifting, digging, and pushing, can encounter issues over time. Understanding these potential problems and their solutions is essential for maintaining optimal performance.
Hydraulic System Overview
The hydraulic system in the Case 450B is responsible for powering various components, including the loader arms, bucket, and transmission. It operates using hydraulic fluid, typically Type TCH (Transmission-Case-Hydraulic), which is vital for efficient performance. The system includes components such as the charge pump, hydraulic pump, filters, and lines that work together to provide the necessary force for operations.
Common Hydraulic Issues and Solutions

1. Loss of Hydraulic Power
   One of the most common issues operators face is a sudden loss of hydraulic power. This can manifest as sluggish or unresponsive loader arms, slow bucket movement, or a complete lack of movement. Potential causes include:
   • Low Hydraulic Fluid Levels: Insufficient fluid can lead to air entering the system, causing cavitation and loss of pressure.

   • Clogged Filters: Over time, filters can become obstructed with debris, restricting fluid flow.

   • Faulty Charge Pump: The charge pump maintains system pressure; if it fails, hydraulic functions will cease.

   Solution: Regularly check and maintain fluid levels, replace filters as per the maintenance schedule, and test the charge pump's output pressure. If the charge pump is faulty, it may need to be replaced.

2. Hydraulic Fluid Leaks
   Leaks can occur at various points in the hydraulic system, including hoses, fittings, and seals. These leaks not only reduce system efficiency but can also pose safety hazards.
   Solution: Inspect the entire hydraulic system for visible leaks. Pay close attention to hose connections and seals. Tighten or replace components as necessary. For internal leaks, such as those in the pump or valves, professional inspection and repair may be required.

3. Erratic or Unresponsive Controls
   If the loader's controls become erratic or unresponsive, it could indicate issues with the hydraulic valves or the control linkage.
   Solution: Check the control linkage for any signs of wear or damage. Ensure that hydraulic valves are functioning correctly and are not obstructed. Cleaning or replacing valves may restore proper control response.

4. Overheating of Hydraulic System
   Overheating can lead to accelerated wear of hydraulic components and reduced fluid viscosity, impairing system performance.
   Solution: Ensure that the hydraulic cooler is clean and unobstructed. Check for proper airflow around the cooler and radiator. Regularly monitor operating temperatures and address any signs of overheating promptly.


• Regular Fluid Checks: Always monitor hydraulic fluid levels and top up as necessary using the recommended Type TCH fluid.

• Scheduled Filter Replacements: Replace hydraulic filters at intervals specified in the operator's manual to prevent clogging and ensure efficient operation.

• System Inspections: Periodically inspect hoses, fittings, and seals for signs of wear or leaks. Early detection can prevent more significant issues.

• Professional Servicing: For complex issues, such as internal pump failures or valve malfunctions, seek assistance from qualified technicians familiar with Case equipment.
