The Takeuchi TB135 is a compact mini-excavator widely known for its efficiency and power in tight spaces. However, like any piece of machinery, it can experience electrical issues that impact its performance. One common problem faced by operators and technicians is a lack of power to one side of the fuse block, which can disrupt the functionality of various electrical components.
This article dives into the possible causes of electrical malfunctions in the TB135, focusing on the issue of no power to the left side of the fuse block. It also provides a detailed step-by-step approach to diagnosing and fixing the problem, while offering tips on preventative maintenance to avoid similar issues in the future.
Understanding the Electrical System of the Takeuchi TB135
Before diving into troubleshooting, it's essential to understand the role of the fuse block in the Takeuchi TB135’s electrical system. The fuse block serves as a central hub for distributing power to various components like lights, hydraulic systems, and the engine. Each fuse is dedicated to a specific circuit, protecting it from electrical surges or short circuits. If one side of the fuse block is without power, it suggests an issue in the power distribution system, likely due to a faulty connection, fuse, or wiring issue.
Signs of Electrical Issues
If your TB135 shows no power to the left side of the fuse block, the following symptoms are often present:

• Non-functional Components: Electrical systems like the lights, hydraulic controls, or the engine may not function properly.

• Blown Fuses: Specific fuses related to the left side circuits may be blown, leaving those systems without power.

• Error Messages or Warnings: On some models, the control panel may display error codes or warning lights indicating electrical failures.


1. Check for Blown Fuses:
   Start by inspecting the fuse block. Look for any visible signs of damage such as burnt or blown fuses. Replacing a blown fuse is often a simple fix, but it's important to ensure that the correct fuse size and type are used for each circuit. A blown fuse indicates a short or overload in that circuit.

2. Inspect the Wiring:
   One of the most common causes of no power to the fuse block is a loose, corroded, or disconnected wire. Check the wiring leading to the fuse block and the components powered by it. Look for damaged insulation, frayed wires, or corrosion that might prevent electrical flow. Tighten any loose connections and replace any damaged wiring.

3. Examine the Main Power Supply:
   The main power supply to the fuse block comes from the battery and alternator. Ensure that the battery is charged and the alternator is functioning properly. Low voltage or a failing alternator can lead to power distribution problems.

4. Test the Ground Connections:
   A poor ground connection can cause intermittent or complete loss of power. Check the ground straps and connections on the TB135. Ensure that all ground wires are securely attached to the frame and that no corrosion or rust is interfering with the electrical flow.

5. Use a Multimeter:
   To thoroughly diagnose the issue, use a multimeter to test the voltage at different points in the electrical circuit. This will help you pinpoint whether the issue is coming from the fuse block, a specific wire, or the main power supply.

6. Check the Ignition Switch:
   If the fuse block is receiving power but components aren’t functioning, the ignition switch might be faulty. Ensure the switch is properly engaged and making a connection.


1. Corroded or Loose Battery Terminals:
   A weak or loose connection at the battery terminals can lead to an intermittent power supply. This can disrupt power distribution to parts of the system, including the fuse block.

2. Faulty Fuse Block:
   The fuse block itself can wear out over time. If it's not providing a secure connection, it could cause power loss to one side. Check the fuse block for any visible signs of wear or damage, and consider replacing it if necessary.

3. Wiring Issues:
   As mentioned, damaged or corroded wiring can interrupt the flow of power. Ensure that all wiring is intact, free from damage, and correctly routed. Use electrical contact cleaner to remove any corrosion.

4. Overloaded Circuit:
   An overloaded circuit can cause fuses to blow, cutting off power to connected components. Review the power requirements of each device connected to the fuse block, and ensure the total load is within the recommended limits.

5. Failed Relay or Breaker:
   In some cases, the issue may stem from a faulty relay or circuit breaker that controls the left side of the fuse block. Inspect these components to see if they need replacement.


1. Replace Blown Fuses:
   Always replace blown fuses with ones that meet the exact specifications for the circuit. Overusing or incorrectly rated fuses can lead to further electrical issues.

2. Clean and Tighten Connections:
   Regularly inspect and clean the battery terminals, fuse block connections, and any ground straps. Tighten any loose bolts or connections to ensure a solid electrical path.

3. Replace Worn or Damaged Wiring:
   Over time, wiring can deteriorate due to exposure to heat, friction, or moisture. Replacing damaged wiring is a straightforward fix that can prevent future electrical failures.

4. Monitor the Electrical Load:
   Ensure that the electrical load is not exceeding the capacity of the system. If you’re adding new equipment or accessories to the TB135, make sure the existing electrical system can handle the increased demand.

5. Use Quality Parts:
   When replacing fuses, relays, or wiring, always use high-quality components that meet the manufacturer's specifications. Low-quality or mismatched parts can lead to frequent failures and may damage other parts of the electrical system.


• Routine Inspections: Regularly check the electrical system for signs of wear, damage, or corrosion. Early detection of issues can save time and money.

• Keep the Battery in Good Condition: Maintain the battery in good working order by cleaning terminals, checking voltage, and ensuring it is securely mounted.

• Proper Storage: When the TB135 is not in use for extended periods, store it in a dry, well-ventilated area to prevent moisture buildup that can damage electrical components.


The Grove 7550 is a highly regarded all-terrain crane designed for both rough and urban environments. Known for its robust capabilities and versatility, it plays a critical role in lifting heavy loads across a variety of industries such as construction, energy, and heavy manufacturing. Understanding how to properly set up and operate this equipment is crucial to ensure its efficiency and safety. This article provides a detailed overview of the setup process for the Grove 7550 crane, highlighting key steps, considerations, and safety protocols to keep in mind.
Overview of the Grove 7550 Crane
The Grove 7550 is a 550-ton capacity all-terrain crane built by Manitowoc, one of the leading manufacturers in the heavy equipment industry. It features an advanced hydraulic system, a powerful engine, and a flexible, long boom, which make it suitable for complex lifting tasks, both on-site and off-road.

• Engine and Power: The 7550 is powered by a 600-horsepower diesel engine, which provides the necessary power for lifting heavy loads over challenging terrains.

• Hydraulic System: Its hydraulically controlled boom can extend up to 197 feet (60 meters) with a maximum load capacity of 550 tons, making it one of the most versatile and high-capacity cranes in its class.

• Transmission: The crane features a robust six-speed transmission, which allows for smooth operation and adaptability across various surfaces, including soft ground, slopes, and uneven terrains.


1. Site Preparation: The first step in setting up the crane is ensuring the worksite is clear of any obstacles. The terrain must be level and firm enough to support the crane's weight, as the crane’s stability during lifting depends on solid ground conditions.

2. Access to the Site: The site should be accessible for the crane's transport. All-terrain cranes like the Grove 7550 are built for rough ground, but the path leading to the location must be suitable for the vehicle’s weight and size.

3. Weather Conditions: Weather plays a significant role in setting up large cranes. Wind speeds, temperature, and precipitation levels should be carefully monitored before lifting activities. High winds can affect the crane’s stability and lifting capacity, particularly when the boom is extended to its maximum height.

4. Weight and Load Assessment: Understanding the exact weight and dimensions of the load to be lifted is essential in setting up the crane’s lift plan. Grove 7550 comes with lifting charts that provide the maximum load limits at various boom lengths and radii.


1. Crane Positioning:
   • Position the crane so that the wheels are firmly on the ground, and the crane's outriggers are ready to extend. The crane should be oriented toward the load to be lifted, with the proper clearance around the machine for safety.

   • The outrigger pads should be placed on solid ground and positioned correctly to distribute the crane’s weight evenly.

2. Deploying the Outriggers:
   • The Grove 7550 crane comes equipped with four outriggers, which must be extended fully to stabilize the crane. Each outrigger should be deployed in a manner that provides the maximum support, based on the weight distribution for the specific lifting task.

   • Use the integrated leveling system to ensure the crane is level before lifting. The crane's stability depends on the correct outrigger extension.

3. Setting Up the Boom:
   • Once the crane is level, the boom should be carefully set up and extended to the desired length for the lift. The Grove 7550’s boom is hydraulically operated, and it should be extended or retracted slowly to avoid sudden shifts in weight distribution.

   • The boom’s angle and extension should be checked using the crane's load chart to ensure the load will be within safe operating limits. The crane's onboard computer system assists in monitoring these limits in real-time.

4. Ballast Adjustment:
   • The ballast on the Grove 7550 is a critical component that ensures the crane maintains stability under load. Before any lifting operations, ensure that the ballast is correctly positioned to optimize stability.

   • The ballast is adjustable and can be moved to improve lifting capacity. Different lifting operations might require different configurations of the ballast.

5. Rigging the Load:
   • Ensure that the load is properly rigged before attempting any lift. The correct use of slings, hooks, and spreader bars is crucial for safe lifting.

   • Double-check the weight and dimensions of the load to ensure they are within the lifting limits outlined by the crane's load charts.

6. Pre-Lift Inspection:
   • Perform a final safety inspection, checking hydraulic lines, brakes, and electrical systems. Test all systems, including the crane’s winches and load indicators, to ensure they are functioning properly.

   • Ensure that all personnel are clear of the crane's lifting area, and safety measures such as exclusion zones and barriers are in place.


1. Operator Training: Only certified crane operators should be allowed to operate the Grove 7550. Operators must be familiar with the crane’s capabilities and limitations, as well as site-specific hazards.

2. Load Management: Always adhere to the manufacturer’s load charts and lifting plans. Never exceed the crane’s specified lifting capacity, as this can lead to catastrophic failure of the crane or damage to the load.

3. Weather Monitoring: As mentioned earlier, weather can drastically affect lifting operations. Always check weather forecasts and ensure that lifting is only performed under safe wind speeds. The maximum safe wind speed for the Grove 7550 is typically around 25-30 mph, depending on the boom configuration.

4. Use of Personal Protective Equipment (PPE): Ensure that all personnel involved in the operation of the crane are wearing appropriate PPE, including hard hats, gloves, and high-visibility clothing.

5. Communication and Signaling: Clear communication between the crane operator and ground personnel is essential. Use radios and hand signals to coordinate the lift, ensuring that everyone is aware of the lifting progress and any potential issues.


Introduction
Kubota's mini excavators, such as the KX and U series, are renowned for their durability and performance. A critical component in maintaining optimal performance is the track adjuster, which ensures proper track tension. Accessing and maintaining the track adjuster is essential for the longevity of the equipment.
Understanding the Track Adjuster
The track adjuster is a hydraulic component that maintains the correct tension in the rubber tracks. It typically consists of a grease-filled cylinder that extends or retracts to adjust the track tension. Proper tension is crucial to prevent track slippage and uneven wear.
Accessing the Track Adjuster
To access the track adjuster on Kubota mini excavators:

1. Locate the Access Panel: Find the access panel on the side of the track frame, positioned between the idler and the front bottom roller.

2. Remove the Panel: Use appropriate tools to remove the panel, exposing the track adjuster grease fitting.

3. Inspect the Grease Fitting: Ensure the grease fitting is clean and free from debris.


1. Release Track Tension: Insert a grease gun into the grease fitting and pump grease into the track adjuster to extend the cylinder, tightening the track.

2. Check Track Tension: After adding grease, check the track tension. The track should have a slight sag but not be loose.

3. Re-tighten if Necessary: If the track is too loose, add more grease until the desired tension is achieved.


• Regular Inspection: Periodically check the track adjuster for signs of wear or damage.

• Clean Grease Fittings: Keep grease fittings clean to ensure proper lubrication.

• Use Quality Grease: Use high-quality grease to prevent contamination and ensure smooth operation.


• Difficulty Adding Grease: If grease cannot be added, the grease fitting may be clogged or damaged. Clean or replace the fitting as necessary.

• Track Continues to Slip: Persistent track slippage may indicate a worn track adjuster or seals. Inspect and replace components as needed.


In the dynamic world of heavy equipment, companies are continually striving to grow and expand their fleets to meet increasing demands. Expansion in this context can mean different things, such as acquiring new equipment, increasing the scale of operations, or even extending the reach into new markets. For businesses in industries like construction, mining, and agriculture, expansion can help improve efficiency, reduce costs, and better serve customers. However, it’s important to understand the various factors that go into a successful expansion strategy and the challenges that come with it.
This article explores the concept of receiving expansion in heavy equipment operations, why it’s necessary, the challenges involved, and the steps businesses can take to ensure sustainable growth.
Why Expansion is Necessary for Heavy Equipment Businesses
Expanding a fleet or business operation is not just about acquiring more equipment or expanding physical boundaries; it’s about adapting to changing industry demands and ensuring competitiveness. Here's why expansion is important for heavy equipment operations:

1. Increased Market Demand: As industries like construction, mining, and infrastructure development grow, the need for specialized equipment also increases. Expansion allows businesses to meet the demands of large-scale projects and serve more clients, which directly translates into higher revenue potential.

2. Diversification of Services: Expanding a fleet enables a company to diversify the types of services it can offer. For example, adding new machinery like excavators, bulldozers, and cranes gives a company the ability to work on a variety of projects that require different types of equipment, improving overall business flexibility.

3. Improved Efficiency: With the right machinery and additional equipment, businesses can complete tasks more efficiently, often reducing labor costs and improving project timelines. For instance, having specialized equipment for specific tasks—such as trenching, grading, or material handling—can drastically increase productivity on job sites.

4. Competitive Advantage: In a highly competitive market, companies that are able to grow their fleets and scale operations have a distinct advantage. They can offer quicker turnaround times, a broader range of services, and enhanced reliability—all of which attract customers and help solidify long-term business relationships.


1. Financial Strain: Expanding a fleet can be expensive. Not only do businesses have to invest in purchasing or leasing new equipment, but they must also account for maintenance, storage, and insurance costs. Securing financing for expansion can be a barrier for some companies, especially smaller businesses that might not have access to capital.

2. Equipment Maintenance and Upkeep: As fleets grow, the complexity of managing maintenance schedules increases. More machinery means more frequent servicing, parts replacement, and ensuring that each machine is kept in optimal working condition. Failure to properly maintain equipment can result in downtime, which affects project timelines and increases operational costs.

3. Skill Shortage: An expanded fleet means the need for more skilled operators and technicians. Recruiting and retaining talent in the heavy equipment industry can be a challenge, particularly when specialized knowledge is required. Businesses may need to invest in training programs and offer competitive wages to attract top talent.

4. Logistical Challenges: Managing a larger fleet requires robust logistics and fleet management systems. Businesses need to ensure that equipment is dispatched efficiently to various job sites, maintain clear records, and ensure compliance with safety and regulatory requirements. This can become more complicated as the fleet grows, requiring advanced management software and systems.

5. Market Saturation: As businesses expand, they may face market saturation, where competition becomes more intense, and profit margins narrow. In such cases, companies need to differentiate themselves through high-quality service, innovative technology, or niche specializations to maintain their competitive edge.


1. Assess Current and Future Needs: Before expanding, it’s important to thoroughly assess the current state of the business and the industry’s future needs. What type of equipment is in high demand? Are there any emerging technologies or methods that could impact operations? Having a clear understanding of market trends helps companies make informed decisions about what to add to their fleets.

2. Secure Financing: For many businesses, securing financing is the first and most significant hurdle to expansion. Companies can explore various options such as loans, leasing agreements, or partnerships with manufacturers. In some cases, financial institutions may offer special programs for businesses in growth phases. A well-structured financing plan ensures that businesses can acquire the necessary equipment without compromising their financial stability.

3. Invest in Employee Training: As new equipment is acquired, it’s essential to invest in employee training to ensure operators and technicians are familiar with the new machinery. Training programs can include classroom sessions as well as hands-on training on-site. This helps minimize the risk of accidents, reduces downtime, and ensures efficient use of equipment.

4. Leverage Technology for Fleet Management: Investing in fleet management software can simplify logistics, equipment tracking, and maintenance schedules. Technology allows businesses to monitor fuel usage, check operational hours, and keep track of service schedules in real-time. This can significantly reduce downtime and improve overall fleet efficiency.

5. Focus on Equipment Maintenance: Proactive maintenance is critical for fleet longevity. Regular inspections, timely oil changes, filter replacements, and component checks prevent small issues from becoming major problems. Implementing a comprehensive maintenance program ensures that all equipment is operating at peak performance, reducing the risk of breakdowns during crucial projects.

6. Build Strong Relationships with Suppliers and Partners: Expansion often requires working with suppliers, manufacturers, and service partners. Developing strong relationships with these stakeholders ensures a steady supply of parts, equipment, and services at competitive prices. Building a trusted network of partners can provide valuable insights into industry trends and help secure better deals on purchases.

7. Monitor Performance and Adapt: Expansion is an ongoing process. Once the fleet has been expanded, it’s important to monitor performance and assess whether the growth has met the company’s goals. Key performance indicators (KPIs) such as utilization rates, job completion times, and equipment uptime should be tracked regularly. Based on performance, the company can adjust its strategy and make improvements where necessary.


Deutz engines are known for their reliability and efficiency, powering a wide range of heavy machinery, including Ditch Witch trenchers. These machines are commonly used in construction, telecommunications, and utilities for digging trenches to install pipes and cables. However, even the most reliable engines can experience issues from time to time, and one of the most frustrating problems operators face is when a Deutz-powered Ditch Witch trencher refuses to start. Understanding the common causes of this problem, diagnosing the issue, and knowing how to resolve it can save valuable time and prevent costly repairs.
In this article, we will explore the common reasons a Deutz engine may fail to start in a Ditch Witch trencher, how to troubleshoot the problem, and what steps to take to get the machine back up and running.
Understanding the Deutz Engine and Ditch Witch Trencher
The Deutz engine is a well-regarded, German-made power source that can be found in various types of construction and agricultural equipment. These engines are known for their longevity and high power-to-weight ratio. Deutz engines used in trenchers, such as those in Ditch Witch machines, typically offer excellent fuel efficiency and low emissions.

• Deutz Engine Design: Deutz engines are designed with a focus on reliability and ease of maintenance. They are equipped with high-quality fuel injection systems, cooling systems, and ignition components. However, like all engines, they require regular maintenance to ensure optimal performance.

• Ditch Witch Trencher Function: Ditch Witch trenchers are specialized machines that use a rotating digging chain to cut into the earth. The trencher’s engine powers both the digging mechanism and the hydraulics used to control the machine's functions. When the engine fails to start, it affects the entire operation, leading to significant downtime.


1. Battery Issues: One of the first things to check is the battery. A dead or weak battery is a common reason for an engine not starting. Over time, the battery can lose its charge or develop a fault that prevents it from providing enough power to the starter motor.

2. Fuel System Problems: Fuel-related issues are another common cause of starting problems. If the fuel filter is clogged, or there is air in the fuel system, the engine may not receive the necessary amount of fuel to start. Additionally, a malfunctioning fuel pump or injectors can prevent proper fuel delivery.

3. Electrical System Failures: The electrical system plays a crucial role in starting the engine. Issues with fuses, relays, wiring, or the ignition system can prevent the engine from cranking. If the starter motor is not receiving power or the ignition system is malfunctioning, the engine will fail to start.

4. Faulty Starter Motor or Solenoid: The starter motor and solenoid work together to turn the engine over when the ignition key is turned. If either of these components is faulty or worn out, the engine will not start. A clicking sound when the ignition is turned is a common sign that the starter motor or solenoid may be malfunctioning.

5. Compression Issues: Deutz engines, like all diesel engines, require proper compression to start. If the engine’s cylinders are not properly sealed or the compression is low, the engine will not be able to ignite the fuel-air mixture and start. This issue can be caused by worn piston rings, valve problems, or head gasket failures.

6. Clogged Air Filter: A clogged air filter can restrict airflow to the engine, preventing it from starting. This is more common if the trencher has been used in dusty or dirty conditions. A restricted air filter will cause the engine to lack the necessary oxygen to start.

7. Cold Weather: Deutz engines are generally reliable, but extremely cold temperatures can affect the starting process, particularly if the engine is not equipped with a block heater or other cold-start aids. Cold weather can cause the oil to thicken, making it harder for the engine to turn over.


1. Check the Battery:
   • Inspect the battery for any visible damage or leaks.

   • Test the battery voltage using a multimeter. A healthy 12V battery should read around 12.6 volts. If the battery voltage is below 12V, it may need to be charged or replaced.

   • Ensure that the battery terminals are clean and tightly connected. Corroded or loose connections can prevent the battery from providing sufficient power.

2. Inspect the Fuel System:
   • Check the fuel tank to ensure there is an adequate supply of fresh, clean fuel.

   • Replace the fuel filter if it appears clogged or dirty. A clogged fuel filter restricts fuel flow to the engine.

   • Bleed the fuel system to remove any air that may have entered, as air in the system can prevent proper fuel delivery.

   • Inspect the fuel pump and injectors for signs of malfunction. If the fuel pump is not delivering fuel to the injectors, the engine will not start.

3. Examine the Electrical System:
   • Inspect all fuses and relays related to the starting system. Replace any blown fuses and check for proper operation of relays.

   • Use a multimeter to check the voltage at the starter motor and solenoid. If no voltage is present, trace the electrical wiring for faults or disconnections.

   • Check the ignition switch to ensure it is functioning properly. A faulty ignition switch can prevent the electrical system from activating.

4. Test the Starter Motor and Solenoid:
   • If you hear a clicking sound when turning the ignition, it could be a sign that the starter motor or solenoid is faulty.

   • Use a test light or multimeter to check the solenoid for power when the ignition is turned on. If there is no power, the solenoid may need to be replaced.

   • If the starter motor is not turning over, it may be worn out and require replacement.

5. Check for Compression:
   • Perform a compression test to check the health of the engine’s cylinders. Low compression could indicate worn piston rings, valves, or a blown head gasket.

   • If compression is low, you may need to perform further diagnostics to pinpoint the cause and determine whether parts need to be replaced.

6. Inspect the Air Filter:
   • If the air filter is dirty or clogged, remove it and clean or replace it as necessary. Ensure that the engine is getting enough air for combustion.

7. Cold Weather Considerations:
   • If starting problems occur in cold weather, consider installing a block heater to warm the engine. Additionally, using a lighter-weight oil can help the engine start more easily in cold conditions.


1. Regularly Change the Oil and Filters: Make sure to replace the engine oil and filters as per the manufacturer’s recommendations. Clean oil is crucial for engine performance and longevity.

2. Keep the Fuel System Clean: Regularly inspect the fuel lines and filters to prevent clogging and ensure proper fuel delivery. Use clean, high-quality diesel fuel to avoid contaminating the system.

3. Inspect the Cooling System: Ensure that the radiator and cooling system are functioning properly. An overheating engine can lead to starting issues and long-term damage.

4. Check Battery Health: Regularly check the battery for corrosion, tight connections, and sufficient charge. Replacing the battery every few years can help prevent starting problems.

5. Protect from Extreme Weather: In cold climates, use engine block heaters and other winterization tools to ensure the engine starts reliably in low temperatures.





Introduction

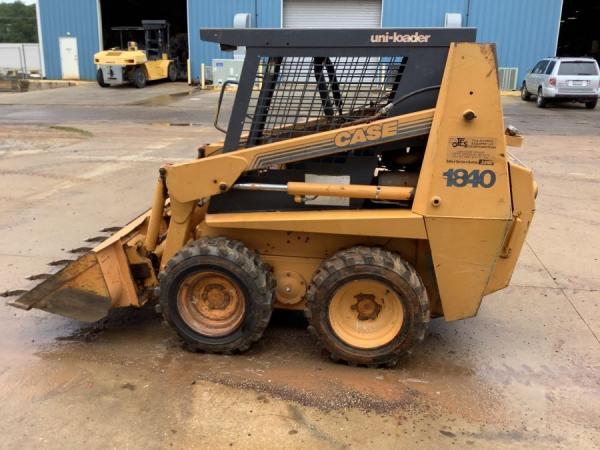

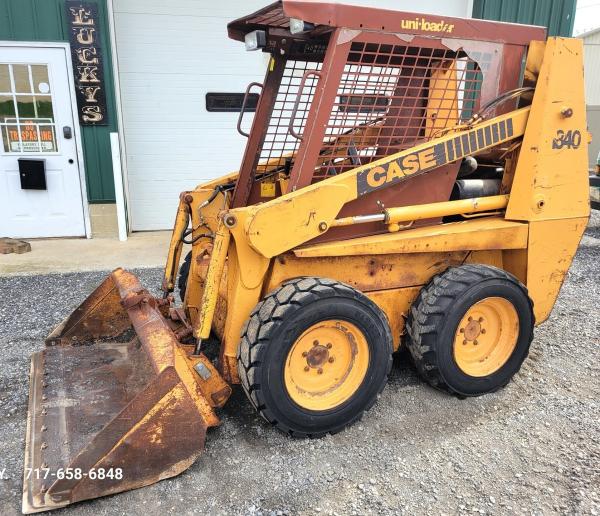

The Case 1840 Skid Steer Loader, a product of Case Construction Equipment, has been a reliable workhorse in various industries since its inception. Manufactured between 1988 and 2001, this compact loader has gained popularity for its versatility and durability. Whether it's landscaping, construction, or agricultural tasks, the Case 1840 has proven to be a valuable asset on job sites.
Historical Background
Case Construction Equipment traces its roots back to 1842 when Jerome Increase Case founded the Racine Threshing Machine Works in Racine, Wisconsin. The company has a rich history of innovation in the construction machinery sector. In 1969, Case began manufacturing skid steer loaders, marking a significant expansion in their product line. The 1840 model emerged during this era, reflecting Case's commitment to producing efficient and durable equipment .
Specifications
The Case 1840 is equipped with a 54-horsepower, four-cylinder diesel engine, providing ample power for various tasks. Its operational weight is approximately 5,558 pounds, making it suitable for maneuvering in tight spaces while maintaining stability. The loader features a hydrostatic transmission with bi-directional flow, allowing for smooth operation and precise control .
Performance and Capabilities
With an operating load rating of 1,400 pounds, the Case 1840 can handle a variety of attachments, including buckets, forks, and augers. Its hydraulic system delivers a pump flow capacity of 15.3 gallons per minute, providing sufficient power for demanding tasks. The loader's compact size and turning radius make it ideal for working in confined areas, enhancing its versatility on the job site .
Maintenance and Longevity
Owners and operators of the Case 1840 have reported that with regular maintenance, the loader can serve effectively for many years. Common maintenance tasks include checking and replacing hydraulic fluids, inspecting the engine and drive components, and ensuring the integrity of the tires and undercarriage. Adhering to a consistent maintenance schedule helps in prolonging the machine's lifespan and maintaining its performance .
Market Presence and Legacy
Even years after its production ceased, the Case 1840 continues to be sought after in the used equipment market. Its reputation for reliability and performance has made it a preferred choice for small to medium-sized operations. The loader's legacy lives on through various online communities and forums where enthusiasts and professionals share experiences, tips, and advice related to the Case 1840 .
Conclusion
The Case 1840 Skid Steer Loader stands as a testament to Case Construction Equipment's dedication to producing high-quality machinery. Its blend of power, versatility, and durability has ensured its place in the annals of construction equipment history. For those seeking a dependable and efficient loader, the Case 1840 remains a commendable choice.

The Bobcat 1845C skid steer loader is a popular piece of equipment used in construction, landscaping, and agriculture. Known for its versatility and robust design, the 1845C is equipped with a 48-horsepower engine and is capable of lifting and carrying heavy loads. However, like any skid steer, the 1845C can face challenges in terms of stability and lifting capacity, especially when handling heavy attachments. This is where counterweights come into play. Adding counterweights can significantly improve the machine's performance, stability, and safety. In this article, we will explore how counterweights affect the Bobcat 1845C skid steer and whether they are a worthwhile investment for improving its capabilities.
Understanding the Role of Counterweights in Skid Steers
Counterweights are additional weights that can be attached to a skid steer to balance out the load being carried. They are typically installed at the rear of the machine and help offset the weight of heavy attachments, preventing the machine from tipping over or becoming unstable during operation.

• Primary Function: The main function of a counterweight is to improve the balance of the skid steer by distributing weight more evenly across the machine. When a heavy load is lifted at the front, the rear of the skid steer can become light, making it more prone to tipping. By adding weight to the rear, the counterweight restores the balance, reducing the risk of tipping.

• Improved Traction: Adding weight to the rear of the machine also improves traction, particularly when the skid steer is used in loose or uneven terrain. The added weight helps the machine maintain better contact with the ground, enhancing stability and preventing slippage.

• Enhanced Lifting Capacity: Counterweights can increase the machine's lifting capacity by improving its overall stability. A more stable machine is less likely to experience issues such as wheel lift when handling heavy loads, allowing operators to work more efficiently and safely.


1. Handling Heavy Attachments: If you frequently use heavy attachments like a heavy-duty bucket, auger, or pallet fork, adding a counterweight can help maintain the stability of the machine. The added weight reduces the risk of tipping when the attachment is fully loaded.

2. Uneven or Slippery Terrain: If the skid steer is being used on uneven ground, gravel, or mud, the counterweight can improve traction and prevent the machine from sliding or tipping. This is particularly important when working on hills or in wet conditions.

3. Maximizing Lifting Capacity: When you need to lift heavier materials, such as concrete, stone, or large piles of dirt, a counterweight can help the skid steer lift and carry the load more safely. The increased stability allows the machine to handle heavier loads without compromising safety.

4. Improving Operator Confidence: For operators who are not yet experienced with skid steer loaders, adding a counterweight can help boost confidence by making the machine feel more stable and predictable when lifting and carrying heavy loads.


1. Improved Stability: The most obvious benefit of a counterweight is improved stability. When working with heavy loads, the front of the skid steer tends to lift off the ground, especially during high-lift operations. A counterweight helps keep the machine grounded and balanced, preventing it from tipping over.

2. Increased Lifting Power: With a more stable platform, the Bobcat 1845C can lift heavier loads without losing traction or risking damage to the hydraulic system. This leads to more efficient work and fewer operational interruptions.

3. Better Traction on Slippery Surfaces: Whether you're working in muddy conditions, on gravel, or snow, a counterweight increases the downward force on the tires, improving traction. This is particularly useful in scenarios where the skid steer is being used on soft or loose soil.

4. Safer Operations: The added stability and traction reduce the risk of accidents and injuries, particularly when working with hazardous materials or in challenging terrain. This makes the skid steer safer for the operator and the surrounding crew.

5. Longer Machine Life: By reducing the likelihood of tipping and stress on the machine’s frame and tires, counterweights can help extend the life of the skid steer. The added stability reduces wear and tear, leading to fewer repairs and maintenance needs.


1. Weight Capacity: The counterweight should be heavy enough to balance the machine effectively without exceeding the skid steer's rated capacity. For the Bobcat 1845C, the ideal counterweight typically ranges between 500 and 1,000 pounds, depending on the type of work and attachments being used.

2. Compatibility: Make sure the counterweight is compatible with the 1845C model. Some counterweights are designed specifically for certain skid steer models, while others are universal. Check the manufacturer’s specifications to ensure proper fitment.

3. Adjustability: Some counterweights are adjustable, allowing you to fine-tune the weight distribution based on the task at hand. Adjustable counterweights provide more flexibility and can be easily modified for different attachments or working conditions.

4. Ease of Installation: Choose a counterweight that is easy to install and remove. Some counterweights are designed to be quickly attached or detached, which is especially useful when switching between different types of work.

5. Durability: Look for a counterweight made from durable materials, such as steel, that can withstand the rigors of heavy work environments. Durability is key to ensuring that the counterweight performs well over time without needing frequent replacement.


1. Reduced Maneuverability: Adding weight to the rear of the machine can affect its maneuverability, especially in tight spaces. Operators may find the machine harder to turn or navigate in confined areas.

2. Increased Fuel Consumption: With more weight added to the rear, the skid steer may require more power to perform the same tasks. This can lead to slightly increased fuel consumption, although the impact may be minimal.

3. Increased Wear on Rear Tires: The added weight can place additional stress on the rear tires, causing them to wear out more quickly. Regularly checking tire condition and maintaining proper tire pressure is important to prevent premature tire wear.


Introduction to Awemak and the Ozyrys Series
Awemak is a Polish agricultural machinery manufacturer established in 1993, renowned for producing high-quality tillage equipment. The company's products are widely used across Europe, offering a range of machines designed for efficient soil cultivation. Among their offerings, the Ozyrys series stands out as a versatile and robust disc harrow, catering to various farming needs.
Design and Construction
The Ozyrys disc harrow is engineered for durability and performance. It features a sturdy frame capable of withstanding the rigors of intensive fieldwork. The harrow is equipped with two rows of discs, typically 560 mm in diameter, arranged to ensure uniform soil tillage. The spacing between these rows can be adjusted to suit different soil conditions and cultivation requirements.
Key Specifications

• Disc Diameter: 560 mm (standard); 610 mm and 620 mm options available.

• Working Widths: Ranges from 3 m to 6 m, depending on the model.

• Weight: Approximately 1,400 kg for the 3 m model; weight increases with size and additional equipment.

• Required Tractor Power: Between 90 HP and 130 HP, varying with model and configuration.


• Disc Types: Standard AMA discs; optional 510 mm discs with spring protection; 610 mm discs available with maintenance-free hubs.

• Hubs: Maintenance-free hubs from NSK/FKL for reduced maintenance needs.

• Depth Adjustment: Hydraulic adjustment of working depth for precise soil engagement.

• Rollers: Options include tube bar rollers (Φ500 mm), breaking boards, and various compaction rollers.

• Side Screens: Active side screens that move to avoid obstacles, ensuring consistent soil containment.

• Lighting: LED lighting for improved visibility during operation.

• Transport: Available with hydraulic or mechanical drawbars, and optional transport trolleys.


The Caterpillar D7E is a powerful bulldozer that has earned a reputation for durability and reliability in heavy-duty construction, mining, and forestry operations. Built in 1968, the D7E features a diesel engine and a robust hydraulic system, designed to handle tough jobs in challenging environments. However, like all machinery, it is not immune to operational issues. One common problem that can arise in older machines like the D7E is the presence of oil in the coolant system. This issue can cause significant damage if not addressed promptly, leading to expensive repairs and extended downtime. In this article, we explore the causes of oil in the coolant, its symptoms, and how to diagnose and resolve the problem.
Understanding the Coolant and Oil Systems in the D7E
Before delving into the causes of oil in the coolant, it's important to understand how the coolant and oil systems work in the CAT D7E.

• Coolant System: The coolant system in the D7E helps maintain the engine at an optimal operating temperature. It circulates coolant (typically a mixture of antifreeze and water) through the engine block, radiator, and other components. The radiator cools the engine, preventing overheating and ensuring that it runs efficiently.

• Oil System: The oil system lubricates the engine’s moving parts to reduce friction and wear. The oil pump circulates oil through the engine, lubricating critical components like the crankshaft, pistons, and bearings. Proper oil circulation is crucial for engine longevity and performance.


1. Blown Head Gasket: The most common cause of oil entering the coolant system is a blown head gasket. The head gasket sits between the engine block and cylinder head and seals the internal combustion chambers. When the head gasket fails, it can allow oil and coolant to mix. This often happens because of the high pressure within the combustion chamber, which forces oil into the coolant passageways.

2. Cracked Engine Block or Cylinder Head: A cracked engine block or cylinder head can also cause oil to mix with coolant. These cracks can develop over time due to overheating or physical damage. When the block or head cracks, it can create a path for oil to flow into the coolant passages, leading to contamination.

3. Faulty Oil Cooler: The D7E uses an oil cooler to regulate the temperature of the engine oil. If the oil cooler develops a leak, it can cause oil to enter the coolant system. This is a relatively common problem in older machines, as oil coolers can corrode or deteriorate over time.

4. Improper Maintenance or Overheating: Poor maintenance or overheating can exacerbate the risk of oil entering the coolant system. For example, if the engine has been consistently run hot or if regular oil and coolant changes have been neglected, it increases the likelihood of internal failures like a blown head gasket or cracked block.

5. Worn or Damaged Seals: Seals that are worn or damaged due to age, excessive pressure, or lack of maintenance can fail and allow oil to seep into the coolant system. This is more common in older machinery that has not been properly maintained or has accumulated high mileage over the years.


1. Milky or Foamy Coolant: The most obvious sign of oil in the coolant is a milky or foamy appearance in the coolant reservoir or radiator. The oil and coolant mix to create this cloudy, milky substance, which is a clear indication of cross-contamination.

2. Overheating: If the oil is in the coolant, it can prevent the coolant from circulating properly, leading to engine overheating. Overheating can cause long-term damage to engine components and reduce the lifespan of the dozer.

3. Loss of Coolant: The mixing of oil with coolant can cause an abnormal loss of coolant. Since the coolant may become less effective at cooling the engine, it might be necessary to add more coolant more frequently.

4. Excessive Smoke from Exhaust: Another symptom of a blown head gasket or engine block crack is excessive white or blue smoke from the exhaust. This occurs because coolant or oil is entering the combustion chamber and being burned off during the engine cycle.

5. Low Oil Levels: If oil is being forced into the coolant system, the engine oil levels may drop significantly over time. This can lead to reduced lubrication and possible engine damage if not addressed promptly.


1. Visual Inspection of the Coolant: The first step is to inspect the coolant for signs of contamination. If the coolant looks milky or foamy, it’s a clear sign that oil is present in the system.

2. Check the Oil: If the coolant is contaminated, the next step is to check the engine oil. If the oil appears thin, milky, or discolored, it’s likely that coolant is entering the oil system as well. This is a sign of a head gasket failure or another internal issue.

3. Compression Test: Performing a compression test on the engine can help identify if a blown head gasket or cracked cylinder head is the issue. A loss of compression in one or more cylinders is a strong indication that the gasket or head is compromised.

4. Coolant Pressure Test: A coolant pressure test can help detect leaks in the engine block, cylinder head, or gasket. If the pressure in the coolant system drops without any visible external leaks, it may indicate internal damage.

5. Oil Cooler Check: If the engine oil and coolant systems appear clean but the problem persists, inspect the oil cooler. If the cooler is damaged or leaking, it can mix oil with coolant, and it may need to be repaired or replaced.


1. Replacing the Head Gasket: If the head gasket is the culprit, it will need to be replaced. This is a labor-intensive job that requires removing the cylinder head, cleaning the mating surfaces, and installing a new gasket. It's crucial to check the cylinder head for any signs of warping or cracking during this process.

2. Repairing Cracks in the Engine Block or Cylinder Head: If the engine block or cylinder head is cracked, it may require welding or replacement. Cracks in these areas are often irreversible, and in many cases, replacing the damaged part is the most effective solution.

3. Replacing the Oil Cooler: If the oil cooler is the source of the problem, replacing it is relatively straightforward. However, it’s important to ensure that the new oil cooler is compatible with the D7E’s system and is of high quality to prevent future issues.

4. Routine Maintenance: Regular maintenance, including checking the oil and coolant levels, changing fluids, and inspecting critical components, is essential for preventing these types of problems. Keeping the engine at the right temperature and ensuring that seals and gaskets are in good condition can help avoid oil in coolant issues.


Introduction
In the realm of heavy equipment operations, having the appropriate tow recovery rope is paramount for ensuring safety and efficiency during recovery operations. Whether you're dealing with off-road vehicles, construction machinery, or agricultural equipment, selecting the right rope can make the difference between a smooth recovery and a potential mishap.
Understanding Tow Recovery Ropes
Tow recovery ropes are designed to assist in moving or recovering vehicles that are stuck or immobilized. Unlike standard tow straps, recovery ropes are engineered to stretch, allowing for kinetic energy to be transferred during the recovery process. This stretch capability reduces the shock load on both the recovery vehicle and the stuck vehicle, leading to a safer and more effective recovery.
Key Specifications to Consider
When selecting a tow recovery rope, consider the following specifications:

• Minimum Breaking Strength (MBS): This indicates the maximum load the rope can handle before breaking. For heavy equipment, ropes with higher MBS ratings are essential.

• Working Load Limit (WLL): This is the maximum load that should be applied to the rope during normal operations. It's typically a fraction of the MBS to ensure safety.

• Material: High-quality synthetic fibers, such as UHMWPE (Ultra High Molecular Weight Polyethylene), offer strength and durability.

• Length and Diameter: The rope's length and diameter should be suitable for the specific recovery task and equipment involved.


• Miolle Super Heavy Duty Kinetic Recovery Rope (2" x 30')
  • MBS: 131,600 lbs

  • Material: Double-braided nylon

  • Features: Designed for heavy machinery, offers high stretch for energy absorption.

• Rhino USA Kinetic Recovery Rope (1" x 30')
  • MBS: 34,370 lbs

  • Material: Synthetic fibers with 30% elasticity

  • Features: Durable and versatile, suitable for various off-road vehicles.

• Tactical Recovery Equipment Industrial Tow Rope (1.25" x 30')
  • MBS: 170,000 lbs

  • Material: UHMWPE synthetic rope

  • Features: Lightweight yet strong, ideal for construction and agricultural equipment.


• Inspect the Rope: Before each use, check for signs of wear, fraying, or damage.

• Proper Attachment: Ensure the rope is securely attached to appropriate recovery points on both vehicles.

• Use Appropriate Gear: Utilize soft shackles or D-rings to connect the rope to vehicles.

• Maintain Distance: Keep a safe distance from the recovery area to avoid injury from potential recoil.
