The Caterpillar D7E is a robust and versatile track-type tractor, renowned for its fuel-efficient diesel-electric drive system and exceptional productivity. Introduced in 2008, the D7E was designed to offer 25% more material moved per gallon of fuel, 10% greater productivity, and 10% lower lifetime operating costs compared to its predecessor, the D7R Series II . One of the key features that enhance its versatility is the ability to equip the D7E with a winch, making it suitable for a variety of applications beyond traditional dozing.
Winch Options for the D7E
Caterpillar offers the H8L hydraulic winch as an option for the D7E. This winch is designed for easy installation and operation, featuring a "plug and play" system that doesn't require a pre-installed winch-ready option on the tractor. The H8L winch provides fingertip precision electronic control, allowing for line speeds as fine as 0.5 ft/min, and offers a maximum line pull of 112,500 pounds. With a weight of approximately 3,400 lbs, it is one of the most powerful winches available for the D7E .
Installation Considerations
Installing a winch on a D7E requires careful planning and execution. The process involves removing the rear drawbar and installing the winch mounting frame, which is bolted directly to the tractor's rear. Hydraulic lines are then connected to the tractor's hydraulic system to power the winch. It's essential to ensure that all connections are secure and that the hydraulic system is properly bled to remove any air pockets. Additionally, operators should be trained on the safe operation of the winch to prevent accidents and equipment damage.
Benefits of Adding a Winch
Equipping the D7E with a winch offers several advantages:

• Increased Versatility: The winch allows the D7E to perform tasks such as pulling logs, clearing debris, and assisting in land clearing operations, expanding its utility beyond traditional dozing.

• Enhanced Productivity: With the winch, the D7E can handle more complex tasks efficiently, reducing the need for additional equipment and labor.

• Improved Safety: The winch provides a controlled method for moving heavy objects, reducing the risk of accidents associated with manual handling.


Introduction
The Clark C-500 series forklifts, renowned for their robust performance in material handling, are equipped with bearing carrier seals that play a crucial role in maintaining the integrity of the axle assembly. These seals prevent contaminants from entering the bearings and ensure the proper lubrication of internal components. Over time, due to wear, environmental factors, or improper maintenance, these seals may fail, leading to potential damage and costly repairs.
Understanding Bearing Carrier Seals
Bearing carrier seals are designed to protect the bearings within the axle from dirt, moisture, and other contaminants. They also retain the lubrication necessary for smooth operation. In the Clark C-500 forklifts, these seals are typically located at the ends of the axle shafts, where they interface with the wheel hubs.
Common Issues and Symptoms
Operators may notice several signs indicating a problem with the bearing carrier seals:

• Oil Leaks: Visible oil stains around the wheel hubs or axle ends.

• Excessive Play: Movement or wobbling of the wheel, indicating bearing wear.

• Unusual Noises: Grinding or whining sounds emanating from the axle area.

• Overheating: Elevated temperatures in the wheel hubs, suggesting inadequate lubrication.


1. Preparation: Ensure the forklift is on a stable surface, and the wheels are chocked to prevent movement.

2. Disassembly: Remove the wheel and brake components to access the axle assembly.

3. Seal Removal: Carefully extract the old seals. Be cautious not to damage the surrounding components.

4. Surface Cleaning: Thoroughly clean the seal mating surfaces to remove any debris or old sealant.

5. Seal Installation: Install the new seals with the open side facing outward. Use a flat tool, such as a large washer or socket, to gently tap the seal into place without damaging its surface.

6. Reassembly: Reinstall the wheel and brake components, ensuring all fasteners are torqued to manufacturer specifications.

7. Testing: Operate the forklift at low speed to check for proper function and to ensure there are no leaks.


• Use OEM Parts: Always opt for Original Equipment Manufacturer (OEM) seals to ensure compatibility and longevity.

• Inspect Bearings: While replacing the seals, inspect the bearings for signs of wear or damage. Replace them if necessary to prevent future issues.

• Regular Maintenance: Implement a routine maintenance schedule to check for seal integrity and to replace them before they fail.

• Environmental Considerations: If operating in harsh environments with high levels of dust or moisture, consider using enhanced seals designed for such conditions.


Caterpillar's evolution of skid steer loaders (SSLs) and compact track loaders (CTLs) reflects the company's commitment to innovation and customer feedback. From the early models to the latest D3 and D3 XE series, each iteration has introduced enhancements in performance, comfort, and technology.
Early Developments and the D Series
Caterpillar's journey into skid steer loaders began with the introduction of the D Series. These models laid the foundation for future advancements by focusing on reliability and versatility. The D Series machines were designed to handle a variety of tasks, making them suitable for diverse industries.
Advancements in the D2 Series
Building upon the success of the D Series, the D2 Series introduced several improvements. These included enhanced hydraulic systems for better lifting capabilities, more powerful engines for increased productivity, and improved operator comfort features. The D2 Series was well-received for its balance of performance and ease of use.
The Transition to the D3 Series
The D3 Series marked a significant leap forward in Caterpillar's skid steer and CTL offerings. Key upgrades included:

• Enhanced Engine Performance: The D3 Series featured engines that maintained horsepower across a wider RPM range, resulting in improved efficiency and power delivery.

• Improved Lift and Tilt Capabilities: Design modifications led to increased lift heights and breakout forces, enhancing the machines' ability to handle heavier loads.

• Operator Comfort: Caterpillar focused on creating more spacious and ergonomic cabs, reducing operator fatigue and increasing productivity.

• Advanced Technology Integration: The D3 Series incorporated telematics systems, providing fleet managers with real-time data on machine performance and health.


• Increased Rated Operating Capacities (ROC): The D3 XE Series machines could handle heavier loads, making them more suitable for demanding tasks.

• Enhanced Stability: Improvements in the undercarriage design provided better balance and reduced the risk of tipping.

• Advanced Hydraulic Systems: The D3 XE Series featured hydraulic systems that offered higher flow rates, improving attachment performance.


• Increased Torque: Models like the 250 and 260 saw torque increases of 13%, while the 270, 275, and 285 models experienced up to a 50% increase, leading to improved digging and lifting performance.

• Redesigned Engine Compartment: The repositioning of the engine and cooling package lowered the center of gravity, enhancing stability and visibility.

• Smart Attachments Compatibility: The new models supported a line of Smart Attachments, allowing for seamless communication between the machine and attachments, optimizing performance.


Introduction
When evaluating earthmoving equipment, the choice between a dozer like the John Deere 450J and a tracked skid steer loader depends on the specific requirements of the job site. Understanding the distinctions in design, capabilities, and applications can guide operators in selecting the most suitable machine for their tasks.
John Deere 450J Crawler Dozer
The John Deere 450J is a compact crawler dozer designed for tasks requiring substantial pushing power and blade control. Key specifications include:

• Engine Power: Approximately 74 horsepower

• Operating Weight: Between 16,283 and 17,525 pounds, depending on configuration

• Blade Width: Ranges from 97 to 124 inches

• Blade Capacity: 2.0 cubic yards

• Ground Pressure: Approximately 5.9 psi

• Hydrostatic Drive: Provides smooth and precise control

• Blade Lift Height: 30.4 inches

• Digging Depth: 20.8 inches


• Engine Power: Approximately 74 horsepower

• Operating Weight: Around 8,000 pounds

• Rated Operating Capacity: Approximately 2,700 pounds

• Lift Height: Varies by model

• Ground Pressure: Approximately 4.3 psi

• Hydraulic Flow: Up to 26.7 gallons per minute


• Primary Function
  • John Deere 450J Dozer: Earthmoving and grading

  • Tracked Skid Steer Loader: Material handling and lifting

• Maneuverability
  • John Deere 450J Dozer: Moderate

  • Tracked Skid Steer Loader: High

• Ground Pressure
  • John Deere 450J Dozer: Higher

  • Tracked Skid Steer Loader: Lower

• Blade Control
  • John Deere 450J Dozer: Advanced

  • Tracked Skid Steer Loader: Limited

• Versatility
  • John Deere 450J Dozer: Moderate

  • Tracked Skid Steer Loader: High

• Ideal Terrain
  • John Deere 450J Dozer: Open, stable ground

  • Tracked Skid Steer Loader: Confined or uneven spaces


• Project Type: For large-scale grading or earthmoving projects, the 450J's blade control and power are beneficial. For tasks like landscaping, material handling, or working in tight spaces, a tracked skid steer offers greater versatility.

• Terrain: The 450J is effective on open, stable ground. Tracked skid steers perform well on soft or uneven terrains due to their lower ground pressure.

• Budget: Tracked skid steers may have a lower initial cost and can be more cost-effective for smaller projects. The 450J, while potentially higher in cost, offers specialized capabilities for specific tasks.


The Case 95XT skid steer loader, a robust machine designed for various construction and agricultural tasks, is equipped with a powerful hydraulic system that facilitates efficient operation. However, operators may occasionally encounter issues where the bucket settles rapidly even when the loader is not in use. This phenomenon can disrupt operations and, if left unaddressed, may lead to more significant mechanical problems.
Understanding the Hydraulic System
At the heart of the Case 95XT's functionality lies its hydraulic system, which powers the lift arms, bucket, and other attachments. The system operates using hydraulic fluid under pressure to transmit force. Key components include:

• Hydraulic Pump: Generates flow and pressure to power the system.

• Control Valves: Direct the flow of hydraulic fluid to various actuators.

• Lift and Tilt Cylinders: Actuate the movement of the loader arms and bucket.

• Hydraulic Hoses and Lines: Transport hydraulic fluid between components.

• Reservoir: Holds the hydraulic fluid.


1. Internal Leaks in Lift or Tilt Cylinders: Worn or damaged seals within the cylinders can allow hydraulic fluid to bypass, causing the bucket to lower unexpectedly.

2. Faulty Control Valves: If the control valves fail to seal properly, they can permit fluid to flow into unintended areas, leading to unintended movements.

3. Hydraulic Fluid Contamination: Contaminants in the hydraulic fluid can cause valves and actuators to malfunction.

4. Improper Hydraulic Fluid Levels: Low fluid levels can introduce air into the system, leading to erratic movements and settling.

5. Pressure Relief Valve Issues: A malfunctioning pressure relief valve can cause the system to lose pressure, resulting in the settling of the bucket.


1. Visual Inspection: Check for visible signs of hydraulic fluid leaks around cylinders, hoses, and connections.

2. Monitor Hydraulic Fluid Levels: Ensure that the hydraulic fluid is at the recommended level and appears clean.

3. Test Control Valves: Operate the control valves and observe if they return to their neutral positions correctly.

4. Pressure Testing: Use a pressure gauge to test the hydraulic system's pressure against manufacturer specifications.

5. Cylinder Isolation: Isolate the lift and tilt cylinders by disconnecting hoses and observing if the settling persists. This can help identify if the issue lies within the cylinders.


• Cylinder Seal Replacement: If internal leaks are detected in the cylinders, replacing the seals can restore proper function.

• Control Valve Repair or Replacement: Damaged or worn control valves should be repaired or replaced to ensure proper sealing.

• Hydraulic Fluid Change: Draining and replacing contaminated hydraulic fluid can prevent further issues.

• Pressure Relief Valve Adjustment or Replacement: Adjusting or replacing a faulty pressure relief valve can restore proper system pressure.


• Regularly Check Hydraulic Fluid Levels and Quality: Ensure that the fluid is at the correct level and free from contaminants.

• Inspect Hoses and Connections: Look for signs of wear or leaks and replace damaged components promptly.

• Service Cylinders Periodically: Lubricate and inspect cylinders for signs of wear or damage.

• Monitor System Pressure: Regularly check the system's pressure to ensure it aligns with manufacturer specifications.

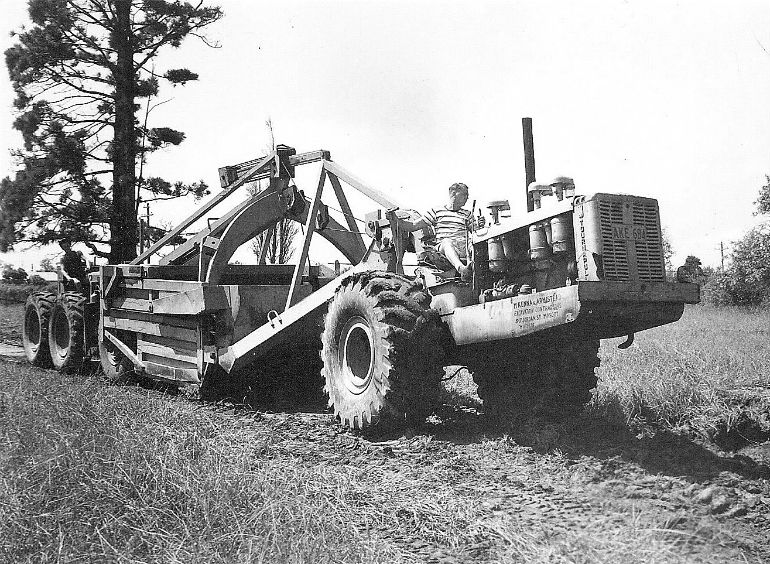

Introduction
In the late 1930s, as the world grappled with the aftermath of the Great Depression and the looming threat of World War II, innovation in construction machinery became paramount. Among the most significant advancements was the development of the Tournapull scraper by Robert Gilmour LeTourneau, an engineer whose vision transformed earthmoving operations. This self-propelled motor scraper marked a departure from traditional methods, introducing unprecedented efficiency and speed to the industry.
Genesis of the Tournapull
The inception of the Tournapull was born out of necessity and ingenuity. While recuperating from a severe automobile accident in 1937, LeTourneau conceived the idea of a self-propelled scraper that could combine the functions of a bulldozer and a towed scraper. Prior to this, earthmoving was a labor-intensive process, relying heavily on manual labor and animal power. LeTourneau's vision was to create a machine that could efficiently load, transport, and unload earth without the need for multiple pieces of equipment. Undeterred by initial skepticism from established manufacturers, LeTourneau established his own company and commenced the development of the Tournapull.
Design and Specifications
The first model, known as the Model A Tournapull, was unveiled in 1938. It featured a four-wheel design with a large rubber-tired tractor pulling a Carryall scraper. The tractor was powered by a 6-cylinder Caterpillar D468 diesel engine, delivering 90 flywheel horsepower. This configuration allowed for greater speed and maneuverability compared to the traditional crawler tractors used at the time. Subsequent models, such as the Model B and Model C, introduced enhancements in power and capacity. For instance, the Model C was equipped with a 270-horsepower GM 8V-71 diesel engine and featured a 12-cubic-yard scraper capacity.
Impact on Earthmoving Operations
The introduction of the Tournapull revolutionized earthmoving by significantly increasing productivity. Its self-propelled design eliminated the need for multiple machines, reducing operational costs and labor requirements. The Tournapull's ability to efficiently load, transport, and unload material streamlined construction processes, leading to faster project completion times. This innovation was particularly advantageous in large-scale projects such as dam construction and military infrastructure development during World War II.
Legacy and Influence
The success of the Tournapull set a new standard in the construction industry. It prompted other manufacturers to develop similar self-propelled scrapers, leading to the evolution of modern wheel tractor-scrapers. LeTourneau's company continued to innovate, producing a range of heavy equipment that contributed to the development of infrastructure worldwide. Today, the principles established by the Tournapull continue to influence the design and operation of earthmoving machinery.
Conclusion
The Tournapull scraper stands as a testament to the power of innovation in overcoming challenges. Robert G. LeTourneau's vision not only transformed the earthmoving industry but also laid the groundwork for future advancements in construction technology. As we look back on its legacy, the Tournapull serves as a reminder of how a single idea can reshape an entire industry.

The Bizzocchi Autel 230HP is a truck-mounted aerial work platform designed for tasks requiring significant reach and precision. However, like all complex machinery, it can encounter faults that hinder its operation. One such issue reported by operators is the LED indicator displaying the error message: "Outdoor relay on not operating CPU1, if present." This article delves into the possible causes of this fault and offers guidance on troubleshooting and resolution.
Understanding the Bizzocchi Autel 230HP
Manufactured by Bizzocchi, the Autel 230HP is a truck-mounted telescopic boom lift. It boasts a working height of 23 meters, a horizontal reach of 11.7 meters, and a platform capacity of 200 kg. These specifications make it suitable for various applications, including maintenance, construction, and tree trimming. The machine's hydraulic system, controlled by a central processing unit (CPU), manages the movement and stability of the platform.
Decoding the Fault Code
The error message "Outdoor relay on not operating CPU1, if present" suggests an issue with the relay responsible for powering the CPU. Relays are electrical components that act as switches, controlling the flow of electricity to various parts of the machine. If the relay fails or malfunctions, it can prevent the CPU from receiving power, leading to operational issues.
Potential Causes

1. Faulty Relay: The most straightforward cause is a defective relay. Over time, relays can wear out due to electrical stress or environmental factors.

2. Wiring Issues: Damaged or corroded wires can impede the electrical signal between the relay and the CPU, leading to communication failures.

3. Blown Fuse: A blown fuse in the circuit can interrupt the power supply to the relay, causing the CPU to remain inactive.

4. CPU Malfunction: While less common, a malfunctioning CPU can misinterpret signals or fail to activate the relay as required.


1. Visual Inspection: Begin by inspecting the relay and associated wiring for any visible signs of damage or wear.

2. Check the Fuse: Locate and examine the fuse connected to the relay circuit. Replace it if it's blown.

3. Test the Relay: Using a multimeter, test the relay's functionality. If it fails to operate correctly, replace it with a compatible unit.

4. Inspect the CPU: If the above steps don't resolve the issue, the CPU may need to be tested or replaced. This step often requires professional assistance.


• Routine Inspections: Conduct regular checks of electrical components to identify potential issues early.

• Protective Covers: Use covers to shield relays and wiring from environmental factors like moisture and debris.

• Professional Servicing: Schedule periodic servicing with qualified technicians to ensure all systems function optimally.


The JCB 4CX backhoe loader is a versatile machine renowned for its performance in various construction and agricultural tasks. However, accessing certain components, such as hydraulic lines beneath the cab floor, can be challenging due to the machine's compact design. This article explores methods to access these hydraulic lines, focusing on the potential removal of the cab floor.
Understanding the Hydraulic System
The JCB 4CX is equipped with a sophisticated hydraulic system that powers various functions, including the loader arms, backhoe, and stabilizers. Hydraulic lines run throughout the machine, often positioned in areas that are not easily accessible. Over time, these lines may develop leaks or require maintenance, necessitating access to their locations.
Challenges in Accessing Hydraulic Lines
One of the primary challenges in accessing hydraulic lines beneath the cab floor is the limited space and the presence of other components that may obstruct direct access. Operators have reported difficulties in reaching certain hoses, especially when they are positioned in hard-to-reach areas under the cab. In some cases, attempting to move or remove other hoses to gain access can be time-consuming and complex.
Potential Solution: Removing the Cab Floor
A potential solution to gain better access to the hydraulic lines beneath the cab is to remove the cab floor. This approach would involve detaching the floor panels to expose the area where the hydraulic lines are located. However, this method is not without its challenges.
Procedure for Removing the Cab Floor
While specific procedures may vary depending on the machine's configuration and model year, a general approach to removing the cab floor involves the following steps:

1. Preparation: Ensure the machine is parked on a level surface, the engine is turned off, and the parking brake is engaged.

2. Disconnecting the Battery: To prevent any electrical hazards, disconnect the machine's battery.

3. Removing Obstructions: Identify and remove any components or panels that may obstruct access to the cab floor. This may include seats, control panels, or other interior fittings.

4. Detaching the Floor Panels: Locate and remove the fasteners securing the cab floor panels. Carefully detach the panels to avoid damaging any underlying components.

5. Accessing the Hydraulic Lines: With the floor panels removed, inspect the hydraulic lines for any signs of wear or damage. Perform the necessary repairs or replacements as needed.


Introduction
The Case 580K backhoe loader, a staple in construction and agricultural operations, is powered by a 4-cylinder turbocharged diesel engine. A common issue faced by operators is fuel leakage from the injector pump, which can lead to engine performance problems and potential safety hazards. Understanding the causes, symptoms, and solutions for this issue is crucial for maintaining the machine's efficiency and longevity.
Understanding the Injector Pump System
The injector pump in the Case 580K is responsible for delivering precise amounts of fuel to each cylinder at the correct timing. This system ensures optimal combustion and engine performance. The pump is typically a rotary type, driven by the engine's camshaft, and is equipped with seals and O-rings to prevent fuel leaks.
Common Causes of Injector Pump Leaks

1. Worn or Damaged Seals: Over time, seals and O-rings within the injector pump can degrade due to heat and pressure, leading to fuel leaks.

2. Throttle Shaft Wear: The throttle shaft, which controls fuel delivery, can wear out, causing fuel to leak from the shaft area.

3. Cracked Pump Housing: Physical damage or stress can cause cracks in the pump housing, resulting in fuel leakage.

4. Loose or Damaged Fittings: Improperly tightened or damaged fuel line fittings can also contribute to leaks.


• Fuel Odor: A strong smell of diesel fuel around the engine area.

• Visible Fuel Stains: Wet spots or stains on the injector pump or surrounding components.

• Engine Performance Issues: Rough idling, stalling, or reduced power output.

• Increased Exhaust Smoke: Excessive smoke from the exhaust, indicating incomplete combustion.


1. Visual Inspection: Examine the injector pump and surrounding areas for signs of fuel leakage.

2. Check for Loose Fittings: Ensure all fuel line connections are tight and secure.

3. Inspect Seals and O-Rings: Look for signs of wear or damage on seals and O-rings.

4. Test for Shaft Play: Gently move the throttle shaft to check for excessive play or movement.

5. Pressure Test: Perform a fuel system pressure test to identify leaks under operating conditions.


1. Seal and O-Ring Replacement: If seals or O-rings are damaged, replace them with OEM parts to restore proper sealing.

2. Throttle Shaft Repair: For worn throttle shafts, a rebuild kit may be necessary to restore function.

3. Pump Housing Replacement: If the pump housing is cracked, replacing the entire injector pump may be required.

4. Professional Assistance: For complex issues, consult with a certified technician or service center experienced with Case equipment.


• Regular Inspections: Conduct routine checks of the injector pump and fuel system components.

• Use Quality Fuel: Ensure the use of clean, high-quality diesel fuel to prevent contaminants from entering the system.

• Proper Storage: Store the backhoe in a clean, dry environment to minimize exposure to elements that can cause seal degradation.

• Timely Replacements: Replace seals, O-rings, and other wear items at recommended intervals.


The Caterpillar D6R is a medium-sized track-type tractor renowned for its durability, versatility, and performance in various heavy-duty applications. As part of Caterpillar's D6 series, the D6R succeeded the D6H model and introduced several enhancements to meet the evolving demands of the construction and mining industries.
Historical Context and Evolution
Caterpillar's D6 series has a rich history dating back to the 1930s. The D6R, introduced in the mid-1990s, marked a significant advancement with its improved engine technology, enhanced hydraulics, and operator comfort features. It was designed to handle a wide range of tasks, including land clearing, grading, and mining operations.
Key Specifications
The D6R is equipped with a 6-cylinder, turbocharged diesel engine, delivering approximately 165 to 185 horsepower, depending on the specific model variant. Its operating weight ranges from 34,000 to 40,000 pounds, making it suitable for both standard and low ground pressure applications. The dozer features a power shift transmission with three forward and three reverse gears, providing operators with precise control over speed and direction.
Performance and Capabilities
One of the standout features of the D6R is its versatility. It can be fitted with various blades, including straight, semi-u, and full-u blades, to accommodate different material handling requirements. Additionally, the D6R can be equipped with a ripper attachment, enhancing its ability to break up compacted soil or rock.
The dozer's undercarriage is designed for durability and ease of maintenance. It features a modular design, allowing for quick replacement of components and minimizing downtime. The D6R's hydraulic system is optimized for efficiency, ensuring consistent performance even under heavy loads.
Operator Comfort and Safety
Caterpillar prioritized operator comfort and safety in the design of the D6R. The cab is spacious and features advanced ergonomics, reducing operator fatigue during extended shifts. It is equipped with air conditioning and heating systems to ensure a comfortable working environment in various climates.
The dozer also incorporates advanced monitoring systems, providing real-time feedback on machine performance and diagnostics. This allows operators to address potential issues promptly, reducing the risk of costly repairs.
Common Maintenance Considerations
Like all heavy machinery, the D6R requires regular maintenance to ensure optimal performance. Common maintenance tasks include:

• Hydraulic System Checks: Regular inspection of hoses and fittings to prevent leaks and ensure efficient operation.

• Undercarriage Maintenance: Monitoring wear on tracks and rollers to prevent premature failure.

• Engine Maintenance: Regular oil changes and air filter replacements to maintain engine efficiency.

• Cooling System Checks: Ensuring the radiator and cooling lines are free from debris to prevent overheating.


• Power Loss During Operation: Some users have experienced intermittent power loss after extended use. This may be attributed to fuel system issues, such as a clogged fuel filter or malfunctioning lift pump.

• Steering Difficulties: Instances of unresponsive steering have been noted, often linked to hydraulic system malfunctions or air in the steering lines.

• Transmission Warning Lights: Activation of transmission warning lights can indicate issues with the transmission control module or related components.
