The JCB 509-45TC telehandler stands as a testament to JCB's commitment to innovation and durability in the construction equipment sector. Designed for versatility and efficiency, this machine has become a preferred choice for various applications, from construction sites to agricultural settings.
Specifications and Capabilities

• Lift Capacity: The JCB 509-45TC boasts a maximum lift capacity of 8,800 lbs (4,000 kg), making it suitable for handling heavy loads with ease.

• Lift Height: With a maximum lift height of 45 feet (13.8 meters), it offers impressive reach, allowing operators to access elevated areas without the need for additional equipment.

• Engine Power: Powered by a 109 hp (81 kW) JCB EcoMax engine, the telehandler delivers robust performance while maintaining fuel efficiency.

• Dimensions: The machine has a transport length of 6.23 meters, a width of 2.35 meters, and a height of 2.59 meters, ensuring maneuverability in tight spaces.

• Weight: Weighing in at 10.88 tons, the 509-45TC offers a balance between stability and mobility.


• Boom Design: The inverted U-shaped boom pressing with fully welded closing plates reduces stress points, enhancing structural integrity.

• Visibility: The low-mounted boom provides superior visibility, while optional camera systems and pulse radar further improve safety by alerting operators to obstacles.

• Cab Comfort: The spacious cab is designed for comfort, featuring effective noise reduction, excellent airflow, and optional air conditioning. The fully adjustable steering column and optional suspension seat ensure a comfortable driving experience.

• Steering Modes: The telehandler offers multiple steering modes, including two-wheel, four-wheel, and crab steering, providing flexibility for various operational scenarios.


• Construction: Ideal for lifting and placing materials at heights, facilitating tasks such as masonry and framing.

• Agriculture: Useful for handling hay bales, pallets, and other materials in farming operations.

• Industrial: Suitable for material handling in warehouses and factories, especially in areas with limited space.


• Engine Care: Regular oil changes and air filter replacements are essential for maintaining engine efficiency.

• Hydraulic System: Periodic checks of the hydraulic system, including hoses and cylinders, can prevent leaks and ensure smooth operation.

• Tires: Inspecting and maintaining the 15.5/80-24 pneumatic industrial tires ensures stability and traction.


The Hyster C625B is a single-drum vibratory roller designed for efficient compaction in various construction applications. Manufactured by Hyster, a company with a rich history in material handling and construction equipment, the C625B reflects the brand's commitment to durability and performance.
Key Specifications

• Engine: Powered by a diesel engine, the C625B delivers robust performance suitable for demanding tasks.

• Drum: Features an 84-inch smooth drum, ideal for achieving uniform compaction on asphalt and granular materials.

• Weight: The machine's operating weight ensures optimal contact pressure for effective compaction.

• Vibration System: Equipped with a vibratory system that enhances compaction efficiency by increasing the drum's impact force.

• Water System: Includes a water tank for dust suppression and to prevent material from sticking to the drum.


• Engine Care: Regular oil changes and air filter replacements to ensure engine efficiency.

• Drum Inspection: Checking for wear and tear, and ensuring the vibratory system operates smoothly.

• Water System: Cleaning the water tank and ensuring the spray nozzles are functioning correctly to prevent material buildup on the drum.


Introduction
The Case 580K backhoe loader, a staple in construction and agricultural operations, is renowned for its versatility and durability. However, like all machinery, it is susceptible to wear and mechanical issues. One common problem reported by operators is the brake pedal dropping to the floor, indicating potential brake system failures. Understanding the underlying causes and implementing effective solutions is crucial for maintaining the safety and performance of this equipment.
Understanding the Brake System
The brake system in the Case 580K is hydraulic, utilizing fluid pressure to operate the brakes. This system comprises several key components:

• Master Cylinder: The primary component that generates hydraulic pressure when the brake pedal is depressed.

• Slave Cylinders: Located at each wheel, these cylinders receive hydraulic pressure from the master cylinder to engage the brakes.

• Brake Housings: Enclosures that house the brake components.

• Brake Fluid: The hydraulic fluid that transmits pressure throughout the system.

• Brake Lines and Hoses: Tubes and flexible hoses that carry brake fluid between components.


1. Incorrect Brake Fluid: The 580K's brake system is designed to operate with specific fluids. Using the wrong type, such as DOT brake fluid instead of the recommended Case TCH fluid, can cause seal degradation and system failure. DOT fluid is known to swell seals, leading to brake release issues, or in severe cases, causing leaks into the transaxle.

2. Worn or Damaged Components: Over time, components like master cylinders, slave cylinders, and brake lines can wear out or become damaged, leading to fluid leaks and loss of hydraulic pressure.

3. Air in the Brake Lines: Air trapped in the brake lines can compress when the brake pedal is depressed, preventing the brakes from engaging properly and causing the pedal to drop.

4. Brake Fluid Leaks: Leaks in the brake system, whether from hoses, seals, or cylinders, can result in a loss of fluid, leading to decreased braking efficiency and pedal drop.


• Check Brake Fluid: Inspect the brake fluid level and condition. If the fluid appears contaminated or is at a low level, it may indicate leaks or the use of incorrect fluid.

• Inspect for Leaks: Examine all brake lines, hoses, and cylinders for signs of leakage. Pay close attention to areas around the master and slave cylinders.

• Bleed the Brakes: Perform a brake bleed to remove any air trapped in the lines. This process involves opening the bleeder valves on each wheel cylinder and allowing fluid to flow until all air bubbles are expelled.

• Test Brake Pedal: After bleeding, check the brake pedal for firmness. A firm pedal indicates proper hydraulic pressure, while a soft or spongy pedal suggests air in the lines or fluid leaks.


• Replace Incorrect Brake Fluid: If DOT fluid has been used, flush the entire brake system thoroughly and refill with the recommended Case TCH fluid. This will prevent further seal damage and restore proper brake function.

• Rebuild or Replace Master and Slave Cylinders: If these components are found to be worn or damaged, they should be rebuilt or replaced to restore hydraulic pressure.

• Replace Worn Brake Lines and Hoses: Any lines or hoses showing signs of wear or leaks should be replaced to prevent fluid loss.

• Adjust Brake Pedal Free Play: Ensure that the brake pedal has the correct amount of free play, as specified in the operator's manual. Improper adjustment can lead to brake binding or insufficient engagement.


• Regularly Inspect the Brake System: Periodically check all components for signs of wear, leaks, or damage.

• Use the Recommended Brake Fluid: Always use the specified Case TCH fluid to ensure compatibility with system seals and components.

• Bleed the Brakes Periodically: Regular bleeding can help remove air from the system and maintain optimal brake performance.

• Monitor Brake Performance: Pay attention to any changes in brake responsiveness or pedal feel, as these can indicate developing issues.


Introduction
The Caterpillar D8 series has been a cornerstone in heavy construction and mining operations since its inception in 1935. Over the decades, Caterpillar has introduced various iterations of the D8, each bringing advancements in power, efficiency, and technology. This article delves into the performance differences between the modern D8T and its older counterparts, highlighting key upgrades and their implications for operators.
Evolution of the D8 Series
The original D8, introduced as the RD8 in 1935, featured a 110 hp engine and a six-speed transmission. Subsequent models, such as the D8E and D8H, saw incremental improvements in horsepower and design. The D8R, launched in the late 1990s, was a significant leap forward, offering enhanced power and efficiency. The D8T, introduced in the mid-2000s, further refined these features, integrating advanced technologies and design enhancements.
Key Performance Differences

1. Engine Power and Efficiency
   • D8T: Equipped with the Cat® C15 ACERT™ engine, the D8T delivers a net power of 354 hp at 1,900 rpm, with a maximum power of 394 hp at 1,600 rpm. This engine meets U.S. EPA Tier 4 Final emissions standards, offering improved fuel efficiency and reduced emissions compared to older models.

   • Older D8 Models: Earlier models like the D8R were powered by engines with lower horsepower ratings and did not meet modern emissions standards, leading to higher fuel consumption and greater environmental impact.

2. Transmission and Hydraulics
   • D8T: Features a new 4-speed automatic powershift transmission that enhances productivity by allowing the machine to maintain optimal engine speeds under varying loads. The advanced hydraulic system provides more precise control and faster response times, improving overall efficiency.

   • Older D8 Models: Utilized older transmission systems that required manual shifting and had slower hydraulic response times, potentially reducing operational efficiency.

3. Operator Comfort and Technology
   • D8T: The D8T boasts a modern cab design with features like air-ride suspension seats, adjustable armrests, and a color touchscreen display. Optional Cat® GRADE technologies assist operators in achieving precise grading, enhancing productivity and reducing rework.

   • Older D8 Models: Earlier models had more basic cabs with limited comfort features and lacked integrated technological aids for grading and operation.

4. Blade and Ripper Capacity
   • D8T: Offers larger blade capacities, with options like the 8 SU Landfill blade, which has a capacity of 25.6 yd³ and a width of 12.9 ft. The single-shank ripper is designed for enhanced durability and performance.

   • Older D8 Models: Had smaller blade capacities and less robust ripper designs, limiting their effectiveness in certain applications.




Introduction

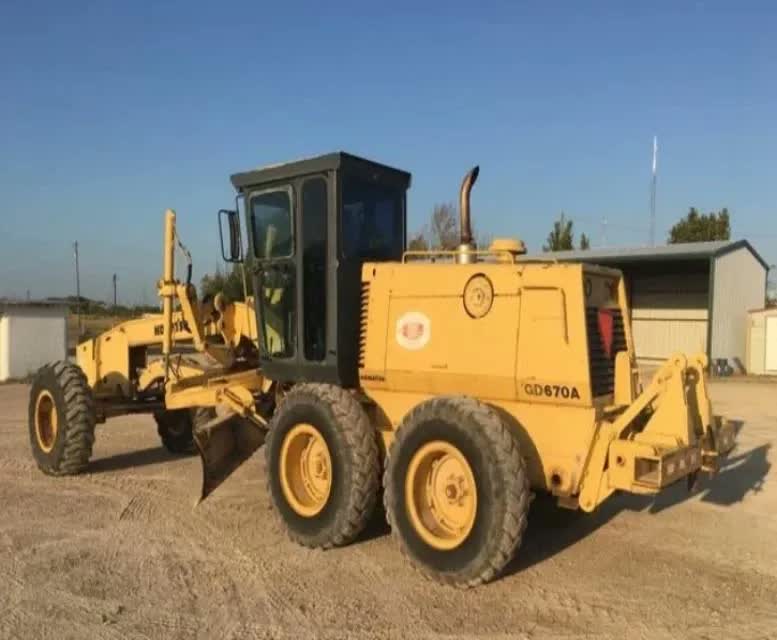

The Komatsu GD670AW motor grader is a robust and versatile machine designed to meet the demanding needs of construction and road maintenance projects. Manufactured by Komatsu, a leading Japanese heavy equipment manufacturer, the GD670AW series has gained recognition for its performance, reliability, and advanced features. This article provides a comprehensive overview of the GD670AW motor grader, including its specifications, features, and applications.
Specifications

• Engine Power: The GD670AW is equipped with a powerful engine that delivers impressive performance. The exact horsepower varies depending on the specific model and configuration.

• Operating Weight: The operating weight of the GD670AW motor grader is approximately 34,568.5 lbs (15,700 kg), providing stability and traction for various grading tasks.

• Blade Width: The standard moldboard width is 12.1 ft (3.7 m), allowing for efficient material handling and precise grading.

• Maximum Speed: The GD670AW can achieve a maximum speed of 26.2 mph (42.2 km/h), enabling swift movement between job sites.

• Dimensions:
  • Overall Length: 27.71 ft (8.45 m)

  • Width Over Tires: 8.02 ft (2.44 m)

  • Wheelbase: 19.42 ft (5.92 m)

  • Rear Ground Clearance: 0.92 ft (0.28 m)

  • Tandem Axle Wheelbase: 5.09 ft (1.55 m)

  • Blade Base: 8.17 ft (2.49 m)

  • Height to Top of Isomount Cab: 10.17 ft (3.1 m)


• Dual-Mode Transmission: The GD670AW features a dual-mode transmission system that allows operators to switch between torque converter and direct drive modes. This flexibility enhances control and efficiency, particularly in varying soil conditions and grading requirements.

• Advanced Hydraulic System: The motor grader is equipped with a high-performance hydraulic system that provides precise control over the moldboard, ripper, and other attachments. This system ensures accurate grading and efficient operation.

• Operator Comfort: The GD670AW is designed with operator comfort in mind. The Isomount cab reduces vibrations, and the spacious interior provides excellent visibility and ergonomic controls, reducing operator fatigue during long shifts.

• Durability and Reliability: Built with high-quality materials and components, the GD670AW is designed to withstand the rigors of heavy-duty applications. Its robust construction ensures longevity and minimizes downtime.


• Road Construction: Ideal for shaping and leveling roads, ensuring a smooth and durable surface.

• Land Development: Used in the preparation of land for construction projects, including grading and leveling.

• Mining Operations: Employed in mining sites for road maintenance and material handling.

• Agricultural Projects: Utilized in the construction and maintenance of farm roads and irrigation channels.


• Engine Oil and Filter Replacement: Regularly changing the engine oil and filters to ensure proper lubrication and engine health.

• Hydraulic System Checks: Inspecting and maintaining the hydraulic system to prevent leaks and ensure efficient operation.

• Blade Maintenance: Regularly checking and maintaining the moldboard and other attachments for wear and damage.

• Tire Inspection: Monitoring tire condition and pressure to ensure proper traction and stability.

• Cooling System Maintenance: Ensuring the radiator and cooling system are clean and functioning correctly to prevent overheating.


Introduction
In the realm of heavy machinery, the standard approach often involves pairing large machines with appropriately sized attachments to maximize efficiency. However, there are scenarios where equipping a large machine with a smaller bucket proves advantageous. This unconventional pairing can enhance precision, reduce material disturbance, and improve maneuverability in confined spaces. Understanding the rationale behind this choice and the considerations involved is essential for optimizing equipment performance.
Rationale for Using Small Buckets on Large Machines

1. Precision Excavation: Smaller buckets allow for more precise digging, which is crucial in tasks such as trenching for utilities or working around existing structures.

2. Reduced Ground Disturbance: Larger buckets can displace more material than necessary, leading to increased spoil and potential damage to surrounding areas. Smaller buckets mitigate this risk.

3. Enhanced Maneuverability: In congested or urban job sites, the compact nature of a smaller bucket facilitates better control and access to tight spaces.

4. Fuel Efficiency: By reducing the weight and load on the machine, smaller buckets can contribute to lower fuel consumption, making operations more cost-effective.


• Bucket Capacity and Machine Compatibility: It's imperative to ensure that the smaller bucket's capacity aligns with the machine's lifting capabilities to prevent overloading.

• Attachment Compatibility: Verify that the quick coupler or attachment system is compatible with the smaller bucket to ensure secure mounting and safe operation.

• Operational Efficiency: While smaller buckets offer precision, they may require more cycles to complete tasks, potentially affecting overall productivity.

• Material Type: The nature of the material being excavated should influence the choice of bucket size. For instance, dense materials may necessitate a smaller bucket to maintain control and prevent overloading.


Introduction
Caterpillar has a long history of producing versatile construction machinery. The Cat 420 backhoe loader and the Cat 307 mini hydraulic excavator both serve mid-sized construction needs but are designed with different operational priorities. The 420 series has roots dating back to the 1960s when Caterpillar introduced compact yet powerful backhoe loaders to handle both digging and material movement tasks. The 307 series emerged in the late 1990s as part of Caterpillar’s push into compact hydraulic excavators, designed for confined spaces and precision work. Globally, both machines have sold in the tens of thousands, making them common on construction sites across North America, Europe, and Asia.
Cat 420D Backhoe Loader Overview

• Engine Power: 89 hp

• Operating Weight: 15,763 lbs (7,150 kg)

• Digging Depth: 14.5 ft

• Reach: 18.5 ft

• Loader Bucket Capacity: 1.25 cubic yards

• Swing Radius: Standard

• Transmission: Powershift or manual (depending on model year)

• Hydraulic Flow: 16–20 gpm for auxiliary attachments

• Key Strength: Combines digging, lifting, and loading in one machine


• The front loader can handle bulk materials like gravel, sand, or soil efficiently.

• The backhoe arm offers good reach and depth for medium-scale excavation.

• Ideal for mixed tasks on small to mid-sized construction sites.

• Maintenance includes checking hydraulic lines, greasing pivot points, and monitoring transmission oil.


• Engine Power: 89 hp

• Operating Weight: 15,763 lbs (7,150 kg)

• Digging Depth: 14.5 ft

• Reach: 18.5 ft

• Loader Bucket Capacity: N/A

• Swing Radius: Reduced tail swing for confined spaces

• Hydraulic Flow: 22–25 gpm to support attachments like thumbs or breakers

• Key Strength: Precision digging and maneuverability in restricted areas


• Reduced tail swing allows operation near walls or obstacles.

• Compact design is ideal for urban construction or landscaping projects.

• Hydraulic attachments extend versatility, including quick couplers, thumbs, or hydraulic hammers.

• Operators should monitor engine temperature, track tension, and hydraulic fluid levels to prevent performance loss.


• Both machines are equipped with 89 hp engines, offering reliable power for mid-sized tasks.

• 420D focuses on multi-function use (digging and loading), while 307C is optimized for precise digging.


• Operating weight is identical at 15,763 lbs, ensuring stability during operation.

• 420D’s standard swing requires more clearance around the machine, whereas 307C’s reduced tail swing is suitable for tight areas.


• Both achieve a digging depth of 14.5 ft and reach of 18.5 ft.

• 420D provides simultaneous front loader capabilities, allowing material movement during excavation.

• 307C excels in precision trenching and working close to obstacles.


• 420D can handle loader buckets, forks, and simple hydraulic attachments.

• 307C supports advanced hydraulic attachments, thumbs, and breakers, providing more specialized functionality in tight spaces.


• 420D: Regular checks on loader pins, backhoe swing gear, and transmission oil are critical.

• 307C: Focus on hydraulic hoses, tail swing clearance, and track lubrication to maintain efficiency.

• Both machines require attention to engine air filters, hydraulic fluid levels, and cooling system integrity to prevent downtime.


• Choose the 420D when a job site requires both digging and moving bulk materials.

• Choose the 307C for confined areas, urban projects, or sites with obstacles.

• Monitor hydraulic flow rates and engine temperature to avoid performance drops, especially in hotter climates or extended operation periods.

• Regular maintenance of pins, seals, and hydraulic lines can extend machine life by 20–30% according to fleet reports.


Introduction
The 2003 Takeuchi TL130, a compact track loader renowned for its versatility and performance, is equipped with safety systems that monitor critical engine parameters, including coolant levels and oil pressure. When either of these parameters falls below safe thresholds, the machine's warning lights activate to alert the operator. However, there are instances where these warning lights illuminate despite normal fluid levels, indicating potential issues with sensors, wiring, or the engine's internal components.
Understanding the Warning System
The TL130 employs sensors to monitor coolant levels and oil pressure:

• Coolant Level Sensor: Typically located in the upper radiator hose, this sensor detects the coolant level and sends signals to the machine's control system.

• Oil Pressure Sensor: This sensor monitors the engine's oil pressure, ensuring adequate lubrication for internal components.


1. Air in the Coolant System: Air pockets can form in the cooling system, particularly near the coolant level sensor, leading to inaccurate readings. This can cause the system to perceive a low coolant condition even when the radiator is full.

2. Faulty Sensors: Over time, sensors can degrade or malfunction, providing incorrect readings to the control system.

3. Wiring Issues: Damaged or corroded wiring can interfere with signal transmission, leading to false warnings.

4. Contaminated Oil: Contaminants in the engine oil can affect the oil pressure readings, triggering the warning light.

5. Incorrect Oil Viscosity: Using oil with the wrong viscosity for the operating temperature can lead to low oil pressure readings.


1. Check Fluid Levels: Ensure both coolant and oil levels are within the recommended ranges.

2. Inspect for Air in the Coolant System: With the engine cool, check for air pockets near the coolant level sensor. Gently tap the upper radiator hose to dislodge any trapped air.

3. Test the Sensors: Bypass the coolant and oil pressure sensors using jumper wires to see if the warning lights persist. If the lights go off, the sensors may be faulty.

4. Examine Wiring: Inspect the wiring harnesses connected to the sensors for signs of wear, corrosion, or damage.

5. Evaluate Oil Quality and Viscosity: Check the oil for contaminants and ensure it matches the manufacturer's recommended viscosity for the operating environment.


• Regular Maintenance: Adhere to the manufacturer's recommended maintenance schedule, including timely oil changes and coolant system flushes.

• Use OEM Parts: When replacing sensors or other components, use Original Equipment Manufacturer (OEM) parts to ensure compatibility and reliability.

• Monitor Operating Conditions: Be mindful of operating the machine within its designed temperature and load parameters to prevent undue stress on the engine.


Introduction
The Caterpillar 12 grader, introduced in 1938, revolutionized road construction with its innovative design and powerful performance. Over the decades, Caterpillar has continued to evolve the 12 series, introducing models like the 12G and 12M, each offering enhanced features and capabilities. Understanding the specifications and features of these models is crucial for operators and enthusiasts alike.
Caterpillar 12 Grader Specifications

• Engine: The 12G model is equipped with a 6-cylinder engine, providing robust power for various grading tasks.

• Dimensions: The overall length of the 12G grader is 27.27 feet, with a width over tires of 7.91 feet.

• Weight: The standard operating weight for the 12G grader is approximately 20,128 pounds.

• Blade: The 12G features a blade base of 8.44 feet, suitable for a range of grading applications.


• Engine: The 12M model boasts a VHP Plus engine, delivering 160 kW (214 hp) at 2,000 rpm.

• Weight: The total vehicle weight of the 12M is 22,490 kg (49,559 lb), making it a heavy-duty machine for demanding tasks.

• Blade: The 12M comes with a 12-foot blade, offering increased efficiency in material handling.

• Attachments: Common attachments for the 12M include moldboards and rippers, enhancing its versatility.


Introduction
The 10-wheeler truck, a staple in the transportation and construction industries, is renowned for its versatility and robust performance. Often referred to as a "10-wheeler" or "10-wheeler truck," this vehicle is designed to handle substantial loads, making it indispensable for various commercial applications. This article delves into the specifications, applications, and considerations associated with 10-wheeler trucks, providing a comprehensive overview for operators and businesses alike.
Specifications of 10-Wheeler Trucks
10-wheeler trucks are characterized by their dual rear axles, totaling ten wheels, which contribute to their enhanced load-bearing capacity. The specifications can vary based on the manufacturer and model, but typical dimensions and capacities include:

• Length: 24 to 32 feet

• Width: 8 to 10 feet

• Height: 12 to 14 feet

• Gross Vehicle Weight (GVW): 28,000 to 55,000 kg

• Payload Capacity: 10 to 25 tons

• Engine Power: Varies by model, typically ranging from 200 to 350 horsepower

• Fuel Type: Diesel


• Construction: Transporting building materials such as sand, gravel, and cement.

• Mining: Hauling extracted minerals and ores.

• Waste Management: Carrying construction debris and municipal waste.

• Agriculture: Transporting harvested crops and fertilizers.

• Logistics: Delivering goods over long distances.


• Weight Distribution: Uneven loading can lead to instability and increased tire wear.

• Maintenance: Regular checks on brakes, suspension, and tires are crucial to prevent breakdowns.

• Driver Training: Operators should be trained in handling heavy loads and maneuvering in challenging conditions.

• Compliance: Adherence to local regulations regarding weight limits and emissions standards is essential.


• Fuel Efficiency: Due to their size and weight, these trucks consume significant amounts of fuel, impacting operational costs.

• Environmental Impact: Emissions from diesel engines contribute to air pollution, prompting a shift towards greener alternatives.

• Infrastructure Limitations: In some regions, road conditions and weight restrictions can hinder the effective use of 10-wheeler trucks.


• Electric Trucks: Emerging electric 10-wheeler models promise reduced emissions and lower operating costs.

• Telematics: Integration of GPS and diagnostic systems allows for real-time monitoring and predictive maintenance.

• Alternative Fuels: Exploration of biofuels and hydrogen as cleaner energy sources for heavy trucks.
