Caterpillar's D10 and D11 dozers are renowned for their immense power and versatility in heavy-duty applications. One of the key features that enhance their performance is the cushion blade, a specialized attachment designed to improve material handling and reduce operational wear.
Understanding Cushion Blades
A cushion blade is a type of dozer blade equipped with a hydraulic system that allows for controlled cushioning during blade contact with the ground. This system absorbs shocks and vibrations, leading to smoother operation and reduced stress on both the machine and the operator.
Benefits of Cushion Blades

1. Enhanced Material Handling
   The cushioning effect allows for more precise control over the material being moved, improving load retention and reducing spillage.

2. Reduced Wear and Tear
   By absorbing shocks, cushion blades minimize the impact on the dozer's frame and undercarriage, leading to longer service life and reduced maintenance costs.

3. Improved Operator Comfort
   The reduction in vibrations and shocks translates to a more comfortable operating experience, which can lead to increased productivity and reduced operator fatigue.


The John Deere 35D compact excavator, renowned for its versatility and reliability, is equipped with a two-speed travel system that allows operators to switch between high-speed (rabbit) and low-speed (turtle) modes. This feature is essential for maneuvering in various terrains and optimizing fuel efficiency. However, some operators have reported issues where the machine remains stuck in low-speed mode, even when the switch is engaged. This article delves into the potential causes of this problem and offers insights into troubleshooting and resolution.
Common Causes of Stuck Low-Speed Mode

1. Faulty Two-Speed Switch


1. Electrical Issues


1. Solenoid Valve Malfunction


1. Hydraulic System Contamination


1. Inspect the Two-Speed Switch


1. Check Electrical Connections


1. Test the Solenoid Valve


1. Flush the Hydraulic System


• Regular Inspection


• Hydraulic Fluid Maintenance


• Electrical System Care




Introduction

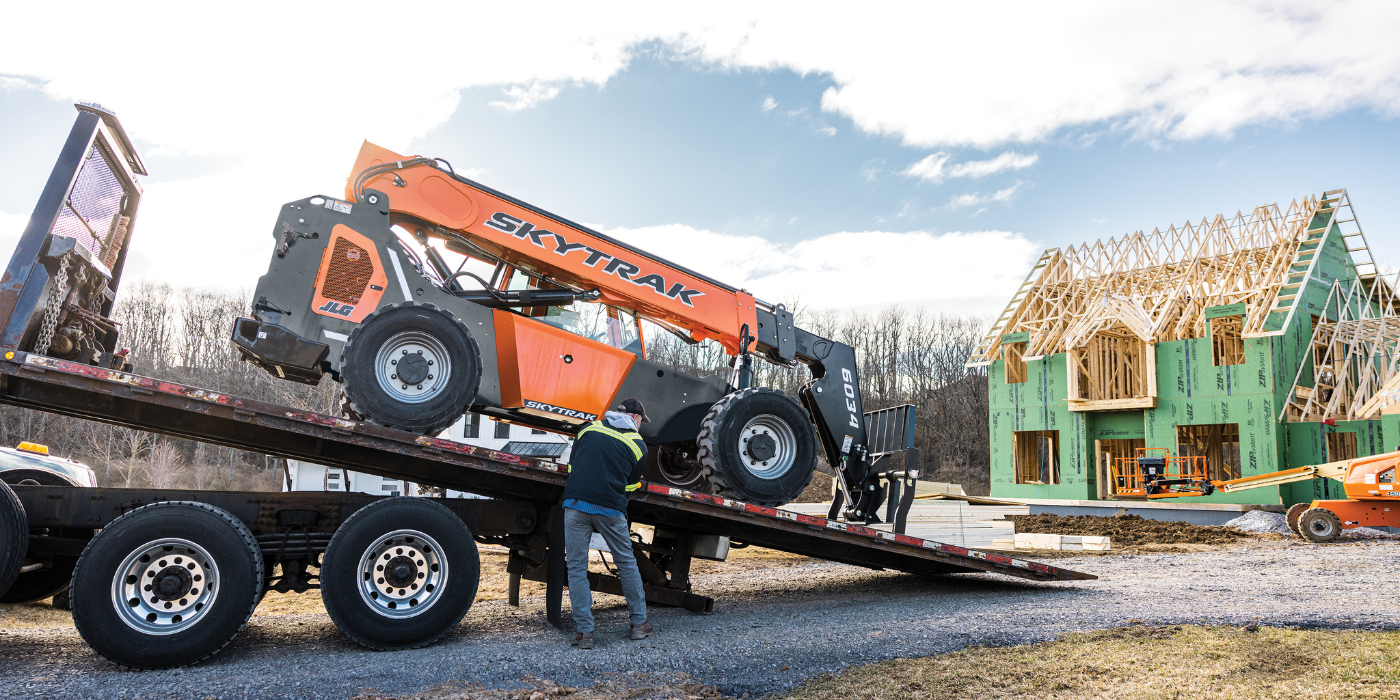

The JLG SkyTrak 6042 telehandler is a robust and versatile piece of equipment designed to meet the demanding needs of construction, agriculture, and industrial applications. Manufactured by JLG Industries, a subsidiary of Oshkosh Corporation, this telehandler combines advanced engineering with user-friendly features to provide exceptional performance and reliability on job sites.
Development and Manufacturer
JLG Industries was founded in 1969 in McConnellsburg, Pennsylvania, and quickly became a leader in the design and manufacture of aerial work platforms and telehandlers. The acquisition of SkyTrak in 2003 allowed JLG to expand its product line and offer a range of telehandlers known for their durability and performance. The SkyTrak 6042 model continues this legacy, providing operators with a machine capable of handling heavy loads and reaching impressive heights.
Specifications

• Maximum Lift Capacity: 6,000 lbs (2,722 kg)

• Maximum Lift Height: 42 ft 4 in (12.9 m)

• Maximum Forward Reach: 29 ft 6 in (8.99 m)

• Load at Max Reach: 1,200 lbs (544 kg)

• Engine: Deutz TCD2.9 L4, 74 hp (55.2 kW)

• Transmission: Hydrostatic

• Top Travel Speed: 15 mph (24.1 km/h)

• Operating Weight: Approximately 19,100 lbs (8,664 kg)

• Dimensions:
  • Length: 23 ft 5 in (7.14 m)

  • Width: 8 ft 5 in (2.57 m)

  • Height: 8 ft 4 in (2.54 m)

  • Ground Clearance: 1 ft 4 in (0.41 m)


• Hydrostatic Transmission: Provides smooth and precise control, enhancing maneuverability and reducing operator fatigue.

• Advanced Control System: Offers improved diagnostics and a wider range of options for operators.

• Electric Over Hydraulic Joystick: Allows for greater multifunction capability, enabling operators to perform tasks more efficiently.

• Frame Leveling: Ensures stability on uneven terrain by maintaining a level load.

• LED Motion/Amber Beacon: Increases visibility and safety on job sites.

• ClearSky Smart Fleet™ Connectivity Hardware: Enables fleet management and monitoring for improved operational efficiency .


• Construction Sites: Transporting materials such as steel beams, concrete blocks, and other heavy items.

• Agricultural Operations: Handling large bales of hay, feed, and other bulk materials.

• Industrial Applications: Moving heavy equipment and supplies in warehouses or manufacturing facilities.


The Volvo EC210BLC is a mid-sized crawler excavator designed for heavy-duty tasks. Understanding its wiring diagram is crucial for troubleshooting electrical issues and performing maintenance.
Electrical System Overview
The electrical system of the EC210BLC includes components such as the battery, alternator, fuses, relays, switches, and the Engine Control Module (ECM). These components work together to ensure the proper functioning of the excavator's engine, hydraulics, and other systems.
Common Electrical Issues

1. Engine Not Starting: This can be caused by faulty fuses, relays, or wiring connections.

2. Instrument Panel Malfunctions: Issues with the instrument panel can arise from problems with the ECM or wiring harness.

3. Hydraulic System Failures: Electrical problems can affect the hydraulic system's performance, leading to reduced efficiency.


1. Check Fuses and Relays: Inspect all relevant fuses and relays for continuity and proper operation.

2. Inspect Wiring Harnesses: Look for signs of wear, corrosion, or loose connections in the wiring harnesses.

3. Test the ECM: Use diagnostic tools to check the functionality of the ECM.


• Official Service Manuals: Volvo provides detailed service manuals that include wiring diagrams.

• Online Forums and Communities: Platforms like JustAnswer and Scribd have user-shared diagrams and discussions.

• Third-Party Suppliers: Websites like eBay and DIY Repair Manuals offer wiring diagrams for purchase.


Introduction
Brake and clutch linings are essential components in heavy equipment, ensuring efficient power transmission and reliable stopping capabilities. These linings are designed to withstand high temperatures, heavy loads, and harsh operating conditions, making them crucial for the performance and safety of machinery such as excavators, bulldozers, and mining trucks.
Historical Development
The evolution of brake and clutch linings has been driven by advancements in materials science and the increasing demands of heavy-duty applications. Early friction materials were primarily based on asbestos due to its excellent heat resistance properties. However, the health risks associated with asbestos led to the development of alternative materials.
In the 1950s, companies like Ferodo pioneered the use of resin-bonded metallic linings, introducing semi-metallic materials that combined metal fibers with resins to improve durability and heat dissipation. By the 1960s, these materials had evolved to include higher metal content, enhancing their performance in demanding applications.
Types of Friction Materials

1. Organic Linings: Composed of non-metallic materials like rubber, resins, and fibers, organic linings offer good noise reduction and comfort. They are commonly used in light-duty applications but may not withstand the high temperatures encountered in heavy equipment.

2. Semi-Metallic Linings: These linings incorporate metal fibers, such as steel or brass, into the friction material. They provide improved heat resistance and durability, making them suitable for medium-duty applications.

3. Sintered Metal Linings: Made by fusing metal powders under high pressure and temperature, sintered linings offer excellent heat resistance and are ideal for heavy-duty applications.

4. Ceramic Linings: Utilizing ceramic fibers, these linings offer high thermal stability and wear resistance. They are often used in high-performance applications where extreme conditions are prevalent.

5. Carbon Composite Linings: Combining carbon fibers with resins, carbon composite linings provide exceptional strength and heat resistance, making them suitable for specialized or heavy-duty applications.


• Ferodo: Founded in 1897, Ferodo was the first company to use asbestos for brake linings and developed the first modern brake friction materials. Today, they continue to innovate in friction materials for various applications.

• Carlisle Brake & Friction: Established in the 1950s, Carlisle supplied brakes for the first generation of CAT mining trucks and became the first supplier to adapt the expander tube brake, originally designed for military aircraft, to large construction equipment.

• Champion Friction: Founded in 1927, Champion Friction improved friction materials used in steam hoists for timber removal in the Northwest, marking significant advancements in industrial braking systems.


• Excavators: These machines rely on robust brake and clutch systems to handle the heavy loads and provide precise control during digging operations.

• Bulldozers: The powerful engines and large tracks of bulldozers require durable friction materials to ensure effective braking and smooth operation.

• Mining Trucks: With their massive size and weight, mining trucks depend on high-performance brake and clutch linings to operate safely in challenging terrains.

• Cranes: Both mobile and overhead cranes require reliable braking systems to handle heavy lifting and ensure stability during operations.


The John Deere 310G backhoe loader is a versatile and durable piece of equipment widely used in construction, agriculture, and landscaping. However, like any complex machine, it can experience electrical issues that hinder its performance. A common problem reported by operators is the occurrence of smoke from the battery compartment and the engine failing to turn over after a battery cable has come loose. This issue can be attributed to several electrical components and systems that may be affected by the incident.
Understanding the Electrical System
The electrical system of the John Deere 310G backhoe is designed to provide power to various components, including the starter motor, solenoid, and relays. The system operates on a 12-volt DC circuit, with the battery serving as the primary power source. The starter motor is responsible for initiating engine rotation, while the solenoid acts as a switch to engage the starter. Relays are used to control the flow of electricity to different parts of the system.
Potential Causes of Electrical Failure

1. Battery Cable Disconnection: When a battery cable becomes loose or disconnected, it can cause an intermittent connection, leading to voltage fluctuations and potential arcing. This can result in the generation of heat and smoke from the battery compartment.

2. Blown Fuses: The electrical system is protected by fuses that prevent overcurrent situations. If a short circuit occurs due to a loose battery cable, it can cause a fuse to blow, interrupting the power supply to critical components like the starter motor.

3. Faulty Starter Motor or Solenoid: A loose battery cable can cause the starter motor or solenoid to receive inconsistent voltage, leading to malfunction. This may result in the engine failing to turn over when the ignition is engaged.

4. Damaged Wiring Harness: The sudden disconnection of a battery cable can cause the wiring harness to flex or move abruptly, potentially leading to damaged wires or connectors. This can disrupt the flow of electricity and prevent the engine from starting.


1. Inspect Battery Connections: Ensure that the battery cables are securely connected to the terminals. Clean any corrosion from the terminals and cable ends using a mixture of baking soda and water. Tighten the connections to ensure a solid electrical contact.

2. Check Fuses: Locate the fuse panel and inspect all fuses related to the starting system. Replace any blown fuses with ones of the same amperage rating.

3. Test Starter Motor and Solenoid: Use a multimeter to check for voltage at the starter motor and solenoid when the ignition is turned to the start position. If there is no voltage, the starter motor or solenoid may be faulty and require replacement.

4. Examine Wiring Harness: Inspect the wiring harness for any visible signs of damage, such as frayed wires or burnt insulation. Repair or replace any damaged sections of the harness as necessary.

5. Verify Relay Operation: Test the operation of relays associated with the starting system. Listen for a clicking sound when the ignition is turned to the start position. If no sound is heard, the relay may be faulty and should be replaced.


• Regular Inspection: Periodically check battery connections, fuses, and wiring for signs of wear or damage.

• Use Dielectric Grease: Apply dielectric grease to battery terminals and connectors to prevent corrosion and ensure a reliable electrical connection.

• Avoid Overloading: Do not overload the electrical system by adding accessories or attachments that exceed the system's capacity.

• Proper Shutdown Procedures: Always turn off all electrical components before disconnecting the battery to prevent voltage spikes and potential damage.


Introduction
The Caterpillar 215 Hydraulic Excavator, introduced in the mid-1980s, is a versatile and robust machine designed for a variety of construction and excavation tasks. As one of Caterpillar's smaller track-type excavators, the 215 model has been widely utilized in urban construction, utility work, and landscaping projects. Its compact size combined with powerful performance made it a popular choice among contractors seeking efficiency in confined spaces.
Development and Evolution
Caterpillar Inc., renowned for its heavy machinery, introduced the 215 model to cater to the growing demand for mid-sized excavators. The development focused on creating a machine that offered the power of larger models while maintaining maneuverability in tight spaces. Over the years, the 215 underwent several updates, leading to the introduction of the 215B and 215D LC variants, each bringing enhancements in hydraulic performance, operator comfort, and fuel efficiency.
Specifications

• Engine: The 215 is powered by a Caterpillar 3304 DIT engine, delivering approximately 85 horsepower. This engine provides the necessary power for various digging and lifting operations.

• Operating Weight: The standard operating weight is approximately 36,000 pounds (16,330 kg), making it suitable for a range of applications without compromising on stability.

• Dimensions:
  • Length: 29 ft 4 in (8.94 m)

  • Width: 8 ft 8 in (2.64 m)

  • Height: 10 ft 1 in (3.07 m)

  • Track Width: 7 ft 11 in (2.41 m)

  • Ground Clearance: 1 ft 7 in (0.48 m)

• Hydraulic System: Equipped with a variable flow hydraulic system, the 215 offers precise control and efficient power delivery to the boom, arm, and bucket.

• Bucket Capacity: Depending on the configuration, the bucket capacity ranges from 0.6 to 1.0 cubic meters, allowing for versatility in material handling.


• Digging Depth: The maximum digging depth is approximately 20.7 feet (6.3 m), suitable for trenching and foundation work.

• Reach: With a maximum reach of 28.6 feet (8.7 m), the 215 can access hard-to-reach areas, enhancing productivity.

• Lift Capacity: The machine can lift substantial loads, making it effective for material handling and lifting operations.


• Hydraulic System Checks: Regularly inspect hydraulic hoses, cylinders, and pumps for leaks or wear.

• Engine Maintenance: Change engine oil and filters as per the manufacturer's recommendations to ensure smooth operation.

• Undercarriage Inspection: Monitor the condition of the tracks and rollers, replacing them when necessary to maintain stability.

• Cooling System: Ensure the radiator and cooling fan are clean and functioning to prevent engine overheating.


The John Deere 244K loader is a versatile and reliable piece of equipment widely used in various industries, from construction to agriculture. However, like any complex machine, it can experience issues that require attention. A common problem reported by operators is the malfunctioning of the third remote control function. Users have noted that pressing the activation button illuminates the indicator light on the dashboard, but the remote function does not respond as expected.
Understanding the Hydraulic System and Remote Control Function
The 244K loader's hydraulic system is designed to provide power for various attachments and implements. The third remote control is an additional hydraulic circuit that allows operators to control attachments such as grapples or augers. Activation of this function is typically achieved by pressing a dedicated button on the joystick, which engages a solenoid valve controlling hydraulic flow to the attachment.
Common Causes of Third Remote Control Malfunction

1. Pilot Enable Switch Misconfiguration: The pilot enable switch is crucial for activating the loader's hydraulic functions. If the switch is engaged (light on), it disables the hydraulics. Therefore, the indicator light should be off to enable hydraulic operation. If the light remains on despite pressing the activation button, the hydraulics will not function.

2. Electrical Issues: The activation button on the joystick is connected to a solenoid valve via electrical wiring. Loose connections, damaged wires, or faulty switches can interrupt the signal, preventing the solenoid from activating the hydraulic circuit.

3. Hydraulic Valve Blockage or Failure: The solenoid valve controlling the third remote function is located on the valve block, typically mounted on the left side of the loader. Dirt, debris, or internal wear can cause the valve to stick or fail, disrupting hydraulic flow.

4. Faulty Quick Couplers: Quick couplers are used to connect hydraulic hoses to attachments. If these couplers are not properly seated or are damaged, hydraulic fluid may not flow correctly, leading to unresponsive attachments.


1. Verify Pilot Enable Switch Status: Ensure that the pilot enable switch is off (indicator light off) to enable hydraulic functions.

2. Check Electrical Connections: Inspect the wiring between the joystick button and the solenoid valve for continuity. Look for signs of wear, corrosion, or loose connections.

3. Inspect Solenoid Valve: Locate the solenoid valve on the valve block and check for any visible signs of damage or blockage. If accessible, test the solenoid's operation by applying voltage and observing its response.

4. Examine Quick Couplers: Disconnect and reconnect the hydraulic hoses to ensure the couplers are properly seated. Inspect for any signs of wear or damage that could impede fluid flow.

5. Consult Diagnostic Tools: Utilize diagnostic tools such as the John Deere Service Advisor to retrieve any fault codes or system diagnostics that could provide insight into the issue.


• Regularly Inspect Hydraulic Components: Perform routine checks on hoses, couplers, and valves to identify potential issues before they lead to failures.

• Keep Electrical Connections Clean and Tight: Ensure that all electrical connections are free from corrosion and securely fastened.

• Use Appropriate Attachments: Ensure that attachments are compatible with the loader's hydraulic system to prevent overloading or damage.


Introduction
The Tata Hitachi EX 200 LC is a prominent hydraulic excavator model renowned for its robust performance and versatility in various construction applications. Manufactured by Tata Hitachi Construction Machinery Company Pvt Ltd, a joint venture between Tata Motors and Hitachi Construction Machinery, this model has become a staple in the Indian construction industry.
Development and Evolution
Tata Hitachi's journey began in 1961 as a division of Tata Engineering and Locomotive Company (TELCO), now Tata Motors. In 1984, a technical collaboration with Hitachi Construction Machinery commenced, leading to the production of hydraulic excavators. Over the years, the EX series, including the EX 200 LC, has undergone several enhancements to meet the evolving demands of the construction sector. The EX 200 LC Super variant, launched in 2013, introduced advanced features to improve fuel efficiency and operational performance.
Specifications

• Engine: Powered by the Cummins 6BT5.9-C, a turbocharged, water-cooled, 6-cylinder in-line engine. It delivers a rated power of 133 PS at 2000 rpm and a maximum torque of 54.8 kgf-m at 2000 rpm.

• Operating Weight: Approximately 20,100 kg, making it suitable for medium to heavy-duty applications.

• Hydraulic System: Equipped with a high-performance hydraulic system offering a pump capacity of 220 L/min, ensuring efficient operation.

• Bucket Capacity: Ranges from 0.9 m³ to 1.5 m³, depending on the specific configuration and application requirements.

• Dimensions:
  • Overall Length: Approximately 9.57 m

  • Width: 3.29 m

  • Height: 2.85 m

  • Track Width: 900 mm

  • Max Reach: 11.12 m

  • Max Digging Depth: 8.07 m


• Excavation: Ideal for trenching and digging tasks.

• Material Handling: Efficient in lifting and moving heavy materials.

• Demolition: Capable of handling light to medium demolition jobs.

• Mining Support: Assists in overburden removal and site preparation.


Introduction
The JCB 215S, a 1995 model backhoe loader, is powered by a Perkins 4.236 diesel engine. A common issue reported by operators is fuel leakage from the mechanical lift pump's bleeder valve. This article delves into the causes, diagnostics, and solutions for this problem.
Understanding the Mechanical Lift Pump
The mechanical lift pump is responsible for supplying fuel from the tank to the injection pump. It operates via a lever actuated by the engine's camshaft. The pump features a diaphragm that can fail over time, leading to fuel leakage. A telltale hole beneath the pump indicates diaphragm failure when fuel seeps out during operation or manual pumping.
Identifying the Source of the Leak
Operators have reported fuel leakage from the area behind the lift pump, specifically from the bleed hole at the bottom. This suggests diaphragm failure or a compromised seal. Accessing this component can be challenging due to its location near the starter and intake manifold. Using a mirror can aid in visual inspection.
Diagnostic Steps

1. Visual Inspection: Examine the area around the lift pump for signs of fuel leakage.

2. Manual Operation: Manually operate the lift pump lever and observe if fuel seeps from the bleed hole.

3. Engine Operation: Start the engine and check for fuel leakage from the same location.


• Replacing the Lift Pump: If the diaphragm is damaged, replacing the entire lift pump is recommended.

• Replacing the Diaphragm: In some cases, the diaphragm can be replaced individually, provided the pump design allows for it.

• Checking for Internal Grommets: Ensure that any internal rubber grommets are intact, as their failure can also lead to leakage.
