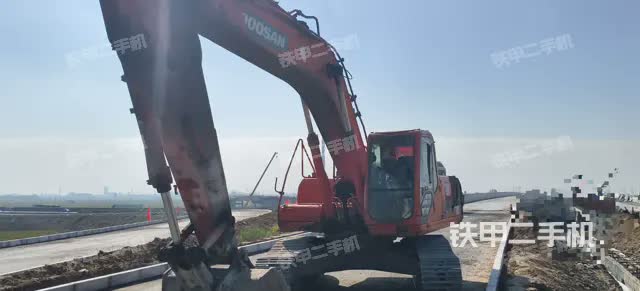

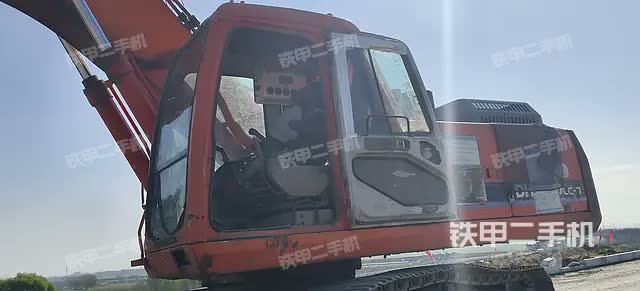

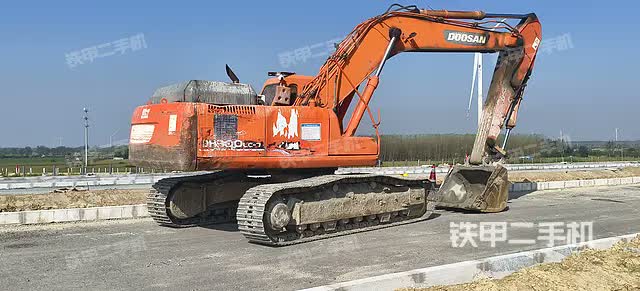

ID：1826606

• Brand: Doosan

• Model: DH300-7

• Year of Manufacture: 2011

• Hours: 13,000 hours

• Location: Liaoning - Anshan City


• Operating weight: 30 tons

• Power source: Conventional diesel power

• Configuration: Crawler excavator with backhoe bucket

• Manufacturer: Joint venture and import production

• Operating hours: 13,000


• Earthmoving and trenching in road projects

• Mining and quarry loading operations

• Demolition tasks with customized attachments

• River and port dredging work

• Infrastructure foundation projects

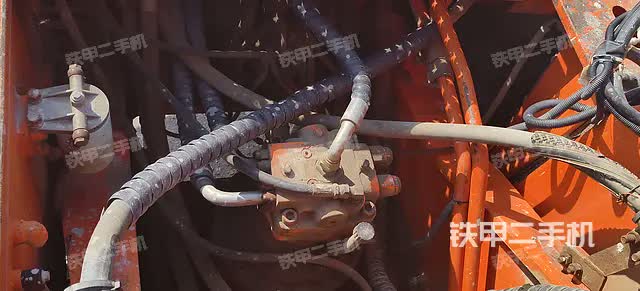

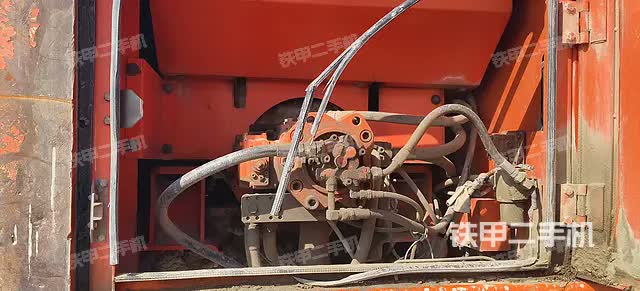

• Checking hydraulic pump pressure and cylinder seals

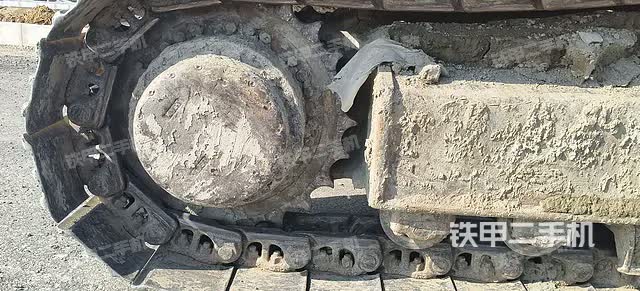

• Inspecting undercarriage wear, especially track chains and rollers

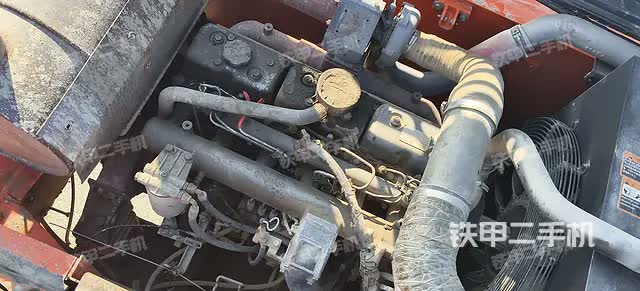

• Testing engine compression and fuel system efficiency

• Reviewing service history for oil change intervals and component replacements


When it comes to heavy equipment, especially the iconic yellow machinery found across construction sites, many people may not realize that not all "yellow" is the same. This seemingly simple color can vary greatly between manufacturers, models, and even regions. Understanding the complexities behind these color variations can reveal a lot about the machinery itself, as well as the marketing strategies and industry standards at play.
The Significance of Yellow in Heavy Equipment
Yellow has become the hallmark color for heavy equipment, particularly in the construction, mining, and agricultural sectors. It's not just a color choice—it's a safety measure. Bright, high-visibility colors like yellow, orange, and red are used in industrial settings because they stand out against most backgrounds, especially dirt and machinery. This helps operators and workers identify equipment from a distance, making the work environment safer.
However, yellow isn’t always just yellow. Over the years, manufacturers have adopted different shades and hues of yellow, each with its own distinct characteristics and purposes. For example, CAT (Caterpillar) machinery is known for its distinct "Caterpillar Yellow," but other companies may use variations that appear noticeably different to the untrained eye.
The Role of Branding in Color Choices
One of the main factors influencing the color of heavy equipment is branding. Companies like Caterpillar, John Deere, and Komatsu have developed very specific color schemes that help distinguish their products in the field. For instance, Caterpillar’s distinctive yellow is synonymous with its brand identity, while John Deere is more recognized for its green and yellow color combination. These colors are deeply ingrained in the company’s heritage and have been chosen to symbolize durability, power, and reliability.
In some cases, the color choice goes beyond simple branding. Take Caterpillar’s yellow, for example. It’s often argued that Caterpillar’s "yellow" is a unique shade that balances safety with a visual appeal that stands out without being too glaring. However, for other manufacturers, their yellow might not be as prominent or as bright, leading to slight variations that might not be immediately obvious but can still impact perceptions of the equipment’s quality or visibility.
Why Do Yellow Shades Vary Across Brands?
Different manufacturers have different approaches to color formulation and application. The reasons behind the variations can range from safety standards to aesthetic preferences and even cost-saving measures. The most notable differences arise in the type of paint used and the finishing process:

1. Pigment Composition: The pigment used to create "yellow" can vary in terms of its chemical composition. For instance, some manufacturers might use a more intense shade of yellow by incorporating additional dyes to make their machines more visible, while others might opt for a more subdued shade.

2. Paint Type: The type of paint used—whether it’s enamel, acrylic, or polyurethane—can also affect the final hue. Different paints have different reflective properties, which can alter how the yellow color appears under different lighting conditions. Some manufacturers may use special UV-resistant paints to help the yellow color remain vibrant for a longer period.

3. Brand Legacy and Marketing: A company’s legacy and marketing strategy also play a significant role. Caterpillar’s signature "Caterpillar Yellow" has become a key part of its brand identity. While other manufacturers may also use yellow, they might choose to apply a more neutral tone of yellow or experiment with other colors to carve out their own niche in the market.


The Bobcat 753 and Its Mechanical Steering System
The Bobcat 753 skid steer loader was introduced in the mid-1990s as part of Bobcat’s 700-series lineup, designed for compact construction, landscaping, and agricultural tasks. With a rated operating capacity of approximately 1,300 lbs and a 43-horsepower Kubota diesel engine, the 753 became popular for its reliability and mechanical simplicity. Unlike newer models with electronic joysticks and pilot hydraulics, the 753 uses direct mechanical linkages to control its hydrostatic drive pumps.
These linkages connect the steering levers to pintle arms mounted on the pump control shafts. Precise centering of these arms is critical—any deviation can cause creeping, erratic movement, or even prevent the machine from running properly.
Terminology Annotation
- Pintle arm: A lever mounted on the hydrostatic pump control shaft, responsible for translating steering input into pump displacement.
- Drive centering device: A spring-loaded mechanism that returns the pump control shaft to neutral when the steering levers are released.
- Safety bar mechanism: A physical restraint that must be lowered to enable hydraulic functions and engine operation.
- Seat override switch: A bypass control used during maintenance to simulate operator presence when the seat sensor is faulty.
Creeping Adjustment and Unexpected Shutdown
After performing a creeping adjustment to eliminate unintended wheel movement, the operator tightened bolts on the pintle arms and linkage bars. Upon restarting the machine, the engine ran briefly, emitted a grinding noise, and shut down. The left steering lever pulled back several inches on its own, suggesting hydraulic pressure buildup.
This behavior is typically caused by one of the drive pumps being out of neutral. If a pintle arm is misaligned or overtightened, the pump may attempt to drive the wheels while the parking brake is engaged, resulting in internal pressure spikes and engine stall.
Recommendations:

• Loosen the pivot bolts slightly to allow free movement of the pintle arms

• Confirm both steering levers return to neutral without resistance

• Adjust the left side first, as it has a fixed hole and a slotted hole for alignment

• Use the slotted holes on the right side to fine-tune centering without inducing creep


• Verify all safety interlock linkages are intact and properly fastened

• Use the override switch only during maintenance, not regular operation

• Confirm the safety bar is fully lowered and latched

• Inspect the seat sensor wiring and consider replacement if override is frequently needed


• Recheck pintle arm alignment and linkage tension

• Avoid overtightening pivot bolts to preserve steering sensitivity

• Operate in reverse when climbing hills to maintain center of gravity

• Practice gradual lever input to reduce jerkiness


The company behind the Gradall machines dates back to the mid-20th century, when the Ferwerda brothers conceived a groundbreaking telescopic-boom hydraulic excavator. The first production model—M-2400—emerged in 1946, introducing unprecedented hydraulic versatility to digging and grading. Over the years, models evolved: M-2460 featured improved boom mechanics for increased lift capacity and an operator cab reconfiguration for better visibility and cab comfort. By the late 1950s, larger models like the G-1000 met the demands of massive infrastructure projects. Ownership changes followed—JLG acquired Gradall in 1999, then sold it to Alamo Group in 2006—ensuring continuity of innovation and production.
534C Model Context
Among Gradall’s telehandler series, the 534C-6 and 534C-9 gained particular popularity in the mid-1990s. These compact but robust machines, featuring a telescopic boom and powerful hydraulic systems, were favored for their maneuverability and utility in tight job sites. Listings show 1997 units with 4,900 operational hours offered for resale around USD 11,500 to USD 27,500, indicating both durability and market value.
Crowd Cylinder Seal Issue
At the heart of this article is the failure of a crowd cylinder seal—a seal located at the rear of the cylinder controlling the forward motion ("crowd") of the boom. When this seal fails, hydraulic fluid escapes, leading to sluggish operation, erratic boom control, or even fluid contamination.
Terminology Notes

• Crowd cylinder: A hydraulic actuator responsible for extending or retracting the boom along its axis.

• Seal failure: This refers to leakage caused by worn or damaged sealing components (like O-rings or wipers), resulting in hydraulic inefficiency or loss of control.

• Rod & bore: These dimensions define the cylinder’s internal diameter and the piston rod diameter—critical when ordering seal kits.


• Stage the boom so there is safe rear access to the cylinder retaining hardware.

• Remove the retain-ers from the back side of the cylinder.

• Slide the entire crowd cylinder rearward and out—boom removal is not required, which simplifies the process considerably.

• Disassemble the cylinder, clean the components, replace seals, then reassemble.


• Contamination damage: Dirt, debris, or degraded hydraulic fluid abrades and hydrates seals.

• Wear from frequent cycling: Repeated extension/retraction rates accelerate wear.

• Age and material fatigue: Over time, seals harden or crack, losing elasticity and integrity.


• Stage boom for rear access

• Remove retainers

• Pull out cylinder without boom removal

• Clean cylinder components

• Replace all seals

• Reassemble and test for leaks and proper motion

• Re-prime hydraulic fluid as needed


• Regular Fluid Sampling: Test hydraulic oil periodically to detect contamination early.

• Scheduled Seal Inspections: Inspect cylinder boots, wipers, and seals during routine maintenance.

• Use Quality Aftermarket or OEM Kits: Matching rod and bore sizes ensures a leak-free fit.

• Monitor Operating Hours: Cylinders often require seal replacement after roughly 5,000–7,000 hours of heavy use.


The Growing Dependence on Aftermarket Components
As OEM parts become increasingly expensive and difficult to source—especially for older machines—contractors and technicians are turning to aftermarket solutions out of necessity. The Komatsu PC120LC-6 and Deere 330 excavators, both widely used in earthmoving and utility work, exemplify this trend. With factory parts often backordered or priced beyond reason, aftermarket hydraulic oil coolers have become a practical alternative, albeit with trade-offs in fitment and reliability.
Komatsu’s PC120 series, introduced in the 1990s, was designed for mid-size excavation tasks and became popular for its balance of power and transportability. Deere’s 330, a larger class machine, is often deployed in heavy-duty applications where downtime translates directly into lost revenue. Both machines rely heavily on efficient hydraulic cooling to maintain system pressure and prevent fluid breakdown under load.
Terminology Annotation
- Hydraulic oil cooler: A heat exchanger that dissipates thermal energy from hydraulic fluid, maintaining optimal operating temperature.
- Hard line plumbing: Rigid metal tubing used to route hydraulic fluid, often requiring precise alignment.
- Grey market machine: Equipment imported outside official distribution channels, often with different specifications or limited support.
- Displacement mismatch: A condition where a replacement hydraulic component does not match the original’s flow or volume characteristics, leading to performance imbalance.
Case Study Komatsu PC120 Track Motor Replacement
A technician previously sourced an aftermarket track motor for a Komatsu PC120 due to the OEM unit being unavailable and priced over $20,000. The replacement performed flawlessly, tracking straight at all three speeds across long distances. This success contrasted sharply with an earlier experience involving a grey market Cat 308, where a mismatched motor caused the machine to veer in circles due to unequal displacement. The supplier offered a discount on a second motor to balance the system, but the client passed away before the repair could be completed—leaving the machine in a permanent state of asymmetry.
This anecdote underscores the importance of verifying specifications when sourcing critical hydraulic components. Even small deviations in displacement or flow rate can result in operational inefficiencies or mechanical stress.
Deere 330 Oil Cooler Retrofit and Alignment Challenges
Faced with a $9,000 OEM price tag and a three-week lead time, a contractor opted for a $5,700 aftermarket hydraulic oil cooler for a Deere 330. Air freight added another $700, but the machine was back in service sooner—a crucial factor for large-scale operations. However, installation revealed significant alignment issues with the hard line plumbing. The cooler’s mounting points and inlet/outlet positions differed from factory specs, requiring extensive modification.
Solutions included:

• Re-bending hard lines to match port locations

• Fabricating custom brackets to secure the cooler

• Adjusting the A/C condenser layout to avoid interference

• Pressure testing the system post-installation to ensure seal integrity


• Confirm port size and thread type

• Match core dimensions and mounting hole spacing

• Check for integrated brackets or separate condenser compatibility

• Review shipping policies, especially for remote regions like Hawaii


• Maintain a database of verified aftermarket suppliers with part compatibility notes

• Use flexible hydraulic hoses where possible to reduce alignment constraints

• Consider hybrid cooling systems with modular components for easier replacement

• Document all modifications for future reference or resale value


Starting issues in heavy machinery like the John Deere 330CL excavator can be a common yet frustrating problem for operators and maintenance crews alike. The 330CL is a popular and robust model, well-regarded for its reliability and efficiency in construction, demolition, and material handling tasks. However, like any complex piece of equipment, it may experience starting problems due to various factors such as electrical failures, fuel system malfunctions, or engine issues.
This article will delve into common causes of starting issues in the John Deere 330CL, explain how to troubleshoot these problems, and provide some practical advice on how to address them.
Overview of the John Deere 330CL Excavator
The John Deere 330CL is a mid-sized hydraulic excavator, widely used in construction projects around the world. Part of the 330 Series, the 330CL offers a balance of power and versatility, with a 6-cylinder turbocharged engine delivering about 185 horsepower. It is designed for digging, lifting, and grading tasks in medium to heavy-duty applications.
Key specifications include:

• Engine Power: 185 horsepower

• Operating Weight: Around 33,000 kg (73,000 lbs)

• Bucket Capacity: Ranges from 1.0 to 1.6 cubic meters depending on the attachment

• Digging Depth: Approximately 7.5 meters (24.6 feet)

• Hydraulic Flow: 530 L/min for efficient attachment operation


1. Battery Issues
   One of the most common reasons for starting problems in any heavy equipment, including the 330CL, is a dead or weak battery. A weak battery may not provide enough power to turn over the engine, causing it to fail to start.
   • Symptoms: The engine may turn over slowly or not at all, with a clicking sound when attempting to start.

   • Possible Causes: A battery that is old, improperly charged, or has a poor connection due to corrosion.

   • Solution: Test the battery’s voltage using a multimeter (should be around 12.6 volts when fully charged). If the battery voltage is low, either recharge or replace the battery. Also, check the battery terminals for corrosion and clean them if needed.

2. Faulty Starter Motor
   The starter motor is responsible for turning the engine over when you start the machine. If the starter motor malfunctions, the engine will fail to crank or start.
   • Symptoms: A clicking sound or no sound at all when attempting to start the engine.

   • Possible Causes: A worn-out or faulty starter motor, or issues with the starter solenoid.

   • Solution: Inspect the starter motor for visible signs of damage or wear. Test the motor with a multimeter to check if it is receiving proper power. If it is malfunctioning, it may need to be replaced.

3. Fuel System Issues
   Fuel delivery problems are another common cause of starting issues. The 330CL relies on a sophisticated fuel system, including fuel filters, pumps, and injectors, to supply the engine with the necessary fuel for combustion.
   • Symptoms: The engine may crank but not start, or it may start but stall shortly afterward.

   • Possible Causes: Clogged fuel filters, faulty fuel pump, air in the fuel lines, or clogged injectors.

   • Solution: Start by checking the fuel filter for clogs or contamination. If the fuel filter is dirty or clogged, replace it. Also, check the fuel pump and lines for leaks or obstructions. If air has entered the fuel system, it may need to be bled to restore proper fuel flow.

4. Ignition System Problems
   A malfunction in the ignition system can also prevent the engine from starting. The ignition system in the 330CL includes the ignition switch, relays, and various sensors.
   • Symptoms: The engine will not crank or start, or it may crank but fail to run.

   • Possible Causes: Faulty ignition switch, bad relay, or issues with sensors such as the crankshaft position sensor.

   • Solution: Start by checking the ignition switch for any obvious defects. Test the relays using a multimeter, and check for continuity. If the issue seems to be with a sensor, the sensor may need to be replaced.

5. Electrical Connections and Fuses
   Corroded or loose electrical connections can disrupt the power supply to key components, including the starter motor and ignition system, leading to starting issues.
   • Symptoms: Intermittent or no power to the starter motor, or failure of the engine to start despite turning the key.

   • Possible Causes: Loose or corroded wiring, blown fuses, or faulty relays.

   • Solution: Inspect all major electrical connections, including the battery terminals, starter motor wires, and ground connections. Clean any corrosion or loose connections. Check the fuses and replace any that are blown. Ensure that the relay connections are clean and functioning properly.

6. Faulty Sensors and ECU
   The 330CL is equipped with a series of sensors that monitor various engine parameters, such as temperature, pressure, and fuel delivery. If these sensors malfunction, they can prevent the engine from starting.
   • Symptoms: The engine cranks but fails to start, or starts and immediately stalls.

   • Possible Causes: A faulty crankshaft position sensor, camshaft sensor, or a malfunctioning ECU (Engine Control Unit).

   • Solution: Use diagnostic tools to check for error codes that might point to a sensor or ECU issue. If a sensor is identified as the problem, it will need to be replaced. In some cases, reprogramming the ECU may be necessary.


1. Perform a Visual Inspection: Look for obvious signs of damage to the battery, starter motor, wires, and fuel lines. Check for any loose or corroded connections, as these are often the root cause of starting problems.

2. Use a Multimeter: Test the battery voltage and the starter motor's voltage. If the battery voltage is low, recharge or replace it. If the starter motor is not receiving power, trace the wiring to identify any faults.

3. Check Fuel Delivery: Ensure that the fuel filter is clean, the fuel lines are free of air bubbles, and the fuel pump is working properly. If the engine cranks but doesn't start, the issue could be fuel-related.

4. Run Diagnostics: Use diagnostic equipment to scan for error codes from the ECU. These codes can provide insight into which components may be malfunctioning, such as sensors or relays.


• Regularly inspect the battery: Check for corrosion and clean the terminals as needed. Ensure that the battery is fully charged and in good condition.

• Replace fuel filters on schedule: Clogged fuel filters are a common cause of starting problems, so replace them regularly according to the manufacturer’s recommendations.

• Inspect the ignition system: Ensure that the ignition system, including switches, relays, and sensors, are functioning properly.

• Monitor electrical connections: Regularly inspect all electrical connections for signs of corrosion, wear, or loose connections.

• Check the fuel system: Periodically check the fuel lines and fuel pump for leaks or issues.


The Tigercat 625C and Its Role in Steep Terrain Logging
The Tigercat 625C is a six-wheel-drive articulated skidder designed for high-traction forestry operations. Released in the mid-2000s, it was part of Tigercat’s push to offer more versatile machines for challenging ground conditions, especially in frozen or steep terrain. With a Cummins 5.9L turbocharged diesel engine and hydrostatic drive, the 625C was engineered for durability and control. Its popularity grew in regions with difficult access, where traditional 4x4 skidders struggled to maintain traction or stability.
Tigercat, founded in Canada in 1992, quickly became a respected name in forestry equipment, known for its purpose-built machines and strong dealer support in logging-heavy provinces. However, in areas with less forestry infrastructure, such as southern Alberta, service access can be limited, making diagnostics and repairs more complex.
Terminology Annotation
- VP44 injection pump: An electronically controlled rotary diesel pump used in many Cummins engines, sensitive to fuel pressure and voltage fluctuations.
- Supply pump: A low-pressure electric pump that feeds fuel to the injection pump; failure can cause engine derate or internal damage.
- Derate condition: A protective mode triggered by the engine control unit (ECU) that limits power output due to detected faults.
- Servo piston: A hydraulic actuator within the drive pump that controls flow direction and volume; worn seals can cause drive slippage.
Engine Power Loss and Fuel System Suspicions
Operators reported that the 625C bogged down under load, especially when climbing hills or operating the grapple. Engine torque peaked at 75%, and turbo boost reached 19 psi—within acceptable range but not optimal. Blue smoke under load suggested incomplete combustion, often linked to poor fuel delivery or air intrusion.
The VP44 injection pump used in this model is highly dependent on consistent supply pressure. If the electric supply pump fails or voltage drops, the injection pump may continue running but at reduced output, slowly damaging itself internally. This can result in:

• Reduced RPM and sluggish throttle response

• Inconsistent torque under load

• Increased exhaust smoke

• Premature wear of pump internals


• Install a fuel pressure monitoring kit with a cab-mounted warning light

• Tap into the inlet banjo bolt using a 12x1.5mm or 14x1.5mm fitting to check pressure

• Replace the supply pump if pressure falls below manufacturer spec (typically 10–15 psi for VP44 systems)

• Check voltage at the pump during operation to rule out electrical faults


• Reverse fan orientation to create a pusher setup

• Relocate the pre-cleaner outside the hood, as seen on newer Tigercat models

• Seal gaps around the radiator to prevent hot air recirculation

• Inspect air-to-air intercooler connections for leaks or misalignment


• Use onboard diagnostics to measure pedal input voltage and confirm full travel

• Inspect servo piston seals and packing for wear

• Check for directional control valve faults or contamination

• Verify that no engine codes are triggering a derate condition


Skid steer loaders have become indispensable in various industries, ranging from construction to landscaping and agriculture. The New Holland LX565, a mid-sized skid steer, is among the most popular models in its category. Known for its robust performance and versatility, the LX565 is a favorite for both commercial operators and those handling smaller-scale tasks. This article provides a comprehensive review of the New Holland LX565, exploring its key features, performance, advantages, and considerations when purchasing.
Introduction to New Holland and the LX565 Model
New Holland Agriculture is a globally recognized brand that specializes in producing farm equipment, tractors, and construction machinery. The company, founded in 1895, has long been a pioneer in the agricultural and construction sectors, continuously evolving its product line to meet the growing demands of the market.
The New Holland LX565 is part of the company’s LX series of skid steer loaders, which are designed for versatility and reliability. The LX565 model was introduced as a highly capable and durable machine suitable for various tasks, including earthmoving, material handling, and demolition work.
New Holland’s LX series, including the LX565, is known for combining power with ease of operation, making them a popular choice among contractors, landscapers, and agricultural workers. These machines are built with a focus on operator comfort, ease of maintenance, and productivity.
Key Specifications and Features of the LX565
The LX565 is a mid-sized skid steer loader, offering a balanced combination of power, lifting capacity, and maneuverability. Here are some of its key specifications:

• Engine Power: The LX565 is powered by a 60-horsepower (hp) turbocharged engine, providing ample power for lifting, pushing, and digging tasks.

• Operating Weight: The machine weighs approximately 5,850 lbs, which makes it ideal for maneuvering in tighter spaces while still offering a strong lifting capacity.

• Lifting Capacity: With a rated operating capacity (ROC) of 1,850 lbs, the LX565 can handle a wide variety of attachments, from buckets to forks and augers, offering good versatility for various industries.

• Hydraulic Flow: The LX565 features a high-flow hydraulic system, providing excellent performance when using high-flow attachments like snow blowers, augers, or trenchers.

• Dimensions: With an overall length of 118.8 inches, a width of 64.5 inches, and a height of 77 inches, the LX565 is designed to work in compact areas, allowing operators to access tighter spaces without sacrificing performance.

• Tipping Load: The tipping load capacity is around 3,700 lbs, making it suitable for handling larger loads.

• Hydraulic Lift Height: The LX565 has a maximum lift height of 10 feet, 5 inches, allowing for easy loading and unloading tasks.


• Buckets: For digging, loading, and hauling material such as dirt, sand, gravel, or mulch.

• Forks: Ideal for lifting and transporting pallets, lumber, and other heavy materials.

• Augers: Used for drilling holes in the ground for posts, fencing, or planting trees.

• Snow Blowers: A high-flow attachment that can be used in winter operations for clearing snow.

• Trenchers: For digging narrow trenches for utility installations.

• Sweepers: Used for cleaning work sites, parking lots, or roads.


1. Operating Environment: The LX565 is most effective in confined or moderately sized areas. If your operations require a larger or heavier-duty machine for extensive excavation work, you may need to look at larger models.

2. Budget: The LX565 is priced competitively within the mid-sized skid steer market, but additional attachments and optional features can increase the overall cost. Be sure to factor in the cost of attachments and any additional features you may need.

3. Used vs. New: While purchasing a new LX565 ensures that the machine is in pristine condition, buying a used unit could save money. However, ensure that the used model has been properly maintained and inspected before making a purchase.


The B277 and Caterpillar’s Compact Track Loader Expansion
The Caterpillar B277 was part of CAT’s early 2000s push into the compact track loader market, offering a blend of skid steer agility with the traction and flotation of a tracked undercarriage. Built for landscaping, construction, and utility work, the B277 featured a turbocharged diesel engine, high-flow hydraulics, and a sealed and pressurized cab. It was designed to compete with Bobcat’s T-series and Deere’s CTLs, and it quickly gained popularity in North America, with thousands sold through CAT’s dealer network.
Despite its robust design, the B277—like many compact machines—can suffer from intermittent power loss due to fuel delivery issues, especially as components age or contaminants enter the system.
Terminology Annotation
- Lift pump: A low-pressure fuel pump that transfers diesel from the tank to the injection system.
- Fuel water separator: A filter that removes water and particulates from diesel fuel before it reaches the engine.
- Pre-filter screen: A mesh screen located inside the lift pump or fuel inlet that traps large debris before it enters the filter.
- Suction line: The hose or pipe that draws fuel from the tank to the lift pump.
Symptoms and Initial Observations
Operators reported that the B277 would rev to full throttle for about ten seconds before sputtering and running rough. This occurred both under load and while stationary, suggesting a fuel delivery issue rather than a hydraulic or electronic fault. Air and fuel filters were replaced, but the problem persisted.
This behavior is typical of partial fuel starvation—where the engine receives enough fuel to start and rev briefly, but cannot sustain combustion under load due to restricted flow or air intrusion.
Investigating the Fuel System
The B277 may be equipped with either an electric or mechanical lift pump, depending on production year and engine variant. The electric pump is typically mounted on the right side of the engine and should activate when the key is turned on. If the pump fails to energize, fuel will not reach the injection system, leading to rough running or stalling.
For mechanical pumps, located on the left side of the engine, a small screw on top can be removed to access the internal pre-filter screen. This screen often traps debris such as:

• Plastic shavings from fuel tank liners

• Organic matter like leaves or algae

• Foreign objects introduced during refueling (e.g., sticks, cloth, trash bags)


• Confirm pump operation by listening for activation at key-on

• Remove and inspect the pre-filter screen inside the lift pump

• Disconnect fuel lines and blow them out with compressed air

• Check for resistance or blockage in the suction line

• Inspect the fuel tank for floating debris or collapsed pickup tubes


• Install a secondary inline filter upstream of the lift pump

• Use a tank strainer or screen to catch debris at the pickup point

• Flush the fuel tank annually, especially in dusty or humid environments

• Lock fuel caps to prevent tampering or accidental contamination

• Replace rubber fuel lines every 5–7 years to prevent internal delamination


In the world of heavy machinery and construction, crushers are essential for breaking down large rocks, ores, and other materials into smaller, more manageable sizes. These machines play a key role in mining, aggregate production, and recycling industries. However, crushers, like all complex machinery, rely on a variety of parts to function properly—among the most critical are the nuts, bolts, and fasteners that hold everything together.
This article will explore the different types of nuts, bolts, and fasteners used in crushers, their importance, common issues, and best practices for maintenance and replacement.
The Role of Nuts and Bolts in Crushers
Nuts, bolts, and fasteners are often overlooked when discussing crushers, but they are integral to the overall functionality and safety of these machines. Crushers experience high levels of stress and force during operation, with moving parts that can reach high speeds and endure significant impact. Nuts and bolts are responsible for keeping these parts securely in place, ensuring the machine’s structural integrity.

• Nuts: A nut is a fastener with a hexagonal or square shape that is threaded on the inside. When paired with a bolt, it helps to secure two or more parts together.

• Bolts: Bolts are threaded fasteners that are used with nuts to bind components together. They come in various sizes and grades, depending on the specific requirements of the crusher.

• Washers: Often used in conjunction with nuts and bolts, washers help distribute the load evenly and prevent damage to the surfaces being fastened.

• Locking Nuts: Locking nuts are specialized nuts that prevent loosening due to vibrations, an important feature for crushers that undergo continuous impact.


1. Hex Bolts: Hexagonal bolts are the most commonly used bolts in crushers. They are versatile, easy to use, and come in various lengths and grades.

2. Cap Screws: A cap screw is a type of bolt with a flat head, often used in applications where the fastener needs to sit flush with the surface.

3. Eye Bolts: These are used when lifting heavy components of the crusher, such as the crusher mantle, and require a lifting eye for rigging.

4. Studs: Studs are bolts without heads, used for attaching components where a bolt is required on both sides of the fastener.

5. U-Bolts: These fasteners are U-shaped bolts used to attach equipment to a surface, often used for securing parts like the crusher’s frame.

6. Anchor Bolts: Used for anchoring parts of the crusher to the foundation, these bolts are designed for heavy-duty applications.


1. Loosening: The most common problem with nuts and bolts in crushers is loosening. The constant vibrations from crushing forces can cause fasteners to gradually loosen over time. This is why locking nuts or thread-locking compounds are often used in critical applications.

2. Fatigue: The repetitive stress on the bolts and nuts, particularly those holding rotating parts, can lead to metal fatigue. Fatigue can cause the bolts to crack or break, leading to catastrophic failures if not addressed.

3. Corrosion: Crushers often operate in wet, humid, or corrosive environments, such as in mining or recycling operations. Corrosion can weaken nuts and bolts, reducing their ability to maintain secure connections. Stainless steel or coated fasteners can help mitigate this issue.

4. Over-tightening or Under-tightening: Improperly tightened fasteners can result in inefficient crusher operation or even damage to other components. Over-tightening can cause deformation of the parts, while under-tightening can lead to instability.


1. Regular Inspections: Nuts and bolts should be inspected regularly for signs of wear, corrosion, or loosening. If any fasteners appear damaged or are showing signs of fatigue, they should be replaced immediately.

2. Use the Correct Fasteners: It’s crucial to use the correct size, grade, and material for each nut, bolt, or fastener. Always refer to the manufacturer’s specifications for the appropriate fasteners for your particular crusher model.

3. Torqueing to the Right Specification: Fasteners should be tightened to the manufacturer’s recommended torque specifications. Use a calibrated torque wrench to ensure proper tension and prevent over-tightening or under-tightening.

4. Thread-Locking Compounds: In cases where nuts and bolts are prone to loosening, thread-locking compounds can be used to help secure fasteners. These compounds prevent loosening due to vibration by filling the gaps between threads and creating a more stable bond.

5. Use of Lock Washers: In high-vibration environments, lock washers or split washers are often used in conjunction with nuts and bolts to help prevent loosening.

6. Replacing Damaged Fasteners: Damaged or worn-out fasteners should be replaced immediately to avoid further damage to the crusher or loss of operational efficiency.


• High-Strength Bolts: For critical components subject to high stress, such as the main shaft or bearing housings, high-strength bolts or alloy steel fasteners can provide increased durability.

• Corrosion-Resistant Materials: For crushers operating in wet or corrosive environments, using stainless steel or coated fasteners can reduce the risk of corrosion and improve the longevity of the fasteners.

• Self-Locking Nuts: For crushers that experience constant vibrations, self-locking nuts or nuts with nylon inserts can help prevent loosening over time.
