Background of Bobcat and the T585 Model
Bobcat is a well-known American manufacturer specializing in compact construction machinery, particularly skid steer loaders and compact track loaders. The T series represents their tracked lineup, designed for greater traction and stability compared with wheeled models. The Bobcat T585, introduced in the late 2010s, emphasizes operator comfort, efficient hydraulic systems, and compliance with modern emission standards. Equipped with a diesel engine and an electronically managed fuel delivery system, the T585 is built to perform under demanding conditions.
Understanding Fuel Starvation
Fuel starvation occurs when an engine fails to receive the required amount of fuel despite there being sufficient fuel in the tank. This shortage results in reduced power, stalling, or intermittent shutdowns. In technical terms:

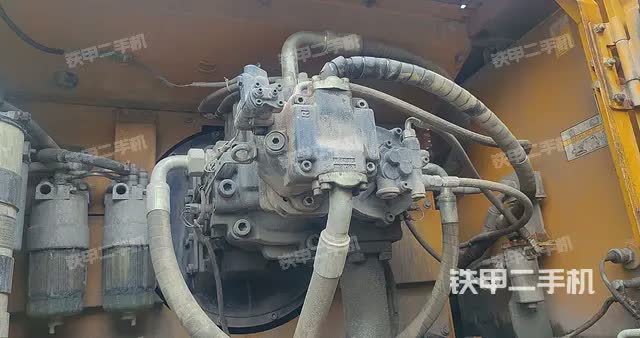

• Fuel Delivery System: The complete path from the fuel tank to the injectors, including pumps, filters, lines, and regulators.

• Lift Pump: A low-pressure pump that transfers fuel from the tank to the high-pressure pump.

• Fuel Filter and Water Separator: Components that remove contaminants and water before fuel reaches critical parts.

• Tank Venting: A mechanism that prevents vacuum buildup inside the tank, ensuring smooth fuel flow.

• Cold Weather Gelling: A condition in which diesel fuel thickens in low temperatures, restricting flow.


• Engine starts but loses power under heavy load

• Stalling during combined hydraulic actions such as lifting and turning

• Diagnostic codes indicating low fuel rail pressure

• Clogged or blackened fuel filters

• Difficulty achieving or maintaining high idle speed

• Noticeable improvement after priming the system or venting the fuel cap


• Filter replacement interval: typically every 250 operating hours, adjusted based on fuel quality

• Filter efficiency: often in the 10-30 micron range, with pre-filters handling larger particles

• Fuel rail pressure: maintained by the high-pressure pump; deviations can trigger fault codes


• Clogged or saturated fuel filters restricting flow

• Air leaks in fuel lines allowing loss of pressure

• Malfunctioning lift pump providing insufficient supply

• Blocked or damaged fuel pickup tube inside the tank

• Fuel cap venting failure causing vacuum lock

• Presence of water, sediment, or microbial growth in stored fuel

• Seasonal diesel issues where waxing reduces flow in freezing conditions


• Inspect and replace filters at or before recommended intervals

• Drain the water separator frequently to remove condensation

• Use pre-filters for extra protection in dirty fuel environments

• Clean or inspect the tank periodically for sediment buildup

• Ensure the tank vent and fuel cap are functioning properly

• Add anti-gel or use winter-grade diesel in low temperatures

• Monitor error codes and address low fuel pressure warnings immediately


The starter solenoid is a vital component in the starting system of heavy equipment. It acts as a relay between the battery and the starter motor, allowing the vehicle to start when the ignition is engaged. Although small in size, the solenoid plays a crucial role in ensuring the efficient operation of machinery, including excavators, bulldozers, and loaders.
What is a Starter Solenoid?
A starter solenoid is an electromagnetic switch that controls the flow of electricity to the starter motor. When the ignition key is turned, the solenoid is activated, completing the electrical circuit and allowing current from the battery to flow to the starter motor. The solenoid also has a secondary function: it pushes the starter motor’s drive gear (the pinion) into engagement with the engine’s flywheel, enabling the engine to turn over and start.
How Does the Starter Solenoid Work?

1. Ignition Activation:
   When the operator turns the ignition key to the “start” position, current flows from the battery to the solenoid coil. This creates a magnetic field, which attracts a plunger inside the solenoid.

2. Circuit Completion:
   As the plunger moves, it closes the high-current contacts within the solenoid, allowing electricity to flow from the battery to the starter motor. This powers the starter motor, which begins to turn the engine over.

3. Engaging the Starter Gear:
   Simultaneously, the solenoid pushes the pinion gear (mounted on the starter motor) forward into the flywheel, enabling the engine to rotate.

4. Disengaging After Engine Start:
   Once the engine starts, the solenoid disengages the starter gear from the flywheel, allowing the starter motor to stop rotating and preventing it from being damaged.


1. Solenoid Failures
   Over time, the starter solenoid can wear out or fail due to prolonged use. Common symptoms of a faulty solenoid include:
   • Clicking Noise: When the ignition is turned on, but the engine doesn’t turn over, a clicking noise from the solenoid indicates that it is trying to engage but isn’t functioning correctly.

   • No Response: If there is no sound or movement when the key is turned, the solenoid may have failed completely.

2. Loose or Corroded Connections
   Poor connections, especially at the solenoid terminals, can lead to insufficient current flow. This can cause intermittent starting issues or complete failure to start. Inspecting and cleaning the terminals regularly can prevent this problem.

3. Overheating
   A malfunctioning solenoid, or one that is continuously engaged, can overheat and cause electrical damage. Excessive current draw or a stuck solenoid can lead to heat buildup, potentially damaging the component or the vehicle’s wiring.


1. Check for Voltage:
   Use a multimeter to check if the solenoid is receiving voltage when the ignition is turned on. A lack of voltage suggests a problem with the wiring or ignition switch.

2. Inspect the Solenoid for Signs of Wear:
   If the solenoid is clicking but the engine isn’t starting, remove the solenoid and inspect it for corrosion or physical damage. Replace the solenoid if necessary.

3. Check for Continuity:
   Test the solenoid with a continuity tester to ensure the high-current contacts are functioning properly. If there’s no continuity, the solenoid may need to be replaced.

4. Examine the Battery and Wiring:
   A weak battery or faulty wiring can also cause starter problems. Ensure that the battery is fully charged and that all cables are properly connected.


1. Regular Inspection:
   Periodically inspect the starter solenoid for signs of wear, corrosion, or loose connections. This simple step can prevent more serious problems down the line.

2. Clean Terminals:
   Ensure that the battery terminals and solenoid terminals are clean and free from corrosion. Use a wire brush and a mixture of baking soda and water to clean any corrosion.

3. Proper Battery Maintenance:
   Keep the battery charged and check its voltage regularly. A weak battery can cause excessive strain on the solenoid, leading to premature failure.

4. Avoid Overuse of the Starter Motor:
   Avoid turning the ignition for extended periods without the engine starting. This can overheat the solenoid and starter motor. If the engine doesn’t start after a few attempts, it’s better to troubleshoot before retrying.


Engine Model and Machine Background
The Komatsu PC220-L5 is a hydraulic excavator powered by the Komatsu S6D95L engine. This model has been used for years in demanding environments, favored for its balance of digging power, reliability and parts availability. The S6D95L is a six-cylinder diesel with strong torque output, built for durability. Over its production span, PC220 series machines have been widely deployed in road building, large-site excavations, and infrastructure works.
Symptom Description and Terminology

• Blue Smoke at Idle: Blue smoke from the exhaust typically indicates that oil is burning with the fuel-air mixture, especially when the engine is cold or idling.

• Oil Leak through Turbo: Oil entering the turbocharger and being expelled via the exhaust path. This means the turbo is receiving engine oil via either the oil feed or by excessive crankcase pressure pushing oil past seals.

• Blow-by and Crankcase Pressure: Blow-by is when combustion gases escape past piston rings into the crankcase, raising pressure. The crankcase vent (or PCV, positive crankcase ventilation) should relieve this pressure.


• Clogged Oil Drain from Turbo: If the oil drain line from the turbo back to the oil pan is blocked or severely restricted, oil cannot properly flow back. This causes oil to pool in the turbo housing and get pushed into the exhaust.

• Blocked Crankcase/Ventilation Path: If the crankcase ventilation is blocked (e.g. via the valve cover ventilation line), pressure builds up, forcing oil past seals and into the turbo/exhaust.

• Worn Piston Rings or Cylinder Walls: Excessive clearance or wear allows oil to bypass the rings and enter the combustion chamber. This increases oil consumption and contributes to smoke.

• Failure of Turbo Seals or Bearings: Even with a new turbo installed, if seals are compromised or bearings worn, oil may leak internally.


• Check the oil return line from turbo to oil pan; remove any blockage and verify oil flows freely.

• Inspect and clean crankcase ventilation lines, valve cover breather, and any PCV type systems to ensure they are not plugged.

• Remove and inspect piston rings, cylinder liners if blow-by seems high. Use compression or leak-down tests.

• Examine the turbo seals and bearings; even replacement turbos can be poorly performing if installation or related oil supply/drain/ventilation is suboptimal.


• Maintain regular inspection intervals for ventilation paths and oil return lines—every 250-500 operating hours or sooner under dusty or wet conditions.

• Use high quality oil and change it per manufacturer schedule; oil viscosity and cleanliness affect seal performance.

• Monitor exhaust smoke color regularly: blue means oil burning, black means fuel-rich, white means water or coolant. Early detection prevents major damage.

• Ensure turbo installation is correct: gaskets, drain line slope, sealing surfaces clean, bolts torqued correctly.


The CAT 953 track loader is a powerful, versatile machine used in a wide range of construction and earthmoving applications. However, like any heavy equipment, maintaining optimal performance requires regular maintenance, including proper track adjustment. This guide will explore the importance of track adjustments, common issues, and the steps involved in ensuring your CAT 953 runs smoothly.

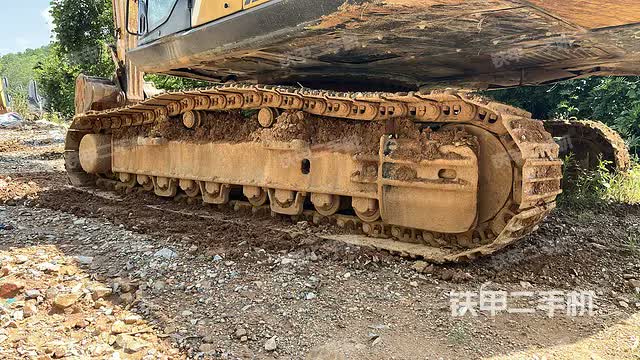

Why Track Adjustment Matters

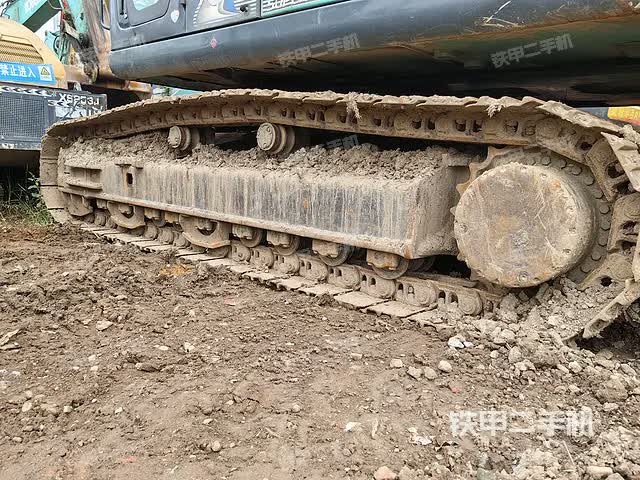

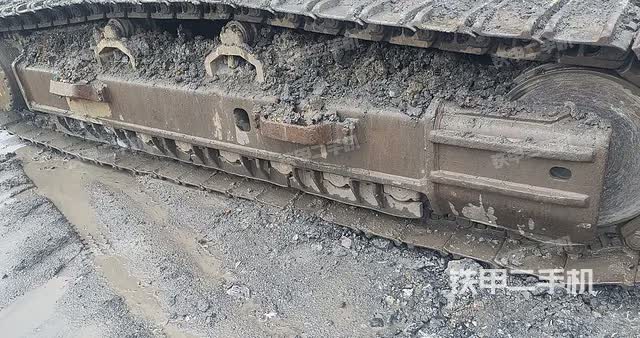

Tracks are a critical component of a track loader's mobility. They not only support the weight of the machine but also provide traction on challenging terrains. Over time, track tension can either loosen or tighten, leading to a range of issues, including:

• Excessive wear on the track links, sprockets, and rollers.

• Reduced machine efficiency, especially when operating on uneven ground.

• Increased fuel consumption due to inefficient movement.

• Damage to the undercarriage from improper tension, leading to costly repairs.


1. Inspect the Tracks
   Before making any adjustments, visually inspect the tracks for damage or wear. Check the track links, rollers, and sprockets for signs of irregular wear. If you notice excessive wear, it may be time to replace worn parts.

2. Check the Track Tension
   Use a track gauge to measure the tension. The ideal track tension for a CAT 953 is typically around 1-2 inches of deflection when a person applies pressure to the middle of the track. If the track is too tight or too loose, it will affect the machine’s performance and potentially cause further damage.

3. Locate the Tensioning Mechanism
   The CAT 953 features a tensioning system that can be adjusted via a grease fitting on the track adjuster. This system uses hydraulic pressure to adjust the track’s tension.

4. Adjust the Track Tension
   • To loosen the track: Use the grease gun to release pressure from the tensioning cylinder. This will allow the track to loosen.

   • To tighten the track: Pump grease into the tensioning cylinder to increase hydraulic pressure, which will tighten the track.

5. Recheck the Tension
   After adjusting, check the track tension again with a gauge to ensure it’s within the recommended range.

6. Test the Loader
   After the adjustment, test the machine under load to ensure the tracks are functioning properly. Pay attention to any unusual sounds or movements.


1. Track Over-tightening
   Over-tightening the track can put excessive strain on the undercarriage and reduce the lifespan of the tracks and other components. If the machine feels sluggish or the tracks show uneven wear, you might need to loosen the tension.

2. Track Slack
   If the track is too loose, it can cause the track to jump off the sprockets or cause excessive wear. Loose tracks also reduce the traction needed for efficient operation. If you notice that the track is slipping or not gripping the ground well, tightening the track is necessary.

3. Uneven Track Wear
   Uneven wear can indicate improper adjustment. If one side of the track wears faster than the other, you may need to inspect the alignment of the tracks and make sure they are properly tensioned.


• Regular Track Inspections: Periodically check track tension and wear. Early detection of problems can prevent costly repairs.

• Proper Storage: When not in use, store the loader in a dry, sheltered area to reduce environmental damage to the track system.

• Routine Lubrication: Keep all components well-lubricated, especially the track adjuster mechanism, to prevent wear and ensure smooth operation.

• Replacement of Worn Components: Replace worn rollers, sprockets, and other undercarriage components at the first sign of excessive wear to maintain optimal performance.


Background of the Komatsu PC50UU-1
The Komatsu PC50UU-1 is a compact hydraulic excavator introduced in the late 1980s and gained popularity during the 1990s, especially in urban construction projects in Japan and overseas. Its zero-tail swing design made it ideal for narrow working environments, reducing the risk of damaging surrounding structures. Komatsu, as one of the world’s leading construction equipment manufacturers, has a history of innovation dating back to 1921, and compact excavators like the PC50UU-1 represent its push toward versatile, operator-friendly machines. By the late 1990s, this model had seen wide adoption in Asia and was also exported to North America and Europe. Its sales success was attributed to its reliability, fuel efficiency, and the ease of servicing compared to older mini-excavators.

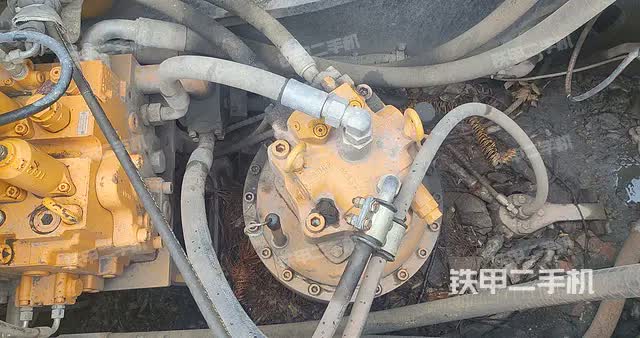

Importance of the Final Drive System
The final drive in an excavator is the component that transfers hydraulic power into mechanical rotation of the tracks. Essentially, it combines a planetary gear reduction system with hydraulic motors, allowing the machine to generate high torque for movement even under heavy loads. In compact excavators like the PC50UU-1, the final drive is critical because these machines are often required to operate on uneven ground, climb slopes, and maneuver in confined areas. Without proper lubrication, the gears and bearings inside the final drive can wear prematurely, leading to expensive repairs or total system failure.
Oil Specifications and Capacity
For the Komatsu PC50UU-1 final drive, the manufacturer generally recommends using gear oil with a viscosity of SAE 90 or SAE 80W-90, depending on the climate and temperature conditions. High-quality GL-5 grade gear oil is preferred because it contains additives that improve resistance to pressure and prevent metal-to-metal wear under heavy torque loads. The oil capacity per final drive is relatively small, usually around 0.8 to 1 liter. This small volume means that even a minor leak or contamination can quickly affect performance. Because of this, it is important to regularly check the oil condition and level.
Common Maintenance Practices
Owners and operators should inspect the final drive oil at regular intervals, typically every 250 operating hours or once per month for machines in heavy-duty service. The procedure involves removing the level plug on the side of the final drive and ensuring oil reaches the bottom of the opening. If the oil is low, it should be topped up; if it appears cloudy, milky, or contaminated with metal shavings, it must be drained and replaced. Draining is performed by removing the bottom plug and allowing the oil to flow into a clean container before refilling with fresh gear oil.
Signs of Potential Problems
Certain symptoms indicate that the final drive may have issues related to lubrication.

• Excessive noise during travel, especially grinding or whining sounds

• Abnormal heating of the final drive case after prolonged use

• Oil leaks near the seals or drain plugs

• Visible metallic particles in drained oil


• Use the recommended oil type and never mix brands or grades.

• Replace the oil at least every 1000 operating hours, even if it appears clean.

• Check for leaks frequently, particularly around the seals and plugs.

• Avoid operating the machine in deep mud or water without protective measures, as contamination can enter the system.

• Train operators to recognize changes in sound or vibration during travel, which may indicate early issues.
