Mini excavators have become essential tools for construction, landscaping, and utility work due to their compact size, maneuverability, and versatile attachments. One of the most common attachments used for these machines is the auger. This tool, primarily used for digging holes, is a valuable addition to any mini excavator's capabilities. Whether you are a contractor, landscaper, or DIY enthusiast, understanding the use, maintenance, and selection of augers for mini excavators can significantly enhance your project efficiency and effectiveness.
What is an Auger and How Does It Work?
An auger is a rotating helical screw blade that is used to dig holes or move materials like soil, sand, or gravel. When attached to a mini excavator, the auger becomes a powerful tool for tasks such as digging fence posts, planting trees, installing signage, or drilling for utilities. The auger is typically driven by the hydraulic system of the mini excavator, allowing for high torque and speed to effectively break through the ground.
Types of Augers for Mini Excavators
Augers come in various sizes and configurations depending on the project requirements. They are categorized by their size, the type of ground they are intended to dig through, and the specific tasks they are designed for. Here are the main types:

1. Standard Augers
   These are the most common type of augers, suitable for general-purpose digging in relatively soft to moderately compact soils. They are available in various diameters ranging from small (6 inches) to large (48 inches) to accommodate different hole sizes.

2. Heavy-Duty Augers
   Designed for tougher conditions, heavy-duty augers are built to handle dense, rocky, or compact soils. They often have reinforced steel construction and can drill through challenging materials like clay and rocky ground. They are typically used in construction sites where the ground is not easily penetrable.

3. Earth Augers
   Ideal for digging in soft, loose soil, earth augers are commonly used in landscaping, planting, and shallow excavation tasks. They are lightweight and efficient for tasks like planting trees or digging post holes.

4. Rock Augers
   Equipped with specialized teeth and stronger, more durable construction, rock augers are designed to penetrate hard rock and rocky terrain. These augers are typically used in mining, geological surveys, and utility installation in rocky conditions.


1. Excavator Size and Weight
   Mini excavators come in various sizes and weight classes, and the auger must be compatible with the hydraulic power and weight of the machine. A larger auger may require a bigger, more powerful mini excavator for safe and effective operation.

2. Soil Conditions
   Understanding the soil type you will be working with is crucial for choosing the right auger. For instance, a standard auger may be suitable for digging in sandy soil, while a heavy-duty or rock auger is necessary for hard clay or rocky ground.

3. Auger Diameter
   The diameter of the auger determines the size of the hole it will create. For tasks like planting trees or installing fence posts, smaller augers (6 to 12 inches) are sufficient, while larger augers (up to 36 inches) may be required for larger projects.

4. Depth of the Hole
   Some augers are designed for shallow drilling, while others can reach deeper depths. Depending on the task, you may need to consider the length of the auger extension to ensure you can dig to the required depth.

5. Hydraulic Flow
   Mini excavators have varying hydraulic flow capacities, which can impact the performance of the auger. Ensure that your excavator's hydraulic system is compatible with the auger's requirements for optimal performance.


1. Landscaping
   Augers are often used for planting trees, shrubs, and other landscaping tasks. The auger allows for precise hole placement and depth, ensuring that plants are correctly spaced and rooted.

2. Fencing
   One of the most common uses for mini excavator augers is digging holes for fence posts. The auger makes the task much faster and more efficient compared to manual digging, especially on large properties or construction sites.

3. Utility Installation
   Installing underground utilities such as water, gas, or electric lines requires digging accurate and deep holes. Augers provide a cost-effective and efficient way to install these utilities, especially in urban areas where space and access are limited.

4. Signage Installation
   Whether installing street signs or large billboards, augers are essential tools for drilling deep, stable holes that can support these structures in all weather conditions.


1. Regular Inspection
   Before using the auger, inspect the teeth, blades, and flighting (the helical screw blade) for any signs of wear or damage. Worn teeth can reduce the auger's efficiency, making it harder to penetrate the ground.

2. Lubrication
   Like any hydraulic attachment, regular lubrication of the auger’s moving parts is essential. Ensure that all grease fittings are properly lubricated to prevent friction and wear.

3. Check for Leaks
   Hydraulic systems are prone to leaks, which can reduce efficiency and performance. Regularly check hoses, connections, and seals for any leaks, and replace any damaged components.

4. Storage
   When not in use, store the auger in a dry, sheltered area to protect it from the elements. This will prevent rust and corrosion and prolong the life of the attachment.


The Role of User Feedback in Equipment Innovation
In the construction and heavy equipment sectors, real-world feedback from operators, owners, and technicians plays a vital role in shaping future product development. Manufacturers, design firms, and market analysts often conduct compensated research studies to gather insights into how machines perform under field conditions, what features are most valued, and where improvements are needed. These studies typically involve structured interviews, surveys, or focus groups, and participants are paid for their time and expertise.
Unlike traditional marketing or sales outreach, these sessions are purely informational. Participants are not expected to purchase anything, and their responses are used to guide engineering decisions, ergonomic improvements, and even branding strategies.
Terminology Annotation
- Honorarium: A payment given to participants in a study or event as compensation for their time and input, not tied to employment or contractual obligations.
- Focus Group: A moderated discussion involving multiple participants, used to explore opinions and reactions to products or concepts.
- User-Centered Design: A development approach that prioritizes the needs, preferences, and limitations of end users throughout the design process.
- Field Validation: The process of testing equipment or concepts in real-world conditions to confirm performance and usability.
Structure and Scope of a Typical Study
A compensated research session in the heavy equipment industry often lasts between 60 and 90 minutes. Participants may be asked to:

• Describe their daily workflow and equipment usage

• Evaluate mockups or prototypes of new controls or interfaces

• Share opinions on machine comfort, visibility, and maintenance access

• Rank features by importance (e.g., fuel efficiency vs. hydraulic speed)

• React to branding, naming, or promotional materials


• Direct influence on future equipment design

• Opportunity to voice frustrations or praise specific features

• Networking with other professionals and researchers

• Financial compensation for sharing real-world expertise


• Clearly define the study’s purpose and scope

• Ensure confidentiality and data protection

• Provide fair compensation and respect participants’ time

• Avoid sales pitches or promotional bias


• Be honest and specific in feedback

• Share both positive and negative experiences

• Ask questions about how the data will be used

• Keep notes on equipment quirks or improvements to discuss

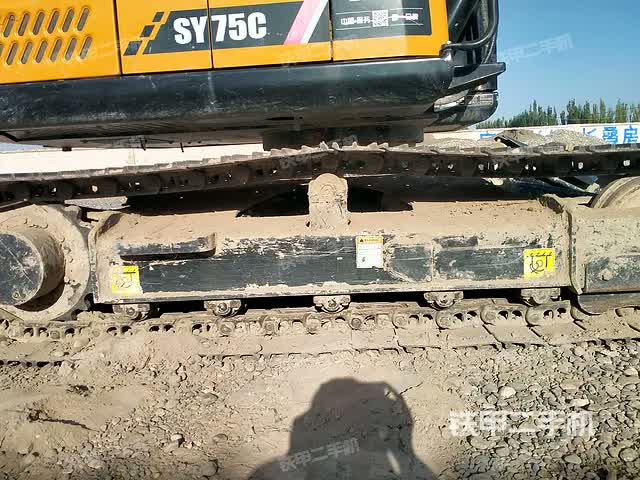

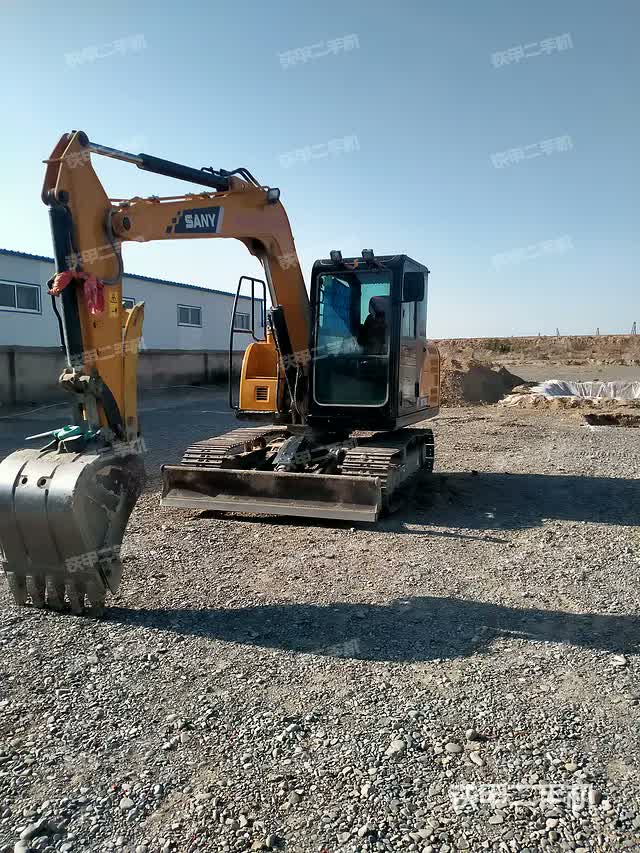

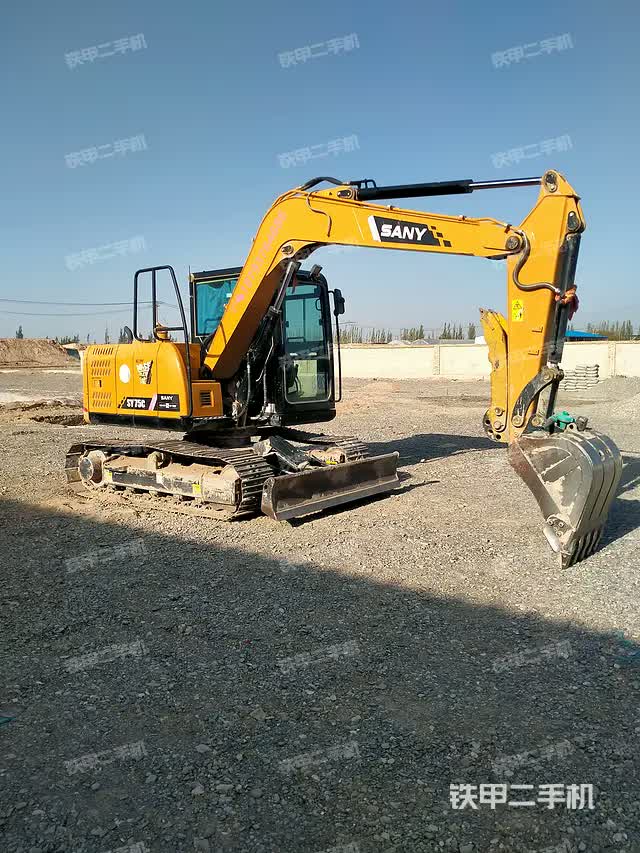

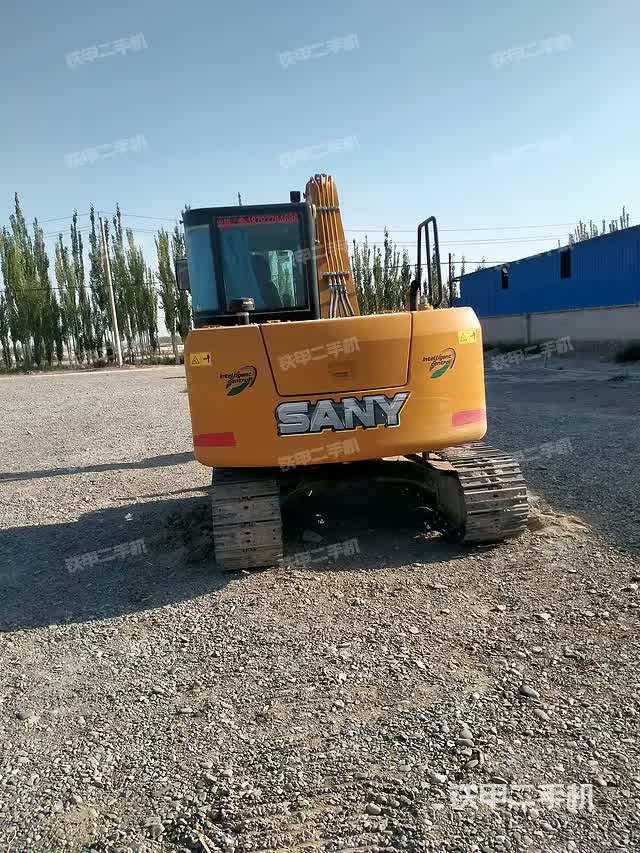

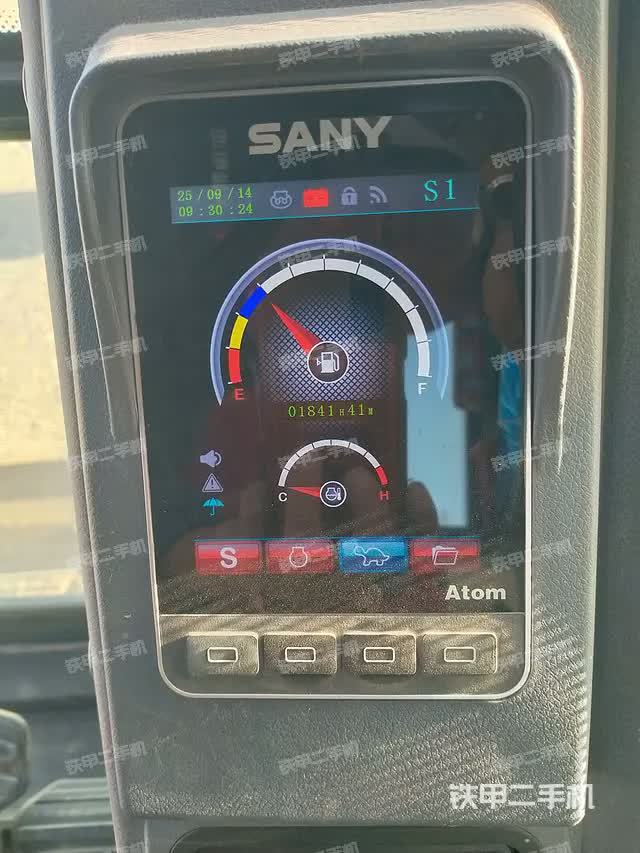

ID：1827107

• Brand: SANY

• Model: SY75C-10

• Year of Manufacture: 2021

• Hours: 1,800 hours

• Location: Jiuquan, Gansu


• Model: SY75C-10

• Year: 2021

• Operating Hours: 1800 hours

• Location: Jiuquan, Gansu

• Weight: 7.28 tons

• Bucket Capacity: 0.16–0.38 m³

• Power: Conventional engine

• Bucket Type: Backhoe


• Rated Power: 43 kW at 2200 rpm

• Engine Type: Domestic, reliable for continuous operation
  The engine is optimized for fuel efficiency while maintaining robust torque for excavation in varied terrains.


• Ground Pressure: 33 KPa

• Swing Speed: 11.5 rpm

• Gradeability: 70%

• Bucket Digging Force: 56 kN

• Arm Digging Force: 38 kN

• Travel Speed: High: 4.4 km/h, Low: 2.4 km/h
  The SY75C-10 offers balanced digging forces for mid-sized excavation tasks, ensuring smooth operation on construction sites, roadworks, and landscaping projects.


• Transport Length: 6120 mm

• Transport Width: 2220 mm

• Transport Height: 2720 mm

• Minimum Ground Clearance: 380 mm

• Front Working Device Minimum Swing Radius: 1720 mm

• Rear Swing Radius: 1800 mm

• Upperstructure Width: 2040 mm

• Track Length: 2820 mm

• Track Gauge: 1750 mm

• Track Shoe Width: 450 mm

• Maximum Height at Minimum Swing Radius: 5550 mm


• Maximum Digging Radius: 6240 mm

• Maximum Digging Depth: 4020 mm

• Maximum Digging Height: 7060 mm

• Maximum Dumping Height: 5155 mm

• Maximum Vertical Digging Depth: 3290 mm

• Dozer Lift/Push Depth: 350/360 mm

• Dozer Blade Size: Height 405 mm
  This excavator's reach and depth make it ideal for mid-sized construction, utility installations, and trenching tasks.

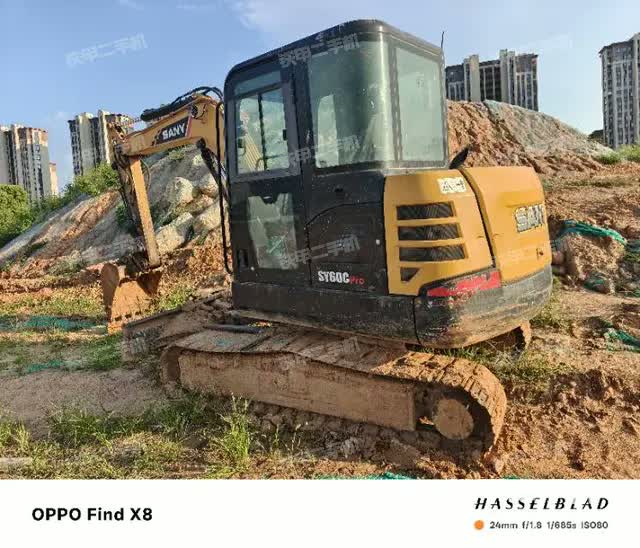

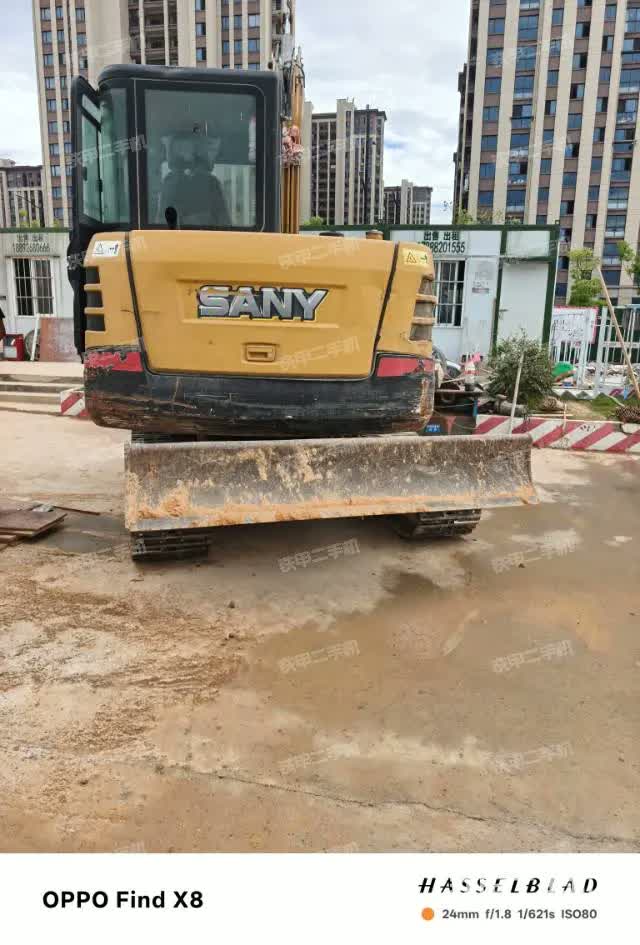

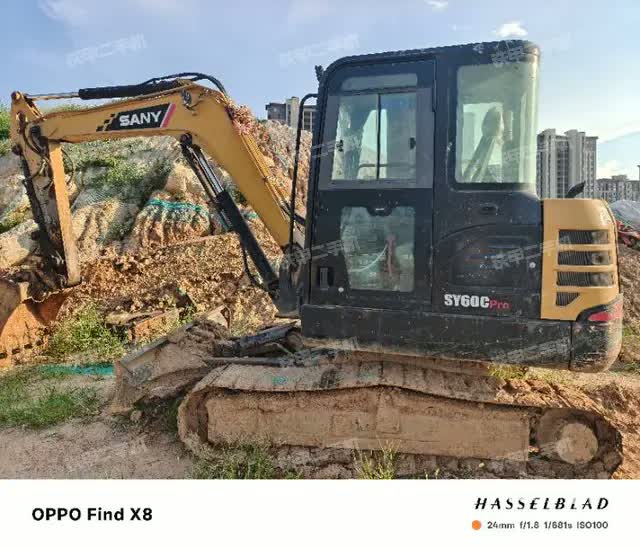

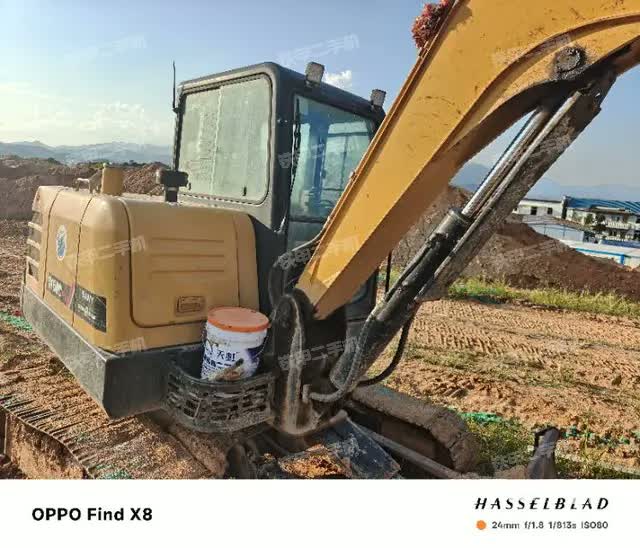

ID：1827105

• Brand: SANY

• Model: SY60C Pro

• Year of Manufacture: 2021

• Hours: 3,460 hours

• Location: Quzhou, Zhejiang


• Ground pressure: 30.7 KPa

• Swing speed: 9.6 rpm

• Climbing ability: 70%

• Bucket digging force: 45 kN

• Arm digging force: 33 kN

• Travel speed: 4.2/2.4 km/h


• Track shoe width: 400 mm

• Carrier rollers (per side): 1

• Track rollers (per side): 5

• Track shoes (per side): 42


• Fuel tank: 130 L

• Hydraulic oil tank: 85 L

• Engine oil replacement: 9.6 L

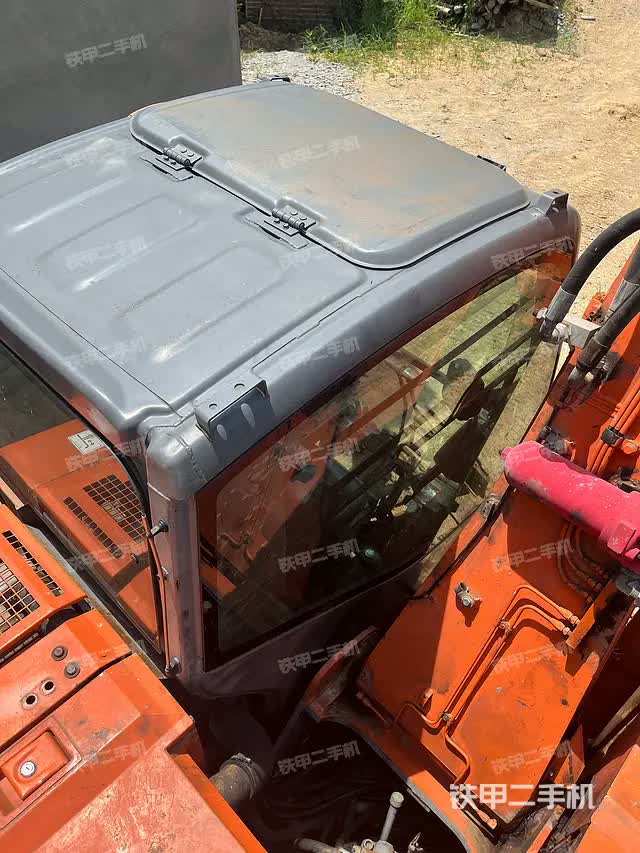

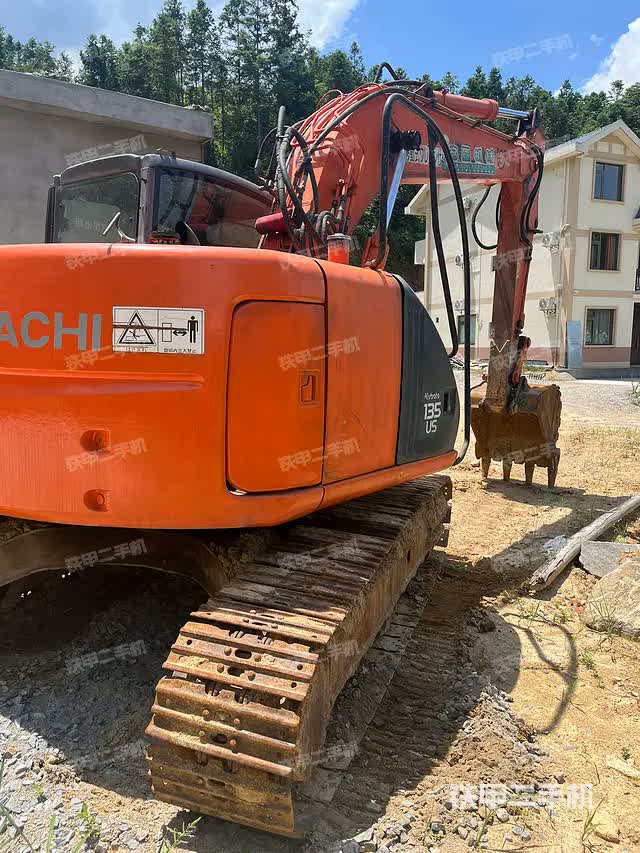

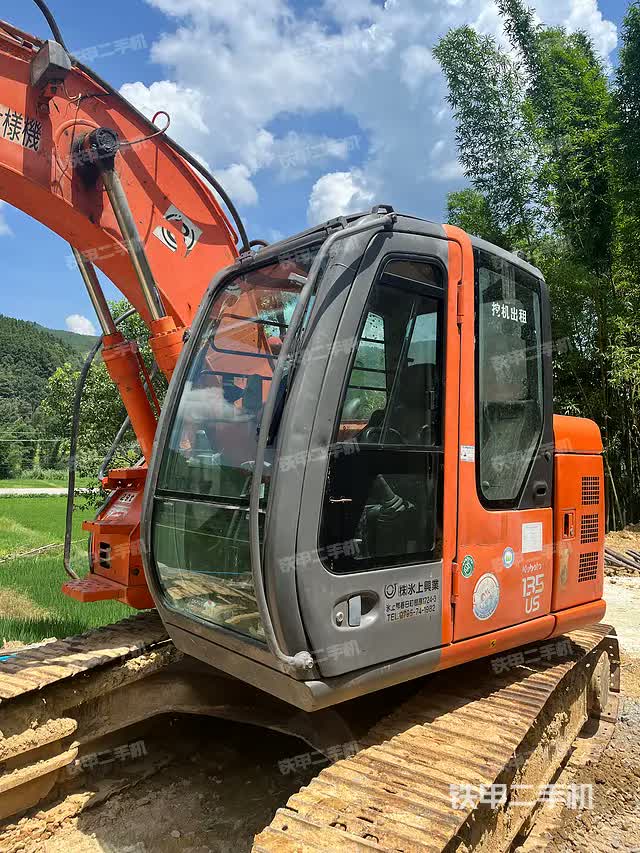

ID：1827092

• Brand: Hitachi

• Model: ZX120 Imported

• Year of Manufacture: 2007

• Hours: 14,000 hours

• Location: Sanming, Fujian


• Operating weight: 12,000 kg

• Bucket capacity: 0.52 m³

• Boom length: 4.6 m

• Arm length: 2.52 m

• Power type: Conventional diesel

• Bucket type: Backhoe

• Origin: Japan

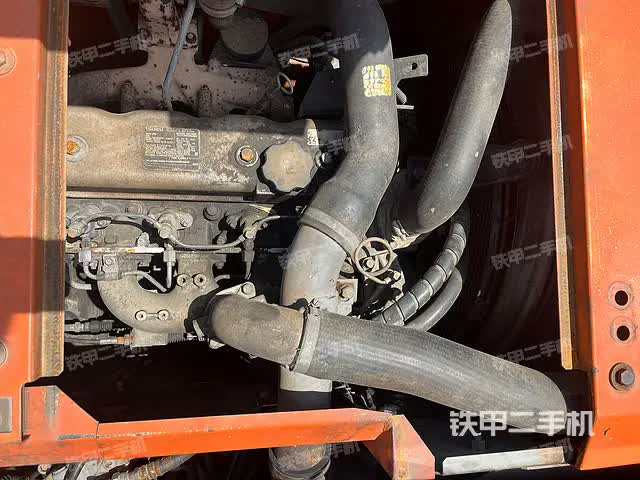

• Engine: Isuzu CC-4BG1TC, 66 kW at 2,150 rpm, water-cooled, 4 cylinders, 4.329 L displacement, direct injection


• Ground pressure: 37 kPa

• Swing speed: 13.7 rpm

• Gradeability: 70% (35°)

• Bucket digging force: 99 kN

• Arm digging force: 65 kN

• Travel speed: 3.4 / 5.5 km/h


• Main pump type: 2 variable displacement piston pumps + 1 gear pump

• Pilot pressure: 3.9 MPa

• Working hydraulic pressure: 34.3 MPa

• Swing hydraulic circuit: 32.3 MPa

• Travel hydraulic circuit: 34.3 MPa

• Cylinder dimensions: Boom 105×70 mm, Arm 115×80 mm, Bucket 100×70 mm

• Hydraulic breaker circuit: Not standard


• Fuel tank: 250 L

• Hydraulic tank: 69 L (full 130 L)

• Engine oil change: 15.8 L


• Transport length: 7,610 mm

• Transport width: 2,490 mm

• Transport height: 2,740 mm

• Counterweight clearance: 890 mm

• Minimum ground clearance: 440 mm

• Rear swing radius: 2,130 mm

• Track length: 3,580 mm

• Track width: 500 mm

• Track gauge: 1,990 mm


• Maximum digging radius: 8,270 mm

• Maximum digging depth: 5,570 mm

• Maximum digging height: 8,570 mm

• Maximum unloading height: 6,160 mm

• Maximum vertical digging depth: 5,020 mm

• Maximum effective digging depth: 8,140 mm

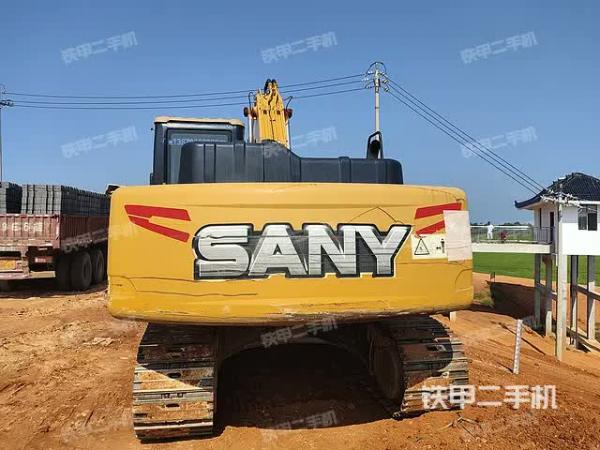

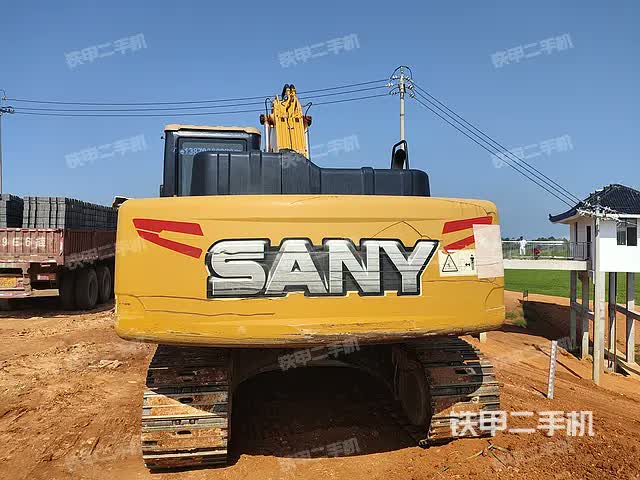

ID：1827081

• Brand: SANY

• Model: SY200C

• Year of Manufacture: 2021

• Hours: 6,800 hours

• Location: Shangrao, Jiangxi


• Operating weight: 21,500 kg

• Bucket capacity: 0.8–1.0 m³ (standard 1.0 m³)

• Ground pressure: 47.4 kPa

• Swing speed: 11 rpm

• Maximum gradeability: 70% / 35°

• Bucket digging force: 138 kN

• Arm digging force: 103 kN

• Travel speed: 5.4 km/h forward, 3.4 km/h reverse


• Transport length: 9,600 mm

• Transport width: 2,980 mm

• Transport height: 3,050 mm

• Minimum ground clearance: 450 mm


• Max digging radius: 9,800 mm

• Max digging depth: 6,500 mm

• Max digging height: 9,700 mm

• Max unloading height: 6,600 mm

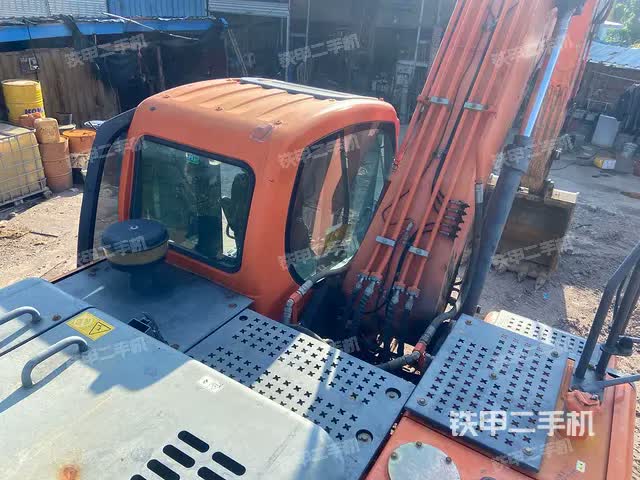

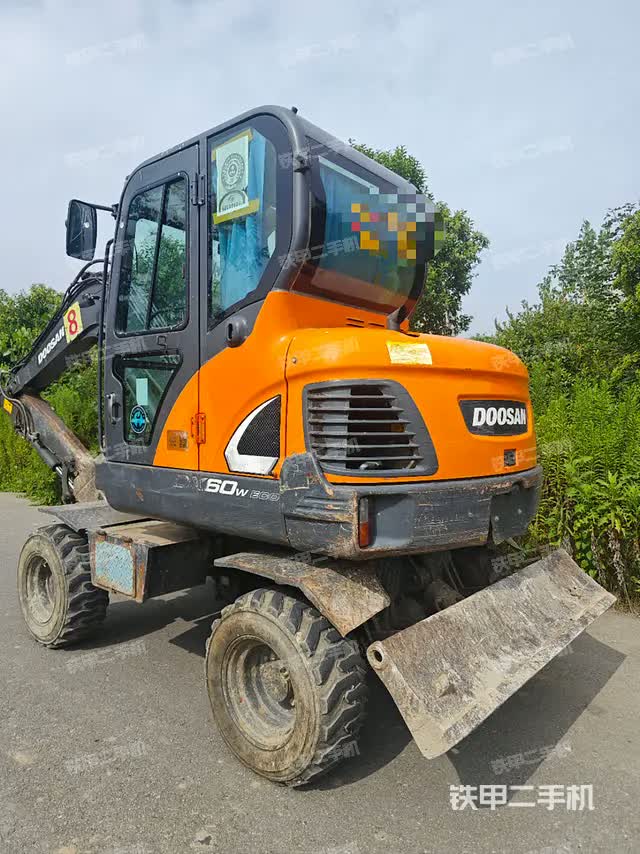

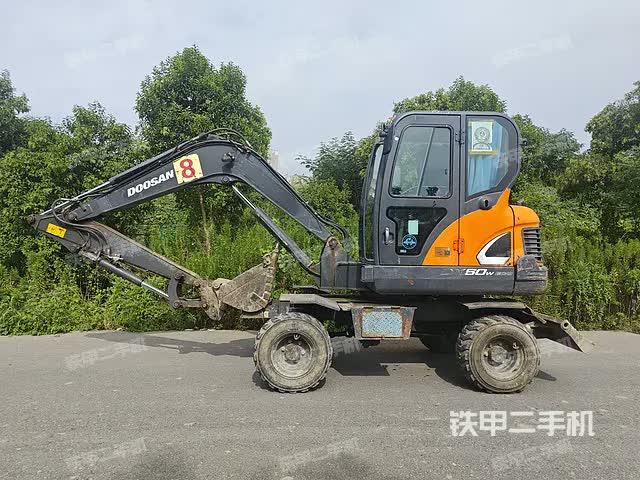

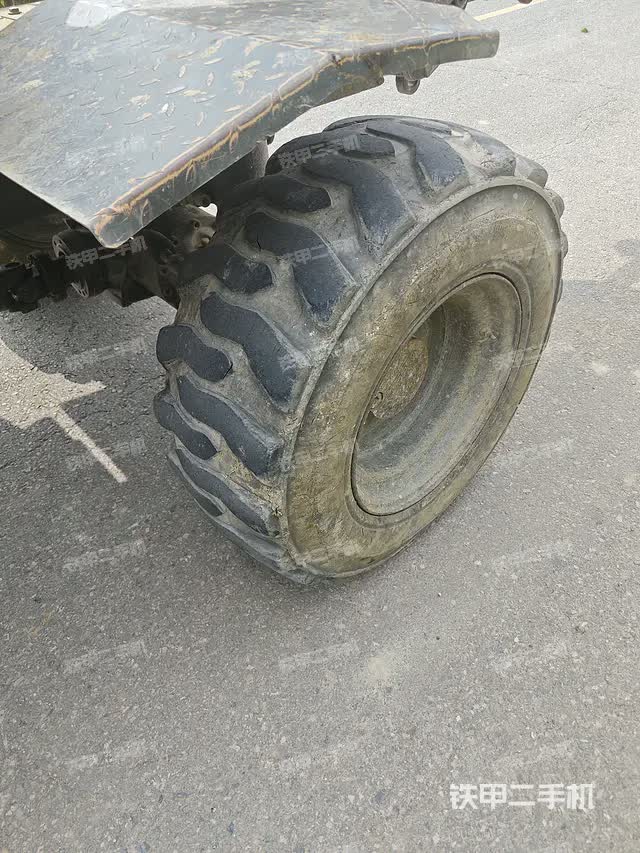

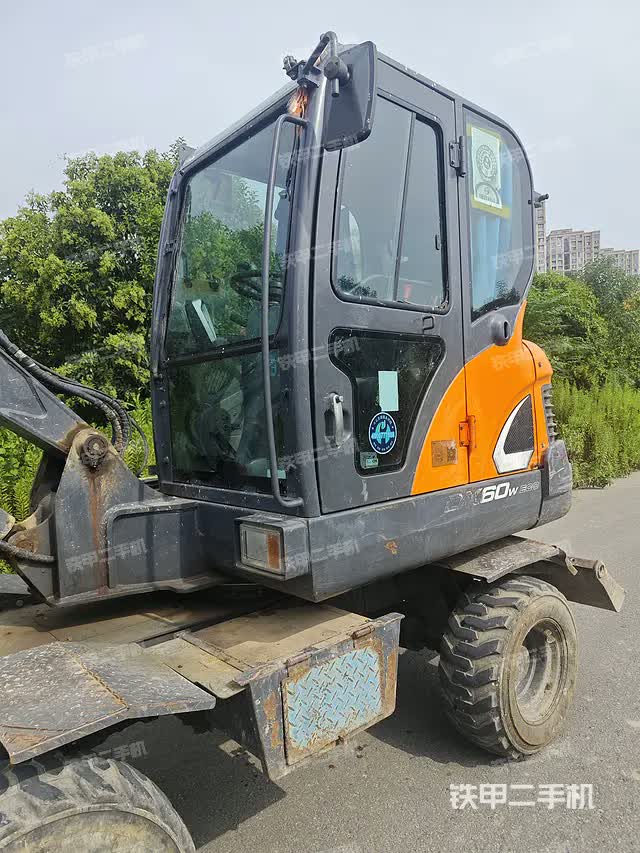

ID：1827077

• Brand: Doosan

• Model: DX60WN ECO

• Year of Manufacture: 2021

• Hours: 7,800 hours

• Location: Yangzhou, Jiangsu


• Operating Weight: 5,500 kg

• Rated Capacity: 6 tons

• Bucket Type: Backhoe (standard digging bucket)

• Power Source: Conventional diesel engine

• Manufacturer: Joint venture / imported components


• Rated Power: 39 kW at standard engine speed

• Engine Type: Advanced diesel, designed for durability and efficiency

• Cylinders: 4, turbocharged with aftercooling

• Cooling System: Water-cooled

• Displacement: Approximately 3 liters

• Fuel Efficiency: Optimized for moderate to heavy workloads


• Ground Pressure: Optimized for soft and uneven terrain

• Swing Speed: Balanced for stability and quick maneuvering

• Excavating Forces: Adequate for small to medium-scale earthmoving projects

• Travel Speed: Designed to navigate urban and construction sites efficiently


• Main Pump: Variable displacement piston pump

• Boom, Arm, and Bucket Cylinders: Engineered for smooth, precise operations

• Hydraulic Flow Control: Advanced ECO hydraulics reduce fuel consumption and enhance responsiveness


• Fuel Tank: 130–150 liters depending on configuration

• Hydraulic Oil: 95 liters

• Engine Oil Change: Approximately 12–13 liters


• Transport Length: ~6,000 mm

• Transport Width: ~2,200 mm

• Transport Height: ~2,600 mm

• Maximum Digging Depth: ~4,100 mm

• Maximum Digging Radius: ~6,300 mm

• Maximum Dumping Height: ~5,000 mm

• Minimum Ground Clearance: 350 mm

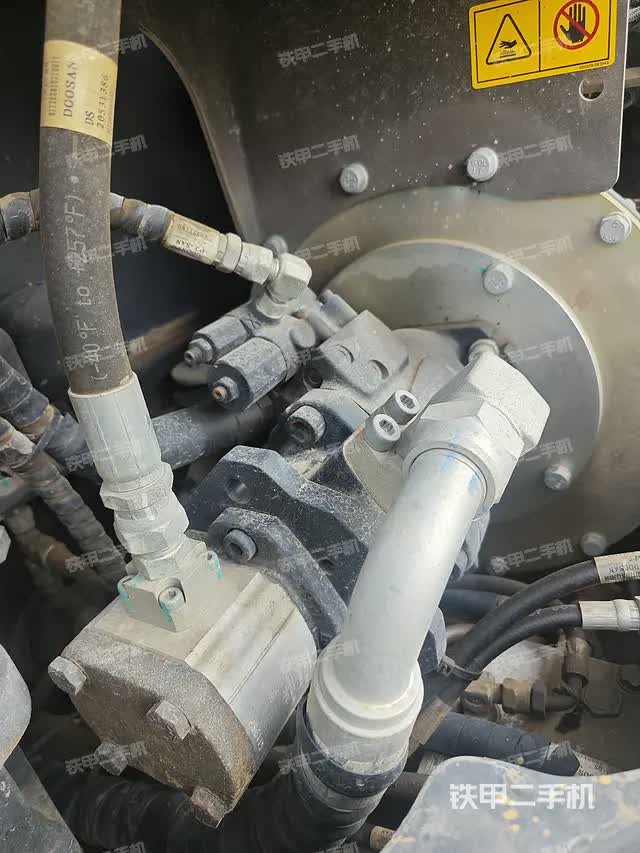

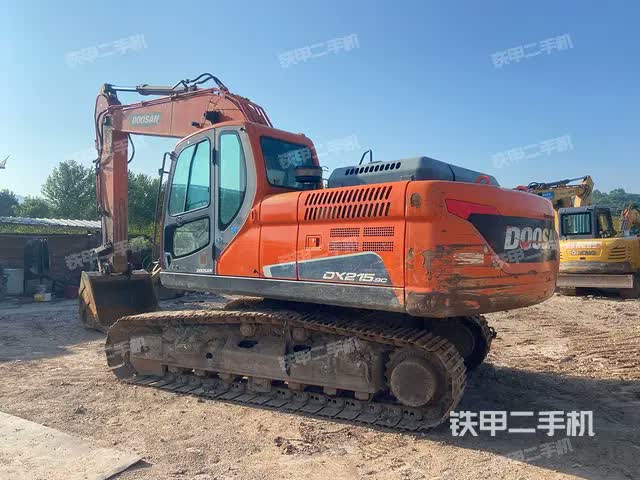

ID：1827041

• Brand: Doosan

• Model: DX215-9C

• Year of Manufacture: 2018

• Hours: 11,500 hours

• Location: Chongqing, Chongqing City


• Operating weight: 20,600 kg

• Bucket capacity: 0.92 m³

• Boom length: 5,700 mm

• Arm length: 2,900 mm

• Power type: Conventional diesel

• Bucket type: Standard backhoe


• Ground pressure: 45.8 kPa

• Swing speed: 9.8 rpm

• Bucket digging force: 136.2 kN

• Arm digging force: 98 kN

• Travel speed: 5.3/2.9 km/h


• Main pump flow: 2×191 L/min

• Travel hydraulic pressure: 34.3 MPa

• Swing hydraulic pressure: 26.5 MPa

• Main pump type: Variable displacement piston pump

• Pilot pump flow: 32 L/min

• Cylinder configuration:
  • Bucket: 1×115×80×1060 mm

  • Arm: 1×135×95×1450 mm

  • Boom: 2×120×85×1263 mm


• Fuel tank: 400 L

• Hydraulic tank: 195 L

• Engine oil change: 27 L


• Transport length: 9,506 mm

• Transport width: 2,800 mm

• Transport height: 2,891 mm

• Cab height: 2,985 mm

• Counterweight clearance: 1,096 mm

• Minimum ground clearance: 475 mm

• Track length: 4,060 mm

• Track gauge: 2,590 mm

• Track shoe width: 600 mm

• Ground contact length: 3,610 mm


• Maximum digging radius: 9,873 mm

• Maximum digging depth: 6,592 mm

• Maximum digging height: 9,616 mm

• Maximum dumping height: 6,830 mm

• Maximum vertical digging depth: 3,929 mm

• Maximum reach at ground level: 9,699 mm

• Maximum effective digging depth: 6,411 mm

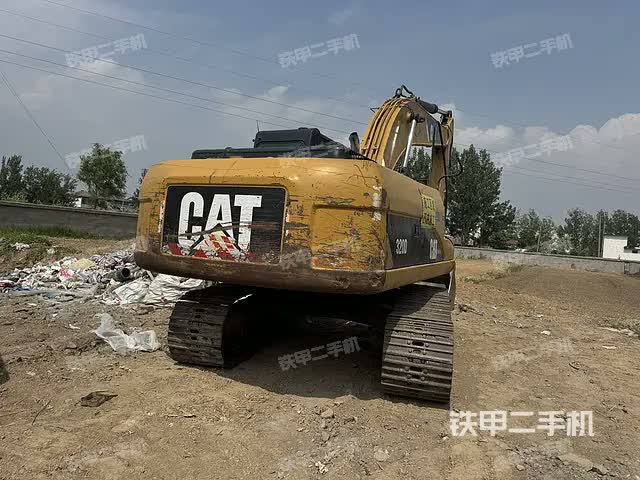

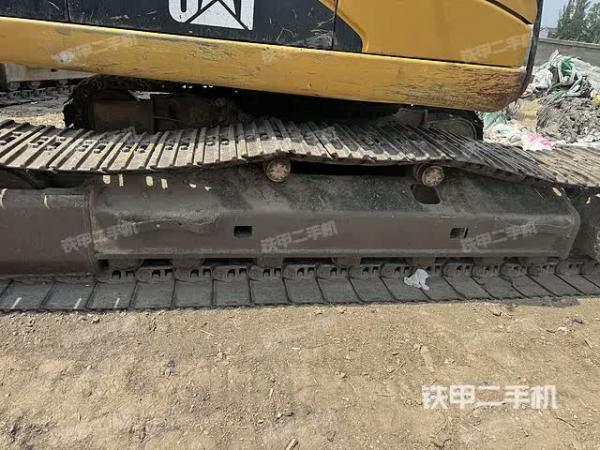

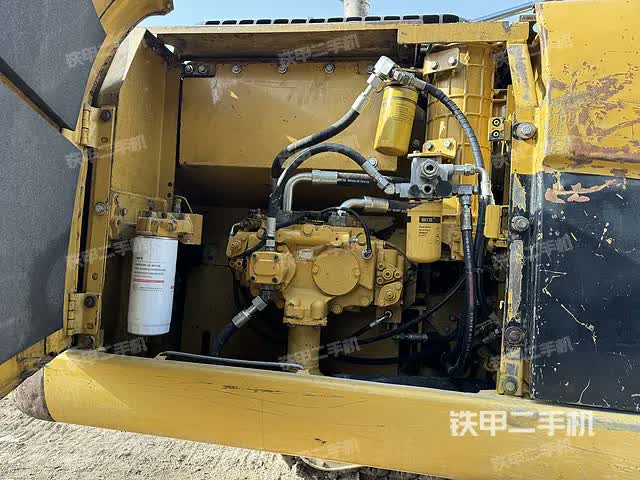

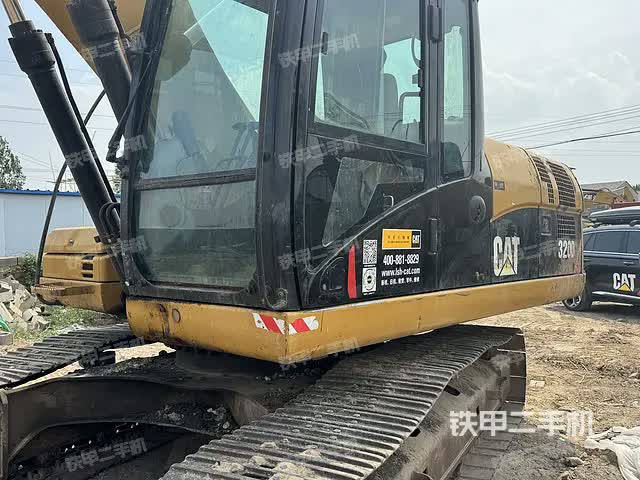

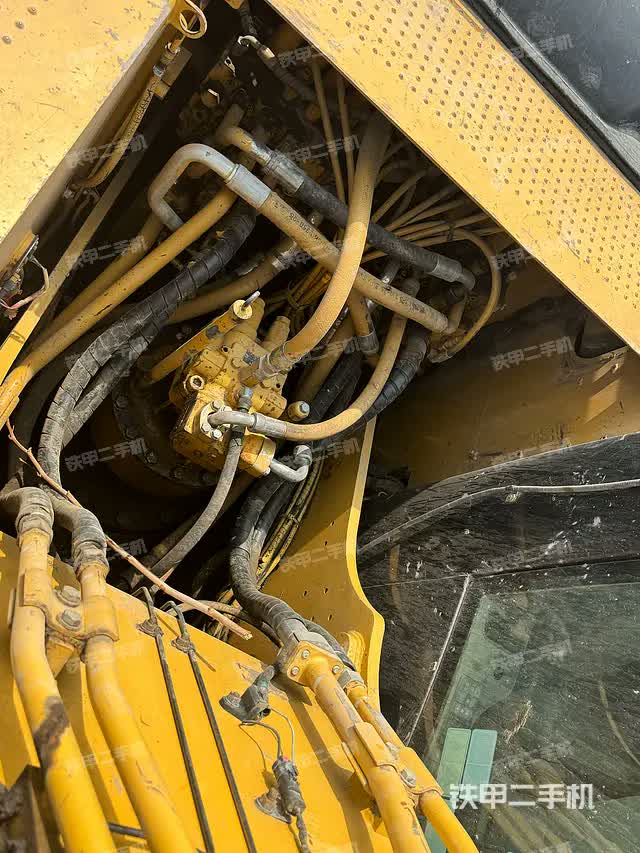

ID：1827033

• Brand: Caterpillar

• Model: 320D Hydraulic

• Year of Manufacture: 2011

• Hours: 15,000 hours

• Location: Xuzhou, Jiangsu Province


• Operating weight: 20 tons (20,930 kg)

• Bucket capacity: 1 m³

• Boom length: 5,700 mm

• Arm length: 2,900 mm

• Bucket type: Standard digging bucket (backhoe)

• Origin: Xuzhou, China

• Power system: Conventional diesel engine, imported/manufactured through a joint venture


• Engine model: Caterpillar C6.4 ACERT

• Rated power: 103 kW at 2,000 rpm

• Cooling system: Water-cooled

• Cylinder configuration: 6 cylinders

• Displacement: 6.37 L
  The C6.4 ACERT engine features advanced combustion technology and precise electronic control, which provides both fuel efficiency and high torque performance for demanding operations.


• Ground pressure: 6 KPa

• Swing speed: 11.5 rpm

• Gradeability: 70% (35°)

• Bucket digging force: 140.1 kN

• Arm digging force: 106.4 kN

• Travel speed: 3.5/5.7 km/h
  This excavator is capable of handling heavy-duty tasks such as trenching, material handling, and foundation work, thanks to its strong digging forces and stable undercarriage.


• Main pump flow: 205 L/min

• Travel hydraulic pressure: 35 MPa

• Swing hydraulic pressure: 25 MPa

• Working hydraulic pressure: 35 MPa

• Pilot hydraulic pressure: 3.9 MPa

• Cylinders: Bucket (1-120×1104 mm), Arm (1-140×1504 mm), Boom (2-120×1260 mm)
  The hydraulic system delivers smooth and precise control, essential for construction environments requiring accurate movement and load handling.


• Fuel tank: 410 L

• Hydraulic oil tank: 120 L

• Engine oil change volume: 30 L

• Coolant: 25 L

• Total hydraulic system volume: 260 L (including tank)


• Transport length: 9,460 mm

• Transport width: 2,800 mm

• Transport height: 3,050 mm

• Cab height: 2,950 mm

• Counterweight clearance: 1,020 mm

• Minimum ground clearance: 450 mm

• Rear swing radius: 2,750 mm

• Track length: 4,075 mm

• Track width: 600 mm

• Track gauge: 2,200 mm

• Track ground contact length: 3,265 mm


• Maximum digging depth: 6,710 mm

• Maximum digging height: 9,840 mm

• Maximum dumping height: 6,500 mm

• Maximum vertical digging depth: 6,180 mm

• Maximum reach at ground level: 9,850 mm

• Maximum effective digging depth: 6,540 mm
  The 320D excels in excavation and earthmoving operations, providing consistent performance in diverse terrains. Operators benefit from a comfortable cab, intuitive controls, and efficient fuel consumption.





ID：1827032

• Brand: Shin Caterpillar (ShenKong)

• Model: SK210LC-8

• Year of Manufacture: 2011

• Hours: 12,560 hours

• Location: Yan'an, Shaanxi Province

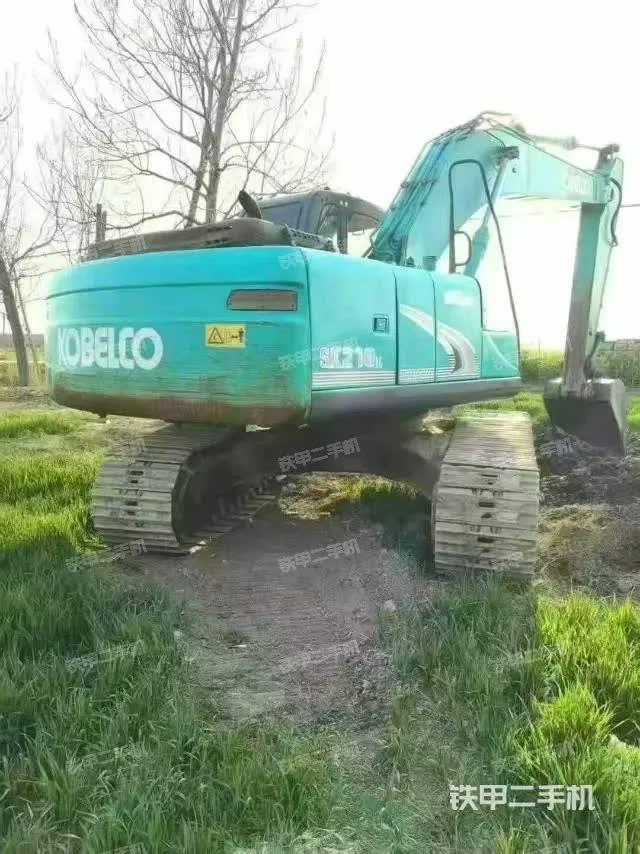

• Brand: Kobelco

• Model: SK210LC-8

• Year of Manufacture: 2011

• Operating Hours: 12,560

• Location: Shaanxi-Yan’an

• Operating Weight: 21,200–21,900 kg

• Bucket Capacity: 1 m³

• Engine Type: Diesel, conventional power

• Bucket Type: Backhoe

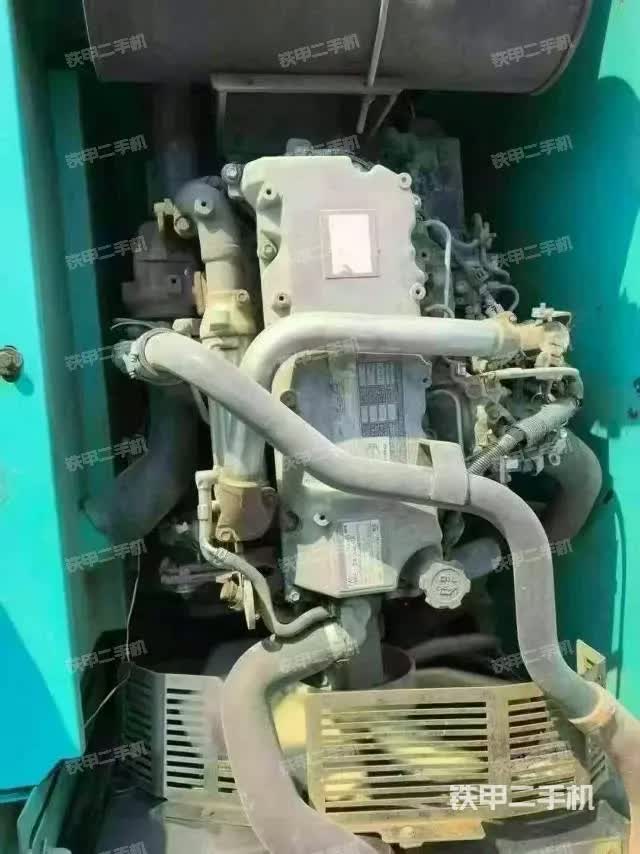

• Engine Model: Hino J05E

• Rated Power: 114 kW at 2,000 rpm

• Cooling Method: Water-cooled

• Displacement: 5.123 L

• Operating Type: Direct injection, water-cooled, four-stroke, turbocharged, intercooled


• Ground Pressure: 34–44 kPa

• Swing Speed: 12.5 rpm

• Maximum Traction Force: 229 kN

• Travel Speed: 6.0 km/h (high) / 3.6 km/h (low)

• Gradeability: 70% (35°)


• Fuel Tank: 370 L

• Hydraulic Tank: 146 L


• Transport Length: 9,450 mm

• Transport Width: 2,990 mm

• Transport Height: 2,980 mm

• Counterweight Ground Clearance: 1,060 mm

• Minimum Ground Clearance: 450 mm

• Rear Swing Radius: 2,750 mm

• Track Length: 4,450 mm

• Track Shoe Width: 600 / 700 / 800 mm


• Maximum Digging Radius: 9,000 mm

• Maximum Digging Depth: 6,700 mm

• Maximum Digging Height: 9,720 mm

• Maximum Vertical Digging Depth: 6,100 mm

• Max Excavation Radius at Transport: 5,270 mm

• Maximum Effective Digging Depth: 6,520 mm
